Page 209 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-159
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
8. Set the No. 1 cylinder at TDC on its compression stroke.
9. Remove the camshaft sprockets.
●Loosen the camshaft sprockets installation bo NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-159
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
8. Set the No. 1 cylinder at TDC on its compression stroke.
9. Remove the camshaft sprockets.
●Loosen the camshaft sprockets installation bo](/manual-img/5/57405/w960_57405-208.png)
CAMSHAFT
EM-159
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
8. Set the No. 1 cylinder at TDC on its compression stroke.
9. Remove the camshaft sprockets.
●Loosen the camshaft sprockets installation bolt by fixing the
hexagonal portion of the camshaft.
10. Remove the camshaft.
●Place distinguishing marks on the right and left sides with
paint.
●Loosen and remove the installation bolt in reverse order
shown in the figure.
11. Remove the adjusting shim and valve lifter.
●Remove by taking notice of the installation position, and place
outside engine in order to prevent confusion.
INSPECTION AFTER REMOVAL
Visual Check of Camshaft
●Check the camshaft for one sided wear or scratches.
●Replace the camshaft if there are abnormalities.
Camshaft Runout
●Prepare V-block on a flat surface and secure camshaft journals
No. 1 and No. 5.
●Set the dial gauge vertically on journal No. 3.
●Rotate camshaft in one direction by hand, then read needle
movement on dial indicator. (Total indicator reading)
Height of Cam Nose
Measure by using a micrometer.
JEM159G
JEM160G
Limit : 0.02 mm (0.0008 in)
JEM161G
Standard:
Intake : 39.505 - 39.695 mm (1.5553 - 1.5628 in
Exhaust : 39.905 - 40.095 mm (1.5711 - 1.5785 in)
SEM549A
Page 210 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-160
[YD22DDTi]
CAMSHAFT
Camshaft Oil Clearance
Measure by using a micrometer.
Camshaft Bracket Inner Diameter
●Install camshaft bracket and tighten bolts to the specified torque.
●Measure inne NISSAN X-TRAIL 2001 Service Repair Manual EM-160
[YD22DDTi]
CAMSHAFT
Camshaft Oil Clearance
Measure by using a micrometer.
Camshaft Bracket Inner Diameter
●Install camshaft bracket and tighten bolts to the specified torque.
●Measure inne](/manual-img/5/57405/w960_57405-209.png)

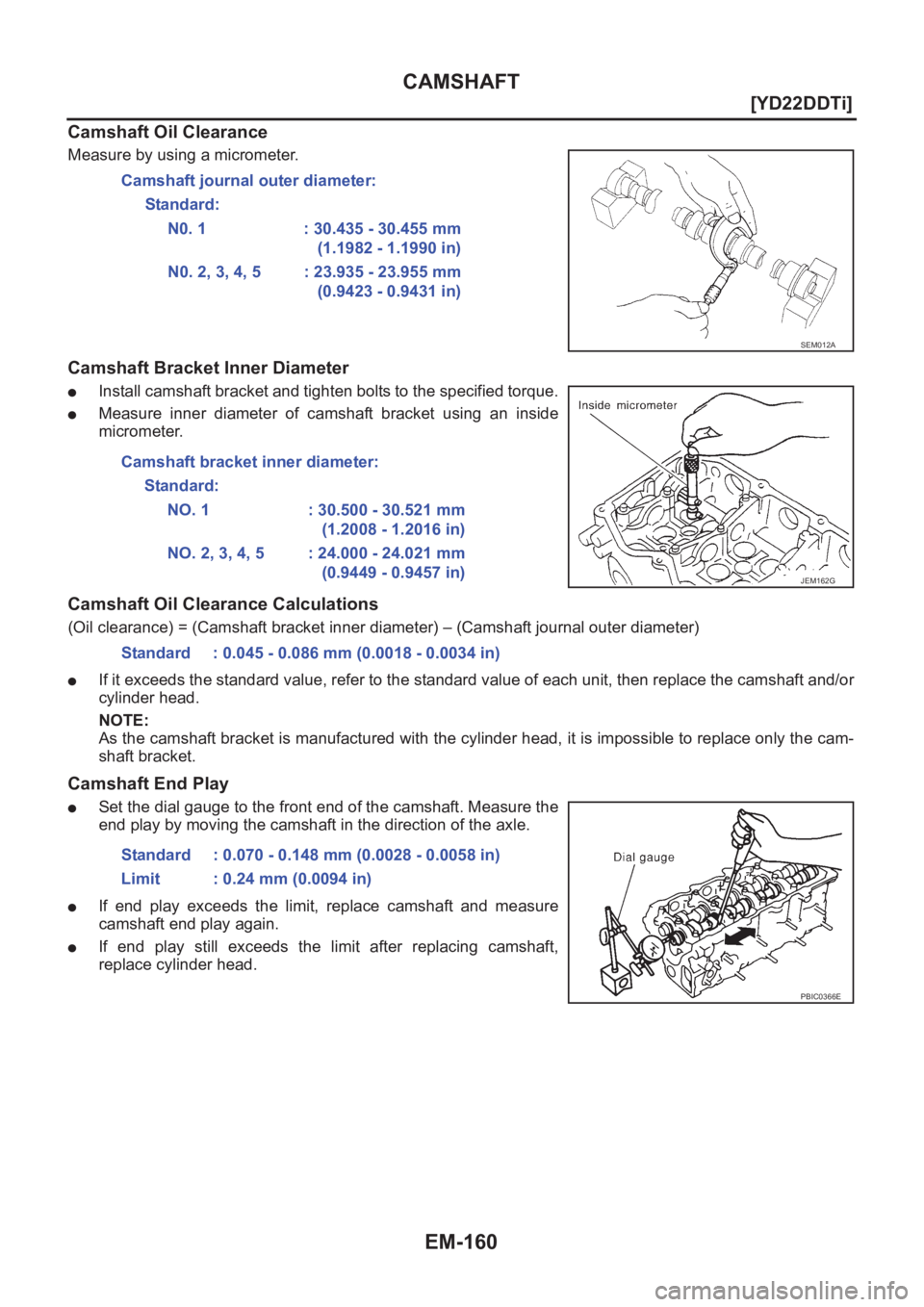

EM-160
[YD22DDTi]
CAMSHAFT
Camshaft Oil Clearance
Measure by using a micrometer.
Camshaft Bracket Inner Diameter
●Install camshaft bracket and tighten bolts to the specified torque.
●Measure inner diameter of camshaft bracket using an inside
micrometer.
Camshaft Oil Clearance Calculations
(Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal outer diameter)
●If it exceeds the standard value, refer to the standard value of each unit, then replace the camshaft and/or
cylinder head.
NOTE:
As the camshaft bracket is manufactured with the cylinder head, it is impossible to replace only the cam-
shaft bracket.
Camshaft End Play
●Set the dial gauge to the front end of the camshaft. Measure the
end play by moving the camshaft in the direction of the axle.
●If end play exceeds the limit, replace camshaft and measure
camshaft end play again.
●If end play still exceeds the limit after replacing camshaft,
replace cylinder head.Camshaft journal outer diameter:
S t a n d a r d :
N0. 1 : 30.435 - 30.455 mm
(1.1982 - 1.1990 in)
N0. 2, 3, 4, 5 : 23.935 - 23.955 mm
(0.9423 - 0.9431 in)
SEM012A
Camshaft bracket inner diameter:
Standard:
NO. 1 : 30.500 - 30.521 mm
(1.2008 - 1.2016 in)
NO. 2, 3, 4, 5 : 24.000 - 24.021 mm
(0.9449 - 0.9457 in)
JEM162G
Standard : 0.045 - 0.086 mm (0.0018 - 0.0034 in)
Standard : 0.070 - 0.148 mm (0.0028 - 0.0058 in)
Limit : 0.24 mm (0.0094 in)
PBIC0366E
Page 211 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-161
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Camshaft Sprocket Runout
1. Install sprocket on camshaft.
2. Measure camshaft sprocket runout.
3. If it exceeds the limit, replace camshaft sprocke NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-161
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Camshaft Sprocket Runout
1. Install sprocket on camshaft.
2. Measure camshaft sprocket runout.
3. If it exceeds the limit, replace camshaft sprocke](/manual-img/5/57405/w960_57405-210.png)

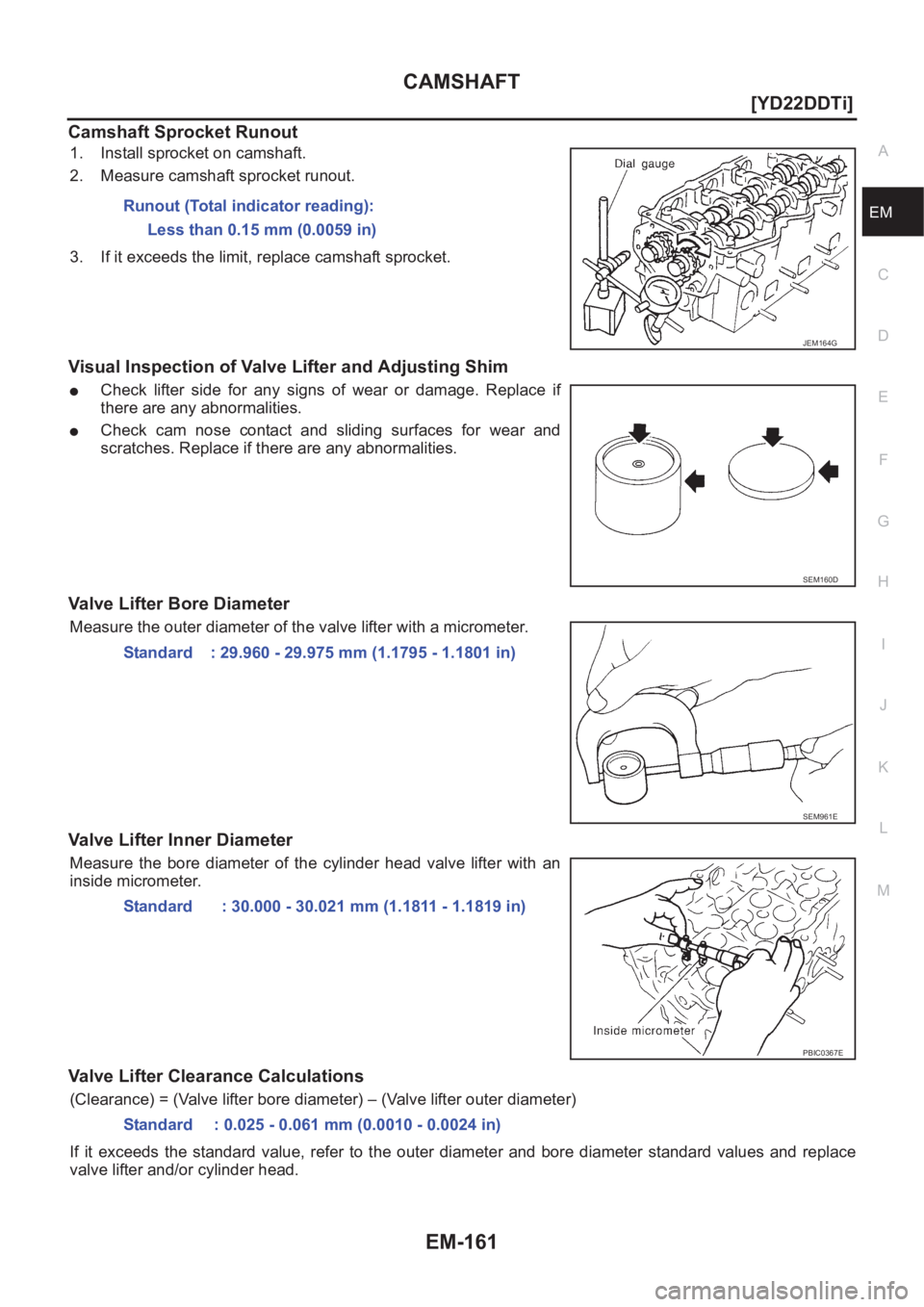

CAMSHAFT
EM-161
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Camshaft Sprocket Runout
1. Install sprocket on camshaft.
2. Measure camshaft sprocket runout.
3. If it exceeds the limit, replace camshaft sprocket.
Visual Inspection of Valve Lifter and Adjusting Shim
●Check lifter side for any signs of wear or damage. Replace if
there are any abnormalities.
●Check cam nose contact and sliding surfaces for wear and
scratches. Replace if there are any abnormalities.
Valve Lifter Bore Diameter
Measure the outer diameter of the valve lifter with a micrometer.
Valve Lifter Inner Diameter
Measure the bore diameter of the cylinder head valve lifter with an
inside micrometer.
Valve Lifter Clearance Calculations
(Clearance) = (Valve lifter bore diameter) – (Valve lifter outer diameter)
If it exceeds the standard value, refer to the outer diameter and bore diameter standard values and replace
valve lifter and/or cylinder head.Runout (Total indicator reading):
Less than 0.15 mm (0.0059 in)
JEM164G
SEM160D
Standard : 29.960 - 29.975 mm (1.1795 - 1.1801 in)
SEM961E
Standard : 30.000 - 30.021 mm (1.1811 - 1.1819 in)
PBIC0367E
Standard : 0.025 - 0.061 mm (0.0010 - 0.0024 in)
Page 212 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-162
[YD22DDTi]
CAMSHAFT
INSTALLATION
1. Install the valve lifter and adjusting shim.
●Make sure that these are installed in the same position as before the removal process.
2. Install the camshaf NISSAN X-TRAIL 2001 Service Repair Manual EM-162
[YD22DDTi]
CAMSHAFT
INSTALLATION
1. Install the valve lifter and adjusting shim.
●Make sure that these are installed in the same position as before the removal process.
2. Install the camshaf](/manual-img/5/57405/w960_57405-211.png)

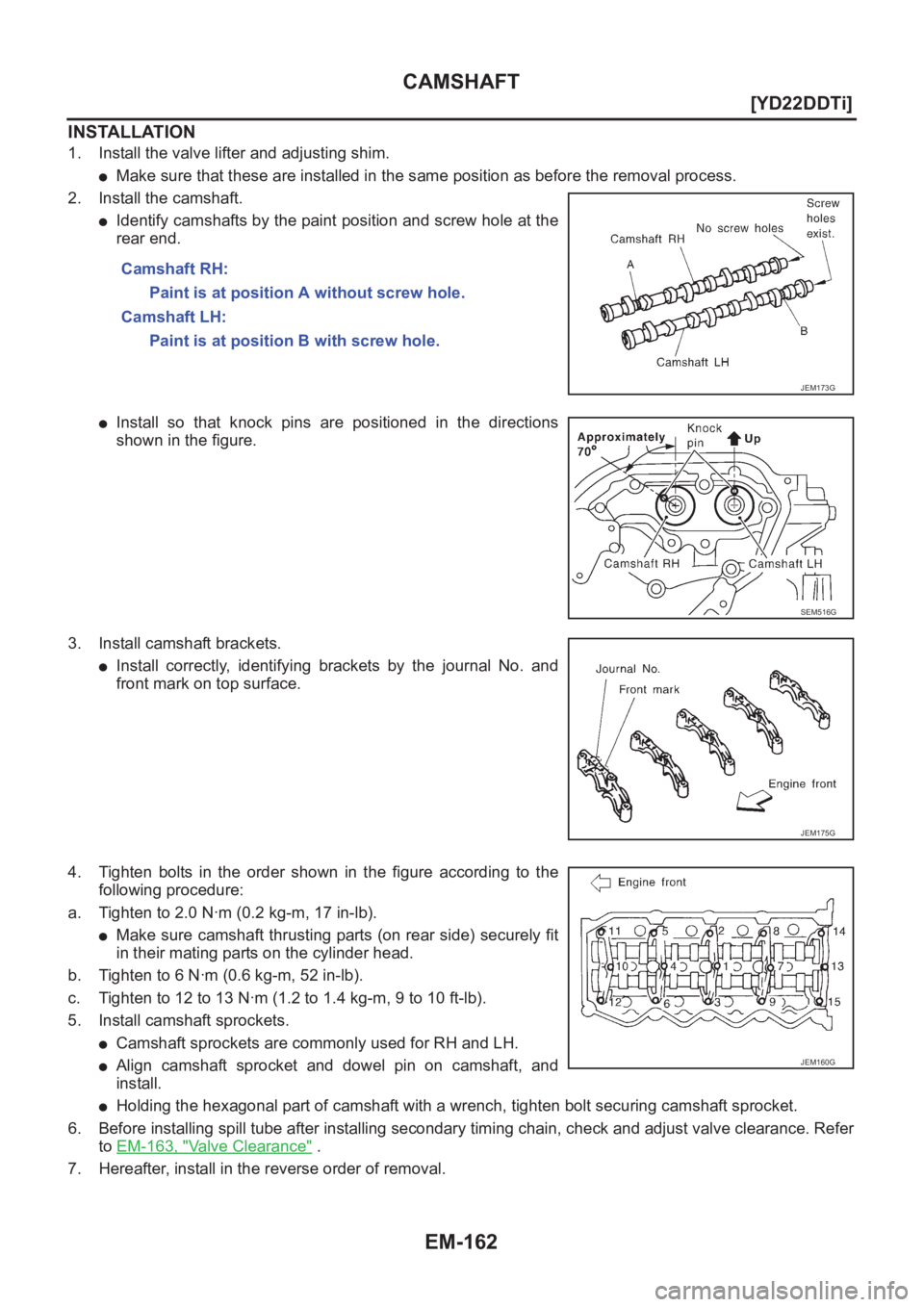

EM-162
[YD22DDTi]
CAMSHAFT
INSTALLATION
1. Install the valve lifter and adjusting shim.
●Make sure that these are installed in the same position as before the removal process.
2. Install the camshaft.
●Identify camshafts by the paint position and screw hole at the
rear end.
●Install so that knock pins are positioned in the directions
shown in the figure.
3. Install camshaft brackets.
●Install correctly, identifying brackets by the journal No. and
front mark on top surface.
4. Tighten bolts in the order shown in the figure according to the
following procedure:
a. Tighten to 2.0 N·m (0.2 kg-m, 17 in-lb).
●Make sure camshaft thrusting parts (on rear side) securely fit
in their mating parts on the cylinder head.
b. Tighten to 6 N·m (0.6 kg-m, 52 in-lb).
c. Tighten to 12 to 13 N·m (1.2 to 1.4 kg-m, 9 to 10 ft-lb).
5. Install camshaft sprockets.
●Camshaft sprockets are commonly used for RH and LH.
●Align camshaft sprocket and dowel pin on camshaft, and
install.
●Holding the hexagonal part of camshaft with a wrench, tighten bolt securing camshaft sprocket.
6. Before installing spill tube after installing secondary timing chain, check and adjust valve clearance. Refer
to EM-163, "
Valve Clearance" .
7. Hereafter, install in the reverse order of removal.Camshaft RH:
Paint is at position A without screw hole.
Camshaft LH:
Paint is at position B with screw hole.
JEM173G
SEM516G
JEM175G
JEM160G
Page 213 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-163
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Va l v e C l e a r a n c eEBS00LRS
INSPECTION
●When the camshaft or parts in connection with valves are
removed or replaced, and a NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-163
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Va l v e C l e a r a n c eEBS00LRS
INSPECTION
●When the camshaft or parts in connection with valves are
removed or replaced, and a](/manual-img/5/57405/w960_57405-212.png)
CAMSHAFT
EM-163
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Va l v e C l e a r a n c eEBS00LRS
INSPECTION
●When the camshaft or parts in connection with valves are
removed or replaced, and a malfunction has occurred (poor
starting, idling, or other malfunction) due to the misadjustment of
the valve clearance, inspect as follows.
●Inspect and adjust when the engine is cool (at normal tempera-
ture).
●Be careful of the intake and exhaust valve arrangement. The
valve arrangement is different from that in a normal engine.
NOTE:
The camshafts have, alternately, either an intake valve or an
exhaust valve.(Refer to illustration)
1. Drain engine coolant. Refer to CO-29, "
Changing Engine Coolant" .
2. Remove charge air cooler. Refer to EM-122, "
Removal and Installation" .
3. Remove air duct and air inlet pipe. Refer to EM-120, "
Removal and Installation" .
4. Remove rocker cover. Refer to EM-156, "
Removal and Installation" .
5. Remove vacuum pump. Refer to EM-139, "
Removal and Installation" .
6. Remove injection tube and fuel injector. Refer to EM-144, "
Removal and Installation" .
7. Remove secondary timing chain. Refer to EM-167, "
Removal and Installation"
Check valve clearance while engine is cold and not running.
8. Set the No. 1 piston to TDC on its compression stroke.
●Turn crankshaft pulley clockwise so that the knock pin on
camshaft LH faces straight above. (No position indicator, etc.
is provided on the crankshaft pulley.)
9. Put an alignment mark with paint, etc. on the crankshaft pulley
and on the oil pump as an angle indicator.
10. While referring to the figure, measure the valve clearance
marked in the table below.
●The injection order is 1-3-4-2.
SBIA0178E
SBIA0179E
JEM177G
Measuring pointNo. 1 No. 2 No. 3 No. 4
INT EXH INT EXH INT EXH INT EXH
When the No. 1
cylinder is in the
TDCXXX X
SBIA0180E
Page 214 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-164
[YD22DDTi]
CAMSHAFT
●Measure the valve clearance using a fine feeler gauge when
the engine is cool (at normal temperature).
11. Set the No. 4 cylinder at TDC by rotating the NISSAN X-TRAIL 2001 Service Repair Manual EM-164
[YD22DDTi]
CAMSHAFT
●Measure the valve clearance using a fine feeler gauge when
the engine is cool (at normal temperature).
11. Set the No. 4 cylinder at TDC by rotating the](/manual-img/5/57405/w960_57405-213.png)
EM-164
[YD22DDTi]
CAMSHAFT
●Measure the valve clearance using a fine feeler gauge when
the engine is cool (at normal temperature).
11. Set the No. 4 cylinder at TDC by rotating the crankshaft clock-
wise once.
12. While referring to the figure, measure the valve clearance
marked in the table below.
13. If the valve clearance is outside the specification, adjust as fol-
lows.
ADJUSTMENTS
●Remove the adjusting shim for parts which are outside the spec-
ified valve clearance.
1. Remove the spill tube. Refer to EM-144, "
Removal and Installa-
tion" .
2. Extract the engine oil on the upper side of the cylinder head (for
the air blowing in step 7).
3. Rotate the crankshaft to face the camshaft for adjusting shims
that are to be removed upward.
4. Grip the camshaft with camshaft pliers, them using the camshaft
as a support point, push the adjusting shim downward to com-
press the valve spring.
CAUTION:
Do not damage the camshaft, cylinder head and the outer
circumference of the valve lifter.Valve clearance (Cold):
Standard:
Intake : 0.24 - 0.32 mm (0.0094 - 0.0126 in)
Exhaust : 0.26 - 0.34 mm (0.0102 - 0.0134 in)
SBIA0181E
Measuring pointNo. 1 No. 2 No. 3 No. 4
INT EXH INT EXH INT EXH INT EXH
When the No. 4
cylinder is in the
TDCXX XX
SBIA0182E
SBIA0183E
SBIA0184E
Page 215 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-165
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. With the valve spring in a compressed state, remove the cam-
shaft pliers by securely setting the outer circumference of the
NISSAN X-TRAIL 2001 Service Repair Manual CAMSHAFT
EM-165
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. With the valve spring in a compressed state, remove the cam-
shaft pliers by securely setting the outer circumference of the](/manual-img/5/57405/w960_57405-214.png)

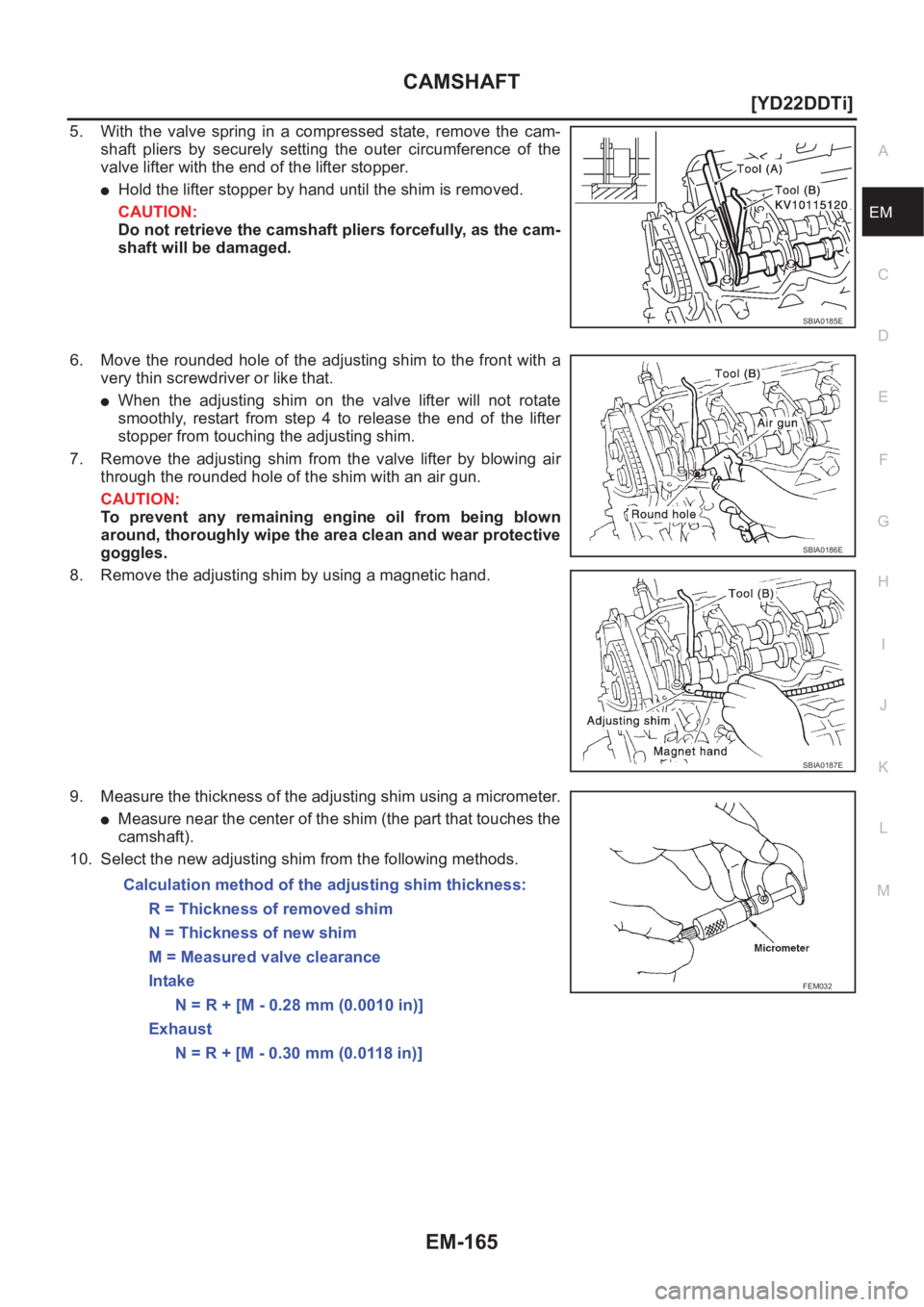

CAMSHAFT
EM-165
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. With the valve spring in a compressed state, remove the cam-
shaft pliers by securely setting the outer circumference of the
valve lifter with the end of the lifter stopper.
●Hold the lifter stopper by hand until the shim is removed.
CAUTION:
Do not retrieve the camshaft pliers forcefully, as the cam-
shaft will be damaged.
6. Move the rounded hole of the adjusting shim to the front with a
very thin screwdriver or like that.
●When the adjusting shim on the valve lifter will not rotate
smoothly, restart from step 4 to release the end of the lifter
stopper from touching the adjusting shim.
7. Remove the adjusting shim from the valve lifter by blowing air
through the rounded hole of the shim with an air gun.
CAUTION:
To prevent any remaining engine oil from being blown
around, thoroughly wipe the area clean and wear protective
goggles.
8. Remove the adjusting shim by using a magnetic hand.
9. Measure the thickness of the adjusting shim using a micrometer.
●Measure near the center of the shim (the part that touches the
camshaft).
10. Select the new adjusting shim from the following methods.
SBIA0185E
SBIA0186E
SBIA0187E
Calculation method of the adjusting shim thickness:
R = Thickness of removed shim
N = Thickness of new shim
M = Measured valve clearance
Intake
N = R + [M - 0.28 mm (0.0010 in)]
Exhaust
N = R + [M - 0.30 mm (0.0118 in)]
FEM032
Page 216 of 3833

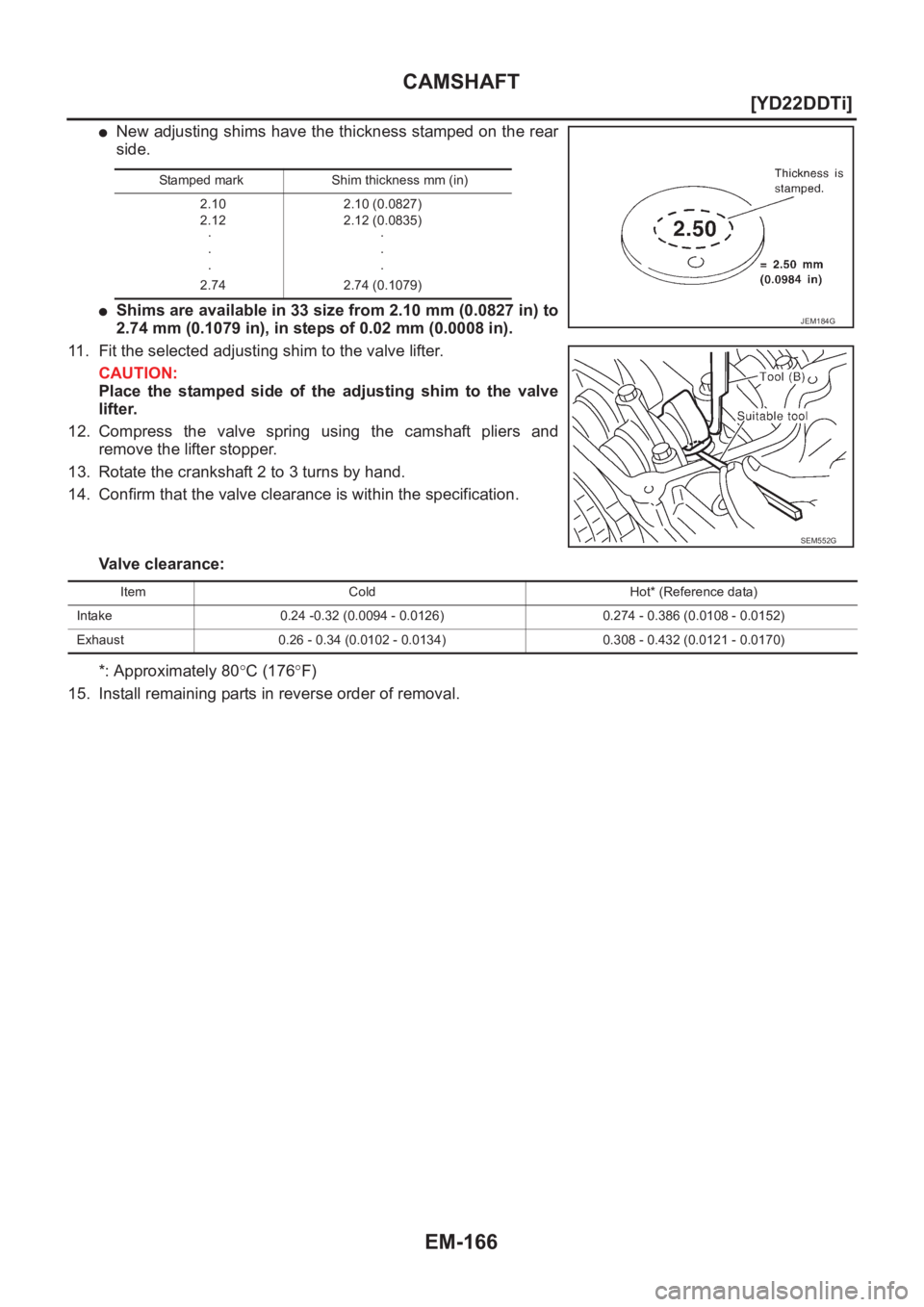

EM-166
[YD22DDTi]
CAMSHAFT
●New adjusting shims have the thickness stamped on the rear
side.
●Shims are available in 33 size from 2.10 mm (0.0827 in) to
2.74 mm (0.1079 in), in steps of 0.02 mm (0.0008 in).
11. Fit the selected adjusting shim to the valve lifter.
CAUTION:
Place the stamped side of the adjusting shim to the valve
lifter.
12. Compress the valve spring using the camshaft pliers and
remove the lifter stopper.
13. Rotate the crankshaft 2 to 3 turns by hand.
14. Confirm that the valve clearance is within the specification.
Valve clearance:
*: Approximately 80°C (176°F)
15. Install remaining parts in reverse order of removal.
Stamped mark Shim thickness mm (in)
2.10
2.12
·
·
·
2.74 2.10 (0.0827)
2.12 (0.0835)
·
·
·
2.74 (0.1079)
JEM184G
SEM552G
Item Cold Hot* (Reference data)
Intake 0.24 -0.32 (0.0094 - 0.0126) 0.274 - 0.386 (0.0108 - 0.0152)
Exhaust 0.26 - 0.34 (0.0102 - 0.0134) 0.308 - 0.432 (0.0121 - 0.0170)
