TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-307
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V
13 R/LO/D OFF indica-
tor lampWhen setting overdrive control or A/
T check switch in “OFF” position.0V
When setting overdrive control or A/
T check switch in “ON” position.Battery voltage
19 BR/W Power source
or Same as No. 10
20 L/BOverrun clutch
solenoid valveWhen overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.0V
22 L/OROverdrive control
switch
and When setting overdrive control
switch in “ON” positionBattery voltage
When setting overdrive control
switch in “OFF” position0V
25 B/W Ground — — 0V
26 BR/YPNP switch “1”
position
and When setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 LPNP switch “2”
positionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
28 R/BPower source
(Memory back-up)
or When turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis
connector.
*1: A circuit tester cannot be used to
test this item.450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
30 *3 G/B CONSULT- II (RX) — —
31 *3 GY/L CONSULT- II (TX) — — Termi-
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)
Page 2386 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-308
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.32 *2 RThrottle position
s NISSAN X-TRAIL 2001 Service Repair Manual AT-308
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.32 *2 RThrottle position
s](/manual-img/5/57405/w960_57405-2385.png)
AT-308
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.32 *2 RThrottle position
sensor
(Power source)
or When turning ignition switch to “ON”. 4.5 - 5.5V
When turning ignition switch to
“OFF”.0V
34 W/GPNP switch “D”
position
and When setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
39 *2 L/OREngine speed sig-
nal
and Refer to EC-479, "
ECM INSPEC-
TION TABLE" (QR25DE) or EC-
1166, "ECM INSPECTION TABLE"
(QR20DE).—
40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V
42 BThrottle position
sensor
(Ground)———
45 P Stop lamp switchWhen depressing brake pedal. Battery voltage
When releasing brake pedal. 0V
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
48 B/W Ground — — — Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)
Page 2387 of 3833
CAN COMMUNICATION
AT-309
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
CAN COMMUNICATIONPFP:23710
System DescriptionECS004VQ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
FOR A/T MODELS
System diagram
Input/output signal chart
T: Transmit R: Receive
SKIA0884E
Signals ECM TCM
Engine coolant temperature signal T R
Accelerator pedal position signal T R
A/T self-diagnosis signal R T
Page 2388 of 3833
AT-310
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
TROUBLE DIAGNOSES FOR SYMPTOMS
PFP:00100

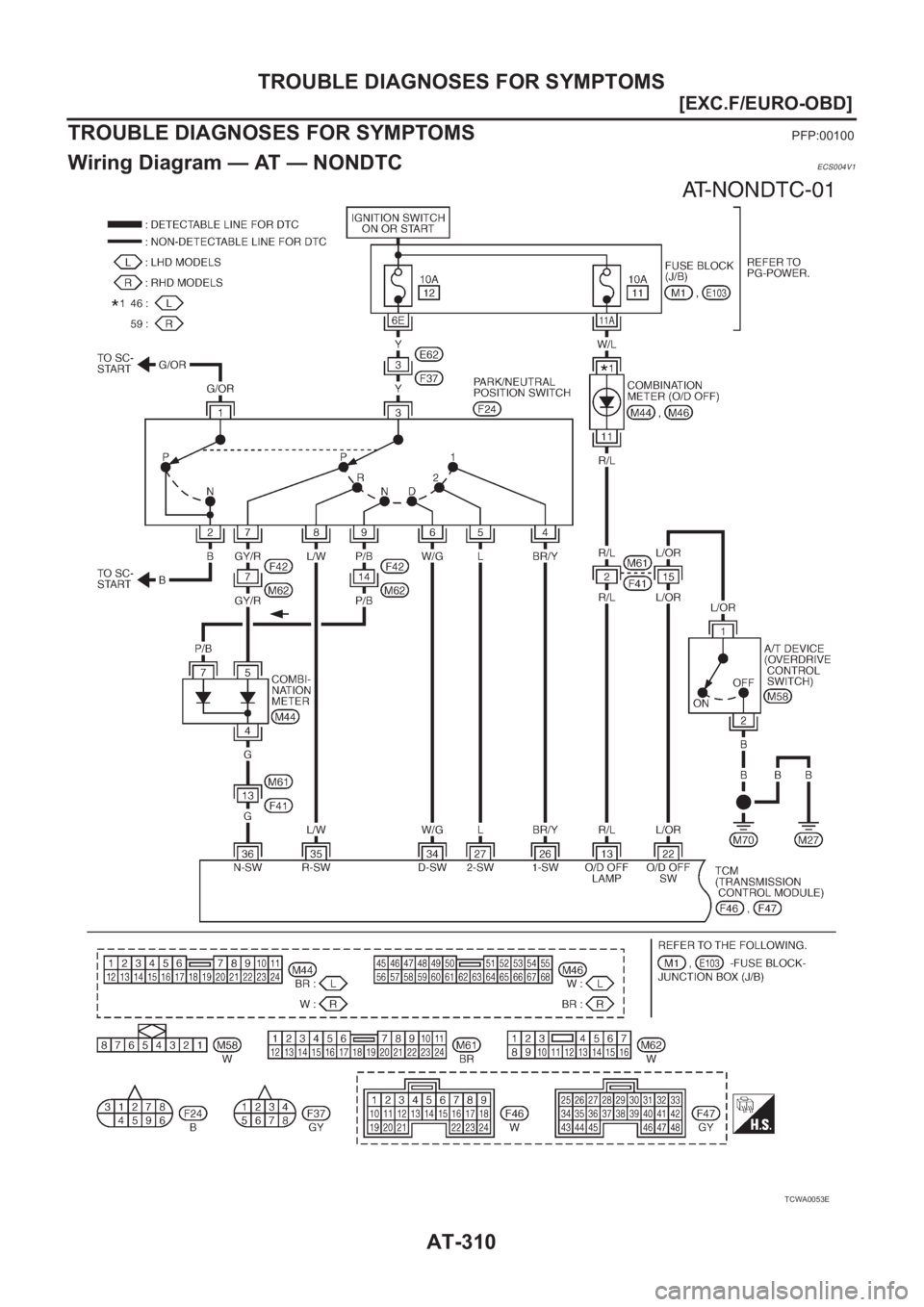

Wiring Diagram — AT — NONDTCECS004V1
TCWA0053E
Page 2389 of 3833
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-311
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

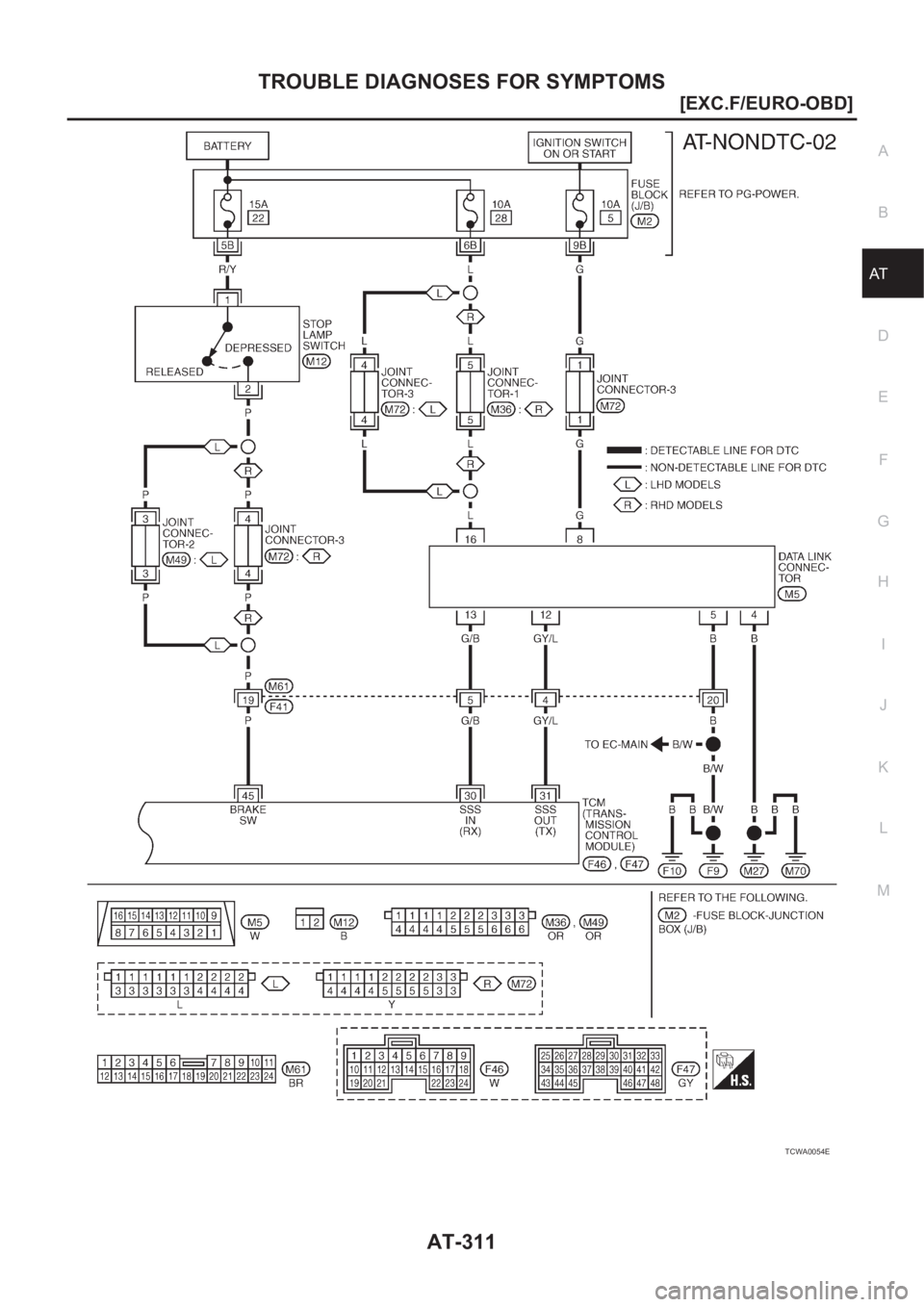

TCWA0054E
Page 2390 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-312
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
O/D OFF Indicator Lamp Does Not Come On
ECS004V2
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switc NISSAN X-TRAIL 2001 Service Repair Manual AT-312
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
O/D OFF Indicator Lamp Does Not Come On
ECS004V2
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switc](/manual-img/5/57405/w960_57405-2389.png)
AT-312
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
O/D OFF Indicator Lamp Does Not Come On
ECS004V2
SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to “ON”.
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to “OFF” position.
4. Check voltage between TCM terminal 28 and ground.
OK or NG
OK >> GO TO 2.
NG >> Check the following items:
●Harness for short or open between ignition switch and
TCM terminals 10, 19 and 28
●Refer to AT-350, "Wiring Diagram — AT — MAIN" .
●Ignition switch and fuse. Refer to PG-2, "POWER SUPPLY ROUTING" .
2. CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Refer to AT- 3 5 0 , "
Wiring Dia-
gram — AT — MAIN" .
SCIA0765E
Voltage: Battery voltage
Voltage: Battery voltage
SCIA0713E
Continuity should exist.
SCIA0766E
Page 2391 of 3833
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-313
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK LAMP CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Check resistance between TCM terminals 13 and 10, 19.
3. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Check the following items:
●O/D OFF indicator lamp.
Refer to DI-10, "
Meter/Gauge Operation and Odo/Trip
Meter Segment Check in Diagnosis Mode" .
●Harness and fuse for short or open between ignition
switch and O/D OFF indicator lamp
Refer to PG-2, "
POWER SUPPLY ROUTING" .
●Harness for short or open between O/D OFF indicator lamp and TCM.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance: 50 - 100Ω
SCIA0767E
Page 2392 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-314
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Engine Cannot Be Started In “P” and “N” Position
ECS004V3
SYMPTOM:
●Engine cannot be started with selector lever in “P” or “N” NISSAN X-TRAIL 2001 Service Repair Manual AT-314
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Engine Cannot Be Started In “P” and “N” Position
ECS004V3
SYMPTOM:
●Engine cannot be started with selector lever in “P” or “N”](/manual-img/5/57405/w960_57405-2391.png)
AT-314
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Engine Cannot Be Started In “P” and “N” Position
ECS004V3
SYMPTOM:
●Engine cannot be started with selector lever in “P” or “N” position.
●Engine can be started with selector lever in “D”, “2”, “1” or “R” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 4 4 , "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2.
2. CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to AT-344, "
TCM Self-diagnosis Does Not Activate" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace PNP switch.
3. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
4. CHECK STARTING SYSTEM
Check starting system. Refer to SC-20, "
STARTING SYSTEM" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
SCIA0706E
SCIA0768E
SAT023JB
