Page 2985 of 3833
SEAT BELTS
SB-3
C
D
E
F
G
I
J
K
L
MA
B
SB

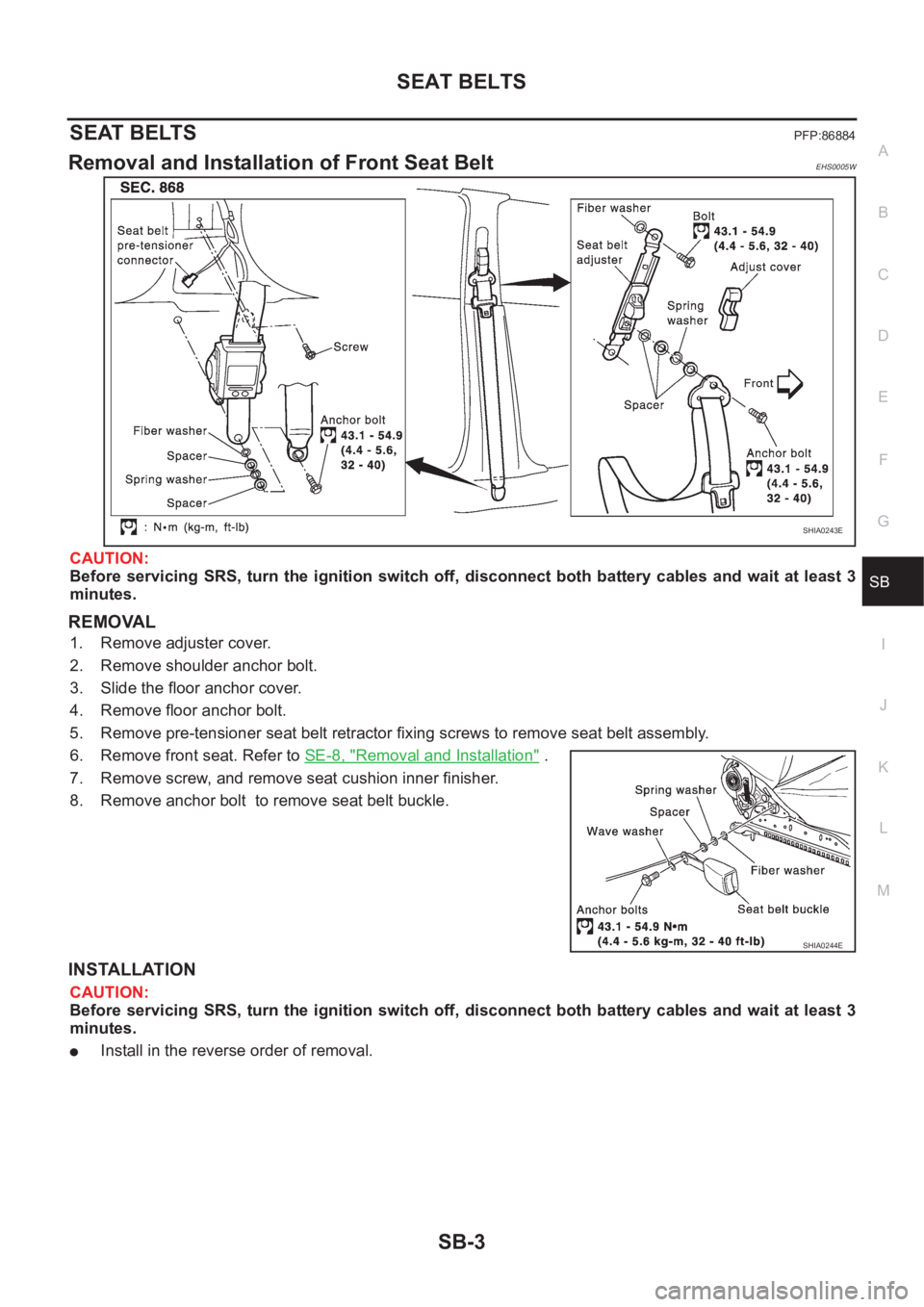

SEAT BELTSPFP:86884
Removal and Installation of Front Seat BeltEHS0005W
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
REMOVAL
1. Remove adjuster cover.
2. Remove shoulder anchor bolt.
3. Slide the floor anchor cover.
4. Remove floor anchor bolt.
5. Remove pre-tensioner seat belt retractor fixing screws to remove seat belt assembly.
6. Remove front seat. Refer to SE-8, "
Removal and Installation" .
7. Remove screw, and remove seat cushion inner finisher.
8. Remove anchor bolt to remove seat belt buckle.
INSTALLATION
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
●Install in the reverse order of removal.
SHIA0243E
SHIA0244E
Page 2986 of 3833
SB-4
SEAT BELTS

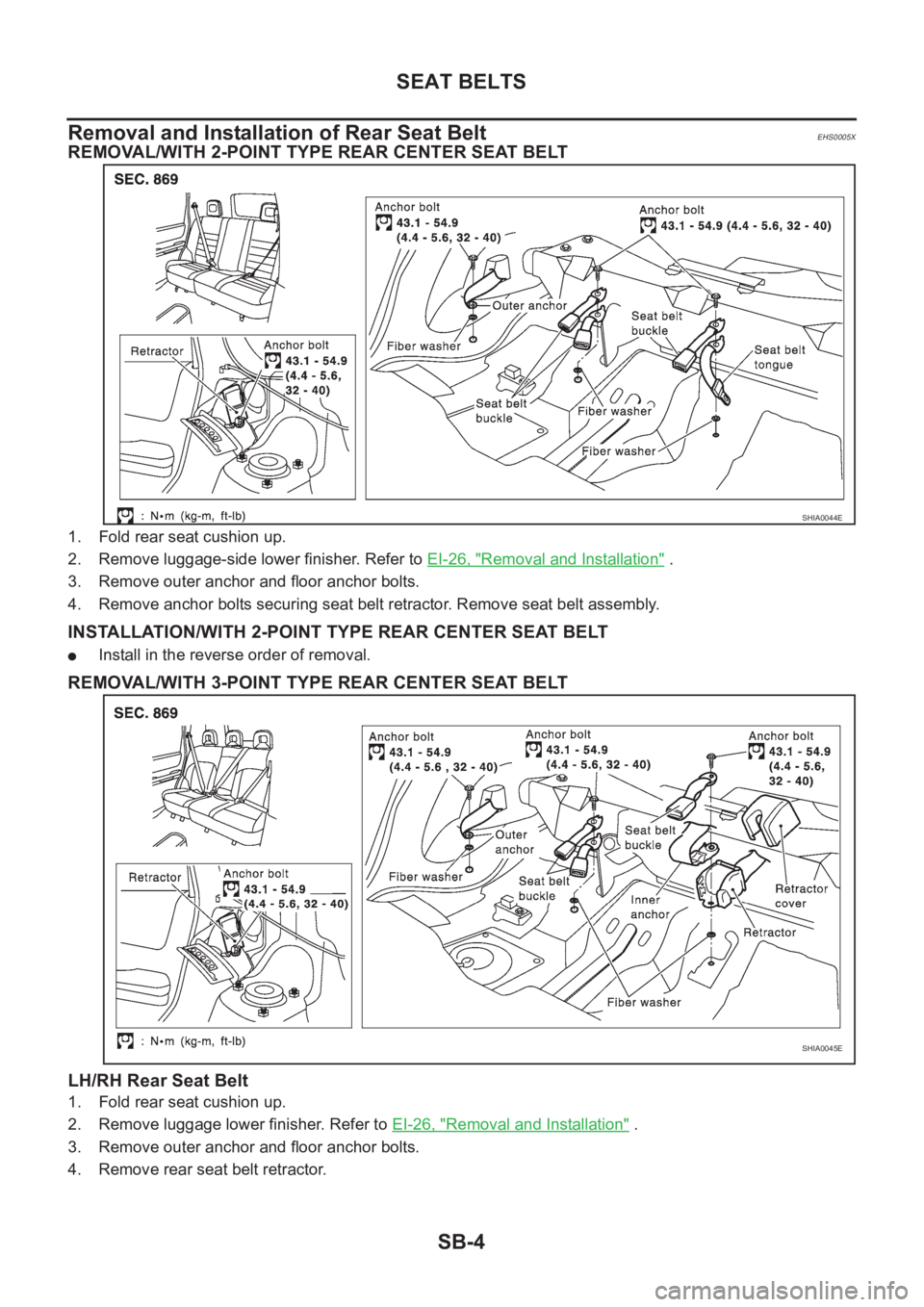

Removal and Installation of Rear Seat Belt
EHS0005X
REMOVAL/WITH 2-POINT TYPE REAR CENTER SEAT BELT
1. Fold rear seat cushion up.
2. Remove luggage-side lower finisher. Refer to EI-26, "
Removal and Installation" .
3. Remove outer anchor and floor anchor bolts.
4. Remove anchor bolts securing seat belt retractor. Remove seat belt assembly.
INSTALLATION/WITH 2-POINT TYPE REAR CENTER SEAT BELT
●Install in the reverse order of removal.
REMOVAL/WITH 3-POINT TYPE REAR CENTER SEAT BELT
LH/RH Rear Seat Belt
1. Fold rear seat cushion up.
2. Remove luggage lower finisher. Refer to EI-26, "
Removal and Installation" .
3. Remove outer anchor and floor anchor bolts.
4. Remove rear seat belt retractor.
SHIA0044E
SHIA0045E
Page 2987 of 3833
SEAT BELTS
SB-5
C
D
E
F
G
I
J
K
L
MA
B
SB

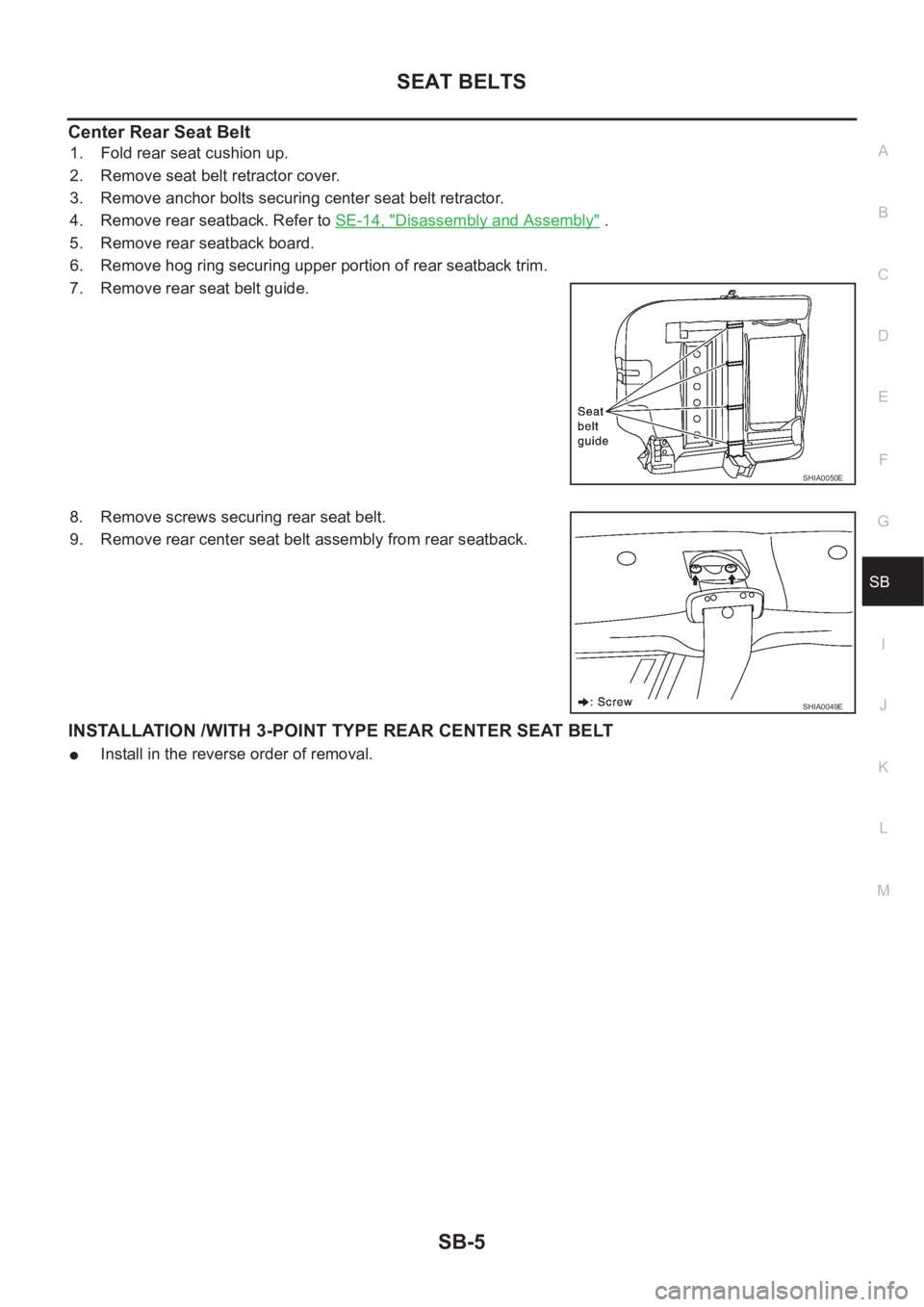

Center Rear Seat Belt
1. Fold rear seat cushion up.
2. Remove seat belt retractor cover.
3. Remove anchor bolts securing center seat belt retractor.
4. Remove rear seatback. Refer to SE-14, "
Disassembly and Assembly" .
5. Remove rear seatback board.
6. Remove hog ring securing upper portion of rear seatback trim.
7. Remove rear seat belt guide.
8. Remove screws securing rear seat belt.
9. Remove rear center seat belt assembly from rear seatback.
INSTALLATION /WITH 3-POINT TYPE REAR CENTER SEAT BELT
●Install in the reverse order of removal.
SHIA0050E
SHIA0049E
Page 2988 of 3833

SB-6
SEAT BELT WARNING SYSTEM
SEAT BELT WARNING SYSTEM
PFP:25045
Component Parts and Harness Connector LocationEHS000H6
System DescriptionEHS000GP
DRIVER SIDE
Power is supplied at all times:
●through 10A fuse [No. 11, located in fuse block (J/B)]
●to combination meter terminal 46 (LHD models) or 59 (RHD models).
Ground is supplied:
●from seat belt buckle switch (driver side) terminal 1
●to time control unit terminal 21
Seat belt buckle switch (driver side) terminal 2 is grounded through body grounds B8 and B18.
PASSENGER SIDE
Power is supplied at all times:
●through 10A fuse [No. 11, located in fuse block (J/B)]
●to seat belt warning lamp (passenger side) terminal 1.
Ground is supplied:
●through seat belt pressure switch terminals 3 and 4
●through seat belt buckle switch (passenger side) terminal 1
●to time control unit terminal 22
SEAT BELT WARNING CHIME AND SEAT BELT WARNING LAMP
Driver side
When the vehicle speed exceeds 25 km/h (16 MPH) with front driver side seat belt unfastened (seat belt
switch ON), warning chime will sound for approximately 90 seconds and seat belt warning lamp is flashed.
If the seat belt are fastened, then unfastened again, warning chime will sound and seat belt warning lamp is
flashed.
SHIA0329E
Page 2989 of 3833
SEAT BELT WARNING SYSTEM
SB-7
C
D
E
F
G
I
J
K
L
MA
B
SB

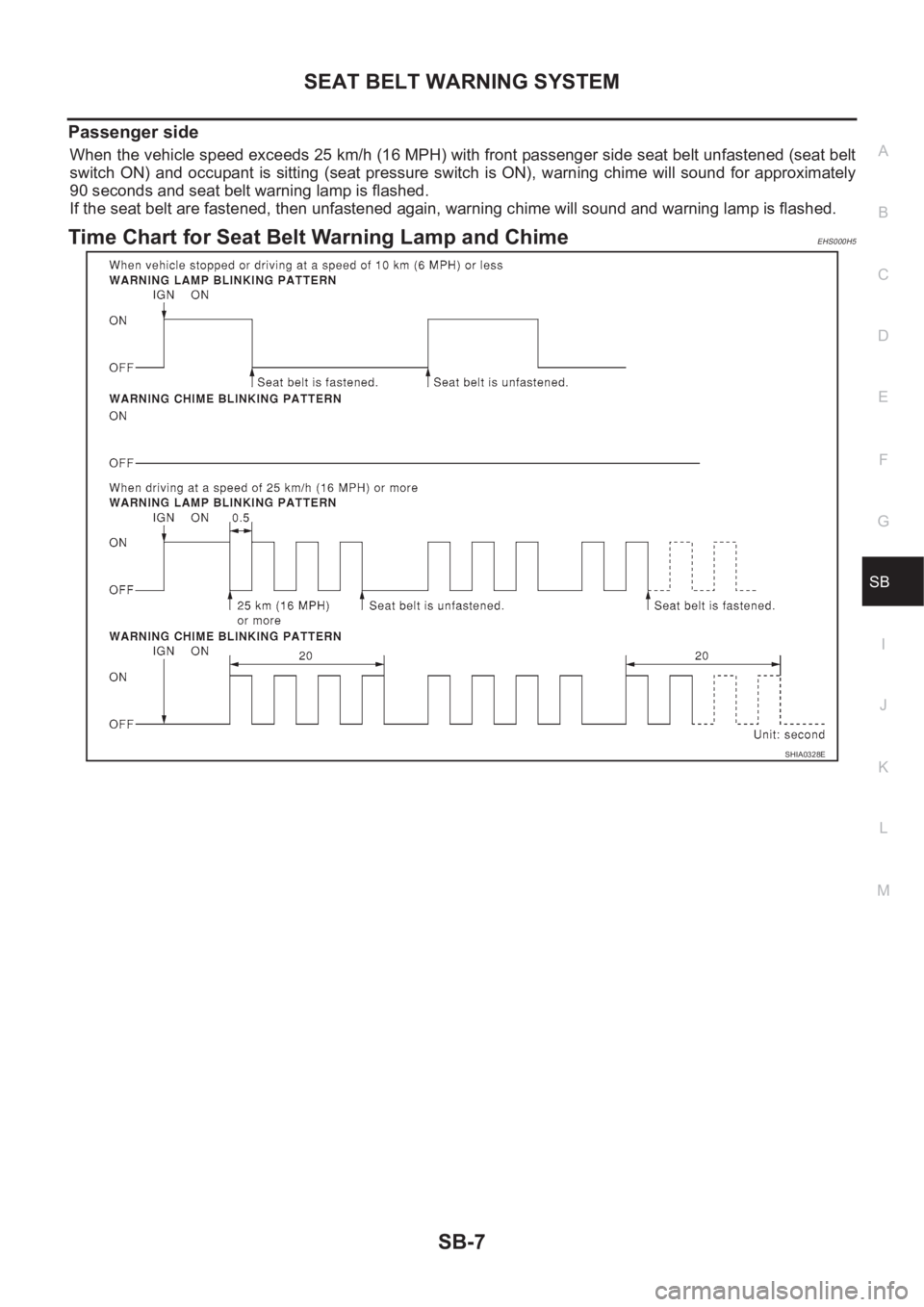

Passenger side
When the vehicle speed exceeds 25 km/h (16 MPH) with front passenger side seat belt unfastened (seat belt
switch ON) and occupant is sitting (seat pressure switch is ON), warning chime will sound for approximately
90 seconds and seat belt warning lamp is flashed.
If the seat belt are fastened, then unfastened again, warning chime will sound and warning lamp is flashed.
Time Chart for Seat Belt Warning Lamp and ChimeEHS000H5
SHIA0328E
Page 2990 of 3833
SB-8
SEAT BELT WARNING SYSTEM

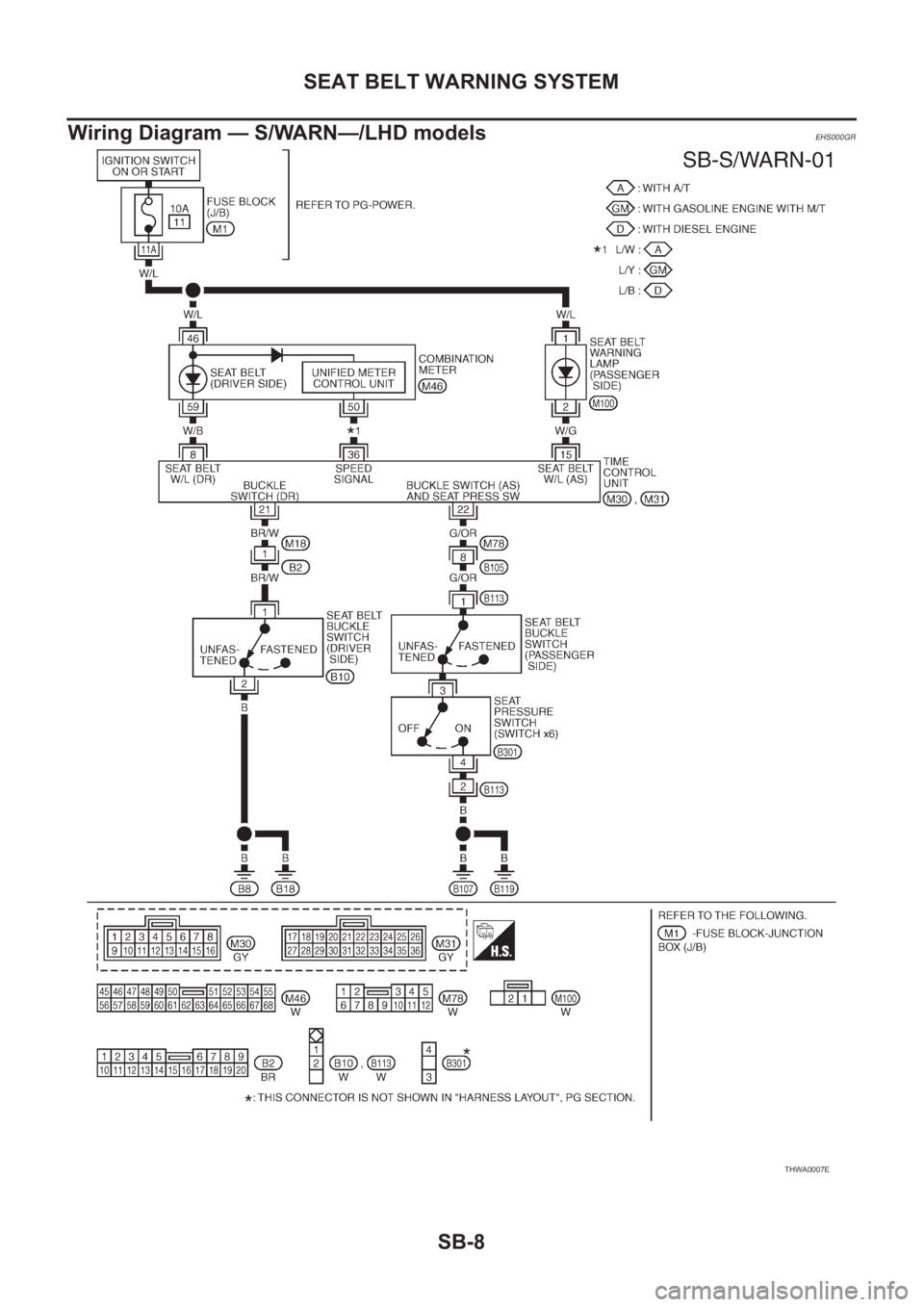

Wiring Diagram — S/WARN—/LHD models
EHS000GR
THWA0007E
Page 2991 of 3833
SEAT BELT WARNING SYSTEM
SB-9
C
D
E
F
G
I
J
K
L
MA
B
SB

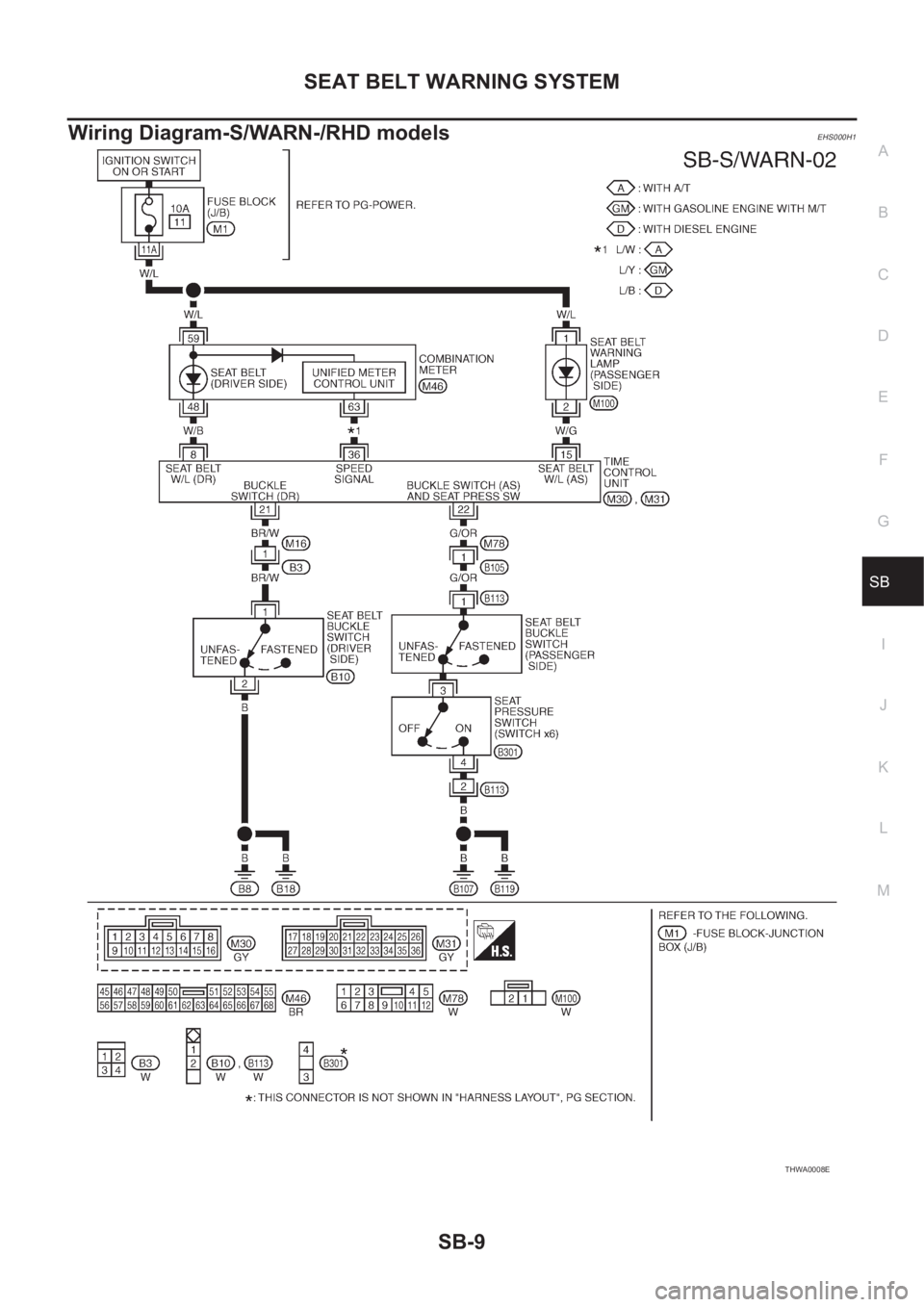

Wiring Diagram-S/WARN-/RHD modelsEHS000H1
THWA0008E
Page 2992 of 3833

SB-10
SEAT BELT WARNING SYSTEM
Terminal and Reference Value for Time Control Unit
EHS000H3
NOTE:
*1: When seat pressure switch is ON.
*2: Wire color is different depending on vehicle. Each wire color are as follows:
Symptom ChartEHS000GS
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
8W/BSeat belt warning lamp
(driver side) signalSeat belt warning lamp (driver
side) is illuminated.0
Seat belt warning lamp (driver
side) is not illuminated.Battery voltage
15 W/GSeat belt warning lamp
(passenger side) signalSeat belt warning lamp (passen-
ger side) is illuminated.0
Seat belt warning lamp (passen-
ger side) is not illuminated.Battery voltage
21 BR/WSeat belt buckle switch
(driver side) signalSeat belt buckle switch (driver
side) is unfastened.0
Seat belt buckle switch (driver
side) is fastened.Battery voltage
22 G/ORSeat belt buckle switch
(passenger side) signalSeat belt buckle switch (passen-
ger side) is unfastened.*10
Seat belt buckle switch (passen-
ger side) is fastened.*1Battery voltage
36 *2 Vehicle speed signal When the vehicle speed is
approx. 40km (25MPH).
Vehicle Wire color
A/T models L/W
M/T models with gasoline engine L/Y
Diesel engine models L/B
ELF1080D
Symptom Diagnoses/Service procedure Reference page
Seat belt warning lamp (driver side) is not
illuminated.Seat belt warning lamp inspection (driver side)SB-11
Seat belt buckle switch inspection (driver side)SB-14
If the above system are normal, replace time control unit. —
Seat belt warning lamp (passenger side) is
not illuminated.Seat belt warning lamp inspection (passenger side)SB-13
Seat belt buckle switch inspection (passenger side)SB-15
Seat pressure switch inspectionSB-16
If the above system are normal, replace time control unit. —
Seat belt chime does not activate.(Seat belt
warning lamp is operated)Vehicle speed signal inspectionSB-18
If the above system is normal, replace time control unit —
