ENGINE ASSEMBLYPFP:10001
Removal and InstallationEBS00KNT
WARNING:
●Situate vehicle on a flat and solid surface.
●Place chocks at front and back of rear wheels.
●For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:
●Always be careful to work safely, avoid forceful or uninstructed operations.
●Do not start working until exhaust system and engine coolant are cool enough.
●If items or work required are not covered by the engine main body section, refer to the applicable
sections.
●Always use the support point specified for lifting.
●Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.
●For supporting points for lifting and jacking point at rear axle, refer to GI-35, "Garage Jack and
Safety Stand" .
REMOVAL
Description of work
Remove engine, transaxle and transfer assembly with front suspension member from vehicle down ward.
Separate suspension member, and then separate engine and transaxle.
Preparation

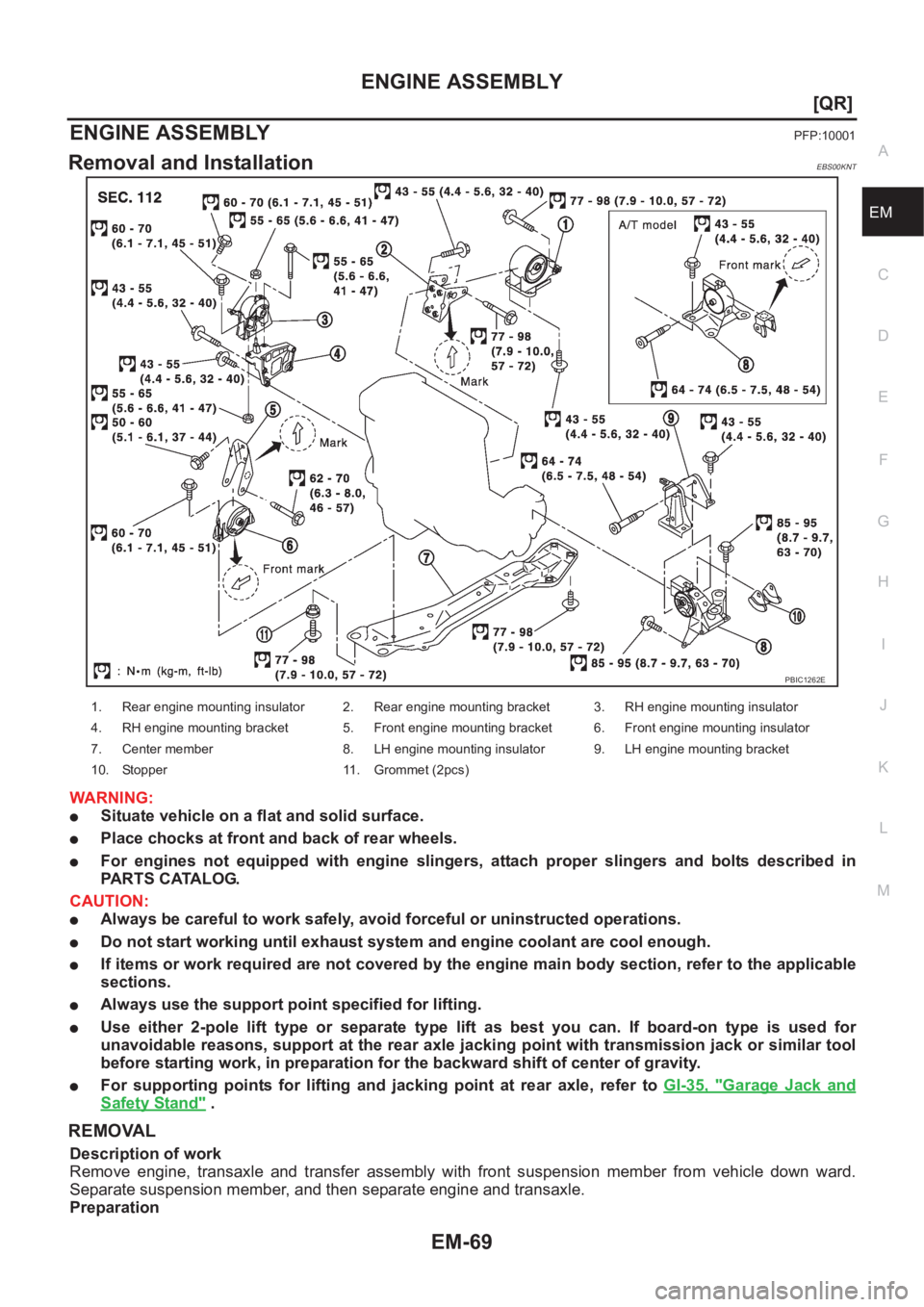

PBIC1262E
1. Rear engine mounting insulator 2. Rear engine mounting bracket 3. RH engine mounting insulator
4. RH engine mounting bracket 5. Front engine mounting bracket 6. Front engine mounting insulator
7. Center member 8. LH engine mounting insulator 9. LH engine mounting bracket
10. Stopper 11. Grommet (2pcs)

ENGINE ASSEMBLY
EM-193
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
ENGINE ASSEMBLYPFP:10001
Removal and InstallationEBS00LRY
WARNING:
●Situate vehicle on a flat and solid surface.
●Place chocks at front and back of rear wheels.
●For engines not equipped with engine slingers, attach proper slingers and bolts described in
PARTS CATALOG.
CAUTION:
●Always be careful to work safely, avoid forceful or uninstructed operations.
●Do not start working until exhaust system and engine coolant are cool enough.
●If items or work required are not covered by the engine main body section, refer to the applicable
sections.
●Always use the support point specified for lifting.
●Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for
unavoidable reasons, support at the rear axle jacking point with transmission jack or similar tool
before starting work, in preparation for the backward shift of center of gravity.
●For supporting points for lifting and jacking point at rear axle, refer to GI-35, "Garage Jack and
Safety Stand" .

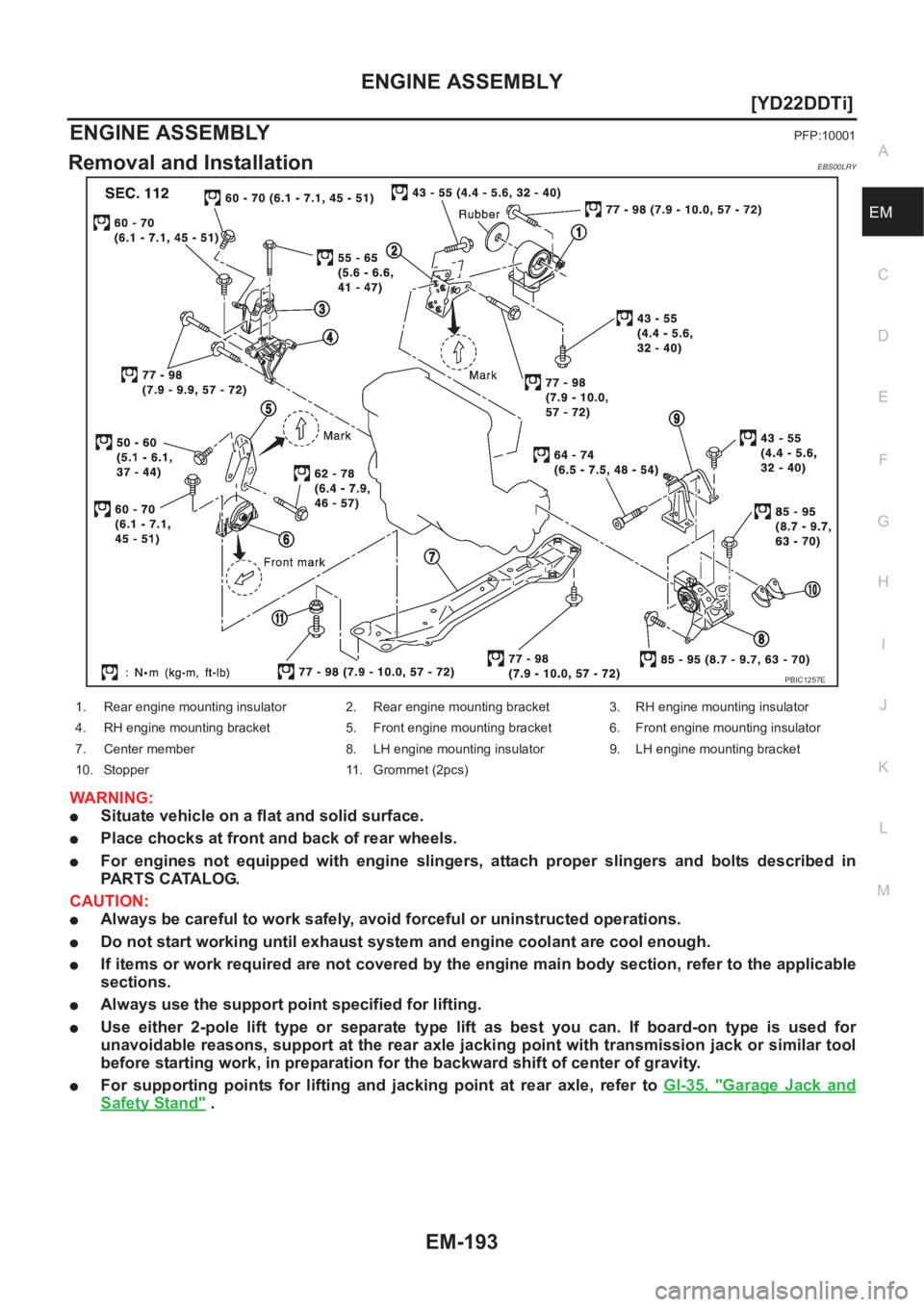

PBIC1257E
