Page 3201 of 3833

DOOR MIRROR
GW-49
C
D
E
F
G
H
J
K
L
MA
B
GW

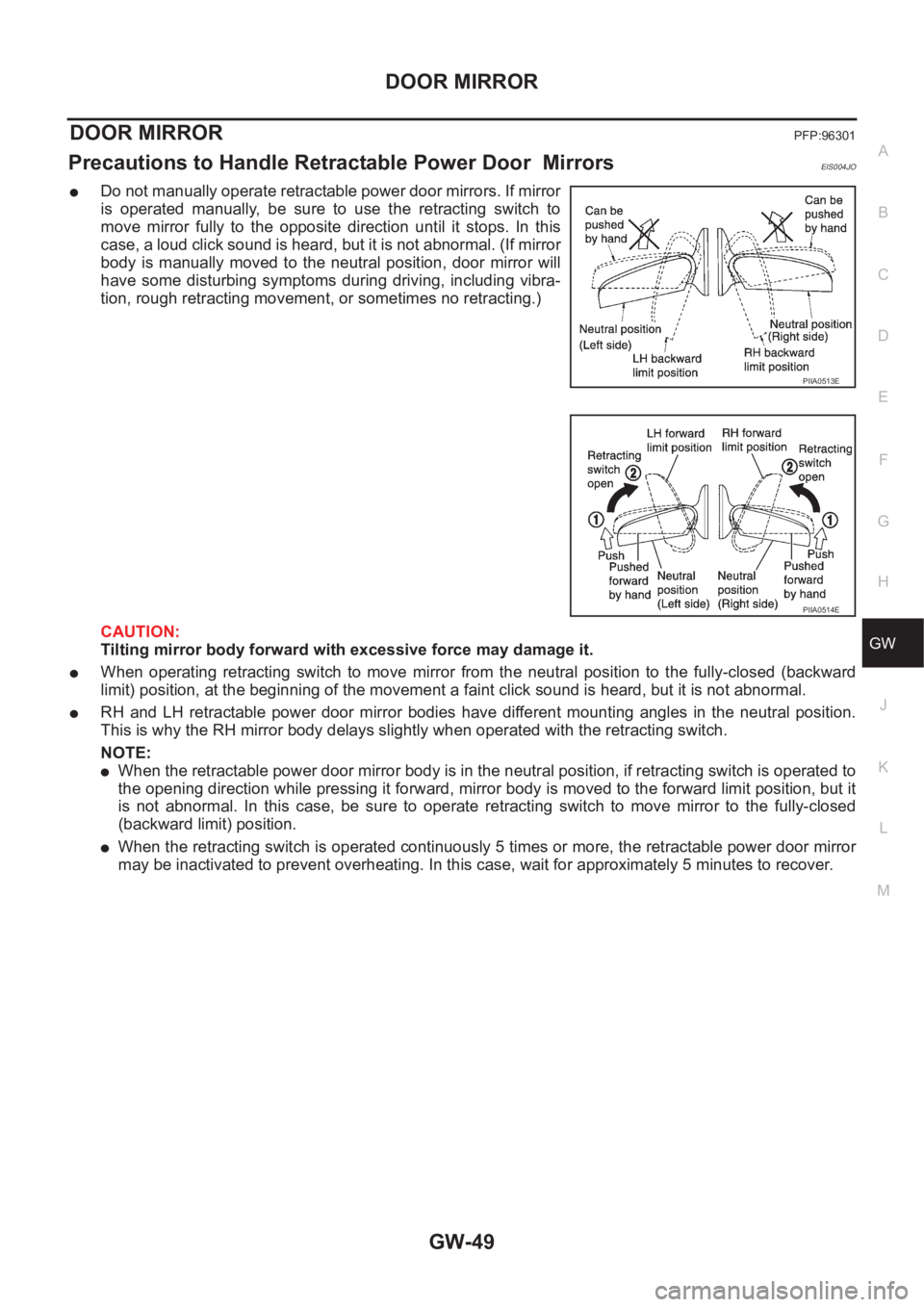

DOOR MIRRORPFP:96301
Precautions to Handle Retractable Power Door MirrorsEIS004JO
●Do not manually operate retractable power door mirrors. If mirror
is operated manually, be sure to use the retracting switch to
move mirror fully to the opposite direction until it stops. In this
case, a loud click sound is heard, but it is not abnormal. (If mirror
body is manually moved to the neutral position, door mirror will
have some disturbing symptoms during driving, including vibra-
tion, rough retracting movement, or sometimes no retracting.)
CAUTION:
Tilting mirror body forward with excessive force may damage it.
●When operating retracting switch to move mirror from the neutral position to the fully-closed (backward
limit) position, at the beginning of the movement a faint click sound is heard, but it is not abnormal.
●RH and LH retractable power door mirror bodies have different mounting angles in the neutral position.
This is why the RH mirror body delays slightly when operated with the retracting switch.
NOTE:
●When the retractable power door mirror body is in the neutral position, if retracting switch is operated to
the opening direction while pressing it forward, mirror body is moved to the forward limit position, but it
is not abnormal. In this case, be sure to operate retracting switch to move mirror to the fully-closed
(backward limit) position.
●When the retracting switch is operated continuously 5 times or more, the retractable power door mirror
may be inactivated to prevent overheating. In this case, wait for approximately 5 minutes to recover.
PIIA0513E
PIIA0514E
Page 3202 of 3833
GW-50
DOOR MIRROR

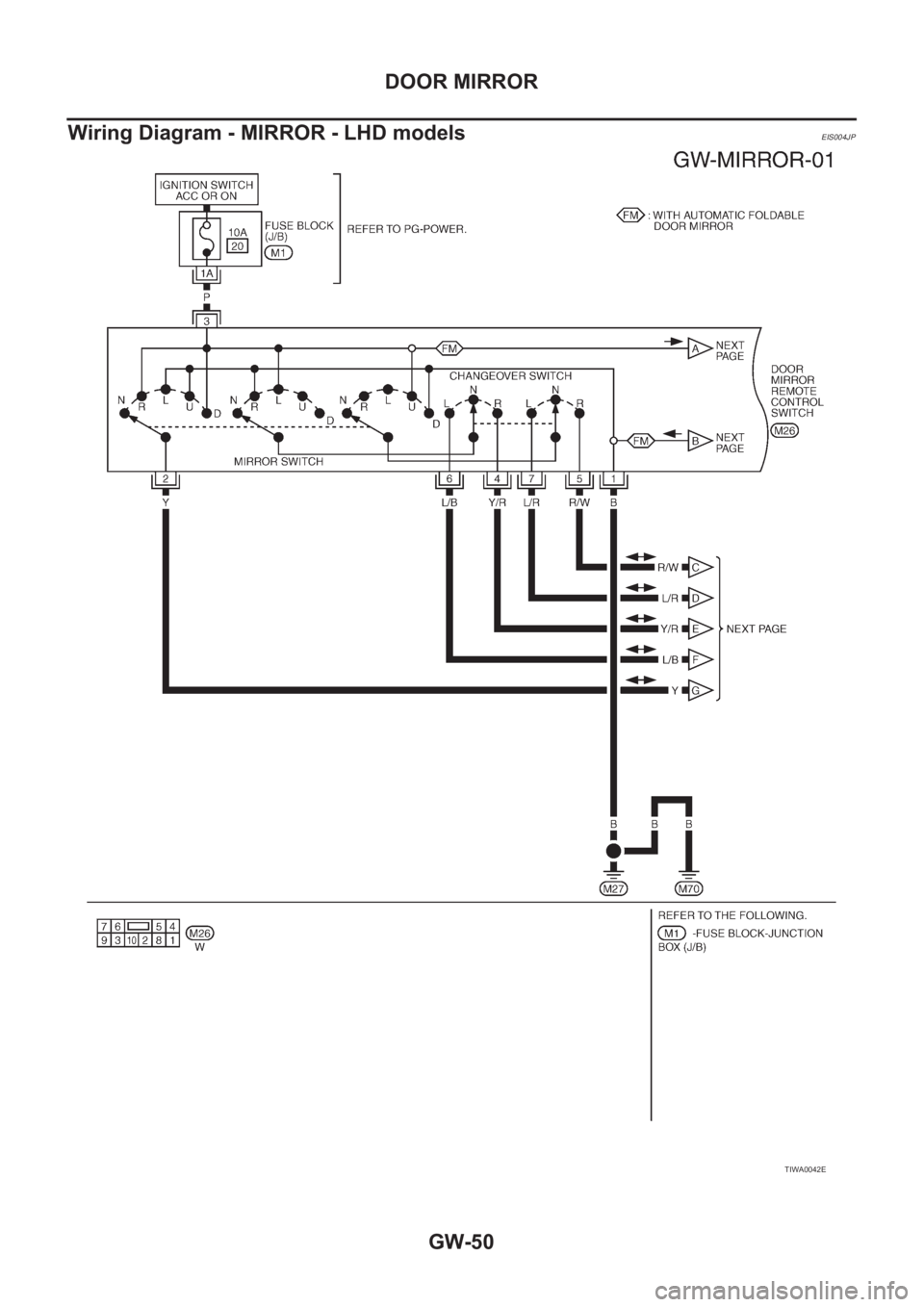

Wiring Diagram - MIRROR - LHD models
EIS004JP
TIWA0042E
Page 3203 of 3833
DOOR MIRROR
GW-51
C
D
E
F
G
H
J
K
L
MA
B
GW

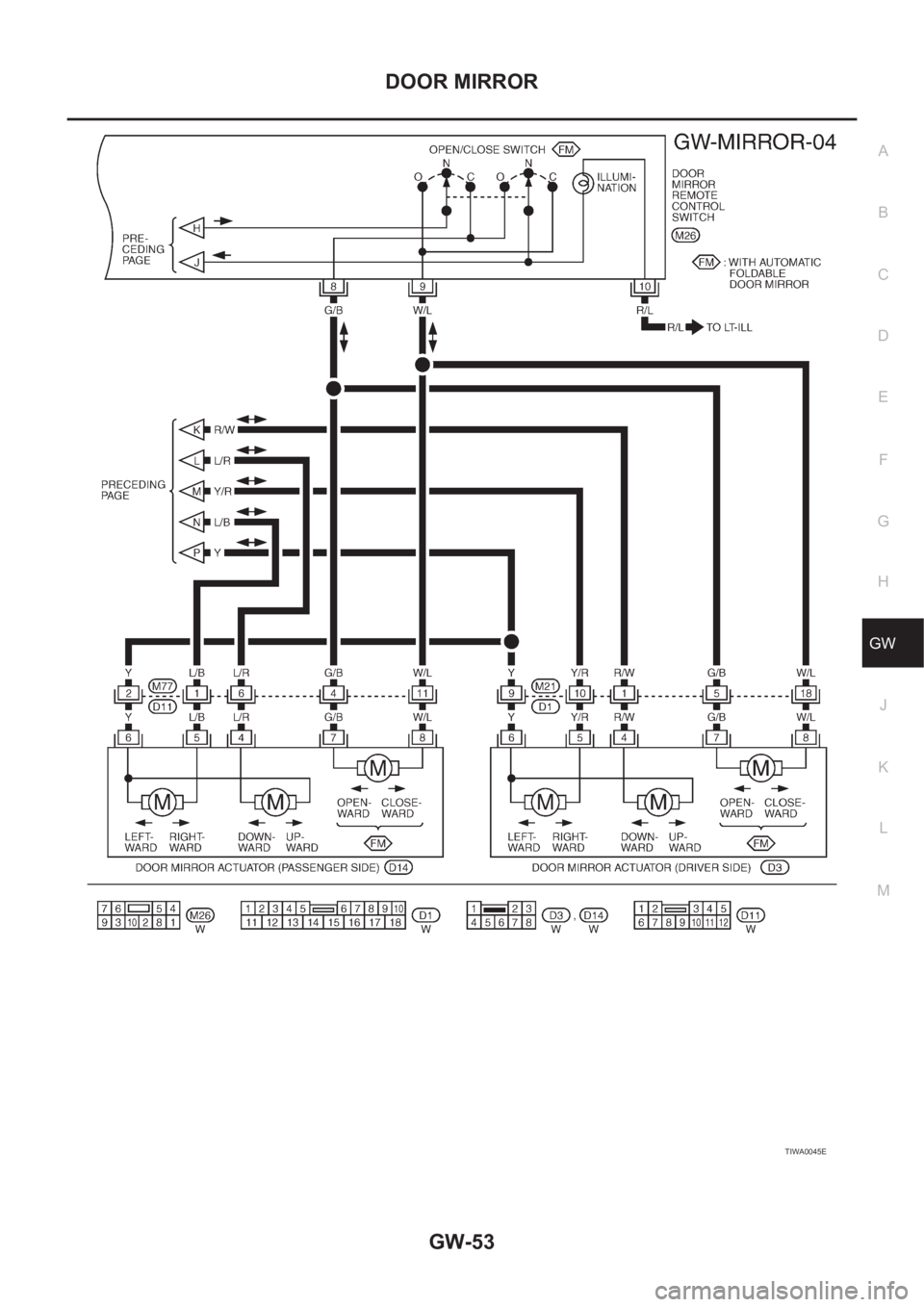

TIWA0043E
Page 3204 of 3833
GW-52
DOOR MIRROR
Wiring Diagram - MIRROR - RHD models
EIS004JQ
TIWA0044E
Page 3205 of 3833
DOOR MIRROR
GW-53
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0045E
Page 3206 of 3833
GW-54
DOOR MIRROR

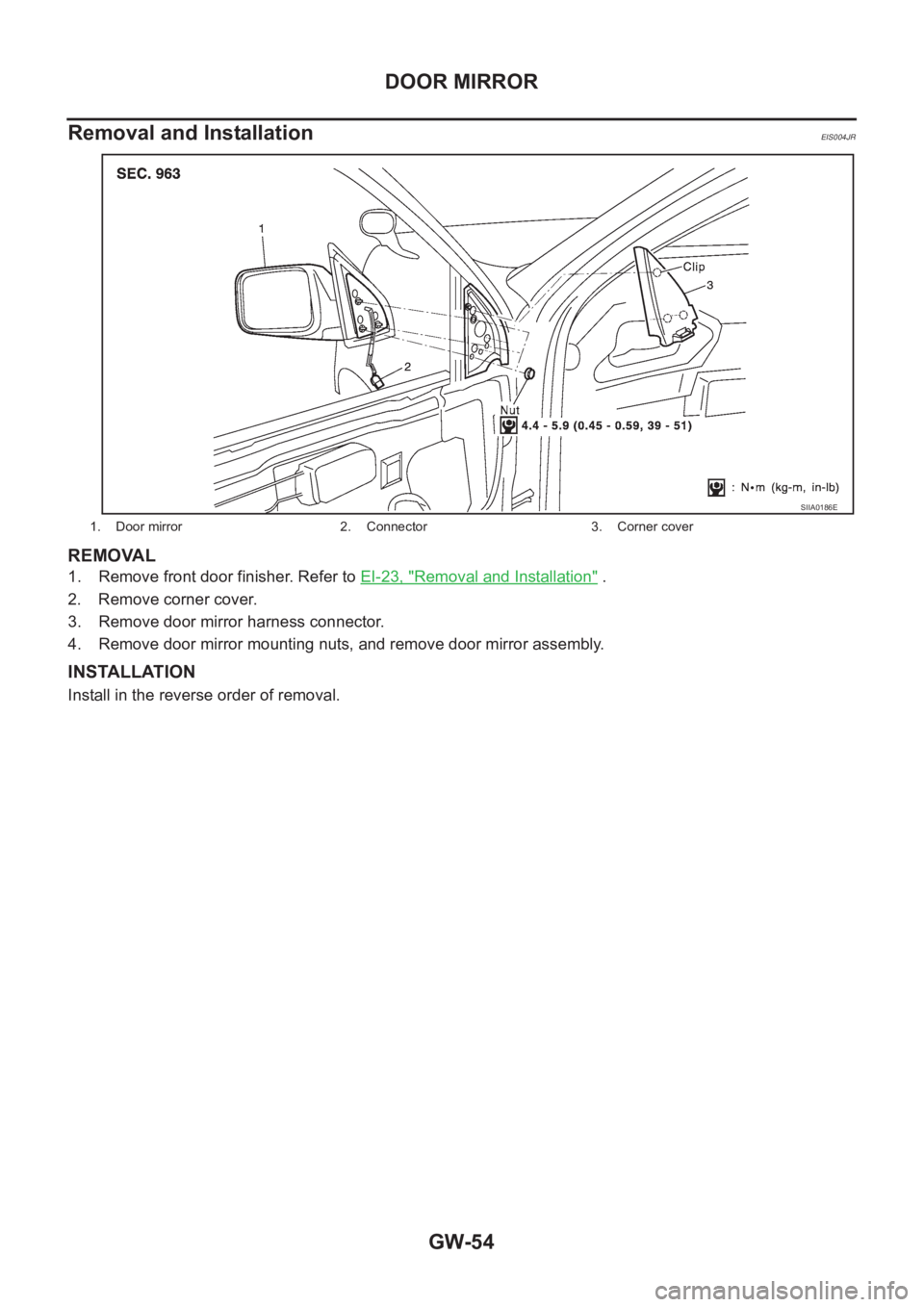

Removal and Installation
EIS004JR
REMOVAL
1. Remove front door finisher. Refer to EI-23, "Removal and Installation" .
2. Remove corner cover.
3. Remove door mirror harness connector.
4. Remove door mirror mounting nuts, and remove door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
1. Door mirror 2. Connector 3. Corner cover
SIIA0186E
Page 3207 of 3833
DOOR MIRROR
GW-55
C
D
E
F
G
H
J
K
L
MA
B
GW
Disassembly and AssemblyEIS004JS
DISASSEMBLY
1. Pull out all the terminals from the harness connector.
NOTE:
Before pulling out the terminal, note the connector terminal arrangement.
2. Turn the mirror glass surface upward.
3. Apply a protective tape to the housing.
4. Insert a narrow slotted screwdriver in the concave gap between mirror glass and power unit to push up
tabs (2 locations) on mirror holder to disengage lower part of mirror holder, and remove mirror body
assembly.
NOTE:
When pushing up the tabs, do not forcefully push up only 1 concave but try to push up using 2 concave
positions.
5. Remove packing.
6. Remove base.
7. Remove electric retracting unit.
8. Remove power unit, and disconnect the connector.
9. Separate the electric retracting unit from the bracket.
1. Mirror body 2. Power unit 3. Bracket
4. Electric retracting unit 5. Housing 6. Base
7. Packing 8. Connector
SIIA0187E
Page 3208 of 3833
GW-56
DOOR MIRROR

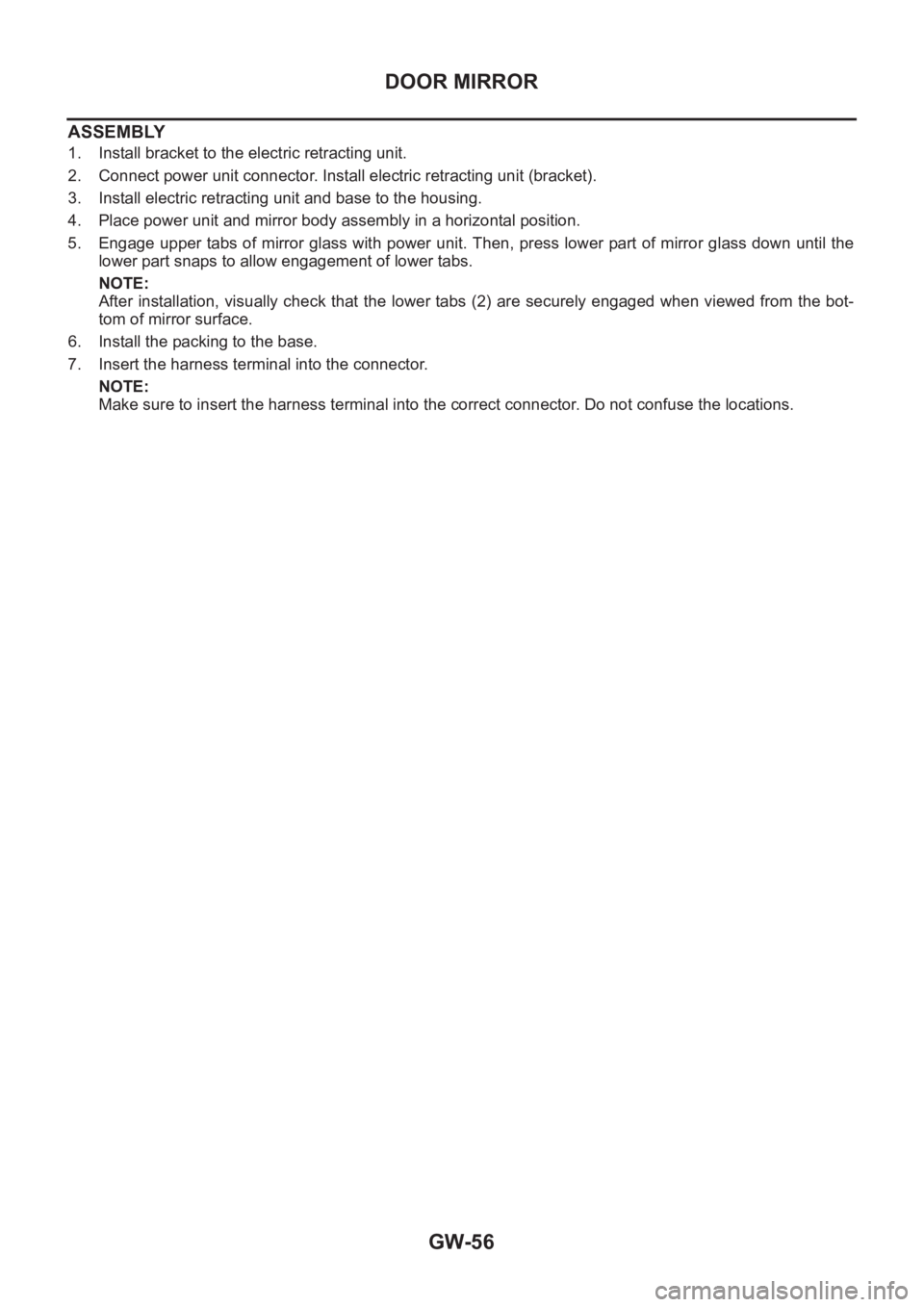

ASSEMBLY
1. Install bracket to the electric retracting unit.
2. Connect power unit connector. Install electric retracting unit (bracket).
3. Install electric retracting unit and base to the housing.
4. Place power unit and mirror body assembly in a horizontal position.
5. Engage upper tabs of mirror glass with power unit. Then, press lower part of mirror glass down until the
lower part snaps to allow engagement of lower tabs.
NOTE:
After installation, visually check that the lower tabs (2) are securely engaged when viewed from the bot-
tom of mirror surface.
6. Install the packing to the base.
7. Insert the harness terminal into the connector.
NOTE:
Make sure to insert the harness terminal into the correct connector. Do not confuse the locations.
