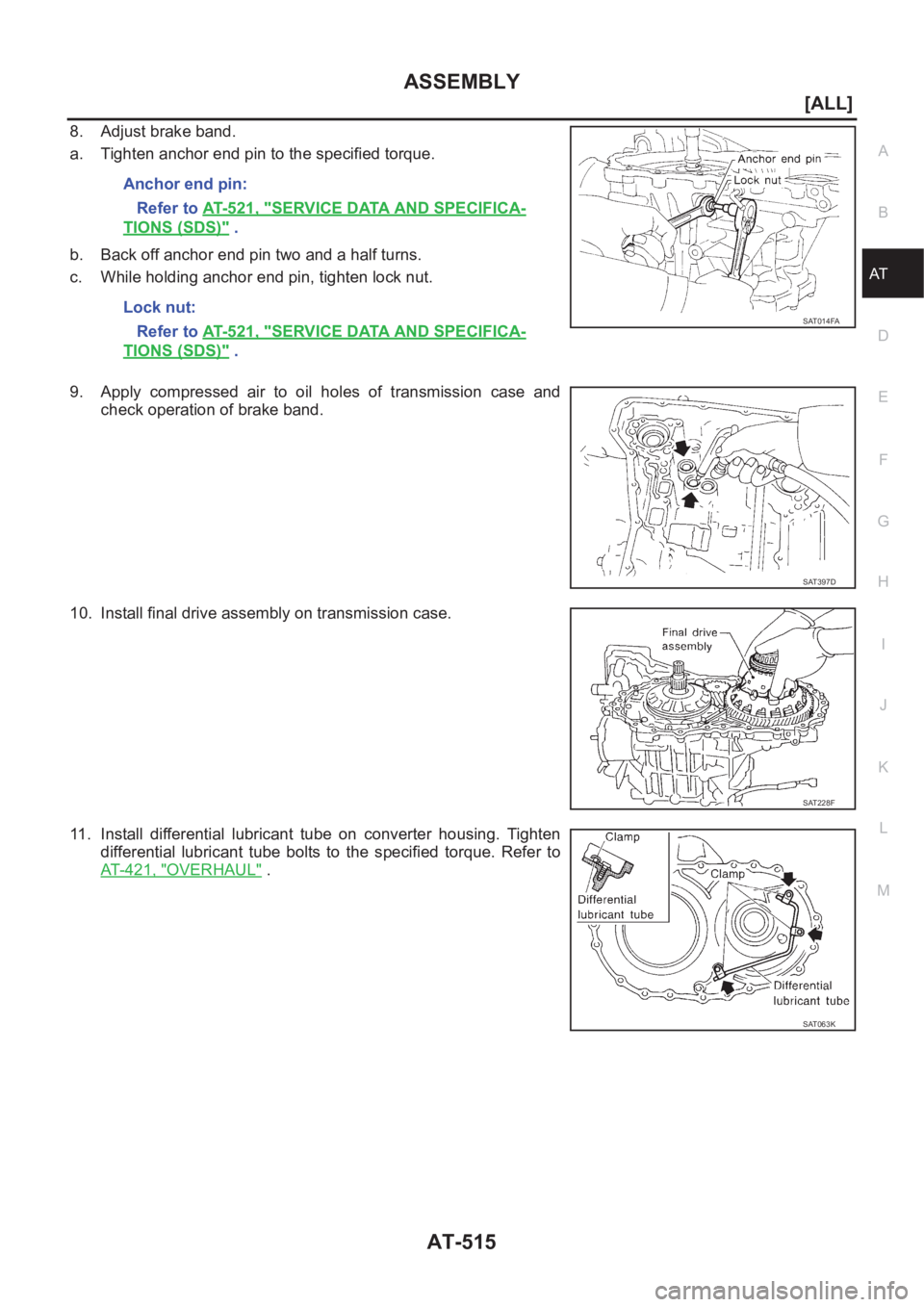

NISSAN X-TRAIL 2001 Service Repair Manual ASSEMBLY
AT-515
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
8. Adjust brake band.
a. Tighten anchor end pin to the specified torque.
b. Back off anchor end pin two and a half turns.
c. While holding anchor end pi

Page 2594 of 3833

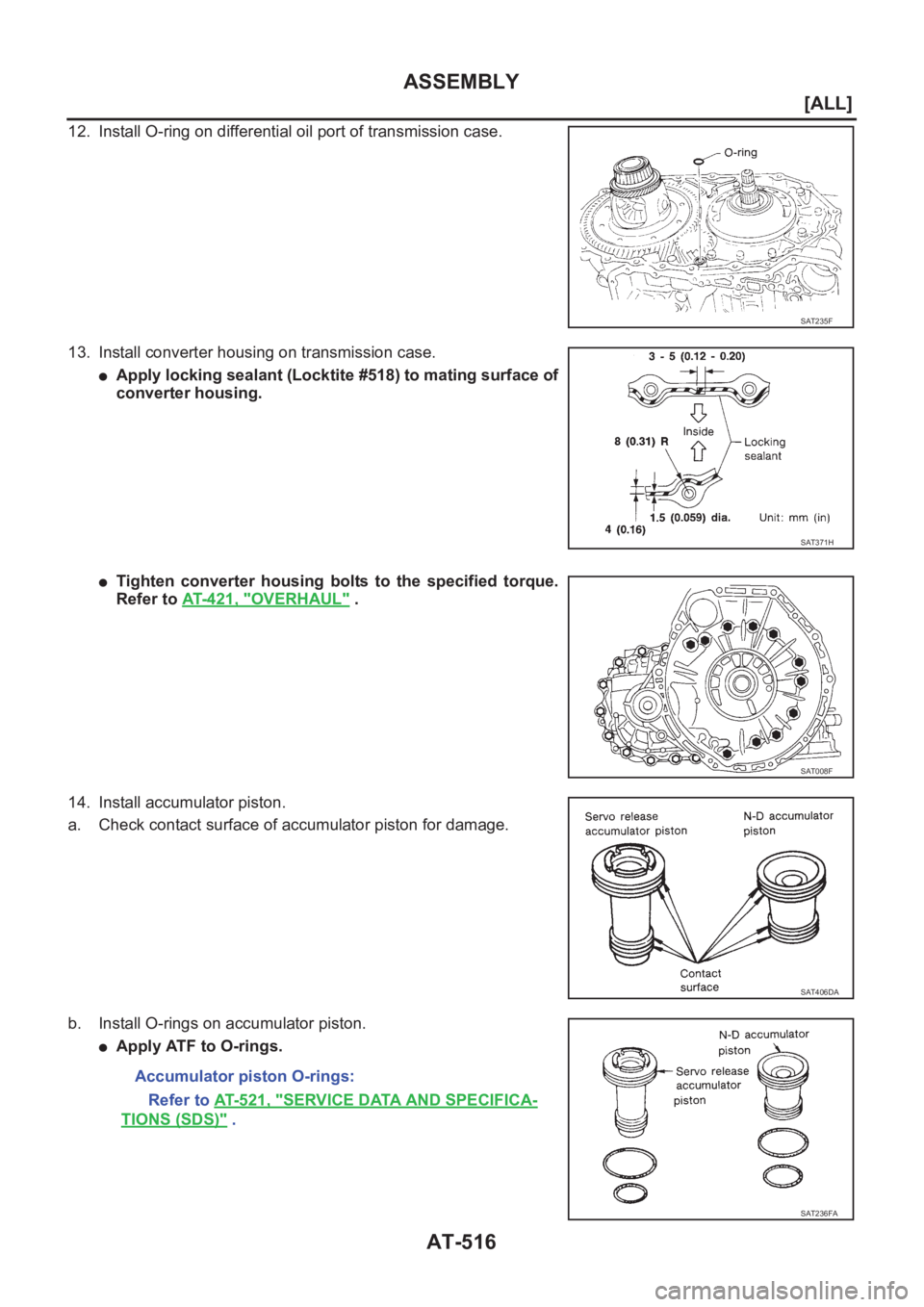

NISSAN X-TRAIL 2001 Service Repair Manual AT-516
[ALL]
ASSEMBLY
12. Install O-ring on differential oil port of transmission case.
13. Install converter housing on transmission case.
●Apply locking sealant (Locktite #518) to mating surface o

Page 2595 of 3833

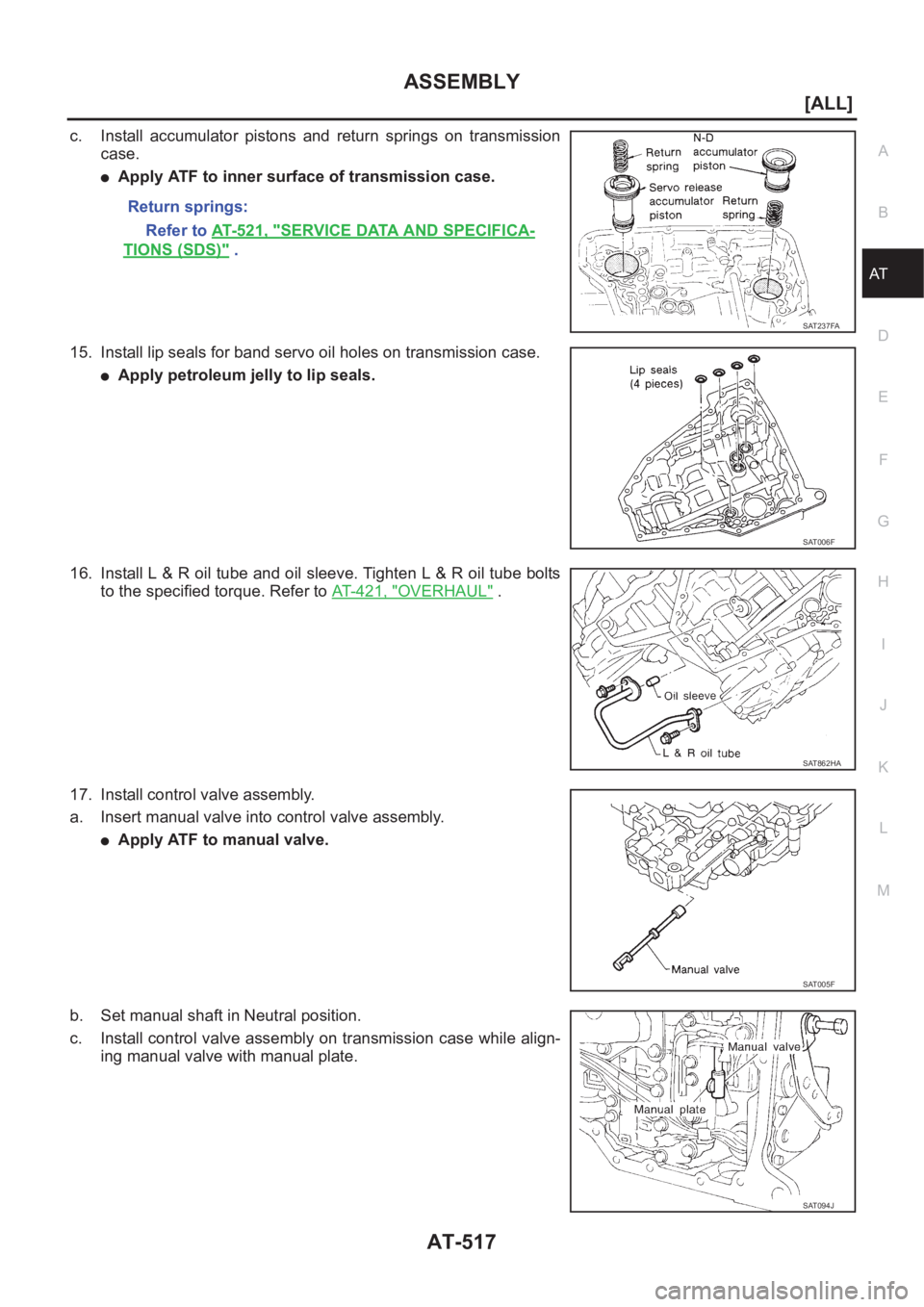

NISSAN X-TRAIL 2001 Service Repair Manual ASSEMBLY
AT-517
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
c. Install accumulator pistons and return springs on transmission
case.
●Apply ATF to inner surface of transmission case.
15. Install lip seals

Page 2596 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-518
[ALL]
ASSEMBLY
d. Pass solenoid harness through transmission case and install
terminal body on transmission case by pushing it.
e. Install stopper ring to terminal body.
f. Tighten bolts

Page 2597 of 3833

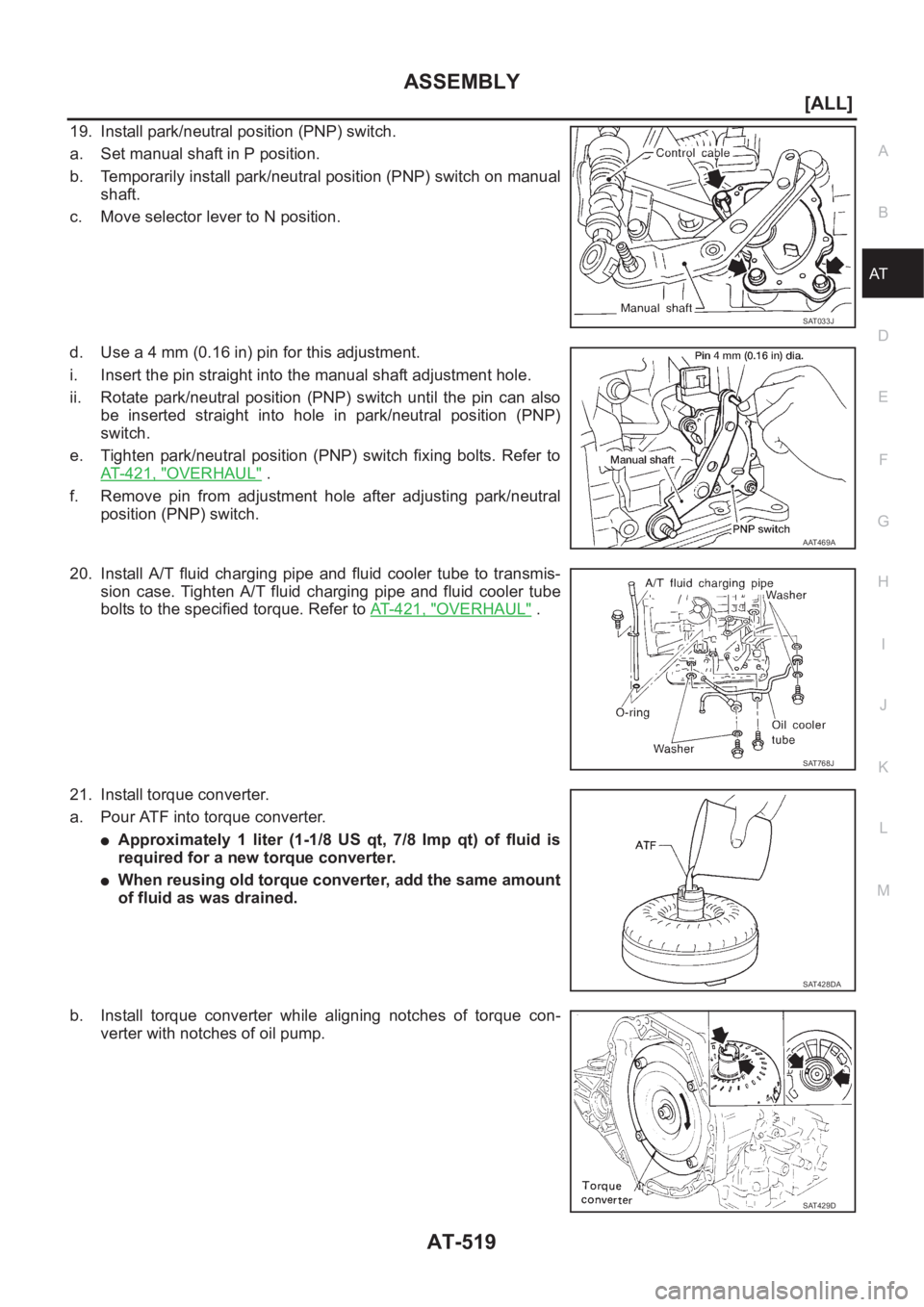

NISSAN X-TRAIL 2001 Service Repair Manual ASSEMBLY
AT-519
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
19. Install park/neutral position (PNP) switch.
a. Set manual shaft in P position.
b. Temporarily install park/neutral position (PNP) switch on manual
s

Page 2598 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-520
[ALL]
ASSEMBLY
c. Measure distance “A” to check that torque converter is in proper
position.
Distance A:
Refer to AT- 5 2 1 , "
SERVICE DATA AND SPECIFICA-
TIONS (SDS)" .
SAT43

Page 2599 of 3833

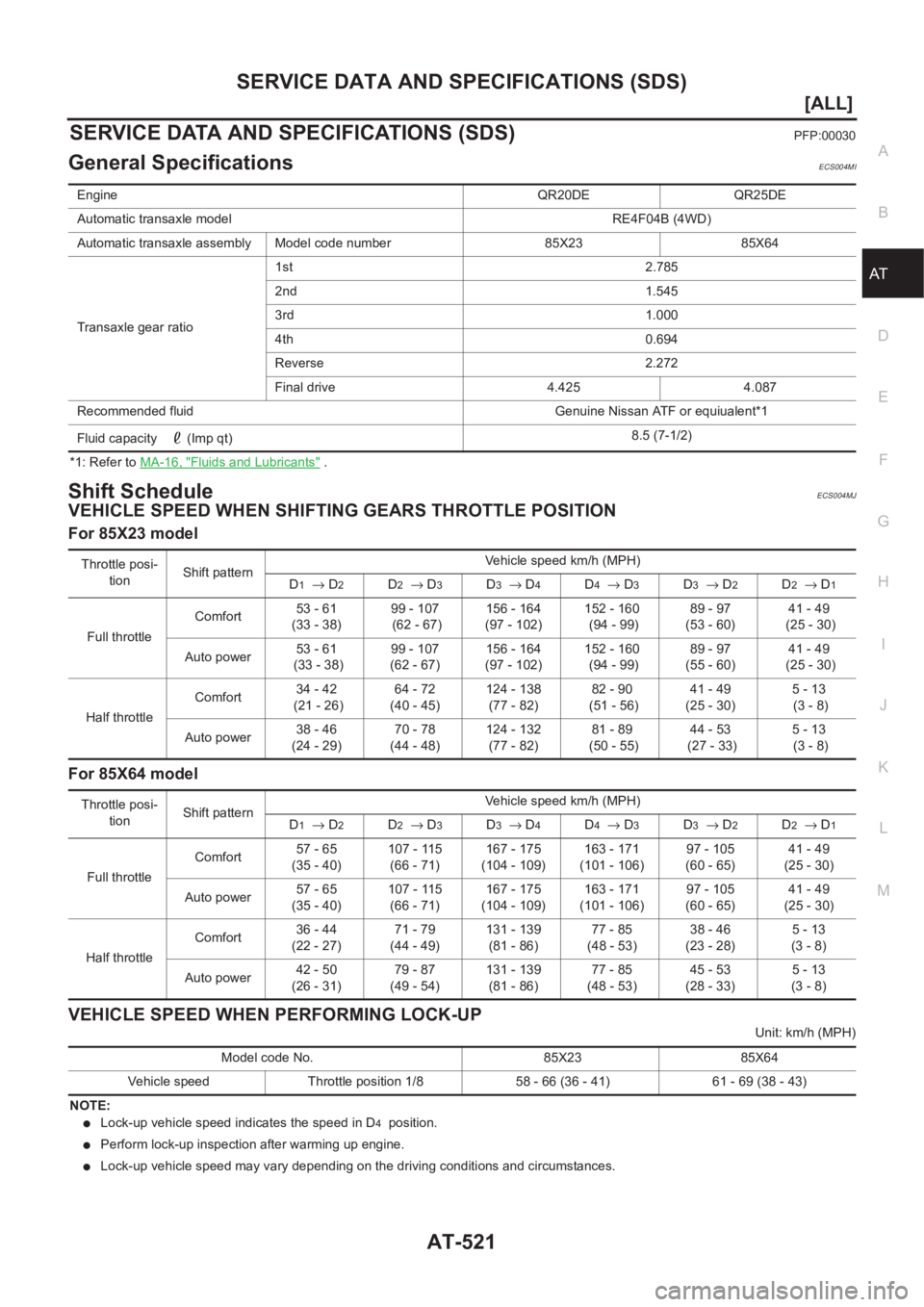

NISSAN X-TRAIL 2001 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
AT-521
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsECS004MI
*1: Refer to MA-16, "Fluids and Lubricant

SERVICE DATA AND SPECIFICATIONS (SDS)
AT-521
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsECS004MI
*1: Refer to MA-16, "Fluids and Lubricants" .
Shift ScheduleECS004MJ
VEHICLE SPEED WHEN SHIFTING GEARS THROTTLE POSITION
For 85X23 model
For 85X64 model
VEHICLE SPEED WHEN PERFORMING LOCK-UP
Unit: km/h (MPH)
NOTE:
●Lock-up vehicle speed indicates the speed in D4 position.
●Perform lock-up inspection after warming up engine.
●Lock-up vehicle speed may vary depending on the driving conditions and circumstances. EngineQR20DE QR25DE
Automatic transaxle model RE4F04B (4WD)
Automatic transaxle assembly Model code number 85X23 85X64
Transaxle gear ratio1st 2.785
2nd 1.545
3rd 1.000
4th 0.694
Reverse 2.272
Final drive 4.425 4.087
Recommended fluid Genuine Nissan ATF or equiualent*1
Fluid capacity (Imp qt)8.5 (7-1/2)
Throttle posi-
tionShift patternVehicle speed km/h (MPH)
D
1→ D2D2→ D3D3→ D4D4→ D3D3→ D2D2→ D1
Full throttleComfort53 - 61
(33 - 38)99 - 107
(62 - 67)156 - 164
(97 - 102)152 - 160
(94 - 99)89 - 97
(53 - 60)41 - 49
(25 - 30)
Auto power53 - 61
(33 - 38)99 - 107
(62 - 67)156 - 164
(97 - 102)152 - 160
(94 - 99)89 - 97
(55 - 60)41 - 49
(25 - 30)
Half throttleComfort34 - 42
(21 - 26)64 - 72
(40 - 45)124 - 138
(77 - 82)82 - 90
(51 - 56)41 - 49
(25 - 30)5 - 13
(3 - 8)
Auto power38 - 46
(24 - 29)70 - 78
(44 - 48)124 - 132
(77 - 82)81 - 89
(50 - 55)44 - 53
(27 - 33)5 - 13
(3 - 8)
Throttle posi-
tionShift patternVehicle speed km/h (MPH)
D
1→ D2D2→ D3D3→ D4D4→ D3D3→ D2D2→ D1
Full throttleComfort57 - 65
(35 - 40)107 - 115
(66 - 71)167 - 175
(104 - 109)163 - 171
(101 - 106)97 - 105
(60 - 65)41 - 49
(25 - 30)
Auto power57 - 65
(35 - 40)107 - 115
(66 - 71)167 - 175
(104 - 109)163 - 171
(101 - 106)97 - 105
(60 - 65)41 - 49
(25 - 30)
Half throttleComfort36 - 44
(22 - 27)71 - 79
(44 - 49)131 - 139
(81 - 86)77 - 85
(48 - 53)38 - 46
(23 - 28)5 - 13
(3 - 8)
Auto power42 - 50
(26 - 31)79 - 87
(49 - 54)131 - 139
(81 - 86)77 - 85
(48 - 53)45 - 53
(28 - 33)5 - 13
(3 - 8)
Model code No. 85X23 85X64
Vehicle speed Throttle position 1/8 58 - 66 (36 - 41) 61 - 69 (38 - 43)

Page 2600 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-522
[ALL]
SERVICE DATA AND SPECIFICATIONS (SDS)
Stall Revolution
ECS004MK
Line PressureECS004ML
Control ValvesECS004MM
CONTROL VALVE AND PLUG RETURN SPRINGS
For 85X23 model
Unit: mm (in)
*: Always
