REMOVAL AND INSTALLATION
AT-419
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
12. Remove center member, engine insulator and engine mounting
bracket.
●Tighten center member fixing bolts to specified torque, Refer
to EM-69, "
ENGINE ASSEMBLY" .
13. Remove suspension member. Refer to FSU-12, "
FRONT SUS-
PENSION MEMBER" .
14. Remove dust cover from converter housing.
Rotate crankshaft to gain access to securing bolts.
15. Remove securing bolts between drive plate and torque con-
verter. When crank shaft rotates, turn to right at the front side of
engine.
16. Support engine with a jack.
17. Remove bolts fixing transaxle to engine.
18. Lower transaxle while supporting it with a jack.
InstallationECS004ND
1. When connecting torque converter to transaxle, measure dis-
tance “A” to be certain that they are correctly assembled.
2. Install torque converter to drive plate.
●With converter installed, rotate crankshaft several turns
to check that transaxle rotates freely without binding.
SCIA0794E
AAT259A
Distance “A”
QR20DE : 19 mm (0.75 in) or more
QR25DE : 14 mm (0.55 in) or more
SAT573D
AAT266A
Page 2498 of 3833
AT-420
[ALL]
REMOVAL AND INSTALLATION
3. Tighten belts fixing transaxle.
4. Reinstall any part removed.
5. Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable Adjust-
ment" .
6. Check continuity of PNP switch. Refer to AT- 11 0 , "
DTC P0705
PARK/NEUTRAL POSITION (PNP) SWITCH" .
7. Refill transaxle with ATF and check fluid level.
8. Move selector lever through all positions to be sure that tran-
saxle operates correctly. With parking brake applied, idle
engine. Move selector lever through “N” to “D”, to “2”, to “1” and
“R” positions. A slight shock should be felt through the hand
gripping the selector each time the transaxle is shifted.
9. Perform road test. Refer to AT-68, "
Road Test" .
Bolt No.Tightening torque
N·m (kg-m, ft-lb)Bolt length “ L ”
mm (in)
1
69.6 - 79.4 (7.1 - 8.1, 51.4 - 58.6)49 (1.93)
2 45 (1.77)
3
39.2 - 46.1 (4.0 - 4.7, 29.0 - 34.0)40 (1.57)
4 30 (1.18)
5
30.4 - 40.2 (3.1 - 4.1, 22.4 - 29.7)40 (1.57)
6 45 (1.97)
SCIA0795E
SAT638A
Page 2499 of 3833
OVERHAUL
AT-421
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

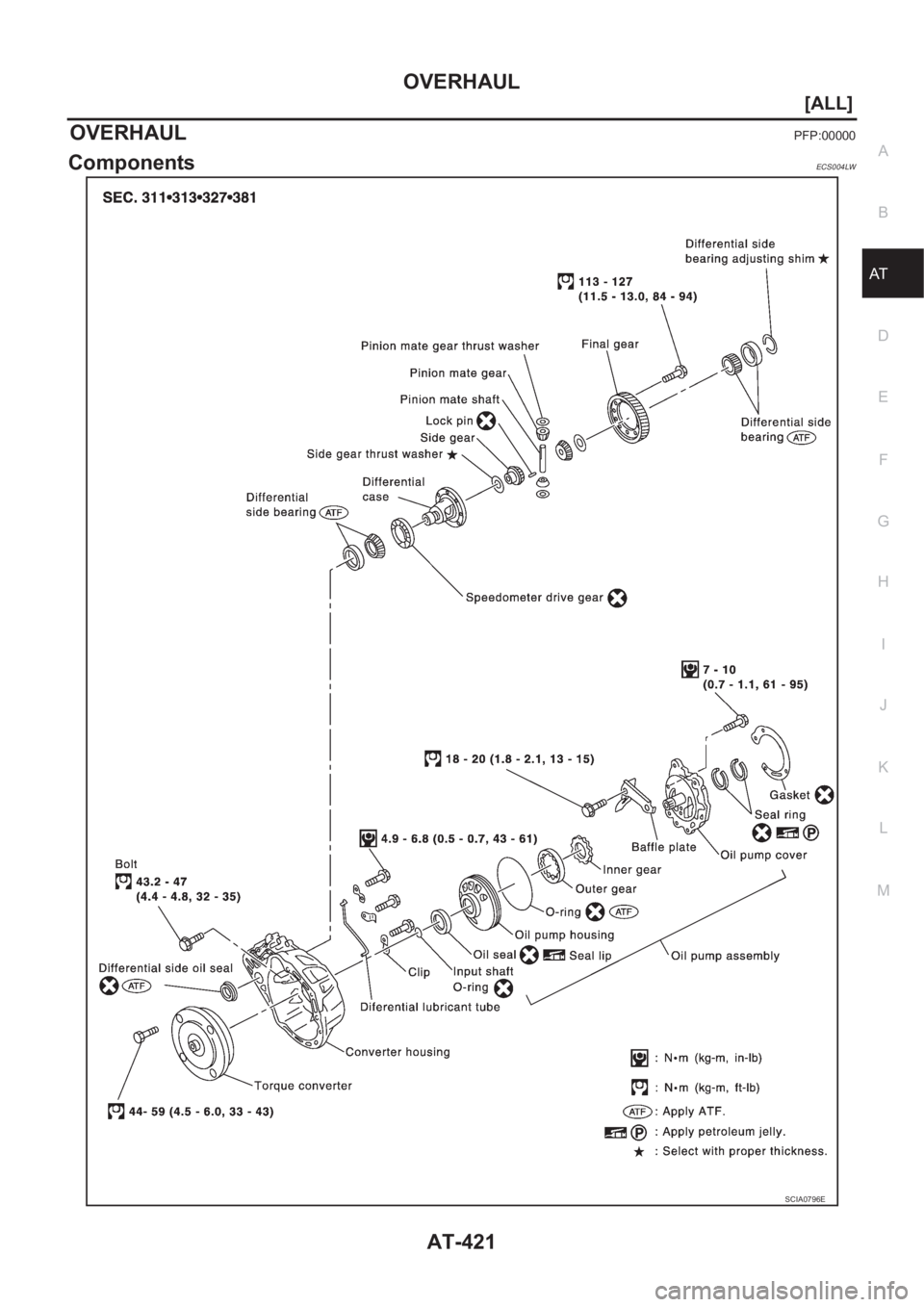

OVERHAULPFP:00000
ComponentsECS004LW
SCIA0796E
Page 2500 of 3833
AT-422
[ALL]
OVERHAUL
SAT949IA
Page 2501 of 3833
OVERHAUL
AT-423
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
SCIA0797E
Page 2502 of 3833
AT-424
[ALL]
OVERHAUL

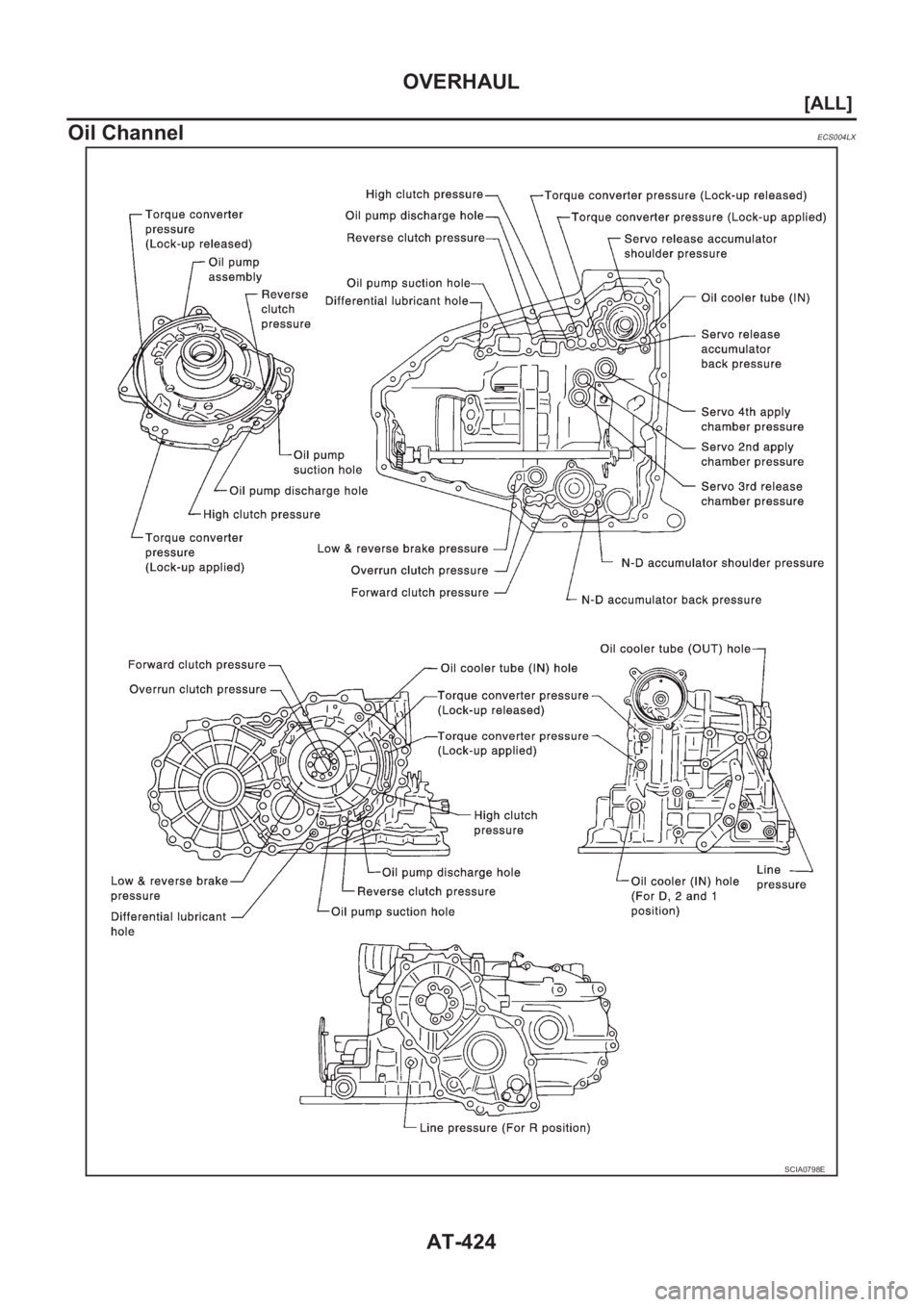

Oil Channel
ECS004LX
SCIA0798E
Page 2503 of 3833
OVERHAUL
AT-425
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

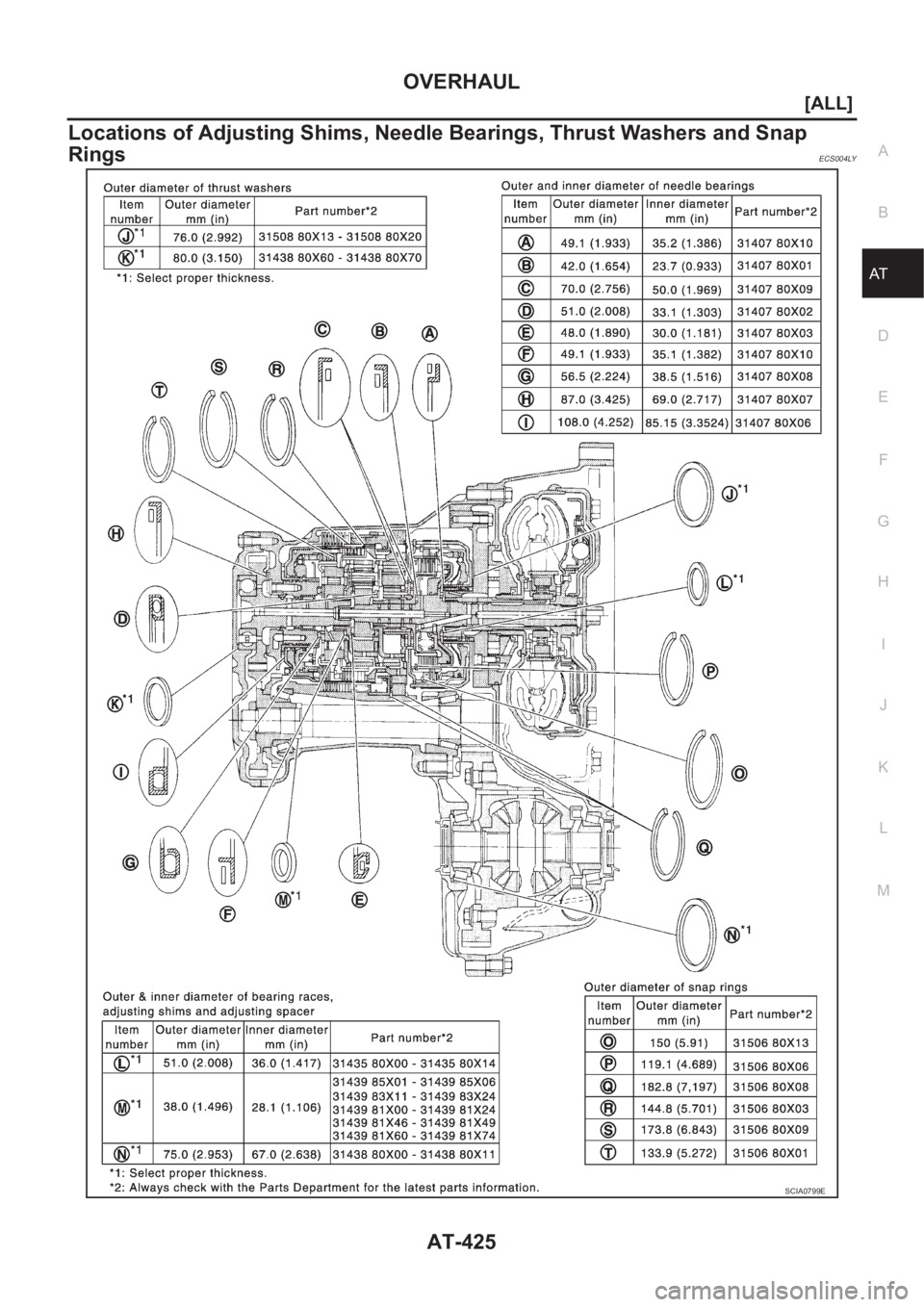

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings
ECS004LY
SCIA0799E
Page 2504 of 3833
AT-426
[ALL]

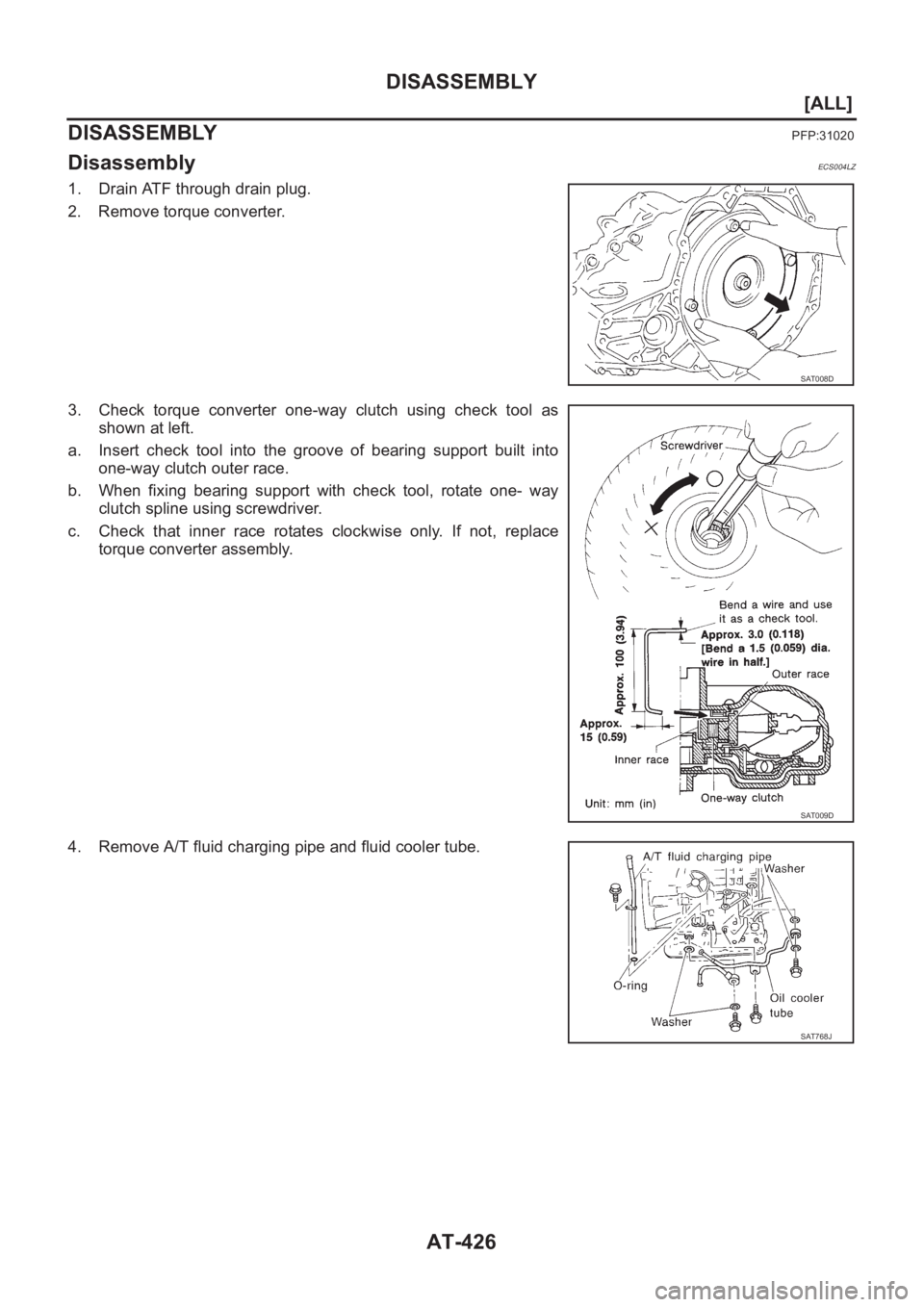

DISASSEMBLY
DISASSEMBLY
PFP:31020
DisassemblyECS004LZ
1. Drain ATF through drain plug.
2. Remove torque converter.
3. Check torque converter one-way clutch using check tool as
shown at left.
a. Insert check tool into the groove of bearing support built into
one-way clutch outer race.
b. When fixing bearing support with check tool, rotate one- way
clutch spline using screwdriver.
c. Check that inner race rotates clockwise only. If not, replace
torque converter assembly.
4. Remove A/T fluid charging pipe and fluid cooler tube.
SAT008D
SAT009D
SAT768J
