Page 3649 of 3833
HEADLAMP WASHER
WW-21
C
D
E
F
G
H
I
J
L
MA
B
WW

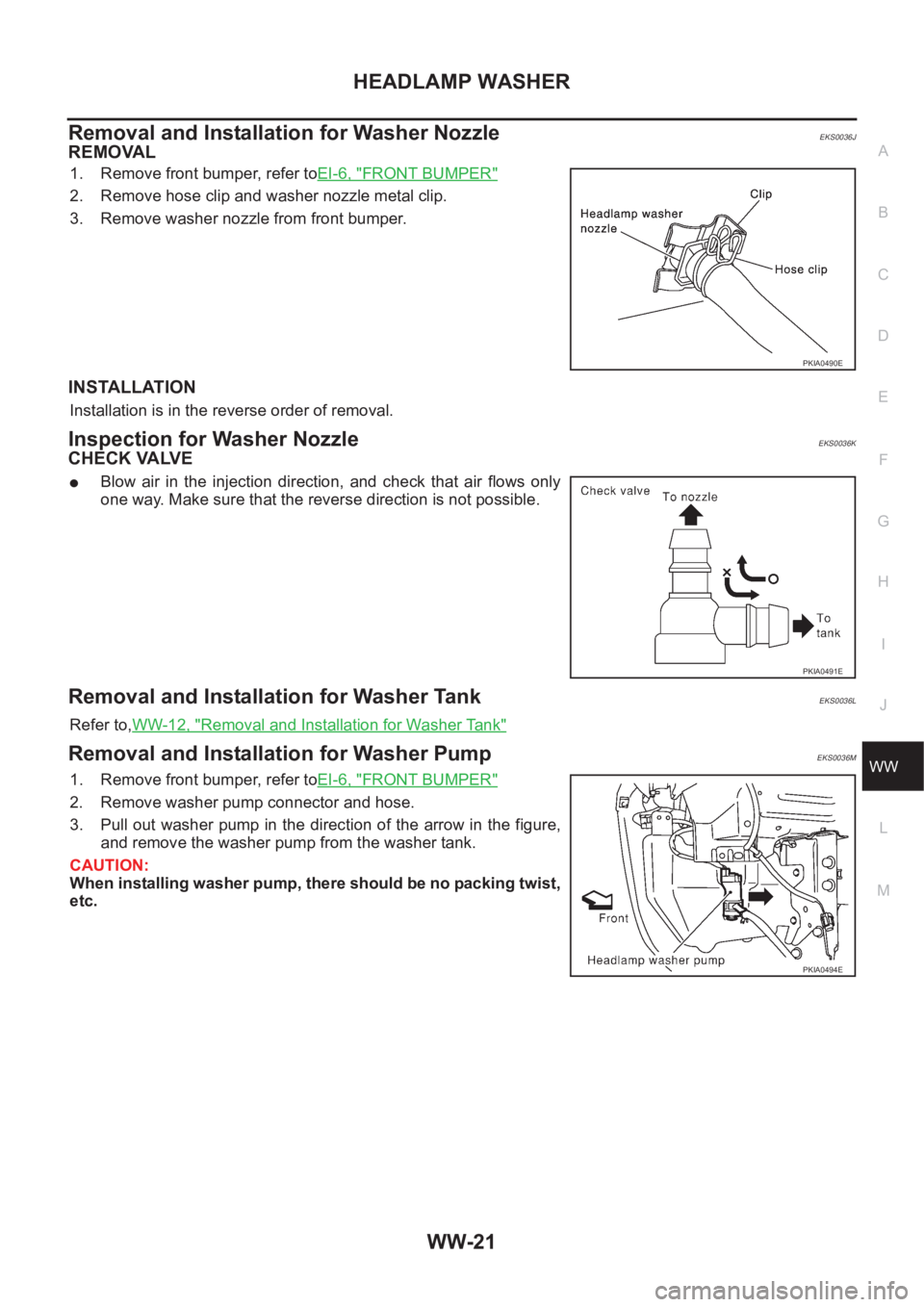

Removal and Installation for Washer NozzleEKS0036J
REMOVAL
1. Remove front bumper, refer toEI-6, "FRONT BUMPER"
2. Remove hose clip and washer nozzle metal clip.
3. Remove washer nozzle from front bumper.
INSTALLATION
Installation is in the reverse order of removal.
Inspection for Washer NozzleEKS0036K
CHECK VALVE
●Blow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction is not possible.
Removal and Installation for Washer TankEKS0036L
Refer to,WW-12, "Removal and Installation for Washer Tank"
Removal and Installation for Washer PumpEKS0036M
1. Remove front bumper, refer toEI-6, "FRONT BUMPER"
2. Remove washer pump connector and hose.
3. Pull out washer pump in the direction of the arrow in the figure,
and remove the washer pump from the washer tank.
CAUTION:
When installing washer pump, there should be no packing twist,
etc.
PKIA0490E
PKIA0491E
PKIA0494E
Page 3650 of 3833
WW-22
HEADLAMP WASHER

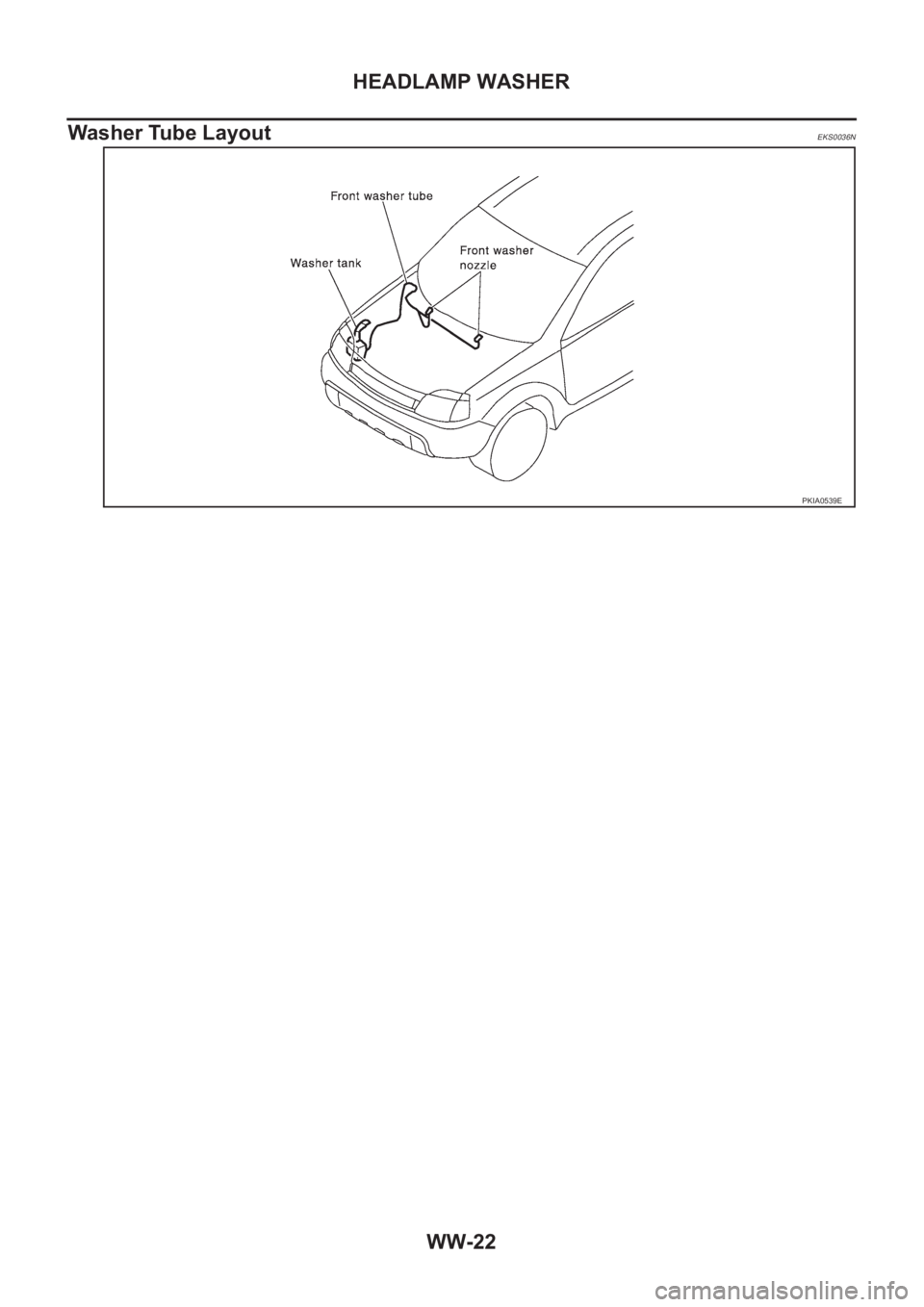

Washer Tube Layout
EKS0036N
PKIA0539E
Page 3651 of 3833
HORN
WW-23
C
D
E
F
G
H
I
J
L
MA
B
WW
HORNPFP:25610

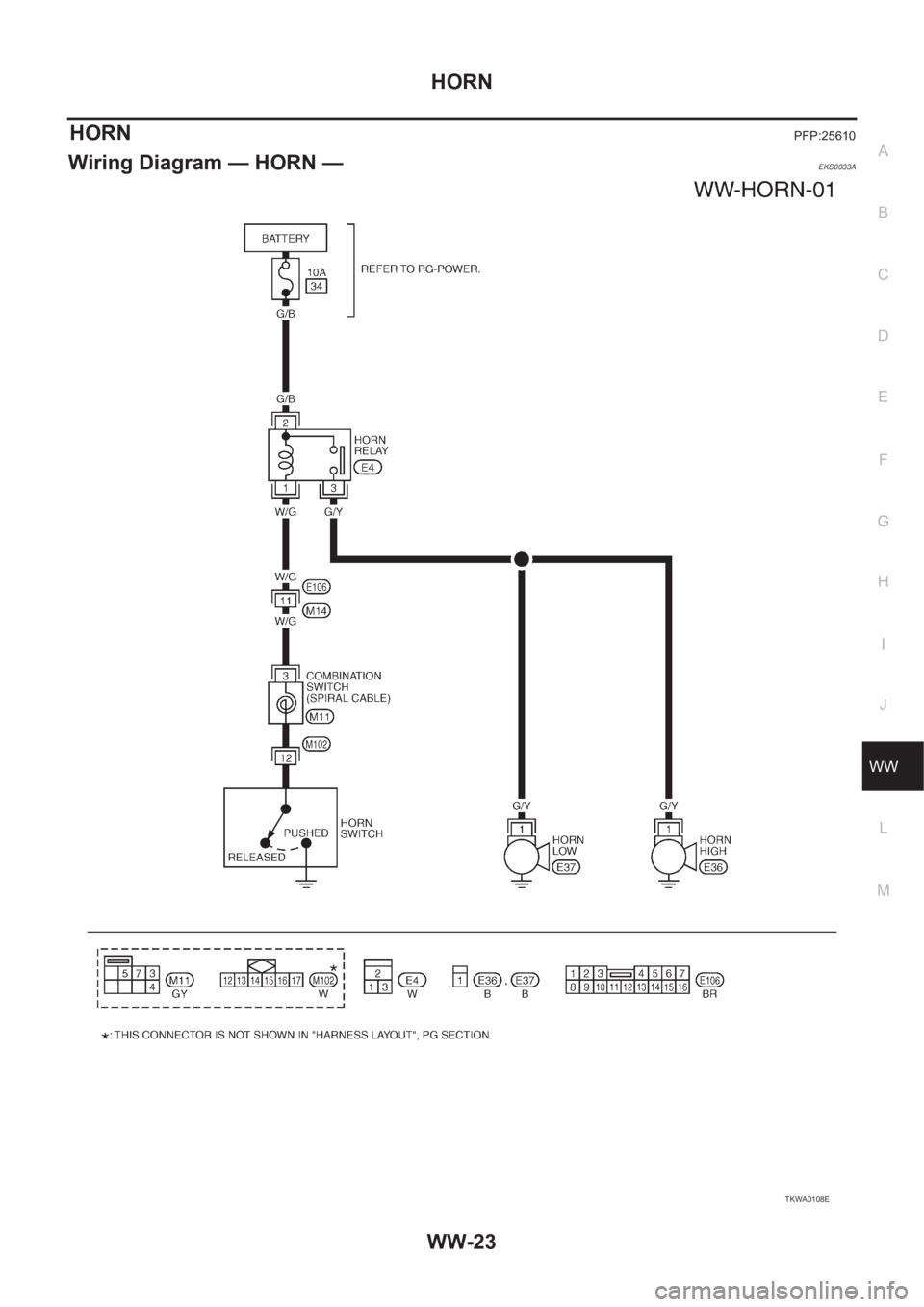

Wiring Diagram — HORN —EKS0033A
TKWA0108E
Page 3652 of 3833
WW-24
HORN
Removal and Installation
EKS0033B
REMOVAL
1. Remove the front grille.refer to EI-11, "FRONT GRILLE"
2. Disconnect horn connector.
3. Remove horn.
INSTALLATION
Tighten horn bolt to specified torque.
SKIA0027E
Horn bolt : 16 − 18 N·m(1.6 − 1.8 kg-m, 12 − 13 ft-lb)
Page 3653 of 3833
CIGARETTE LIGHTER
WW-25
C
D
E
F
G
H
I
J
L
MA
B
WW
CIGARETTE LIGHTERPFP:35330
Wiring Diagram — CIGAR —EKS0033C
TKWA0109E
Page 3654 of 3833
WW-26
CIGARETTE LIGHTER

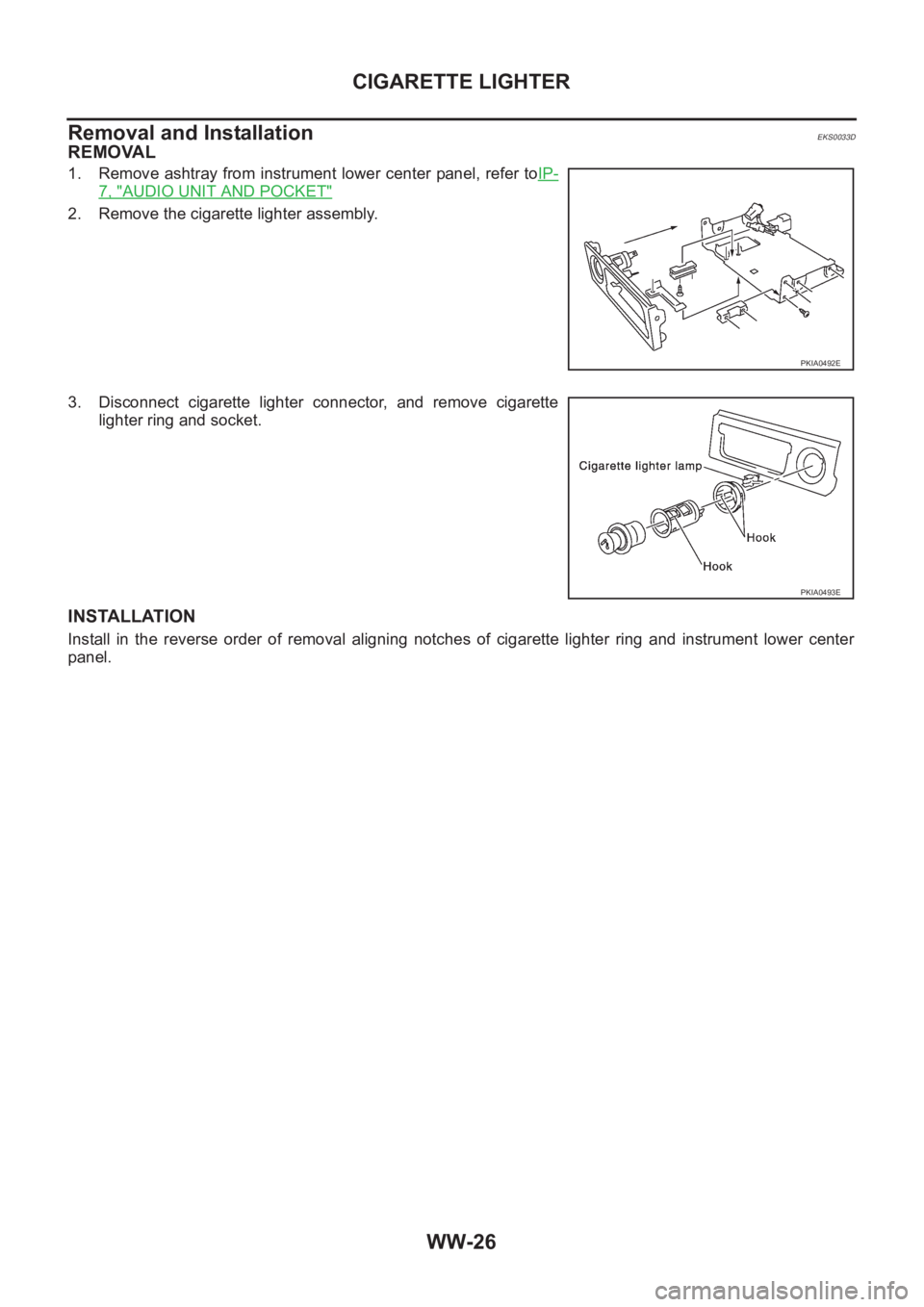

Removal and Installation
EKS0033D
REMOVAL
1. Remove ashtray from instrument lower center panel, refer toIP-
7, "AUDIO UNIT AND POCKET"
2. Remove the cigarette lighter assembly.
3. Disconnect cigarette lighter connector, and remove cigarette
lighter ring and socket.
INSTALLATION
Install in the reverse order of removal aligning notches of cigarette lighter ring and instrument lower center
panel.
PKIA0492E
PKIA0493E
Page 3655 of 3833
POWER SOCKET
WW-27
C
D
E
F
G
H
I
J
L
MA
B
WW
POWER SOCKETPFP:253A2

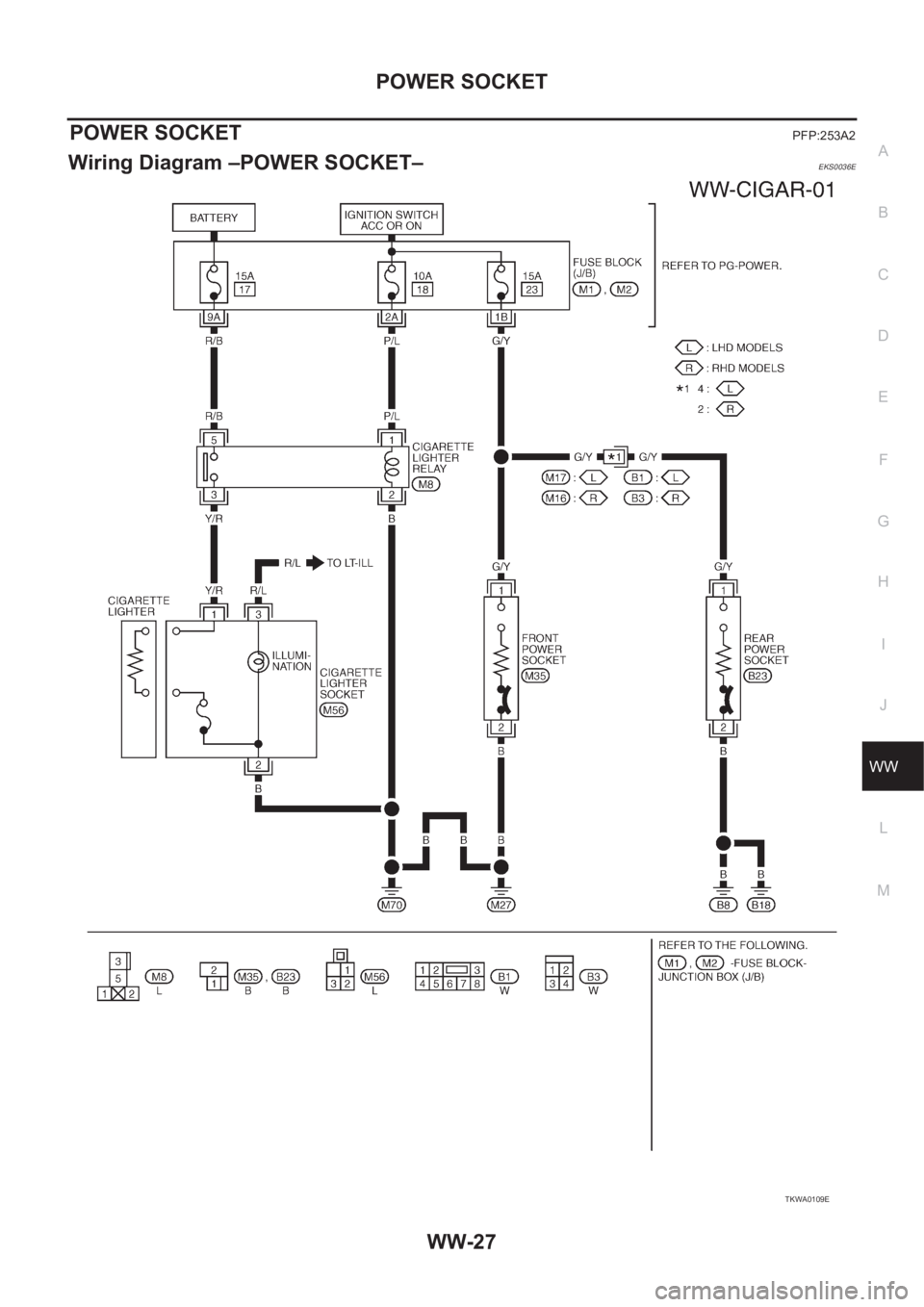

Wiring Diagram –POWER SOCKET–EKS0036E
TKWA0109E
Page 3656 of 3833
WW-28
POWER SOCKET
Removal and Installation for Front Power Socket
EKS0036F
REMOVAL
1. Remove the socket, refer toIP-3, "INSTRUMENT PANEL
ASSEMBLY"
2. Disconnect power socket connector.
3. Pull out inner socket from inner case.
INSTALLATION
Install in the reverse order of removal aligning notches of power socket and inner case.
Removal and Installation for Rear Power SocketEKS0036G
REMOVAL
1. Remove luggage side lower finisher, refer toEI-27, "LUGGAGE
SIDE LOWER FINISHER"
2. Disconnect power socket connector.
3. Pull out inner socket from luggage side lower finisher.
INSTALLATION
Install in the reverse order of removal aligning notches of power socket and installation hole.
SKIA0080E
SKIA0081E
