Page 3185 of 3833
POWER WINDOW SYSTEM
GW-33
C
D
E
F
G
H
J
K
L
MA
B
GW

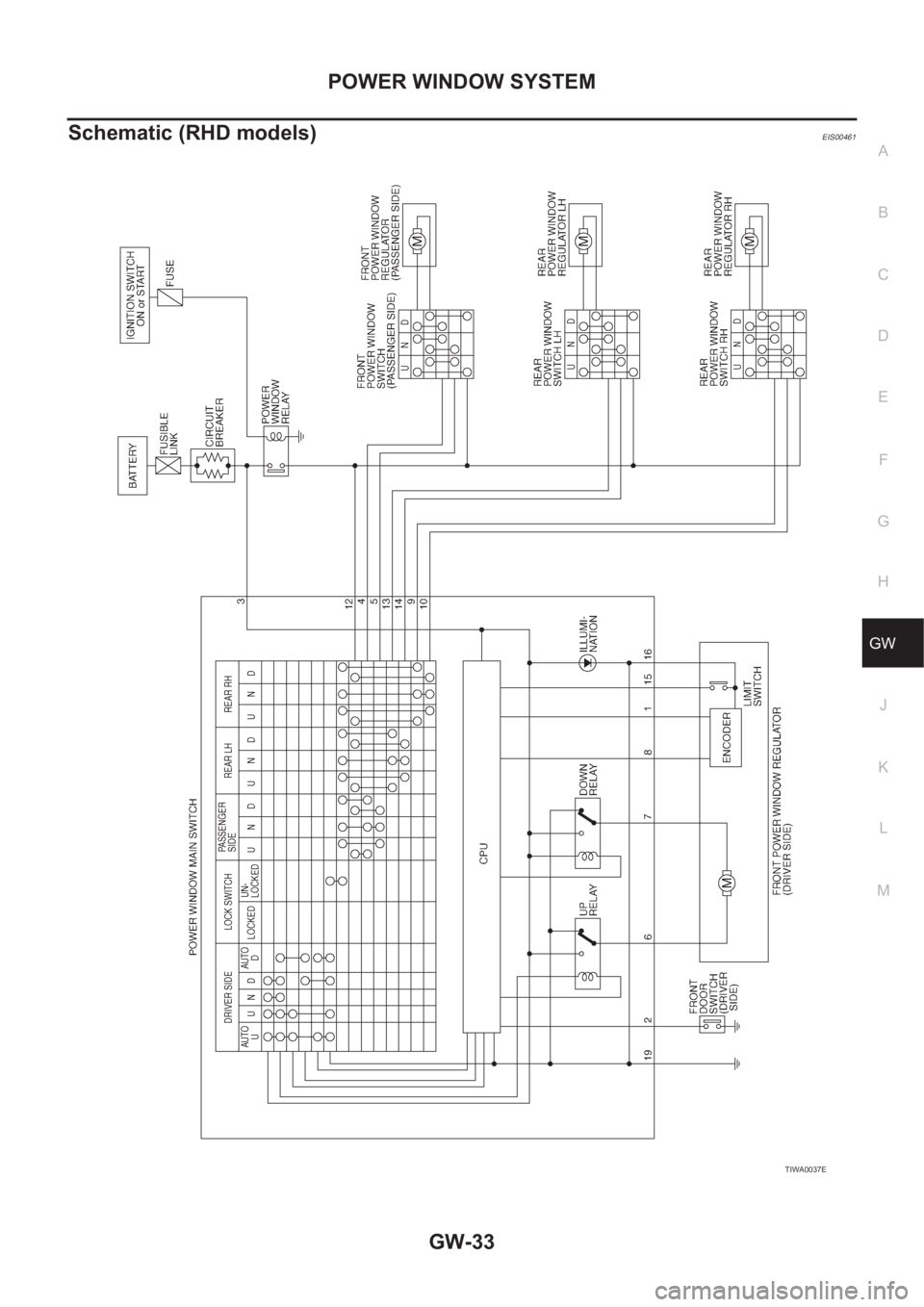

Schematic (RHD models)EIS00461
TIWA0037E
Page 3186 of 3833
GW-34
POWER WINDOW SYSTEM

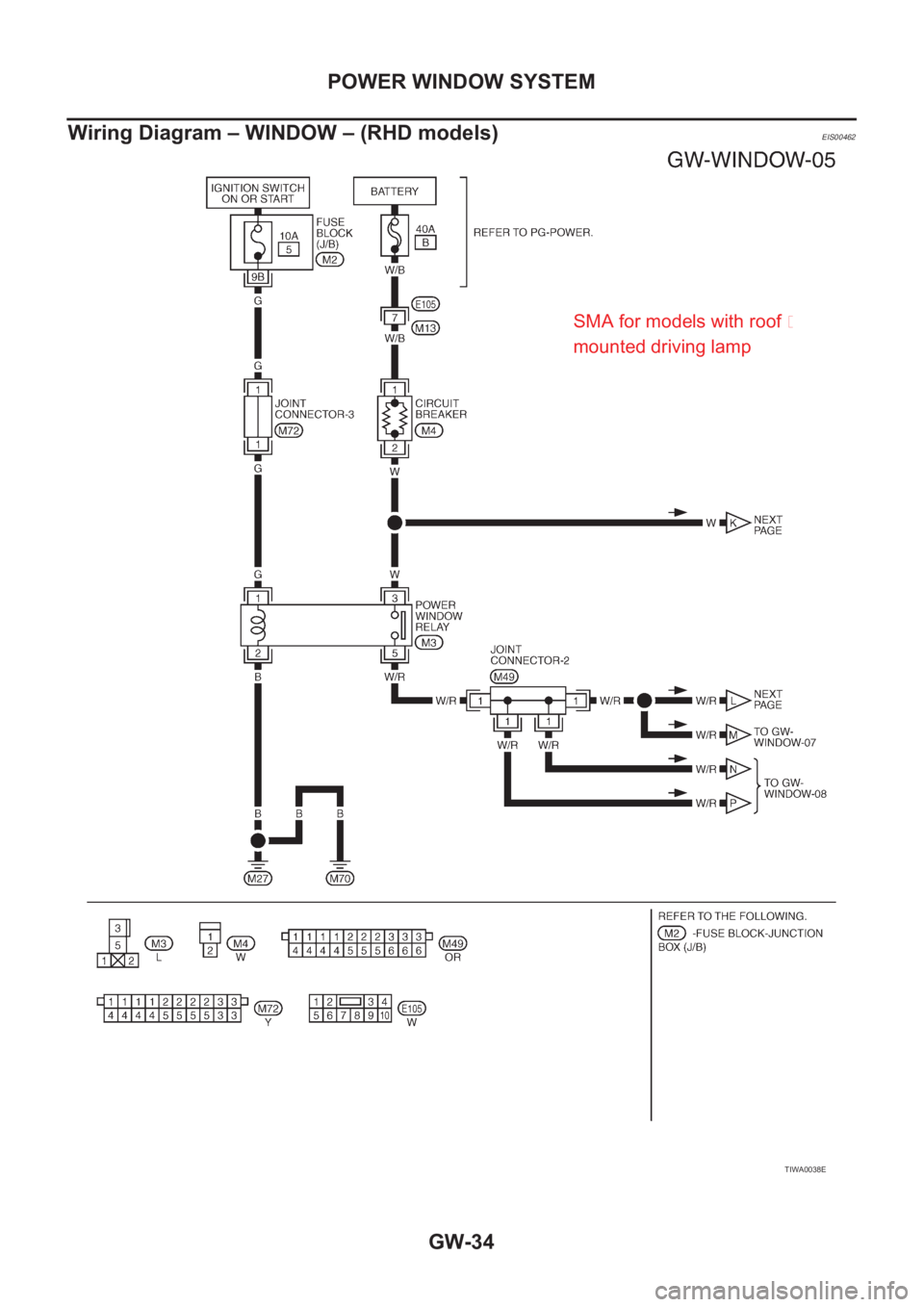

Wiring Diagram – WINDOW – (RHD models)
EIS00462
TIWA0038E
SMA for models with roof
mounted driving lamp

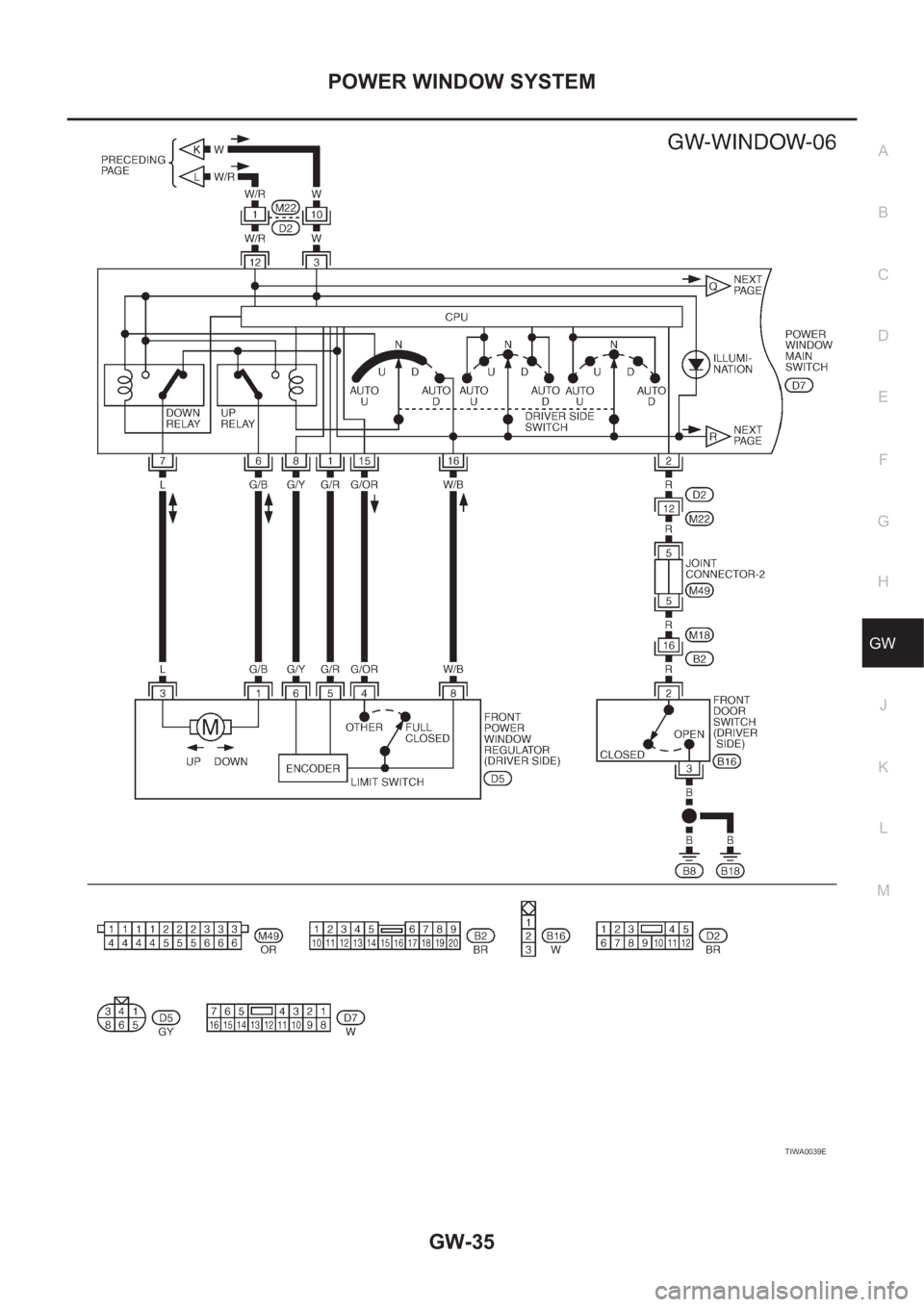

Page 3187 of 3833
POWER WINDOW SYSTEM
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW

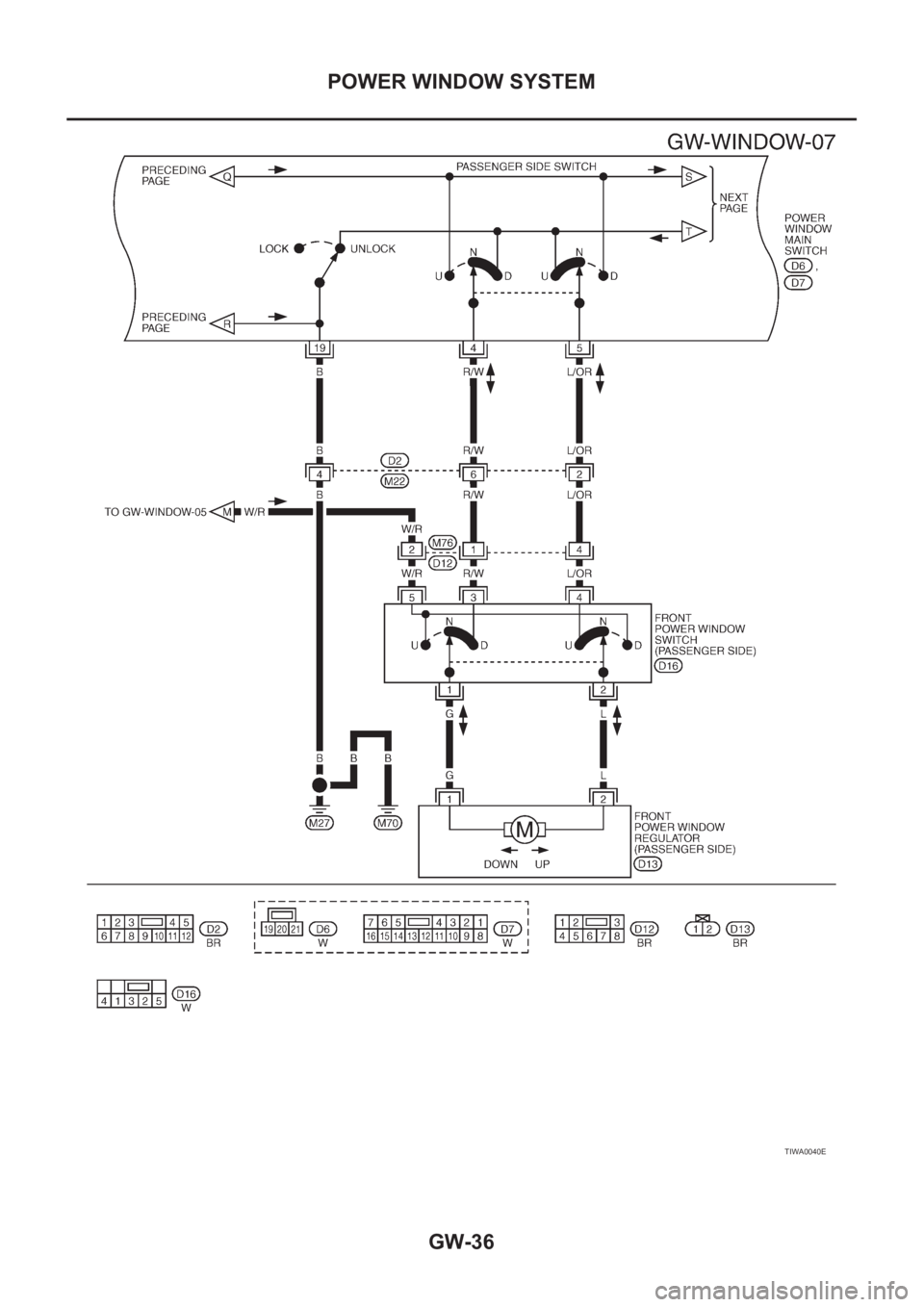

TIWA0039E
Page 3188 of 3833
GW-36
POWER WINDOW SYSTEM
TIWA0040E
Page 3189 of 3833
POWER WINDOW SYSTEM
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0041E
Page 3190 of 3833

GW-38
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch (RHD models)
EIS00463
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1 G/R Encoder power supply IGN ON or timer is operating 10
2 R Driver side door switch signalDriver side door open (ON). 0
Driver side door close (OFF). Battery voltage
3 W BAT power supply — Battery voltage
4R/WPassenger side power window
motor UP signalMain switch passenger side
switch UP operation.Battery voltage
Other than above. 0
5 L/ORPassenger side power window
motor DOWN signalMain switch passenger side
switch DOWN operation.Battery voltage
Other than above. 0
6G/BDriver side power window motor
UP signalWhen UP operation. Battery voltage
Other than above. 0
7LDriver side power window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. 0
8 G/Y Encoder pulse signalWhen power window motor
operates.2.5
9R/YRear RH side power window
motor UP signalMain switch rear RH side switch
UP operation.Battery voltage
Other than above. 0
10 R/LRear RH side power window
motor DOWN signalMain switch rear RH side switch
DOWN operation.Battery voltage
Other than above. 0
12 W/R Power supply IGN ON Battery voltage
13 G/WRear LH side power window
motor UP signalMain switch rear LH side switch
UP operation.Battery voltage
Other than above. 0
14 GRear LH side power window
motor DOWN signalMain switch rear LH side switch
DOWN operation.Battery voltage
Other than above. 0
15 G/OR Limit switch signalDriver door window is between
fully-open and just before fully-
closed position (ON).0
Driver door window is between
just before fully-closed position
and fully-closed position (OFF).5
16 W/B Limit switch and encoder ground — 0
19 B Ground — 0
OCC3383D
Page 3191 of 3833
POWER WINDOW SYSTEM
GW-39
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminal and Reference Value for Each Door's Power Window Switch (RHD
models)
EIS00464
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1G
(Passenger)
(Rear RH)
G/Y
(Rear LH)Power window motor
UP signalWhen UP operation. Battery voltage
Other than above. 0
2LPower window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. 0
3R/W
(Passenger)
G/W
(Rear LH)
R/Y
(Rear RH)Power window motor UP signalWhen UP operated by power window
main switch.Battery voltage
Other than above. 0
4L/OR
(Passenger)
G
(Rear LH)
R/L
(Rear RH)Power window motor DOWN signalWhen DOWN operated by power win-
dow main switchBattery voltage
Other than above. 0
5 W/R Power window switch power supply — Battery voltage
Page 3192 of 3833

GW-40
POWER WINDOW SYSTEM
Trouble Diagnoses
EIS00465
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse, 40A fusible link
2. M4 circuit breaker
3. Power window relay
4. Power supply circuit
5. Ground circuit
6. Power window main switch1. Check the following.
–Check 10A fuse [No. 5, located in fuse block (J/B)]
Turn ignition switch “ON” and verify positive battery
voltage is present at terminal 1 (G) of power window
relay.
–Check 40A fusible link (letter B , located in fuse and
fusible link box) and M4 circuit breaker. Verify positive
battery voltage is present at terminal 3 (W) of power
window relay.
2. Check M4 circuit breaker.
3. Check power window relay.
4. Check the following:
–Check harness between M4 circuit breaker and 40A
fusible link (letter B, located in fuse and fusible link
box).
–Check harness between M4 circuit breaker and power
window main switch terminal 5 (LHD models) or 3
(RHD models)
–Check harness between M4 circuit breaker and power
window relay.
–Check harness between 10A [No.5 located in fuse
block (J/B)] and power window relay.
–Check harness between power window relay and
power window main switch terminal 12.
5. Check the following
–Check ground circuit of power window main switch.
–Check power window relay ground circuit.
6. Check power window main switch.
Driver side power window cannot be
operated but other windows can be
operated.1. Driver side power window regula-
tor circuit
2. Driver side power window regula-
tor
3. Power window main switch1. Check harness between power window main switch
and driver side power window regulator for open or
short circuit.
2. Check driver side power window regulator.
3. Check power window main switch.
One or more power windows except
driver's side window cannot be
operated.1. Power window sub-switches
2. Power window regulators
3. Power window main switch
4. Power window circuit1. Check power window sub-switch.
2. Check power window regulator.
3. Check power window main switch.
4. Check the following.
–Check harnesses between power window main switch
and power window sub-switch for open/short circuit.
–Check harnesses between power window sub-switch
and power window regulator for open/short circuit.
Power windows except driver's side
window cannot be operated using
power window main switch but can
be operated by power window sub-
switch.1. Power window main switch 1. Check power window main switch.
Driver side power window automatic
operation does not function prop-
erly.1. Power window main switch
2. Encoder and limit switch1. Check power window main switch.
2. Check encoder and limit switch.Refer to GW-41,
"Encoder and Limit Switch Check" .
