Page 1993 of 3833
TRANSAXLE ASSEMBLY
MT-17
D
E
F
G
H
I
J
K
L
MA
B
MT

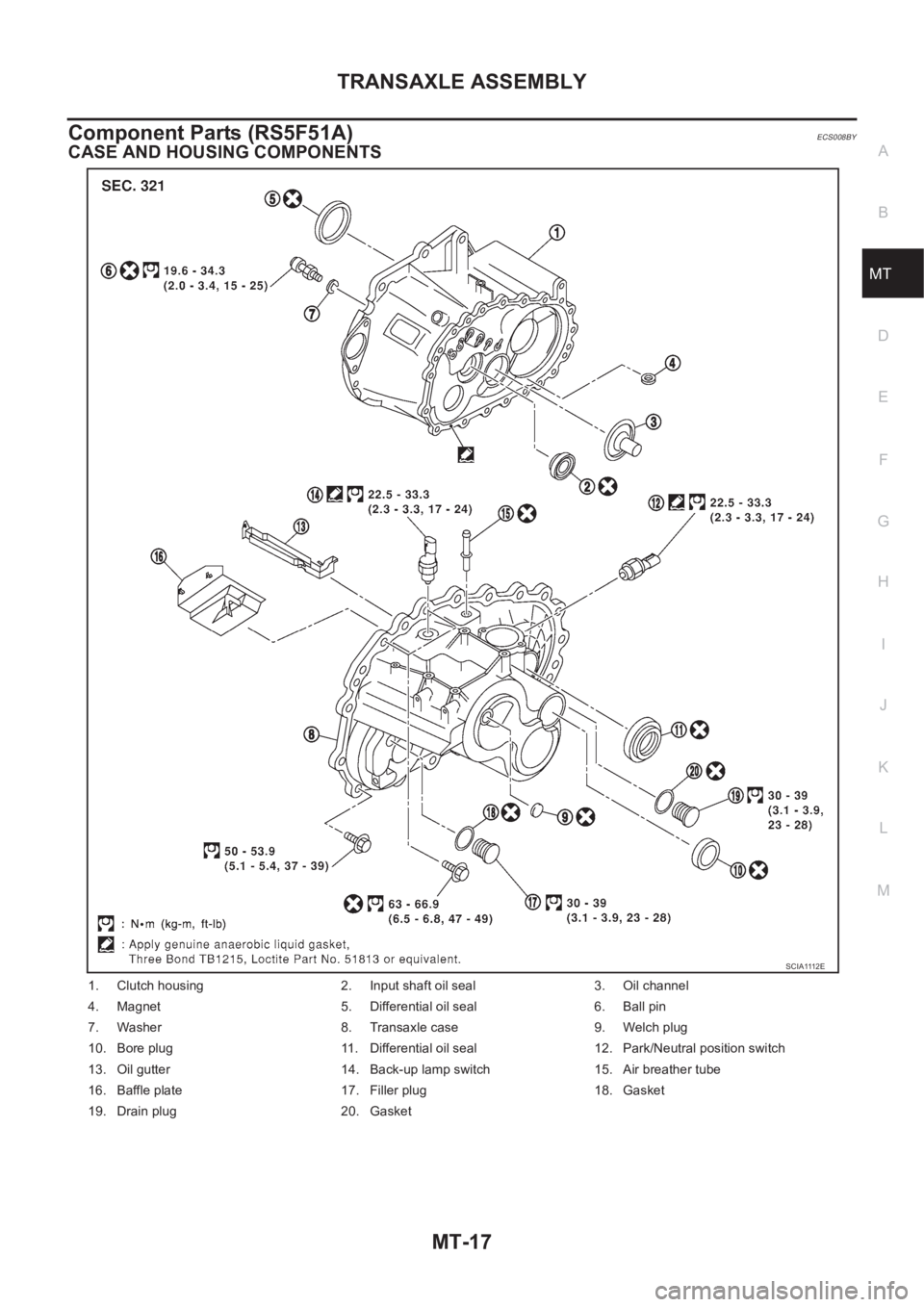

Component Parts (RS5F51A)ECS008BY
CASE AND HOUSING COMPONENTS
1. Clutch housing 2. Input shaft oil seal 3. Oil channel
4. Magnet 5. Differential oil seal 6. Ball pin
7. Washer 8. Transaxle case 9. Welch plug
10. Bore plug 11. Differential oil seal 12. Park/Neutral position switch
13. Oil gutter 14. Back-up lamp switch 15. Air breather tube
16. Baffle plate 17. Filler plug 18. Gasket
19. Drain plug 20. Gasket
SCIA1112E
Page 1994 of 3833
MT-18
TRANSAXLE ASSEMBLY

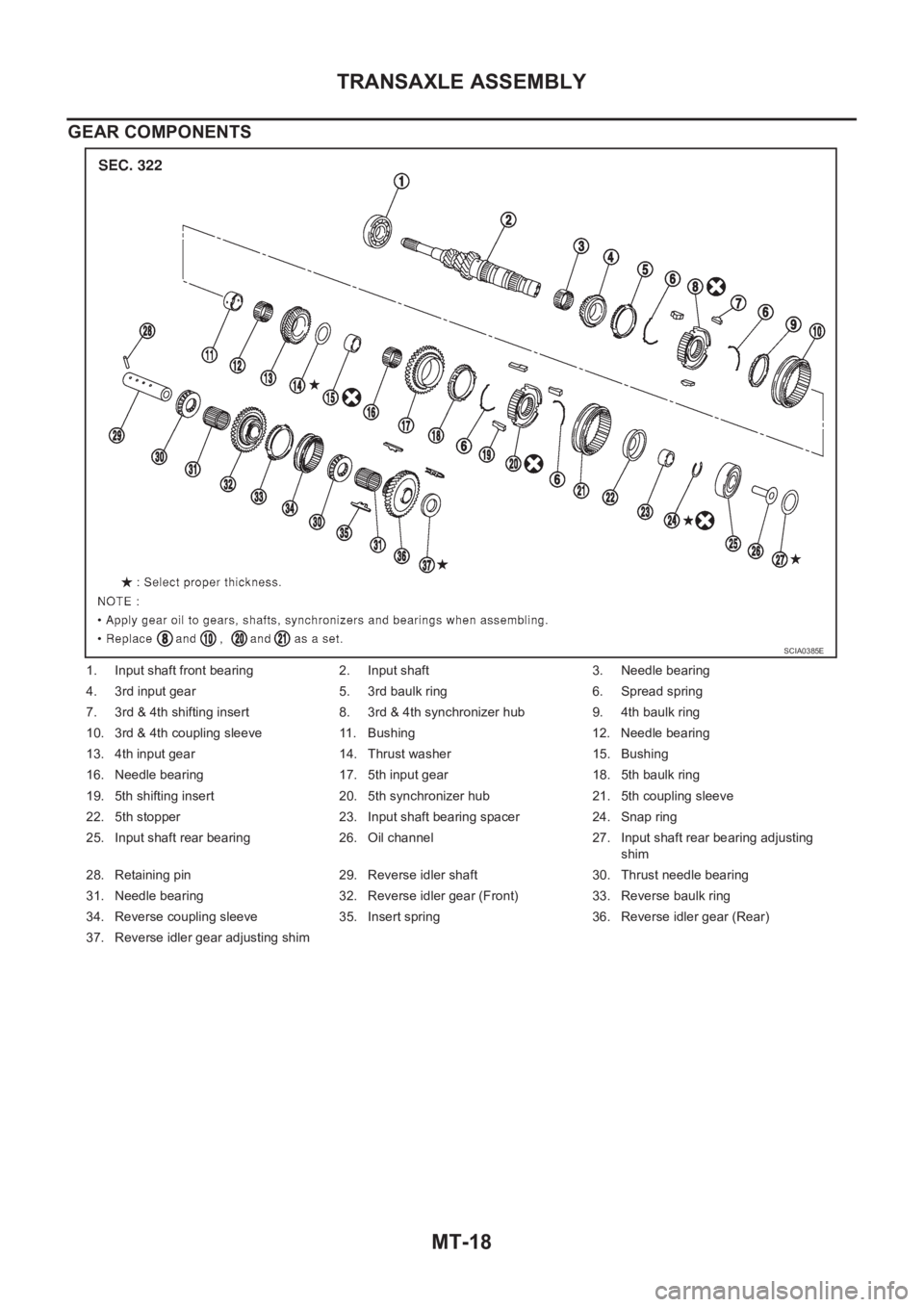

GEAR COMPONENTS
1. Input shaft front bearing 2. Input shaft 3. Needle bearing
4. 3rd input gear 5. 3rd baulk ring 6. Spread spring
7. 3rd & 4th shifting insert 8. 3rd & 4th synchronizer hub 9. 4th baulk ring
10. 3rd & 4th coupling sleeve 11. Bushing 12. Needle bearing
13. 4th input gear 14. Thrust washer 15. Bushing
16. Needle bearing 17. 5th input gear 18. 5th baulk ring
19. 5th shifting insert 20. 5th synchronizer hub 21. 5th coupling sleeve
22. 5th stopper 23. Input shaft bearing spacer 24. Snap ring
25. Input shaft rear bearing 26. Oil channel 27. Input shaft rear bearing adjusting
shim
28. Retaining pin 29. Reverse idler shaft 30. Thrust needle bearing
31. Needle bearing 32. Reverse idler gear (Front) 33. Reverse baulk ring
34. Reverse coupling sleeve 35. Insert spring 36. Reverse idler gear (Rear)
37. Reverse idler gear adjusting shim
SCIA0385E
Page 1995 of 3833
TRANSAXLE ASSEMBLY
MT-19
D
E
F
G
H
I
J
K
L
MA
B
MT

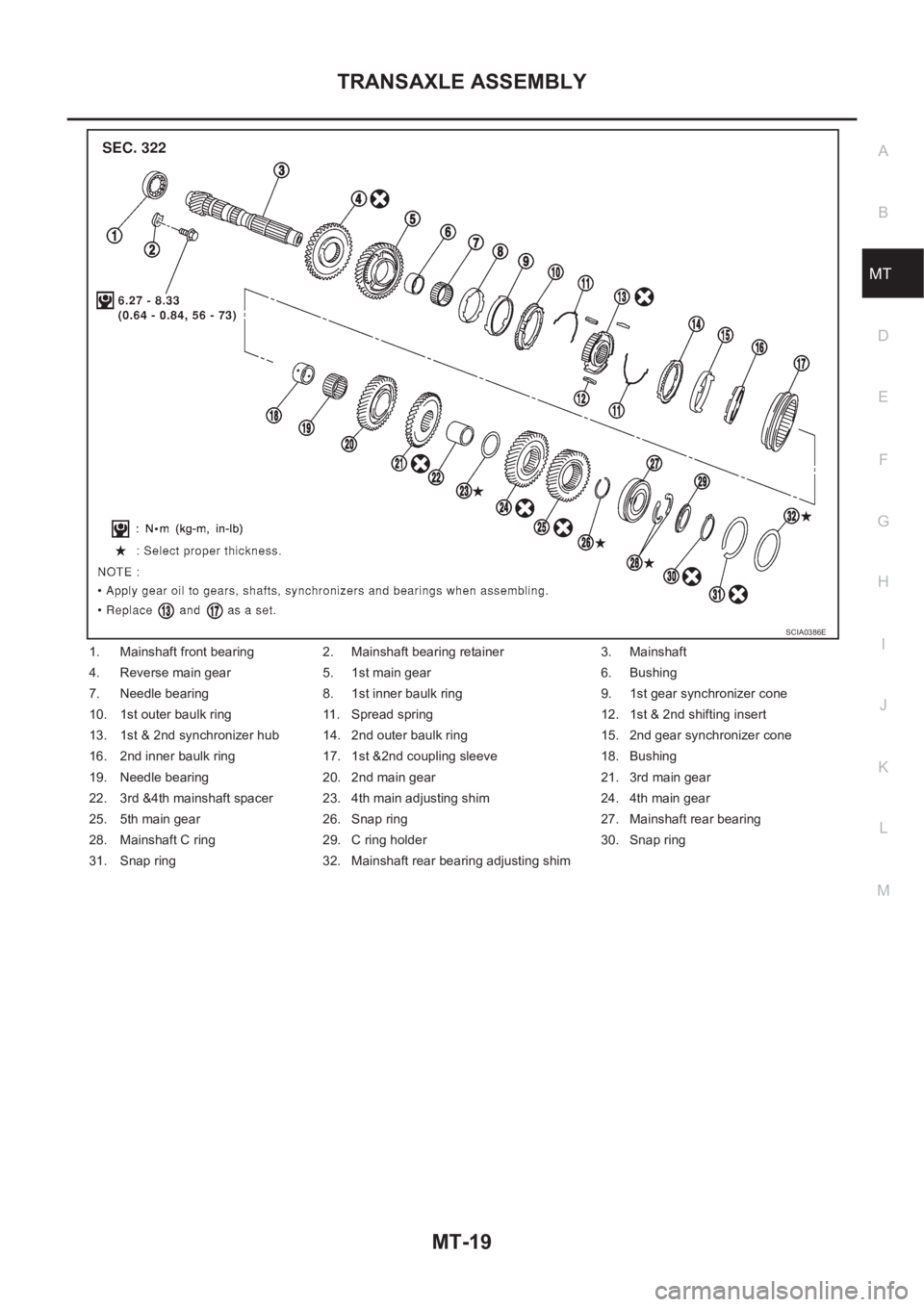

1. Mainshaft front bearing 2. Mainshaft bearing retainer 3. Mainshaft
4. Reverse main gear 5. 1st main gear 6. Bushing
7. Needle bearing 8. 1st inner baulk ring 9. 1st gear synchronizer cone
10. 1st outer baulk ring 11. Spread spring 12. 1st & 2nd shifting insert
13. 1st & 2nd synchronizer hub 14. 2nd outer baulk ring 15. 2nd gear synchronizer cone
16. 2nd inner baulk ring 17. 1st &2nd coupling sleeve 18. Bushing
19. Needle bearing 20. 2nd main gear 21. 3rd main gear
22. 3rd &4th mainshaft spacer 23. 4th main adjusting shim 24. 4th main gear
25. 5th main gear 26. Snap ring 27. Mainshaft rear bearing
28. Mainshaft C ring 29. C ring holder 30. Snap ring
31. Snap ring 32. Mainshaft rear bearing adjusting shim
SCIA0386E
Page 1996 of 3833
MT-20
TRANSAXLE ASSEMBLY

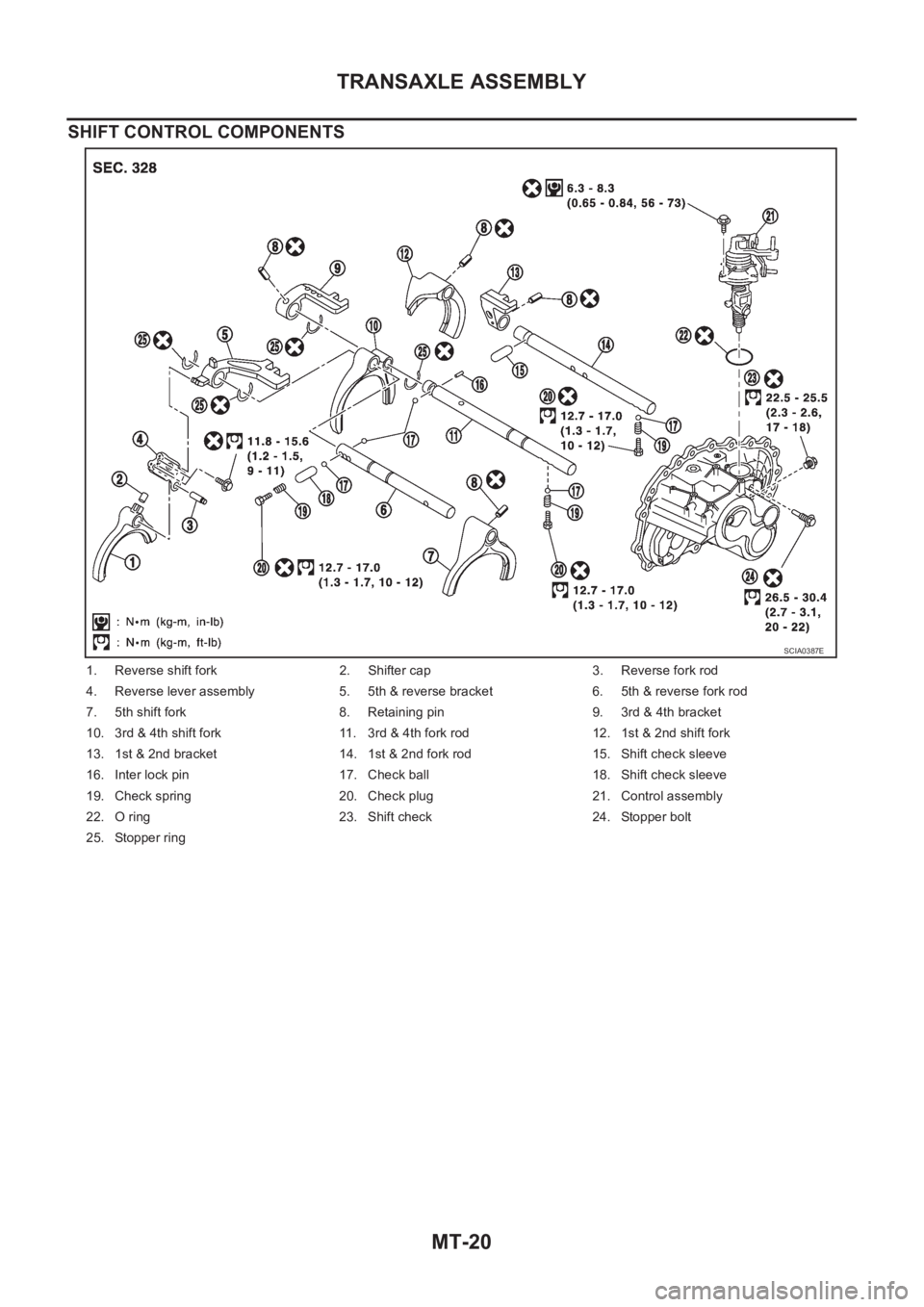

SHIFT CONTROL COMPONENTS
1. Reverse shift fork 2. Shifter cap 3. Reverse fork rod
4. Reverse lever assembly 5. 5th & reverse bracket 6. 5th & reverse fork rod
7. 5th shift fork 8. Retaining pin 9. 3rd & 4th bracket
10. 3rd & 4th shift fork 11. 3rd & 4th fork rod 12. 1st & 2nd shift fork
13. 1st & 2nd bracket 14. 1st & 2nd fork rod 15. Shift check sleeve
16. Inter lock pin 17. Check ball 18. Shift check sleeve
19. Check spring 20. Check plug 21. Control assembly
22. O ring 23. Shift check 24. Stopper bolt
25. Stopper ring
SCIA0387E
Page 1997 of 3833
TRANSAXLE ASSEMBLY
MT-21
D
E
F
G
H
I
J
K
L
MA
B
MT

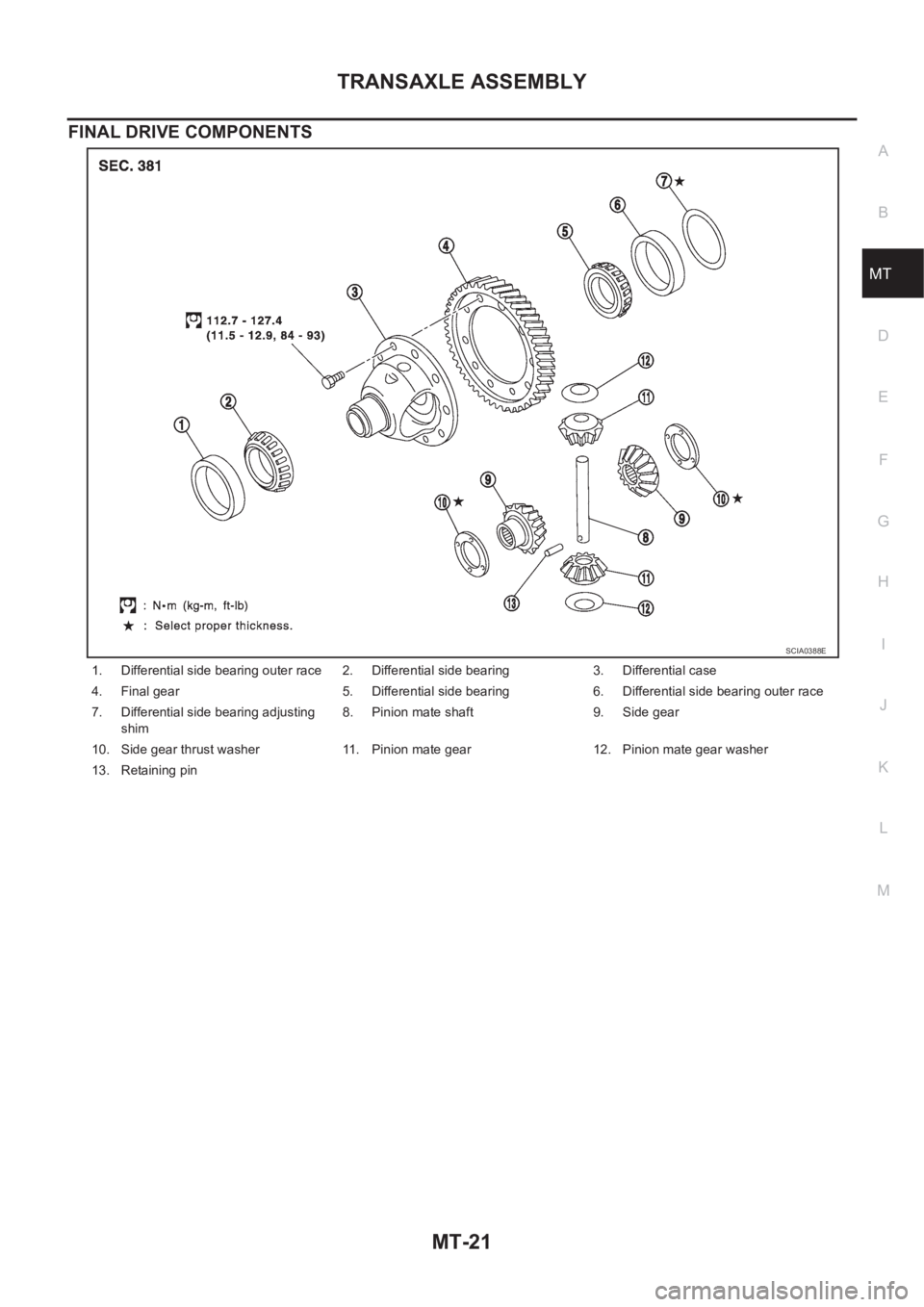

FINAL DRIVE COMPONENTS
1. Differential side bearing outer race 2. Differential side bearing 3. Differential case
4. Final gear 5. Differential side bearing 6. Differential side bearing outer race
7. Differential side bearing adjusting
shim8. Pinion mate shaft 9. Side gear
10. Side gear thrust washer 11. Pinion mate gear 12. Pinion mate gear washer
13. Retaining pin
SCIA0388E
Page 1998 of 3833
MT-22
TRANSAXLE ASSEMBLY

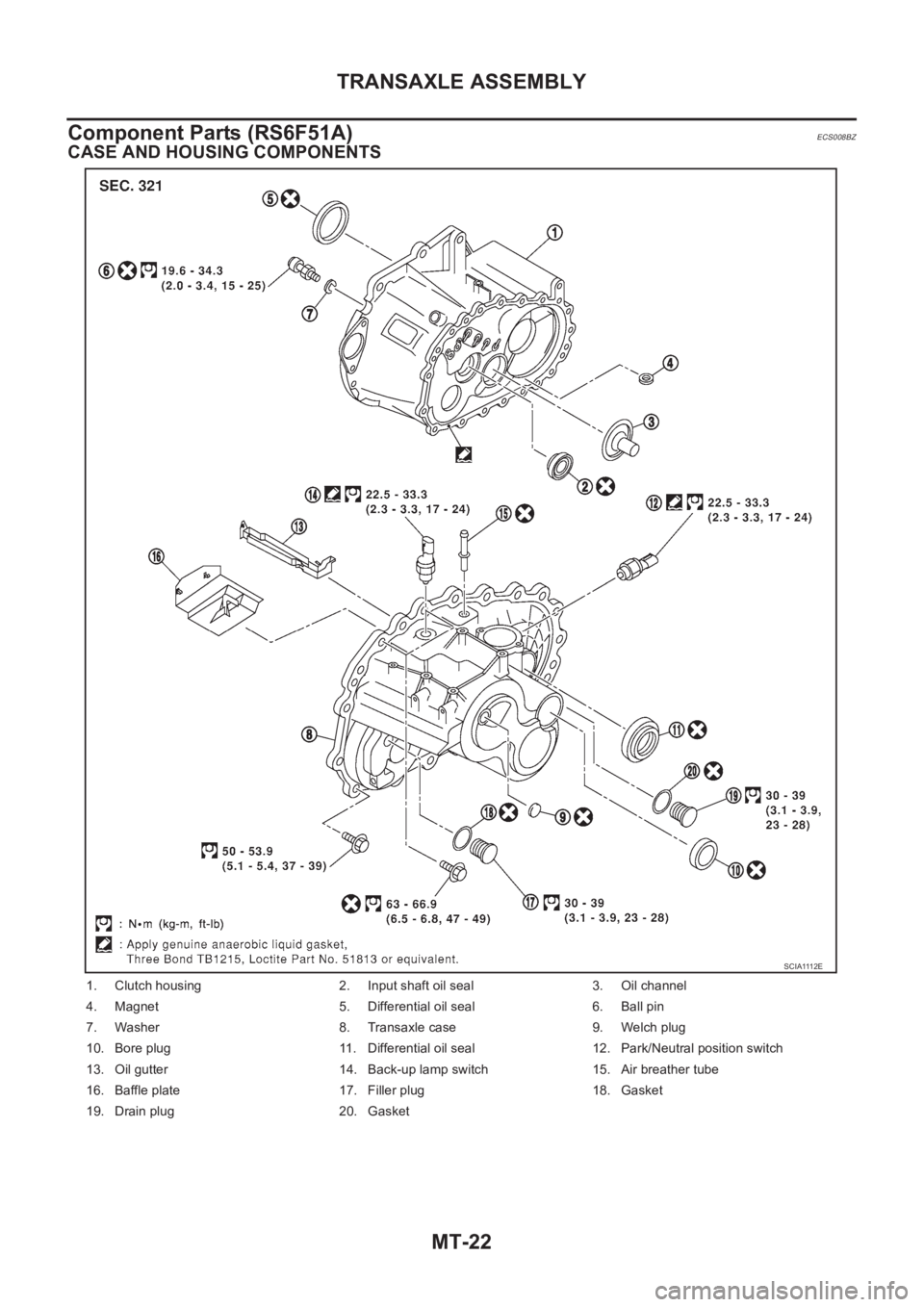

Component Parts (RS6F51A)
ECS008BZ
CASE AND HOUSING COMPONENTS
1. Clutch housing 2. Input shaft oil seal 3. Oil channel
4. Magnet 5. Differential oil seal 6. Ball pin
7. Washer 8. Transaxle case 9. Welch plug
10. Bore plug 11. Differential oil seal 12. Park/Neutral position switch
13. Oil gutter 14. Back-up lamp switch 15. Air breather tube
16. Baffle plate 17. Filler plug 18. Gasket
19. Drain plug 20. Gasket
SCIA1112E
Page 1999 of 3833
TRANSAXLE ASSEMBLY
MT-23
D
E
F
G
H
I
J
K
L
MA
B
MT

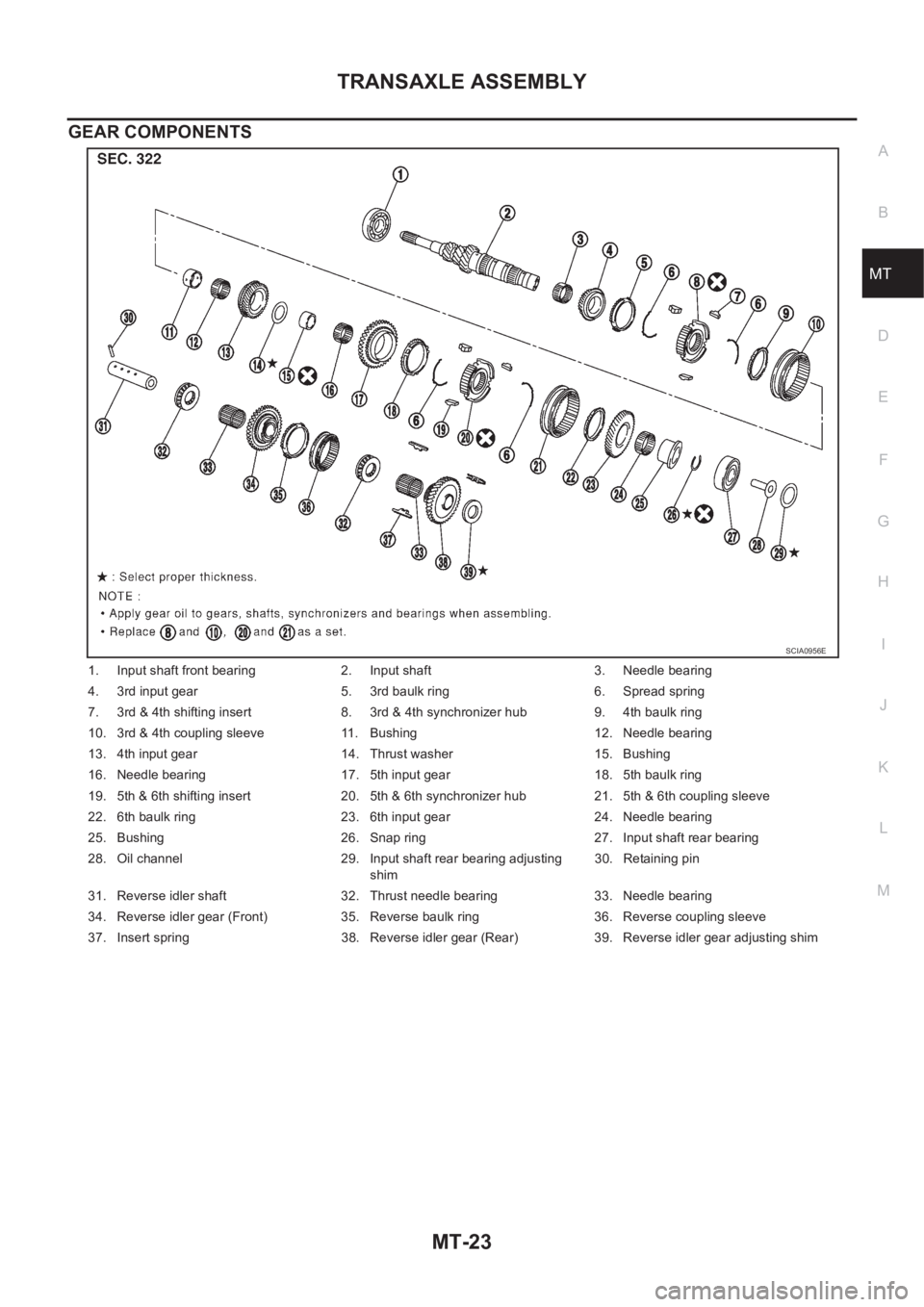

GEAR COMPONENTS
1. Input shaft front bearing 2. Input shaft 3. Needle bearing
4. 3rd input gear 5. 3rd baulk ring 6. Spread spring
7. 3rd & 4th shifting insert 8. 3rd & 4th synchronizer hub 9. 4th baulk ring
10. 3rd & 4th coupling sleeve 11. Bushing 12. Needle bearing
13. 4th input gear 14. Thrust washer 15. Bushing
16. Needle bearing 17. 5th input gear 18. 5th baulk ring
19. 5th & 6th shifting insert 20. 5th & 6th synchronizer hub 21. 5th & 6th coupling sleeve
22. 6th baulk ring 23. 6th input gear 24. Needle bearing
25. Bushing 26. Snap ring 27. Input shaft rear bearing
28. Oil channel 29. Input shaft rear bearing adjusting
shim30. Retaining pin
31. Reverse idler shaft 32. Thrust needle bearing 33. Needle bearing
34. Reverse idler gear (Front) 35. Reverse baulk ring 36. Reverse coupling sleeve
37. Insert spring 38. Reverse idler gear (Rear) 39. Reverse idler gear adjusting shim
SCIA0956E
Page 2000 of 3833
MT-24
TRANSAXLE ASSEMBLY

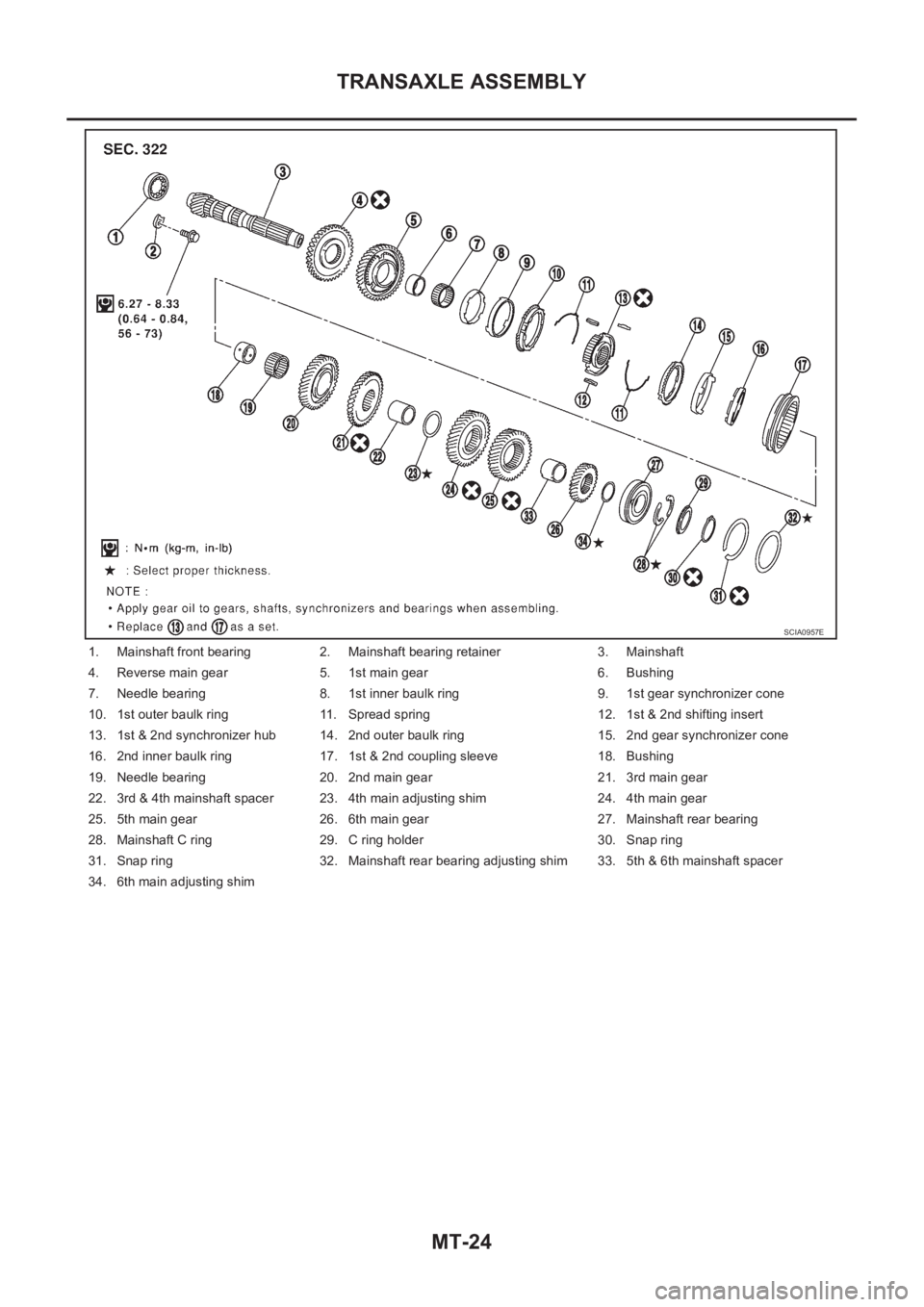

1. Mainshaft front bearing 2. Mainshaft bearing retainer 3. Mainshaft
4. Reverse main gear 5. 1st main gear 6. Bushing
7. Needle bearing 8. 1st inner baulk ring 9. 1st gear synchronizer cone
10. 1st outer baulk ring 11. Spread spring 12. 1st & 2nd shifting insert
13. 1st & 2nd synchronizer hub 14. 2nd outer baulk ring 15. 2nd gear synchronizer cone
16. 2nd inner baulk ring 17. 1st & 2nd coupling sleeve 18. Bushing
19. Needle bearing 20. 2nd main gear 21. 3rd main gear
22. 3rd & 4th mainshaft spacer 23. 4th main adjusting shim 24. 4th main gear
25. 5th main gear 26. 6th main gear 27. Mainshaft rear bearing
28. Mainshaft C ring 29. C ring holder 30. Snap ring
31. Snap ring 32. Mainshaft rear bearing adjusting shim 33. 5th & 6th mainshaft spacer
34. 6th main adjusting shim
SCIA0957E
