6.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-39, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out

Page 426 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-76
[QR25(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
11 .  PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-39, "
Accelerator Pedal Released Position Learning" .
>>

Page 427 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS
EC-77
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

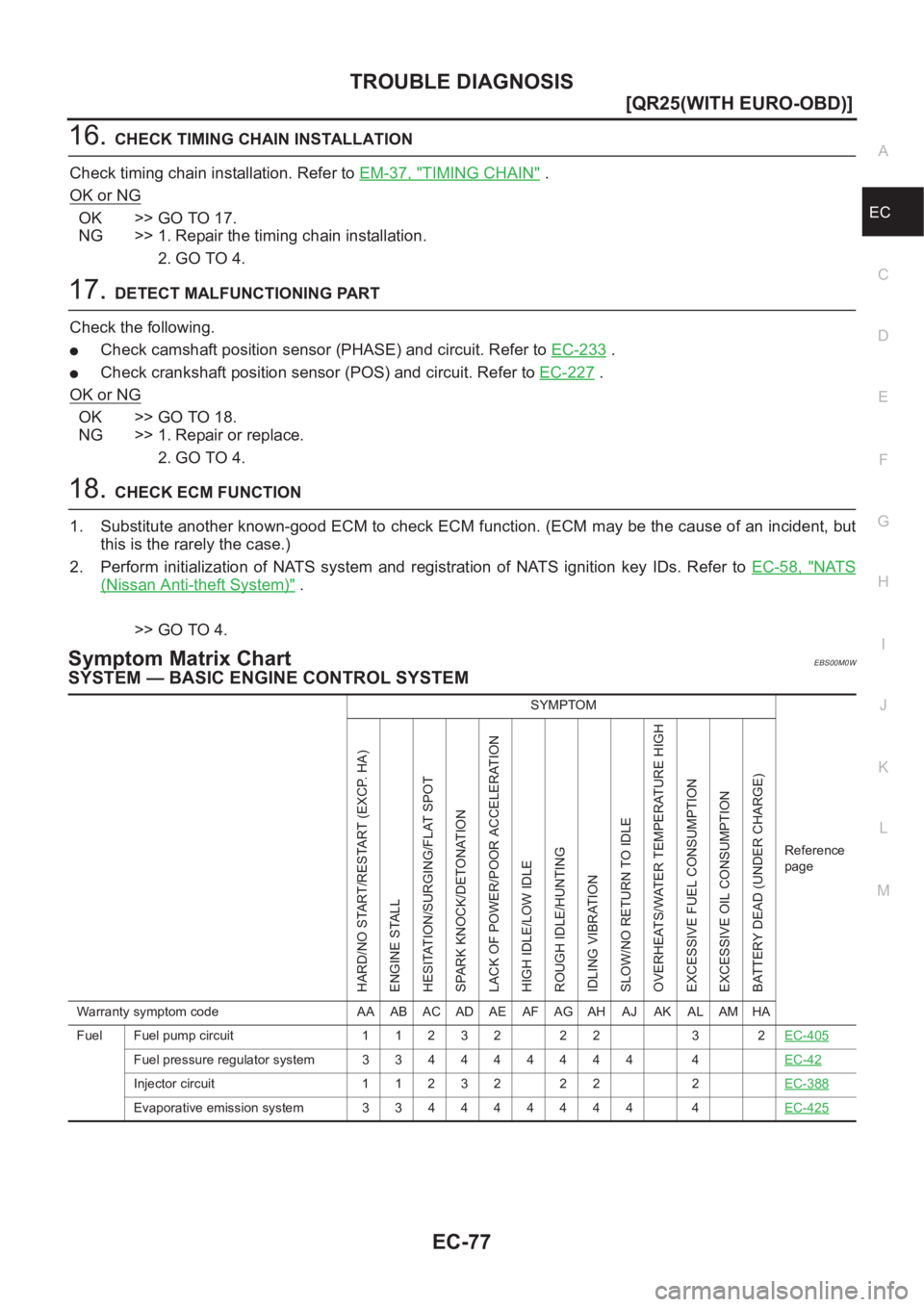

16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-37, "
TIMING CHAIN" .
OK or NG
OK >> GO

Page 428 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-78
[QR25(WITH EURO-OBD)]
TROUBLE DIAGNOSIS

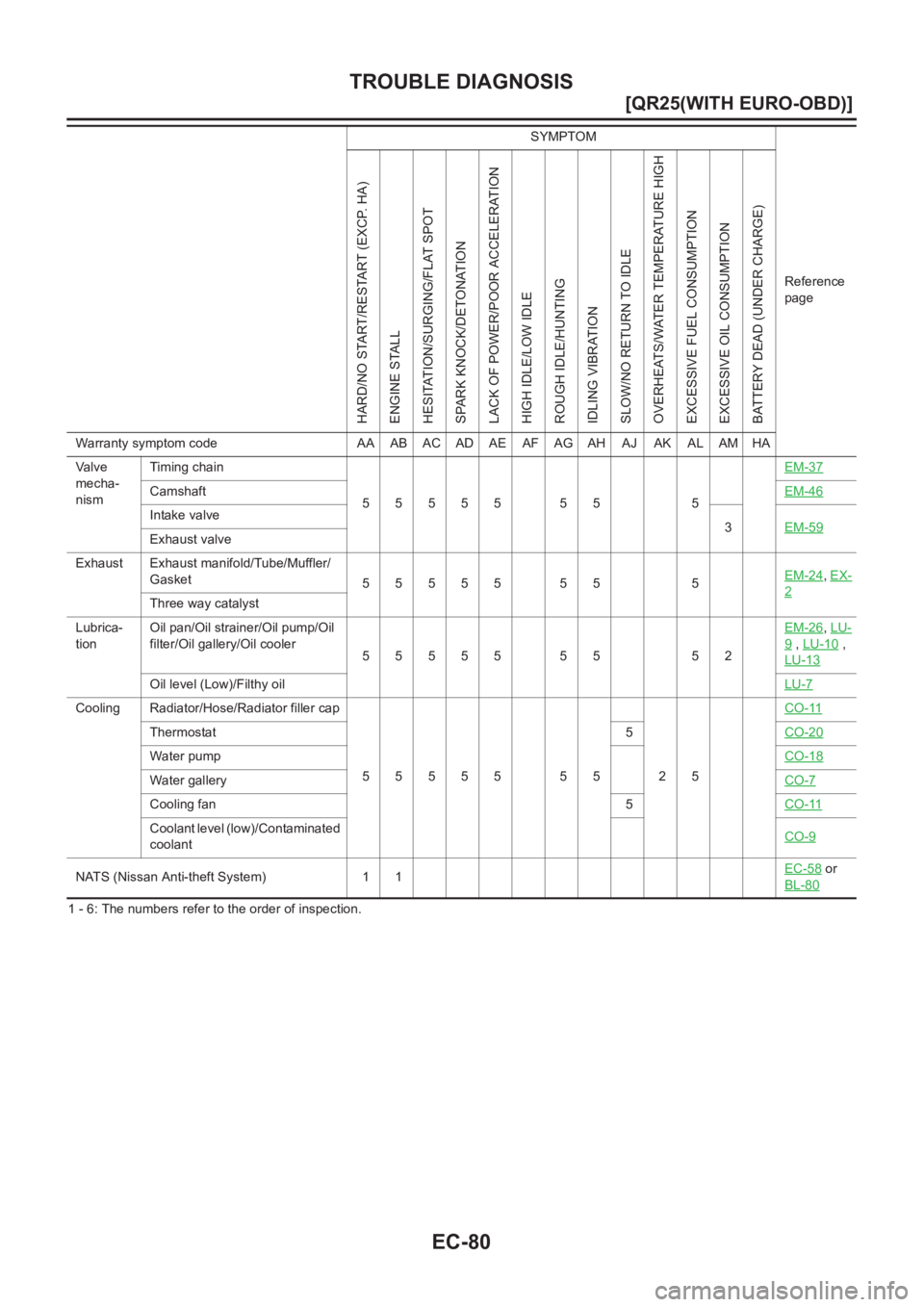

1 - 6: The numbers refer to the order of inspection.Air Positive crankcase ventilation sys-
tem334444444 41EC-428
Incorrect idle speed adjustment 33 1111

Page 429 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS
EC-79
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE ST

Page 430 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-80
[QR25(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
1 - 6: The numbers refer to the order of inspection.Va l v e
mecha-
nismTiming chain
55555 55 5EM-37
CamshaftEM-46
Intake valve
3EM-59
Exhaust valve
Exh

Page 431 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual TROUBLE DIAGNOSIS
EC-81
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

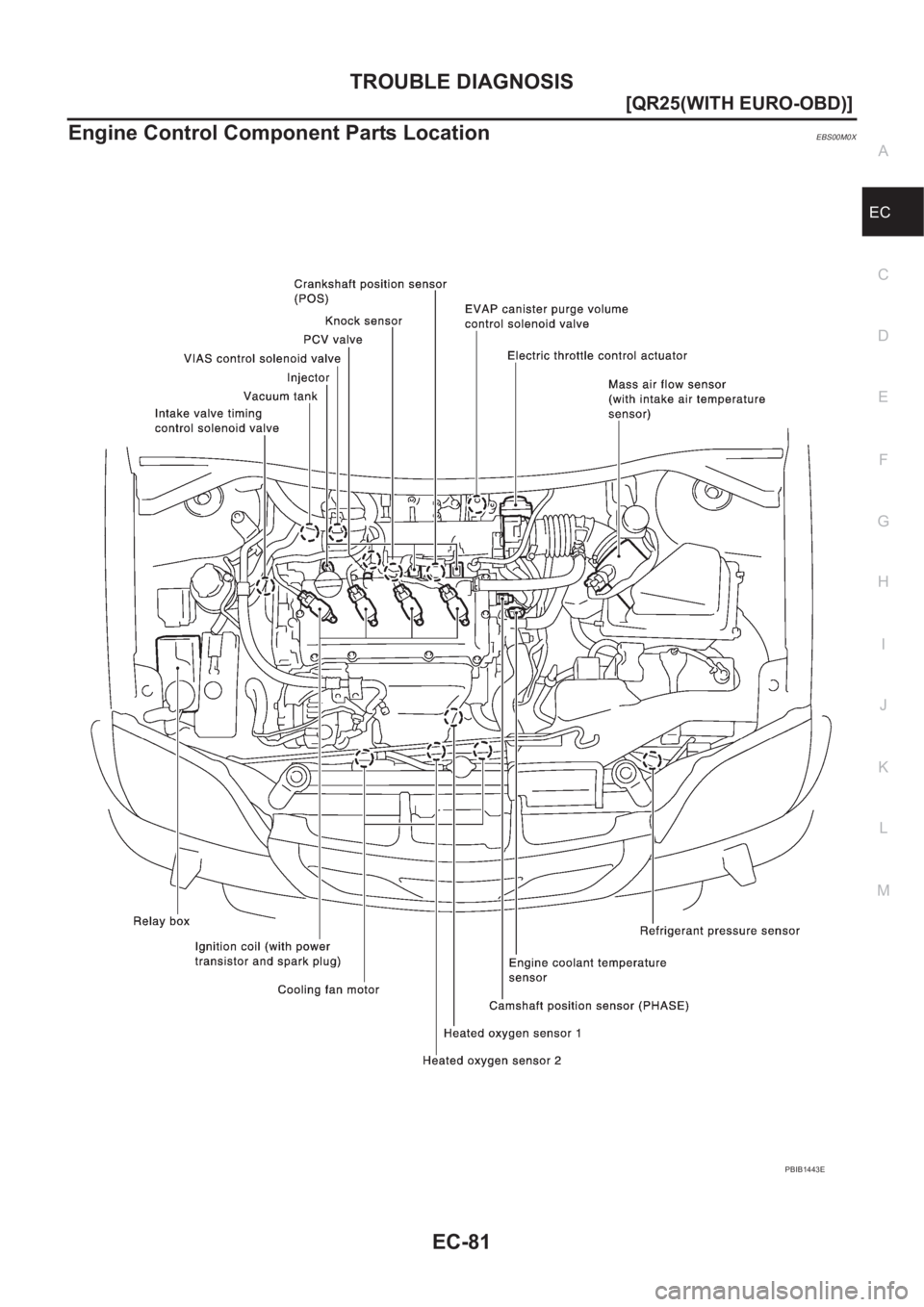

Engine Control Component Parts LocationEBS00M0X
PBIB1443E

Page 432 of 3833

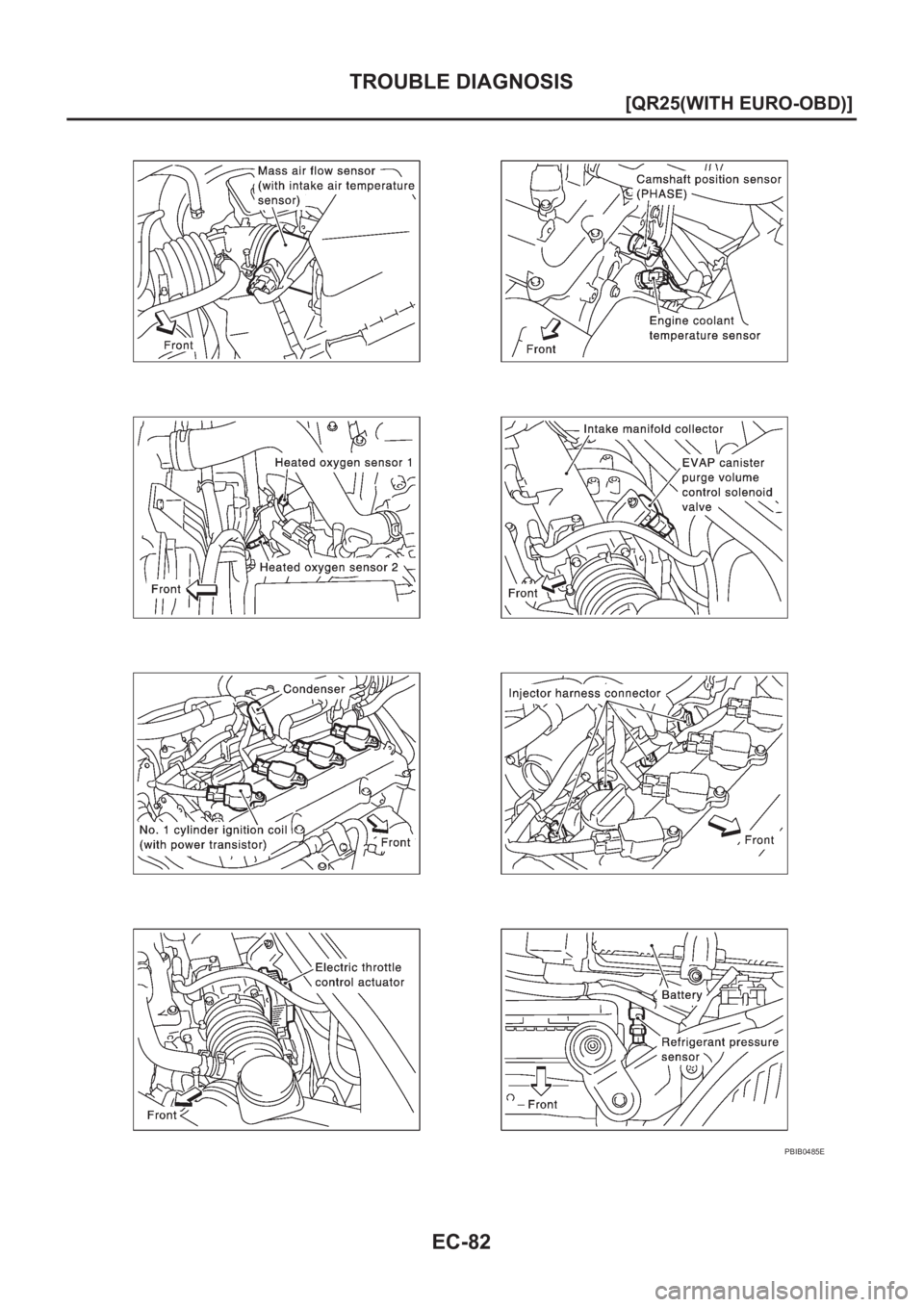

NISSAN X-TRAIL 2001  Service Repair Manual EC-82
[QR25(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
PBIB0485E
