Page 3705 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
PG
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING ...................................

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
PG
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING ...................................... 2
Schematic ................................................................ 2
Wiring Diagram — POWER — ................................. 3
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ................................................ 3
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” ......................................... 7
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” .................................... 8
Fuse ....................................................................... 12
Fusible Link ............................................................ 12
Circuit Breaker ....................................................... 12
GROUND .................................................................. 13
Ground Distribution ................................................ 13
MAIN HARNESS/LHD MODELS ........................ 13
MAIN HARNESS/RHD MODELS ........................ 15
ENGINE ROOM HARNESS/LHD MODELS ....... 17
ENGINE ROOM HARNESS/RHD MODELS ....... 18
ENGINE ROOM HARNESS ................................ 19
ENGINE CONTROL HARNESS/QR25 ENGINE
MODELS ............................................................. 20
ENGINE CONTROL HARNESS/QR20 ENGINE
MODELS ............................................................. 21
ENGINE CONTROL HARNESS/DIESEL
ENGINE MODELS .............................................. 22
BODY HARNESS/LHD MODELS ....................... 23
BODY HARNESS/RHD MODELS ....................... 24
BODY NO.2 HARNESS/LHD MODELS .............. 25
BODY NO.2 HARNESS/RHD MODELS ............. 26
BODY NO.2 HARNESS ...................................... 27
BACK DOOR SUB HARNESS/REAR WINDOW
DEFOGGER HARNESS ..................................... 28
HARNESS ................................................................. 29
Harness Layout ...................................................... 29
HOW TO READ HARNESS LAYOUTS ............... 29
OUTLINE/LHD MODELS .................................... 30
OUTLINE/RHD MODELS .................................... 31
MAIN HARNESS/LHD MODELS ........................ 32MAIN HARNESS/RHD MODELS ........................ 34
ENGINE ROOM HARNESS/LHD MODELS ........ 36
ENGINE ROOM HARNESS/RHD MODELS ....... 41
ENGINE CONTROL HARNESS .......................... 46
BODY HARNESS/LHD MODELS ....................... 51
BODY HARNESS/RHD MODELS ....................... 52
BODY NO.2 HARNESS/LHD MODELS .............. 53
BODY NO.2 HARNESS/RHD MODELS .............. 54
ROOM LAMP HARNESS .................................... 55
FRONT DOOR HARNESS/LHD MODELS .......... 56
FRONT DOOR HARNESS/RHD MODELS ......... 57
REAR DOOR HARNESS .................................... 58
BACK DOOR HARNESS .................................... 59
Wiring Diagram Codes (Cell Codes) ...................... 60
ELECTRICAL UNITS LOCATION .........................
... 63
Electrical Units Location ......................................... 63
ENGINE COMPARTMENT .................................. 63
PASSENGER COMPARTMENT/LHD MODELS ... 64
PASSENGER COMPARTMENT/RHD MODELS ... 66
HARNESS CONNECTOR ......................................... 68
Description .............................................................. 68
HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 68
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 69
JOINT CONNECTOR (J/C) ....................................... 70
Terminal Arrangement ............................................ 70
ELECTRICAL UNITS ................................................ 71
Terminal Arrangement ............................................ 71
STANDARDIZED RELAY .......................................... 72
Description .............................................................. 72
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 72
TYPE OF STANDARDIZED RELAYS ................. 72
FUSE BLOCK - JUNCTION BOX (J/B) .................... 74
Terminal Arrangement ............................................ 74
FUSE AND FUSIBLE LINK BOX .............................. 75
Terminal Arrangement ............................................ 75

Page 3706 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual PG-2
POWER SUPPLY ROUTING
POWER SUPPLY ROUTING
PFP:00011

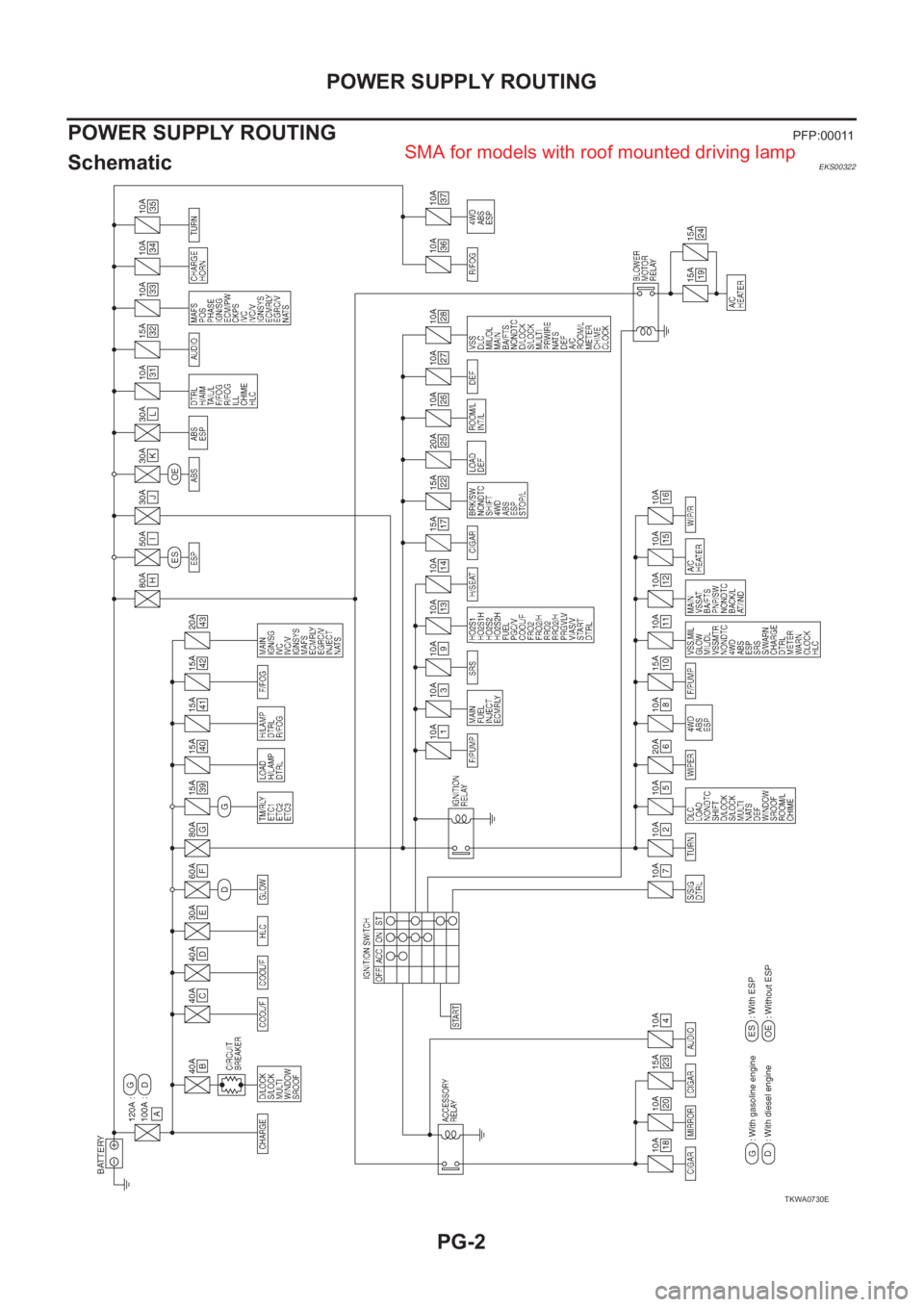

Schematic EKS00322
TKWA0730E
SMA for models with roof mounted driving lamp

Page 3707 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual POWER SUPPLY ROUTING
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG
Wiring Diagram — POWER — EKS00323
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWA0120E
SMA for models with roof mounted driving lamp

Page 3708 of 3833

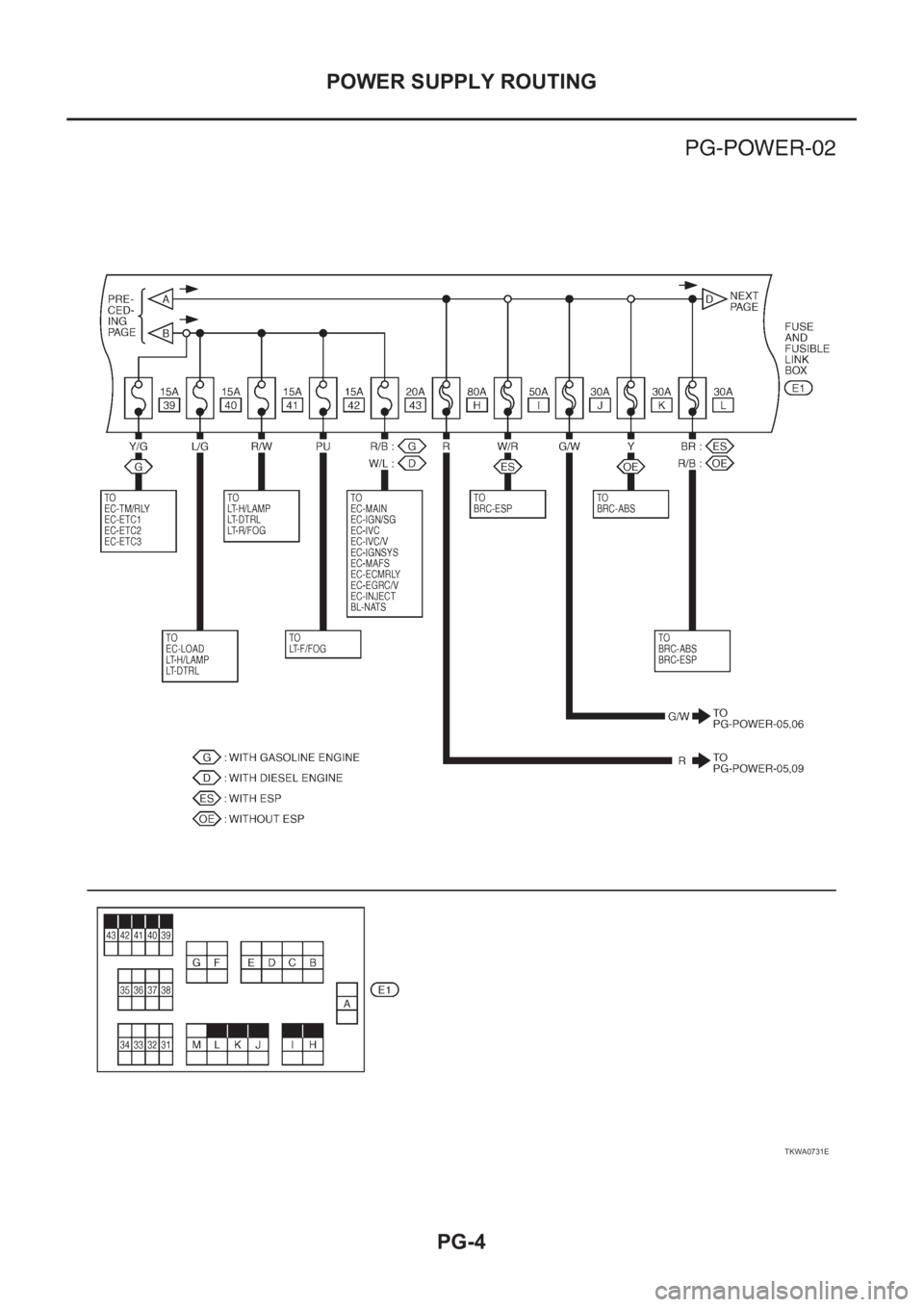

NISSAN X-TRAIL 2001 Service Repair Manual PG-4
POWER SUPPLY ROUTING
TKWA0731E

Page 3709 of 3833

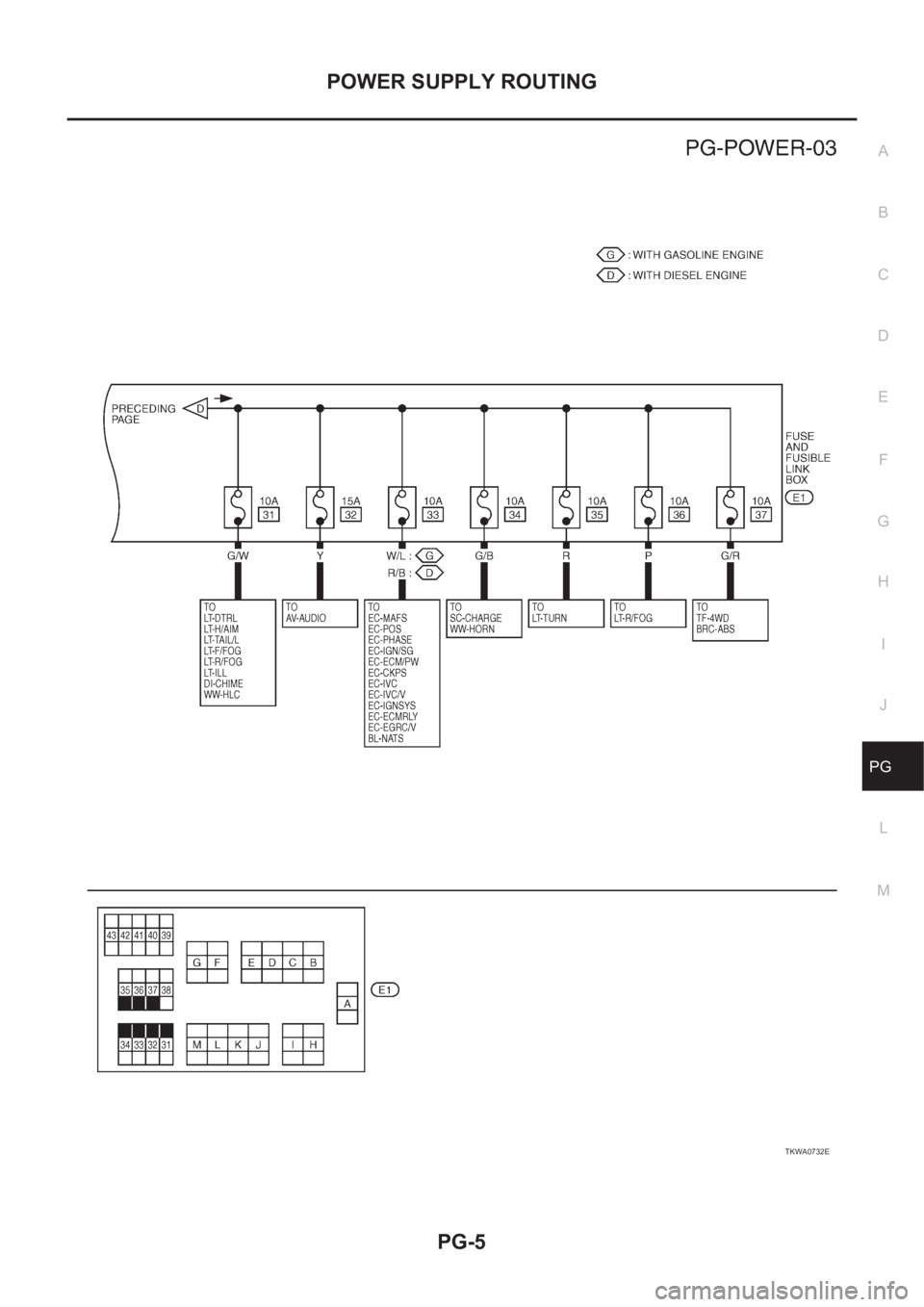

NISSAN X-TRAIL 2001 Service Repair Manual POWER SUPPLY ROUTING
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG
TKWA0732E

Page 3710 of 3833

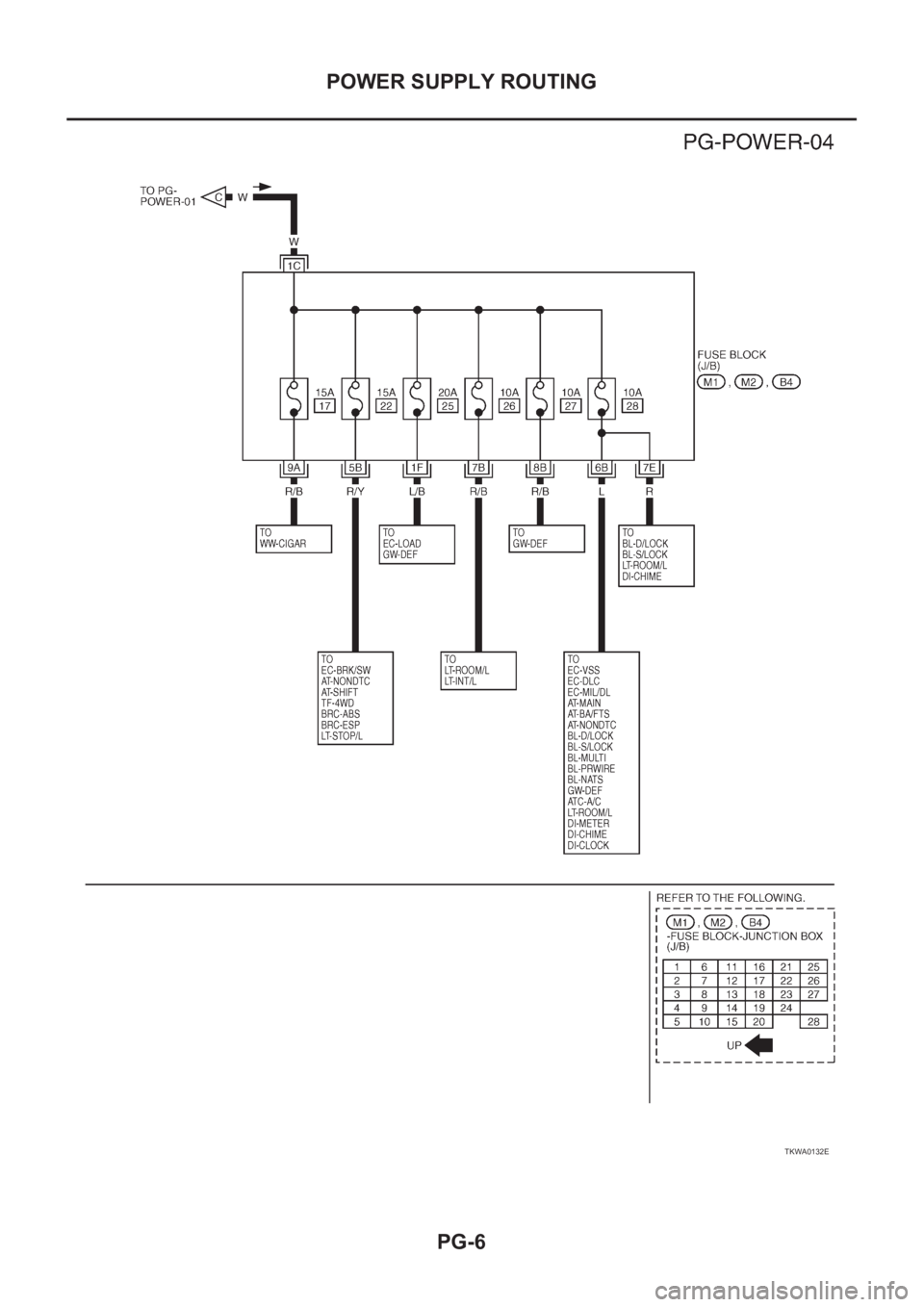

NISSAN X-TRAIL 2001 Service Repair Manual PG-6
POWER SUPPLY ROUTING
TKWA0132E

Page 3711 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual POWER SUPPLY ROUTING
PG-7
C
D
E
F
G
H
I
J
L
MA
B
PG

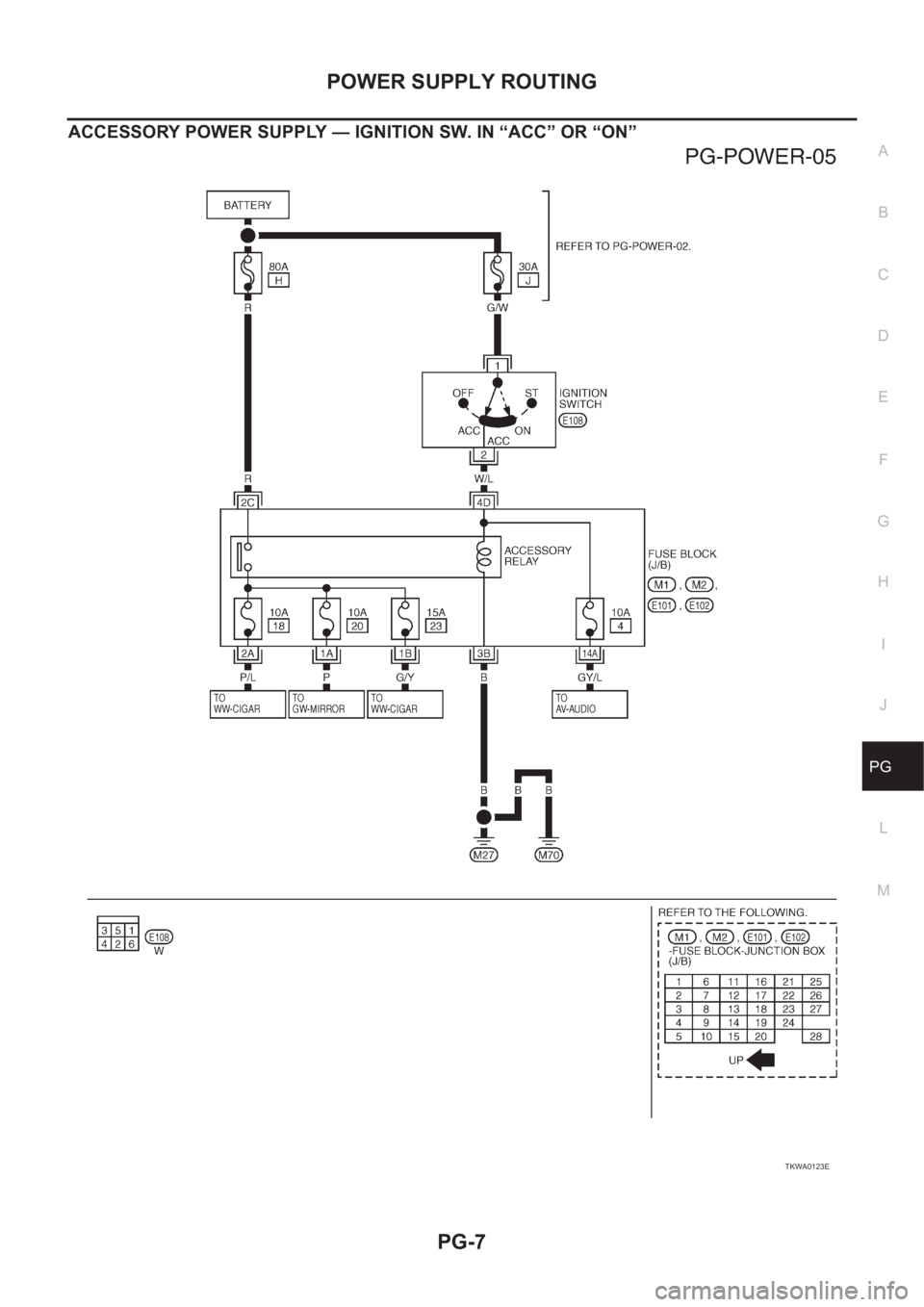

ACCESSORY POWER SUPPLY — IGNITION SW. IN “ACC” OR “ON”
TKWA0123E

Page 3712 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual PG-8
POWER SUPPLY ROUTING

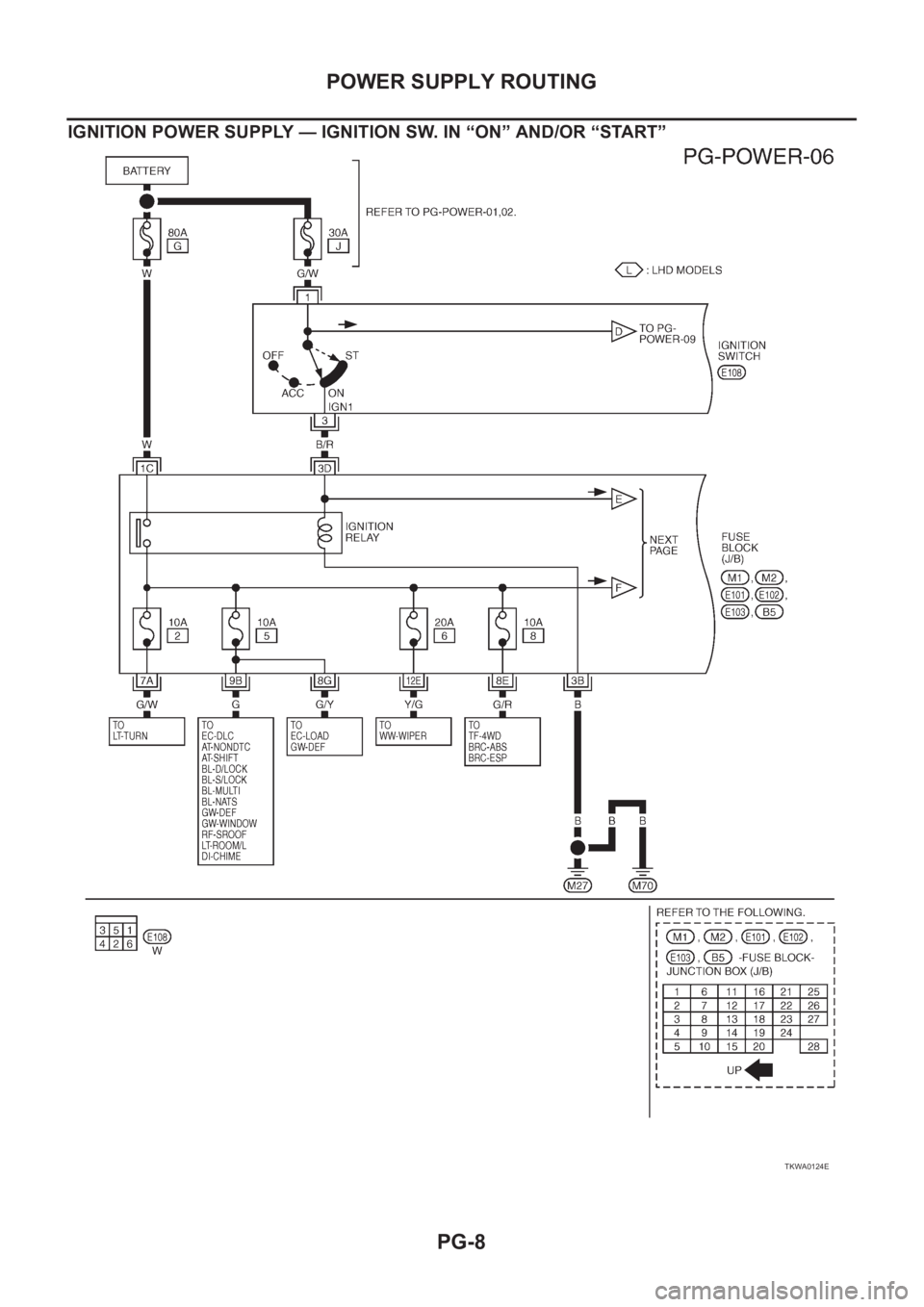

IGNITION POWER SUPPLY — IGNITION SW. IN “ON” AND/OR “START”
TKWA0124E
