Page 3329 of 3833

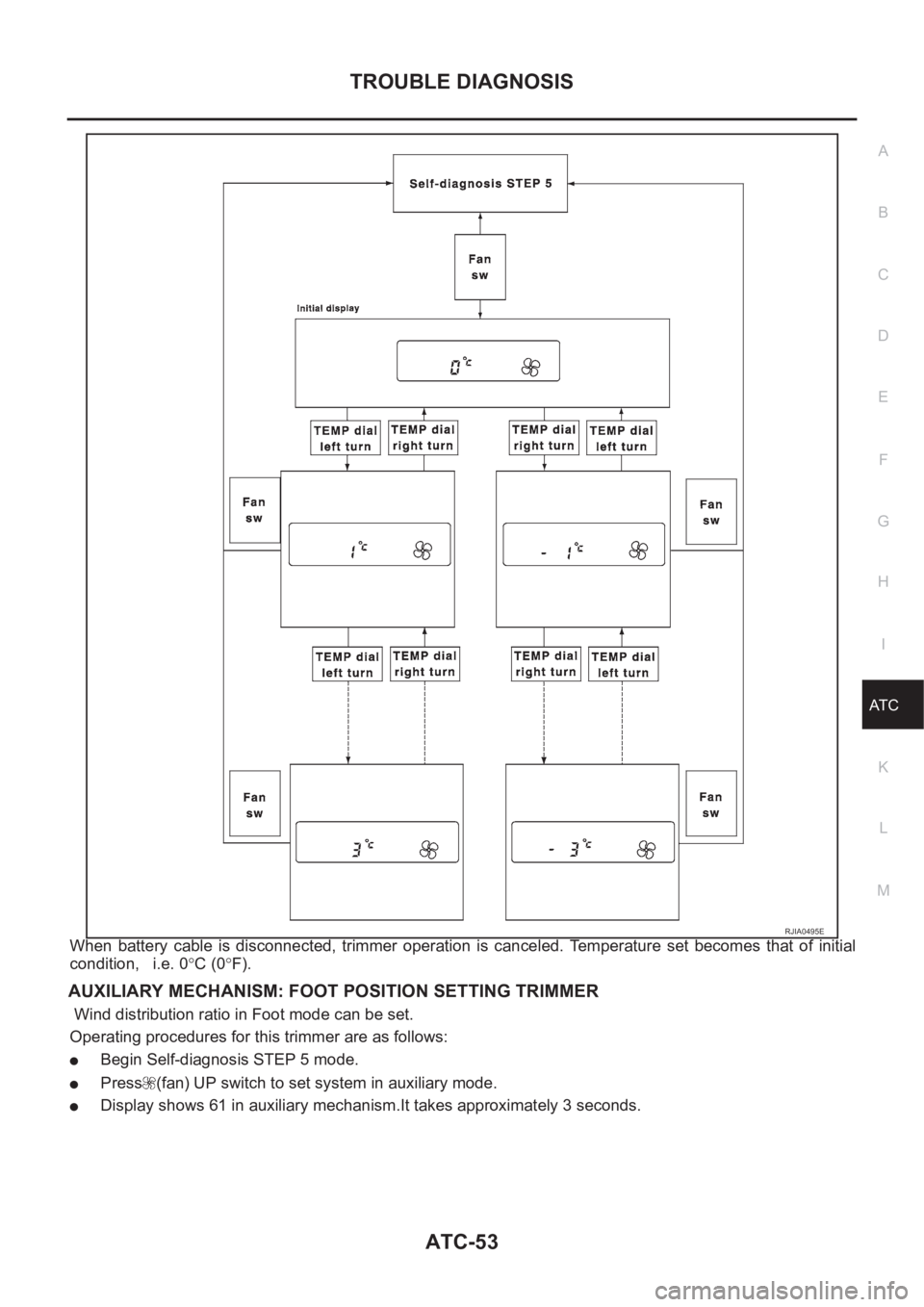

NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS ATC-53 C D E F G H I K L MA B AT C When battery cable is disconnected, trimmer operation is canceled. Temperature set becomes that of initial condition, i.e. 0°C (0

Page 3330 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ATC-54 TROUBLE DIAGNOSIS ●Press the mode switch as desired. AUXILIARY MECHANISM: INLET PORT MEMORY FUNCTION (FOR LHD MODELS) When ignition key is turned from OFF to ON, inlet port can be set to AUT

Page 3331 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS ATC-55 C D E F G H I K L MA B AT C CHECKING BLOWER 1. Press fan switch (up side) one time.Blower should operate on low speed.The fan symbol should have one blade lit . 2.

Page 3332 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ATC-56 TROUBLE DIAGNOSIS CHECKING TEMPERATURE DECREASE 1. Turn the temperature dial until 18°C is displayed. 2. Check for cold air at discharge air outlets. If NG, go to AT C - 8 6 , " Insuffic

Page 3333 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS ATC-57 C D E F G H I K L MA B AT C Power Supply and Ground Circuit for Auto Amp.EJS001GZ SYMPTOM: A/C system does not come on. INSPECTION FLOW COMPONENT DESCRIPTION Automatic Amplifi

Page 3334 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ATC-58 TROUBLE DIAGNOSIS DIAGNOSTIC PROCEDURE SYMPTOM: A/C system does not come on. 1. CHECK POWER SUPPLY CIRCUIT FOR AUTO AMP. OK or NG OK >> GO TO 2. NG >> Check 10A fuses (Nos. 15 and 28) and 15A f

Page 3335 of 3833

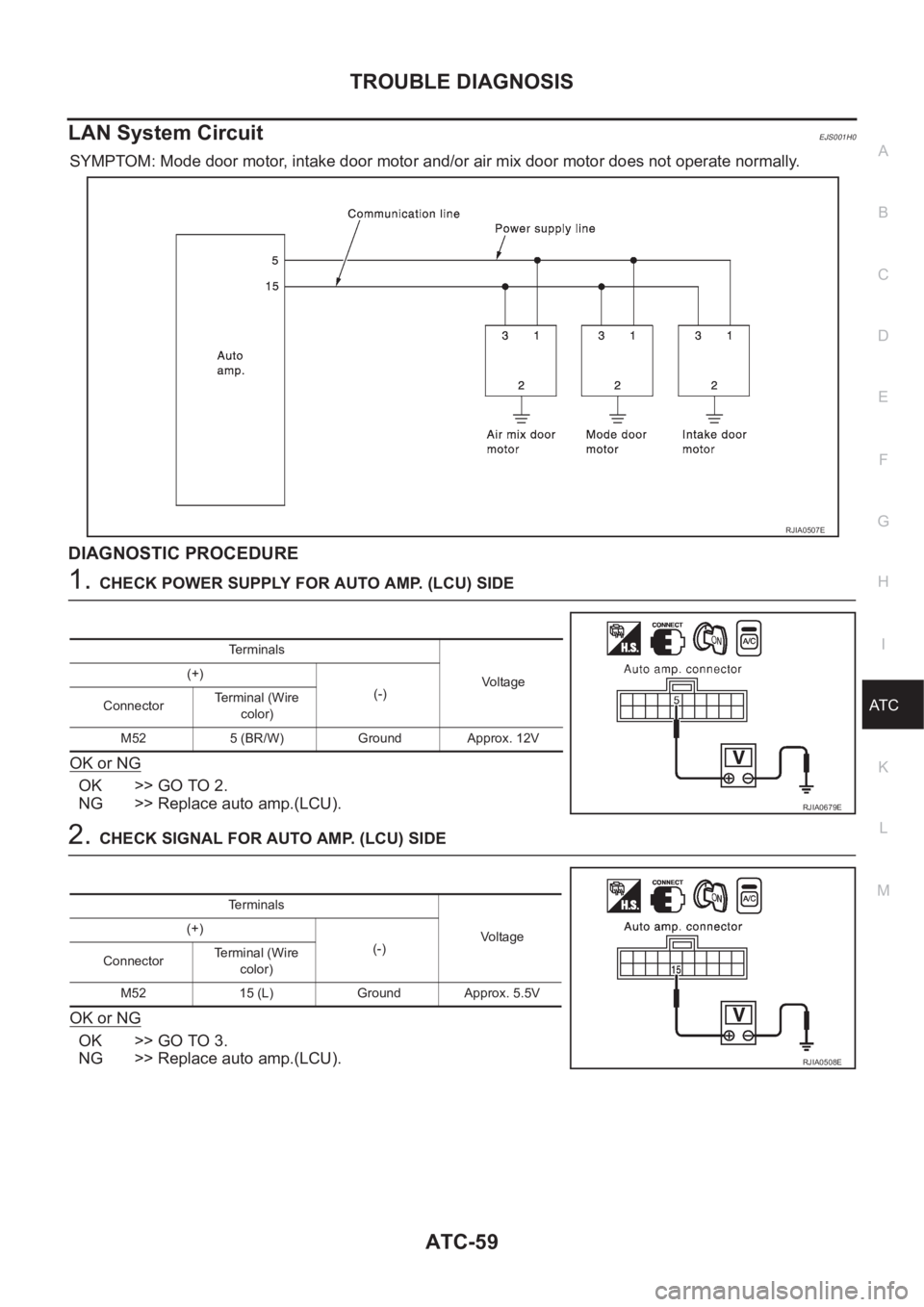

NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS ATC-59 C D E F G H I K L MA B AT C LAN System CircuitEJS001H0 SYMPTOM: Mode door motor, intake door motor and/or air mix door motor does not operate normally. DIAGNOSTIC PROCEDURE 1.

Page 3336 of 3833

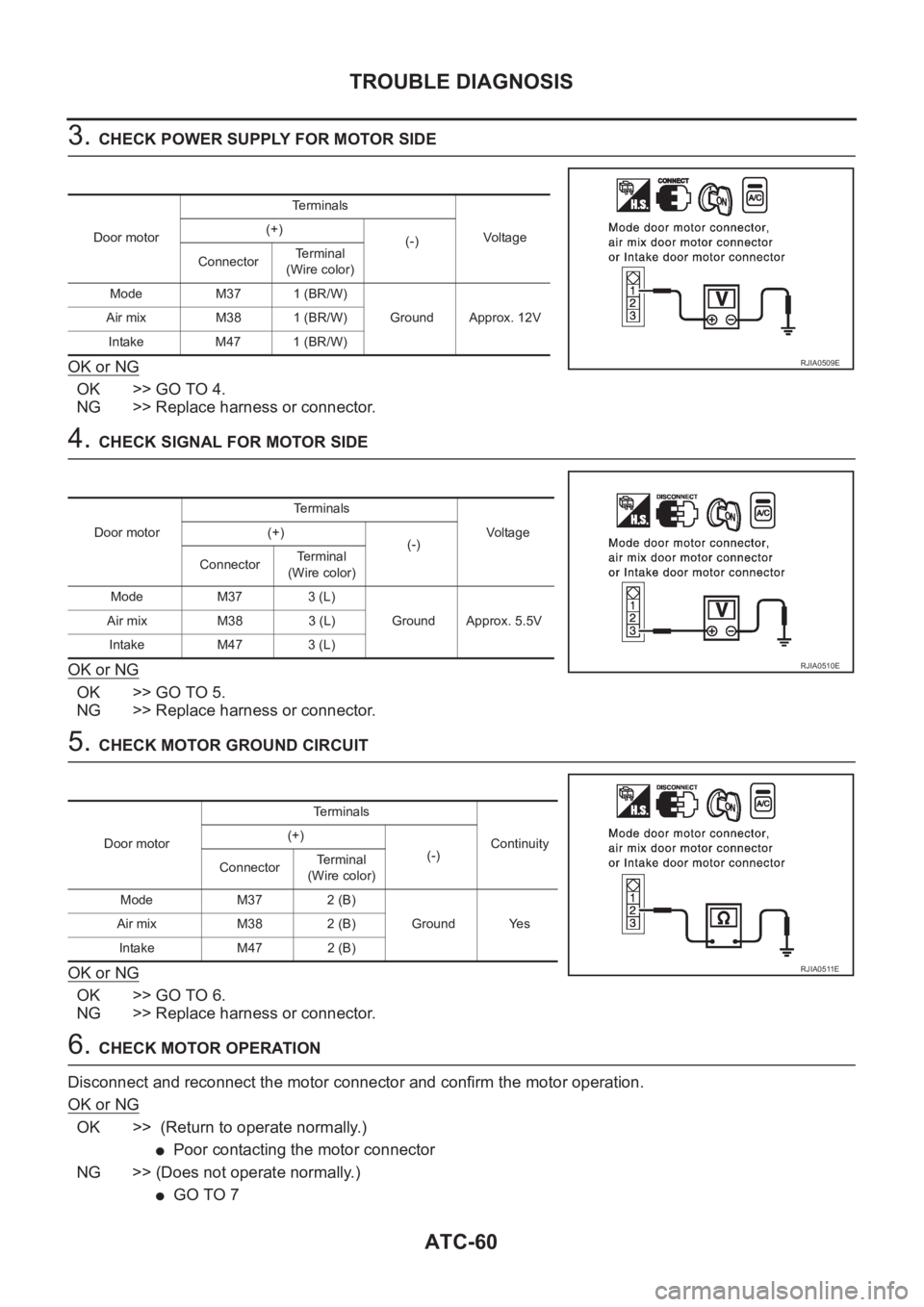

NISSAN X-TRAIL 2001 Service Repair Manual ATC-60 TROUBLE DIAGNOSIS 3. CHECK POWER SUPPLY FOR MOTOR SIDE OK or NG OK >> GO TO 4. NG >> Replace harness or connector. 4. CHECK SIGNAL FOR MOTOR SIDE OK or NG OK >> GO TO 5. NG >> Replace harness o
