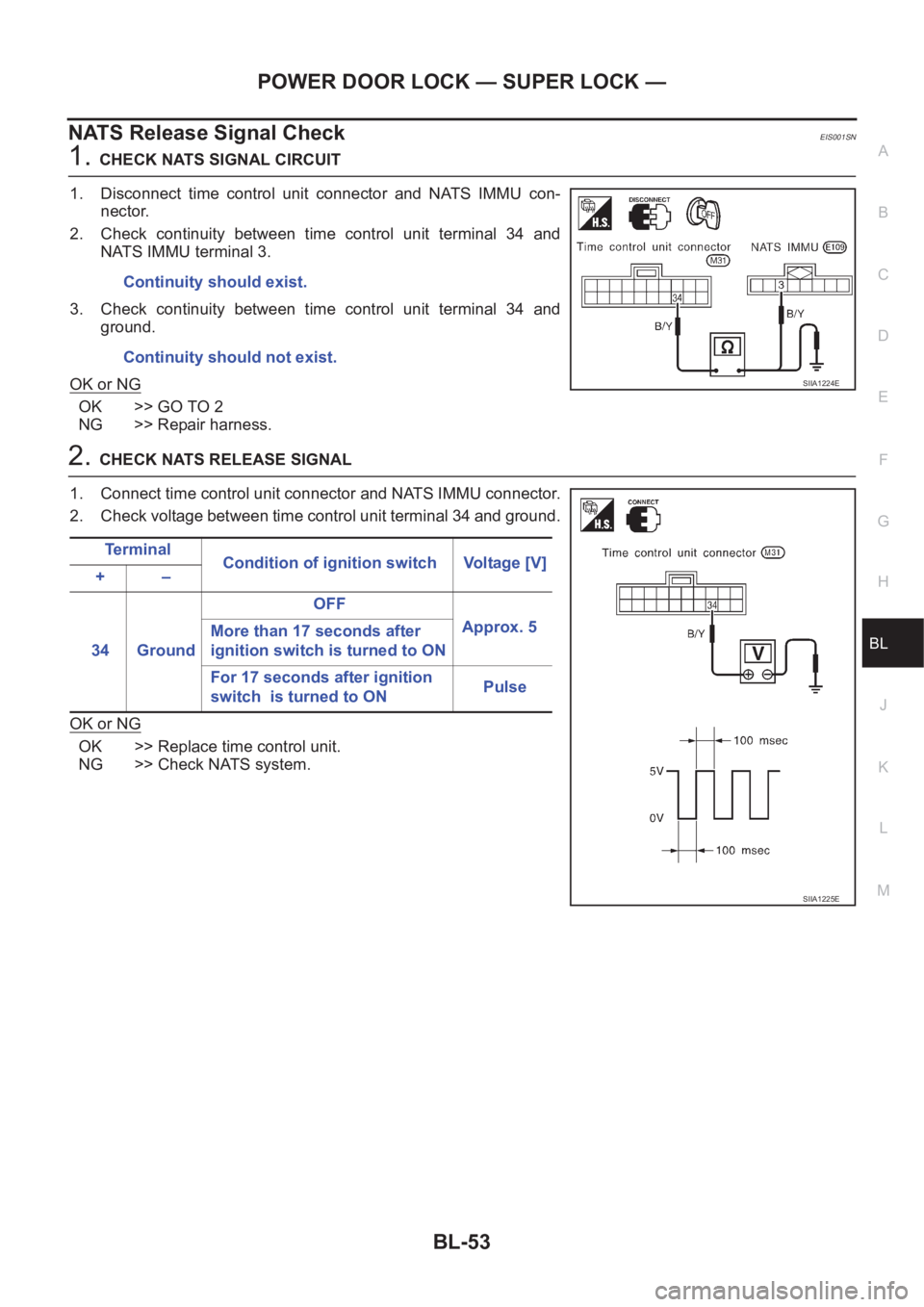

NATS Release Signal CheckEIS001SN
1.CHECK NATS SIGNAL CIRCUIT
1. Disconnect time control unit connector and NATS IMMU con-
nector.
2. Check continuity between time control unit terminal 34 and
NATS IMMU terminal 3.
3. Check continuity between time control unit terminal 34 and
ground.
OK or NG
OK >> GO TO 2
NG >> Repair harness.
2.CHECK NATS RELEASE SIGNAL
1. Connect time control unit connector and NATS IMMU connector.
2. Check voltage between time control unit terminal 34 and ground.
OK or NG
OK >> Replace time control unit.
NG >> Check NATS system.Continuity should exist.
Continuity should not exist.
SIIA1224E
Te r m i n a l
Condition of ignition switch Voltage [V]
+–
34 GroundOFF
Approx. 5
More than 17 seconds after
ignition switch is turned to ON
For 17 seconds after ignition
switch is turned to ONPulse
SIIA1225E
Page 3106 of 3833
BL-54
POWER DOOR LOCK — SUPER LOCK —
Ignition Switch “ON” Circuit Check
EIS001SP
1. CHECK IGNITION ON SIGNAL
1. Disconnect time control unit connector.
2. Check voltage between time control unit terminal 17 and ground.
OK or NG
OK >> Ignition ON signal is OK.
NG >> Check the following.
●10A fuse [No. 5, located in fuse block (J/B)]
●Harness for open or short between time control unit and fuse Terminal Ignition switch position
+ – OFF ACC ON
17 Ground 0V 0VBattery
voltage
SIIA1226E
Page 3107 of 3833
MULTI-REMOTE CONTROL SYSTEM
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL
MULTI-REMOTE CONTROL SYSTEMPFP:28596
Component Parts and Harness Connector LocationEIS001RD
PIIA0585E
Page 3108 of 3833

BL-56
MULTI-REMOTE CONTROL SYSTEM
System Description
EIS001RE
FUNCTION
Multi-remote control system has the following function.
●Door lock (and set super lock)
●Door unlock (and release super lock)
●Hazard reminder
LOCK OPERATION
To lock door by multi-remote controller, the ignition switch must be at OFF.
When the LOCK signal is input to multi-remote control unit (the antenna of the system is combined with multi-
remote control unit), ground is supplied
●through multi-remote control unit terminal 5
●to time control unit terminal 32.
Then time control unit operates to lock doors and set super lock (models with super lock).
UNLOCK OPERATION
When the UNLOCK signal is input to multi-remote control unit (the antenna of the system is combined with
multi-remote control unit), ground is supplied
●through multi-remote control unit terminal 6
●to time control unit terminal 33.
Time control unit operates to unlock driver's door and release super lock (models with super lock).
Then, if an unlock signal is sent from the remote controller again within 5 seconds, all other doors will be
unlocked.
HAZARD REMINDER
When the doors are locked or unlocked by multi-remote controller (signal from driver side unlock sensor), sup-
ply power to hazard warning lamp flashes as follows
●Lock operation: Flash once
●Unlock operation: Flash twice
MULTI-REMOTE CONTROLLER ID CODE ENTRY
A maximum of four remote controllers can be entered.
To enter ID code entry, the following signals must be input to the multi-remote control unit.
●Ignition switch (ON)
●Signal from remote controller
For detailed procedure, refer to BL-63, "
ID Code Entry Procedure" .
Page 3109 of 3833
MULTI-REMOTE CONTROL SYSTEM
BL-57
C
D
E
F
G
H
J
K
L
MA
B
BL
Wiring Diagram — MULTI —EIS001RF
TIWA0019E
SMA for models with roof
mounted driving lamp
Page 3110 of 3833
BL-58
MULTI-REMOTE CONTROL SYSTEM
TIWA0020E
Page 3111 of 3833

MULTI-REMOTE CONTROL SYSTEM
BL-59
C
D
E
F
G
H
J
K
L
MA
B
BL
Terminal and Reference Value for Multi-remote Control UnitEIS001TQ
Symptom ChartEIS001RG
NOTE:
Always check remote controller battery before replacing remote controller.
Remote Controller Battery CheckEIS001T3
1.CHECK REMOTE CONTROLLER BATTERY
Remove battery and measure voltage across battery positive and
negative terminals, (+) and (−).
NOTE:
Remote controller does not function if battery is not set correctly.
OK or NG
OK >> Check remote controller battery terminals for corrosion
or damage.
NG >> Replace battery.
Te r m i -
nalWire
ColorItem ConditionVo l ta g e
(Approximate values)
1 B Ground — 0V
2 L BAT power supply — 12V
3 G/Y Hazard reminder (Flasher RH) Remote controller switch pressed0V → 12V
4 G IGN power supply — 12V
5 OR Key less lock sw Remote controller lock switch pressed 0V → 5V
6 P/L Key less unlock sw Remote controller unlock switch pressed 0V → 5V
7 Y/G Driver door lock switch signalUnlock (ON) 0V
Lock (OFF) 5V
8 G/B Hazard reminder (Flasher LH) Remote controller switch pressed0V → 12V
Symptom Diagnoses/service procedureReference
page
All function of multi-remote control system do
not operate.1.Remote controller battery checkBL-59
2.Power supply and ground circuit for control unit checkBL-60
3.Replace remote controller.BL-64
The new ID of remote controller cannot be
entered.1.Remote controller battery checkBL-592.Power supply and ground circuit for control unit checkBL-60
3.Replace remote controller.BL-64
Door lock and unlock does not function.
(If the power door lock system does not operate
manually, check power door lock system.)1.Remote controller battery check BL-59
2.Replace remote controller.
BL-64
Door lock function does not operate with
remote controller.Time control unit lock circuit checkBL-61
Door unlock function does not operate with
remote controller.Time control unit unlock circuit check BL-62
Hazard reminder does not activate properly
when pressing lock or unlock button of remote
controller.1.Remote controller battery check BL-59
2.Hazard reminder checkBL-62
3.Replace remote controller.BL-64
Voltage : 2.5V – 3.0V
SEL237W
Page 3112 of 3833

BL-60
MULTI-REMOTE CONTROL SYSTEM
Power Supply and Ground Circuit Check
EIS001T4
1. CHECK POWER SUPPLY CIRCUIT FOR TIME CONTROL UNIT
1. Disconnect time control unit harness connector.
2. Check voltage between time control unit harness connector ter-
minal 1 or 10 and ground.
OK or NG
OK >> GO TO 2
NG >> Check the following.
●40A fusible link (letter B , located in fuse and fusible
link box)
●10A fuse [No. 28, located in fuse block (J/B)]
●M4 circuit breaker
●Harness for open or short between time control unit and fuse
2. CHECK POWER SUPPLY CIRCUIT FOR MULTI-REMOTE CONTROL UNIT
1. Disconnect multi-remote control unit harness connector.
2. Check voltage between multi-remote control unit harness con-
nector terminal 2 (L) and ground.
OK or NG
OK >> GO TO 3
NG >> Check the following.
●10A fuse [No. 28, located in fuse block (J/B)]
●Harness for open or short between multi-remote con-
trol unit and fuse
3. CHECK IGNITION SWITCH “ON” CIRCUIT
1. Disconnect multi-remote control unit harness connector.
2. Check voltage between multi-remote control unit terminal 4 and
ground while ignition switch is “ON”.
OK or NG
OK >> GO TO 4
NG >> Check the following.
●10A fuse [No. 5, located in fuse block (J/B)]
●Harness for open or short between multi-remote con-
trol unit and fuse. Battery voltage should exist.
SIIA1204E
Battery voltage should exist.
SIIA1228E
Battery voltage should exist.
SIIA1229E
