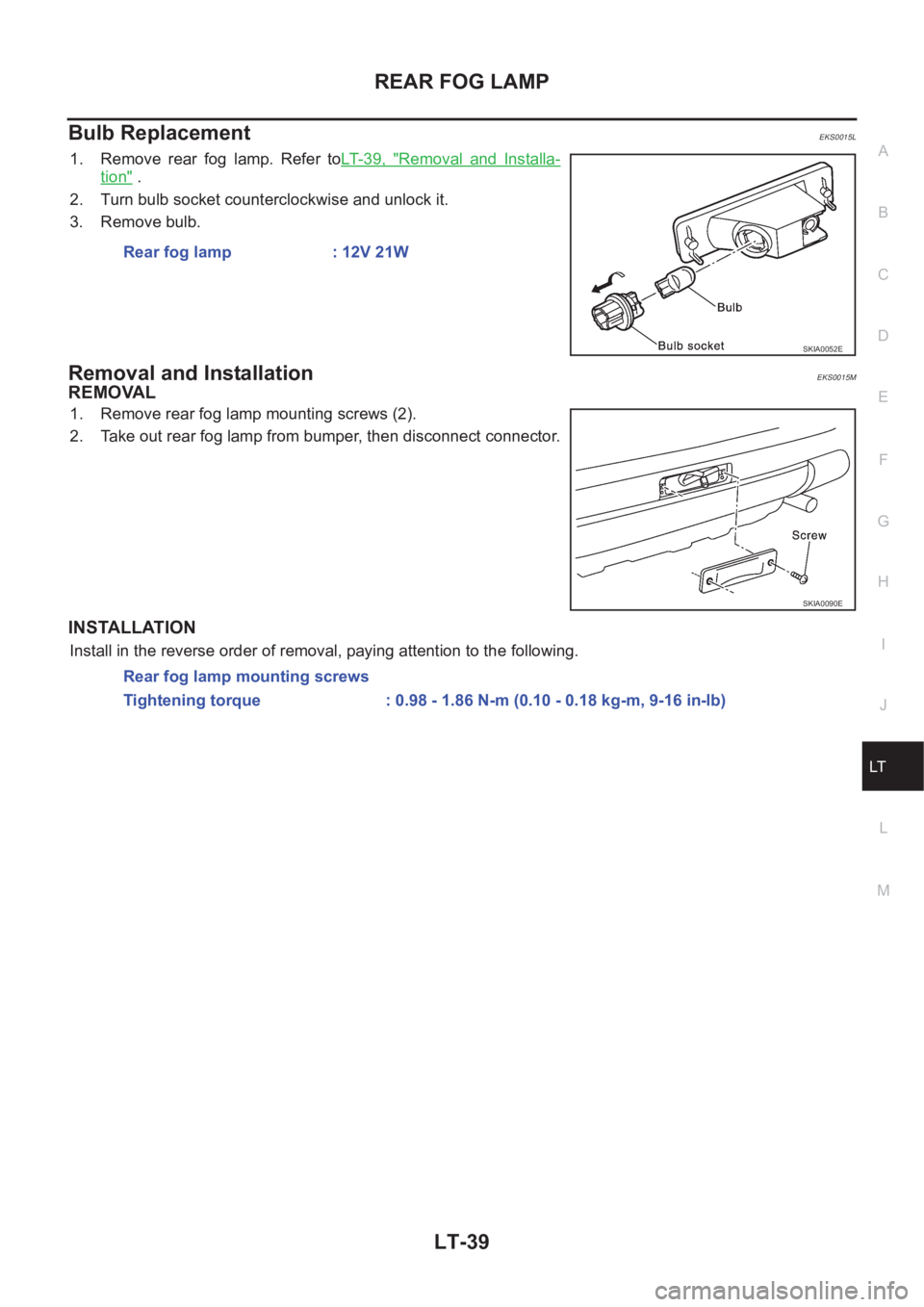

NISSAN X-TRAIL 2001 Service Repair Manual REAR FOG LAMP LT-39 C D E F G H I J L MA B LT Bulb ReplacementEKS0015L 1. Remove rear fog lamp. Refer toLT- 3 9 , "Removal and Installa- tion" . 2. Turn bulb socket counterclockwise a

Page 3530 of 3833

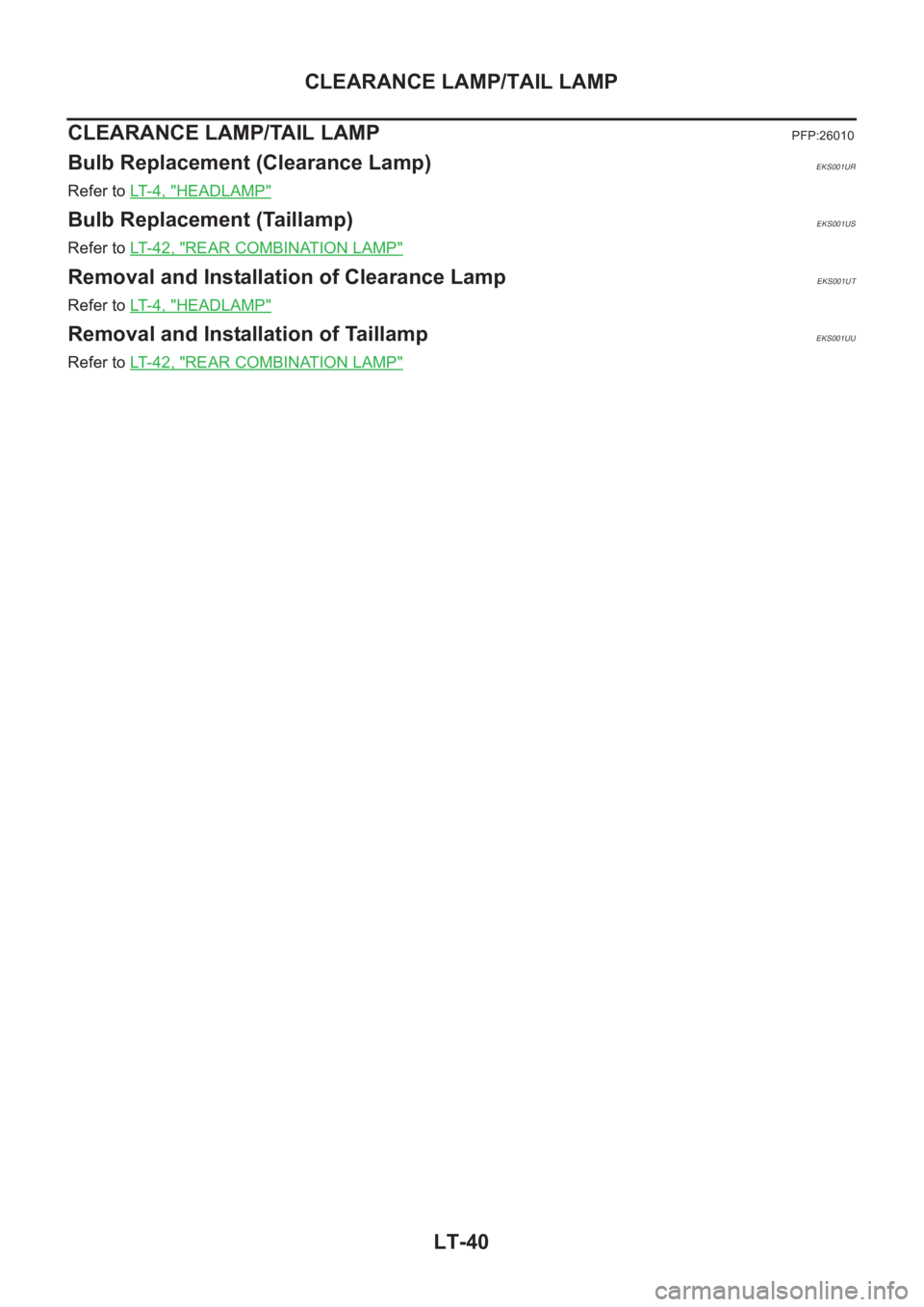

NISSAN X-TRAIL 2001 Service Repair Manual LT-40 CLEARANCE LAMP/TAIL LAMP CLEARANCE LAMP/TAIL LAMP PFP:26010 Bulb Replacement (Clearance Lamp)EKS001UR Refer to LT- 4 , "HEADLAMP" Bulb Replacement (Taillamp)EKS001US Refer to LT-42, &#

Page 3531 of 3833

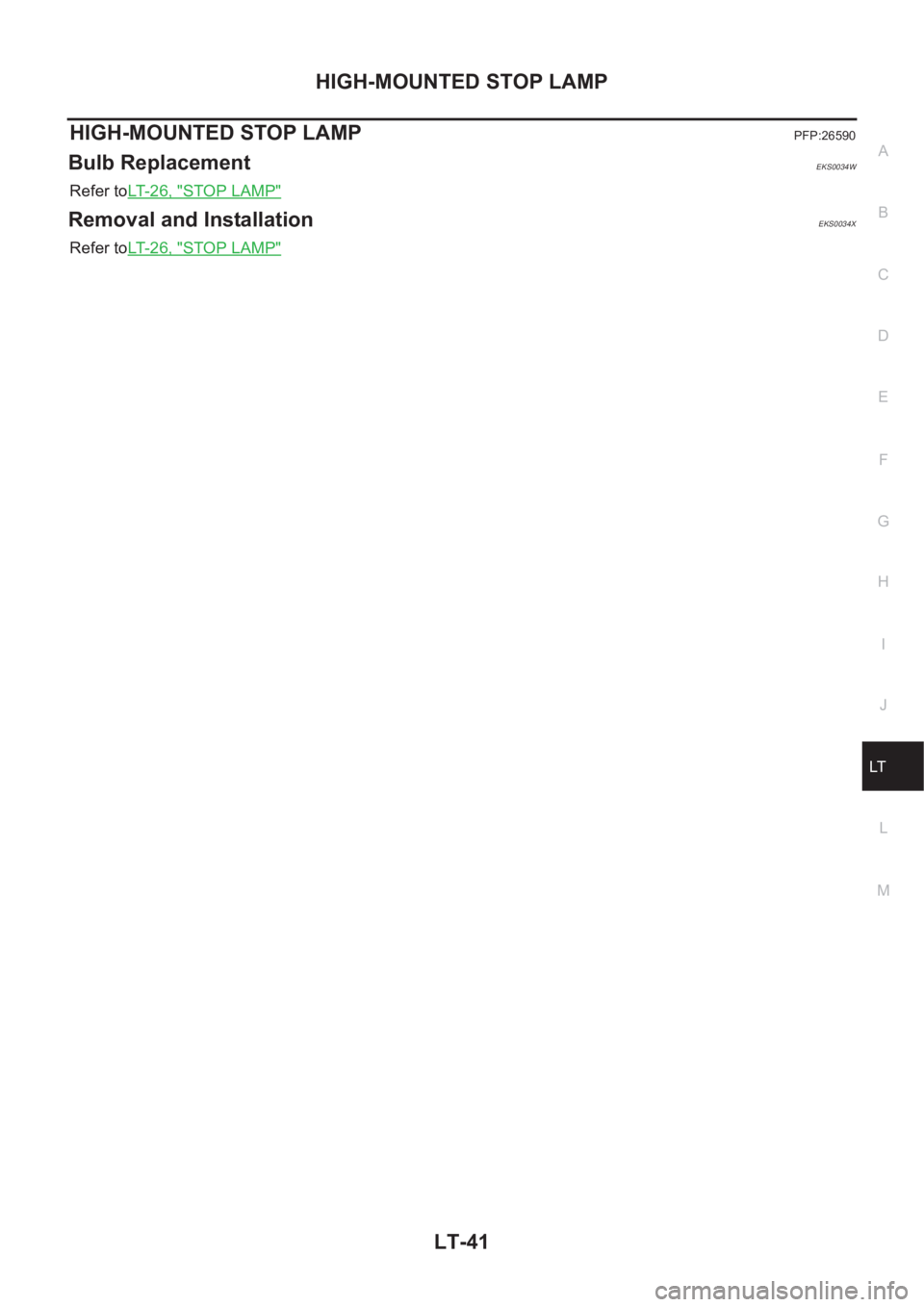

NISSAN X-TRAIL 2001 Service Repair Manual HIGH-MOUNTED STOP LAMP LT-41 C D E F G H I J L MA B LT HIGH-MOUNTED STOP LAMPPFP:26590 Bulb ReplacementEKS0034W Refer toLT-26, "STOP LAMP" Removal and InstallationEKS0034X Refer toLT-26, "

Page 3532 of 3833

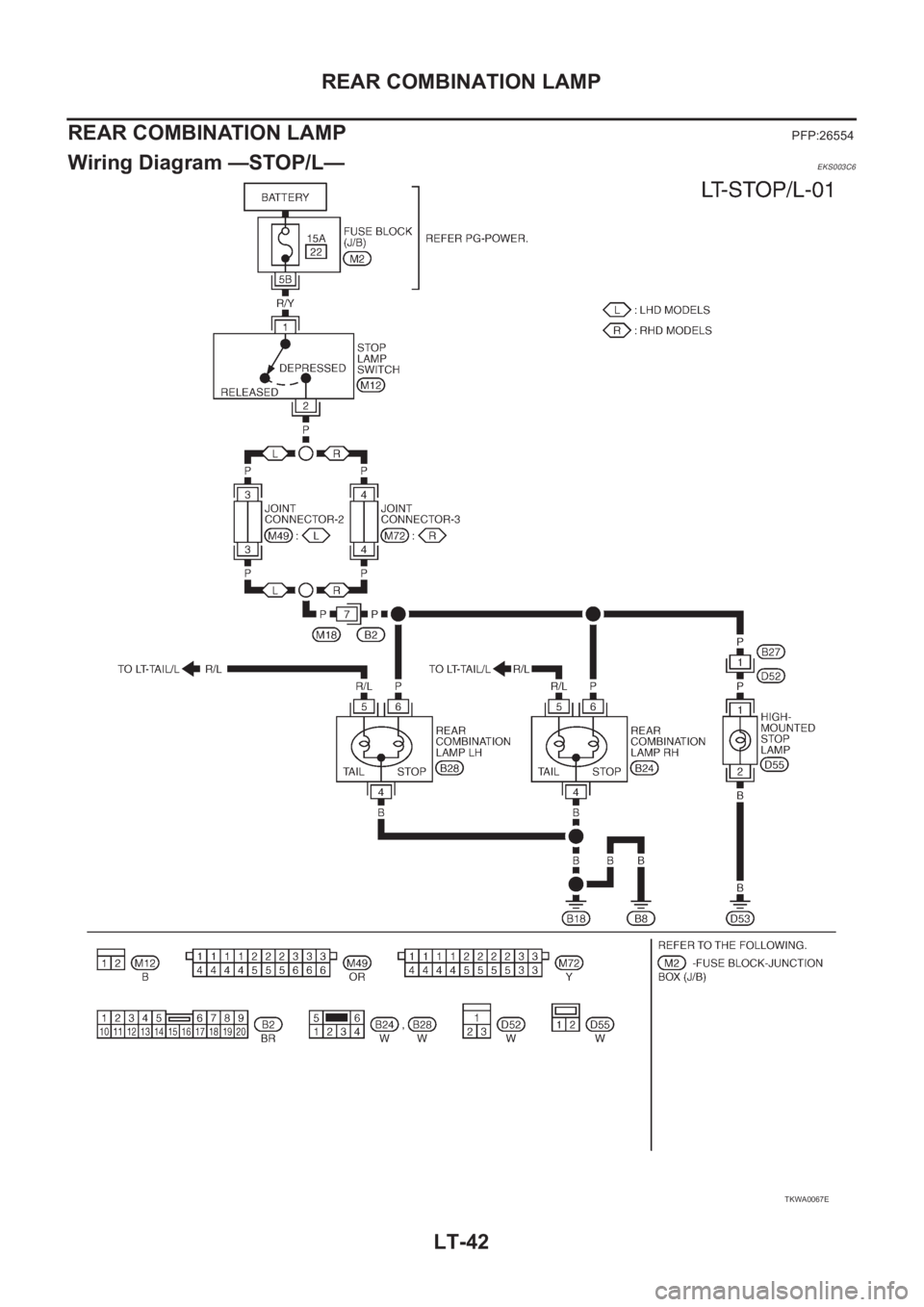

NISSAN X-TRAIL 2001 Service Repair Manual LT-42 REAR COMBINATION LAMP REAR COMBINATION LAMP PFP:26554 Wiring Diagram —STOP/L— EKS003C6 TKWA0067E

Page 3533 of 3833

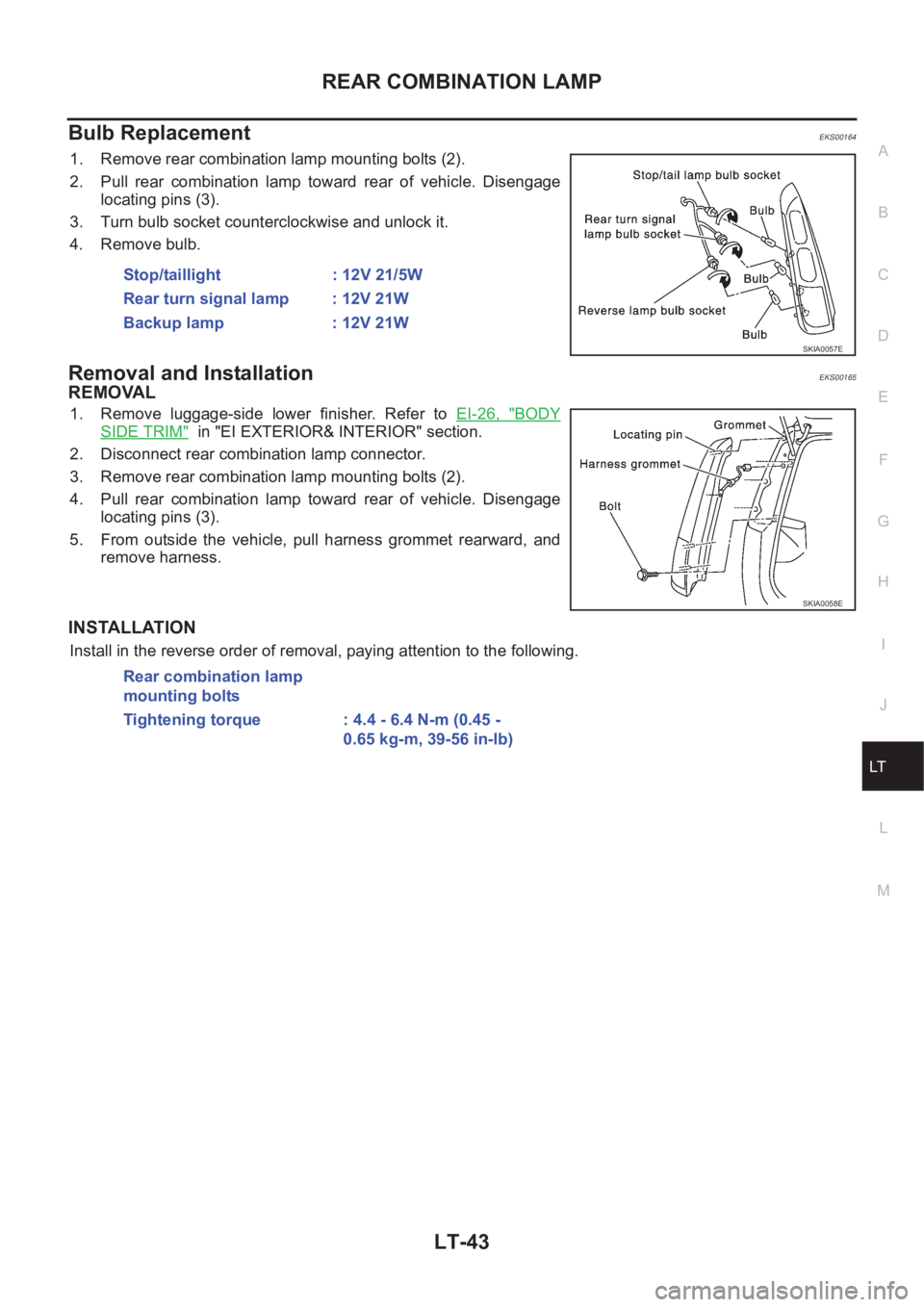

NISSAN X-TRAIL 2001 Service Repair Manual REAR COMBINATION LAMP LT-43 C D E F G H I J L MA B LT Bulb ReplacementEKS00164 1. Remove rear combination lamp mounting bolts (2). 2. Pull rear combination lamp toward rear of vehicle. Disenga

Page 3534 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual LT-44 COMBINATION SWITCH COMBINATION SWITCH PFP:25567 Removal and InstallationEKS001V6 Refer to SRS-33, "SPIRAL CABLE" in "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)" section for details. S

Page 3535 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual ILLUMINATION LT-45 C D E F G H I J L MA B LT ILLUMINATIONPFP:27545 System Description EKS003C7 Power is supplied at all times ●through 10A fuse [No. 31, located in the fuse and fusible link box] ●

Page 3536 of 3833

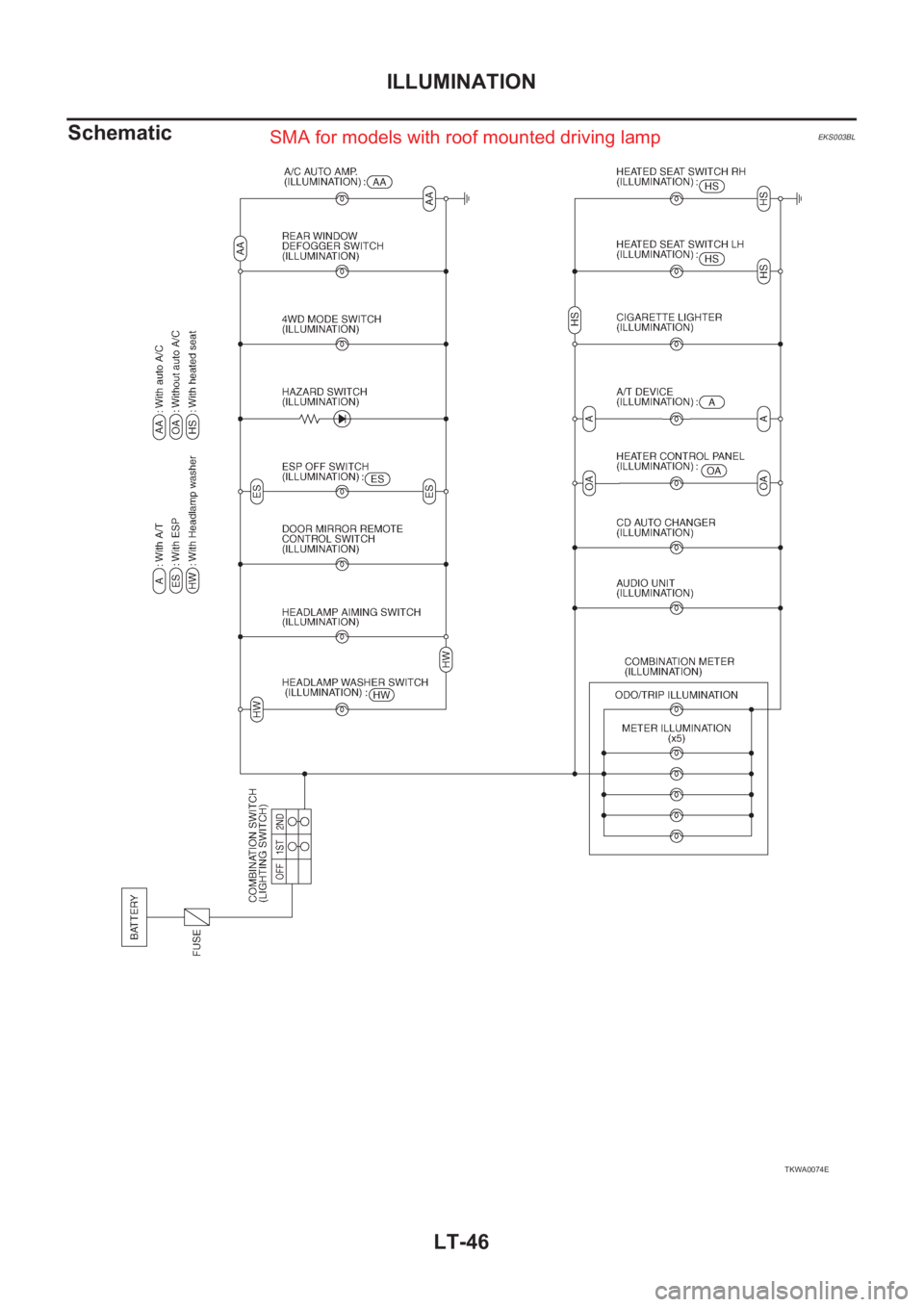

NISSAN X-TRAIL 2001 Service Repair Manual LT-46 ILLUMINATION Schematic EKS003BL TKWA0074E SMA for models with roof mounted driving lamp
