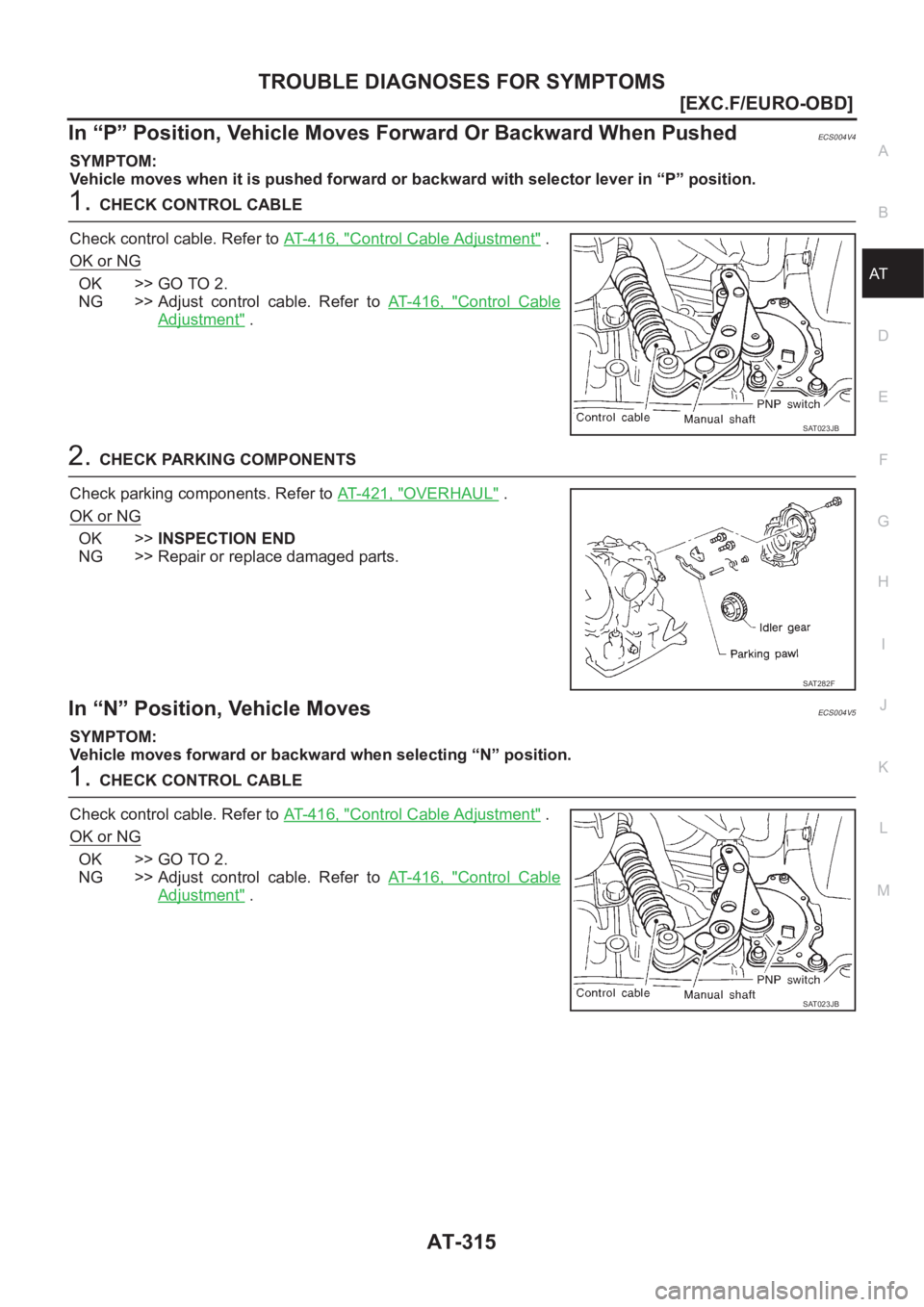

Page 2393 of 3833
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-315
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
In “P” Position, Vehicle Moves Forward Or Backward When PushedECS004V4
SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.
1.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 2.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
2.CHECK PARKING COMPONENTS
Check parking components. Refer to AT- 4 2 1 , "
OVERHAUL" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
In “N” Position, Vehicle MovesECS004V5
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
1.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 2.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
SAT023JB
SAT282F
SAT023JB

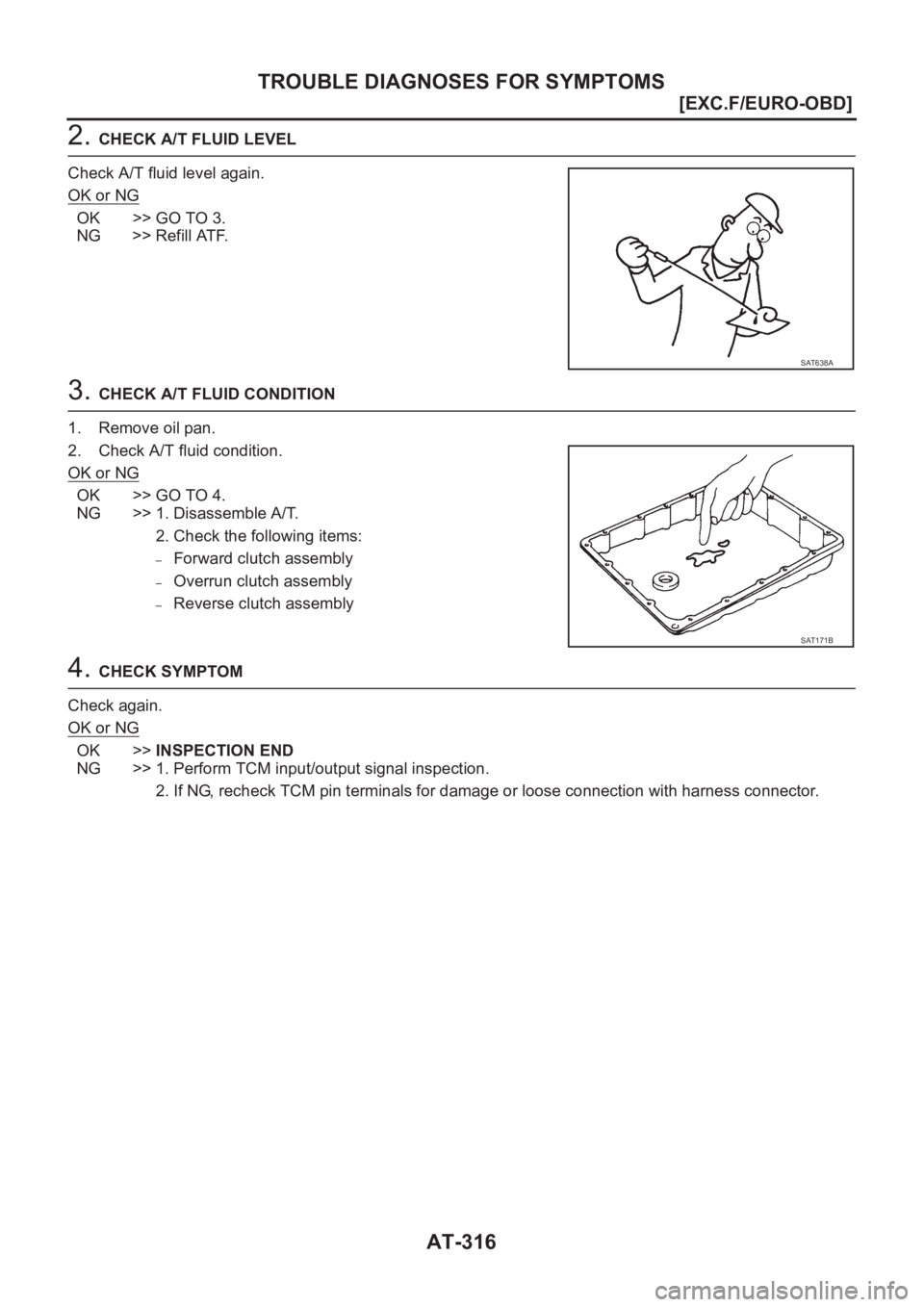

Page 2394 of 3833
AT-316
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
2. CHECK A/T FLUID LEVEL
Check A/T fluid level again.
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4.
NG >> 1. Disassemble A/T.
2. Check the following items:
–Forward clutch assembly
–Overrun clutch assembly
–Reverse clutch assembly
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT638A
SAT171B
Page 2395 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-317
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Large Shock. “N” → “R” PositionECS004V6
SYMPTOM:
There is large shock when changing from “N” to “R” p NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-317
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Large Shock. “N” → “R” PositionECS004V6
SYMPTOM:
There is large shock when changing from “N” to “R” p](/manual-img/5/57405/w960_57405-2394.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-317
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Large Shock. “N” → “R” PositionECS004V6
SYMPTOM:
There is large shock when changing from “N” to “R” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor,
line pressure solenoid valve or throttle position sensor circuit?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Except for Euro-OBD
–AT-396, "LINE PRESSURE SOLENOID VALVE"
–AT- 3 6 2 , "ACCELE RATOR PEDAL POSITION (APP)
SENSOR"
–AT- 3 8 6 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP
SENSOR CIRCUIT AND TCM POWER SOURCE)"
No >> GO TO 2.
2.CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT-268, "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >>1.Remove control valve assembly. Refer to AT- 4 1 3 ,
"Installation" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve
3.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0769E
SAT494G

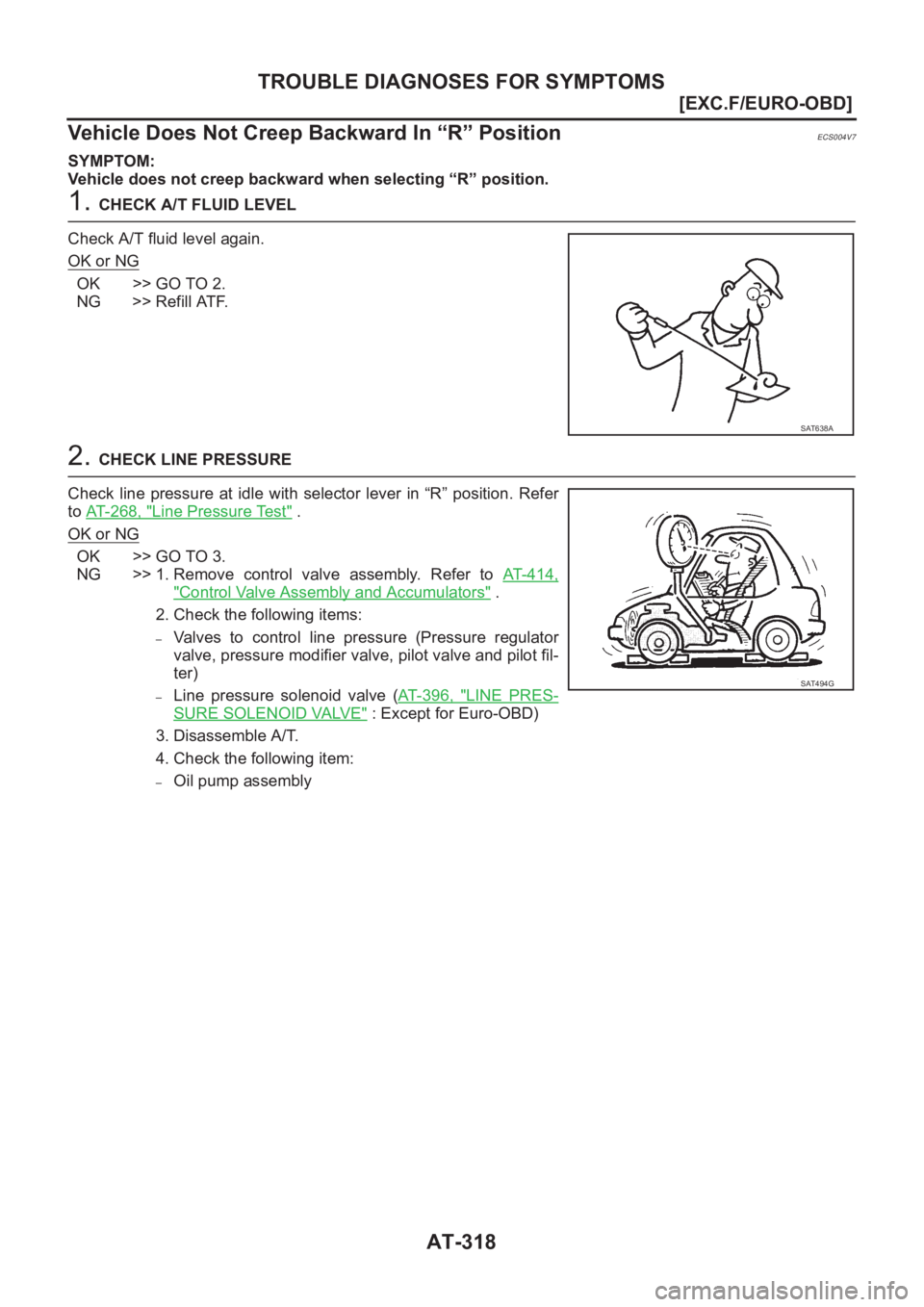

Page 2396 of 3833
AT-318
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Vehicle Does Not Creep Backward In “R” Position
ECS004V7
SYMPTOM:
Vehicle does not creep backward when selecting “R” position.
1. CHECK A/T FLUID LEVEL
Check A/T fluid level again.
OK or NG
OK >> GO TO 2.
NG >> Refill ATF.
2. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “R” position. Refer
to AT- 2 6 8 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >> 1. Remove control valve assembly. Refer to AT- 4 1 4 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 9 6 , "LINE PRES-
SURE SOLENOID VALVE" : Except for Euro-OBD)
3. Disassemble A/T.
4. Check the following item:
–Oil pump assembly
SAT638A
SAT494G

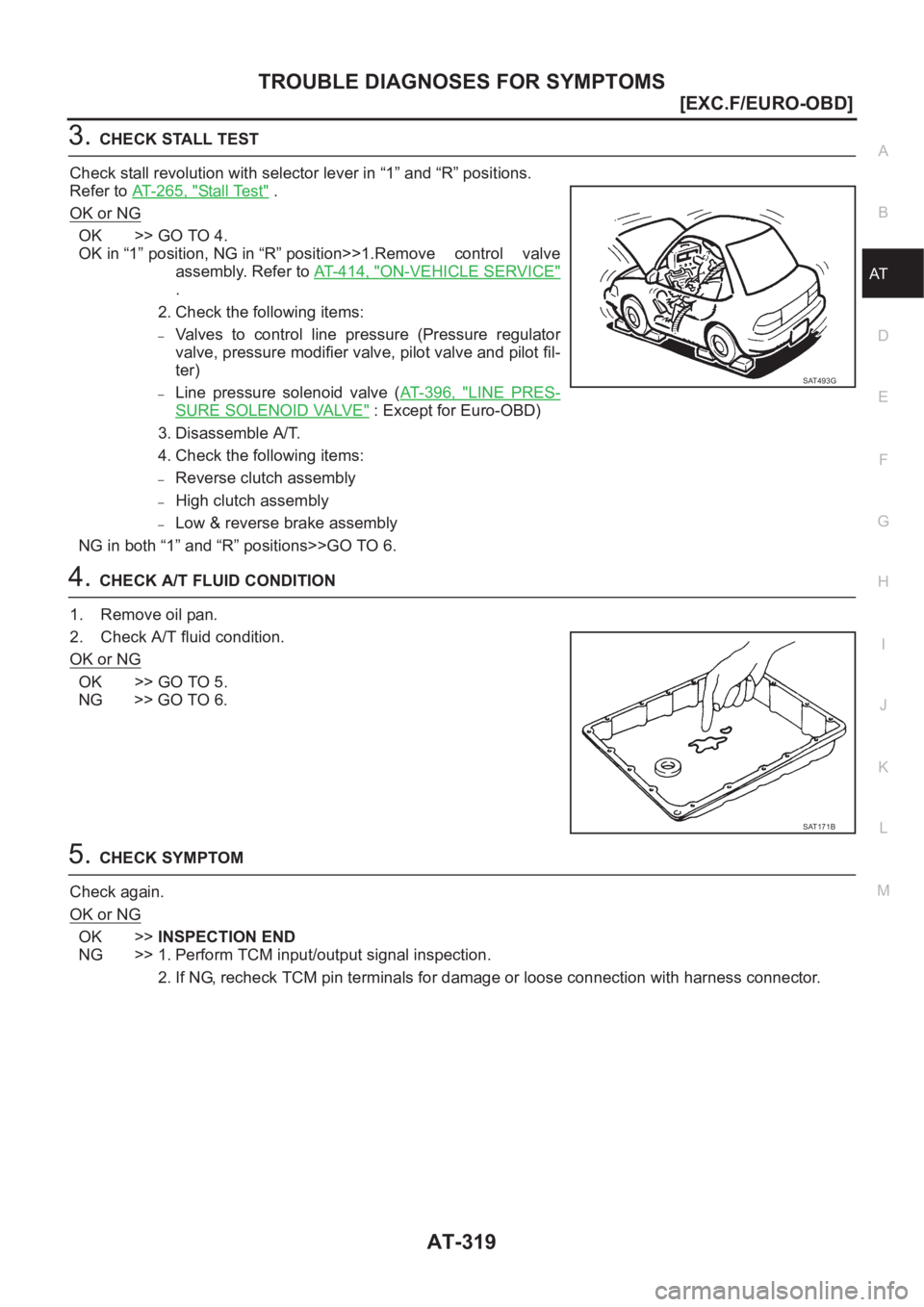

Page 2397 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-319
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK STALL TEST
Check stall revolution with selector lever in “1” and “R” positions.
Refer to AT- 2 6 5 , NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-319
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK STALL TEST
Check stall revolution with selector lever in “1” and “R” positions.
Refer to AT- 2 6 5 ,](/manual-img/5/57405/w960_57405-2396.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-319
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK STALL TEST
Check stall revolution with selector lever in “1” and “R” positions.
Refer to AT- 2 6 5 , "
Stal l Te st" .
OK or NG
OK >> GO TO 4.
OK in “1” position, NG in “R” position>>1.Remove control valve
assembly. Refer to AT-414, "
ON-VEHICLE SERVICE"
.
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 9 6 , "LINE PRES-
SURE SOLENOID VALVE" : Except for Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
–Reverse clutch assembly
–High clutch assembly
–Low & reverse brake assembly
NG in both “1” and “R” positions>>GO TO 6.
4.CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT493G
SAT171B

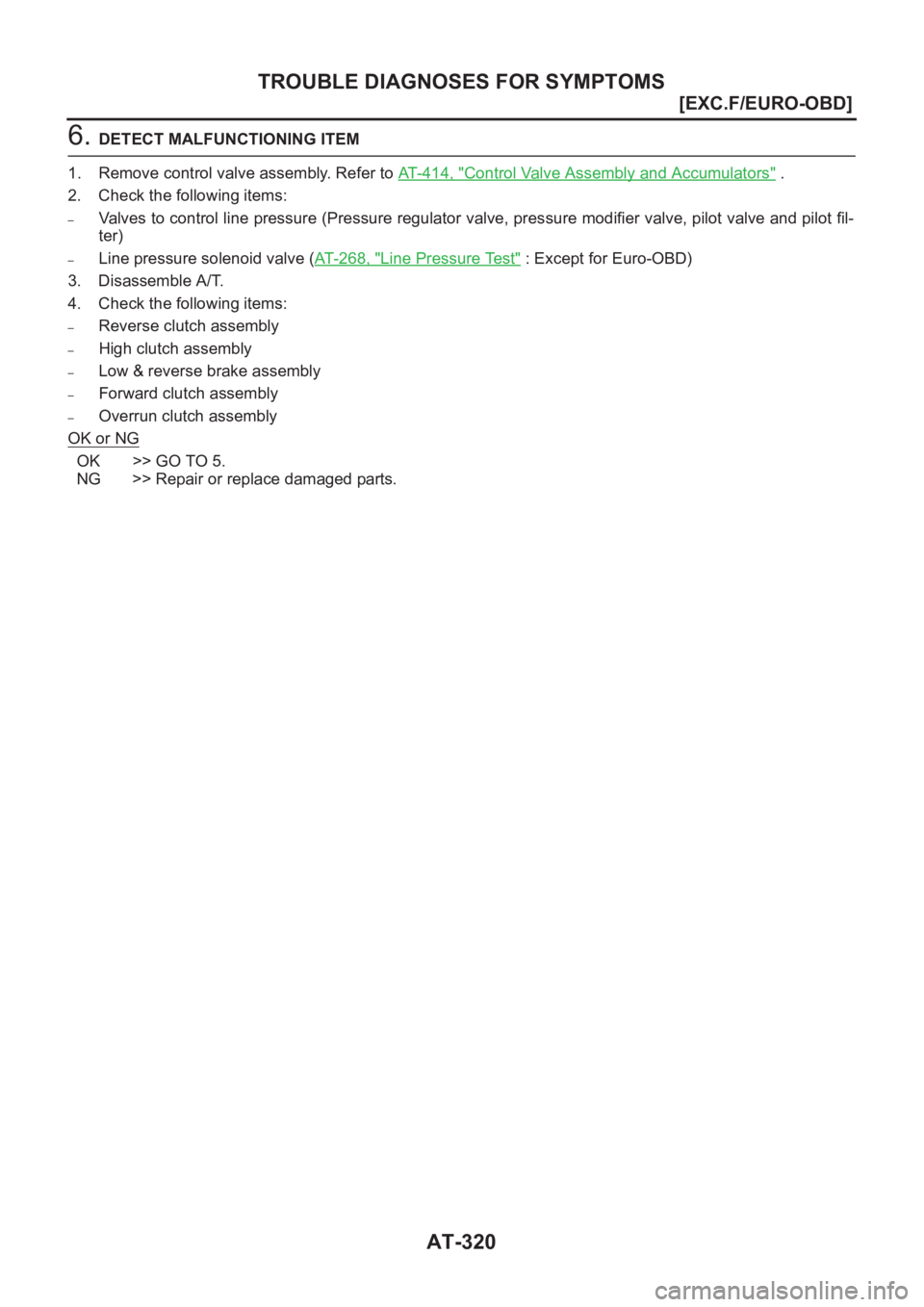

Page 2398 of 3833
AT-320
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 2 6 8 , "Line Pressure Test" : Except for Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
–Reverse clutch assembly
–High clutch assembly
–Low & reverse brake assembly
–Forward clutch assembly
–Overrun clutch assembly
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.

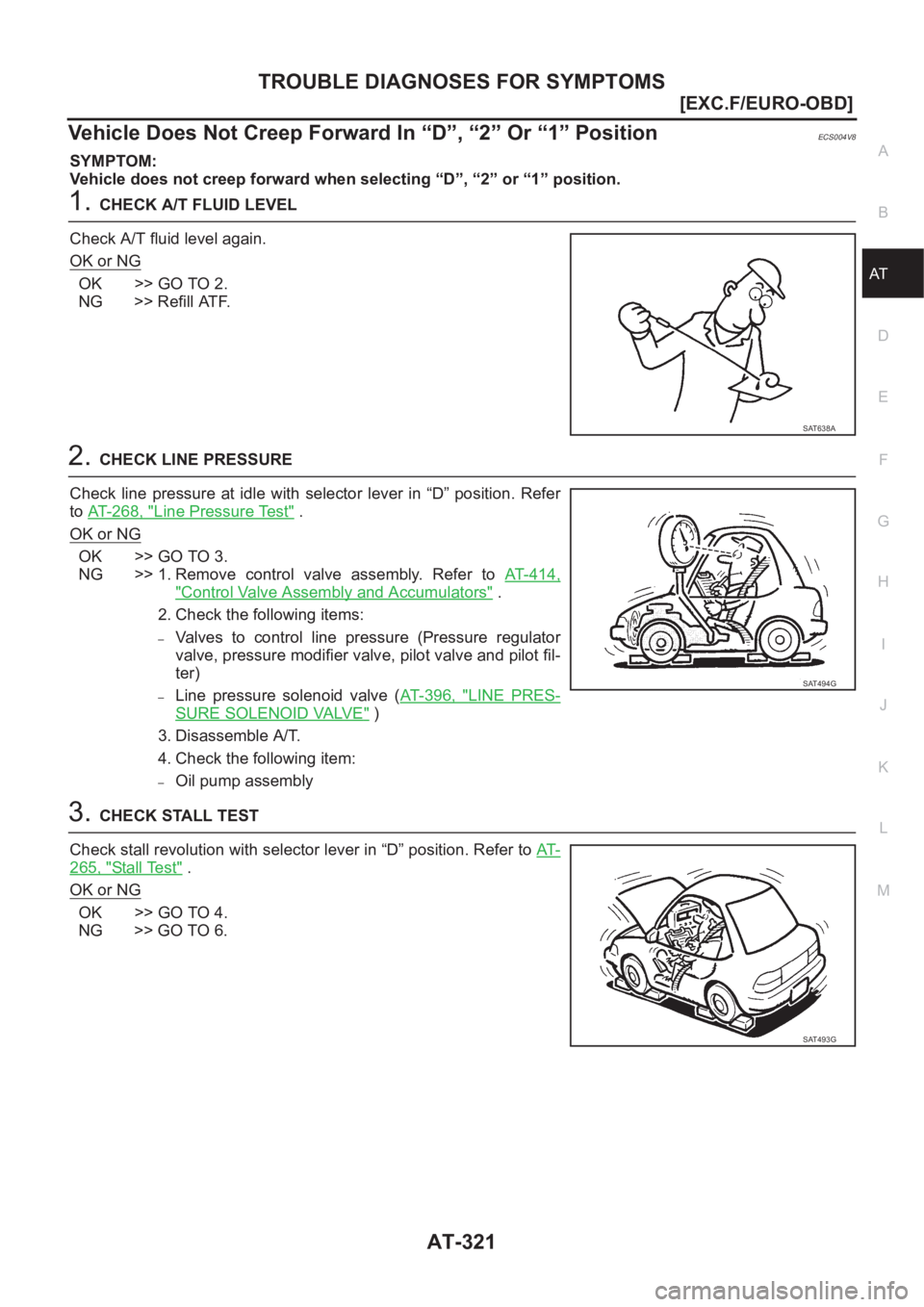

Page 2399 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-321
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle Does Not Creep Forward In “D”, “2” Or “1” PositionECS004V8
SYMPTOM:
Vehicle does not creep forward NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS
AT-321
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle Does Not Creep Forward In “D”, “2” Or “1” PositionECS004V8
SYMPTOM:
Vehicle does not creep forward](/manual-img/5/57405/w960_57405-2398.png)
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-321
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Vehicle Does Not Creep Forward In “D”, “2” Or “1” PositionECS004V8
SYMPTOM:
Vehicle does not creep forward when selecting “D”, “2” or “1” position.
1.CHECK A/T FLUID LEVEL
Check A/T fluid level again.
OK or NG
OK >> GO TO 2.
NG >> Refill ATF.
2.CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT-268, "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >>1.Remove control valve assembly. Refer to AT- 4 1 4 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 9 6 , "LINE PRES-
SURE SOLENOID VALVE" )
3. Disassemble A/T.
4. Check the following item:
–Oil pump assembly
3.CHECK STALL TEST
Check stall revolution with selector lever in “D” position. Refer to AT-
265, "Stall Test" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
SAT638A
SAT494G
SAT493G

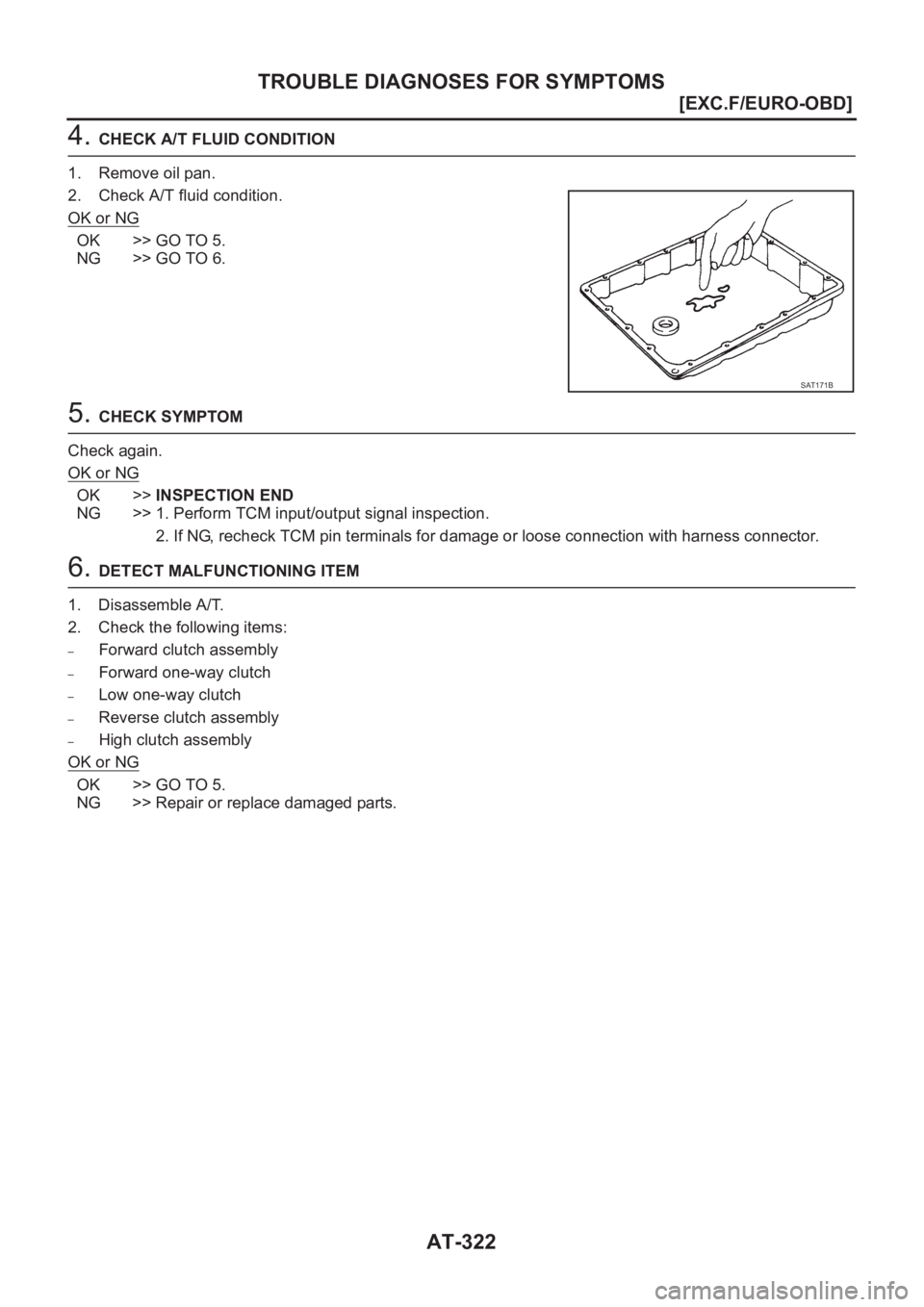

Page 2400 of 3833
AT-322
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Disassemble A/T.
2. Check the following items:
–Forward clutch assembly
–Forward one-way clutch
–Low one-way clutch
–Reverse clutch assembly
–High clutch assembly
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SAT171B
