Page 2281 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC CONTROL UNIT (RAM), CONTROL UNIT (ROM) AT-203 [EURO-OBD] D E F G H I J K L MA B AT DTC CONTROL UNIT (RAM), CONTROL UNIT (ROM)PFP:31036 DescriptionECS004SP The TCM consists of a microcomputer

Page 2282 of 3833

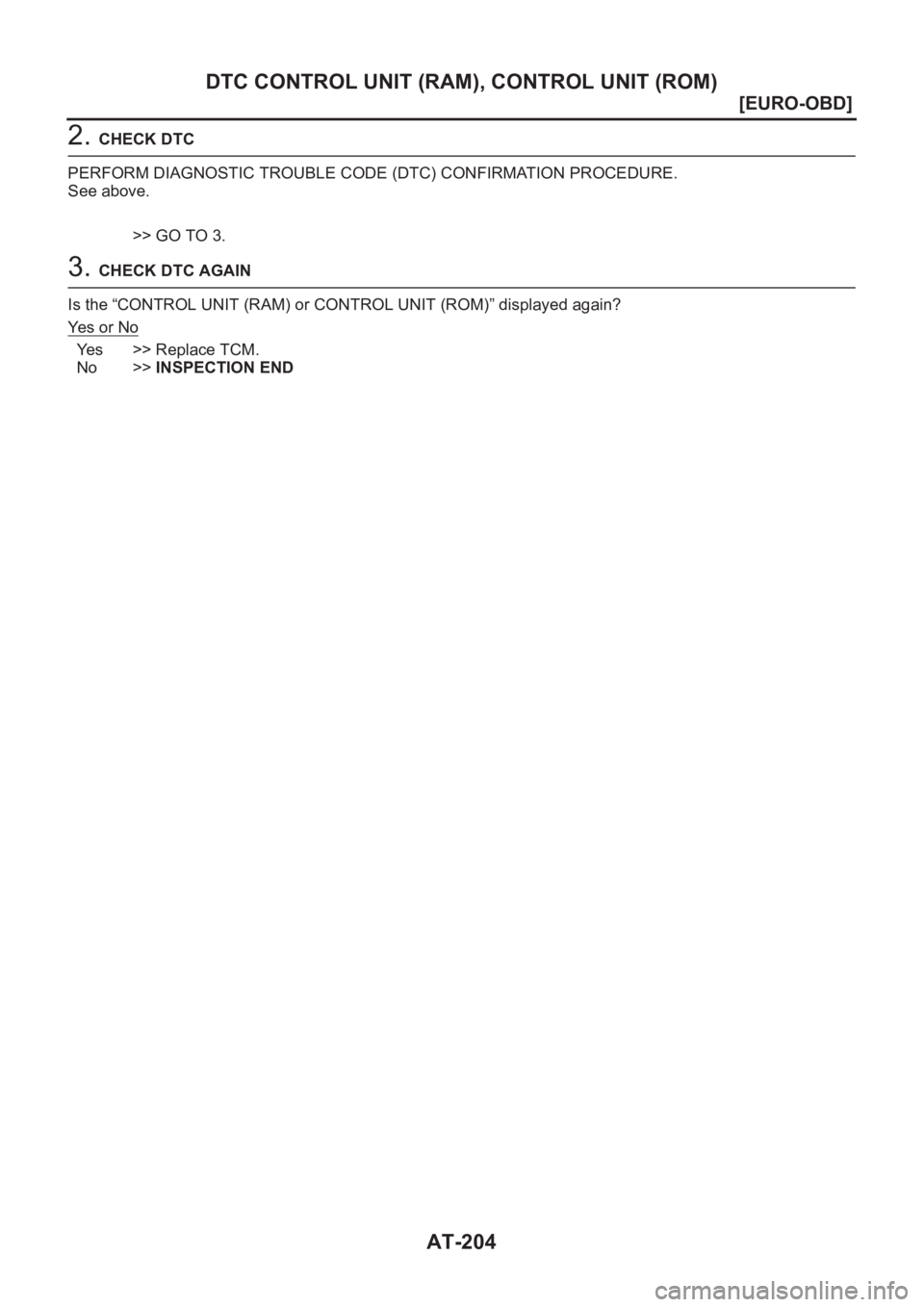

NISSAN X-TRAIL 2001 Service Repair Manual AT-204 [EURO-OBD] DTC CONTROL UNIT (RAM), CONTROL UNIT (ROM) 2. CHECK DTC PERFORM DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE. See above. >> GO TO 3. 3. CHECK DTC AGAIN Is the “CONTROL UNIT

Page 2283 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC CONTROL UNIT(EEPROM) AT-205 [EURO-OBD] D E F G H I J K L MA B AT DTC CONTROL UNIT(EEPROM)PFP:31036 DescriptionECS004SR The TCM consists of a microcomputer and connectors for signal input

Page 2284 of 3833

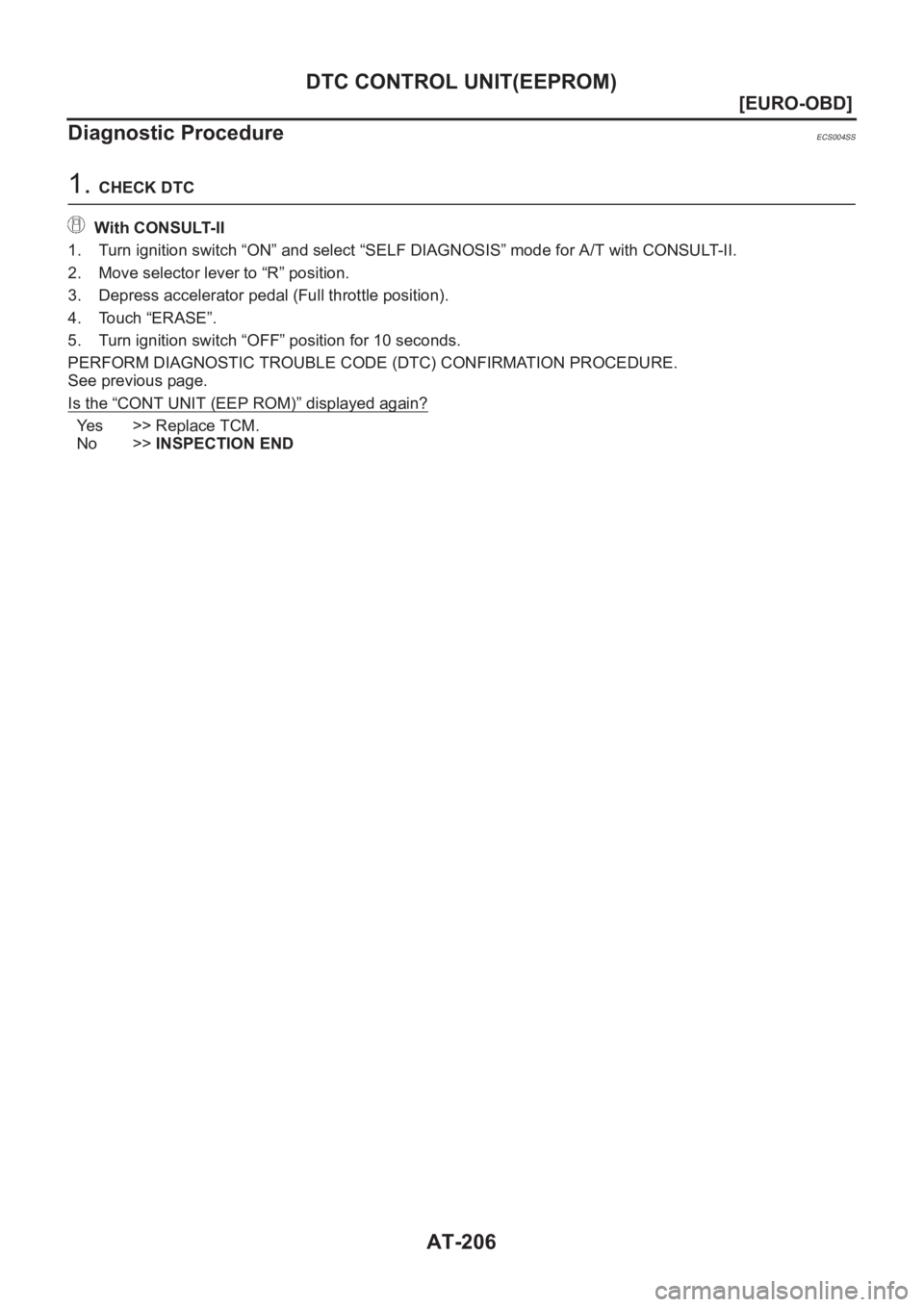

NISSAN X-TRAIL 2001 Service Repair Manual AT-206 [EURO-OBD] DTC CONTROL UNIT(EEPROM) Diagnostic Procedure ECS004SS 1. CHECK DTC With CONSULT-II 1. Turn ignition switch “ON” and select “SELF DIAGNOSIS” mode for A/T with CONSULT-II. 2.

Page 2285 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-207 [EURO-OBD] D E F G H I J K L MA B AT TROUBLE DIAGNOSES FOR SYMPTOMSPFP:00100 Wiring Diagram — AT — NONDTCECS004ST TCWA0053E

Page 2286 of 3833

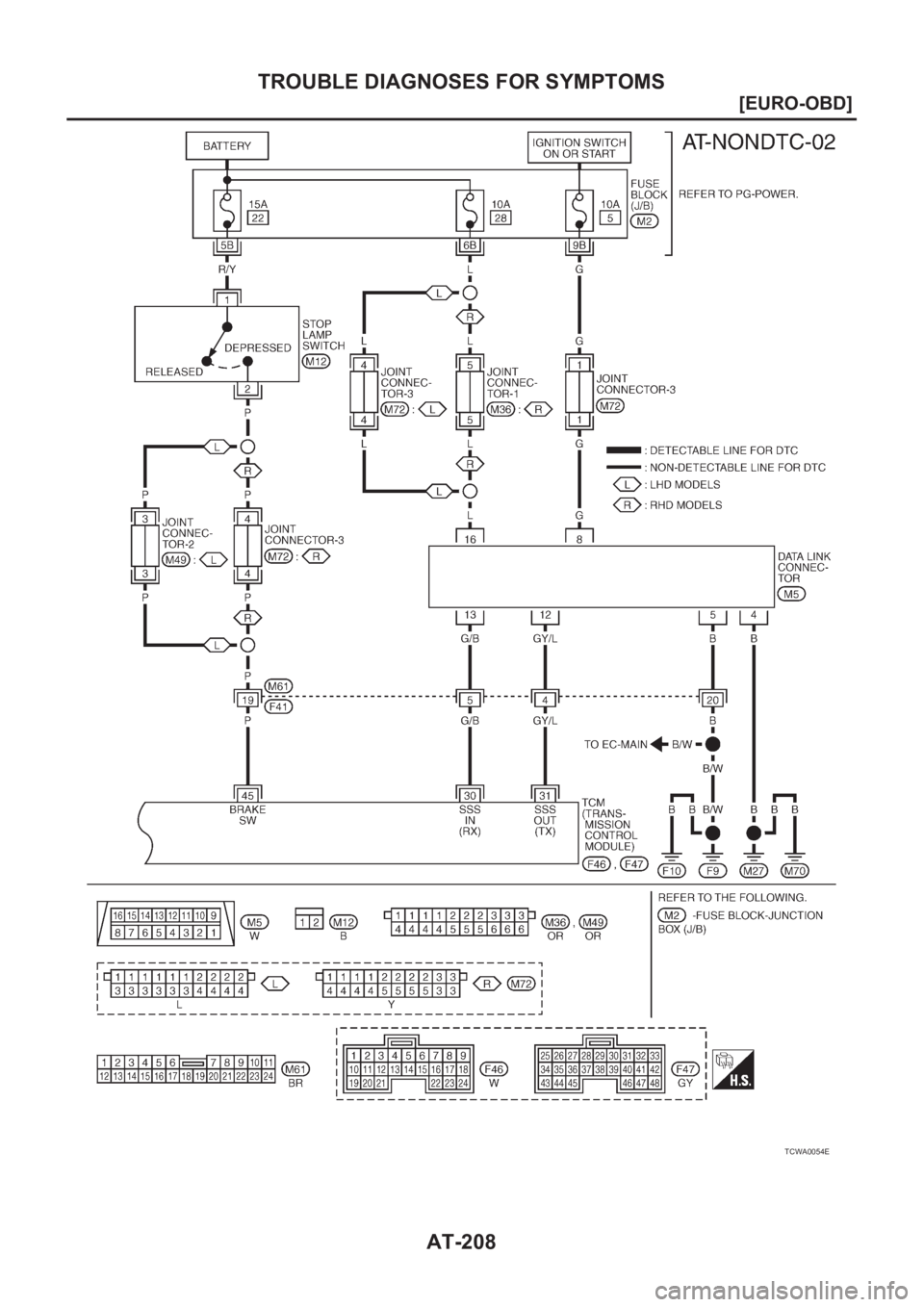

NISSAN X-TRAIL 2001 Service Repair Manual AT-208 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS TCWA0054E

Page 2287 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSES FOR SYMPTOMS AT-209 [EURO-OBD] D E F G H I J K L MA B AT O/D OFF Indicator Lamp Does Not Come OnECS004SU SYMPTOM: O/D OFF indicator lamp does not come on for about 2 seconds when tur

Page 2288 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual AT-210 [EURO-OBD] TROUBLE DIAGNOSES FOR SYMPTOMS 3. CHECK LAMP CIRCUIT 1. Turn ignition switch to “OFF” position. 2. Check resistance between TCM terminals 13 and 10, 19. 3. Reinstall any part rem
