2001 NISSAN X-TRAIL service indicator

TERMINOLOGY
GI-47
C
D
E
F
G
H
I
J
K
L
MB
GI
Nonvolatile random access memory NVRAM ***
On board diagnostic system OBD system Self-diagnosis
Open loop OL Open loop
Oxidation catalyst OC Catalyst
Oxidation catalytic converter system OC system ***
Oxygen sensor O2S Exhaust gas sensor
Park position switch *** Park switch
Park/neutral position switch PNP switchPark/neutral switch
Inhibitor switch
Neutral position switch
Periodic trap oxidizer system PTOX system ***
Positive crankcase ventilation PCV Positive crankcase ventilation
Positive crankcase ventilation valve PCV valve PCV valve
Powertrain control module PCM ***
Programmable read only memory PROM ***
Pulsed secondary air injection control sole-
noid valvePAIRC solenoid valve AIV control solenoid valve
Pulsed secondary air injection system PAIR system Air induction valve (AIV) control
Pulsed secondary air injection valve PAIR valve Air induction valve
Random access memory RAM ***
Read only memory ROM ***
Scan tool ST ***
Secondary air injection pump AIR pump ***
Secondary air injection system AIR system ***
Sequential multiport fuel injection system SFI system Sequential fuel injection
Service reminder indicator SRI ***
Simultaneous multiport fuel injection sys-
tem*** Simultaneous fuel injection
Smoke puff limiter system SPL system ***
Supercharger SC ***
Supercharger bypass SCB ***
System readiness test SRT ***
Thermal vacuum valve TVV Thermal vacuum valve
Three way catalyst TWC Catalyst
Three way catalytic converter system TWC system ***
Three way + oxidation catalyst TWC + OC Catalyst
Three way + oxidation catalytic converter
systemTWC + OC system ***
Throttle body TBThrottle chamber
SPI body
Throttle body fuel injection system TBI system Fuel injection control
Throttle position TP Throttle position
Throttle position sensor TPS Throttle sensor
Throttle position switch TP switch Throttle switch
Torque converter clutch solenoid valve TCC solenoid valveLock-up cancel solenoid
Lock-up solenoid NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM

EM-102
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)
CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
CYLINDER BLOCK
Unit: mm (in) Item Standard
Camshaft runout [TIR] (Total indicator reading) Less than 0.04 (0.0016)
Cam height “A”Intake 45.665 - 45.855 (1.7978 - 1.8053)
ExhaustQR20DE 42.825 - 43.015 (1.6860 - 1.6935)
QR25DE 43.975 - 44.165 (1.7313 - 1.7388)
Outer diameter of camshaft journalNo. 1 27.935 - 27.955 (1.0998 - 1.1006)
No. 2, 3, 4 and 5 23.435 - 23.455 (0.9226 - 0.9234)
Inner diameter of camshaft bracketNo. 1 28.000 - 28.021 (1.1024 - 1.1032)
No. 2, 3, 4 and 5 23.500 - 23.521 (0.9252 - 0.9260)
Camshaft journal clearance 0.045 - 0.086 (0.0018 - 0.0034)
Camshaft end play0.115 - 0.188 (0.0045 - 0.0074)
Camshaft sprocket runout [TIR] (Total indicator reading) Less than 0.15 (0.0059)
SEM671
Surface flatness Limit 0.1 (0.004)
Cylinder boreInner diameterStandardGrade No. 1 89.000 - 89.010 (3.5039 - 3.5043)
Grade No. 2 89.010 - 89.020 (3.5043 - 3.5047)
Grade No. 3 89.020 - 89.030 (3.5047 - 3.5051)
Wear limit 0.2 (0.008)
Out-of-round (X − Y) Less than 0.015 (0.0006)
Ta p e r ( C− A) Less than 0.01 (0.0004)
PBIC0281E

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-105
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

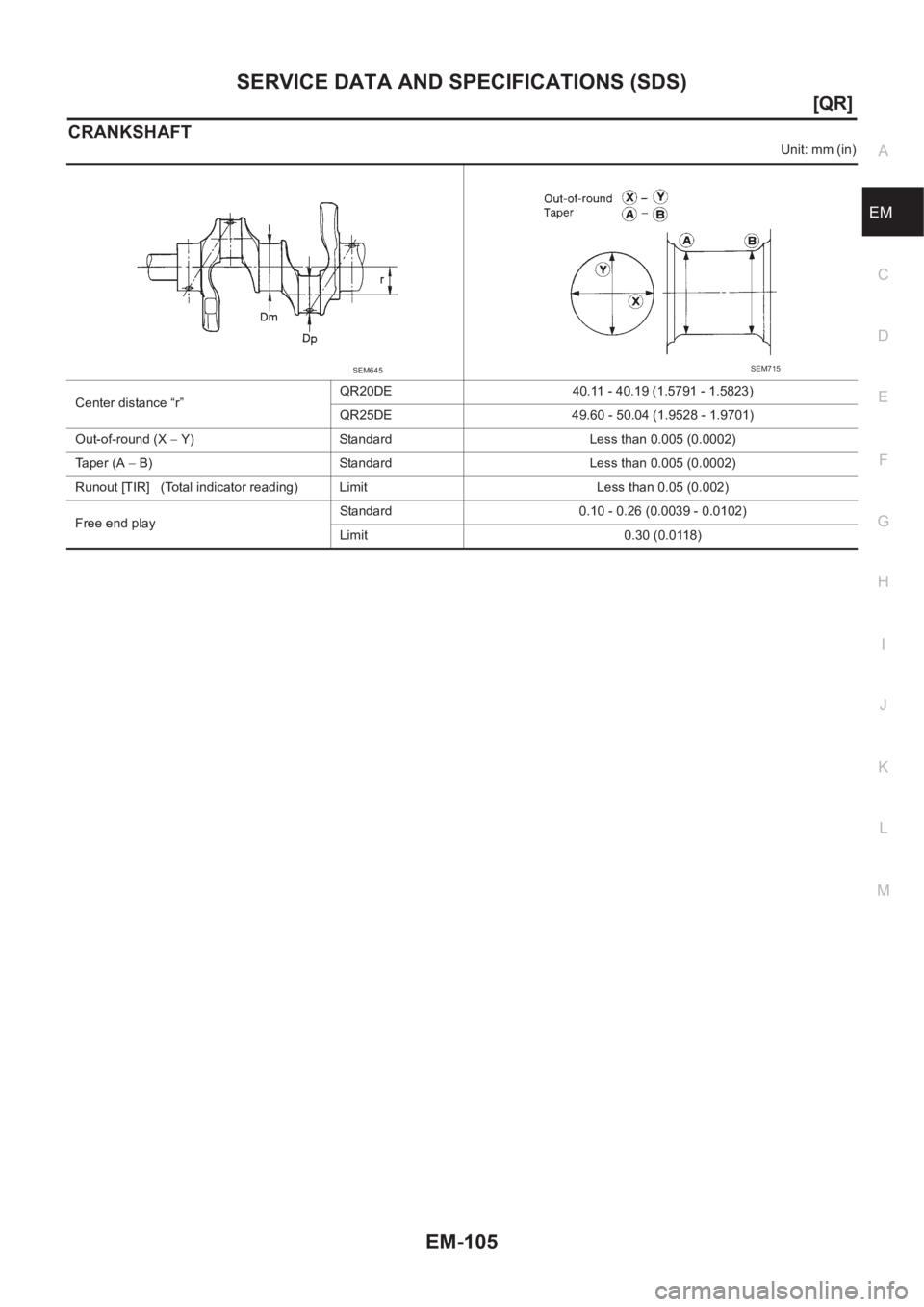

CRANKSHAFT
Unit: mm (in)
Center distance “r”QR20DE 40.11 - 40.19 (1.5791 - 1.5823)
QR25DE 49.60 - 50.04 (1.9528 - 1.9701)
Out-of-round (X − Y) Standard Less than 0.005 (0.0002)
Taper (A − B) Standard Less than 0.005 (0.0002)
Runout [TIR] (Total indicator reading) Limit Less than 0.05 (0.002)
Free end playStandard 0.10 - 0.26 (0.0039 - 0.0102)
Limit 0.30 (0.0118)
SEM645SEM715

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-225
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

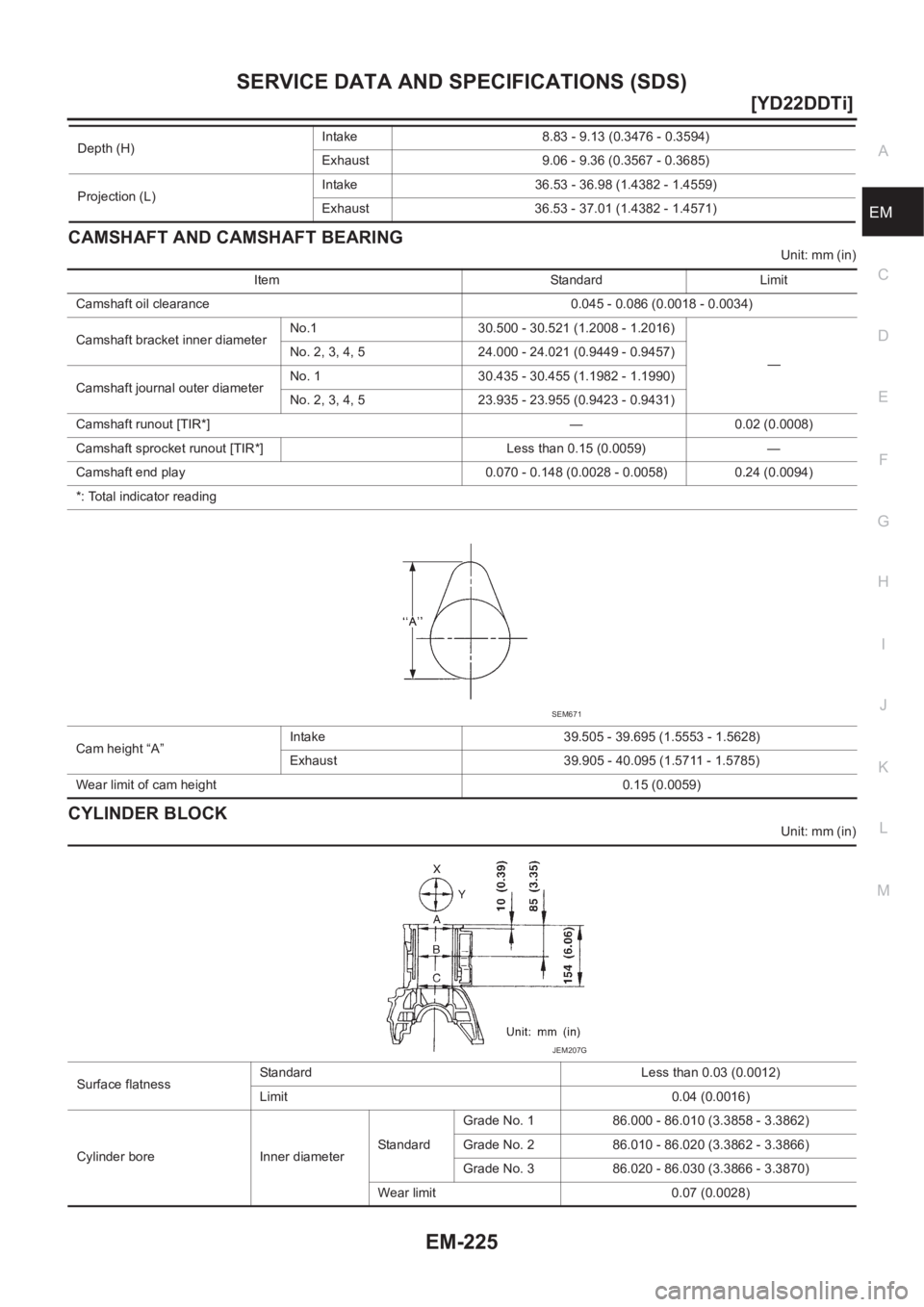

CAMSHAFT AND CAMSHAFT BEARING
Unit: mm (in)
CYLINDER BLOCK
Unit: mm (in) Depth (H)Intake 8.83 - 9.13 (0.3476 - 0.3594)
Exhaust 9.06 - 9.36 (0.3567 - 0.3685)
Projection (L)Intake 36.53 - 36.98 (1.4382 - 1.4559)
Exhaust 36.53 - 37.01 (1.4382 - 1.4571)
Item Standard Limit
Camshaft oil clearance 0.045 - 0.086 (0.0018 - 0.0034)
Camshaft bracket inner diameterNo.1 30.500 - 30.521 (1.2008 - 1.2016)
— No. 2, 3, 4, 5 24.000 - 24.021 (0.9449 - 0.9457)
Camshaft journal outer diameterNo. 1 30.435 - 30.455 (1.1982 - 1.1990)
No. 2, 3, 4, 5 23.935 - 23.955 (0.9423 - 0.9431)
Camshaft runout [TIR*] — 0.02 (0.0008)
Camshaft sprocket runout [TIR*] Less than 0.15 (0.0059) —
Camshaft end play 0.070 - 0.148 (0.0028 - 0.0058) 0.24 (0.0094)
*: Total indicator reading
Cam height “A”Intake 39.505 - 39.695 (1.5553 - 1.5628)
Exhaust 39.905 - 40.095 (1.5711 - 1.5785)
Wear limit of cam height 0.15 (0.0059)
SEM671
Surface flatnessStandard Less than 0.03 (0.0012)
Limit 0.04 (0.0016)
Cylinder bore Inner diameterSta ndardGrade No. 1 86.000 - 86.010 (3.3858 - 3.3862)
Grade No. 2 86.010 - 86.020 (3.3862 - 3.3866)
Grade No. 3 86.020 - 86.030 (3.3866 - 3.3870)
Wear limit 0.07 (0.0028)
JEM207G

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-227
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

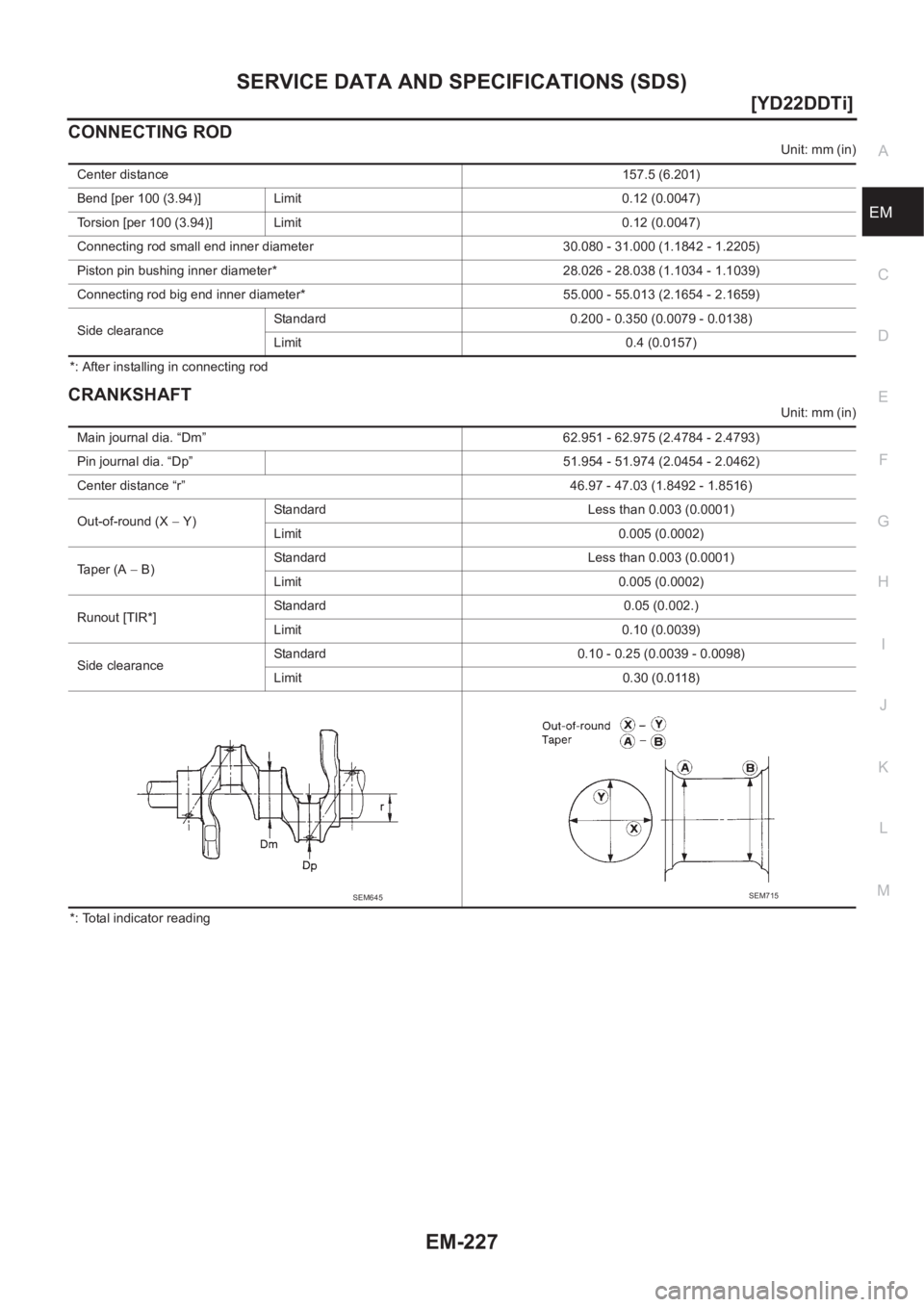

CONNECTING ROD
Unit: mm (in)
*: After installing in connecting rod
CRANKSHAFT
Unit: mm (in)
*: Total indicator readingCenter distance157.5 (6.201)
Bend [per 100 (3.94)] Limit 0.12 (0.0047)
Torsion [per 100 (3.94)] Limit 0.12 (0.0047)
Connecting rod small end inner diameter 30.080 - 31.000 (1.1842 - 1.2205)
Piston pin bushing inner diameter* 28.026 - 28.038 (1.1034 - 1.1039)
Connecting rod big end inner diameter* 55.000 - 55.013 (2.1654 - 2.1659)
Side clearanceStandard 0.200 - 0.350 (0.0079 - 0.0138)
Limit 0.4 (0.0157)
Main journal dia. “Dm” 62.951 - 62.975 (2.4784 - 2.4793)
Pin journal dia. “Dp” 51.954 - 51.974 (2.0454 - 2.0462)
Center distance “r” 46.97 - 47.03 (1.8492 - 1.8516)
Out-of-round (X − Y)Standard Less than 0.003 (0.0001)
Limit 0.005 (0.0002)
Taper (A − B)Standard Less than 0.003 (0.0001)
Limit 0.005 (0.0002)
Runout [TIR*]Standard 0.05 (0.002.)
Limit 0.10 (0.0039)
Side clearanceStandard 0.10 - 0.25 (0.0039 - 0.0098)
Limit 0.30 (0.0118)
SEM645SEM715

EM-228
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)

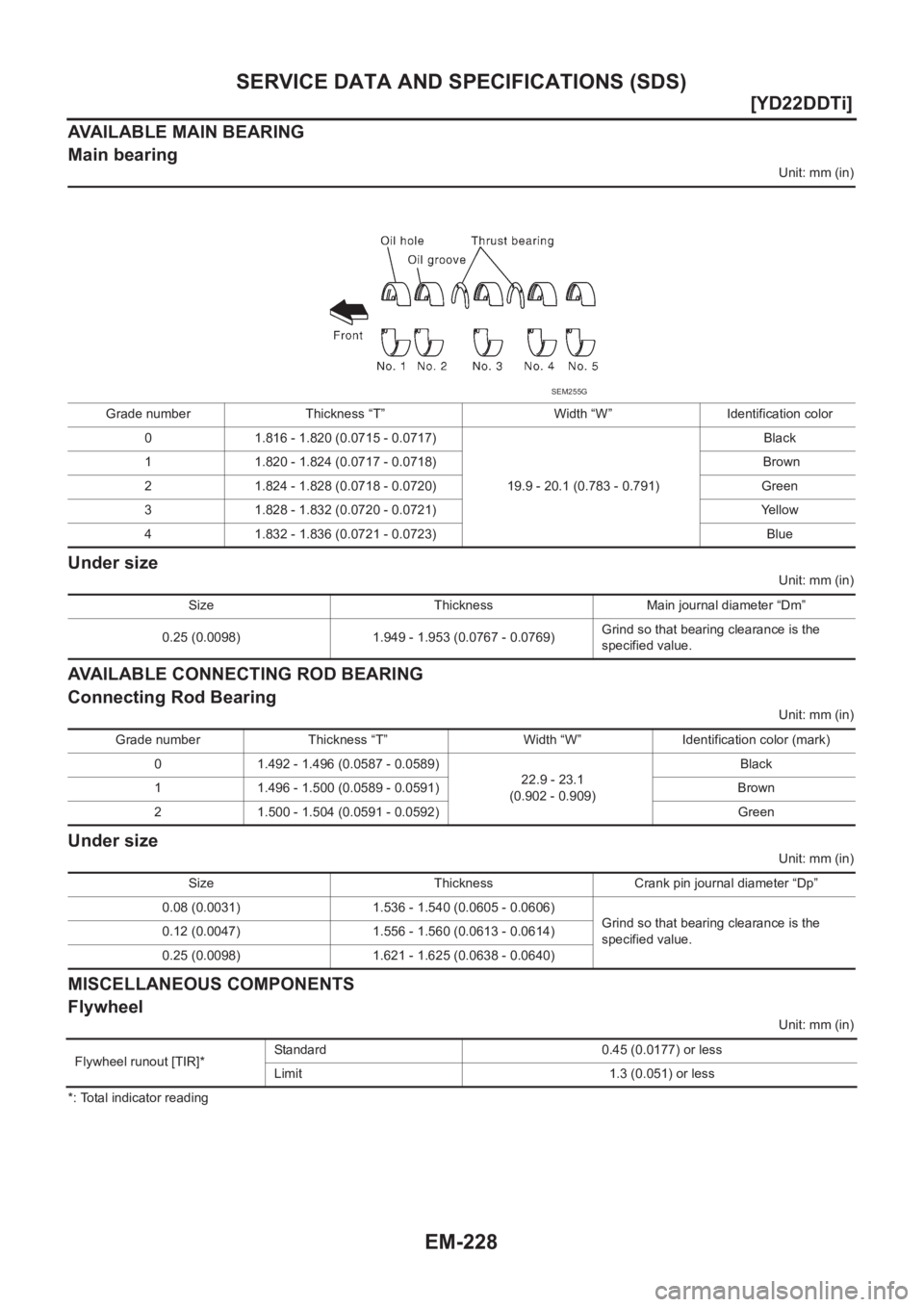

AVAILABLE MAIN BEARING
Main bearing
Unit: mm (in)
Under size
Unit: mm (in)
AVAILABLE CONNECTING ROD BEARING
Connecting Rod Bearing
Unit: mm (in)
Under size
Unit: mm (in)
MISCELLANEOUS COMPONENTS
Flywheel
Unit: mm (in)
*: Total indicator reading Grade number Thickness “T” Width “W” Identification color
0 1.816 - 1.820 (0.0715 - 0.0717)
19.9 - 20.1 (0.783 - 0.791)Black
1 1.820 - 1.824 (0.0717 - 0.0718) Brown
2 1.824 - 1.828 (0.0718 - 0.0720) Green
3 1.828 - 1.832 (0.0720 - 0.0721) Yellow
4 1.832 - 1.836 (0.0721 - 0.0723) Blue
SEM255G
Size Thickness Main journal diameter “Dm”
0.25 (0.0098) 1.949 - 1.953 (0.0767 - 0.0769)Grind so that bearing clearance is the
specified value.
Grade number Thickness “T” Width “W” Identification color (mark)
0 1.492 - 1.496 (0.0587 - 0.0589)
22.9 - 23.1
(0.902 - 0.909)Black
1 1.496 - 1.500 (0.0589 - 0.0591) Brown
2 1.500 - 1.504 (0.0591 - 0.0592) Green
Size Thickness Crank pin journal diameter “Dp”
0.08 (0.0031) 1.536 - 1.540 (0.0605 - 0.0606)
Grind so that bearing clearance is the
specified value. 0.12 (0.0047) 1.556 - 1.560 (0.0613 - 0.0614)
0.25 (0.0098) 1.621 - 1.625 (0.0638 - 0.0640)
Flywheel runout [TIR]*Standard 0.45 (0.0177) or less
Limit 1.3 (0.051) or less
