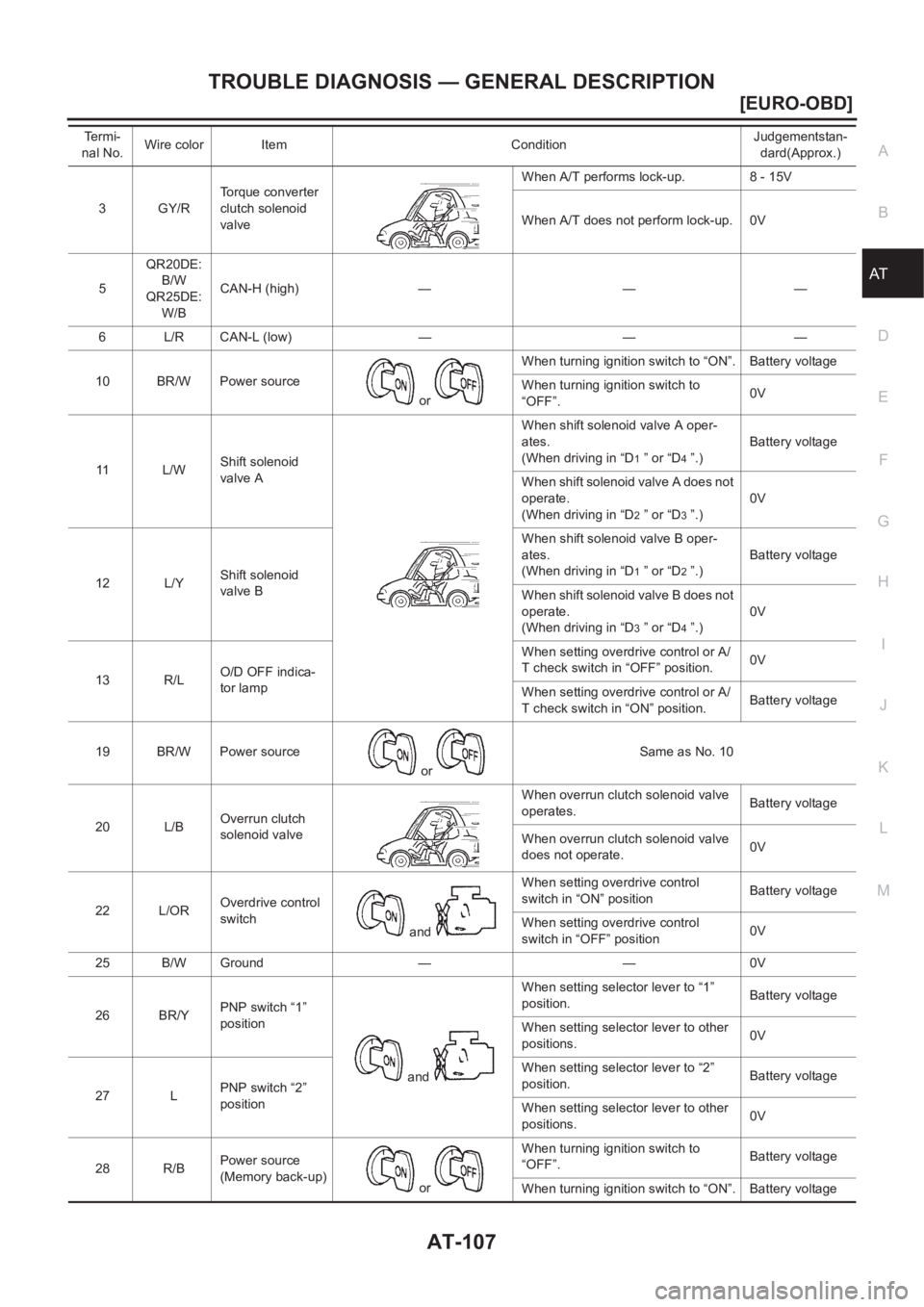

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-107
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3GY/RTorque converter
clutch solenoid
valveWhen A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
5QR20DE:
B/W
QR25DE:
W/BCAN-H (high) — — —
6 L/R CAN-L (low) — — —
10 BR/W Power source
or When turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1 ” or “D4 ”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2 ” or “D3 ”.)0V
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1 ” or “D2 ”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3 ” or “D4 ”.)0V
13 R/LO/D OFF indica-
tor lampWhen setting overdrive control or A/
T check switch in “OFF” position.0V
When setting overdrive control or A/
T check switch in “ON” position.Battery voltage
19 BR/W Power source
or Same as No. 10
20 L/BOverrun clutch
solenoid valveWhen overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.0V
22 L/OROverdrive control
switch
and When setting overdrive control
switch in “ON” positionBattery voltage
When setting overdrive control
switch in “OFF” position0V
25 B/W Ground — — 0V
26 BR/YPNP switch “1”
position
and When setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 LPNP switch “2”
positionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
28 R/BPower source
(Memory back-up)
or When turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage Termi-
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)
Page 2186 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-108
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.29 W Revolution sensorWhen moving NISSAN X-TRAIL 2001 Service Repair Manual AT-108
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.29 W Revolution sensorWhen moving](/manual-img/5/57405/w960_57405-2185.png)
AT-108
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis
connector.
*1: A circuit tester cannot be used to
test this item.450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
30 *3 G/B CONSULT- II (RX) — —
31 *3 GY/L CONSULT- II (TX) — —
32 *2 RThrottle position
sensor
(Power source)
or When turning ignition switch to “ON”. 4.5 - 5.5V
When turning ignition switch to
“OFF”.0V
34 W/GPNP switch “D”
position
and When setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
39 *2 L/OREngine speed sig-
nal
and Refer to EC-87, "
ECM INSPECTION
TABLE" (QR25DE) or EC-819,
"ECM INSPECTION TABLE"
(QR20DE).—
40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V
42 BThrottle position
sensor
(Ground)———
45 P Stop lamp switchWhen depressing brake pedal. Battery voltage
When releasing brake pedal. 0V
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
48 B/W Ground — — — Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)
Page 2187 of 3833
CAN COMMUNICATION
AT-109
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
CAN COMMUNICATIONPFP:23710
System DescriptionECS004VP
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
FOR A/T MODELS
System diagram
Input/output signal chart
T: Transmit R: Receive
SKIA0884E
Signals ECM TCM
Engine coolant temperature signal T R
Accelerator pedal position signal T R
A/T self-diagnosis signal R T
Page 2188 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual AT-110
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
PFP:32006
DescriptionECS004QW
●The PNP switch assembly includes a transmission range switc NISSAN X-TRAIL 2001 Service Repair Manual AT-110
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
PFP:32006
DescriptionECS004QW
●The PNP switch assembly includes a transmission range switc](/manual-img/5/57405/w960_57405-2187.png)
AT-110
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
PFP:32006
DescriptionECS004QW

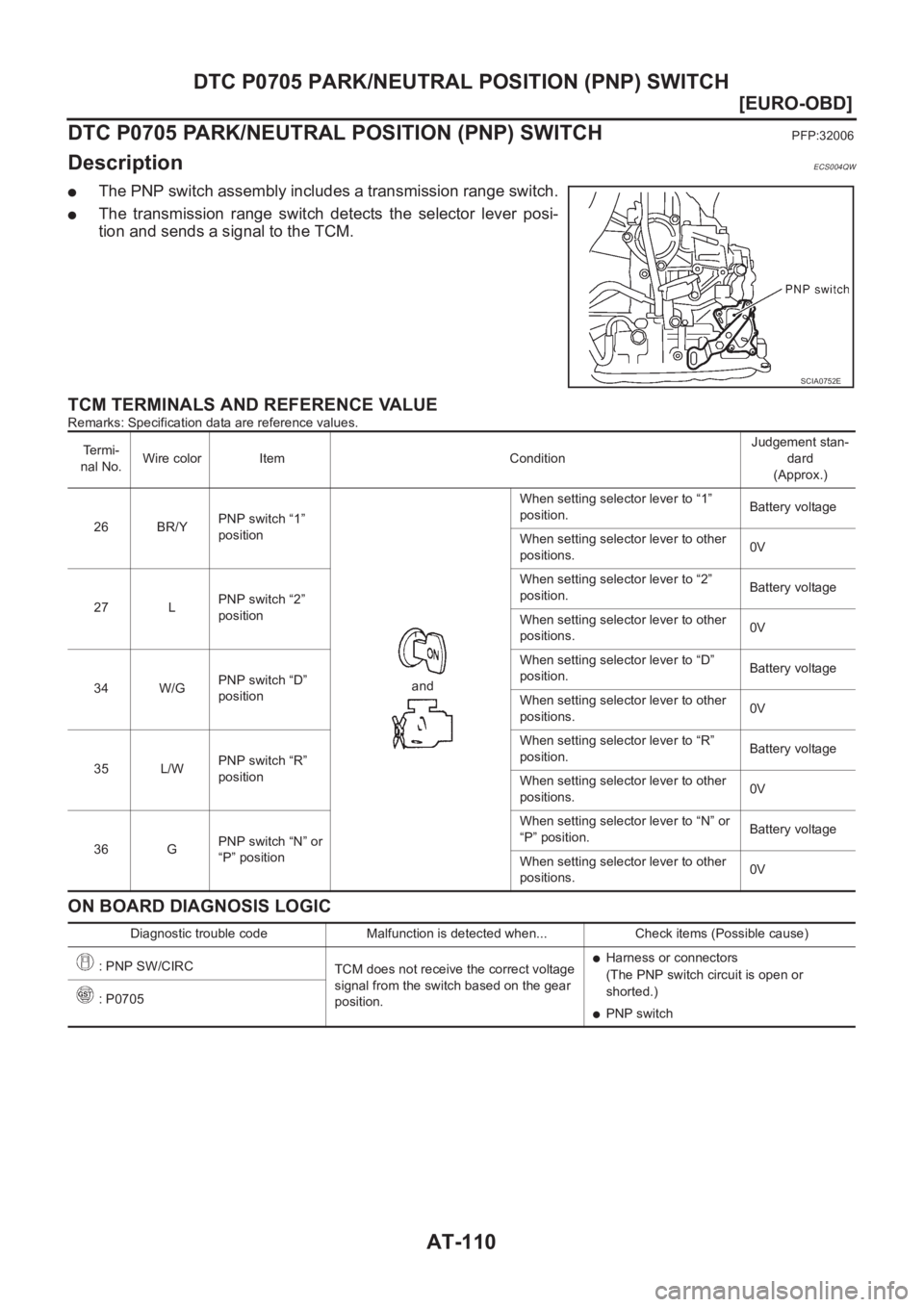

●The PNP switch assembly includes a transmission range switch.
●The transmission range switch detects the selector lever posi-
tion and sends a signal to the TCM.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0752E
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
26 BR/YPNP switch “1”
position
andWhen setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 LPNP switch “2”
positionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
34 W/GPNP switch “D”
positionWhen setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: PNP SW/CIRC
TCM does not receive the correct voltage
signal from the switch based on the gear
position.
●Harness or connectors
(The PNP switch circuit is open or
shorted.)
●PNP switch : P0705
Page 2189 of 3833
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-111
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

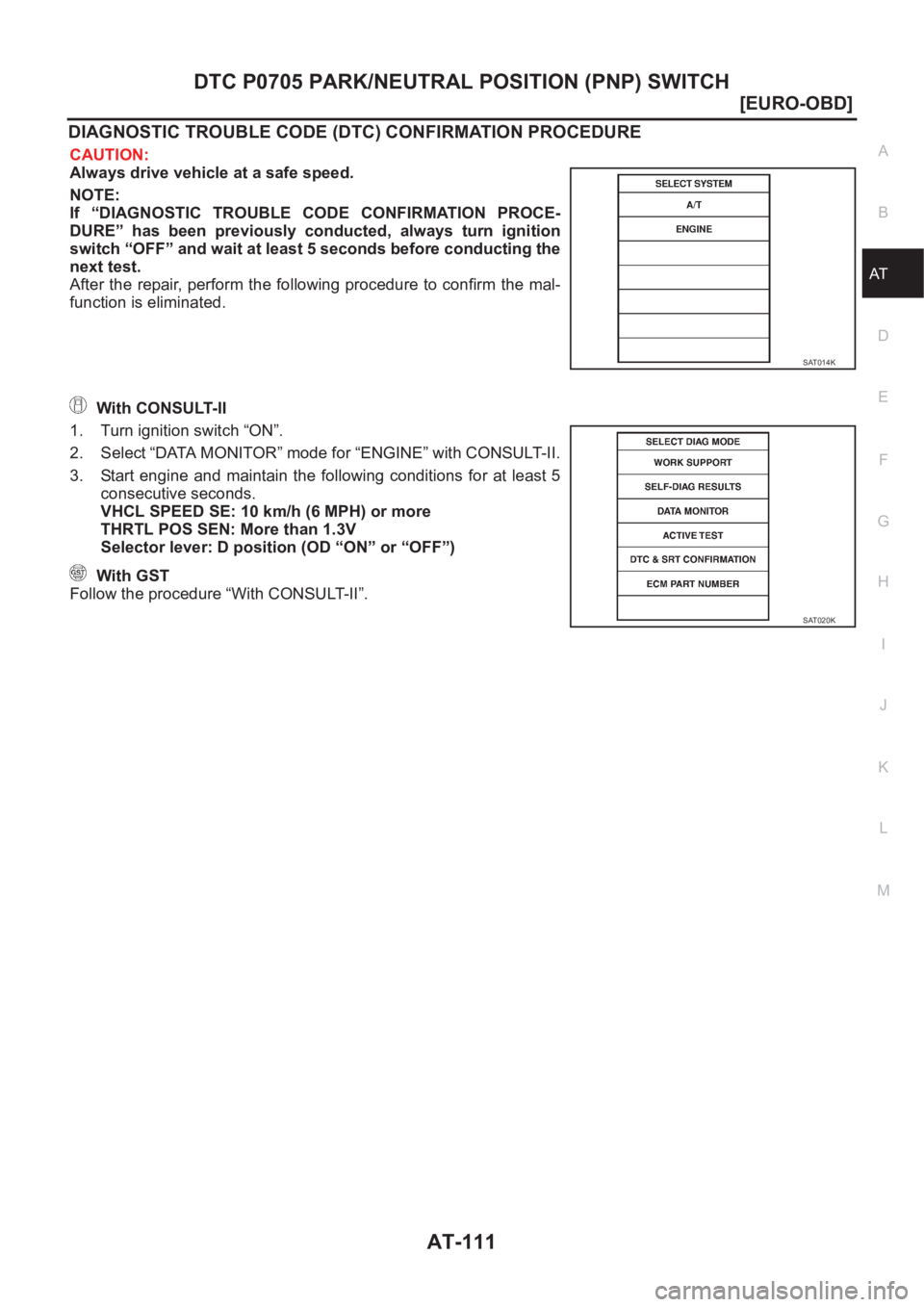

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position (OD “ON” or “OFF”)
With GST
Follow the procedure “With CONSULT-II”.
SAT014K
SAT020K
Page 2190 of 3833
AT-112
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

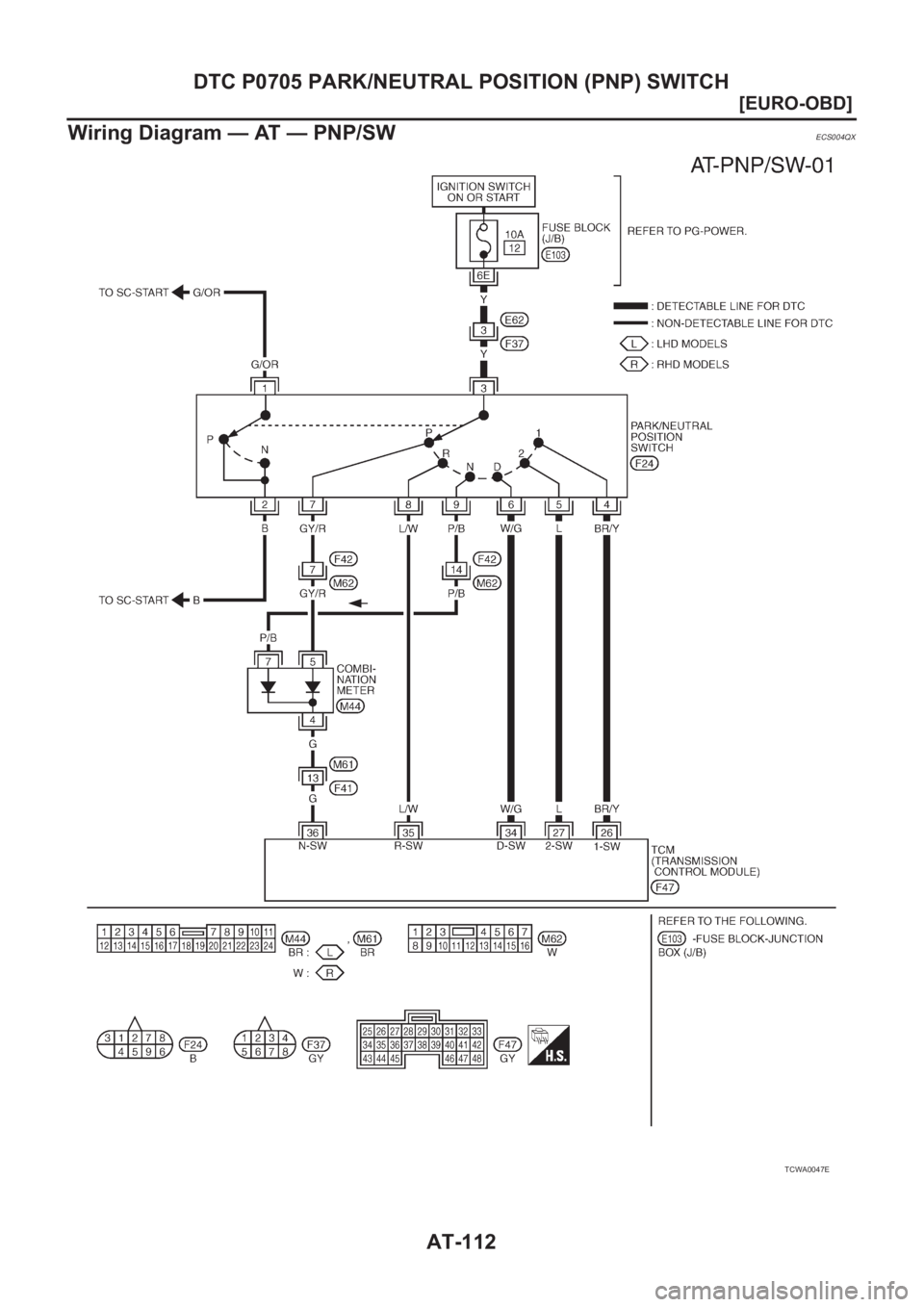

Wiring Diagram — AT — PNP/SW
