Page 1825 of 3833
DTC P0201 - P0204 FUEL INJECTOR
EC-1475
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC

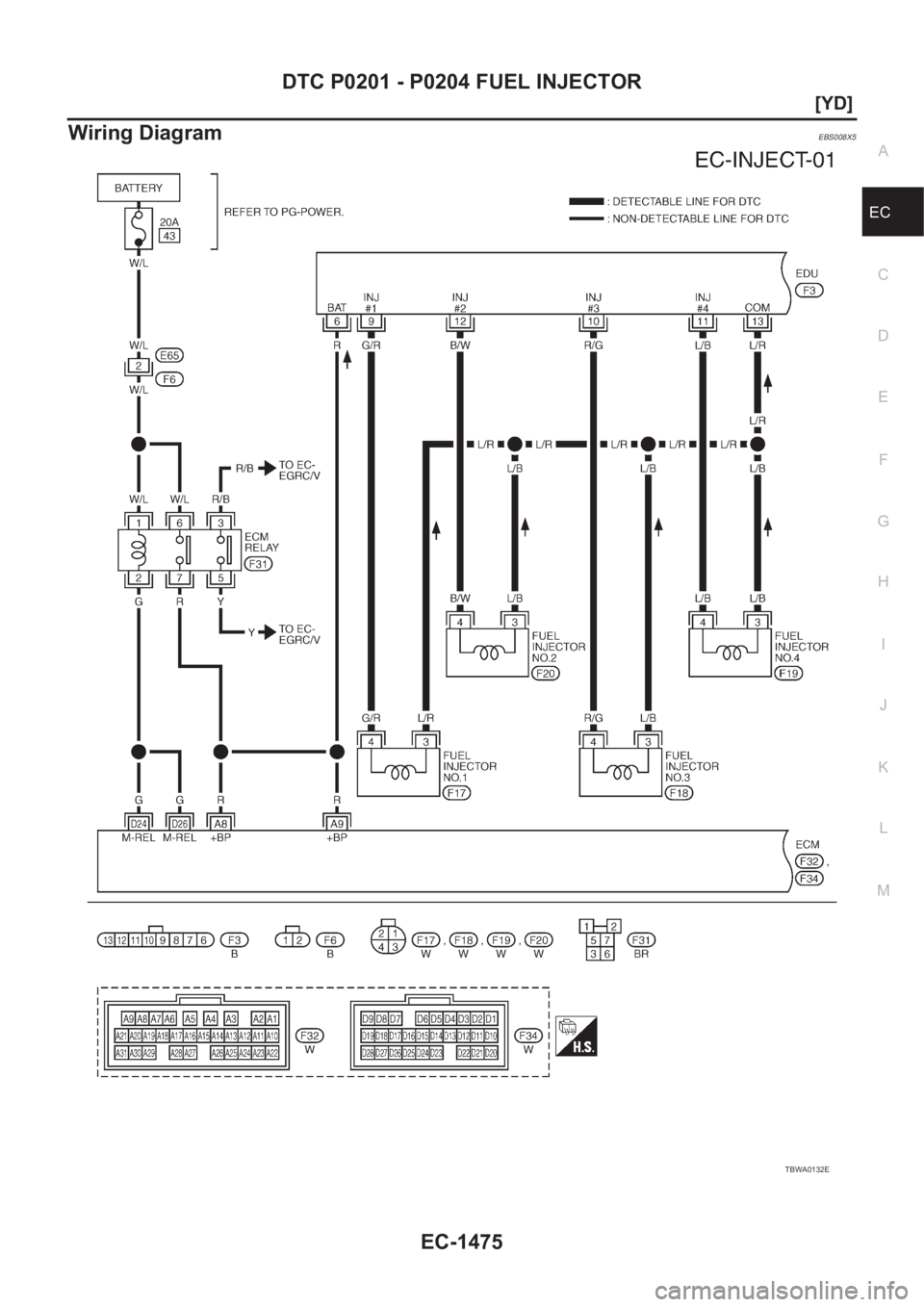

Wiring DiagramEBS008X5
TBWA0132E
Page 1826 of 3833
EC-1476
[YD]

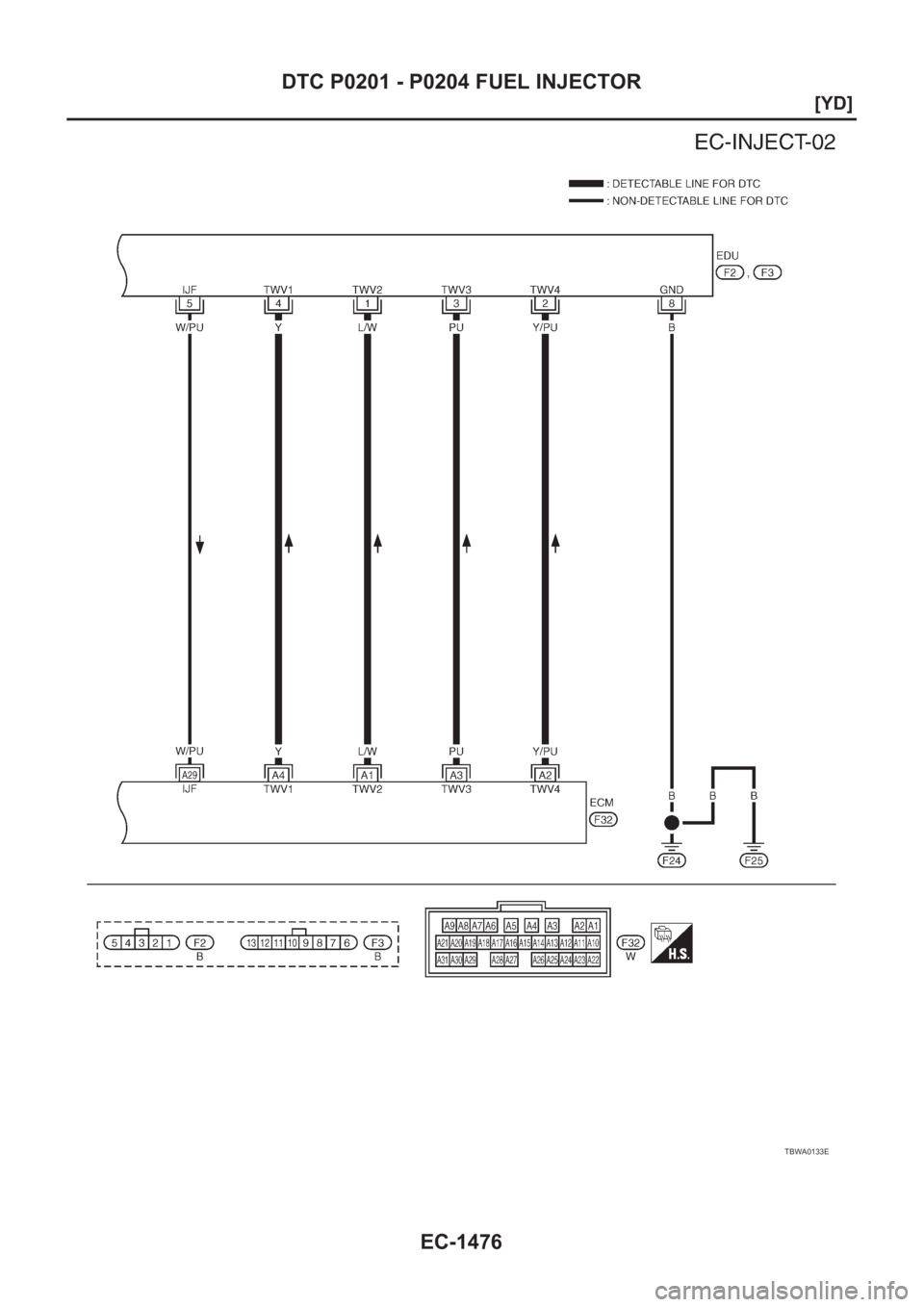

DTC P0201 - P0204 FUEL INJECTOR
TBWA0133E
Page 1827 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P0201 - P0204 FUEL INJECTOR
EC-1477
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS008X6
1.CHECK ECM OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness co NISSAN X-TRAIL 2001 Service Repair Manual DTC P0201 - P0204 FUEL INJECTOR
EC-1477
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS008X6
1.CHECK ECM OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness co](/manual-img/5/57405/w960_57405-1826.png)

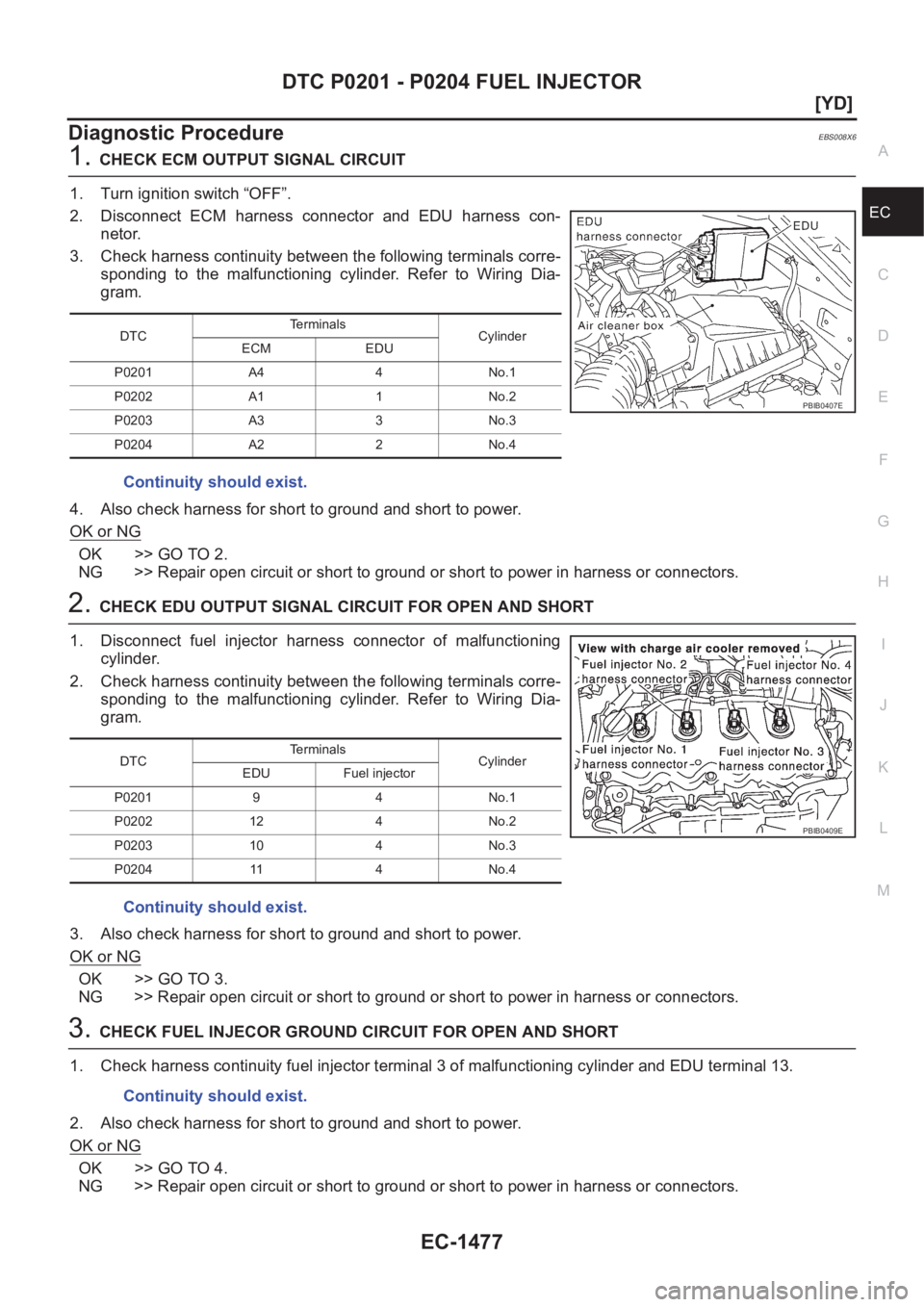

DTC P0201 - P0204 FUEL INJECTOR
EC-1477
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS008X6
1.CHECK ECM OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector and EDU harness con-
netor.
3. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
2.CHECK EDU OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect fuel injector harness connector of malfunctioning
cylinder.
2. Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK FUEL INJECOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity fuel injector terminal 3 of malfunctioning cylinder and EDU terminal 13.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
DTCTe r m i n a l s
Cylinder
ECM EDU
P0201 A4 4 No.1
P0202 A1 1 No.2
P0203 A3 3 No.3
P0204 A2 2 No.4
Continuity should exist.
PBIB0407E
DTCTe r m i n a l s
Cylinder
EDU Fuel injector
P0201 9 4 No.1
P0202 12 4 No.2
P0203 10 4 No.3
P0204 11 4 No.4
Continuity should exist.
PBIB0409E
Continuity should exist.
Page 1828 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1478
[YD]
DTC P0201 - P0204 FUEL INJECTOR
4. CHECK FUEL INJECTOR-I
Refer to EC-1478, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace fuel injector.
5. CHECK FUEL INJECTOR-II NISSAN X-TRAIL 2001 Service Repair Manual EC-1478
[YD]
DTC P0201 - P0204 FUEL INJECTOR
4. CHECK FUEL INJECTOR-I
Refer to EC-1478, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace fuel injector.
5. CHECK FUEL INJECTOR-II](/manual-img/5/57405/w960_57405-1827.png)

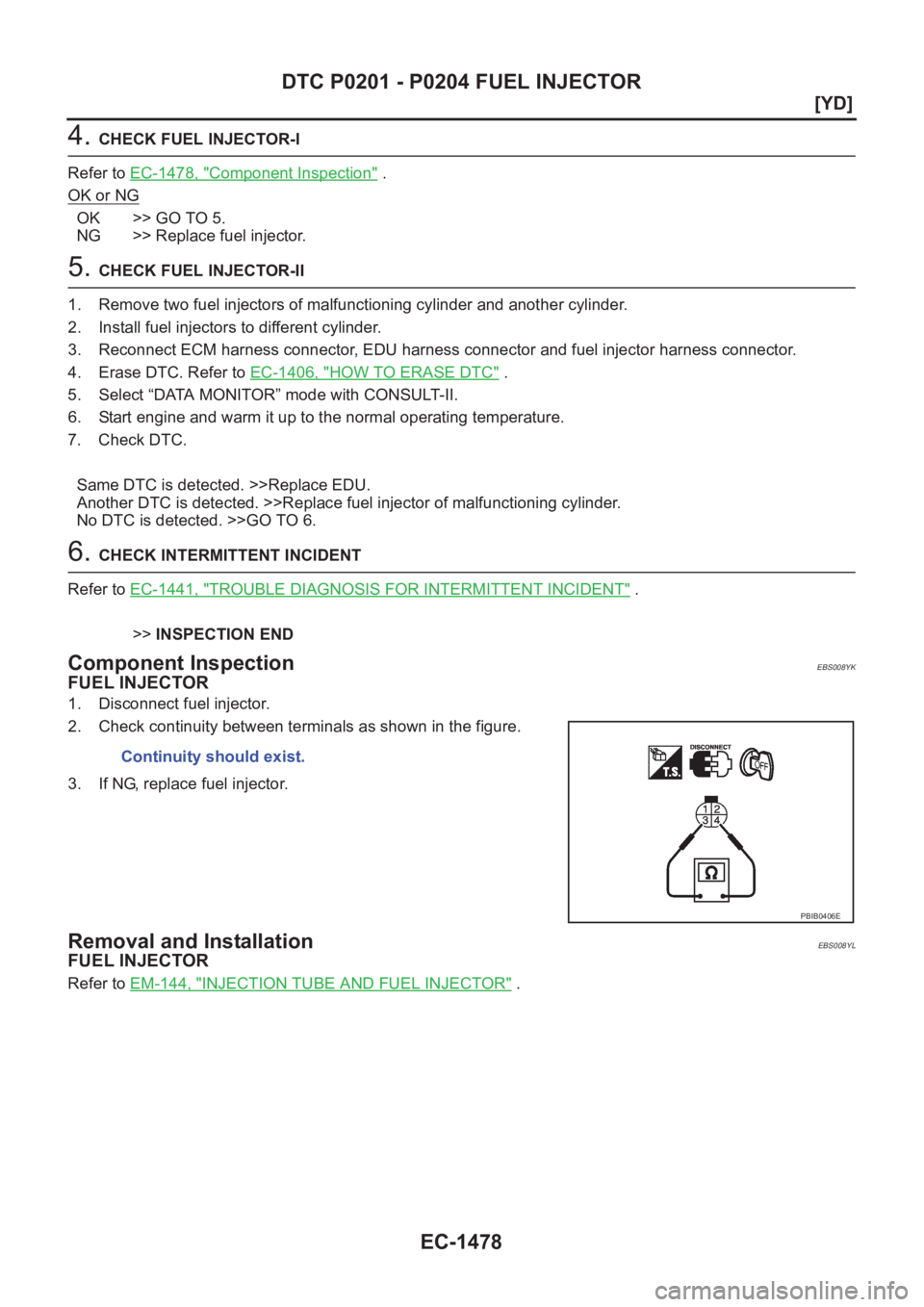

EC-1478
[YD]
DTC P0201 - P0204 FUEL INJECTOR
4. CHECK FUEL INJECTOR-I
Refer to EC-1478, "
Component Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Replace fuel injector.
5. CHECK FUEL INJECTOR-II
1. Remove two fuel injectors of malfunctioning cylinder and another cylinder.
2. Install fuel injectors to different cylinder.
3. Reconnect ECM harness connector, EDU harness connector and fuel injector harness connector.
4. Erase DTC. Refer to EC-1406, "
HOW TO ERASE DTC" .
5. Select “DATA MONITOR” mode with CONSULT-II.
6. Start engine and warm it up to the normal operating temperature.
7. Check DTC.
Same DTC is detected. >>Replace EDU.
Another DTC is detected. >>Replace fuel injector of malfunctioning cylinder.
No DTC is detected. >>GO TO 6.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1441, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS008YK
FUEL INJECTOR
1. Disconnect fuel injector.
2. Check continuity between terminals as shown in the figure.
3. If NG, replace fuel injector.
Removal and InstallationEBS008YL
FUEL INJECTOR
Refer to EM-144, "INJECTION TUBE AND FUEL INJECTOR" . Continuity should exist.
PBIB0406E
Page 1829 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-1479
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)PFP:23731
DescriptionEBS004RQ
The crankshaft position sensor (TDC) mo NISSAN X-TRAIL 2001 Service Repair Manual DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-1479
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)PFP:23731
DescriptionEBS004RQ
The crankshaft position sensor (TDC) mo](/manual-img/5/57405/w960_57405-1828.png)

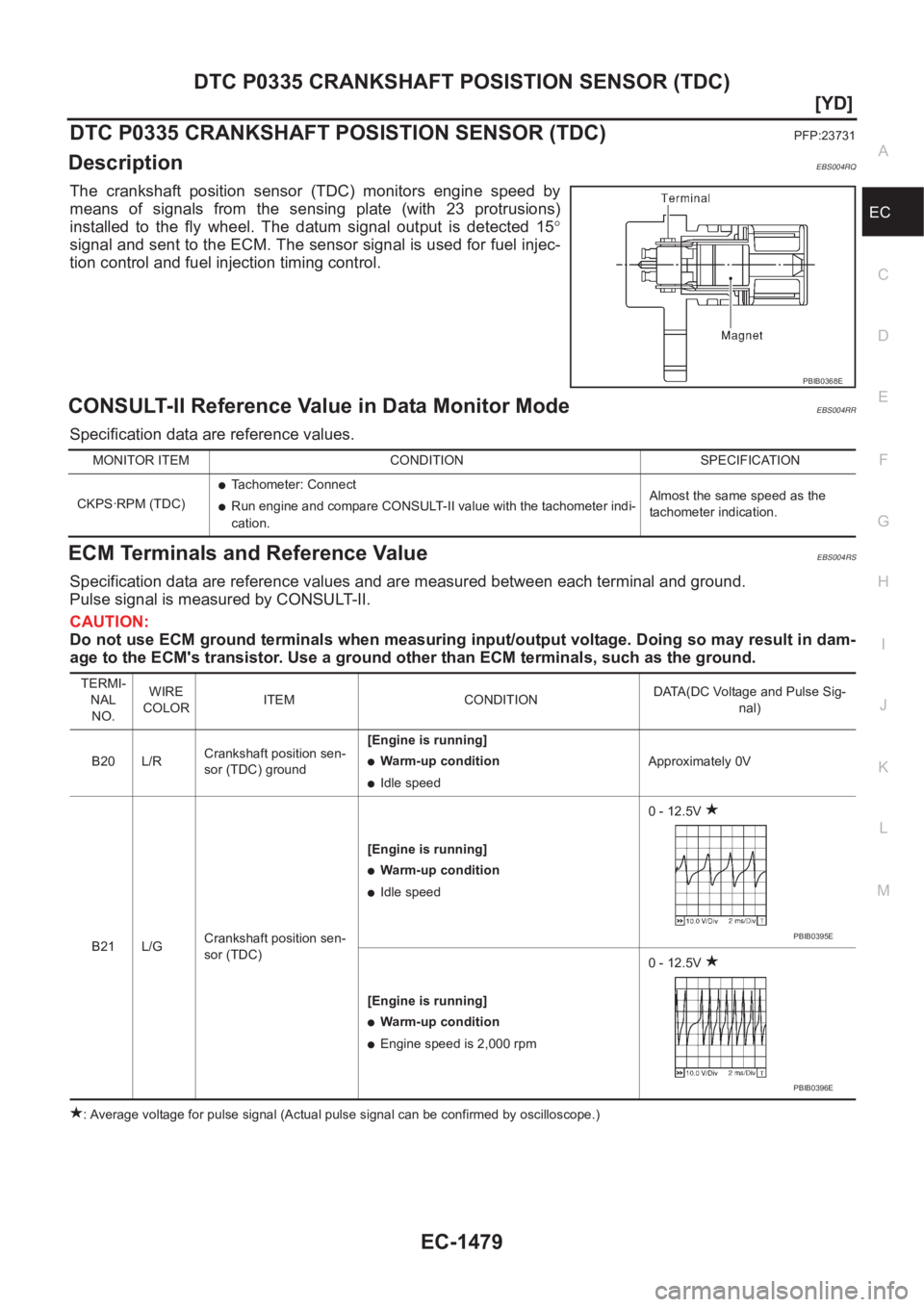

DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-1479
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)PFP:23731
DescriptionEBS004RQ
The crankshaft position sensor (TDC) monitors engine speed by
means of signals from the sensing plate (with 23 protrusions)
installed to the fly wheel. The datum signal output is detected 15°
signal and sent to the ECM. The sensor signal is used for fuel injec-
tion control and fuel injection timing control.
CONSULT-II Reference Value in Data Monitor ModeEBS004RR
Specification data are reference values.
ECM Terminals and Reference ValueEBS004RS
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
PBIB0368E
MONITOR ITEM CONDITION SPECIFICATION
CKPS·RPM (TDC)
●Tachometer: Connect
●Run engine and compare CONSULT-II value with the tachometer indi-
cation.Almost the same speed as the
tachometer indication.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA(DC Voltage and Pulse Sig-
nal)
B20 L/RCrankshaft position sen-
sor (TDC) ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
B21 L/GCrankshaft position sen-
sor (TDC)[Engine is running]
●Warm-up condition
●Idle speed0 - 12.5V
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpm0 - 12.5V
PBIB0395E
PBIB0396E
Page 1830 of 3833

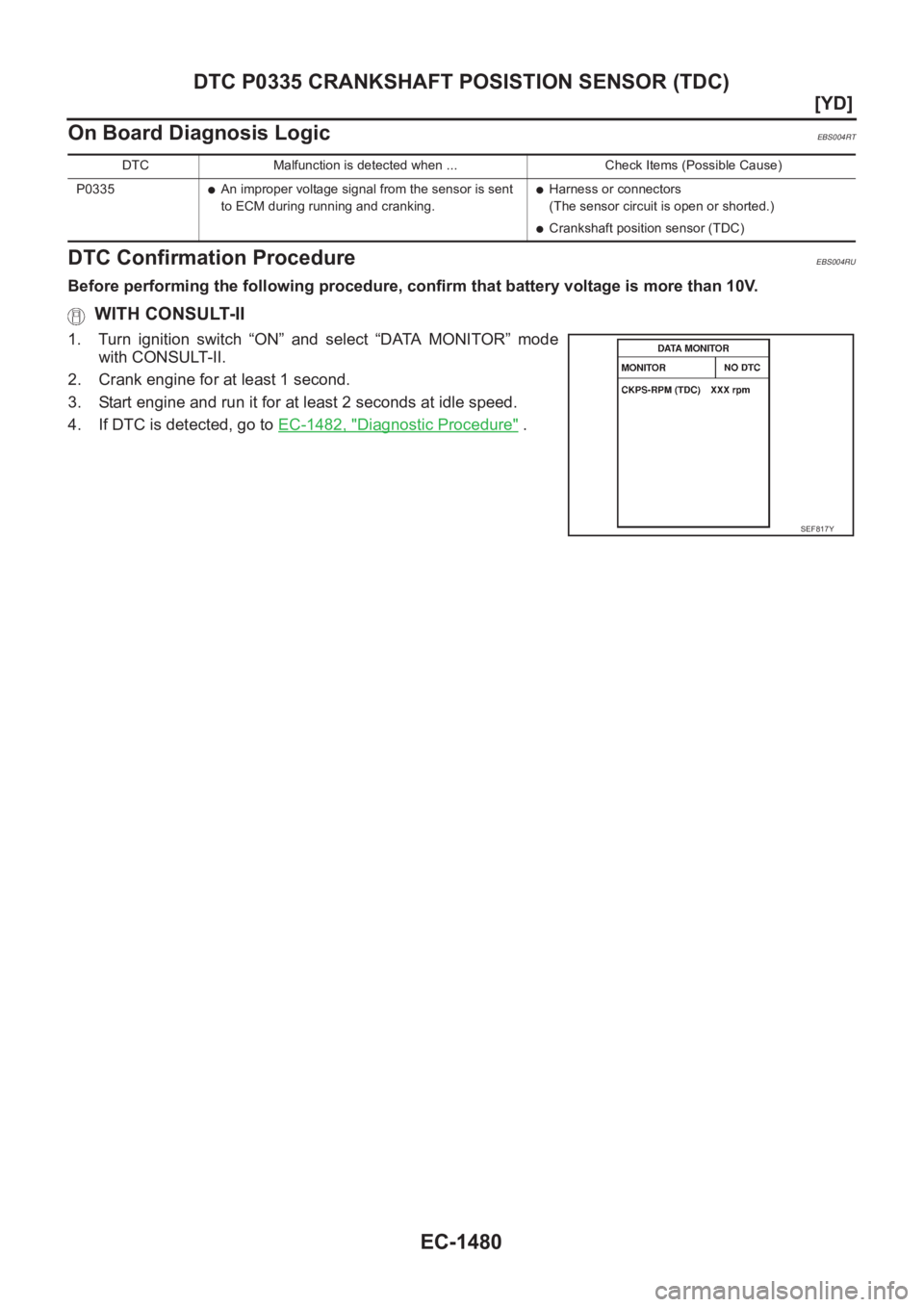

EC-1480
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
On Board Diagnosis Logic
EBS004RT
DTC Confirmation ProcedureEBS004RU
Before performing the following procedure, confirm that battery voltage is more than 10V.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode
with CONSULT-II.
2. Crank engine for at least 1 second.
3. Start engine and run it for at least 2 seconds at idle speed.
4. If DTC is detected, go to EC-1482, "
Diagnostic Procedure" .
DTC Malfunction is detected when ... Check Items (Possible Cause)
P0335
●An improper voltage signal from the sensor is sent
to ECM during running and cranking.●Harness or connectors
(The sensor circuit is open or shorted.)
●Crankshaft position sensor (TDC)
SEF817Y
Page 1831 of 3833
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
EC-1481
[YD]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS004RV
TBWA0123E
Page 1832 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-1482
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
Diagnostic Procedure
EBS004RW
1. CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. NISSAN X-TRAIL 2001 Service Repair Manual EC-1482
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
Diagnostic Procedure
EBS004RW
1. CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2.](/manual-img/5/57405/w960_57405-1831.png)

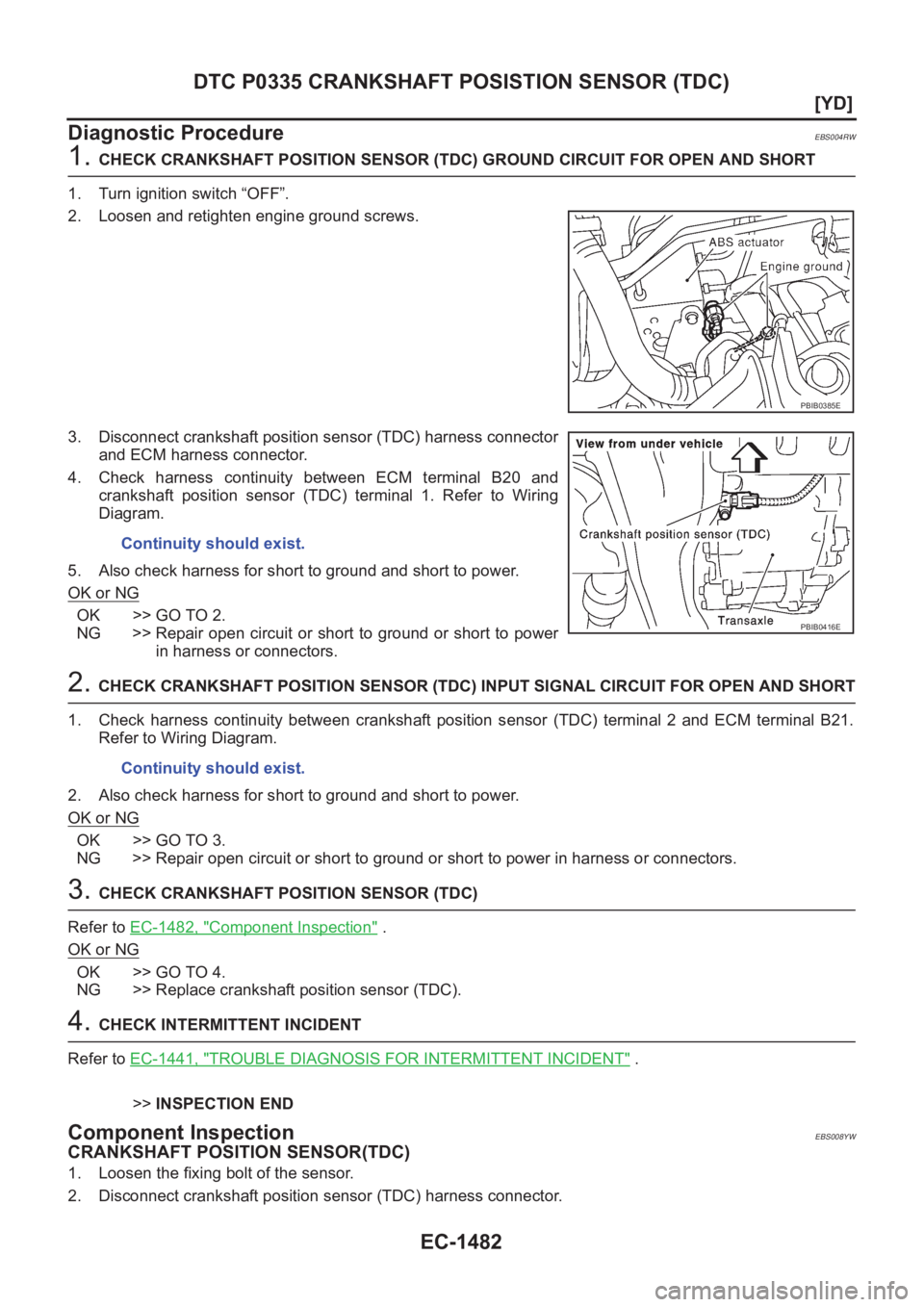

EC-1482
[YD]
DTC P0335 CRANKSHAFT POSISTION SENSOR (TDC)
Diagnostic Procedure
EBS004RW
1. CHECK CRANKSHAFT POSITION SENSOR (TDC) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
3. Disconnect crankshaft position sensor (TDC) harness connector
and ECM harness connector.
4. Check harness continuity between ECM terminal B20 and
crankshaft position sensor (TDC) terminal 1. Refer to Wiring
Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2. CHECK CRANKSHAFT POSITION SENSOR (TDC) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between crankshaft position sensor (TDC) terminal 2 and ECM terminal B21.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK CRANKSHAFT POSITION SENSOR (TDC)
Refer to EC-1482, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace crankshaft position sensor (TDC).
4. CHECK INTERMITTENT INCIDENT
Refer to EC-1441, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS008YW
CRANKSHAFT POSITION SENSOR(TDC)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor (TDC) harness connector.
PBIB0385E
Continuity should exist.
PBIB0416E
Continuity should exist.
