Page 1969 of 3833

OPERATING CYLINDER
CL-11
D
E
F
G
H
I
J
K
L
MA
B
CL

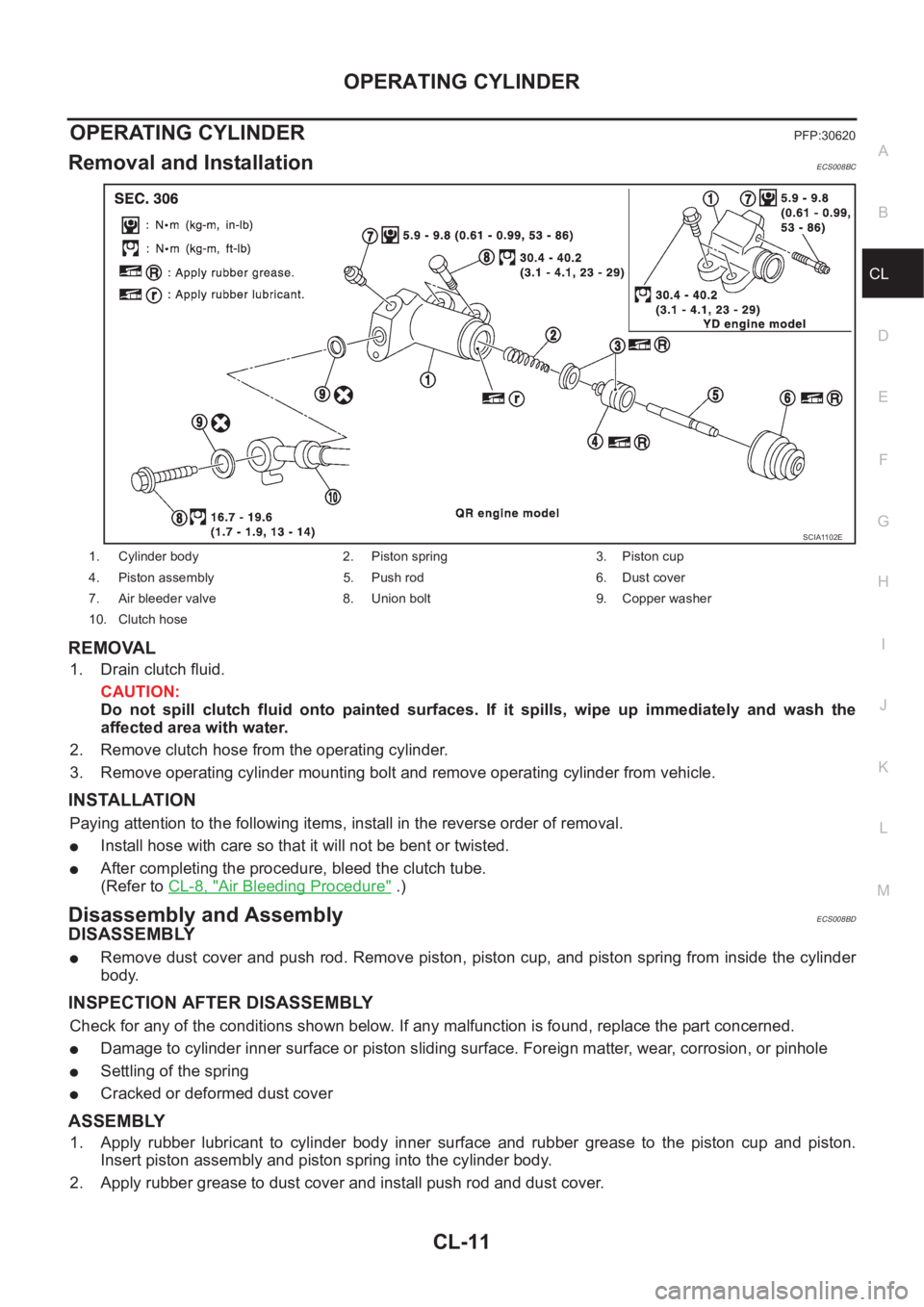

OPERATING CYLINDERPFP:30620
Removal and InstallationECS008BC
REMOVAL
1. Drain clutch fluid.
CAUTION:
Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the
affected area with water.
2. Remove clutch hose from the operating cylinder.
3. Remove operating cylinder mounting bolt and remove operating cylinder from vehicle.
INSTALLATION
Paying attention to the following items, install in the reverse order of removal.
●Install hose with care so that it will not be bent or twisted.
●After completing the procedure, bleed the clutch tube.
(Refer to CL-8, "
Air Bleeding Procedure" .)
Disassembly and AssemblyECS008BD
DISASSEMBLY
●Remove dust cover and push rod. Remove piston, piston cup, and piston spring from inside the cylinder
body.
INSPECTION AFTER DISASSEMBLY
Check for any of the conditions shown below. If any malfunction is found, replace the part concerned.
●Damage to cylinder inner surface or piston sliding surface. Foreign matter, wear, corrosion, or pinhole
●Settling of the spring
●Cracked or deformed dust cover
ASSEMBLY
1. Apply rubber lubricant to cylinder body inner surface and rubber grease to the piston cup and piston.
Insert piston assembly and piston spring into the cylinder body.
2. Apply rubber grease to dust cover and install push rod and dust cover.
1. Cylinder body 2. Piston spring 3. Piston cup
4. Piston assembly 5. Push rod 6. Dust cover
7. Air bleeder valve 8. Union bolt 9. Copper washer
10. Clutch hose
SCIA1102E
Page 1970 of 3833
CL-12
CLUTCH PIPING
CLUTCH PIPING
PFP:30650
Removal and InstallationECS008BE
Carefully observe the following steps during clutch tube removal and installation.
●Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected area
with water.
●To fix clutch hose on the bracket, position hose clasp on the
bracket locating embossment and drive the lock plate vertically
from above. Be careful not to bend or twist the hose. Do not
scratch or damage the clutch hose.
●Tighten clutch tube flare nut to the specified torque below:
●Tighten clutch hose union bolt to the specified torque:
CAUTION:
Do not reuse the copper washer.
●After installation, bleed the clutch tube.
(Refer to CL-8, "
Air Bleeding Procedure" .) : 15 - 17 N·m (1.5 - 1.8 kg-m, 11 - 13 ft-lb)
: 16.7 - 19.6 N·m (1.7 - 1.9 kg-m, 13 - 14 ft-lb)
SCIA0326E
Page 1971 of 3833

CLUTCH RELEASE MECHANISM
CL-13
D
E
F
G
H
I
J
K
L
MA
B
CL

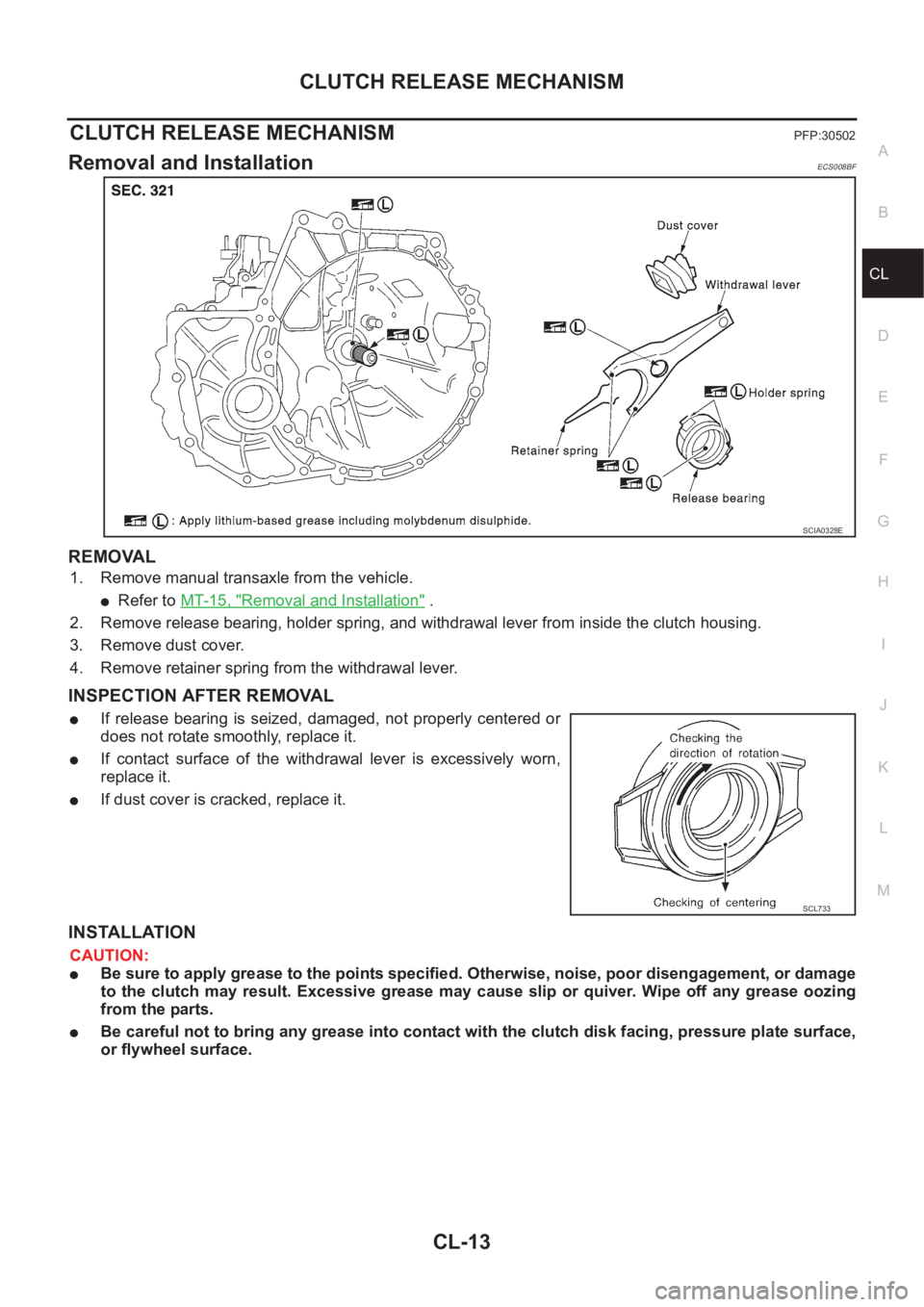

CLUTCH RELEASE MECHANISMPFP:30502
Removal and InstallationECS008BF
REMOVAL
1. Remove manual transaxle from the vehicle.
●Refer to MT-15, "Removal and Installation" .
2. Remove release bearing, holder spring, and withdrawal lever from inside the clutch housing.
3. Remove dust cover.
4. Remove retainer spring from the withdrawal lever.
INSPECTION AFTER REMOVAL
●If release bearing is seized, damaged, not properly centered or
does not rotate smoothly, replace it.
●If contact surface of the withdrawal lever is excessively worn,
replace it.
●If dust cover is cracked, replace it.
INSTALLATION
CAUTION:
●Be sure to apply grease to the points specified. Otherwise, noise, poor disengagement, or damage
to the clutch may result. Excessive grease may cause slip or quiver. Wipe off any grease oozing
from the parts.
●Be careful not to bring any grease into contact with the clutch disk facing, pressure plate surface,
or flywheel surface.
SCIA0328E
SCL733
Page 1972 of 3833
CL-14
CLUTCH RELEASE MECHANISM

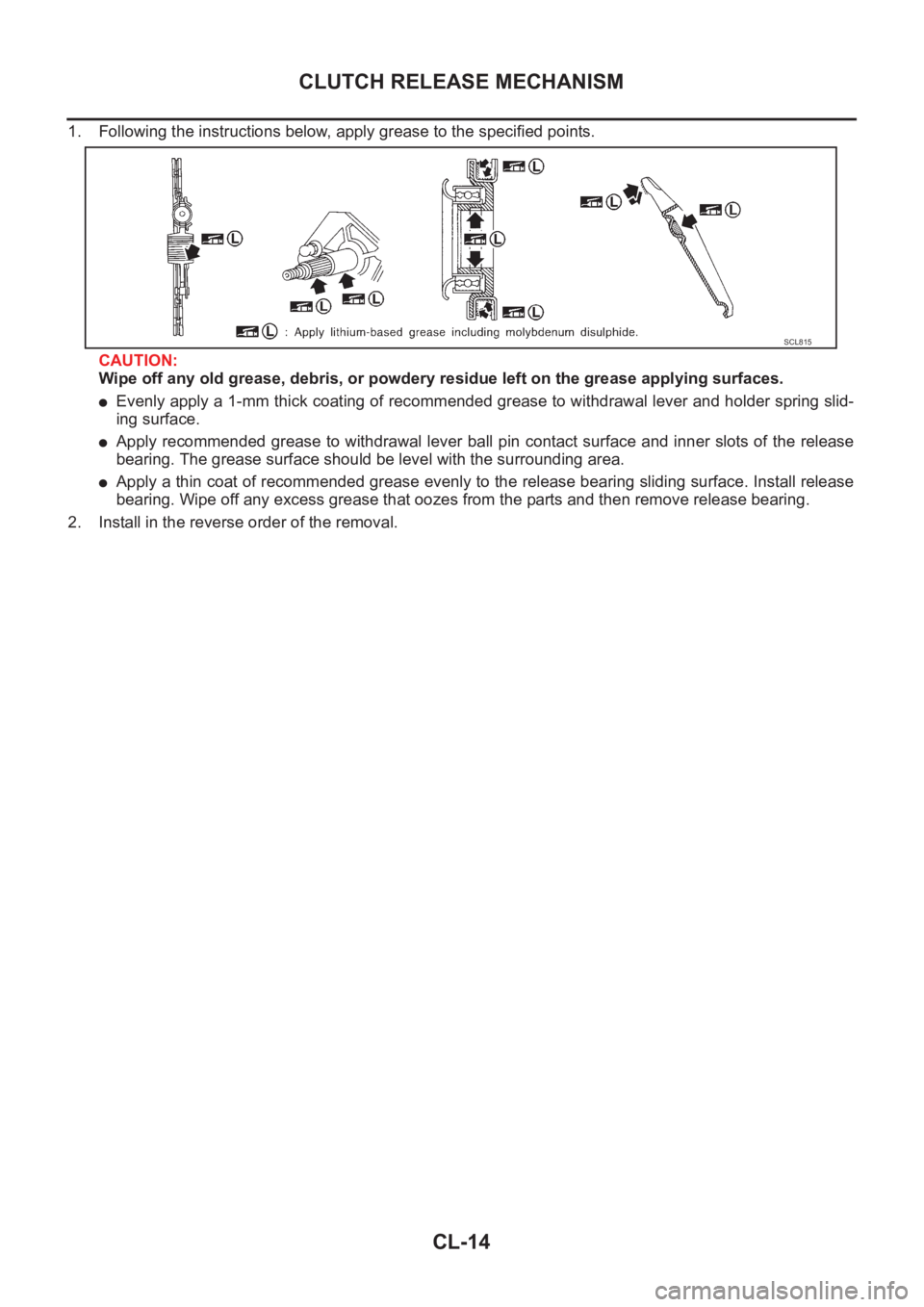

1. Following the instructions below, apply grease to the specified points.
CAUTION:
Wipe off any old grease, debris, or powdery residue left on the grease applying surfaces.
●Evenly apply a 1-mm thick coating of recommended grease to withdrawal lever and holder spring slid-
ing surface.
●Apply recommended grease to withdrawal lever ball pin contact surface and inner slots of the release
bearing. The grease surface should be level with the surrounding area.
●Apply a thin coat of recommended grease evenly to the release bearing sliding surface. Install release
bearing. Wipe off any excess grease that oozes from the parts and then remove release bearing.
2. Install in the reverse order of the removal.
SCL815
Page 1973 of 3833
CLUTCH DISC, CLUTCH COVER AND FLYWHEEL
CL-15
D
E
F
G
H
I
J
K
L
MA
B
CL

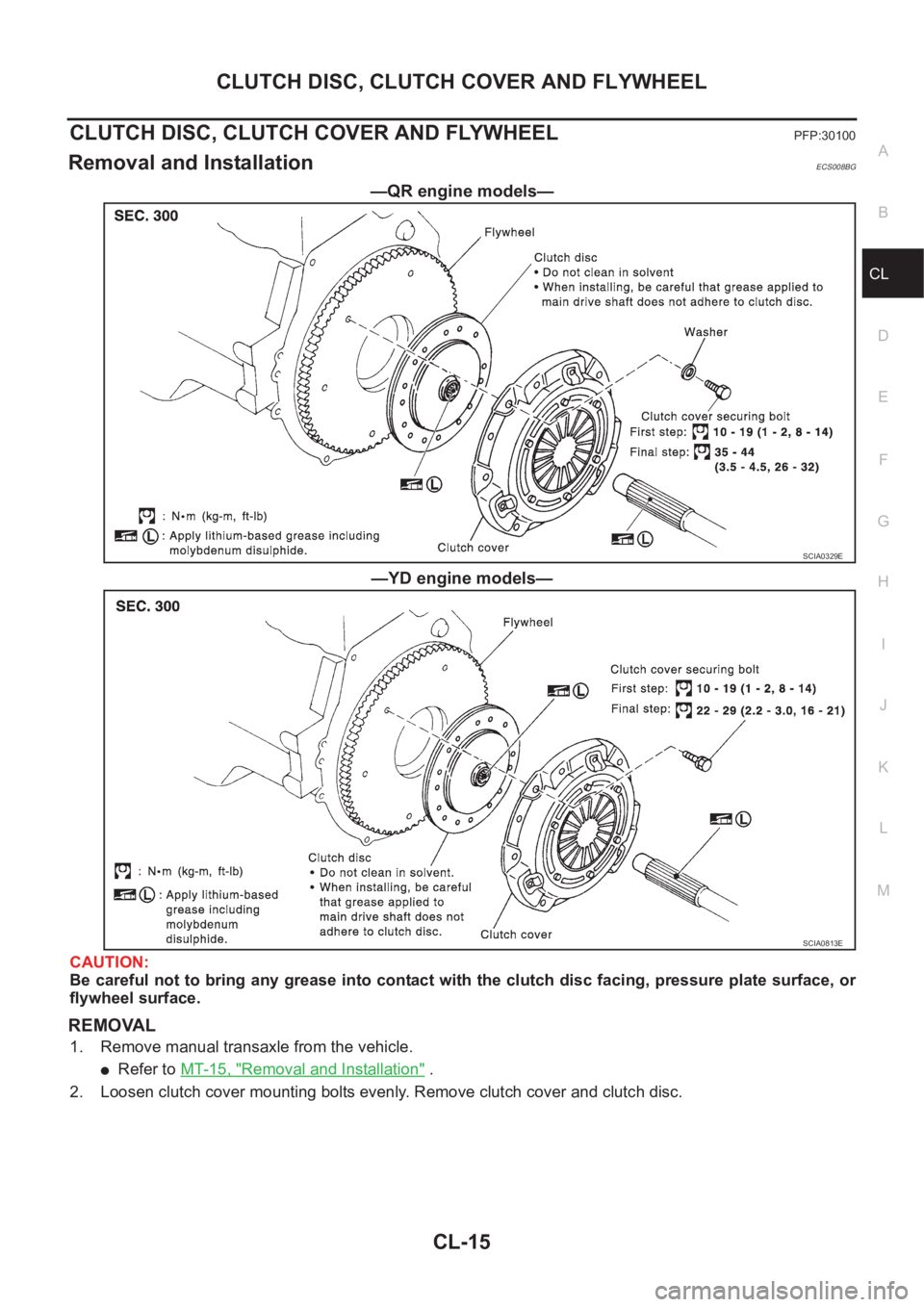

CLUTCH DISC, CLUTCH COVER AND FLYWHEELPFP:30100
Removal and InstallationECS008BG
—QR engine models—
—YD engine models—
CAUTION:
Be careful not to bring any grease into contact with the clutch disc facing, pressure plate surface, or
flywheel surface.
REMOVAL
1. Remove manual transaxle from the vehicle.
●Refer to MT-15, "Removal and Installation" .
2. Loosen clutch cover mounting bolts evenly. Remove clutch cover and clutch disc.
SCIA0329E
SCIA0813E
Page 1974 of 3833

CL-16
CLUTCH DISC, CLUTCH COVER AND FLYWHEEL

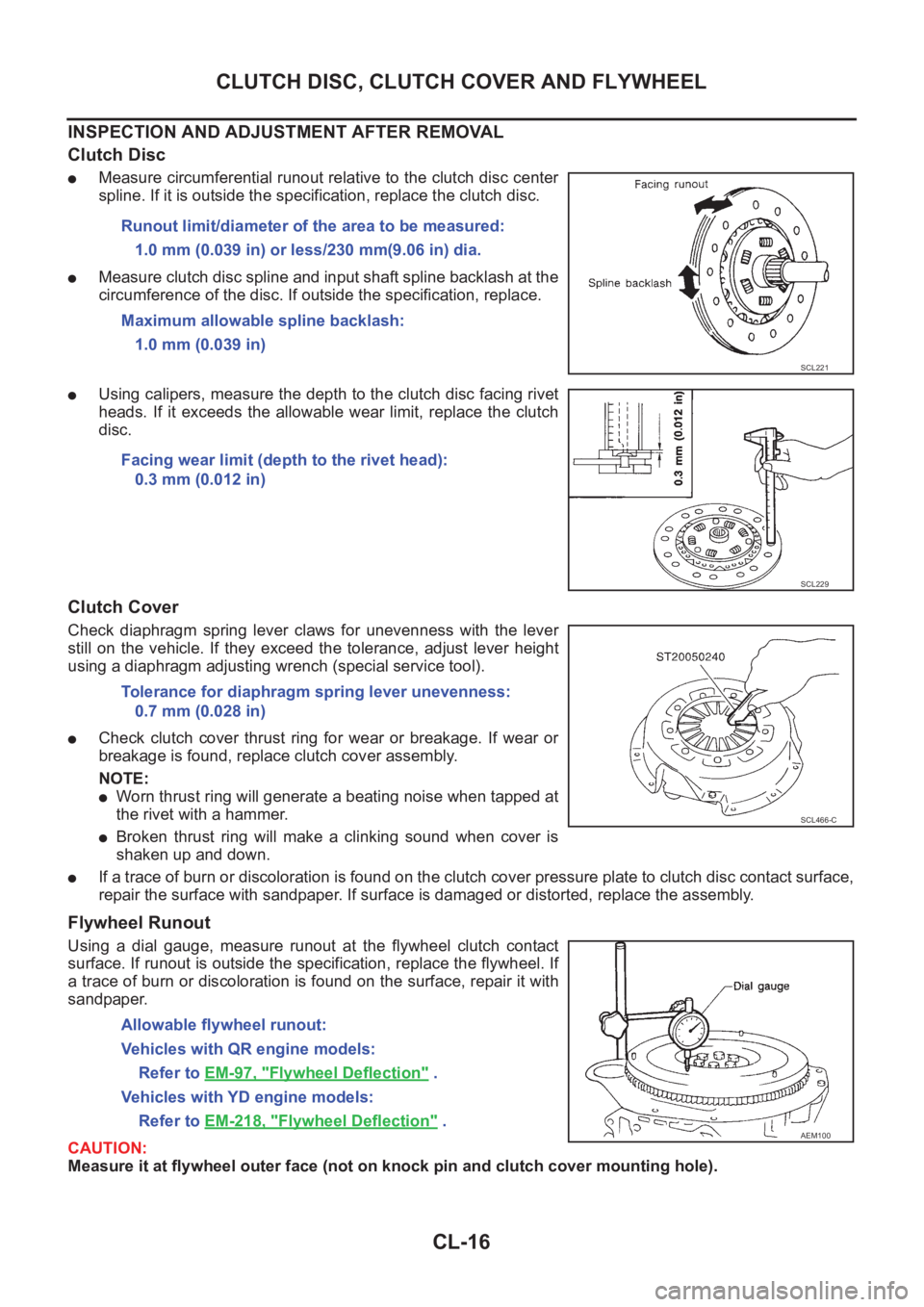

INSPECTION AND ADJUSTMENT AFTER REMOVAL
Clutch Disc
●Measure circumferential runout relative to the clutch disc center
spline. If it is outside the specification, replace the clutch disc.
●Measure clutch disc spline and input shaft spline backlash at the
circumference of the disc. If outside the specification, replace.
●Using calipers, measure the depth to the clutch disc facing rivet
heads. If it exceeds the allowable wear limit, replace the clutch
disc.
Clutch Cover
Check diaphragm spring lever claws for unevenness with the lever
still on the vehicle. If they exceed the tolerance, adjust lever height
using a diaphragm adjusting wrench (special service tool).
●Check clutch cover thrust ring for wear or breakage. If wear or
breakage is found, replace clutch cover assembly.
NOTE:
●Worn thrust ring will generate a beating noise when tapped at
the rivet with a hammer.
●Broken thrust ring will make a clinking sound when cover is
shaken up and down.
●If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface,
repair the surface with sandpaper. If surface is damaged or distorted, replace the assembly.
Flywheel Runout
Using a dial gauge, measure runout at the flywheel clutch contact
surface. If runout is outside the specification, replace the flywheel. If
a trace of burn or discoloration is found on the surface, repair it with
sandpaper.
CAUTION:
Measure it at flywheel outer face (not on knock pin and clutch cover mounting hole). Runout limit/diameter of the area to be measured:
1.0 mm (0.039 in) or less/230 mm(9.06 in) dia.
Maximum allowable spline backlash:
1.0 mm (0.039 in)
SCL221
Facing wear limit (depth to the rivet head):
0.3 mm (0.012 in)
SCL229
Tolerance for diaphragm spring lever unevenness:
0.7 mm (0.028 in)
SCL466-C
Allowable flywheel runout:
Vehicles with QR engine models:
Refer to EM-97, "
Flywheel Deflection" .
Vehicles with YD engine models:
Refer to EM-218, "
Flywheel Deflection" .AEM100
Page 1975 of 3833
CLUTCH DISC, CLUTCH COVER AND FLYWHEEL
CL-17
D
E
F
G
H
I
J
K
L
MA
B
CL

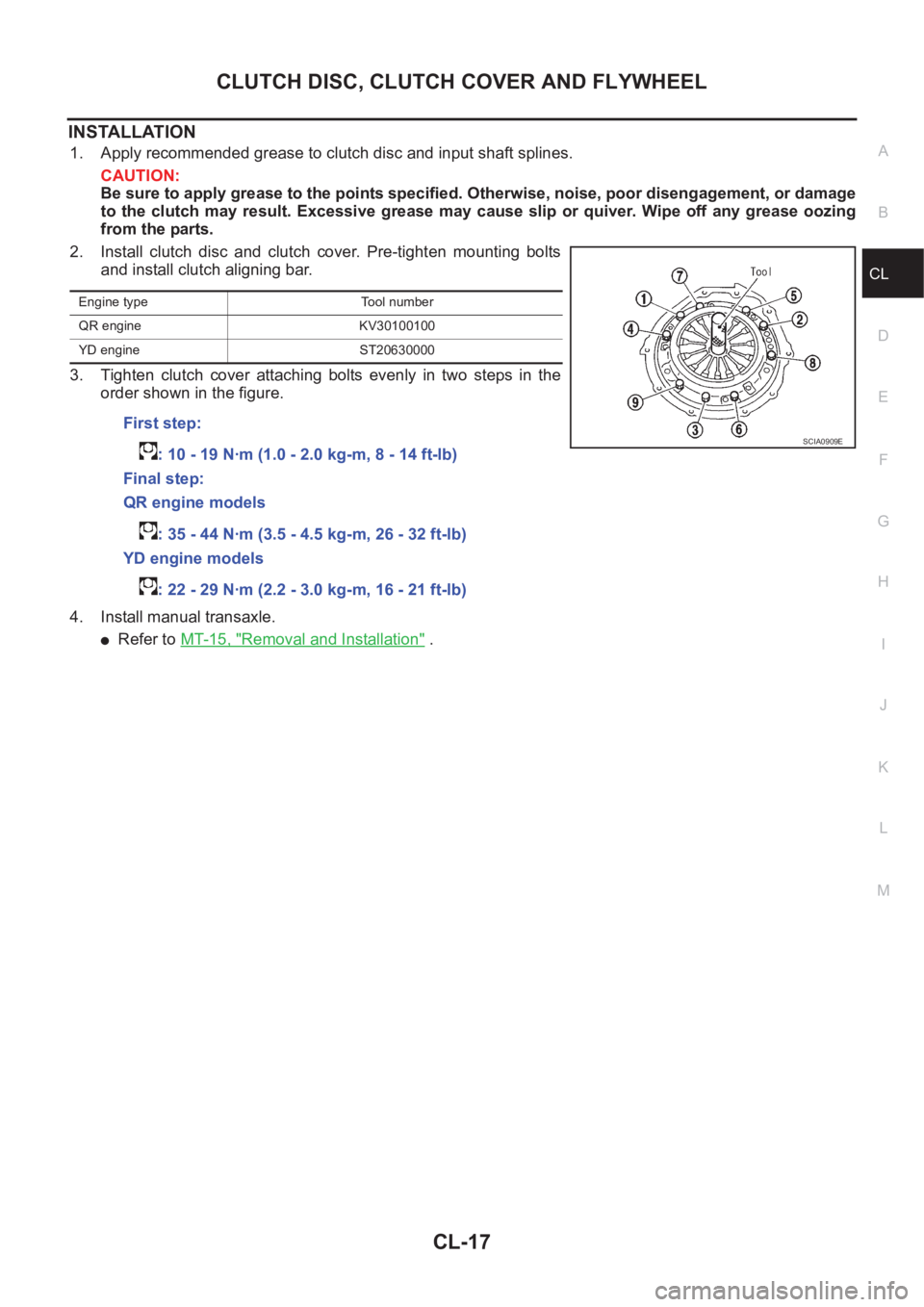

INSTALLATION
1. Apply recommended grease to clutch disc and input shaft splines.
CAUTION:
Be sure to apply grease to the points specified. Otherwise, noise, poor disengagement, or damage
to the clutch may result. Excessive grease may cause slip or quiver. Wipe off any grease oozing
from the parts.
2. Install clutch disc and clutch cover. Pre-tighten mounting bolts
and install clutch aligning bar.
3. Tighten clutch cover attaching bolts evenly in two steps in the
order shown in the figure.
4. Install manual transaxle.
●Refer to MT-15, "Removal and Installation" .
Engine type Tool number
QR engine KV30100100
YD engine ST20630000
First step:
: 10 - 19 N·m (1.0 - 2.0 kg-m, 8 - 14 ft-lb)
Final step:
QR engine models
: 35 - 44 N·m (3.5 - 4.5 kg-m, 26 - 32 ft-lb)
YD engine models
: 22 - 29 N·m (2.2 - 3.0 kg-m, 16 - 21 ft-lb)
SCIA0909E
Page 1976 of 3833

CL-18
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Clutch Control SystemECS008BH
Clutch Master CylinderECS008BI
Clutch Operating CylinderECS008BJ
Clutch DiscECS008BK
Clutch CoverECS008BL
Clutch PedalECS001WL
Type of clutch controlHydraulic
Inner diameter15.87 mm (5/8 in)
Inner diameter19.05 mm (3/4 in)
Engine type QR20DE QR25DE YD22DDTi
Model240
Facing size
(outer dia. x inner dia. x thickness)240 mm x 160 mm x 3.5 mm (9.45 in x 6.30 in x 0.138 in)
Thickness of disc assembly with load 7.90 - 8.30 mm (0.3110 - 0.3268 in) with 5,688 N (580 kg, 1,279lb)
Wear limit of facing surface to rivet head 0.3 mm (0.012 in)
Runout limit/diameter of the area to be
measured1.0 mm (0.039 in) or less/ 230 mm (9.06 in) dia.
Maximum spline backlash
(at outer edge of disc)1.0 mm (0.039 in)
Engine type QR20DE QR25DE YD22DDTi
Model 240<0003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300030003000300
030003000300030003[ 250
Set-load 4,903 N (500 kg, 1,103 lb) 5,884 N (600 kg, 1,323 lb) 6,865 N (700 kg, 1,544 lb)
Diaphragm spring lever height 37.0 - 39.0 mm (1.457 - 1.535 in)
Uneven limit diaphragm spring toe height 0.7 mm (0.028 in) or less
Engine type QR20DE QR25DE YD22DDTi
Pedal height RHD models 171 - 181mm (6.73 - 7.13 in)
LHD models 167 - 177mm (6.57 - 6.97 in)
Pedal height at
clutch disengagement RHD models 85 mm (3.35 in) or more
LHD models 85 mm (3.35 in) or more
Pedal free play [Looseness at clevis pin] 9 - 16 mm (0.35 - 0.63 in) [1.0 - 3.0 mm (0.039 - 0.118 in)]
Clearance between clutch switch
thread end and stopper rubber 0.1 - 1.0 mm (0.004 - 0.039 in)
