Page 3017 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
SRS-15
C
D
E
F
G
I
J
K
L
MA
B
SRS

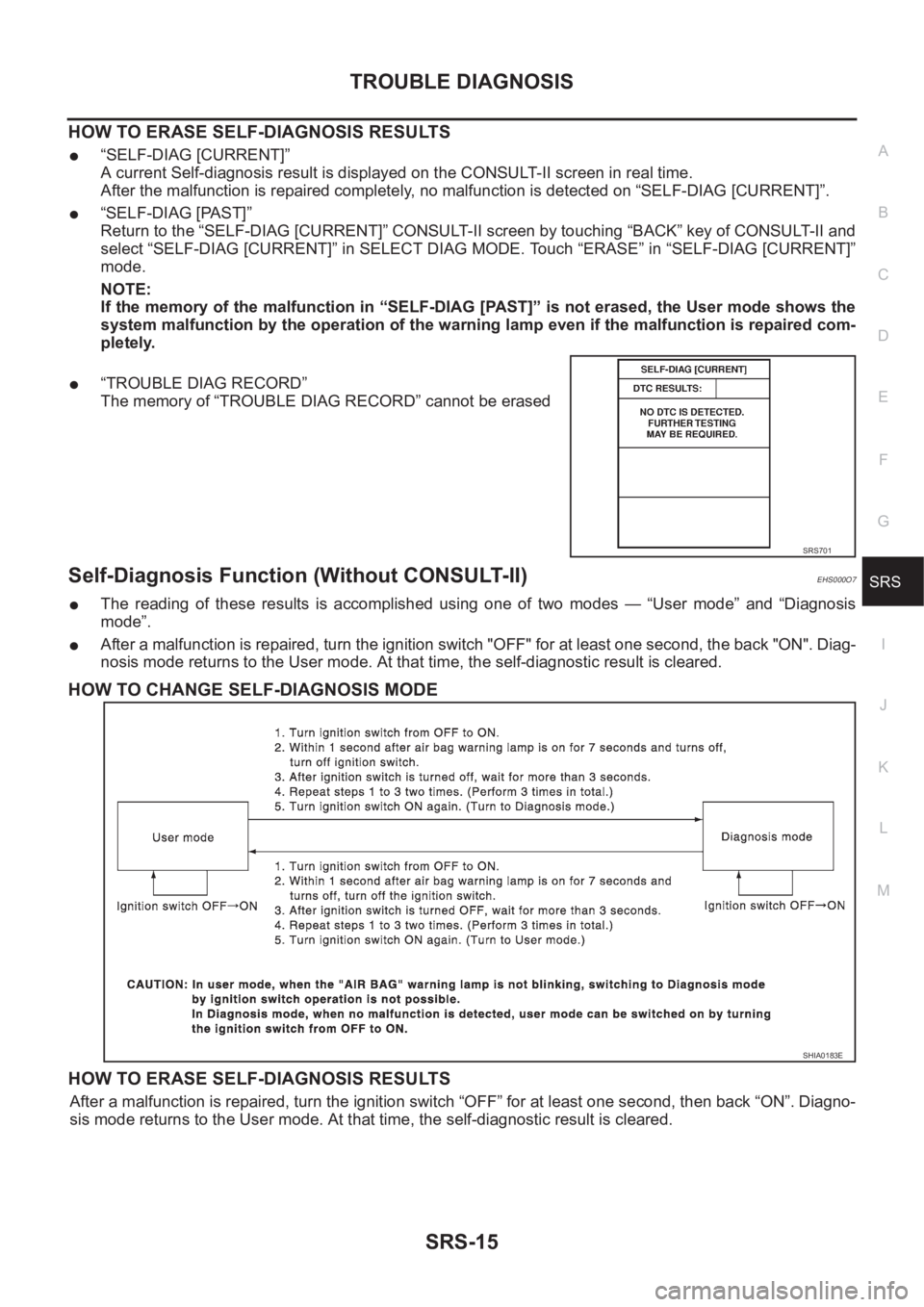

HOW TO ERASE SELF-DIAGNOSIS RESULTS
●“SELF-DIAG [CURRENT]”
A current Self-diagnosis result is displayed on the CONSULT-II screen in real time NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
SRS-15
C
D
E
F
G
I
J
K
L
MA
B
SRS
HOW TO ERASE SELF-DIAGNOSIS RESULTS
●“SELF-DIAG [CURRENT]”
A current Self-diagnosis result is displayed on the CONSULT-II screen in real time](/manual-img/5/57405/w960_57405-3016.png)
TROUBLE DIAGNOSIS
SRS-15
C
D
E
F
G
I
J
K
L
MA
B
SRS
HOW TO ERASE SELF-DIAGNOSIS RESULTS
●“SELF-DIAG [CURRENT]”
A current Self-diagnosis result is displayed on the CONSULT-II screen in real time.
After the malfunction is repaired completely, no malfunction is detected on “SELF-DIAG [CURRENT]”.
●“SELF-DIAG [PAST]”
Return to the “SELF-DIAG [CURRENT]” CONSULT-II screen by touching “BACK” key of CONSULT-II and
select “SELF-DIAG [CURRENT]” in SELECT DIAG MODE. Touch “ERASE” in “SELF-DIAG [CURRENT]”
mode.
NOTE:
If the memory of the malfunction in “SELF-DIAG [PAST]” is not erased, the User mode shows the
system malfunction by the operation of the warning lamp even if the malfunction is repaired com-
pletely.
●“TROUBLE DIAG RECORD”
The memory of “TROUBLE DIAG RECORD” cannot be erased
Self-Diagnosis Function (Without CONSULT-II) EHS000O7
●The reading of these results is accomplished using one of two modes — “User mode” and “Diagnosis
mode”.
●After a malfunction is repaired, turn the ignition switch "OFF" for at least one second, the back "ON". Diag-
nosis mode returns to the User mode. At that time, the self-diagnostic result is cleared.
HOW TO CHANGE SELF-DIAGNOSIS MODE
HOW TO ERASE SELF-DIAGNOSIS RESULTS
After a malfunction is repaired, turn the ignition switch “OFF” for at least one second, then back “ON”. Diagno-
sis mode returns to the User mode. At that time, the self-diagnostic result is cleared.
SRS701
SHIA0183E
Page 3018 of 3833
SRS-16
TROUBLE DIAGNOSIS
SRS Operation Check
EHS000MZ
DIAGNOSTIC PROCEDURE 1
Checking Air Bag Operation by Using “AIR BAG” Warning Lamp-User Mode
1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.
2. Compare the SRS air bag warning lamp blinking pattern with the
examples.
BF-1845D
Page 3019 of 3833
TROUBLE DIAGNOSIS
SRS-17
C
D
E
F
G
I
J
K
L
MA
B
SRS

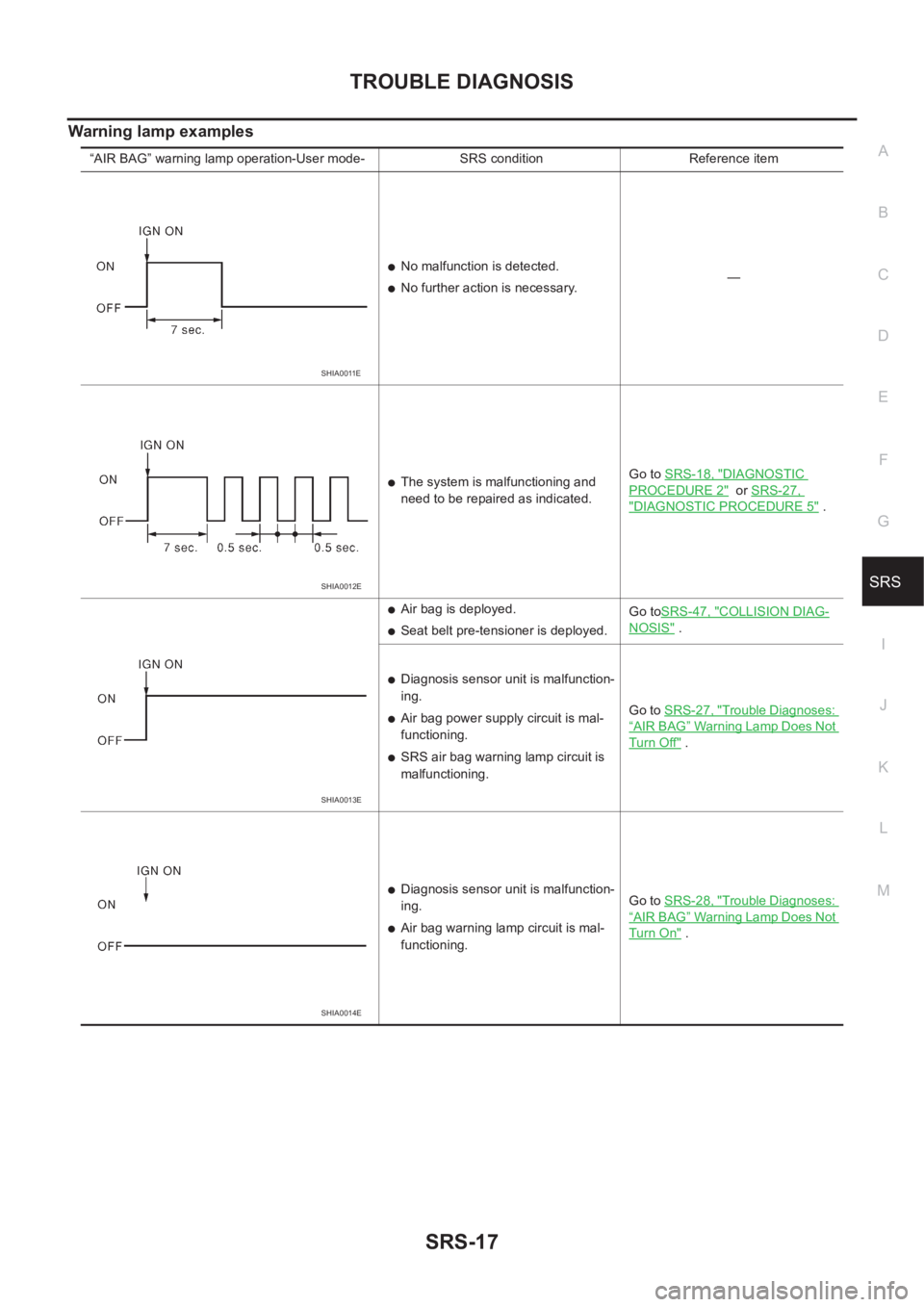

Warning lamp examples
“AIR BAG” warning lamp operation-User mode- SRS condition Reference item
●No malfunction is detected.
●No further action is necessary.—
●The system is malfunctioning and
need to be repaired as indicated.Go to SRS-18, "DIAGNOSTIC
PROCEDURE 2" or SRS-27,
"DIAGNOSTIC PROCEDURE 5" .
●Air bag is deployed.
●Seat belt pre-tensioner is deployed.Go toSRS-47, "
COLLISION DIAG-
NOSIS" .
●Diagnosis sensor unit is malfunction-
ing.
●Air bag power supply circuit is mal-
functioning.
●SRS air bag warning lamp circuit is
malfunctioning.Go to SRS-27, "
Trouble Diagnoses:
“AIR BAG” Warning Lamp Does Not
Turn Off" .
●Diagnosis sensor unit is malfunction-
ing.
●Air bag warning lamp circuit is mal-
functioning.Go to SRS-28, "
Trouble Diagnoses:
“AIR BAG” Warning Lamp Does Not
Turn On" .
SHIA0011E
SHIA0012E
SHIA0013E
SHIA0014E
Page 3020 of 3833
SRS-18
TROUBLE DIAGNOSIS

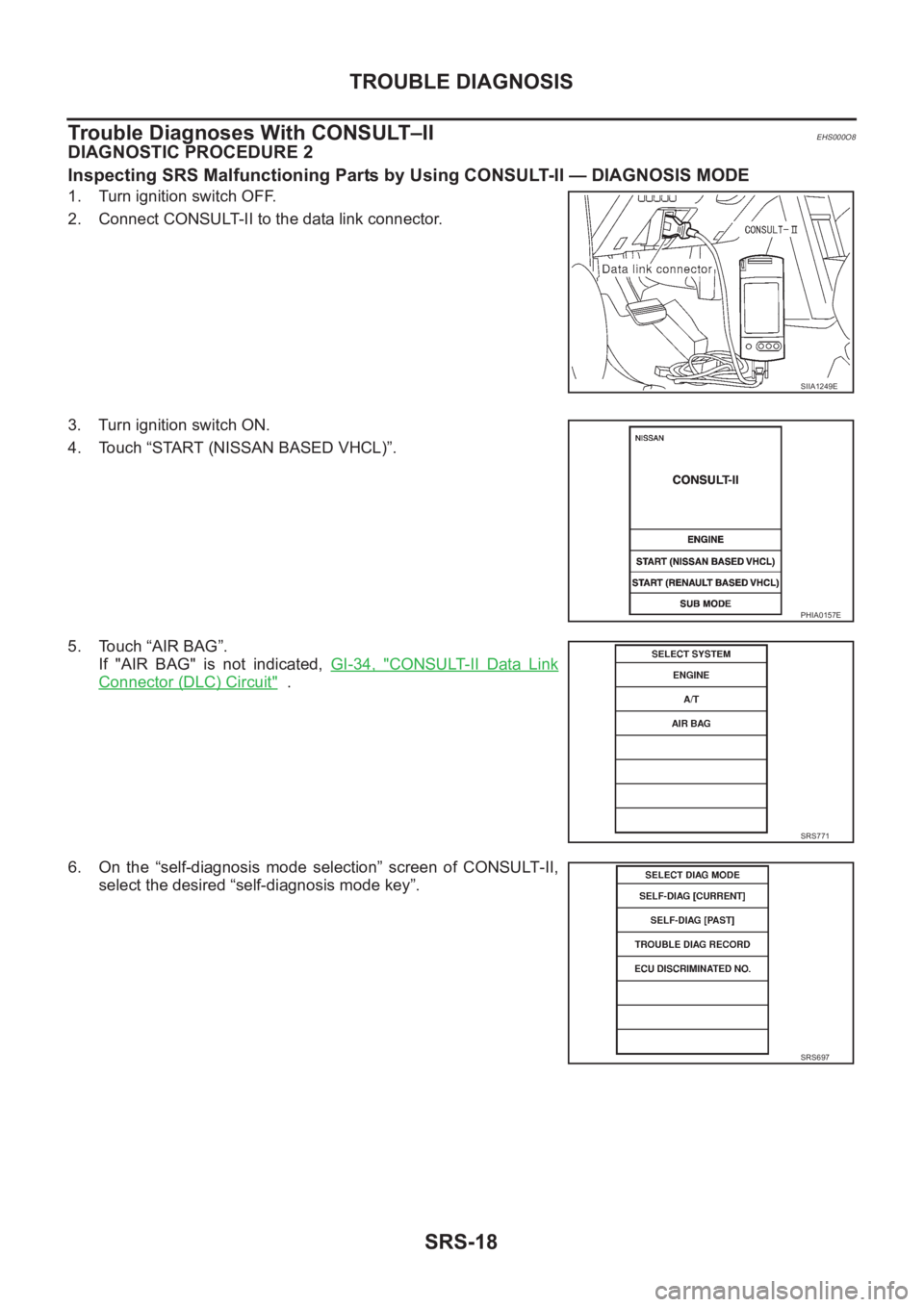

Trouble Diagnoses With CONSULT–II
EHS000O8
DIAGNOSTIC PROCEDURE 2
Inspecting SRS Malfunctioning Parts by Using CONSULT-II — DIAGNOSIS MODE
1. Turn ignition switch OFF.
2. Connect CONSULT-II to the data link connector.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “AIR BAG”.
If "AIR BAG" is not indicated, GI-34, "
CONSULT-II Data Link
Connector (DLC) Circuit" .
6. On the “self-diagnosis mode selection” screen of CONSULT-II,
select the desired “self-diagnosis mode key”.
SIIA1249E
PHIA0157E
SRS771
SRS697
Page 3021 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS

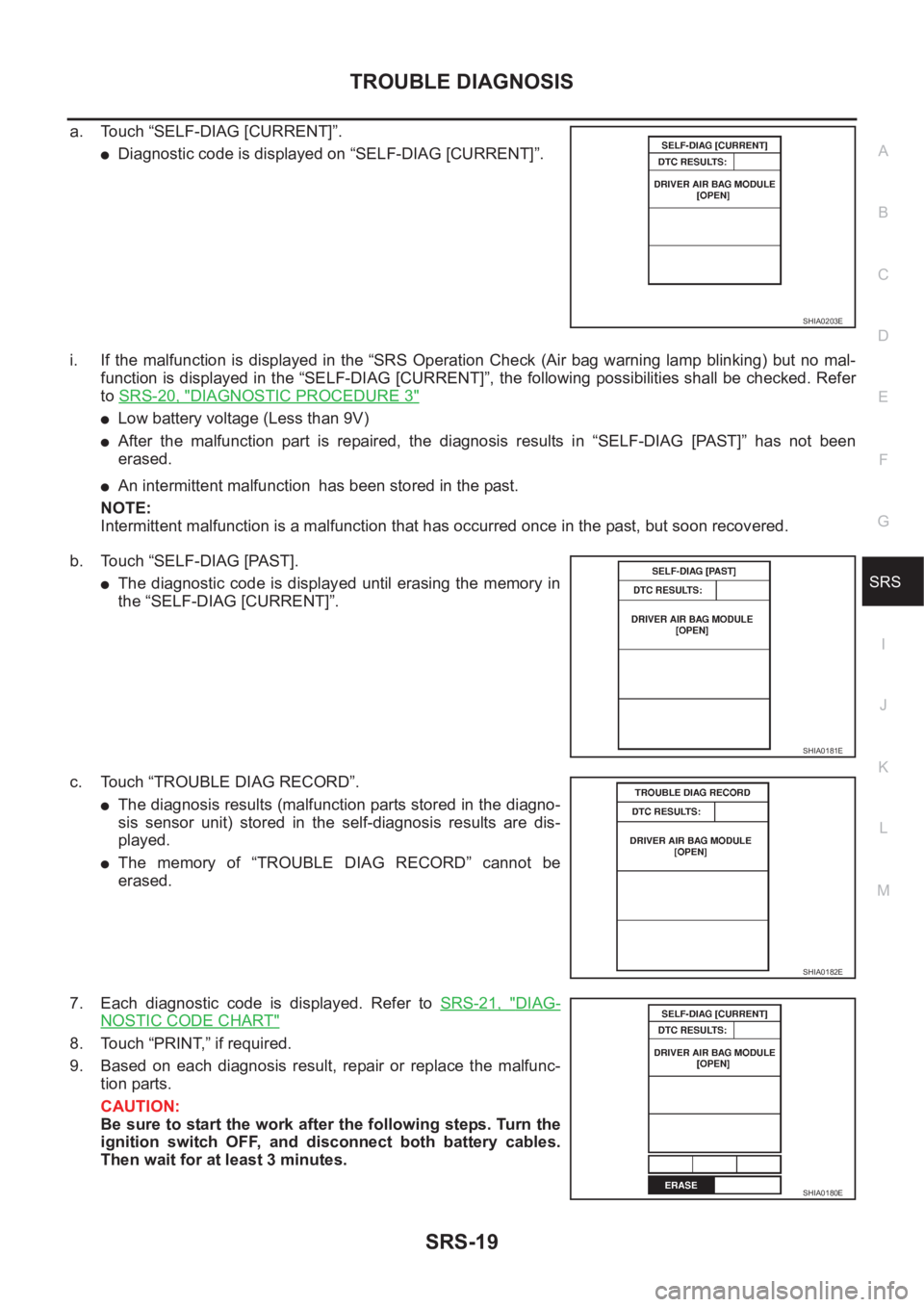

a. Touch “SELF-DIAG [CURRENT]”.
●Diagnostic code is displayed on “SELF-DIAG [CURRENT]”.
i. If the malfunction is displayed in the “SRS O NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS
a. Touch “SELF-DIAG [CURRENT]”.
●Diagnostic code is displayed on “SELF-DIAG [CURRENT]”.
i. If the malfunction is displayed in the “SRS O](/manual-img/5/57405/w960_57405-3020.png)
TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS
a. Touch “SELF-DIAG [CURRENT]”.
●Diagnostic code is displayed on “SELF-DIAG [CURRENT]”.
i. If the malfunction is displayed in the “SRS Operation Check (Air bag warning lamp blinking) but no mal-
function is displayed in the “SELF-DIAG [CURRENT]”, the following possibilities shall be checked. Refer
to SRS-20, "
DIAGNOSTIC PROCEDURE 3"
●Low battery voltage (Less than 9V)
●After the malfunction part is repaired, the diagnosis results in “SELF-DIAG [PAST]” has not been
erased.
●An intermittent malfunction has been stored in the past.
NOTE:
Intermittent malfunction is a malfunction that has occurred once in the past, but soon recovered.
b. Touch “SELF-DIAG [PAST].
●The diagnostic code is displayed until erasing the memory in
the “SELF-DIAG [CURRENT]”.
c. Touch “TROUBLE DIAG RECORD”.
●The diagnosis results (malfunction parts stored in the diagno-
sis sensor unit) stored in the self-diagnosis results are dis-
played.
●The memory of “TROUBLE DIAG RECORD” cannot be
erased.
7. Each diagnostic code is displayed. Refer to SRS-21, "
DIAG-
NOSTIC CODE CHART"
8. Touch “PRINT,” if required.
9. Based on each diagnosis result, repair or replace the malfunc-
tion parts.
CAUTION:
Be sure to start the work after the following steps. Turn the
ignition switch OFF, and disconnect both battery cables.
Then wait for at least 3 minutes.
SHIA0203E
SHIA0181E
SHIA0182E
SHIA0180E
Page 3022 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual SRS-20
TROUBLE DIAGNOSIS

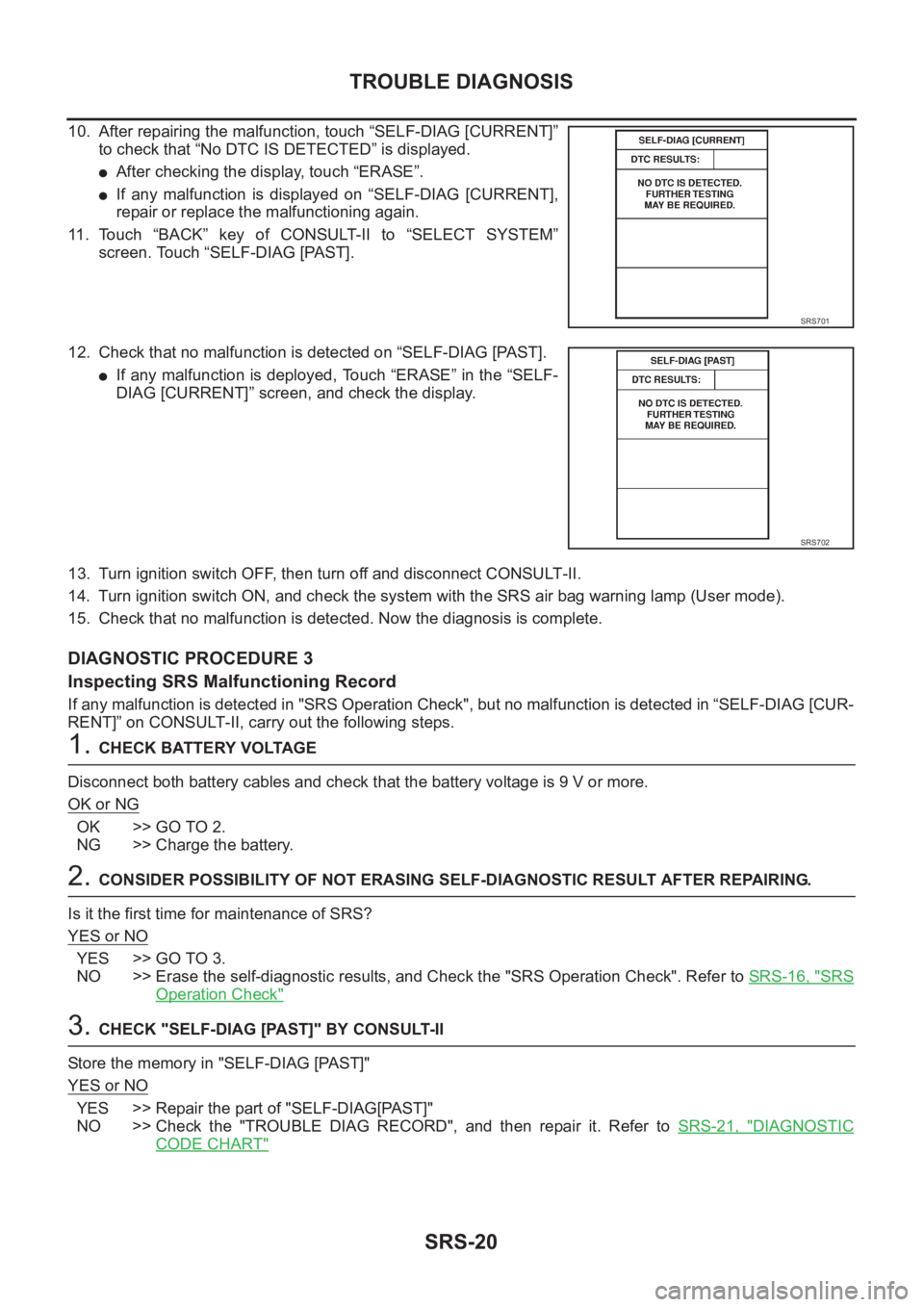

10. After repairing the malfunction, touch “SELF-DIAG [CURRENT]”
to check that “No DTC IS DETECTED” is displayed.
●After checking the display, touch “ERASE”.
● NISSAN X-TRAIL 2001 Service Repair Manual SRS-20
TROUBLE DIAGNOSIS
10. After repairing the malfunction, touch “SELF-DIAG [CURRENT]”
to check that “No DTC IS DETECTED” is displayed.
●After checking the display, touch “ERASE”.
●](/manual-img/5/57405/w960_57405-3021.png)
SRS-20
TROUBLE DIAGNOSIS
10. After repairing the malfunction, touch “SELF-DIAG [CURRENT]”
to check that “No DTC IS DETECTED” is displayed.
●After checking the display, touch “ERASE”.
●If any malfunction is displayed on “SELF-DIAG [CURRENT],
repair or replace the malfunctioning again.
11. Touch “BACK” key of CONSULT-II to “SELECT SYSTEM”
screen. Touch “SELF-DIAG [PAST].
12. Check that no malfunction is detected on “SELF-DIAG [PAST].
●If any malfunction is deployed, Touch “ERASE” in the “SELF-
DIAG [CURRENT]” screen, and check the display.
13. Turn ignition switch OFF, then turn off and disconnect CONSULT - I I .
14. Turn ignition switch ON, and check the system with the SRS air bag warning lamp (User mode).
15. Check that no malfunction is detected. Now the diagnosis is complete.
DIAGNOSTIC PROCEDURE 3
Inspecting SRS Malfunctioning Record
If any malfunction is detected in "SRS Operation Check", but no malfunction is detected in “SELF-DIAG [CUR-
RENT]” on CONSULT-II, carry out the following steps.
1. CHECK BATTERY VOLTAGE
Disconnect both battery cables and check that the battery voltage is 9 V or more.
OK or NG
OK >> GO TO 2.
NG >> Charge the battery.
2. CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING.
Is it the first time for maintenance of SRS?
YES or NO
YES >> GO TO 3.
NO >> Erase the self-diagnostic results, and Check the "SRS Operation Check". Refer to SRS-16, "
SRS
Operation Check"
3. CHECK "SELF-DIAG [PAST]" BY CONSULT-II
Store the memory in "SELF-DIAG [PAST]"
YES or NO
YES >> Repair the part of "SELF-DIAG[PAST]"
NO >> Check the "TROUBLE DIAG RECORD", and then repair it. Refer to SRS-21, "
DIAGNOSTIC
CODE CHART"
SRS701
SRS702
Page 3023 of 3833

TROUBLE DIAGNOSIS
SRS-21
C
D
E
F
G
I
J
K
L
MA
B
SRS

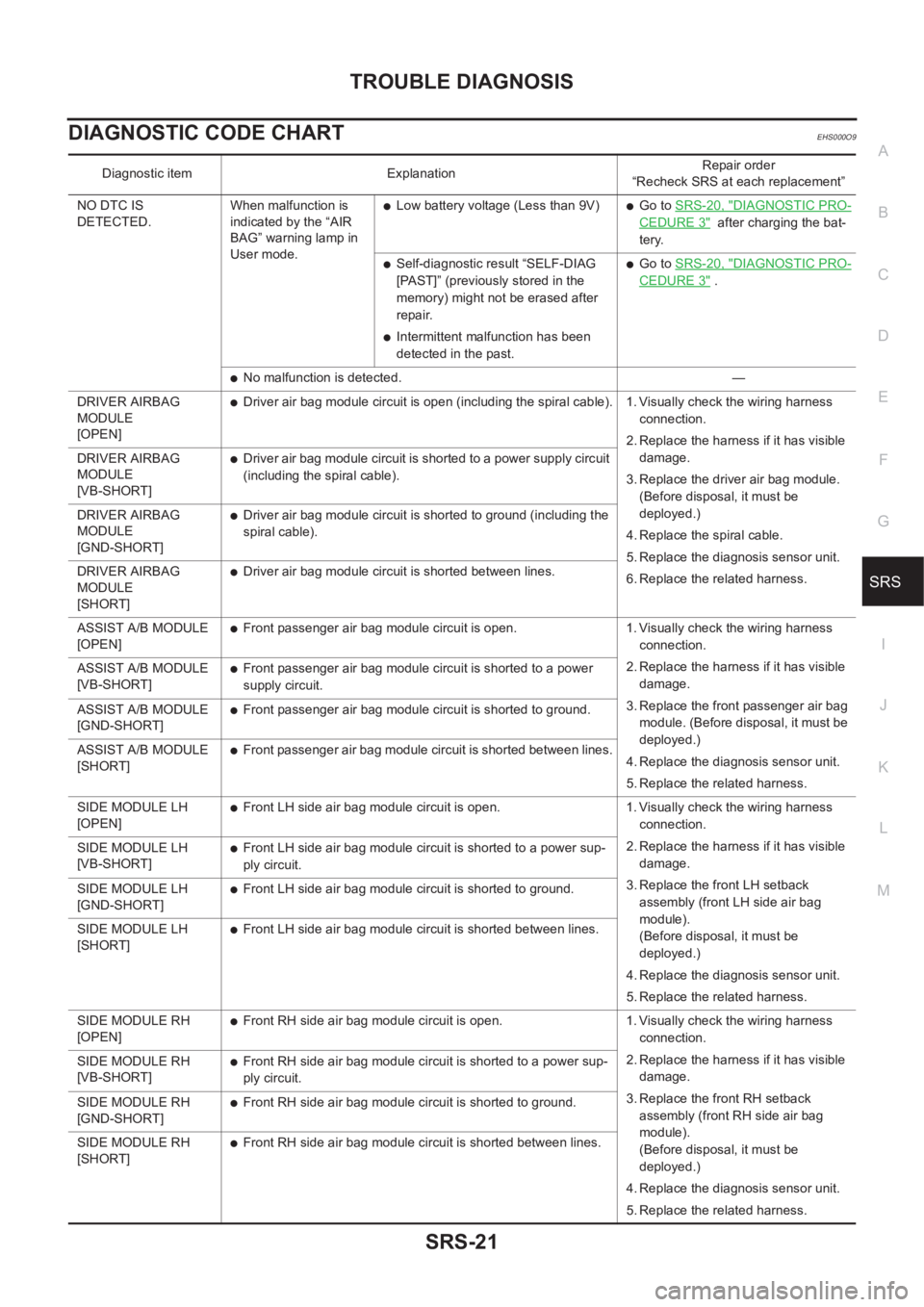

DIAGNOSTIC CODE CHARTEHS000O9
Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
NO DTC IS
DETECTED.When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.
●Low battery voltage (Less than 9V)●Go to SRS-20, "DIAGNOSTIC PRO-
CEDURE 3" after charging the bat-
tery.
●Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased after
repair.
●Intermittent malfunction has been
detected in the past.
●Go to SRS-20, "DIAGNOSTIC PRO-
CEDURE 3" .
●No malfunction is detected. —
DRIVER AIRBAG
MODULE
[OPEN]
●Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the driver air bag module.
(Before disposal, it must be
deployed.)
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness. DRIVER AIRBAG
MODULE
[VB-SHORT]
●Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG
MODULE
[GND-SHORT]
●Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIRBAG
MODULE
[SHORT]
●Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[OPEN]
●Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the front passenger air bag
module. (Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. ASSIST A/B MODULE
[VB-SHORT]
●Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
●Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
●Front passenger air bag module circuit is shorted between lines.
SIDE MODULE LH
[OPEN]
●Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the front LH setback
assembly (front LH side air bag
module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE LH
[VB-SHORT]
●Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
●Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
●Front LH side air bag module circuit is shorted between lines.
SIDE MODULE RH
[OPEN]
●Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the front RH setback
assembly (front RH side air bag
module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE RH
[VB-SHORT]
●Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
●Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
●Front RH side air bag module circuit is shorted between lines.

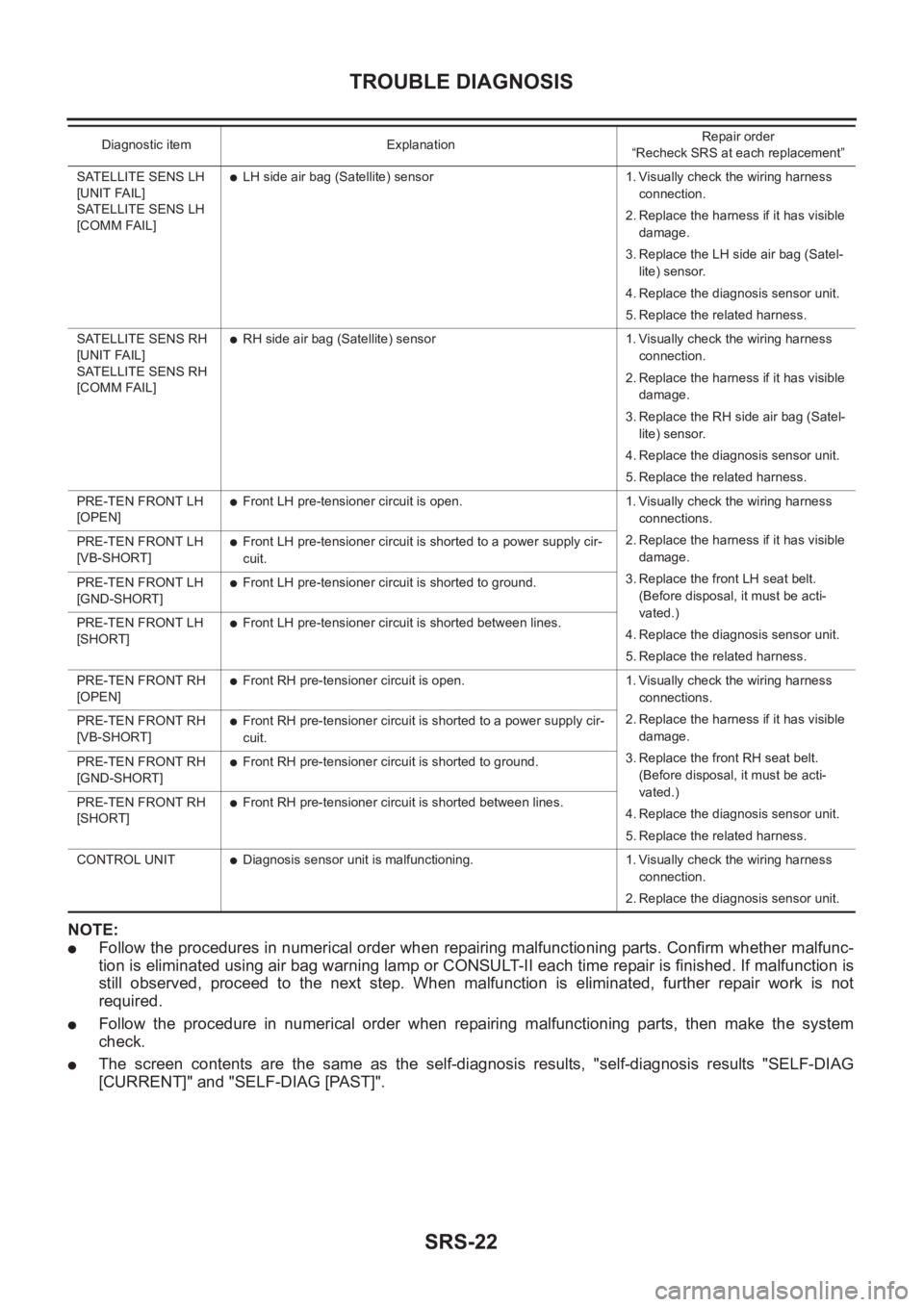

Page 3024 of 3833

SRS-22
TROUBLE DIAGNOSIS
NOTE:
●Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunc-
tion is eliminated using air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is
still observed, proceed to the next step. When malfunction is eliminated, further repair work is not
required.
●Follow the procedure in numerical order when repairing malfunctioning parts, then make the system
check.
●The screen contents are the same as the self-diagnosis results, "self-diagnosis results "SELF-DIAG
[CURRENT]" and "SELF-DIAG [PAST]".
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]●LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]
●RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[OPEN]
●Front LH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace the front LH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]
●Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
●Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
●Front LH pre-tensioner circuit is shorted between lines.
PRE-TEN FRONT RH
[OPEN]
●Front RH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace the front RH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]
●Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
●Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
●Front RH pre-tensioner circuit is shorted between lines.
CONTROL UNIT
●Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the diagnosis sensor unit. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
