REAR WINDOW DEFOGGER
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW

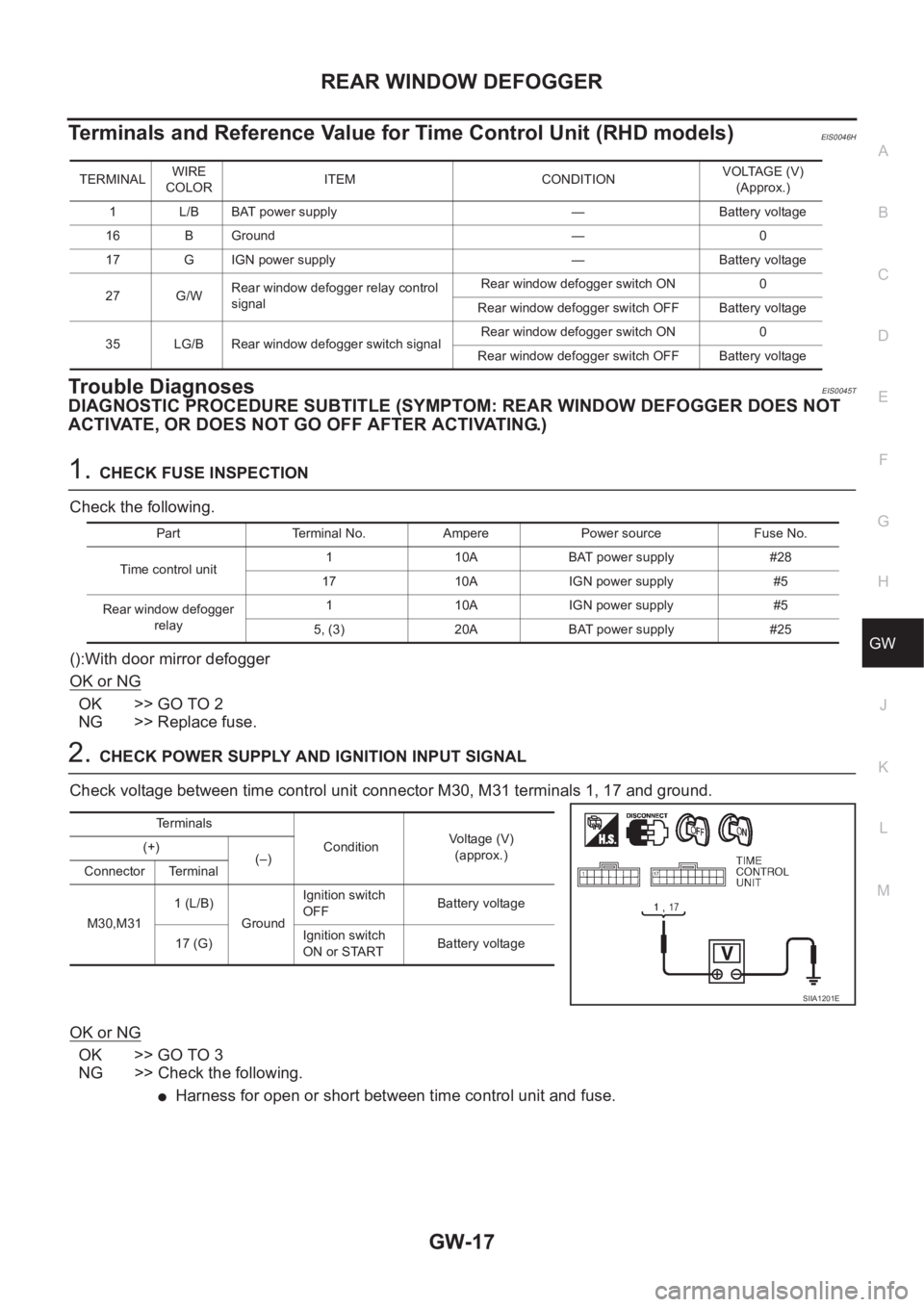

Terminals and Reference Value for Time Control Unit (RHD models)EIS0046H
Trouble DiagnosesEIS0045T
DIAGNOSTIC PROCEDURE SUBTITLE (SYMPTOM: REAR WINDOW DEFOGGER DOES NOT
ACTIVATE, OR DOES NOT GO OFF AFTER ACTIVATING.)
1.CHECK FUSE INSPECTION
Check the following.
():With door mirror defogger
OK or NG
OK >> GO TO 2
NG >> Replace fuse.
2.CHECK POWER SUPPLY AND IGNITION INPUT SIGNAL
Check voltage between time control unit connector M30, M31 terminals 1, 17 and ground.
OK or NG
OK >> GO TO 3
NG >> Check the following.
●Harness for open or short between time control unit and fuse.
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1 L/B BAT power supply — Battery voltage
16 B Ground — 0
17 G IGN power supply — Battery voltage
27 G/WRear window defogger relay control
signalRear window defogger switch ON 0
Rear window defogger switch OFF Battery voltage
35 LG/B Rear window defogger switch signalRear window defogger switch ON 0
Rear window defogger switch OFF Battery voltage
Part Terminal No. Ampere Power source Fuse No.
Time control unit1 10A BAT power supply #28
17 10A IGN power supply #5
Rear window defogger
relay1 10A IGN power supply #5
5, (3) 20A BAT power supply #25
Terminals
ConditionVoltage (V)
(approx.) (+)
(–)
Connector Terminal
M30,M311 (L/B)
GroundIgnition switch
OFFBattery voltage
17 (G)Ignition switch
ON or STARTBattery voltage
SIIA1201E
Page 3170 of 3833

GW-18
REAR WINDOW DEFOGGER

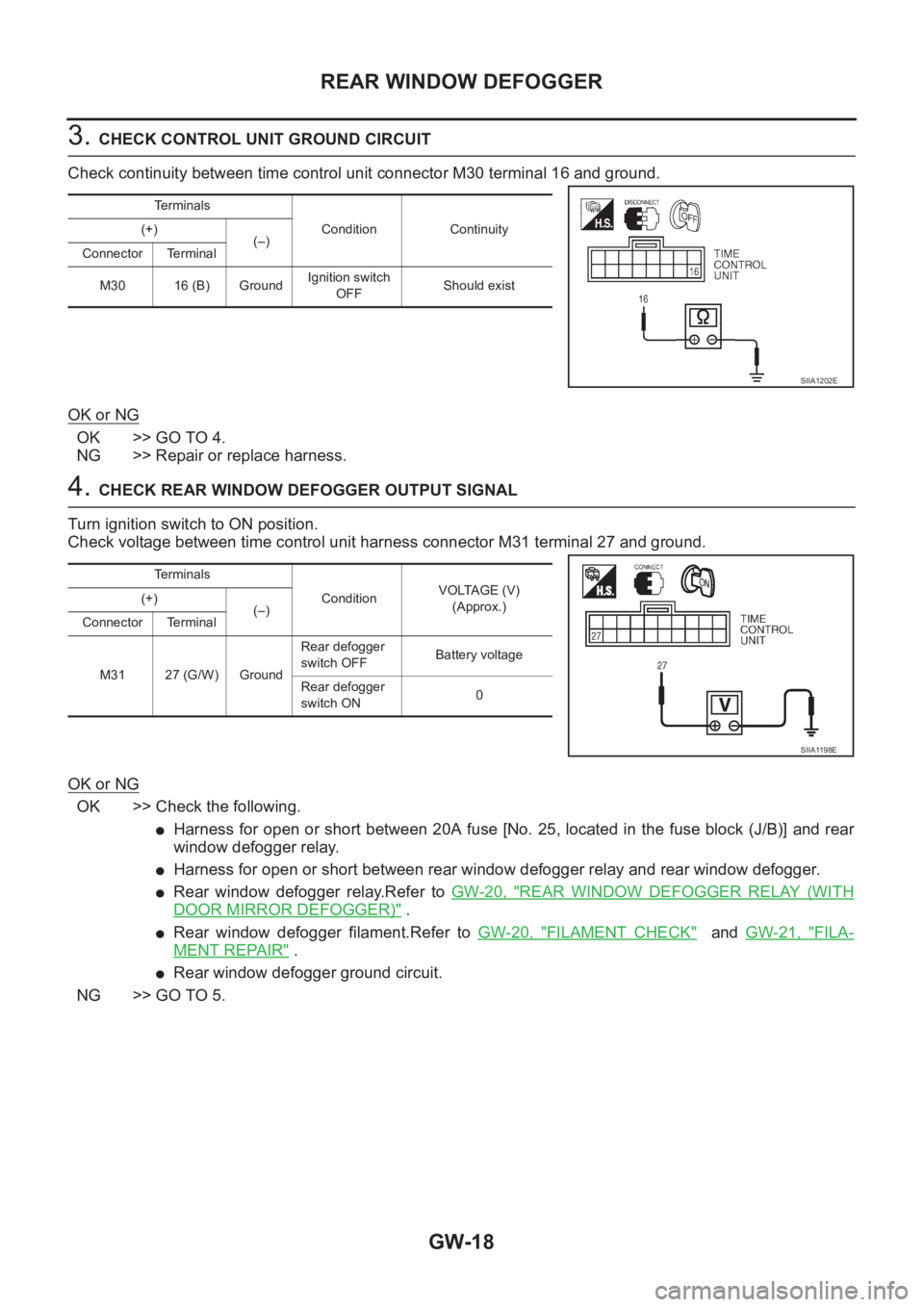

3. CHECK CONTROL UNIT GROUND CIRCUIT
Check continuity between time control unit connector M30 terminal 16 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL
Turn ignition switch to ON position.
Check voltage between time control unit harness connector M31 terminal 27 and ground.
OK or NG
OK >> Check the following.
●Harness for open or short between 20A fuse [No. 25, located in the fuse block (J/B)] and rear
window defogger relay.
●Harness for open or short between rear window defogger relay and rear window defogger.
●Rear window defogger relay.Refer to GW-20, "REAR WINDOW DEFOGGER RELAY (WITH
DOOR MIRROR DEFOGGER)" .
●Rear window defogger filament.Refer to GW-20, "FILAMENT CHECK" and GW-21, "FILA-
MENT REPAIR" .
●Rear window defogger ground circuit.
NG >> GO TO 5.
Te r m i n a l s
Condition Continuity (+)
(–)
Connector Terminal
M30 16 (B) GroundIgnition switch
OFFShould exist
SIIA1202E
Te r m i n a l s
ConditionVOLTAGE (V)
(Approx.) (+)
(–)
Connector Terminal
M31 27 (G/W) GroundRear defogger
switch OFFBattery voltage
Rear defogger
switch ON0
SIIA1198E
Page 3171 of 3833

REAR WINDOW DEFOGGER
GW-19
C
D
E
F
G
H
J
K
L
MA
B
GW

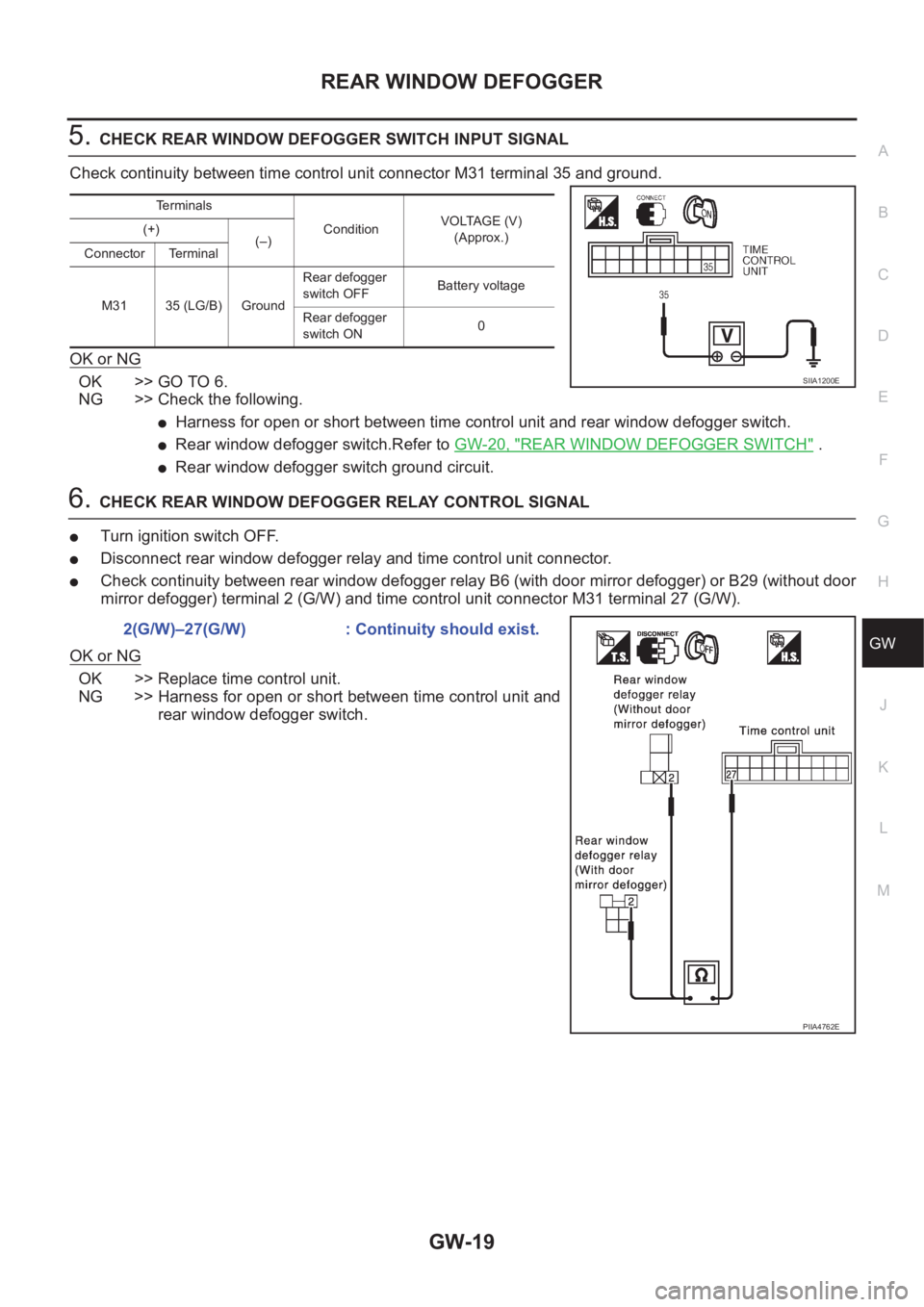

5.CHECK REAR WINDOW DEFOGGER SWITCH INPUT SIGNAL
Check continuity between time control unit connector M31 terminal 35 and ground.
OK or NG
OK >> GO TO 6.
NG >> Check the following.
●Harness for open or short between time control unit and rear window defogger switch.
●Rear window defogger switch.Refer to GW-20, "REAR WINDOW DEFOGGER SWITCH" .
●Rear window defogger switch ground circuit.
6.CHECK REAR WINDOW DEFOGGER RELAY CONTROL SIGNAL
●Turn ignition switch OFF.
●Disconnect rear window defogger relay and time control unit connector.
●Check continuity between rear window defogger relay B6 (with door mirror defogger) or B29 (without door
mirror defogger) terminal 2 (G/W) and time control unit connector M31 terminal 27 (G/W).
OK or NG
OK >> Replace time control unit.
NG >> Harness for open or short between time control unit and
rear window defogger switch.
Terminals
ConditionVOLTAGE (V)
(Approx.) (+)
(–)
Connector Terminal
M31 35 (LG/B) GroundRear defogger
switch OFFBattery voltage
Rear defogger
switch ON0
SIIA1200E
2(G/W)–27(G/W) : Continuity should exist.
PIIA4762E
Page 3172 of 3833
GW-20
REAR WINDOW DEFOGGER

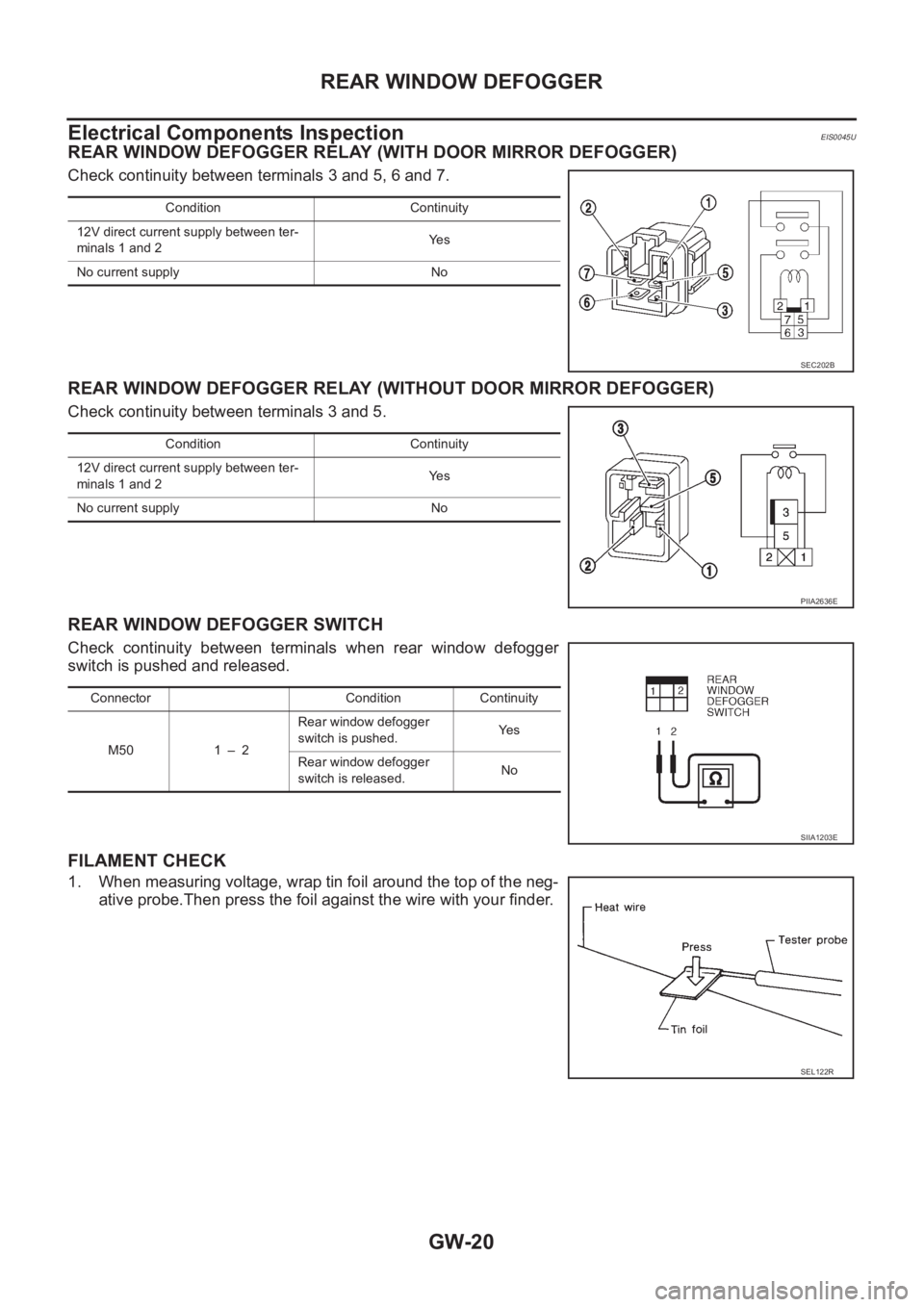

Electrical Components Inspection
EIS0045U
REAR WINDOW DEFOGGER RELAY (WITH DOOR MIRROR DEFOGGER)
Check continuity between terminals 3 and 5, 6 and 7.
REAR WINDOW DEFOGGER RELAY (WITHOUT DOOR MIRROR DEFOGGER)
Check continuity between terminals 3 and 5.
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
FILAMENT CHECK
1. When measuring voltage, wrap tin foil around the top of the neg-
ative probe.Then press the foil against the wire with your finder.
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
No current supply No
SEC202B
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
No current supply No
PIIA2636E
Connector Condition Continuity
M50 1 – 2Rear window defogger
switch is pushed.Ye s
Rear window defogger
switch is released.No
SIIA1203E
SEL122R
Page 3173 of 3833
REAR WINDOW DEFOGGER
GW-21
C
D
E
F
G
H
J
K
L
MA
B
GW

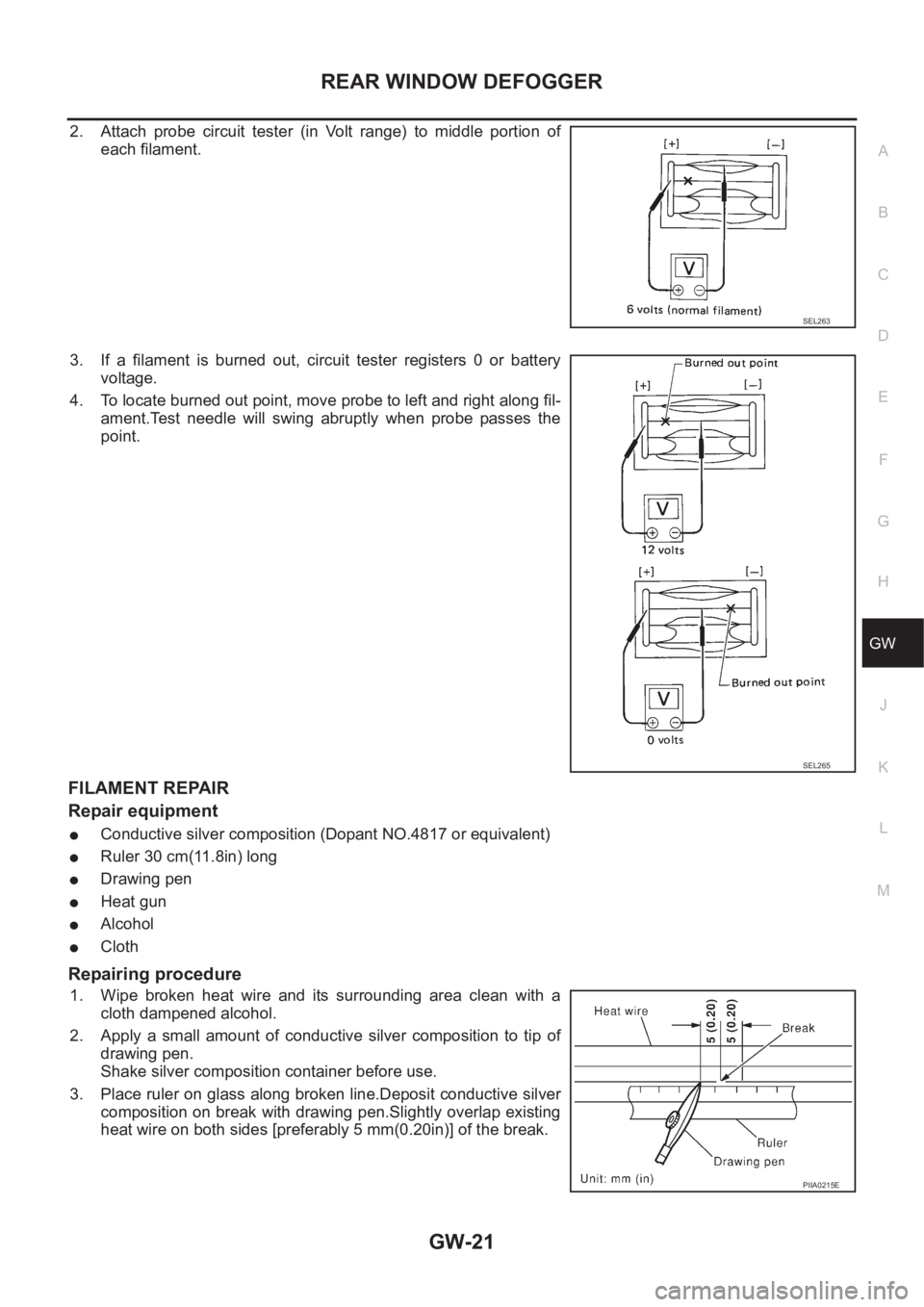

2. Attach probe circuit tester (in Volt range) to middle portion of
each filament.
3. If a filament is burned out, circuit tester registers 0 or battery
voltage.
4. To locate burned out point, move probe to left and right along fil-
ament.Test needle will swing abruptly when probe passes the
point.
FILAMENT REPAIR
Repair equipment
●Conductive silver composition (Dopant NO.4817 or equivalent)
●Ruler 30 cm(11.8in) long
●Drawing pen
●Heat gun
●Alcohol
●Cloth
Repairing procedure
1. Wipe broken heat wire and its surrounding area clean with a
cloth dampened alcohol.
2. Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line.Deposit conductive silver
composition on break with drawing pen.Slightly overlap existing
heat wire on both sides [preferably 5 mm(0.20in)] of the break.
SEL263
SEL265
PIIA0215E
Page 3174 of 3833
GW-22
REAR WINDOW DEFOGGER

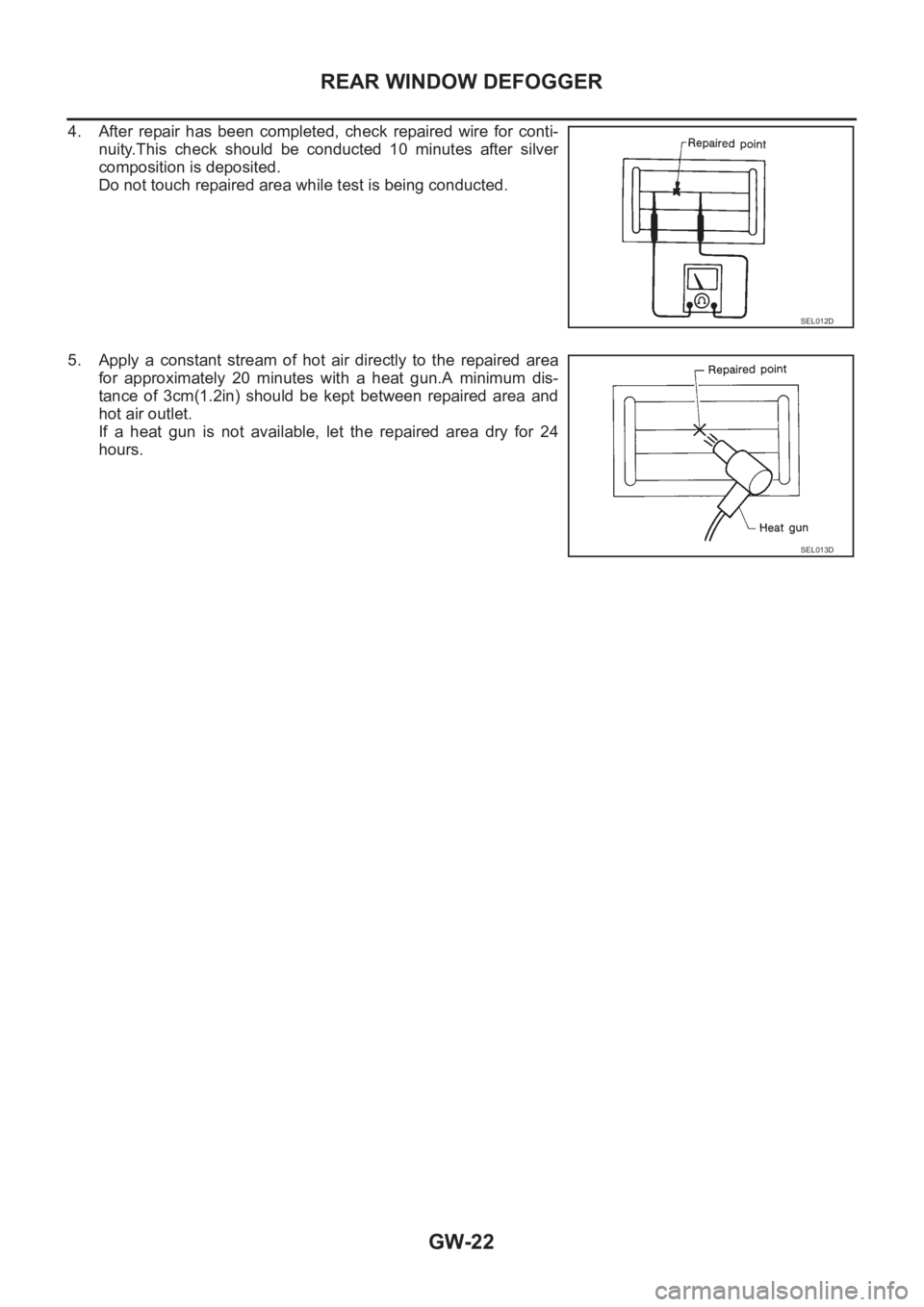

4. After repair has been completed, check repaired wire for conti-
nuity.This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.
5. Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun.A minimum dis-
tance of 3cm(1.2in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.
SEL012D
SEL013D
Page 3175 of 3833

POWER WINDOW SYSTEM
GW-23
C
D
E
F
G
H
J
K
L
MA
B
GW
POWER WINDOW SYSTEMPFP:25401
Component Parts and Harness Connector LocationEIS0045V
System DescriptionEIS0045W
Power is supplied at all times
●from 40A fusible link (letter B , located in the fuse and fusible link box)
●through circuit breaker terminal 1
●through circuit breaker terminal 2
●to power window relay terminal 3 and
●to power window main switch terminal 5 (LHD models) or 3 (RHD models).
With ignition switch in ON or START position, power is supplied
●through 10A fuse [No. 5, located in the fuse block (J/B)]
●to power window relay terminal 1
Ground is supplied to power window relay terminal 2
●through body grounds M27 and M70.
When power and ground are supplied, the power window relay is energized and then power is supplied
●through power window relay terminal 5
●to power window main switch terminal 12,
●to passenger side power window switch terminal 5,
●to rear power window switch LH and RH terminals 5.
PIIA0588E
Page 3176 of 3833

GW-24
POWER WINDOW SYSTEM

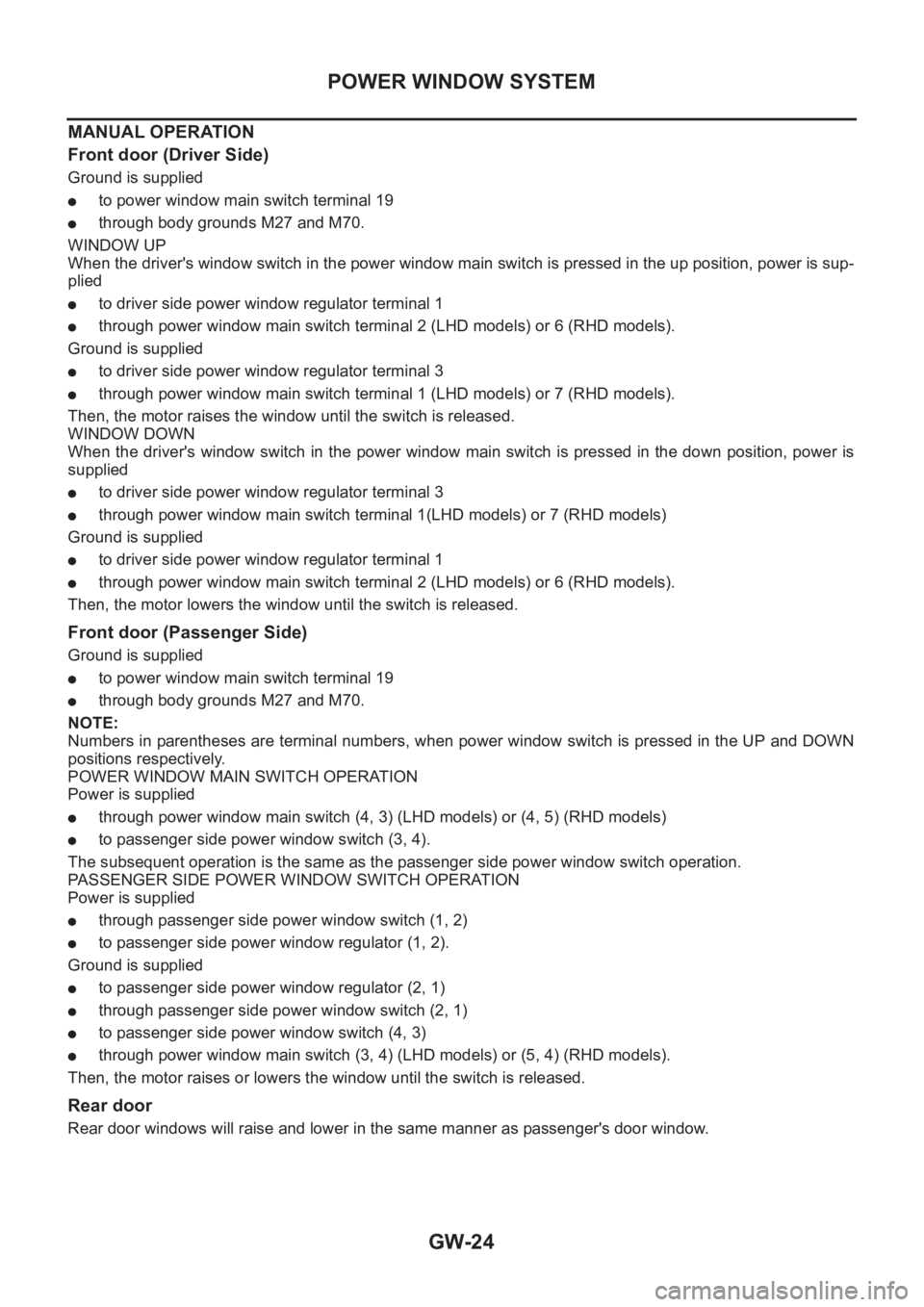

MANUAL OPERATION
Front door (Driver Side)
Ground is supplied
●to power window main switch terminal 19
●through body grounds M27 and M70.
WINDOW UP
When the driver's window switch in the power window main switch is pressed in the up position, power is sup-
plied
●to driver side power window regulator terminal 1
●through power window main switch terminal 2 (LHD models) or 6 (RHD models).
Ground is supplied
●to driver side power window regulator terminal 3
●through power window main switch terminal 1 (LHD models) or 7 (RHD models).
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver's window switch in the power window main switch is pressed in the down position, power is
supplied
●to driver side power window regulator terminal 3
●through power window main switch terminal 1(LHD models) or 7 (RHD models)
Ground is supplied
●to driver side power window regulator terminal 1
●through power window main switch terminal 2 (LHD models) or 6 (RHD models).
Then, the motor lowers the window until the switch is released.
Front door (Passenger Side)
Ground is supplied
●to power window main switch terminal 19
●through body grounds M27 and M70.
NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
POWER WINDOW MAIN SWITCH OPERATION
Power is supplied
●through power window main switch (4, 3) (LHD models) or (4, 5) (RHD models)
●to passenger side power window switch (3, 4).
The subsequent operation is the same as the passenger side power window switch operation.
PASSENGER SIDE POWER WINDOW SWITCH OPERATION
Power is supplied
●through passenger side power window switch (1, 2)
●to passenger side power window regulator (1, 2).
Ground is supplied
●to passenger side power window regulator (2, 1)
●through passenger side power window switch (2, 1)
●to passenger side power window switch (4, 3)
●through power window main switch (3, 4) (LHD models) or (5, 4) (RHD models).
Then, the motor raises or lowers the window until the switch is released.
Rear door
Rear door windows will raise and lower in the same manner as passenger's door window.
