POWER WINDOW SYSTEM
GW-25
C
D
E
F
G
H
J
K
L
MA
B
GW

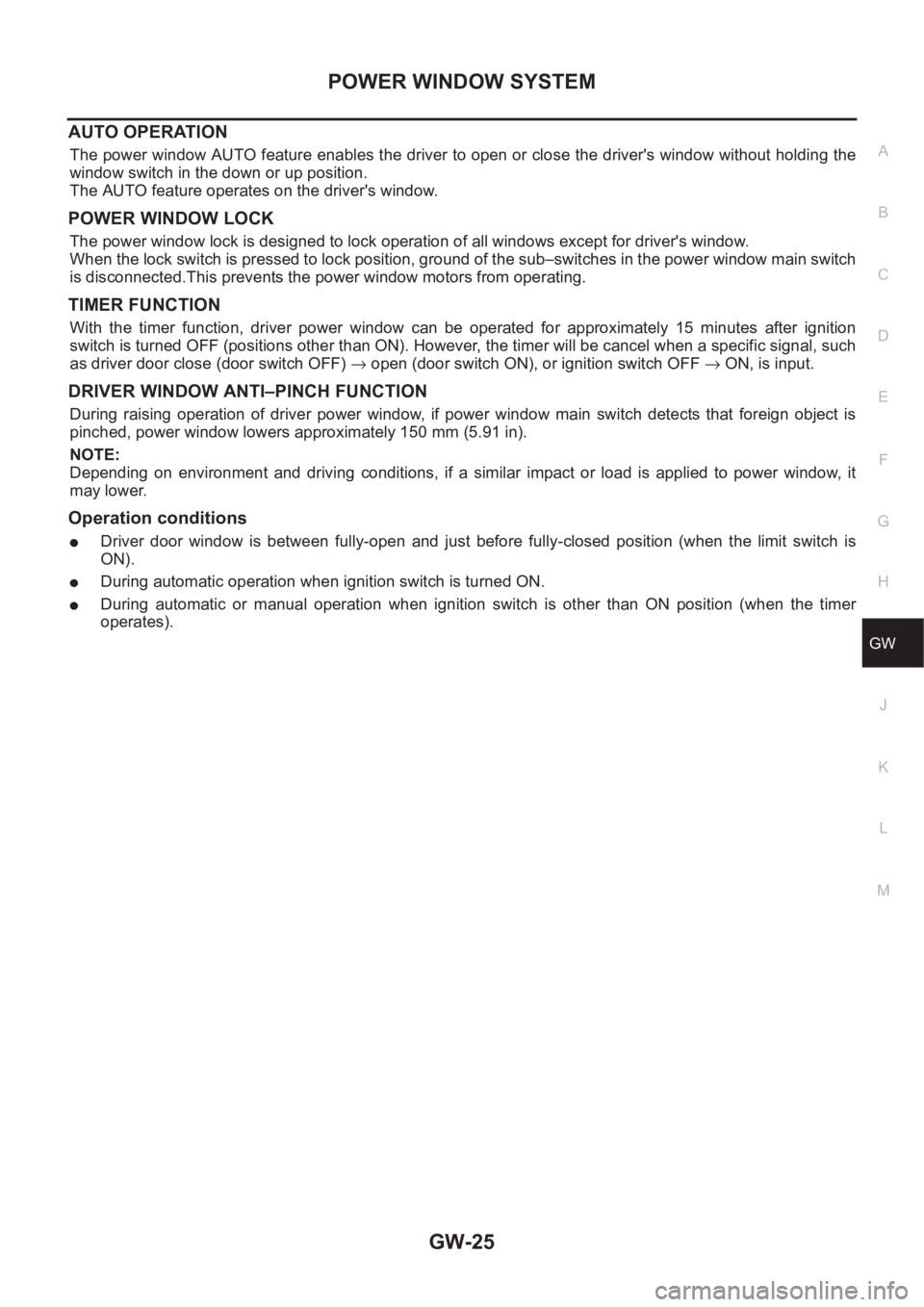

AUTO OPERATION
The power window AUTO feature enables the driver to open or close the driver's window without holding the
window switch in the down or up position.
The AUTO feature operates on the driver's window.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver's window.
When the lock switch is pressed to lock position, ground of the sub–switches in the power window main switch
is disconnected.This prevents the power window motors from operating.
TIMER FUNCTION
With the timer function, driver power window can be operated for approximately 15 minutes after ignition
switch is turned OFF (positions other than ON). However, the timer will be cancel when a specific signal, such
as driver door close (door switch OFF) → open (door switch ON), or ignition switch OFF → ON, is input.
DRIVER WINDOW ANTI–PINCH FUNCTION
During raising operation of driver power window, if power window main switch detects that foreign object is
pinched, power window lowers approximately 150 mm (5.91 in).
NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to power window, it
may lower.
Operation conditions
●Driver door window is between fully-open and just before fully-closed position (when the limit switch is
ON).
●During automatic operation when ignition switch is turned ON.
●During automatic or manual operation when ignition switch is other than ON position (when the timer
operates).
Page 3178 of 3833
GW-26
POWER WINDOW SYSTEM
Schematic (LHD models)
EIS0045X
TIWA0032E
Page 3179 of 3833
POWER WINDOW SYSTEM
GW-27
C
D
E
F
G
H
J
K
L
MA
B
GW
Wiring Diagram – WINDOW – (LHD models)EIS0045Y
TIWA0033E
Page 3180 of 3833

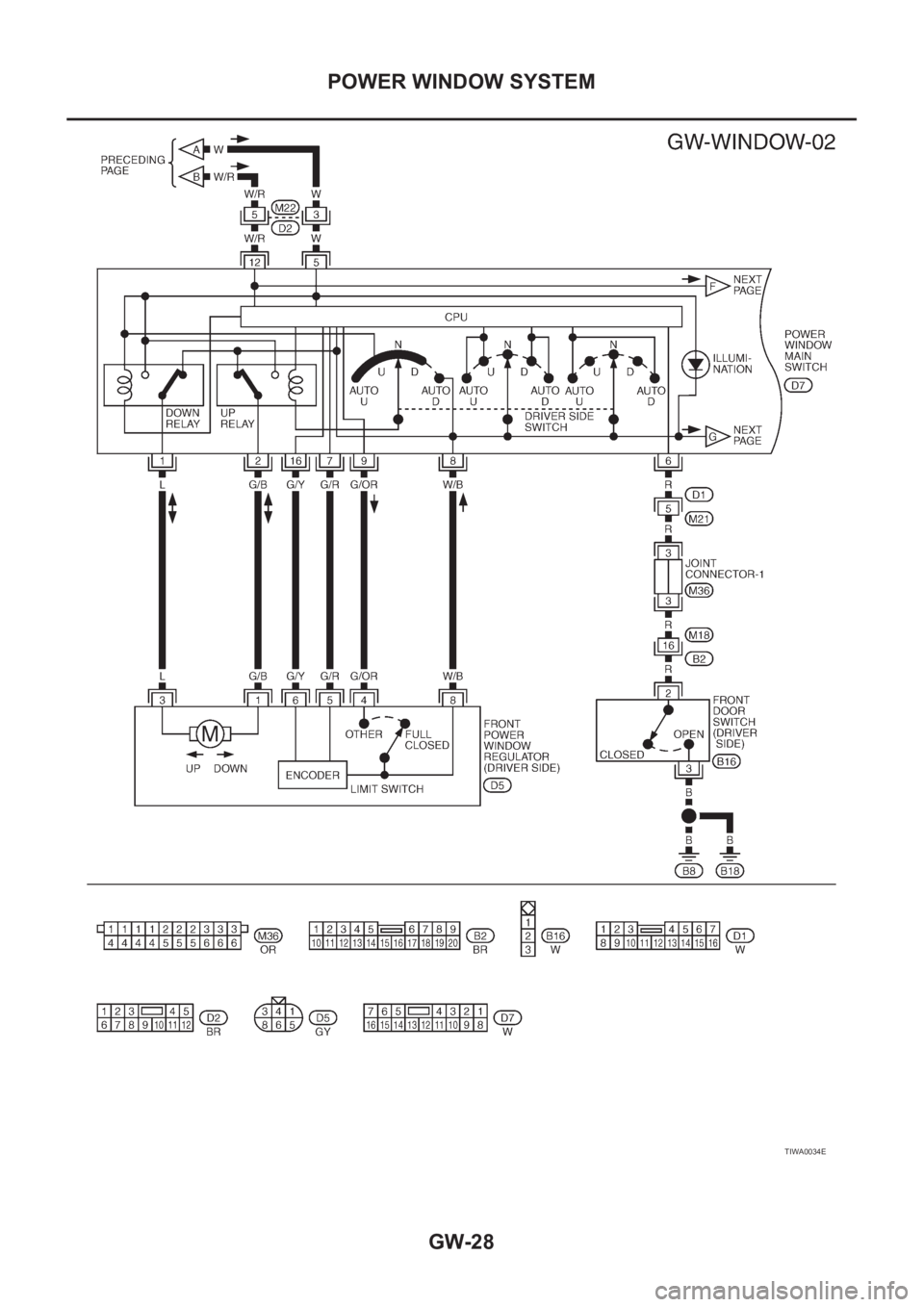

GW-28
POWER WINDOW SYSTEM
TIWA0034E
Page 3181 of 3833

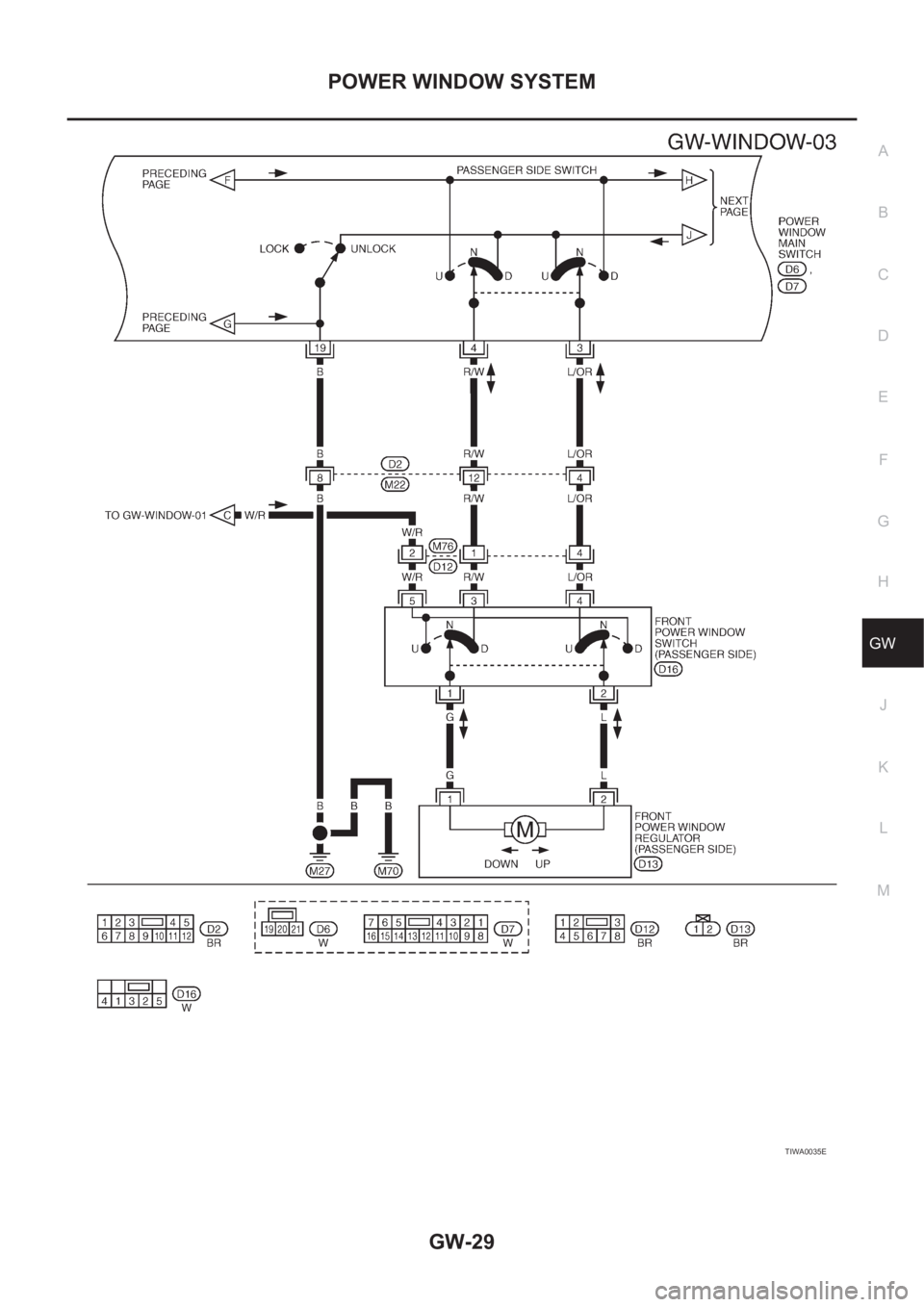

POWER WINDOW SYSTEM
GW-29
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0035E
Page 3182 of 3833

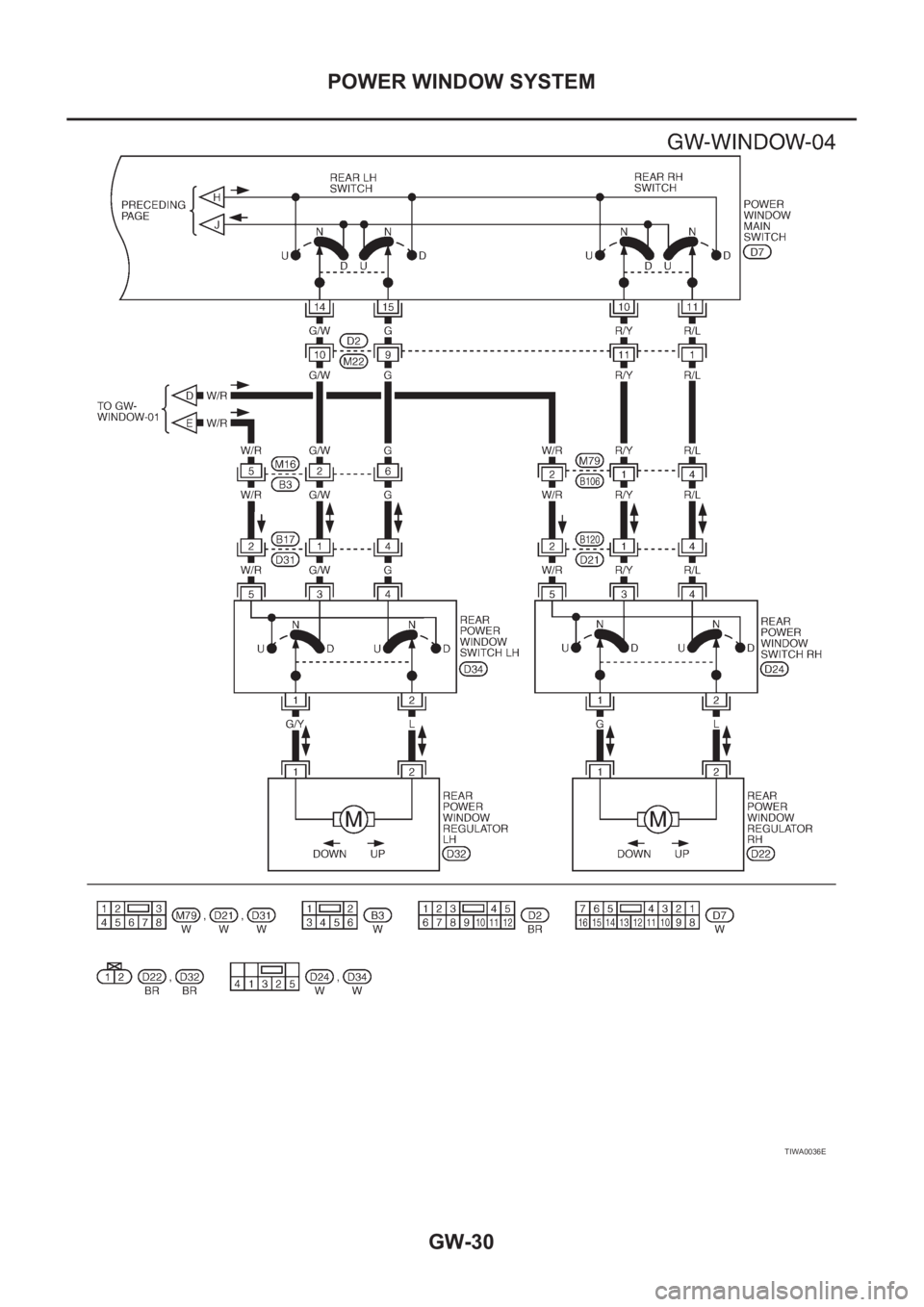

GW-30
POWER WINDOW SYSTEM
TIWA0036E
Page 3183 of 3833

POWER WINDOW SYSTEM
GW-31
C
D
E
F
G
H
J
K
L
MA
B
GW

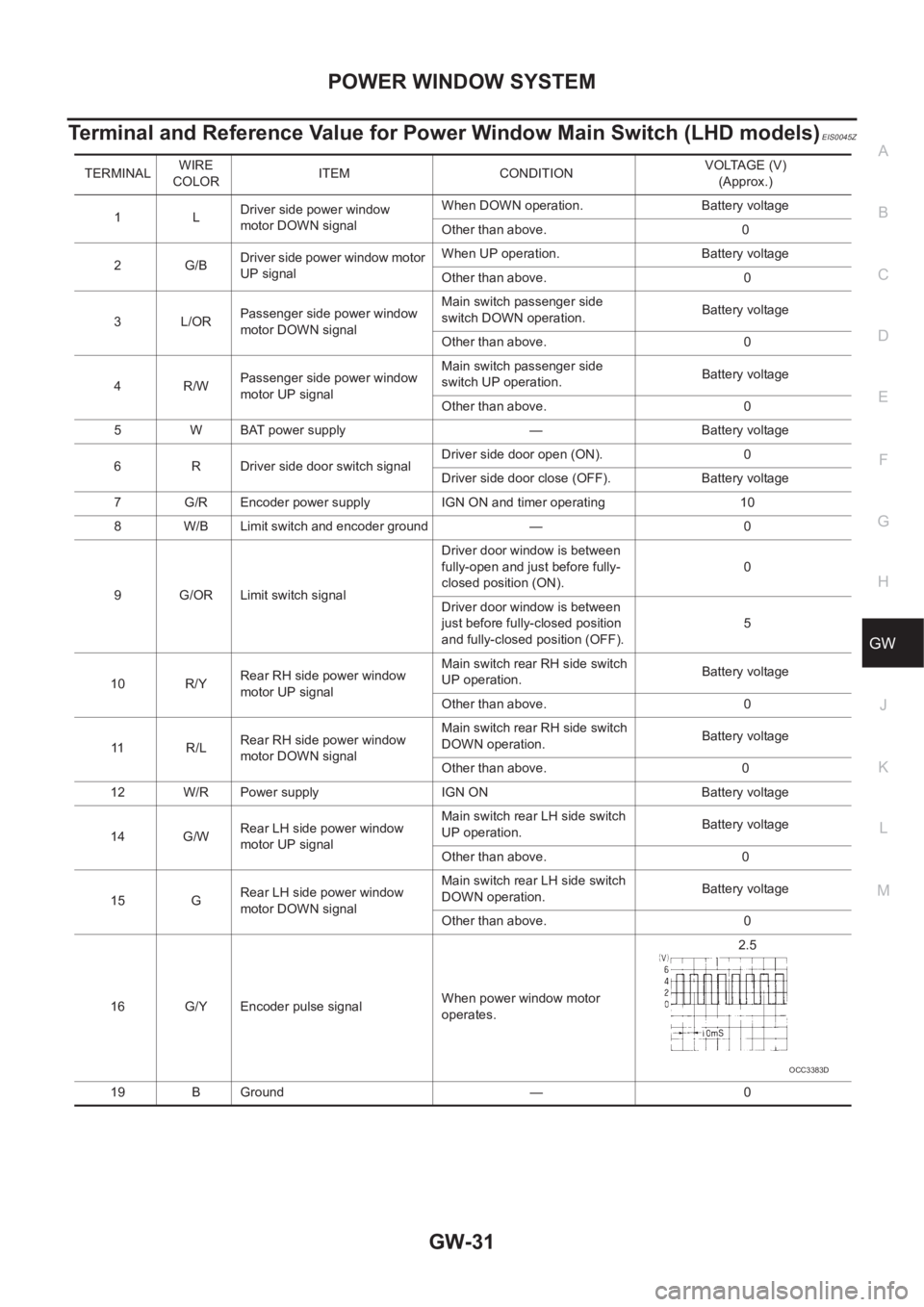

Terminal and Reference Value for Power Window Main Switch (LHD models)EIS0045Z
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1LDriver side power window
motor DOWN signalWhen DOWN operation. Battery voltage
Other than above. 0
2G/BDriver side power window motor
UP signalWhen UP operation. Battery voltage
Other than above. 0
3 L/ORPassenger side power window
motor DOWN signalMain switch passenger side
switch DOWN operation.Battery voltage
Other than above. 0
4R/WPassenger side power window
motor UP signalMain switch passenger side
switch UP operation.Battery voltage
Other than above. 0
5 W BAT power supply — Battery voltage
6 R Driver side door switch signalDriver side door open (ON). 0
Driver side door close (OFF). Battery voltage
7 G/R Encoder power supply IGN ON and timer operating 10
8 W/B Limit switch and encoder ground — 0
9 G/OR Limit switch signalDriver door window is between
fully-open and just before fully-
closed position (ON). 0
Driver door window is between
just before fully-closed position
and fully-closed position (OFF). 5
10 R/YRear RH side power window
motor UP signalMain switch rear RH side switch
UP operation.Battery voltage
Other than above. 0
11 R / LRear RH side power window
motor DOWN signalMain switch rear RH side switch
DOWN operation.Battery voltage
Other than above. 0
12 W/R Power supply IGN ON Battery voltage
14 G/WRear LH side power window
motor UP signalMain switch rear LH side switch
UP operation.Battery voltage
Other than above. 0
15 GRear LH side power window
motor DOWN signalMain switch rear LH side switch
DOWN operation.Battery voltage
Other than above. 0
16 G/Y Encoder pulse signalWhen power window motor
operates. 2.5
19 B Ground — 0
OCC3383D
Page 3184 of 3833
GW-32
POWER WINDOW SYSTEM

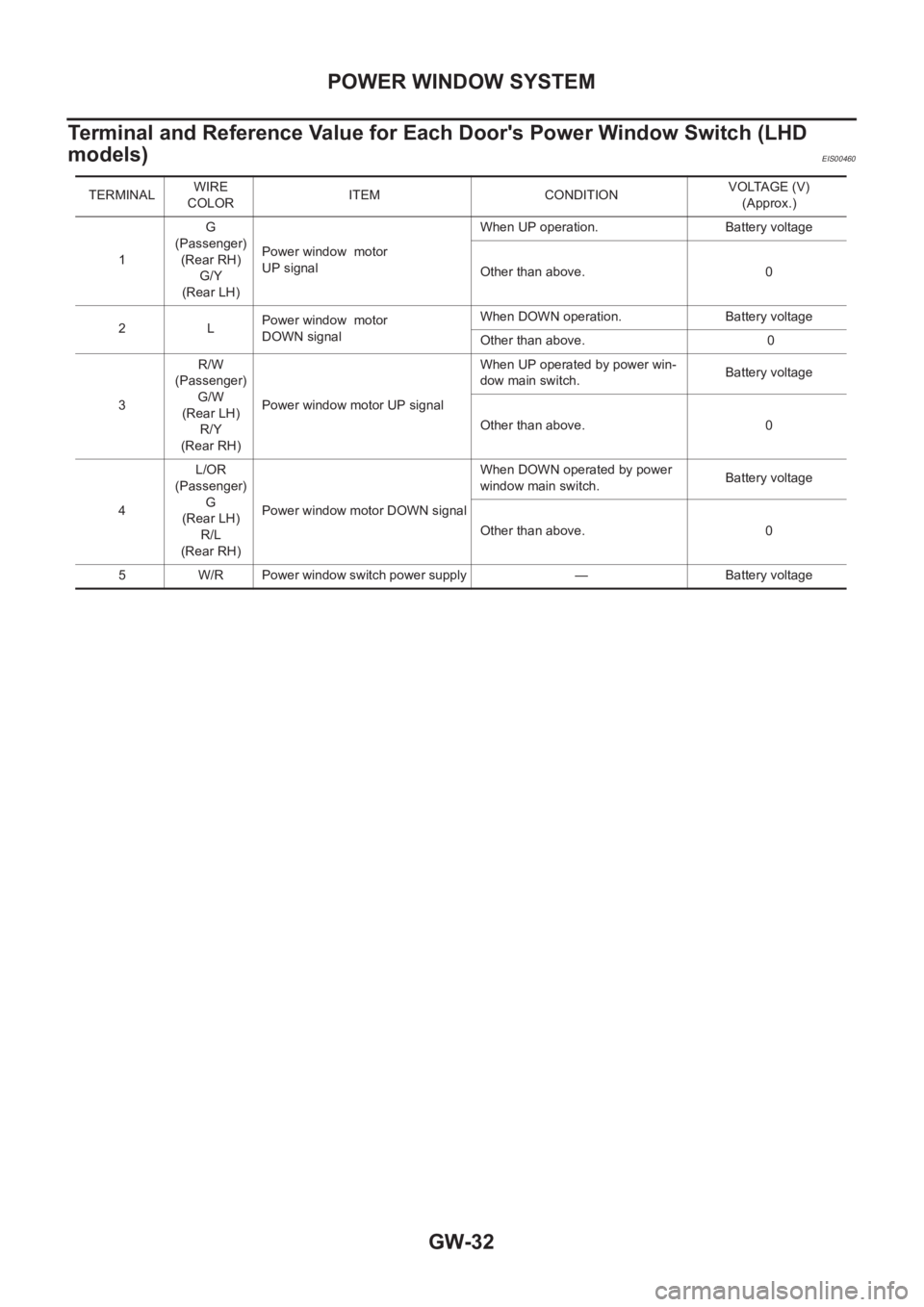

Terminal and Reference Value for Each Door's Power Window Switch (LHD
models)
EIS00460
TERMINALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1G
(Passenger)
(Rear RH)
G/Y
(Rear LH)Power window motor
UP signalWhen UP operation. Battery voltage
Other than above. 0
2LPower window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. 0
3R/W
(Passenger)
G/W
(Rear LH)
R/Y
(Rear RH)Power window motor UP signalWhen UP operated by power win-
dow main switch.Battery voltage
Other than above. 0
4L/OR
(Passenger)
G
(Rear LH)
R/L
(Rear RH)Power window motor DOWN signalWhen DOWN operated by power
window main switch.Battery voltage
Other than above. 0
5 W/R Power window switch power supply — Battery voltage
