NISSAN X-TRAIL 2001 Service Repair Manual IGNITION SIGNAL
EC-1339
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

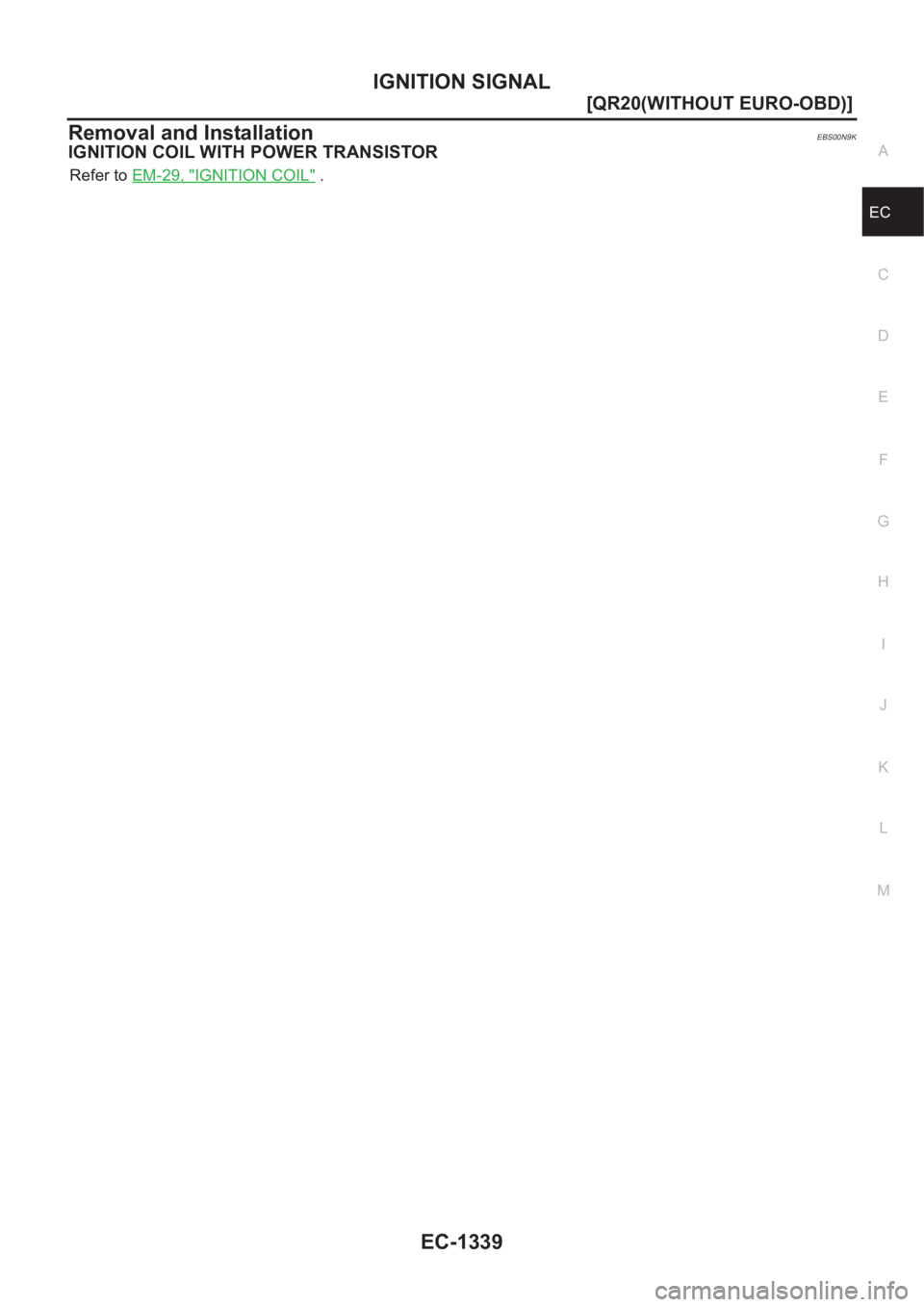

Removal and InstallationEBS00N9K
IGNITION COIL WITH POWER TRANSISTOR
Refer to EM-29, "IGNITION COIL" .

Page 1690 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1340
[QR20(WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
PFP:14920
DescriptionEBS00N9L
SYSTEM DESCRIPTION
This system con

EC-1340
[QR20(WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
PFP:14920
DescriptionEBS00N9L
SYSTEM DESCRIPTION
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeEBS00N9M
Specification data are reference values.
ECM Terminals and Reference ValueEBS00N9N
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Sensor Input Signal to ECMECM
functionActuator
Crankshaft position sensor (POS) Engine speed
EVAP can-
ister purge
flow con-
trolEVAP canister purge volume
control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Ignition switch Start signal
Throttle position sensor Throttle position
Accelerator pedal position sensor Closed throttle position
Heated oxygen sensors 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Wheel sensor Vehicle speed
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 0%
2,000 rpm 20 - 30%

Page 1691 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-1341
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Page 1692 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1342
[QR20(WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Wiring Diagram
EBS00N9O
TBWA0079E

Page 1693 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-1343
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N9P
1.CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition swi

Page 1694 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1344
[QR20(WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

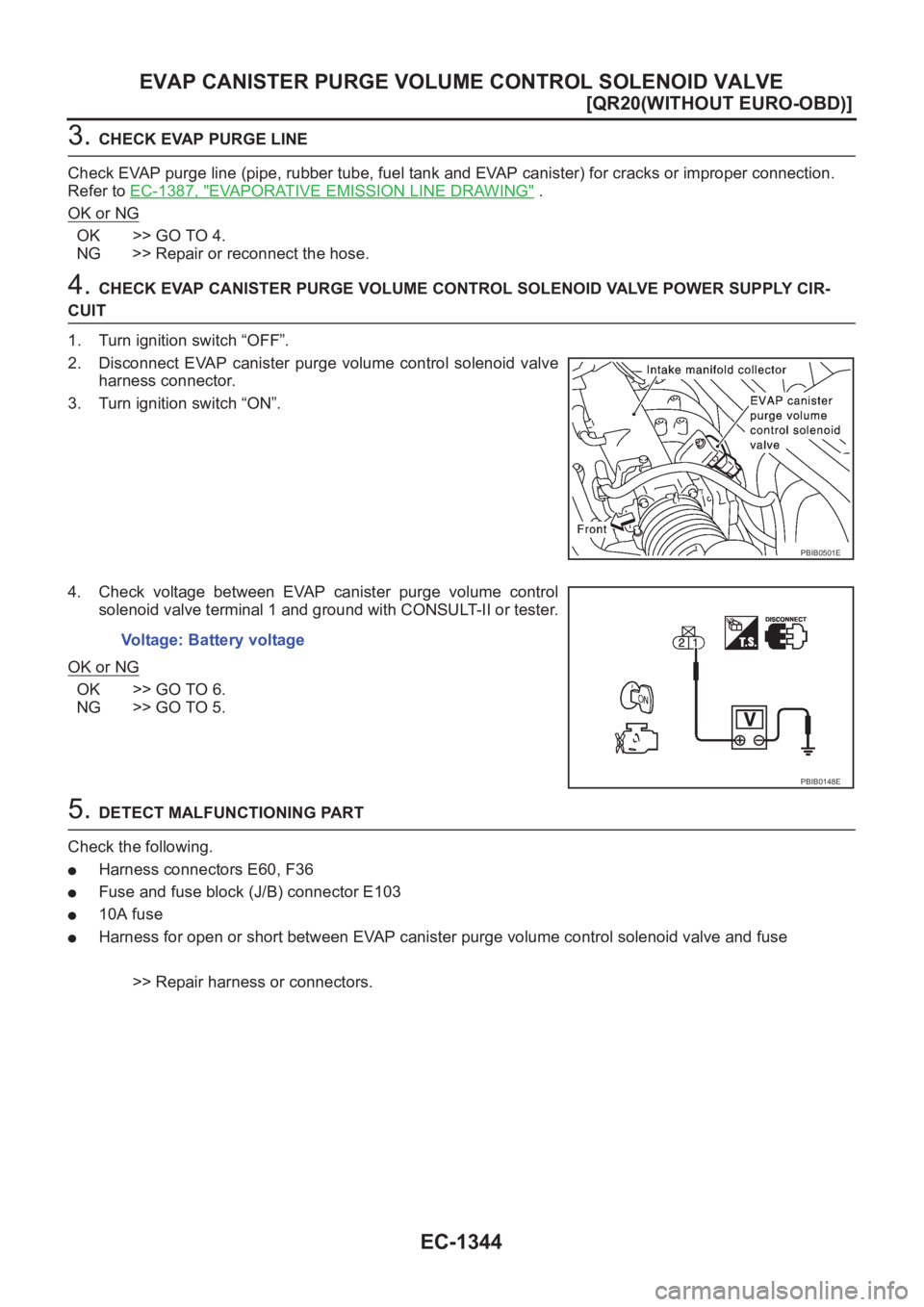

3. CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or imprope

Page 1695 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-1345
[QR20(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR-
CUIT FOR OPEN

Page 1696 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-1346
[QR20(WITHOUT EURO-OBD)]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

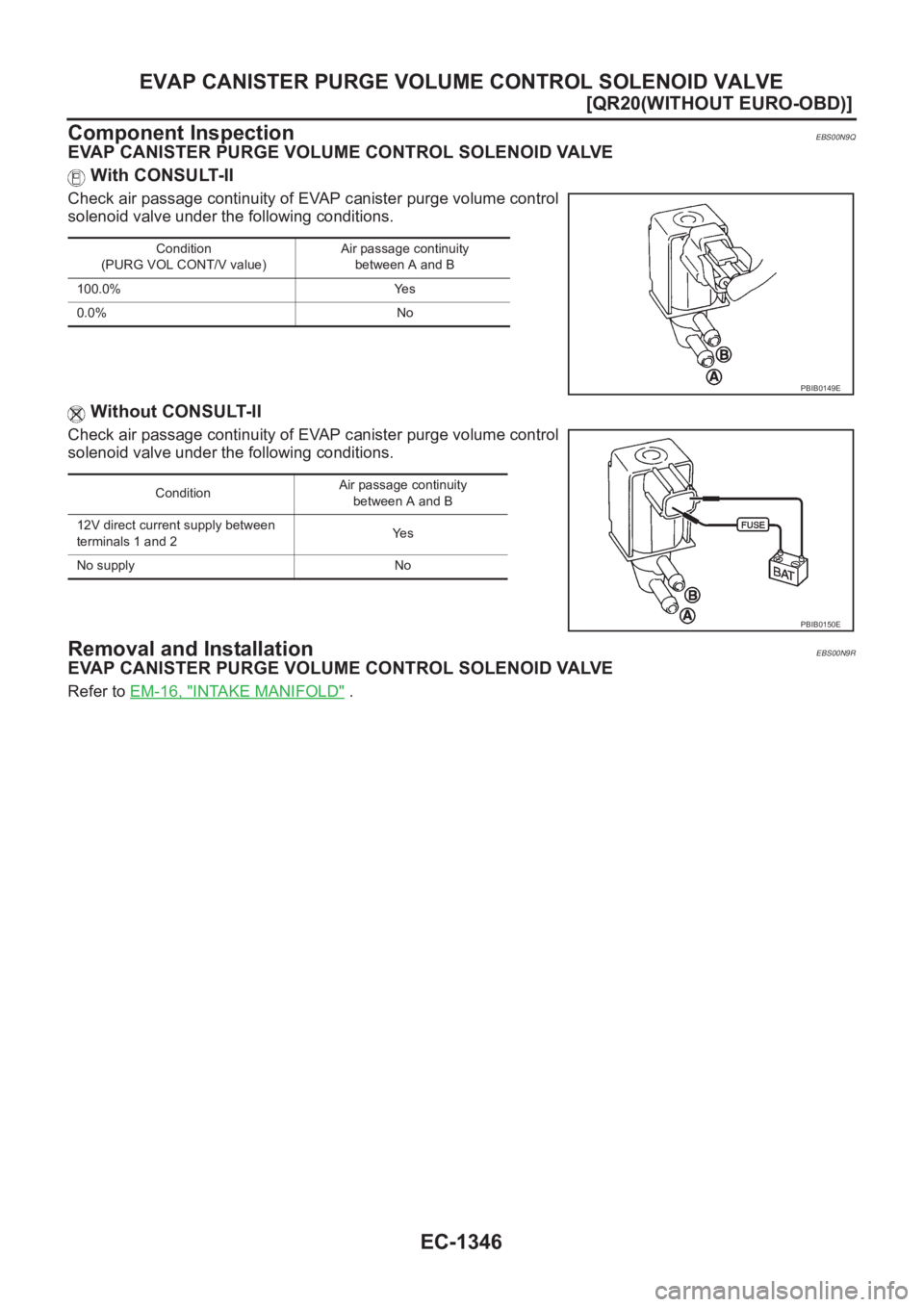

Component Inspection
EBS00N9Q
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-II
Check air passage co
