VIAS
EC-715
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
VIAS Control Solenoid Valve
The VIAS control solenoid valve cuts the intake manifold vacuum
signal for power valve control. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.
CONSULT-II Reference Value in Data Monitor ModeEBS00NKL
ECM Terminals and Reference ValueEBS00NKM
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0947E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V
●Engine: After warming upIdle OFF
More than 5,000 rpm ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
25 GY/LVIAS control solenoid
valve[Engine is running]
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Engine speed is above 5,000 rpm0 - 1.0V
Page 1066 of 3833
EC-716
[QR25(WITHOUT EURO-OBD)]
VIAS

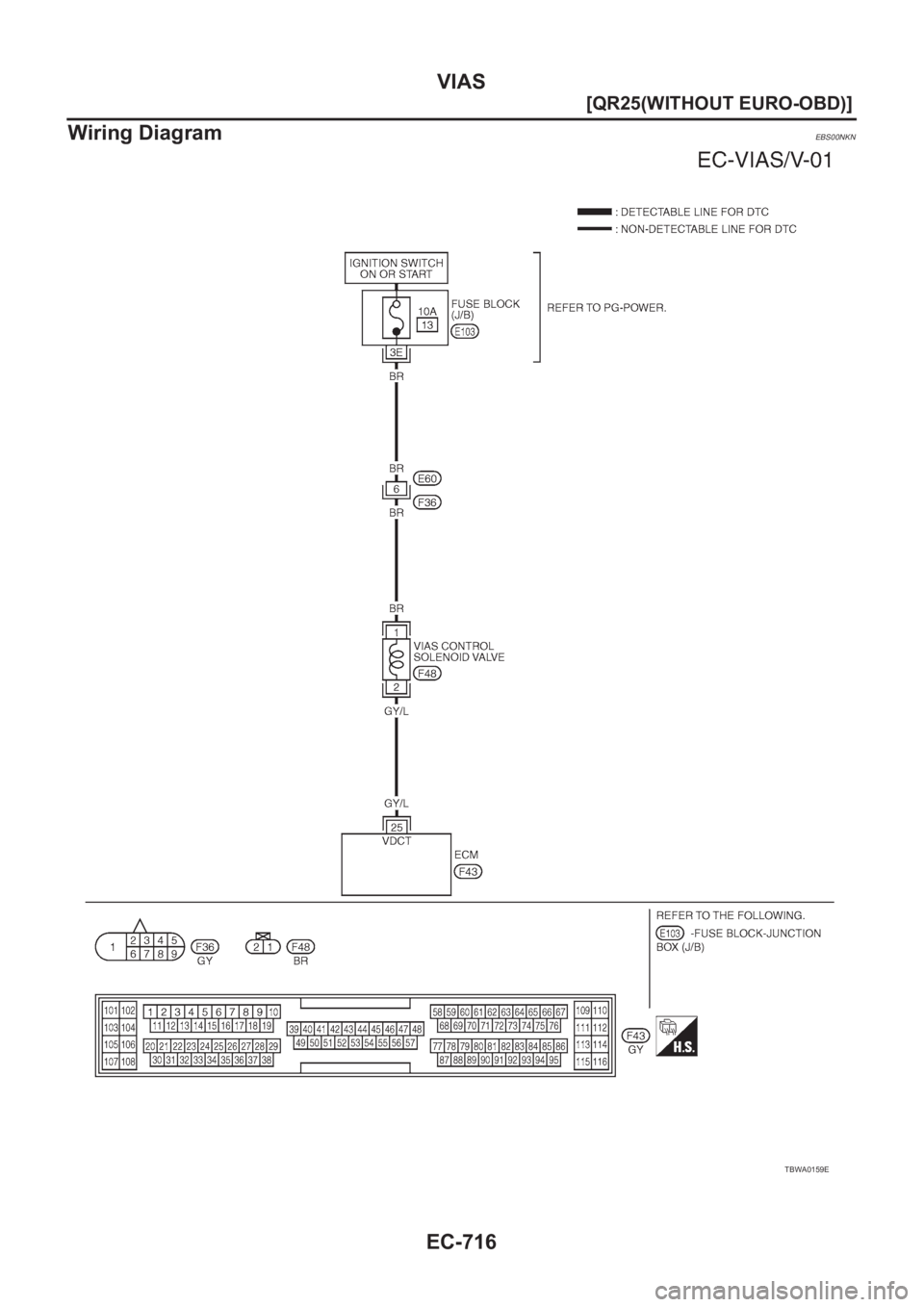

Wiring Diagram
EBS00NKN
TBWA0159E
Page 1067 of 3833
VIAS
EC-717
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

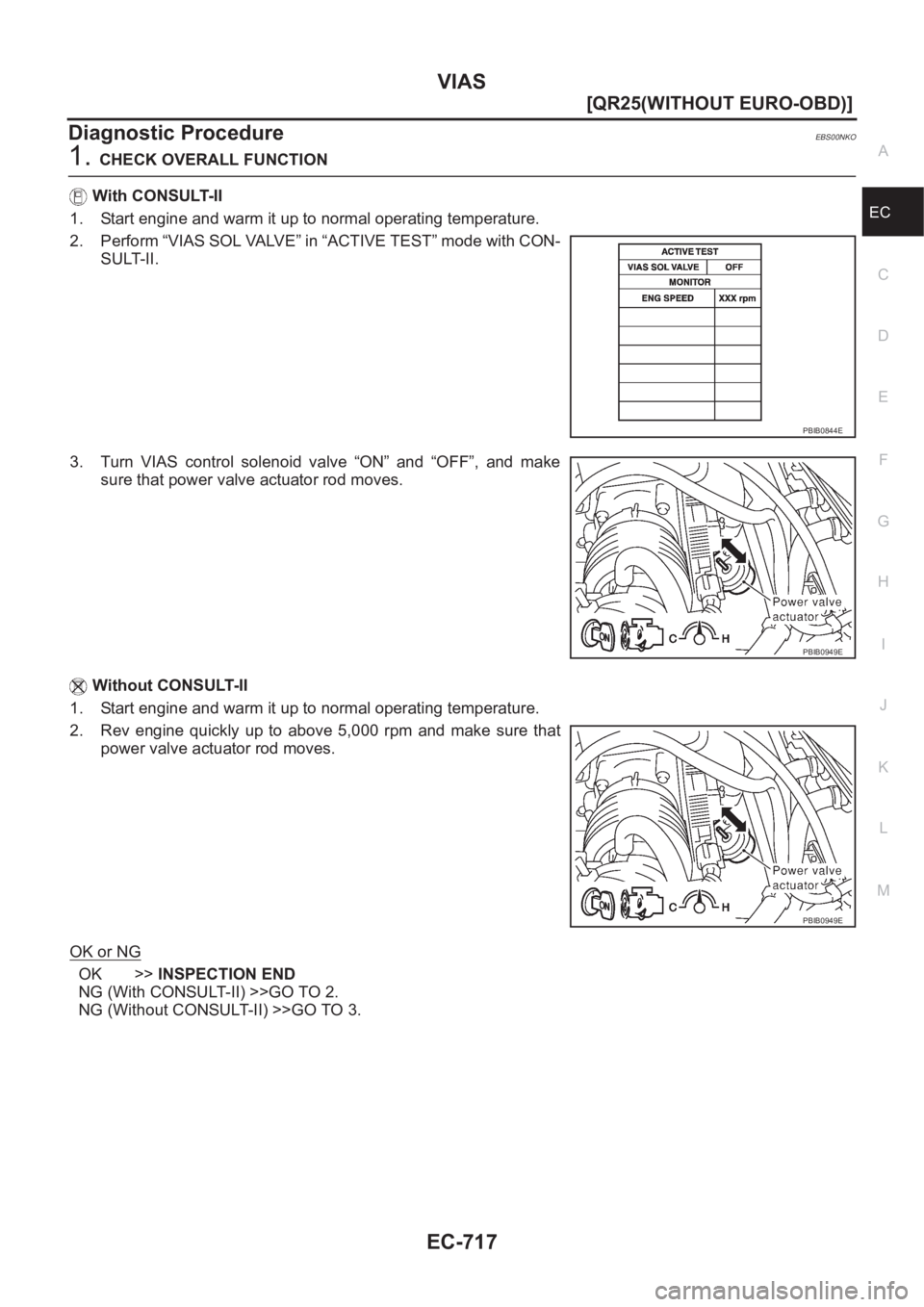

Diagnostic ProcedureEBS00NKO
1.CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CON-
SULT-II.
3. Turn VIAS control solenoid valve “ON” and “OFF”, and make
sure that power valve actuator rod moves.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Rev engine quickly up to above 5,000 rpm and make sure that
power valve actuator rod moves.
OK or NG
OK >>INSPECTION END
NG (With CONSULT-II) >>GO TO 2.
NG (Without CONSULT-II) >>GO TO 3.
PBIB0844E
PBIB0949E
PBIB0949E
Page 1068 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-718
[QR25(WITHOUT EURO-OBD)]
VIAS
2. CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform NISSAN X-TRAIL 2001 Service Repair Manual EC-718
[QR25(WITHOUT EURO-OBD)]
VIAS
2. CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform](/manual-img/5/57405/w960_57405-1067.png)
EC-718
[QR25(WITHOUT EURO-OBD)]
VIAS
2. CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CON-
SULT-II.
4. Turn VIAS control solenoid valve “ON” and “OFF”, and check
vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3. CHECK VACUUM EXISTENCE
Without CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve harness connector.
3. Start engine and let it idle.
4. Apply 12V of direct current between VIAS control solenoid valve
terminals 1 and 2.
5. Check vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
4. CHECK VACUUM HOSE
1. Stop engine.
2. Check hoses and tubes between intake manifold and power
valve actuator for crack, clogging, improper connection or dis-
connection. Refer to EC-442, "
Vacuum Hose Drawing" .
OK or NG
OK >> GO TO 5.
NG >> Repair hoses or tubes.
VIAS SOL VALVE Vacuum
ON Should exist.
OFF Should not exist.
PBIB0844E
Condition Vacuum
12V direct current supply Should exist.
No supply Should not exist.
PBIB0845E
SEF109L
Page 1069 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual VIAS
EC-719
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.CHECK VACUUM TANK
Refer to EC-720, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6.CHECK VIAS CO NISSAN X-TRAIL 2001 Service Repair Manual VIAS
EC-719
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.CHECK VACUUM TANK
Refer to EC-720, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6.CHECK VIAS CO](/manual-img/5/57405/w960_57405-1068.png)
VIAS
EC-719
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

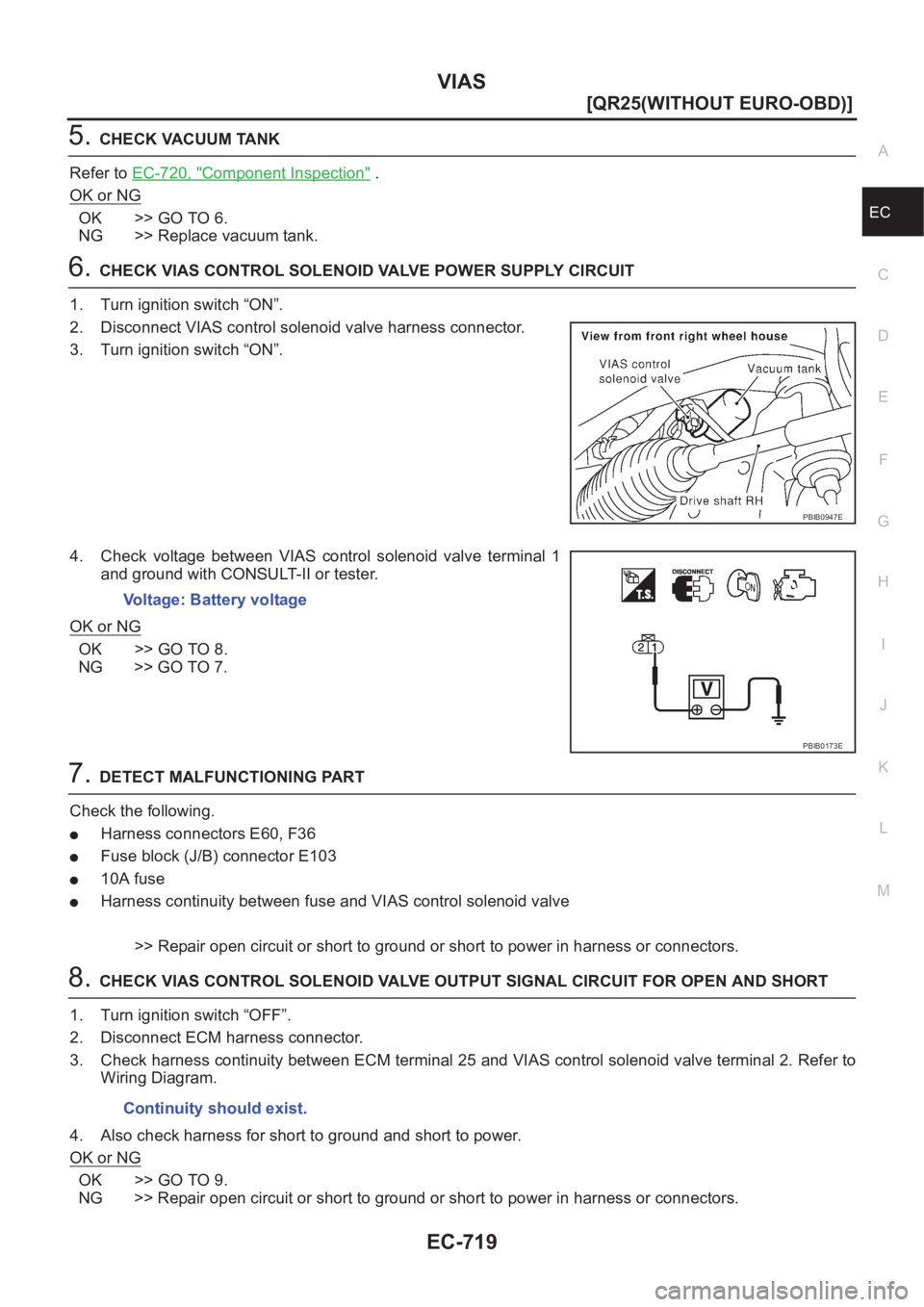

5.CHECK VACUUM TANK
Refer to EC-720, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6.CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Turn ignition switch “ON”.
2. Disconnect VIAS control solenoid valve harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between VIAS control solenoid valve terminal 1
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●Fuse block (J/B) connector E103
●10A fuse
●Harness continuity between fuse and VIAS control solenoid valve
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK VIAS CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 25 and VIAS control solenoid valve terminal 2. Refer to
Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0947E
Voltage: Battery voltage
PBIB0173E
Continuity should exist.
Page 1070 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-720
[QR25(WITHOUT EURO-OBD)]
VIAS
9. CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-720, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoid valve.
10. CHE NISSAN X-TRAIL 2001 Service Repair Manual EC-720
[QR25(WITHOUT EURO-OBD)]
VIAS
9. CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-720, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoid valve.
10. CHE](/manual-img/5/57405/w960_57405-1069.png)
EC-720
[QR25(WITHOUT EURO-OBD)]
VIAS

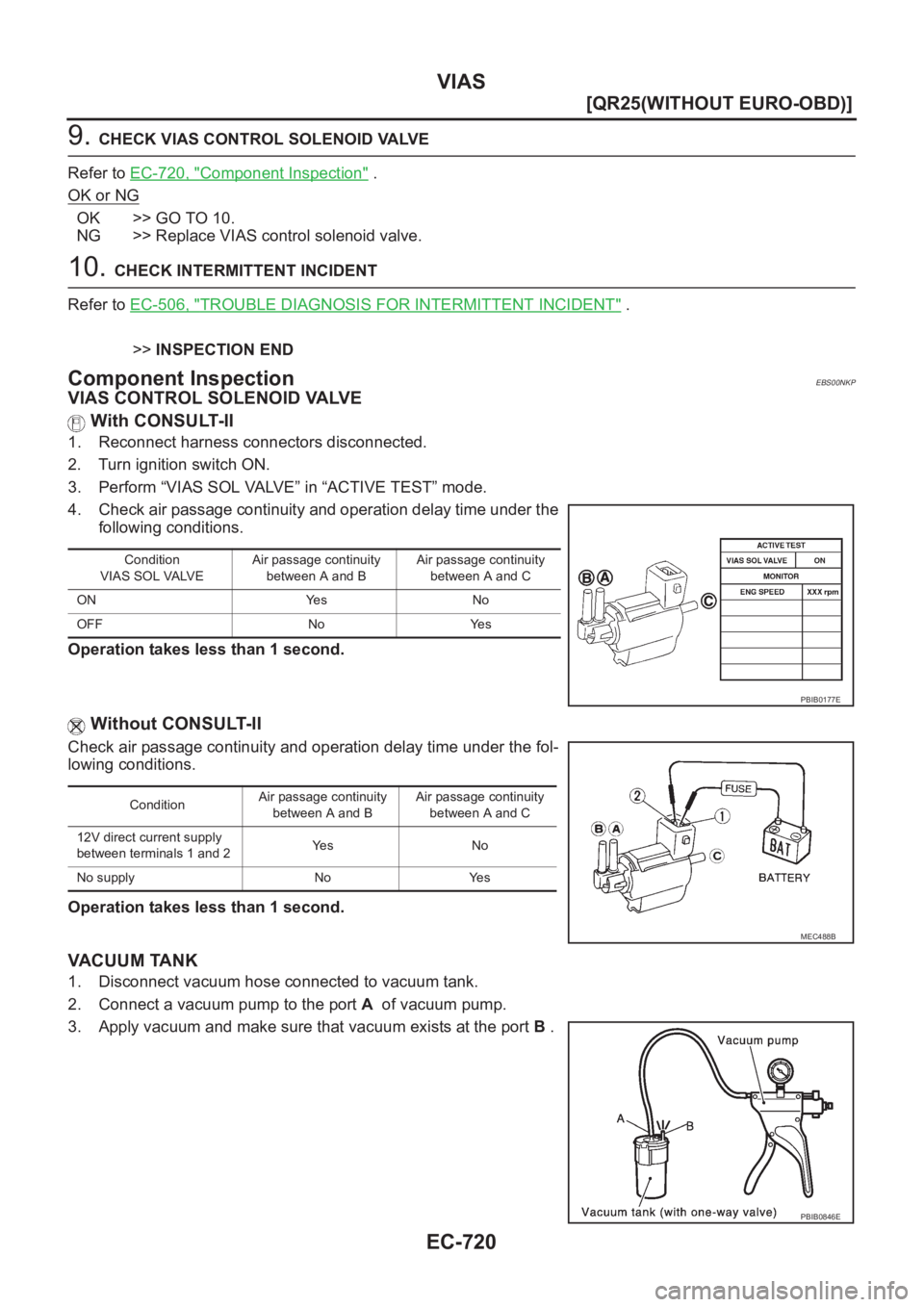

9. CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-720, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoid valve.
10. CHECK INTERMITTENT INCIDENT
Refer to EC-506, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00NKP
VIAS CONTROL SOLENOID VALVE
With CONSULT-II
1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode.
4. Check air passage continuity and operation delay time under the
following conditions.
Operation takes less than 1 second.
Without CONSULT-II
Check air passage continuity and operation delay time under the fol-
lowing conditions.
Operation takes less than 1 second.
VACUUM TANK
1. Disconnect vacuum hose connected to vacuum tank.
2. Connect a vacuum pump to the port A of vacuum pump.
3. Apply vacuum and make sure that vacuum exists at the port B .
Condition
VIAS SOL VALVEAir passage continuity
between A and BAir passage continuity
between A and C
ON Yes No
OFF No Yes
PBIB0177E
ConditionAir passage continuity
between A and BAir passage continuity
between A and C
12V direct current supply
between terminals 1 and 2Ye s N o
No supply No Yes
MEC488B
PBIB0846E
Page 1071 of 3833
VIAS
EC-721
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

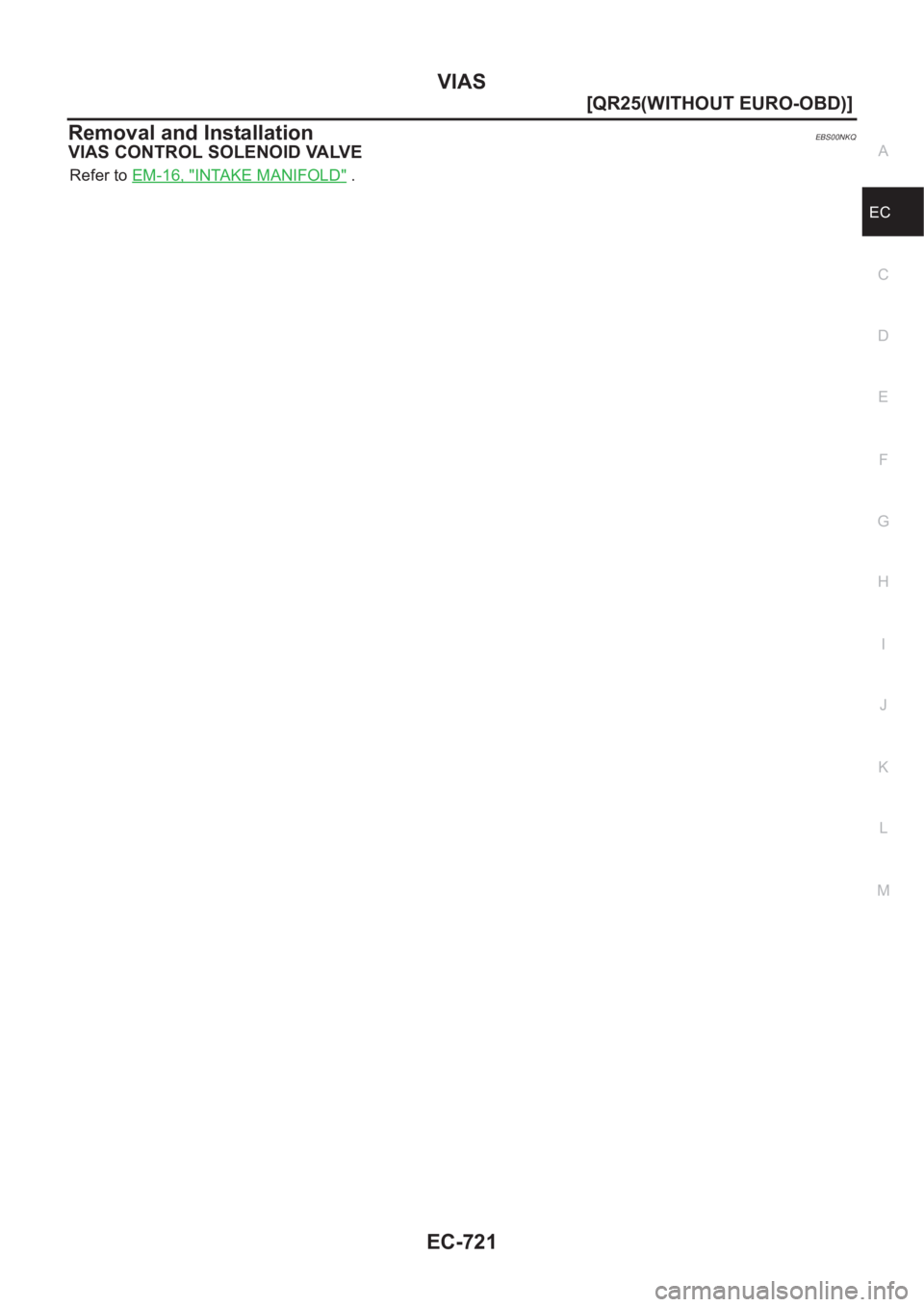

Removal and InstallationEBS00NKQ
VIAS CONTROL SOLENOID VALVE
Refer to EM-16, "INTAKE MANIFOLD" .
Page 1072 of 3833
EC-722
[QR25(WITHOUT EURO-OBD)]

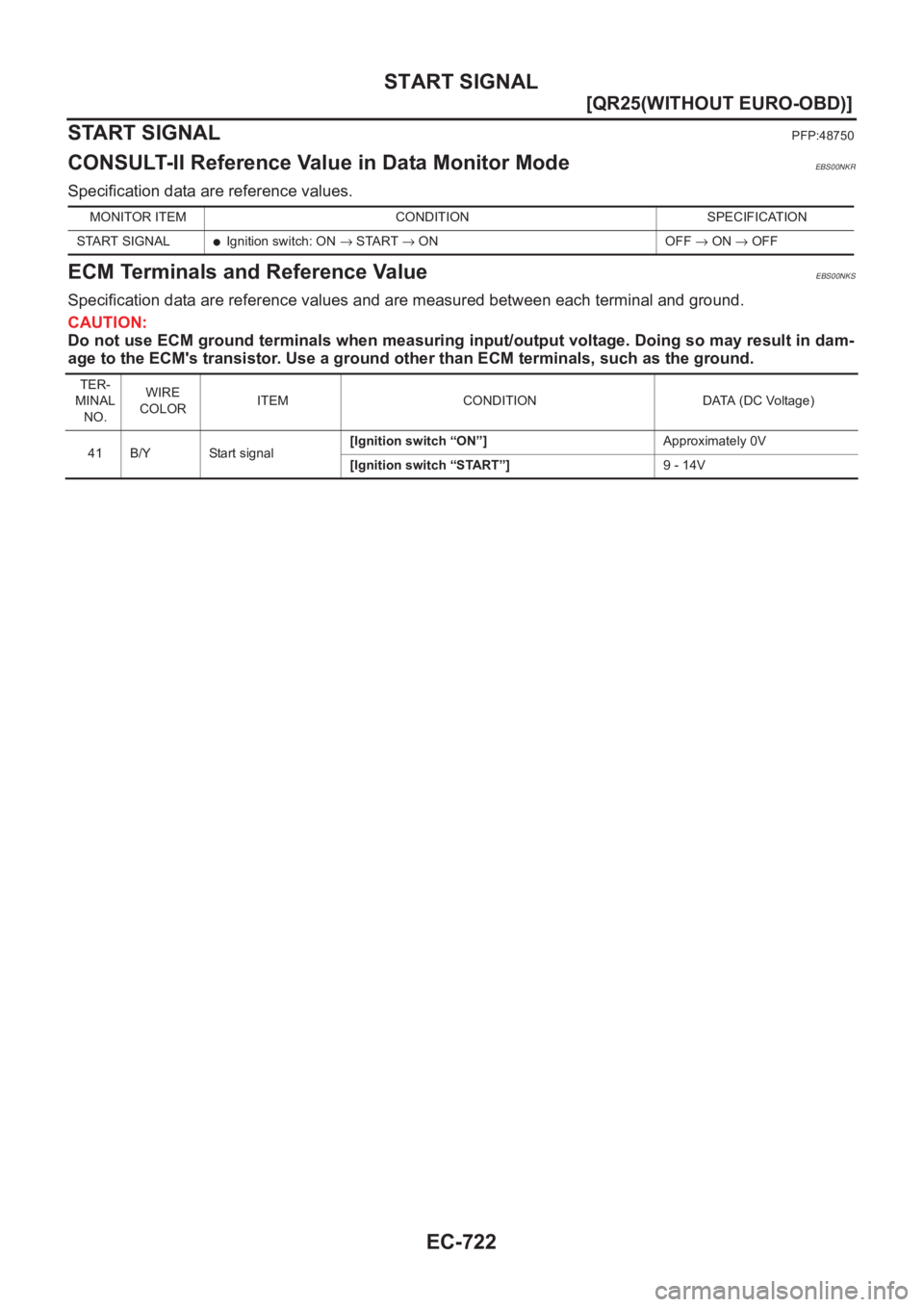

START SIGNAL
START SIGNAL
PFP:48750
CONSULT-II Reference Value in Data Monitor ModeEBS00NKR
Specification data are reference values.
ECM Terminals and Reference ValueEBS00NKS
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MONITOR ITEM CONDITION SPECIFICATION
START SIGNAL
●Ignition switch: ON → START → ON OFF → ON → OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
41 B/Y Start signal[Ignition switch “ON”]Approximately 0V
[Ignition switch “START”]9 - 14V
