Page 609 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0550 PSP SENSOR EC-259 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC 4.CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Disconnect ECM harness connector. 2. Check harness continuity

Page 610 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-260 [QR25(WITH EURO-OBD)] DTC P0605 ECM DTC P0605 ECM PFP:23710 Component DescriptionEBS00M6M The ECM consists of a microcomputer and connectors for signal input and output and for power s

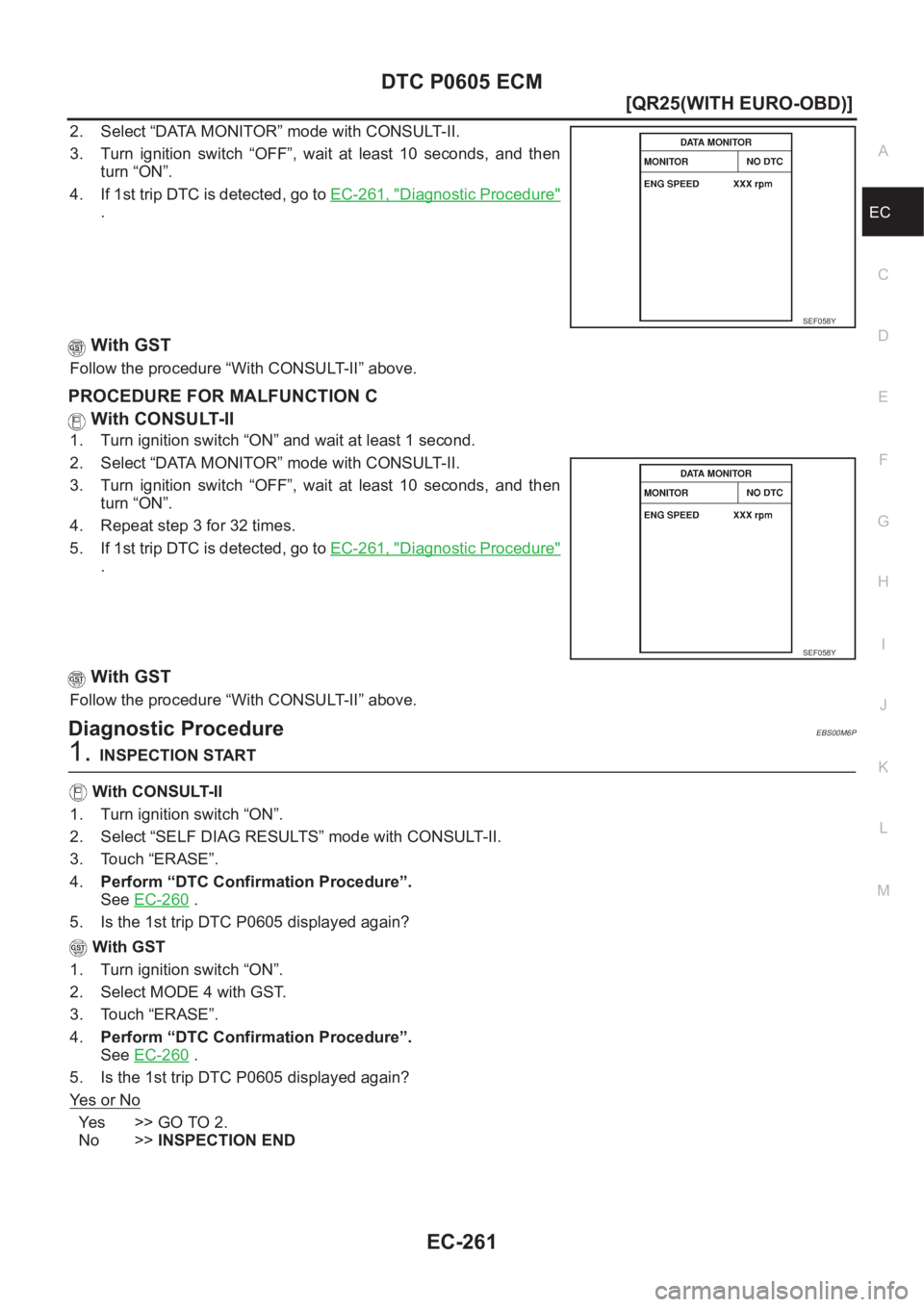

Page 611 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0605 ECM EC-261 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC 2. Select “DATA MONITOR” mode with CONSULT-II. 3. Turn ignition switch “OFF”, wait at least 10 seconds, and then

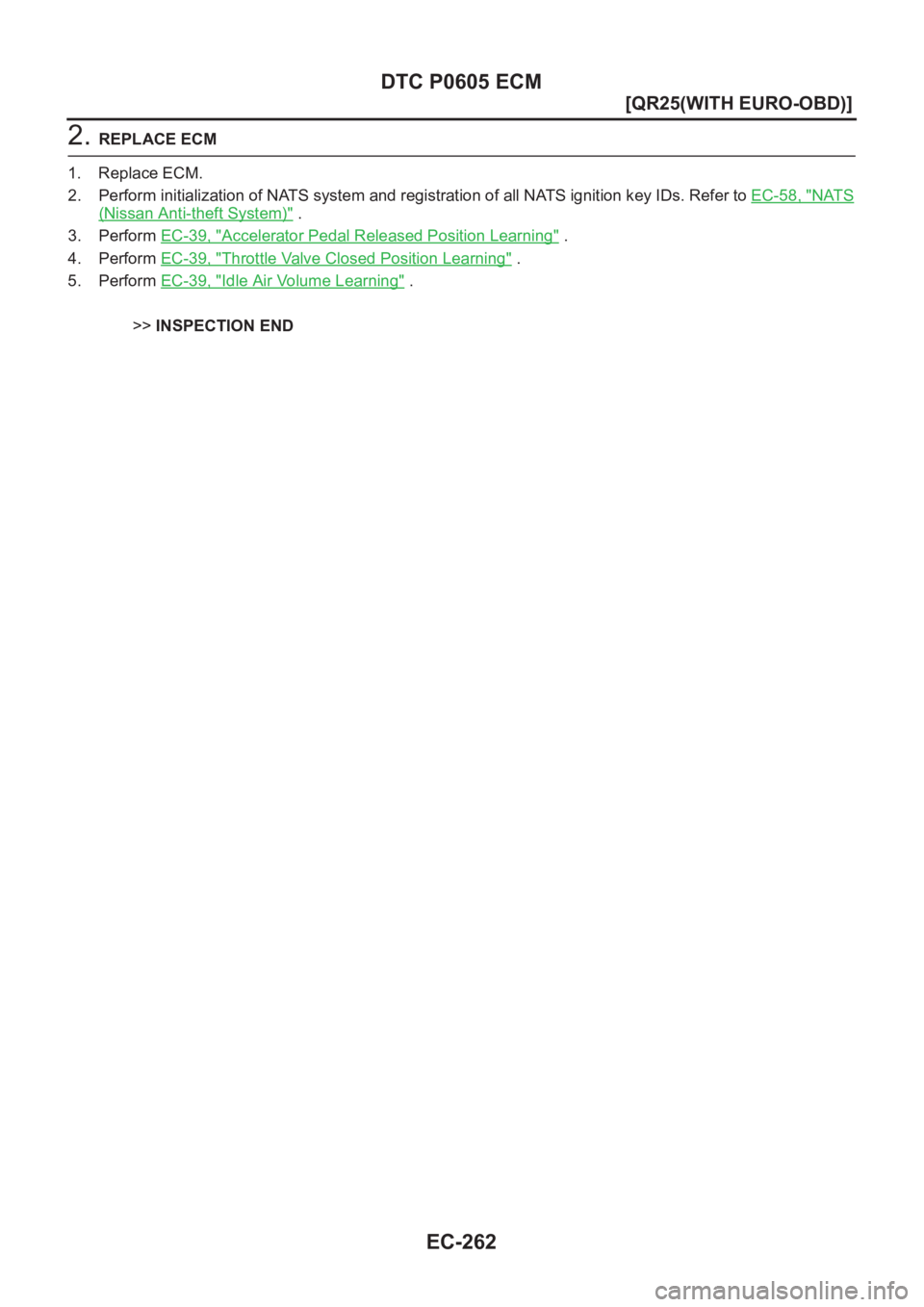

Page 612 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-262 [QR25(WITH EURO-OBD)] DTC P0605 ECM 2. REPLACE ECM 1. Replace ECM. 2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-58, " NATS (Nissan Ant

Page 613 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0650 MI EC-263 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC DTC P0650 MIPFP:24810 Component DescriptionEBS00M6Q Malfunction Indicator (MI) is located on the instrument panel. When the

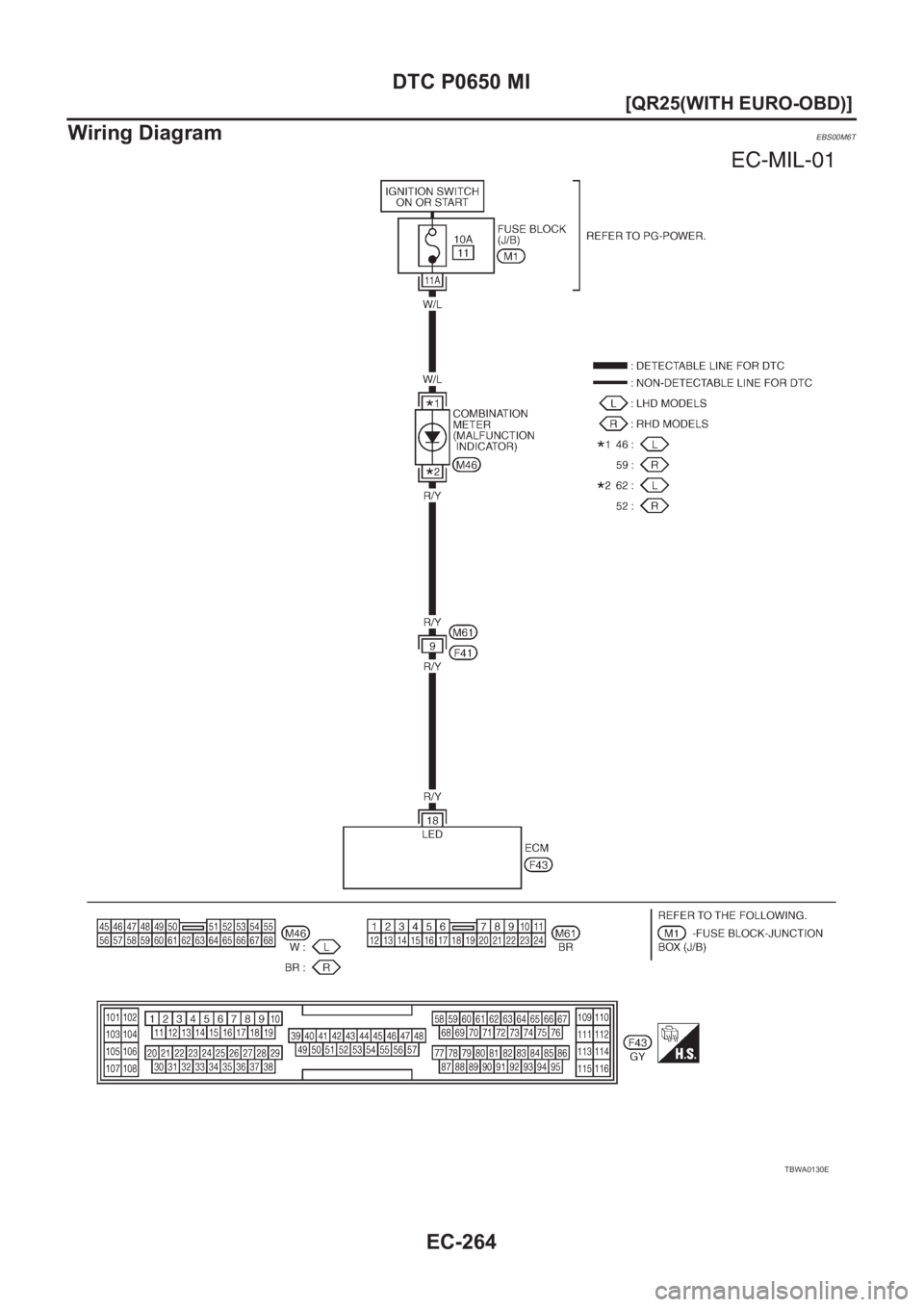

Page 614 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-264 [QR25(WITH EURO-OBD)] DTC P0650 MI Wiring Diagram EBS00M6T TBWA0130E

Page 615 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual DTC P0650 MI EC-265 [QR25(WITH EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS00M6U 1.CHECK MI POWER SUPPLY 1. Turn ignition switch “OFF”. 2. Disconnect combination meter harness conn

Page 616 of 3833

NISSAN X-TRAIL 2001 Service Repair Manual EC-266 [QR25(WITH EURO-OBD)] DTC P0650 MI 5. CHECK COMBINATION METER 1. Turn ignition switch “OFF”. 2. Disconnect combination meter harness connector. 3. Check continuity under the following condi
