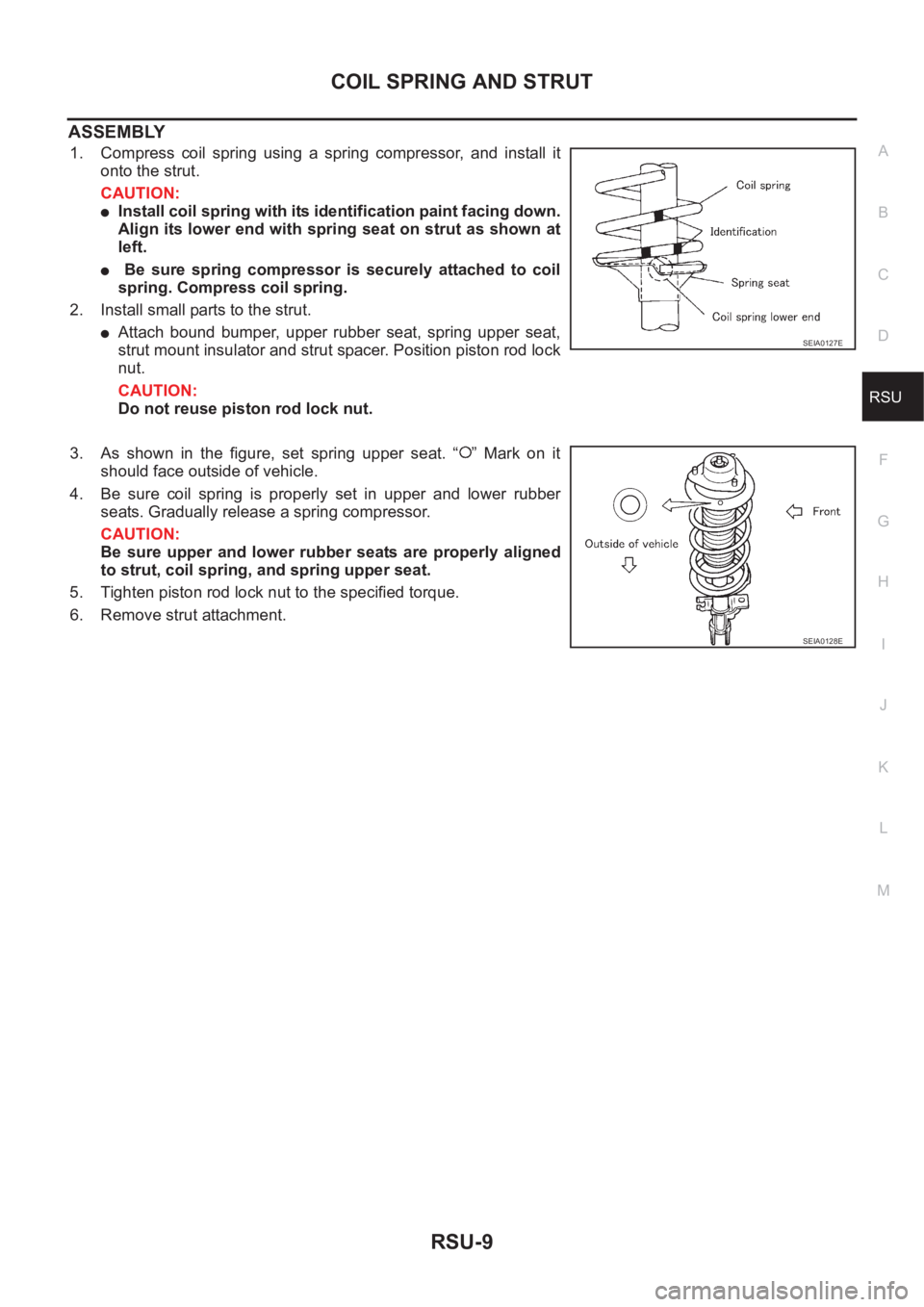

NISSAN X-TRAIL 2001  Service Repair Manual COIL SPRING AND STRUT
RSU-9
C
D
F
G
H
I
J
K
L
MA
B
RSU
ASSEMBLY
1. Compress  coil  spring  using  a  spring  compressor,  and  install  it
onto the strut.
CAUTION:
●Install coil spring with its iden

Page 2730 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual RSU-10
FRONT PARALLEL LINK
FRONT PARALLEL LINK
PFP:55120
Removal and InstallationEES0007J
REMOVAL
1. Remove tires, Raise vehicle.
2. Remove ABS wheel speed sensor wire (With ABS models).
3. Remove fro

Page 2731 of 3833

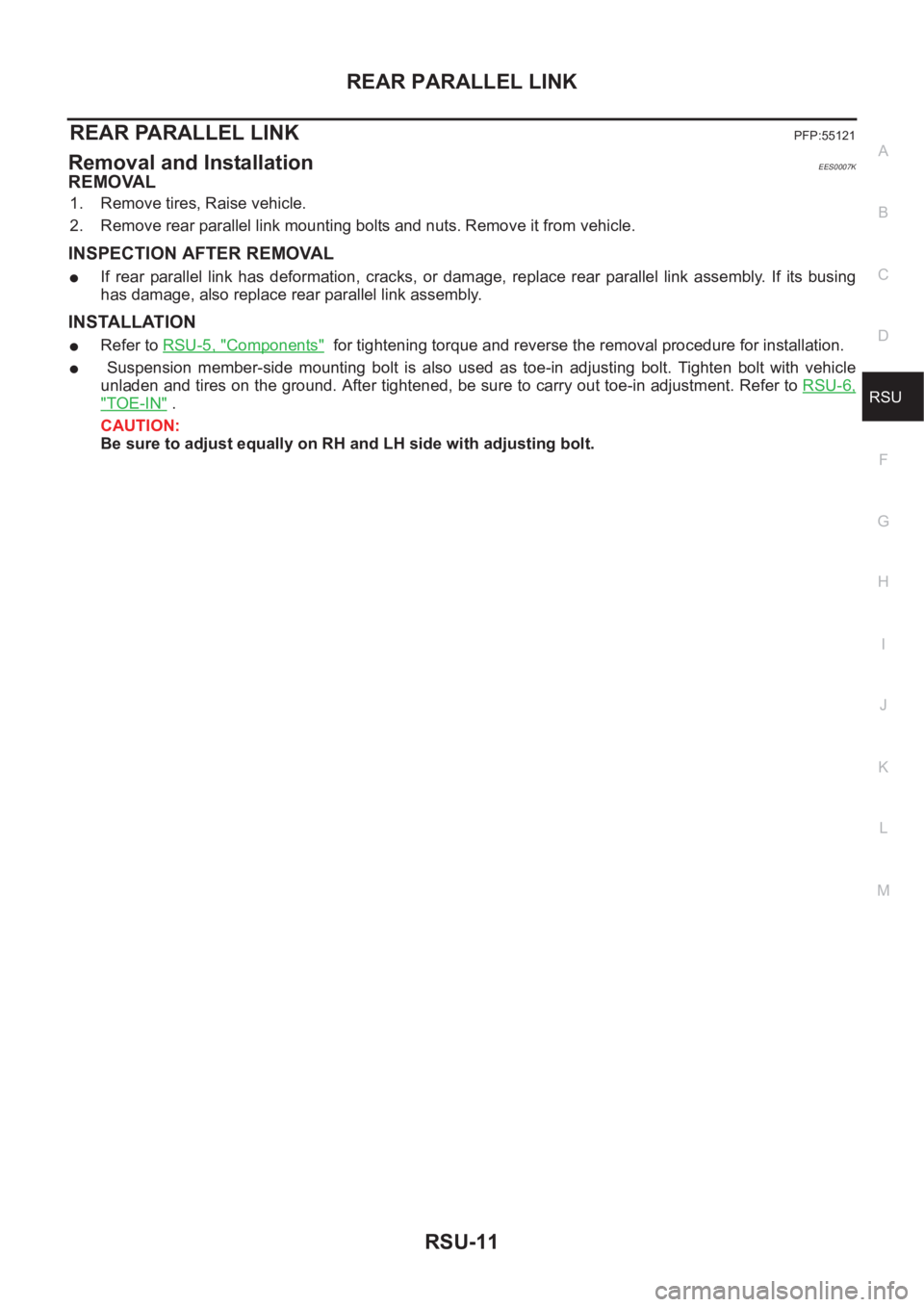

NISSAN X-TRAIL 2001  Service Repair Manual REAR PARALLEL LINK
RSU-11
C
D
F
G
H
I
J
K
L
MA
B
RSU
REAR PARALLEL LINKPFP:55121
Removal and InstallationEES0007K
REMOVAL
1. Remove tires, Raise vehicle.
2. Remove rear parallel link mounting bolts an

Page 2732 of 3833

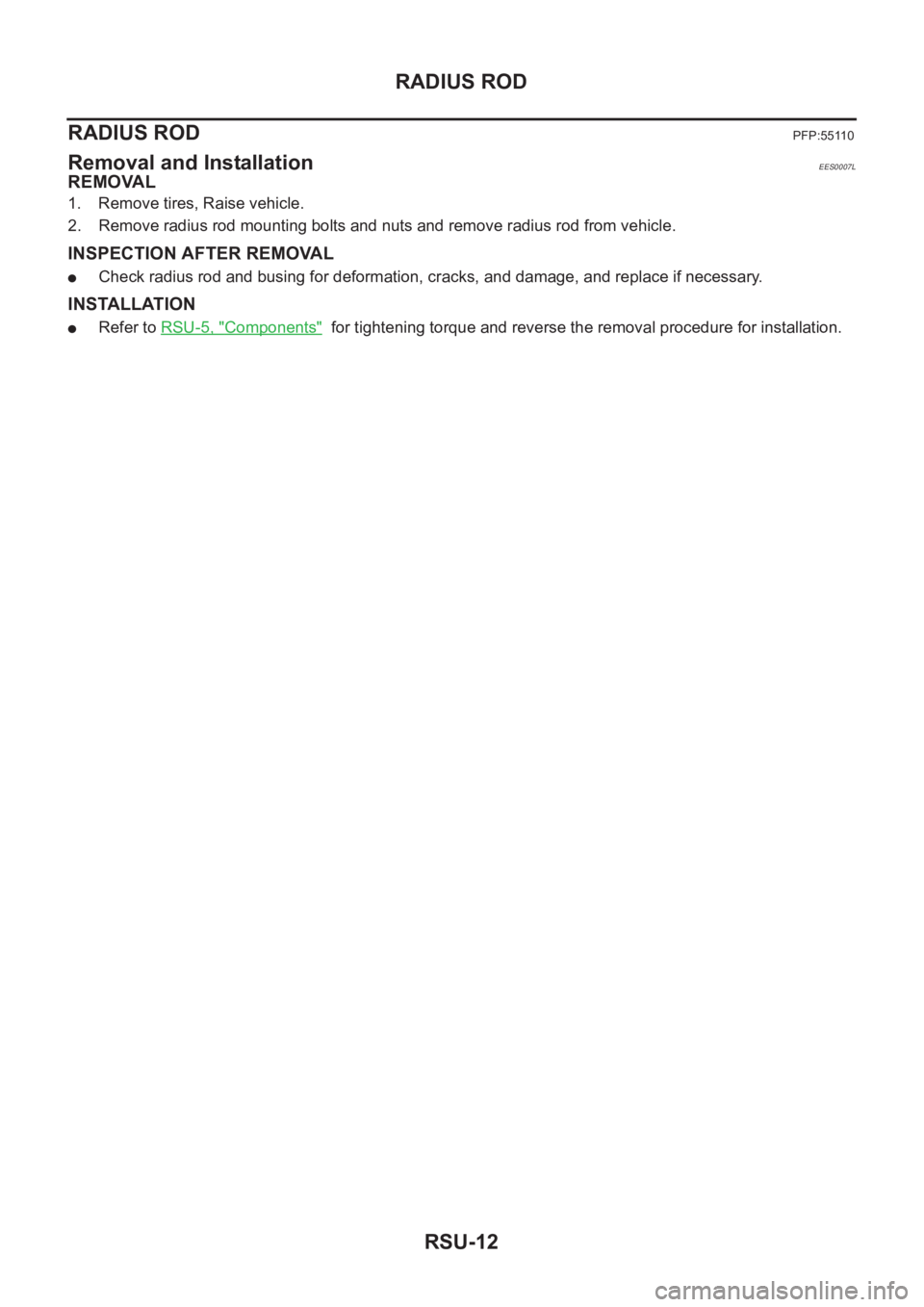

NISSAN X-TRAIL 2001  Service Repair Manual RSU-12
RADIUS ROD
RADIUS ROD
PFP:55110
Removal and InstallationEES0007L
REMOVAL
1. Remove tires, Raise vehicle.
2. Remove radius rod mounting bolts and nuts and remove radius rod from vehicle.
INSPECT

Page 2733 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual REAR SUSPENSION MEMBER
RSU-13
C
D
F
G
H
I
J
K
L
MA
B
RSU
REAR SUSPENSION MEMBERPFP:55501
Removal and InstallationEES0007M
REMOVAL
1. Remove tires. Raise vehicle.
2. Remove cotter pin. Remove wheel hub

Page 2734 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual RSU-14
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
General SpecificationEES000J7
Wheel Alignment (Unladen)EES0007N
: Fuel, radiator coolant and engine oil ful

Page 2735 of 3833

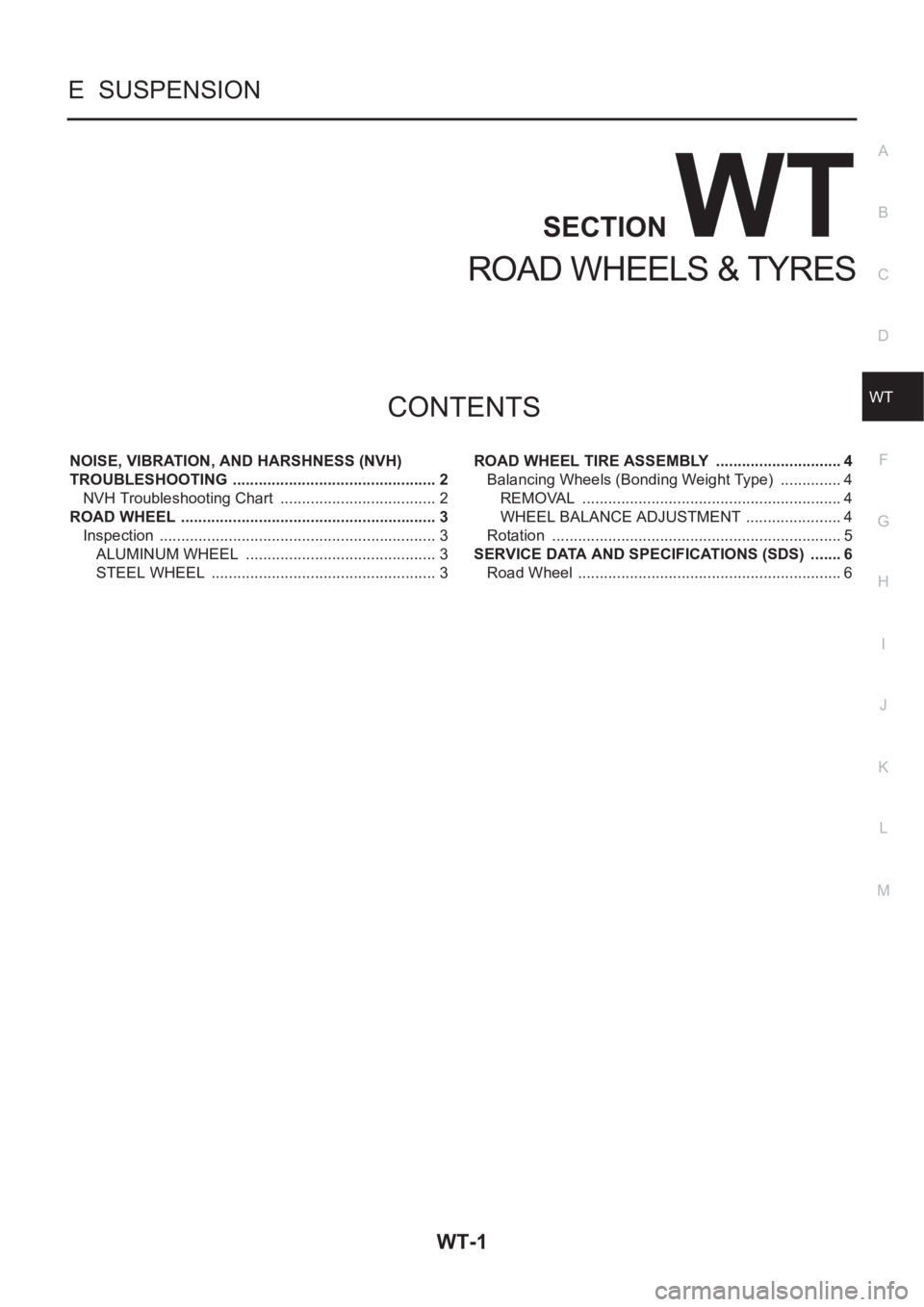

NISSAN X-TRAIL 2001  Service Repair Manual WT-1
ROAD WHEELS & TYRES
E  SUSPENSION
CONTENTS
C
D
F
G
H
I
J
K
L
M
SECTION
A
B
WT
ROAD WHEELS & TYRES
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING  .........................................

Page 2736 of 3833

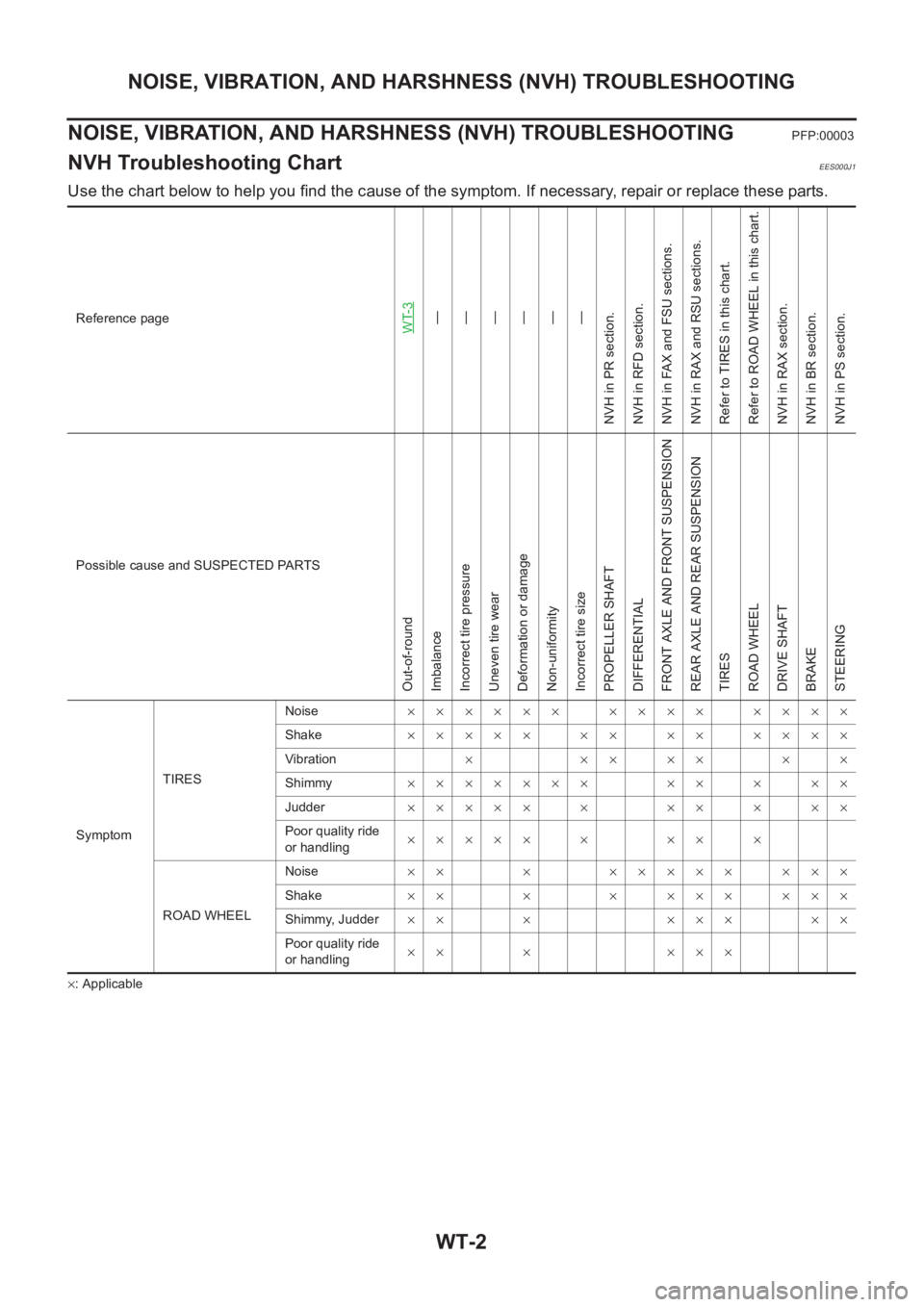

NISSAN X-TRAIL 2001  Service Repair Manual WT-2
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING
PFP:00003
NVH Troubleshooting ChartEES000J1
Use the chart below to help you find the ca
