2001 NISSAN X-TRAIL Service Repair Manual

Page 1433 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual INJECTOR CIRCUIT
EC-1083
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00N1X
The  fuel  injector  is  a  small,  precise  solenoid  valve.  When  th

Page 1434 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-1084
[QR20(WITH EURO-OBD)]
INJECTOR CIRCUIT

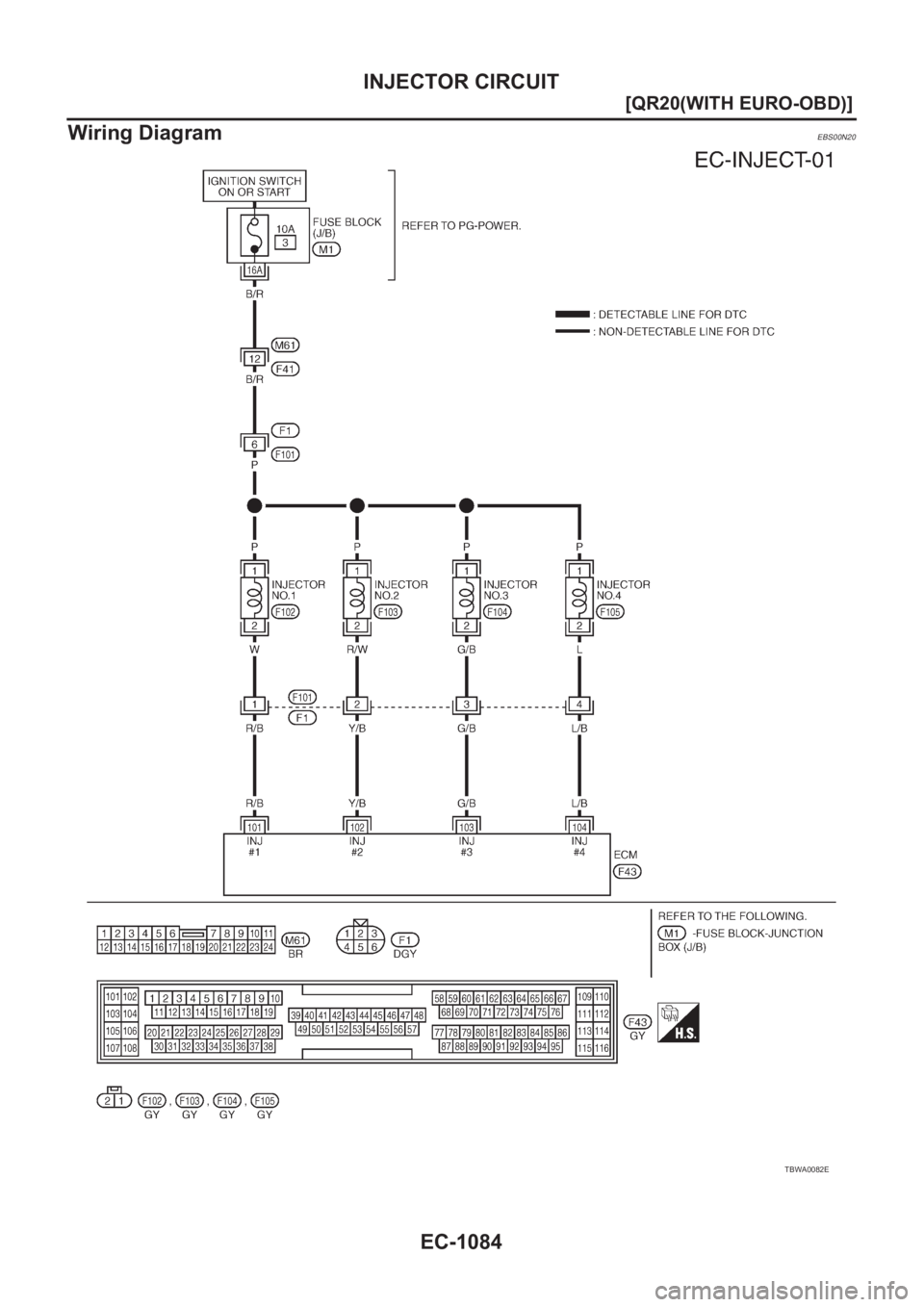

Wiring Diagram
EBS00N20
TBWA0082E

Page 1435 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual INJECTOR CIRCUIT
EC-1085
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00N21
1.INSPECTION START
Turn ignition switch to “START”.
Is any cylinder ignited?
Ye s   o r   N o

Page 1436 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-1086
[QR20(WITH EURO-OBD)]
INJECTOR CIRCUIT

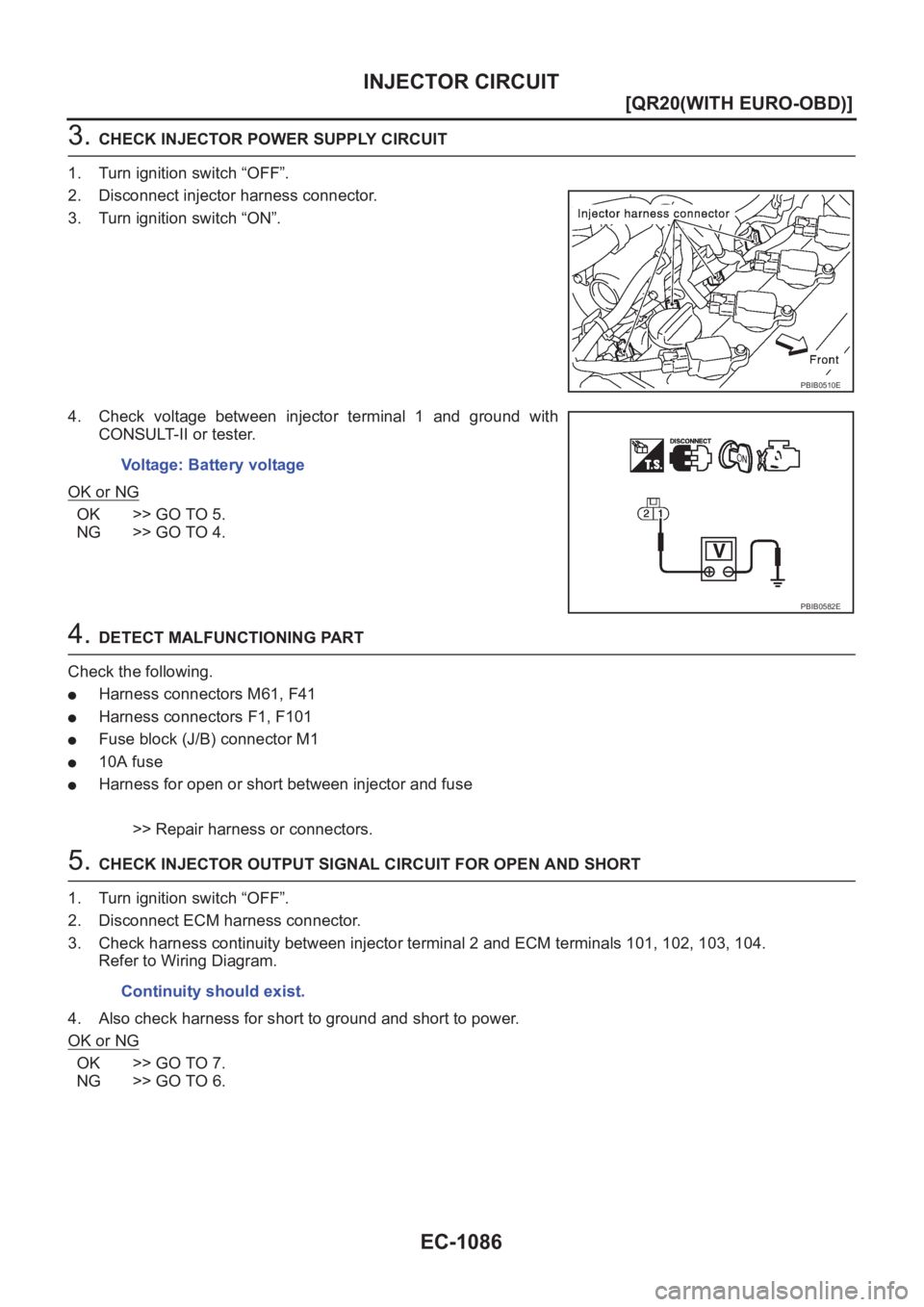

3. CHECK INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect injector harness connector.
3. Turn ignition switch “ON”.
4.

Page 1437 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual INJECTOR CIRCUIT
EC-1087
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

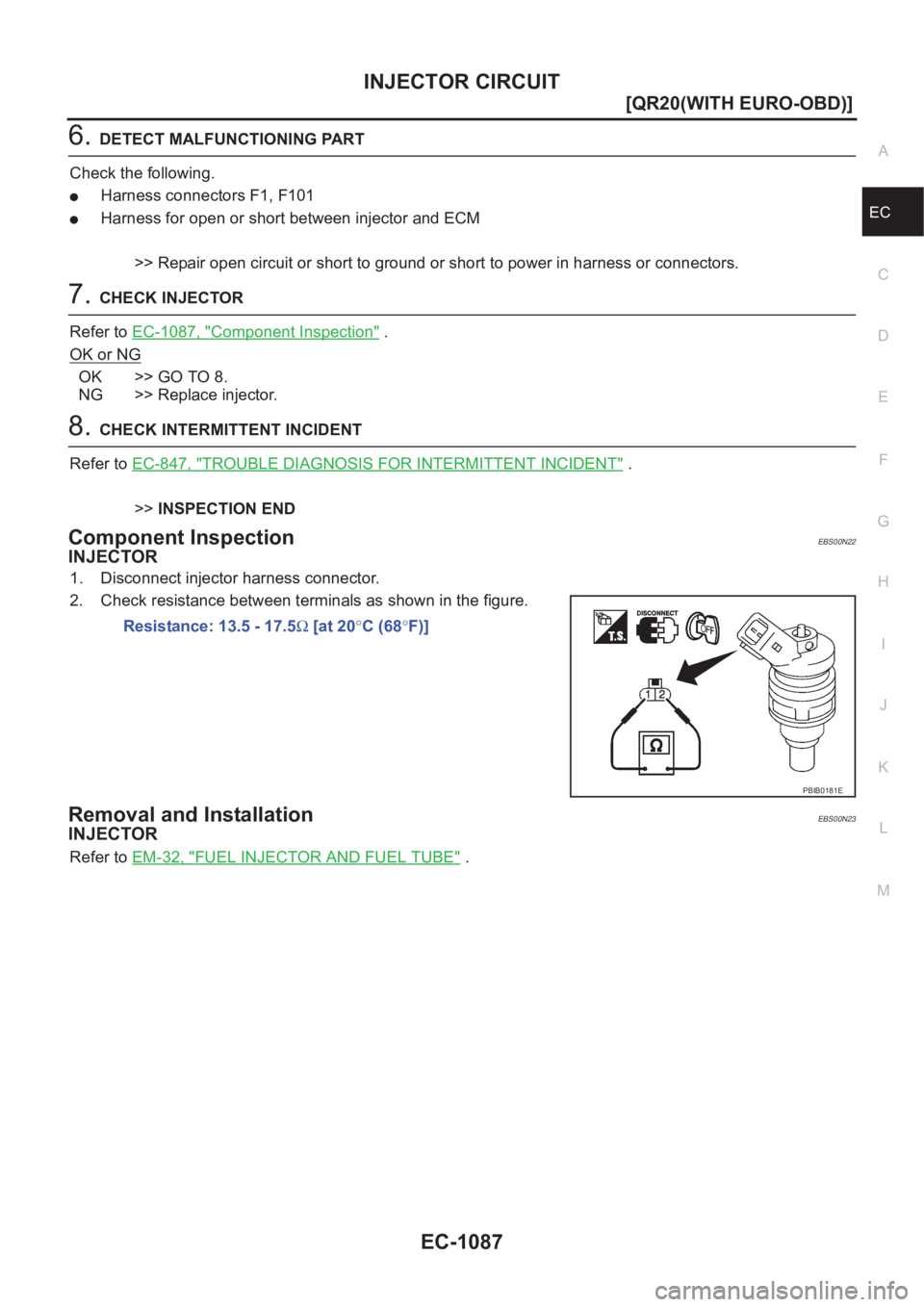

6.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors F1, F101
●Harness for open or short between injector

Page 1438 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-1088
[QR20(WITH EURO-OBD)]

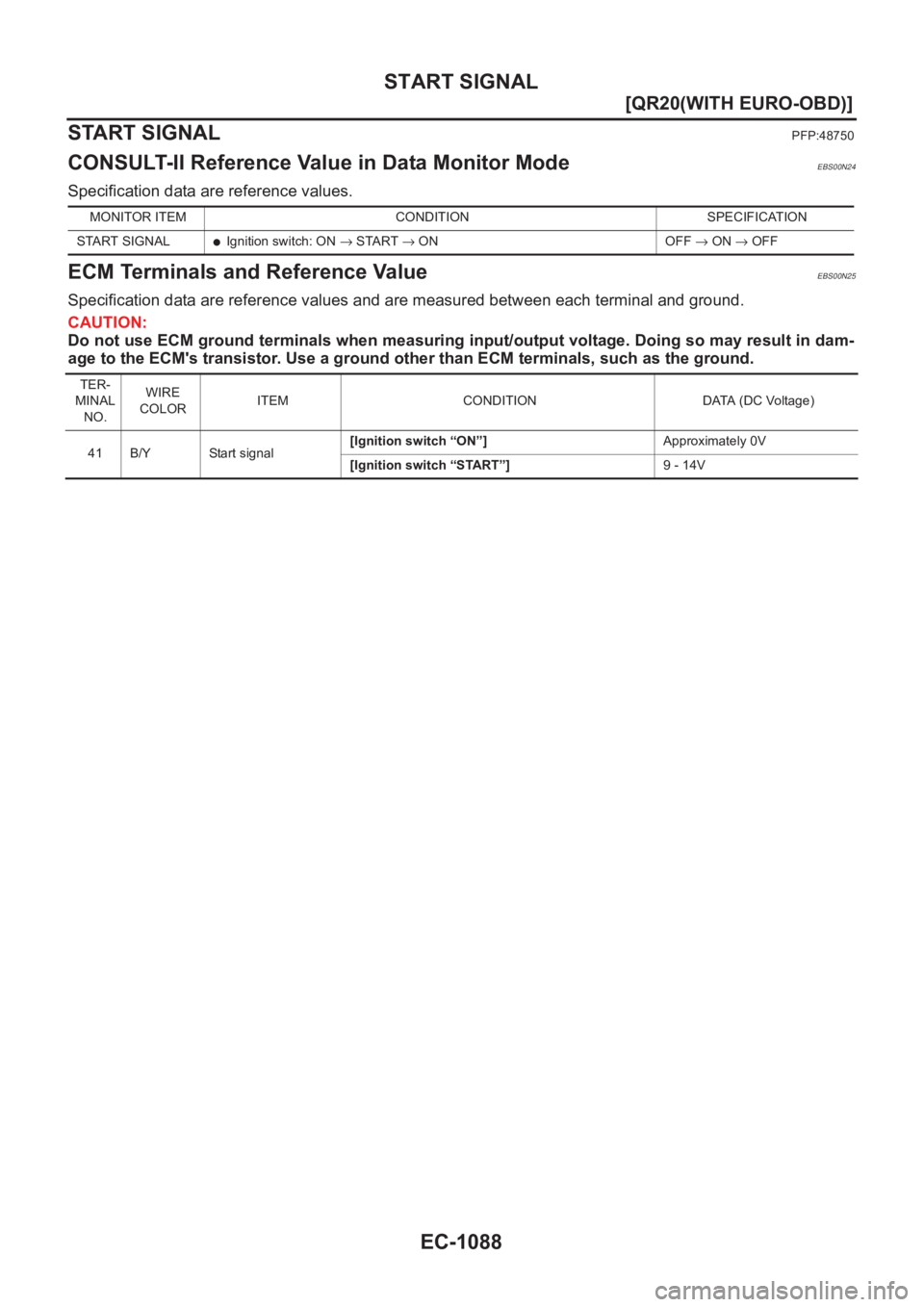

START SIGNAL
START SIGNAL
PFP:48750
CONSULT-II Reference Value in Data Monitor ModeEBS00N24
Specification data are reference values.
ECM Terminals and Reference ValueEBS0

Page 1439 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual START SIGNAL
EC-1089
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

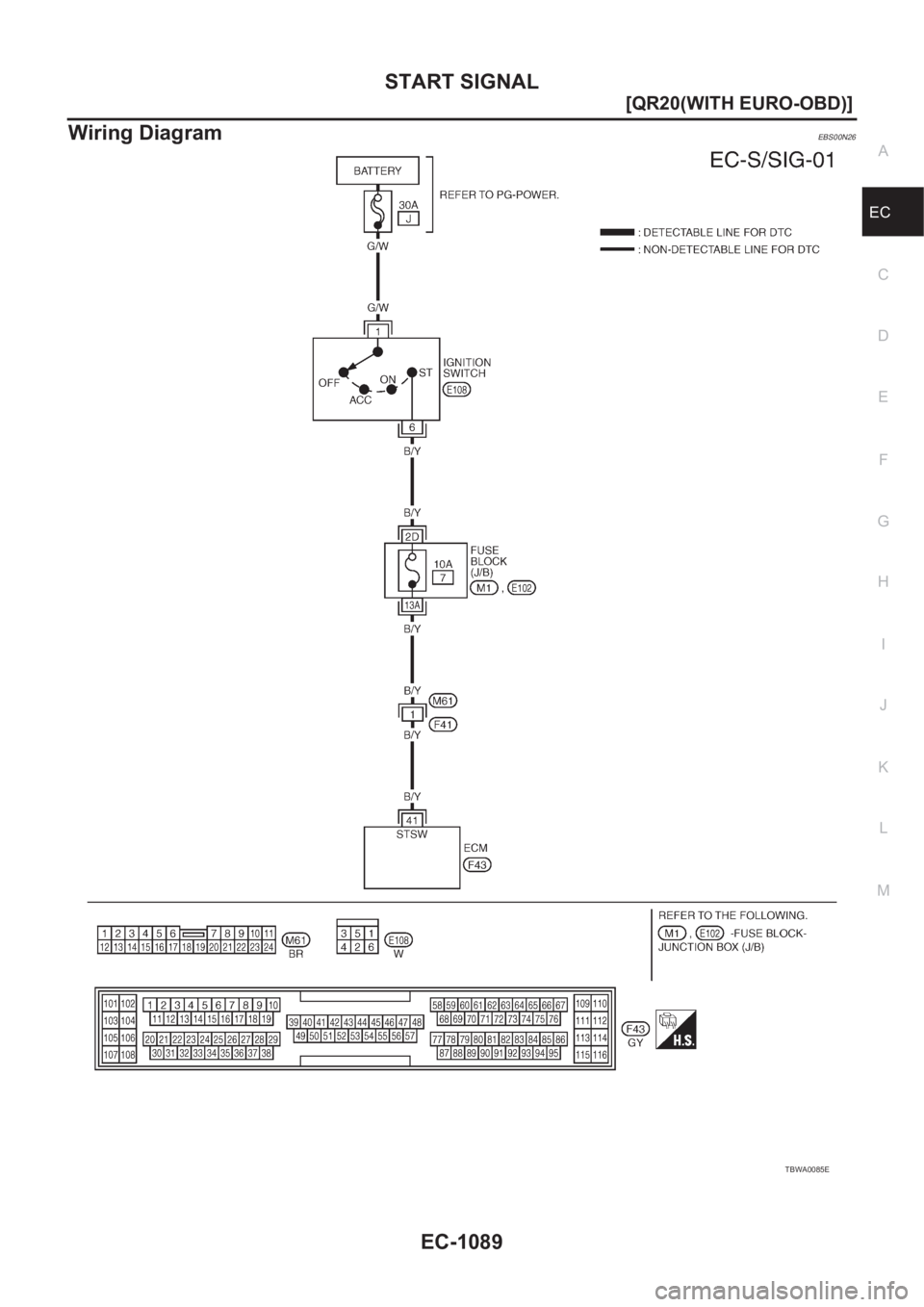

Wiring DiagramEBS00N26
TBWA0085E

Page 1440 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EC-1090
[QR20(WITH EURO-OBD)]
START SIGNAL

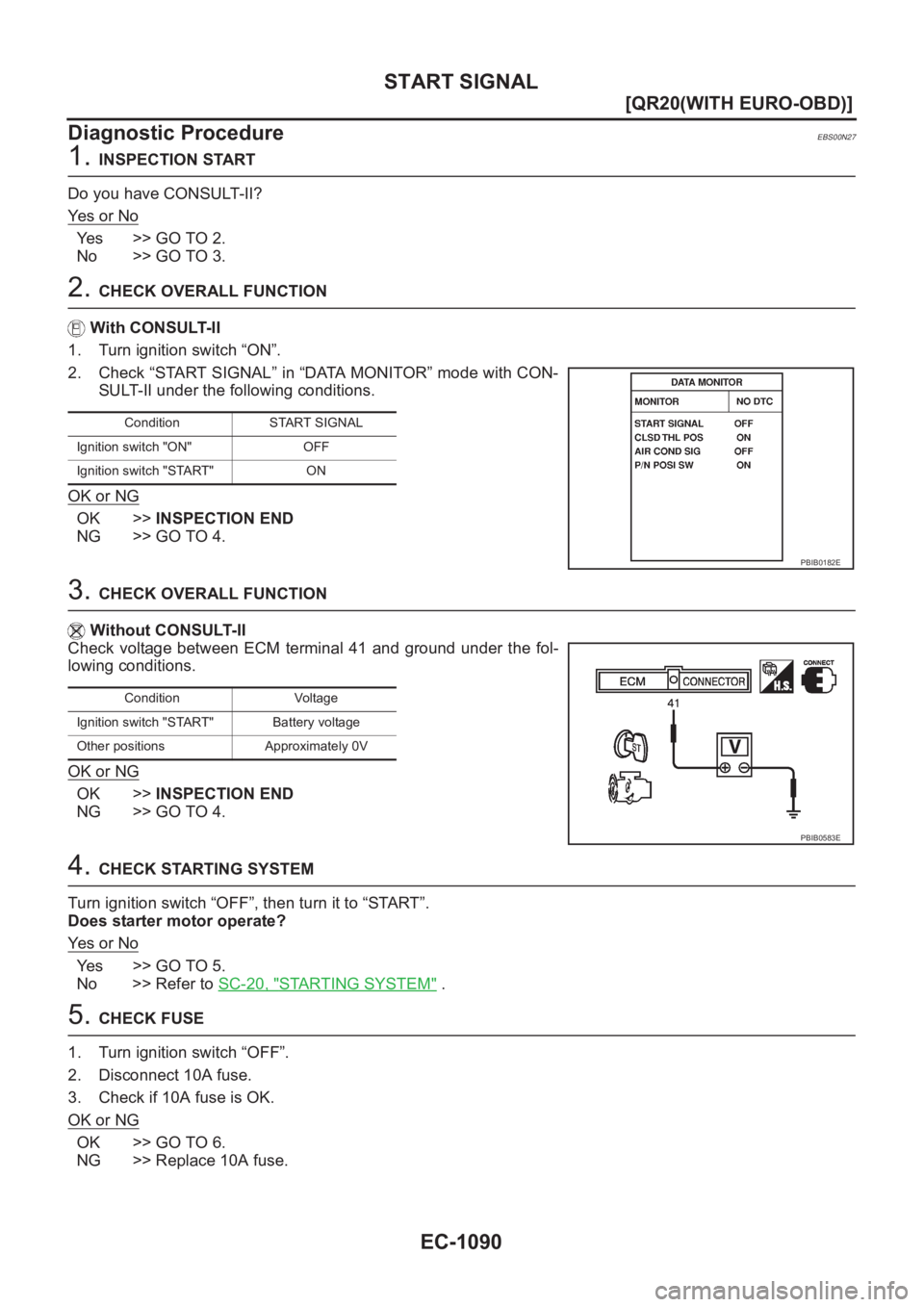

Diagnostic Procedure
EBS00N27
1. INSPECTION START
Do you have CONSULT-II?
Ye s   o r   N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK OVERALL FUNCTION
With CONS
