Page 1153 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-803
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00MST
The ECM enters fail-safe mode, if any of the following malfunctions is detected due to the open or shor NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-803
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00MST
The ECM enters fail-safe mode, if any of the following malfunctions is detected due to the open or shor](/manual-img/5/57405/w960_57405-1152.png)
TROUBLE DIAGNOSIS
EC-803
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Fail-safe ChartEBS00MST
The ECM enters fail-safe mode, if any of the following malfunctions is detected due to the open or short circuit.
When the ECM enters the fail-safe mode, the MI illuminates.
Priority Detected items (DTC)
1
●U1000 CAN communication line
●P0102 P0103 P1102 Mass air flow sensor
●P0112 P0113 Intake air temperature sensor
●P0117 P0118 Engine coolant temperature sensor
●P0120 Throttle position sensor
●P0121 Accelerator pedal position sensor
●P0327 P0328 Knock sensor
●P0335 Crankshaft position sensor (POS)
●P0340 Camshaft position sensor (PHASE)
●P0500 Vehicle speed sensor
●P0605 ECM
●P0705 Park/Neutral position (PNP) sensor
●P1706 Park/Neutral position (PNP) switch
2
●P0031 P0032 Heated oxygen sensor 1 heater
●P0037 P0038 Heated oxygen sensor 2 heater
●P0132 P0133 P0134 P1143 P1144 Heated oxygen sensor 1
●P0138 P0139 P1146 P1147 Heated oxygen sensor 2
●P0444 P0445 EVAP canister purge volume control solenoid valve
●P0550 Power steering pressure sensor
●P0650 MI
●P0710-P0725, P0740-P0755, P1705 P1760 A/T related sensors and solenoid valves
●P1065 ECM power supply
●P 1111 I n ta k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e
●P1122 Electric throttle control function
●P1123 Throttle control motor relay
●P1212 ESP/TCS/ABS communication line
●P1805 Brake switch
3
●P0011 Intake valve timing control
●P0171 P0172 Fuel injection system function
●P0300 - P0304 Misfire
●P0420 Three way catalyst function
●P0731-P0734 A/T function
●P1121 Electric throttle control actuator
●P1217 Engine over temperature (OVERHEAT)
DTC No. Detected items Engine operating condition in fail-safe mode
P0102
P0103
P1102Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
Page 1154 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-804
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition swit NISSAN X-TRAIL 2001 Service Repair Manual EC-804
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition swit](/manual-img/5/57405/w960_57405-1153.png)
EC-804
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition switch “ON” or “START”.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided (CONSULT-
II display)
Just as ignition switch is turned
ON or Start40°C (104°F)
More than approx. 4 minutes after
ignition ON or Start80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cool-
ing fan operates while engine is running.
P0120 Throttle position sensor cir-
cuitECM controls the electric throttle control actuator by regulating the throttle opening to
small range.
Therefore, acceleration will be poor.
Condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration DTC No. Detected items Engine operating condition in fail-safe mode
Page 1155 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-805
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

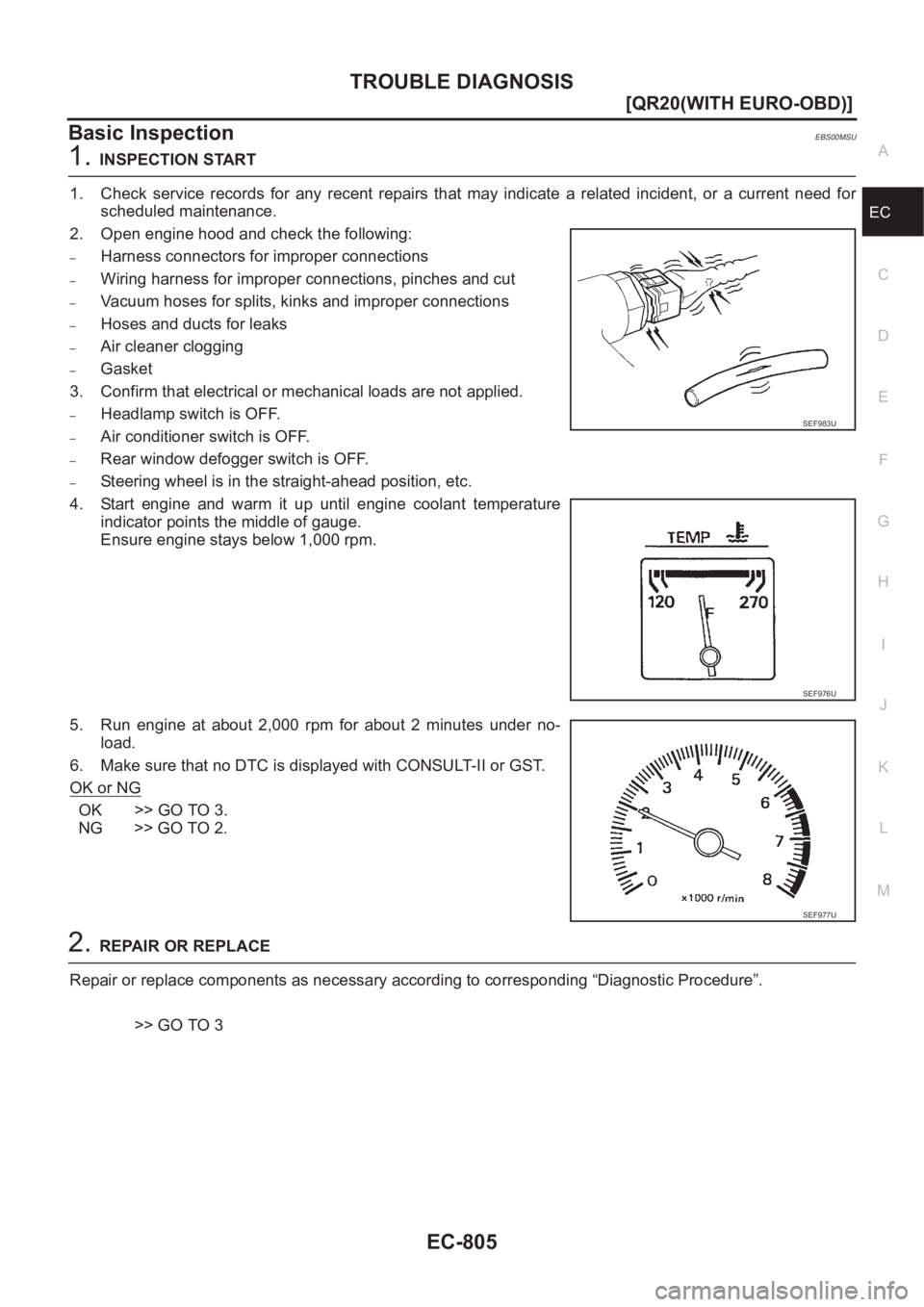

Basic InspectionEBS00MSU
1.INSPECTION START
1. Check service records for any recent repairs that may indicate a rela NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-805
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Basic InspectionEBS00MSU
1.INSPECTION START
1. Check service records for any recent repairs that may indicate a rela](/manual-img/5/57405/w960_57405-1154.png)
TROUBLE DIAGNOSIS
EC-805
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Basic InspectionEBS00MSU
1.INSPECTION START
1. Check service records for any recent repairs that may indicate a related incident, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
–Harness connectors for improper connections
–Wiring harness for improper connections, pinches and cut
–Vacuum hoses for splits, kinks and improper connections
–Hoses and ducts for leaks
–Air cleaner clogging
–Gasket
3. Confirm that electrical or mechanical loads are not applied.
–Headlamp switch is OFF.
–Air conditioner switch is OFF.
–Rear window defogger switch is OFF.
–Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no-
load.
6. Make sure that no DTC is displayed with CONSULT-II or GST.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2.REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding “Diagnostic Procedure”.
>> GO TO 3
SEF983U
SEF976U
SEF977U
Page 1156 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-806
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
3. CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) t NISSAN X-TRAIL 2001 Service Repair Manual EC-806
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
3. CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) t](/manual-img/5/57405/w960_57405-1155.png)

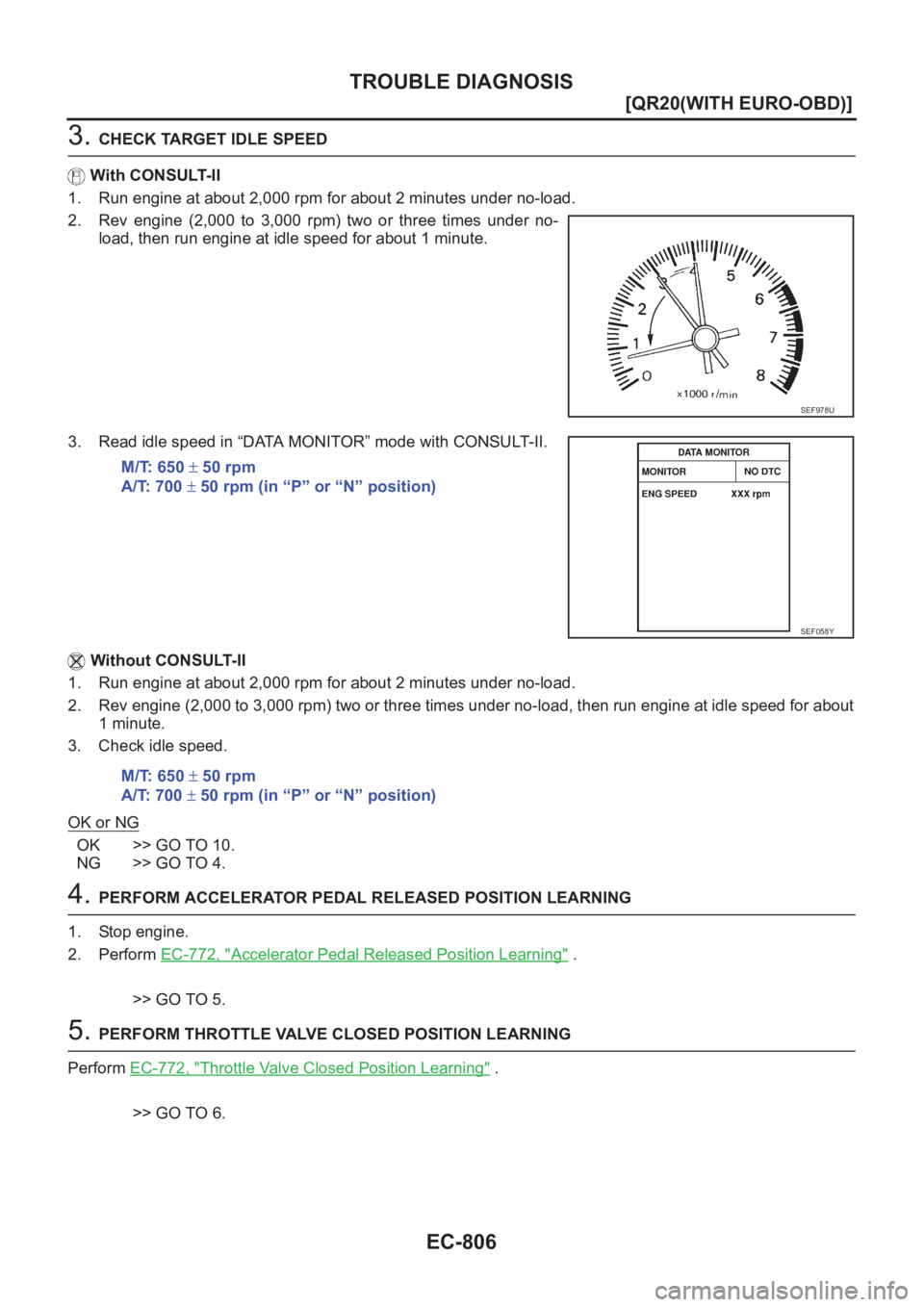

EC-806
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
3. CHECK TARGET IDLE SPEED
With CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) two or three times under no-
load, then run engine at idle speed for about 1 minute.
3. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Run engine at about 2,000 rpm for about 2 minutes under no-load.
2. Rev engine (2,000 to 3,000 rpm) two or three times under no-load, then run engine at idle speed for about
1 minute.
3. Check idle speed.
OK or NG
OK >> GO TO 10.
NG >> GO TO 4.
4. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-772, "
Accelerator Pedal Released Position Learning" .
>> GO TO 5.
5. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-772, "
Throttle Valve Closed Position Learning" .
>> GO TO 6.
SEF978U
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
SEF058Y
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
Page 1157 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-807
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

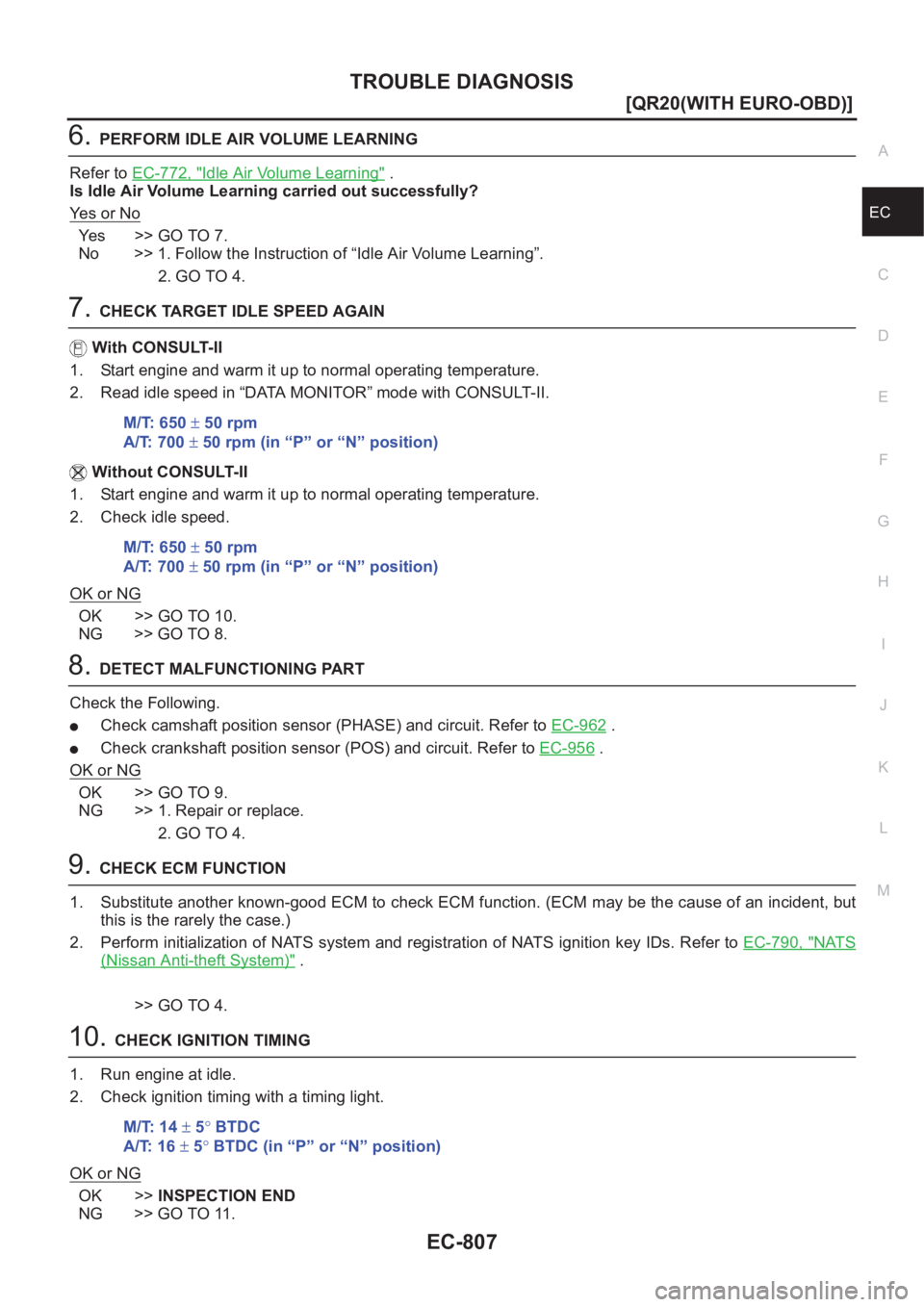

6.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-772, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried o NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-807
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-772, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried o](/manual-img/5/57405/w960_57405-1156.png)
TROUBLE DIAGNOSIS
EC-807
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-772, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Ye s > > G O T O 7 .
No >> 1. Follow the Instruction of “Idle Air Volume Learning”.
2. GO TO 4.
7.CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
OK or NG
OK >> GO TO 10.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the Following.
●Check camshaft position sensor (PHASE) and circuit. Refer to EC-962 .
●Check crankshaft position sensor (POS) and circuit. Refer to EC-956 .
OK or NG
OK >> GO TO 9.
NG >> 1. Repair or replace.
2. GO TO 4.
9.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is the rarely the case.)
2. Perform initialization of NATS system and registration of NATS ignition key IDs. Refer to EC-790, "
NATS
(Nissan Anti-theft System)" .
>> GO TO 4.
10.CHECK IGNITION TIMING
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 11.M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 14 ± 5° BTDC
A/T: 16 ± 5° BTDC (in “P” or “N” position)
Page 1158 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-808
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
11 . PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-772, "
Accelerator Pedal Released Position Learning" .
> NISSAN X-TRAIL 2001 Service Repair Manual EC-808
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
11 . PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-772, "
Accelerator Pedal Released Position Learning" .
>](/manual-img/5/57405/w960_57405-1157.png)

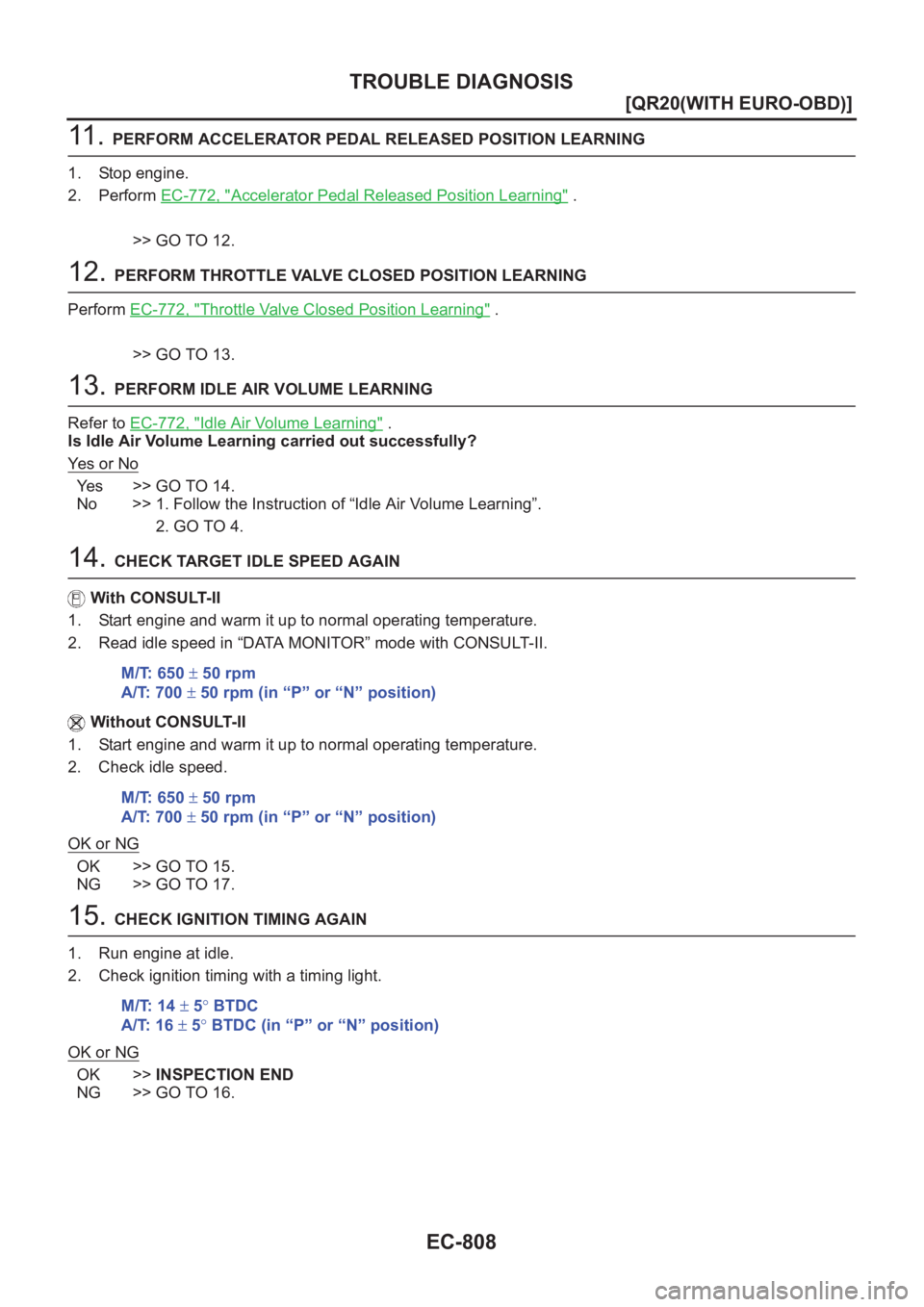

EC-808
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
11 . PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-772, "
Accelerator Pedal Released Position Learning" .
>> GO TO 12.
12. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-772, "
Throttle Valve Closed Position Learning" .
>> GO TO 13.
13. PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-772, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes >> GO TO 14.
No >> 1. Follow the Instruction of “Idle Air Volume Learning”.
2. GO TO 4.
14. CHECK TARGET IDLE SPEED AGAIN
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
OK or NG
OK >> GO TO 15.
NG >> GO TO 17.
15. CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 650 ± 50 rpm
A/T: 700 ± 50 rpm (in “P” or “N” position)
M/T: 14 ± 5° BTDC
A/T: 16 ± 5° BTDC (in “P” or “N” position)
Page 1159 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-809
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

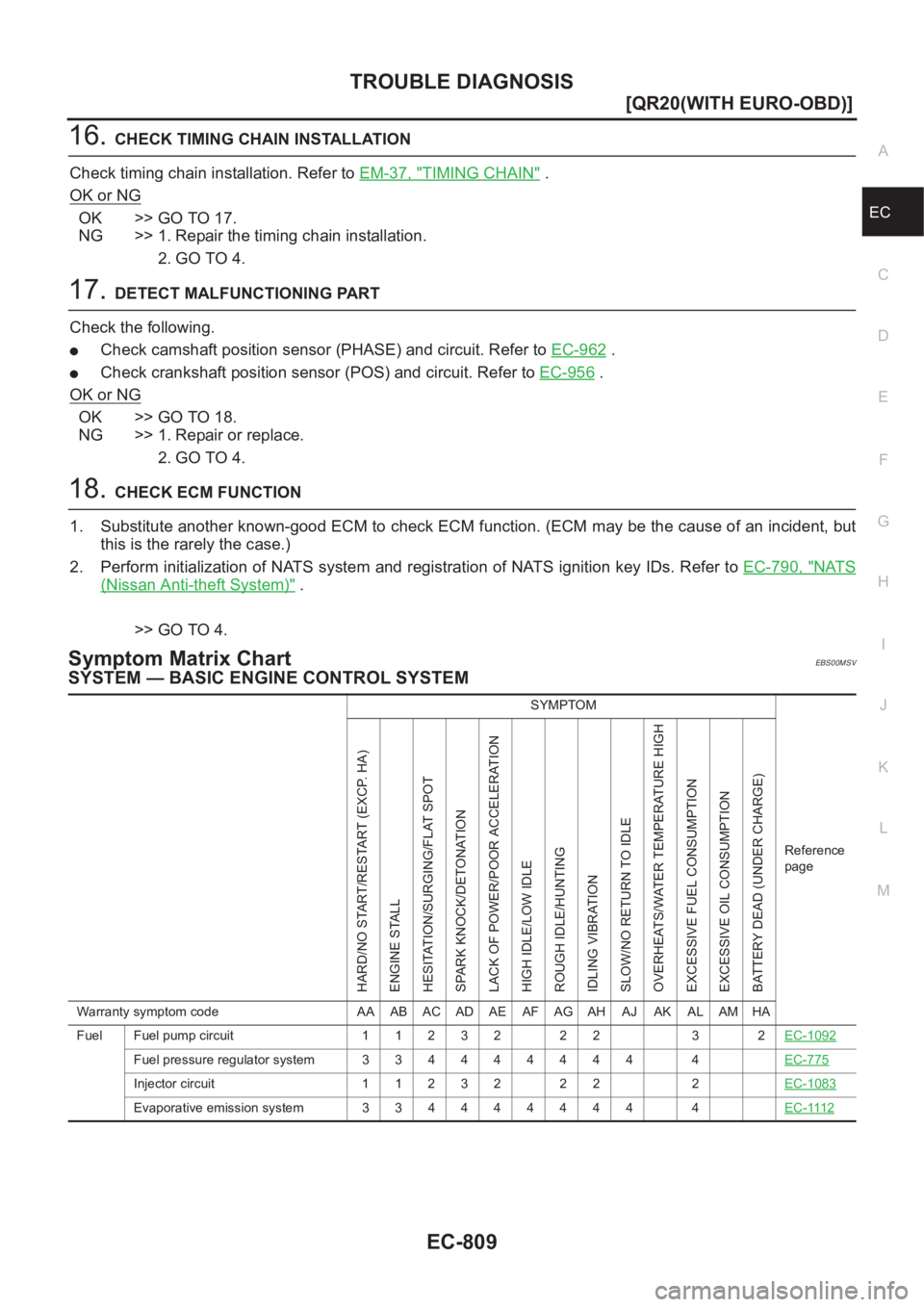

16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-37, "
TIMING CHAIN" .
OK or NG
OK >> GO NISSAN X-TRAIL 2001 Service Repair Manual TROUBLE DIAGNOSIS
EC-809
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-37, "
TIMING CHAIN" .
OK or NG
OK >> GO](/manual-img/5/57405/w960_57405-1158.png)
TROUBLE DIAGNOSIS
EC-809
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-37, "
TIMING CHAIN" .
OK or NG
OK >> GO TO 17.
NG >> 1. Repair the timing chain installation.
2. GO TO 4.
17.DETECT MALFUNCTIONING PART
Check the following.
●Check camshaft position sensor (PHASE) and circuit. Refer to EC-962 .
●Check crankshaft position sensor (POS) and circuit. Refer to EC-956 .
OK or NG
OK >> GO TO 18.
NG >> 1. Repair or replace.
2. GO TO 4.
18.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is the rarely the case.)
2. Perform initialization of NATS system and registration of NATS ignition key IDs. Refer to EC-790, "
NATS
(Nissan Anti-theft System)" .
>> GO TO 4.
Symptom Matrix ChartEBS00MSV
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-1092
Fuel pressure regulator system334444444 4EC-775
Injector circuit 11232 22 2EC-1083
Evaporative emission system334444444 4EC-1112
Page 1160 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EC-810
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Air Positive crankcase ventilation sys-
tem334444444 41E C - 111 5
Incorrect NISSAN X-TRAIL 2001 Service Repair Manual EC-810
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Air Positive crankcase ventilation sys-
tem334444444 41E C - 111 5
Incorrect](/manual-img/5/57405/w960_57405-1159.png)
EC-810
[QR20(WITH EURO-OBD)]
TROUBLE DIAGNOSIS
1 - 6: The numbers refer to the order of inspection.
(continued on next page)Air Positive crankcase ventilation sys-
tem334444444 41E C - 111 5
Incorrect idle speed adjustment 33 1111 1EC-805
Electric throttle control actuator 112332222 2 2EC-1010
,
EC-1012
,
EC-1018
IgnitionIncorrect ignition timing adjustment33111 11 1EC-805
Ignition circuit 11222 22 2EC-1074
Main power supply and ground circuit 22333 33 23EC-848
Mass air flow sensor circuit 11222 22 2EC-870,
EC-999
Engine coolant temperature sensor circuit 11222322312EC-881
Throttle position sensor circuit 12 22222 2EC-886
Accelerator pedal position sensor circuit3212 2EC-893
Heated oxygen sensor 1 circuit 1232 22 2EC-899
,
EC-905
,
EC-914
,
EC-1023
,
EC-1029
Knock sensor circuit 2 2 3EC-951
Crankshaft position sensor (POS) circuit 2 2EC-956
Camshaft position sensor (PHASE) circuit 2 2EC-962
Vehicle speed signal circuit 2 3 3 3EC-978
Power steering pressure sensor circuit 2 3333EC-983
ECM 22333333333EC-988,
EC-995
Intake valve timing control solenoid valve cir-
cuit332 13223 3EC-857,
EC-1005
PNP switch circuit 3 3 3 3 3 3 3EC-1064
Start signal circuit 2EC-1088
Refrigerant pressure sensor circuit 2 3333 4EC-1099
Electrical load signal circuit3333EC-1103
Air conditioner circuit 223333333 3 2AT C - 3 3
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
