NISSAN X-TRAIL 2001 Service Repair Manual ENGINE ASSEMBLY
EM-71
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
●Use a manual lift table caddy or equivalently rigid tool such as
a jack or trestle. Securely support bottom of engine and tran-
saxle, and simul

ENGINE ASSEMBLY
EM-71
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
●Use a manual lift table caddy or equivalently rigid tool such as
a jack or trestle. Securely support bottom of engine and tran-
saxle, and simultaneously adjust hoist tension.
CAUTION:
Put a piece of wood or something similar as the support-
ing surface, secure a completely stable condition.
23. Remove RH engine mounting insulator.
24. Pull LH engine mounting through-bolt out.
25. Remove mounting bolts at front end of center member.
26. Remove front suspension member mounting bolts and nuts.
27. Remove engine, transaxle and transfer assembly with suspen-
sion member from vehicle downward by carefully operating sup-
porting tools.
CAUTION:
●During the operation, make sure that no part interferes
with body side.
●Before and during this lifting, always check if any har-
nesses are left connected.
●During the removal operation, always be careful to pre-
vent vehicle from falling off the lift due to changes in the center of gravity.
●If necessary, support vehicle by setting a jack or equivalent tool at the rear.
28. Remove power steering pump with piping connected from engine. Move it aside on suspension member.
29. Remove front engine mounting and rear engine mounting through-bolts to remove suspension member.
30. Remove starter motor.
31. Separate engine and transaxle. Refer to MT-15, "
TRANSAXLE ASSEMBLY" (M/T models) or AT- 4 1 8 ,
"REMOVAL AND INSTALLATION" (A/T models)
INSTALLATION
Install in the reverse order of removal.
●Do not allow engine oil to get on mounting insulator. Be careful not to damage mounting insulator.
●When installation directions are specified, install parts according to the direction marks on them referring
to components illustration.
●Make sure that each mounting insulator is seated properly, and tighten mounting bolts and nuts.
INSPECTION AFTER INSTALLATION
●Before starting engine, check the levels of engine coolant, lubrications and working engine oils. If less
than required quantity, fill to the specified level.
●Run engine to check for unusual noise and vibration.
●Warm up engine thoroughly to make sure there is no leakage of engine coolant, lubricants, working
engine oil, fuel and exhaust gas.
KBIA0256E
KBIA0257E
KBIA0270E

Page 122 of 3833

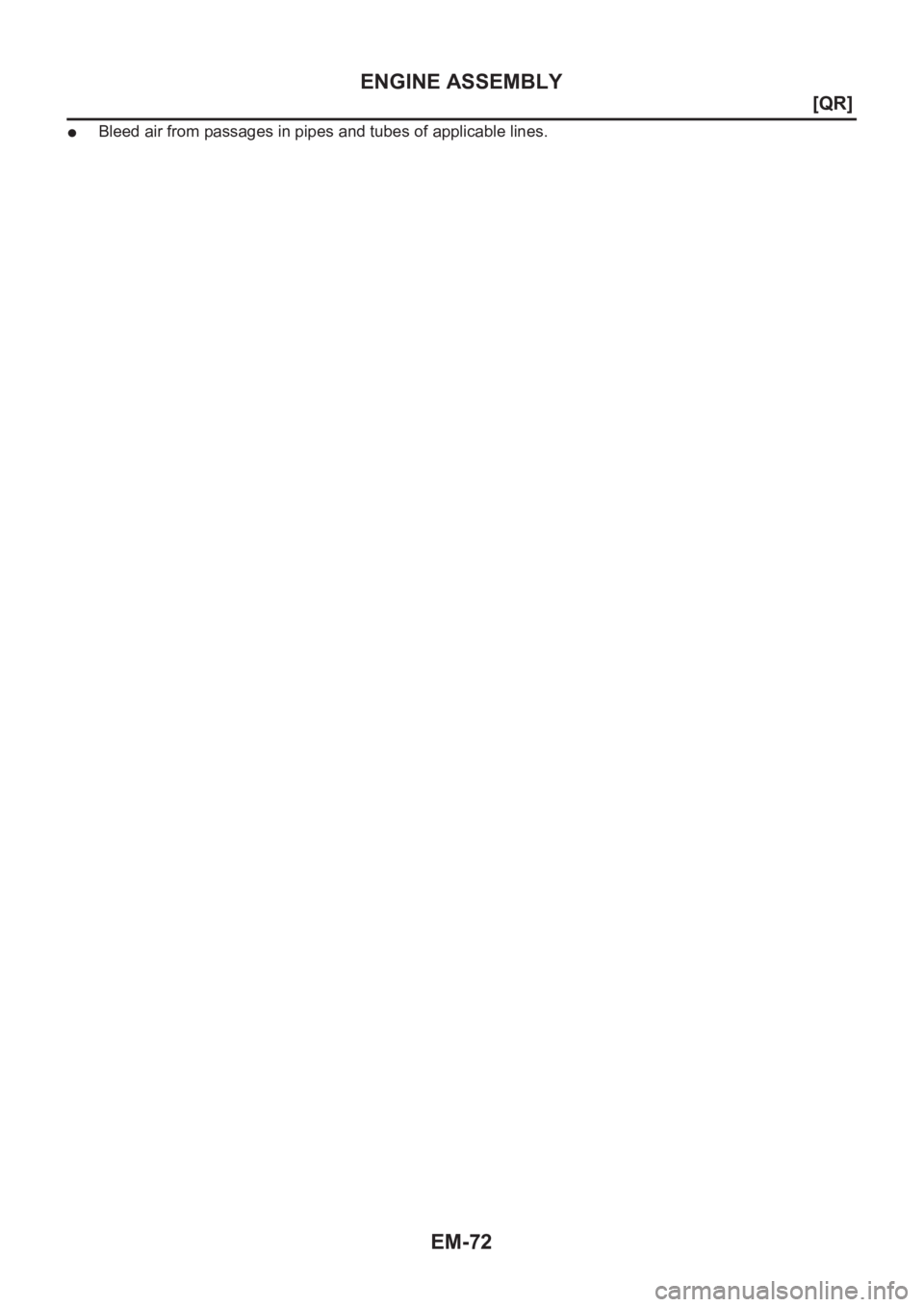

NISSAN X-TRAIL 2001 Service Repair Manual EM-72
[QR]
ENGINE ASSEMBLY
●Bleed air from passages in pipes and tubes of applicable lines.

Page 123 of 3833

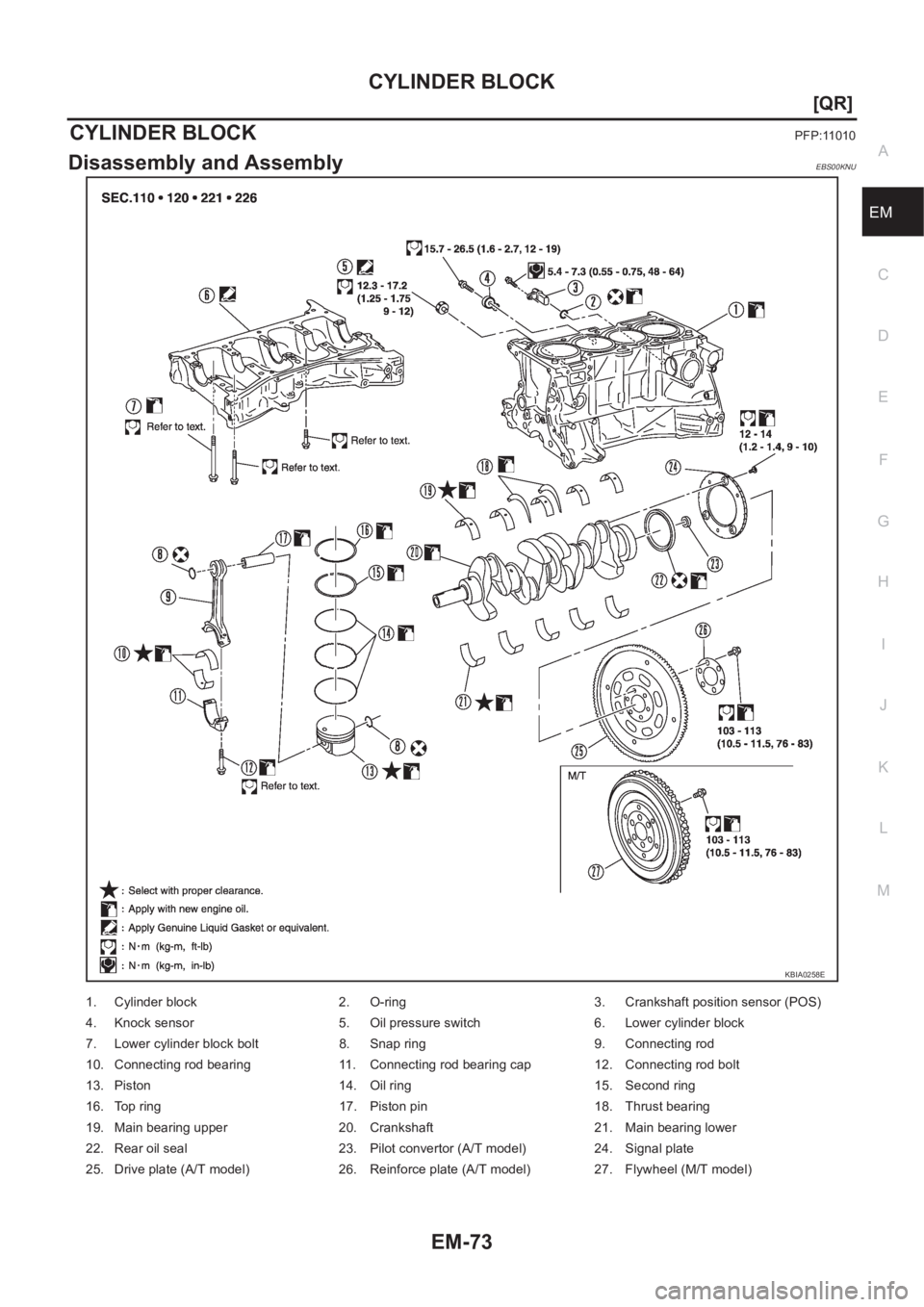

NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-73
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
CYLINDER BLOCKPFP:11010
Disassembly and AssemblyEBS00KNU
KBIA0258E
1. Cylinder block 2. O-ring 3. Crankshaft position sensor (POS)
4. Knock sensor 5

Page 124 of 3833

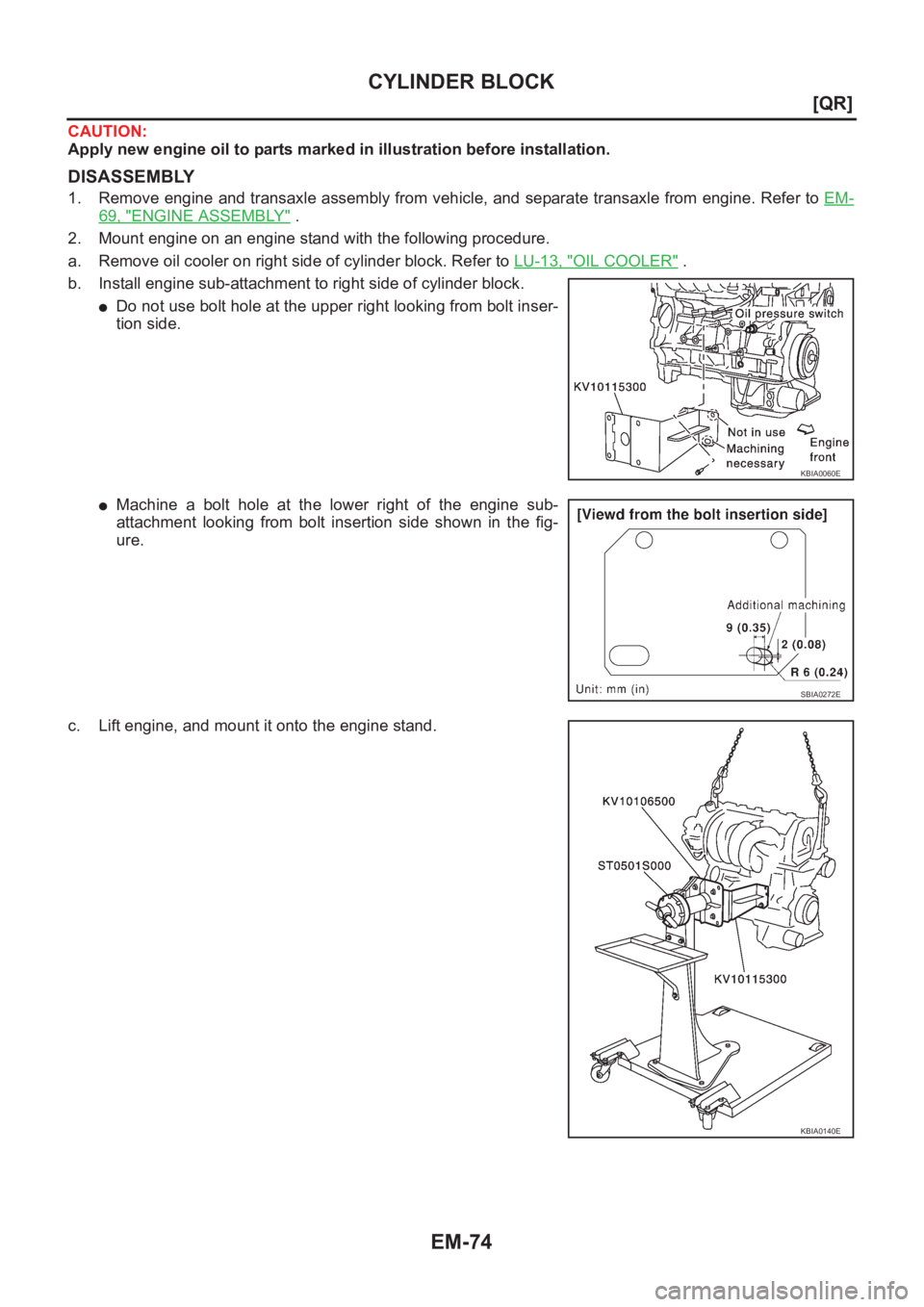

NISSAN X-TRAIL 2001 Service Repair Manual EM-74
[QR]
CYLINDER BLOCK
CAUTION:
Apply new engine oil to parts marked in illustration before installation.
DISASSEMBLY
1. Remove engine and transaxle assembly from vehicle, and separate transaxle fr

Page 125 of 3833

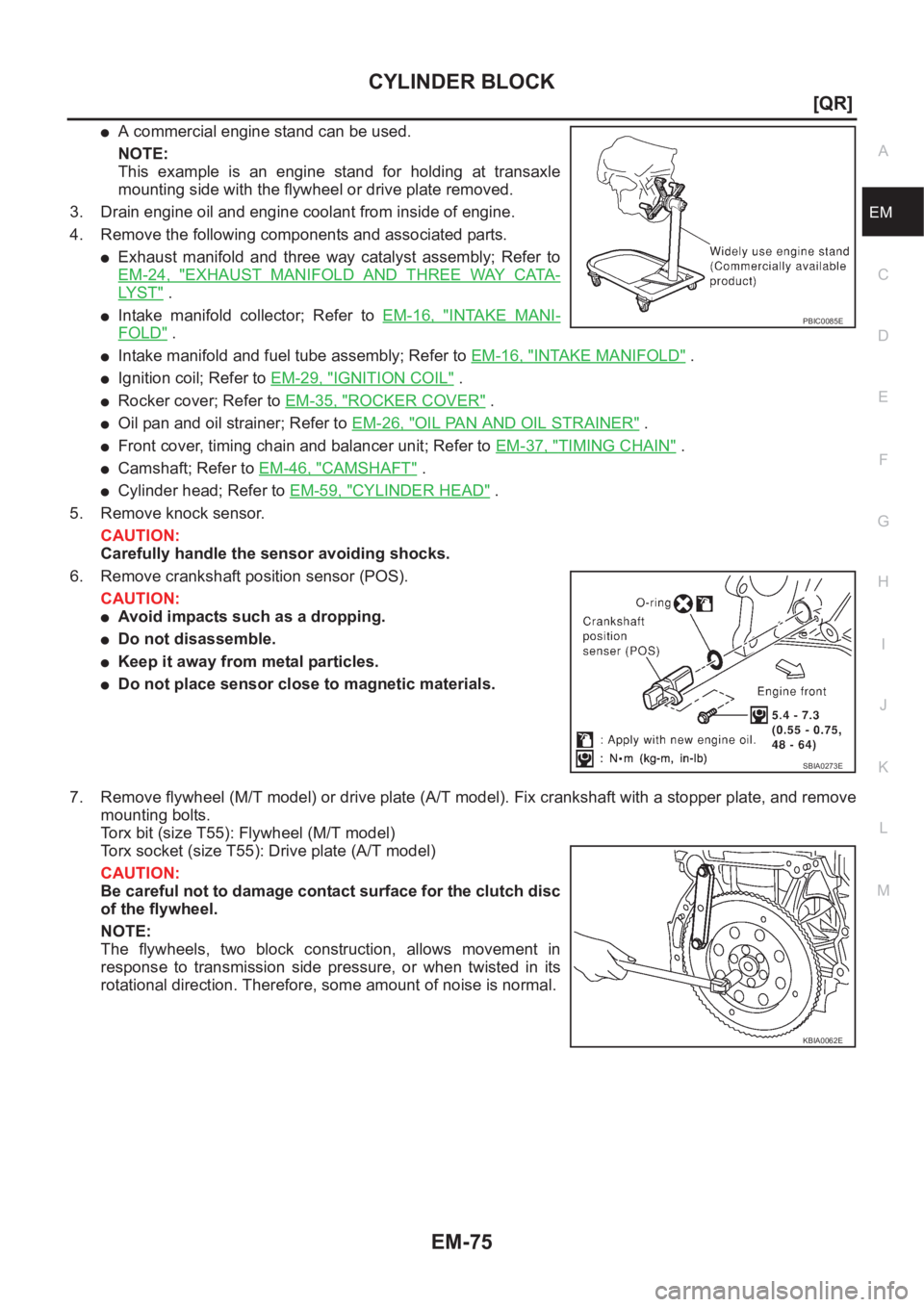

NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-75
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
●A commercial engine stand can be used.
NOTE:
This example is an engine stand for holding at transaxle
mounting side with the flywheel or

Page 126 of 3833

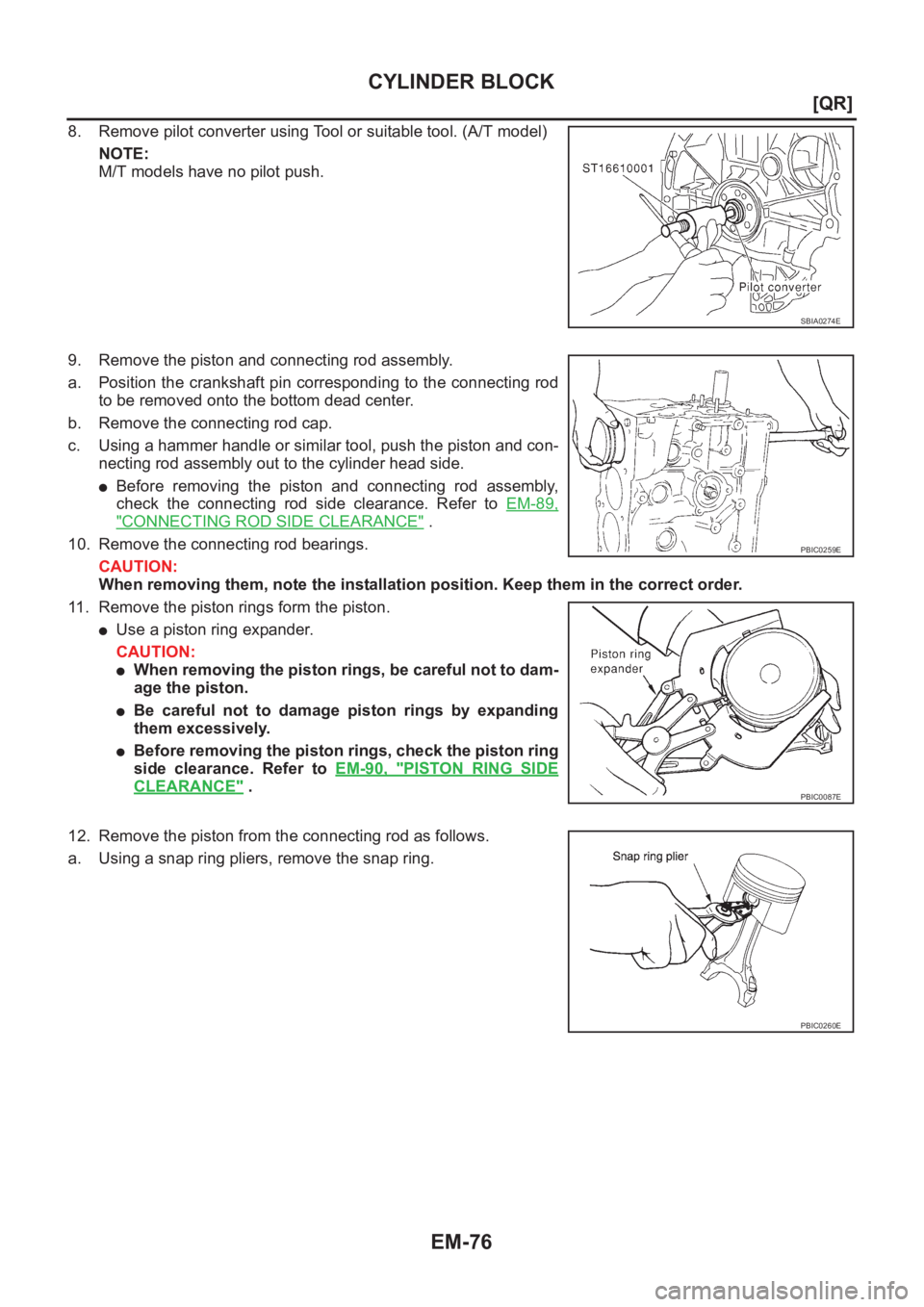

NISSAN X-TRAIL 2001 Service Repair Manual EM-76
[QR]
CYLINDER BLOCK
8. Remove pilot converter using Tool or suitable tool. (A/T model)
NOTE:
M/T models have no pilot push.
9. Remove the piston and connecting rod assembly.
a. Position the cran

Page 127 of 3833

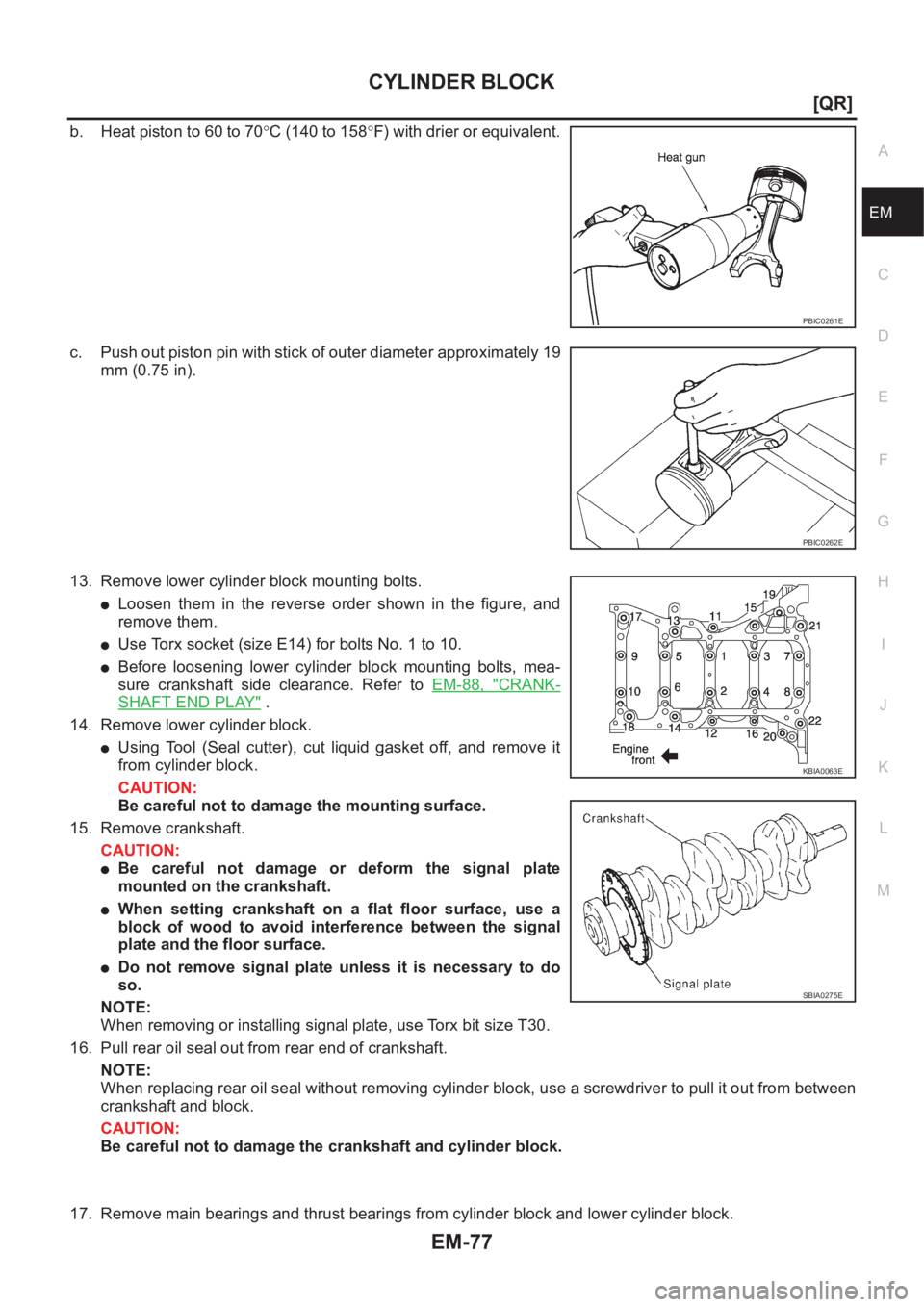

NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-77
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
b. Heat piston to 60 to 70°C (140 to 158°F) with drier or equivalent.
c. Push out piston pin with stick of outer diameter approximately 19
mm (0.7

Page 128 of 3833

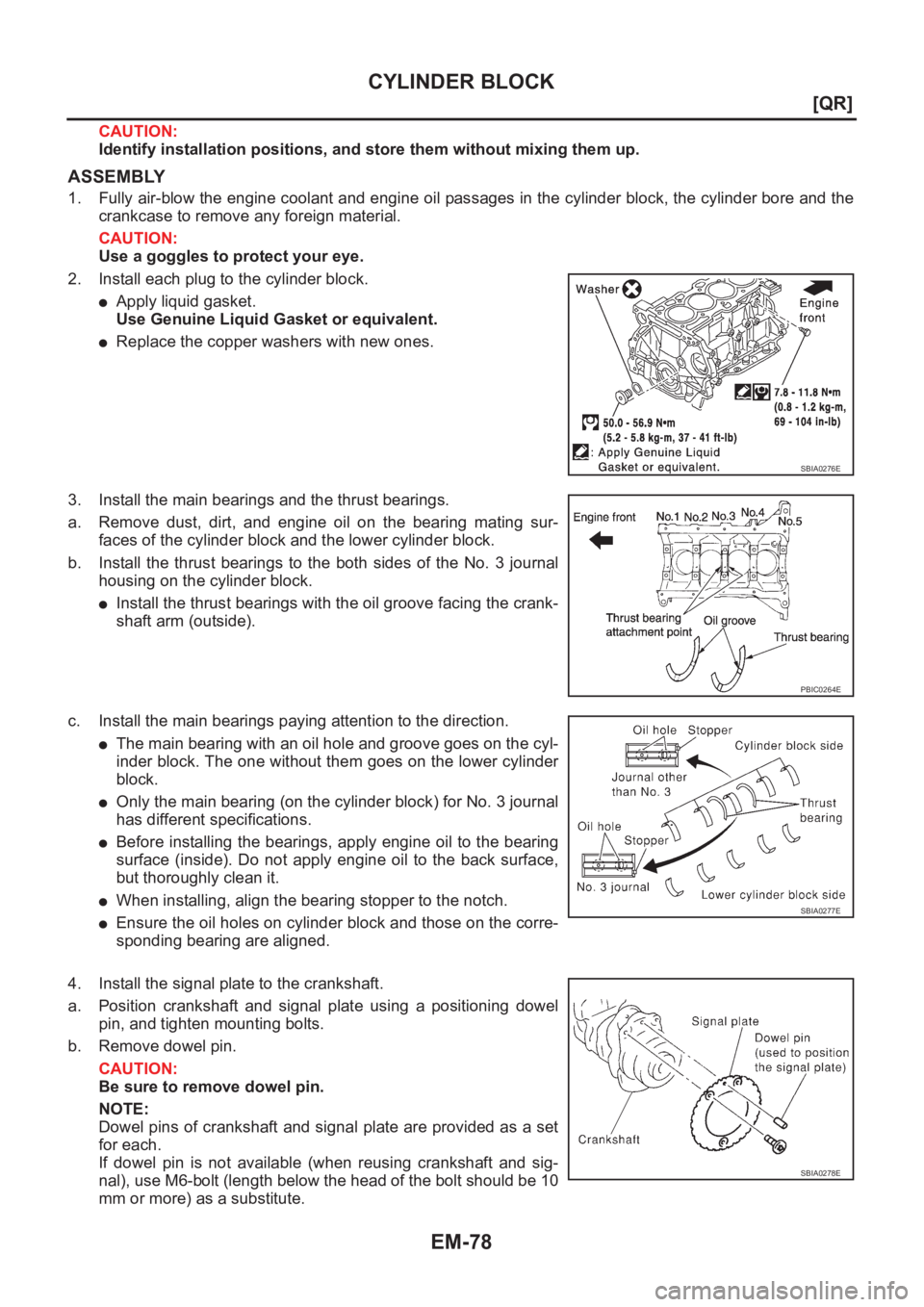

NISSAN X-TRAIL 2001 Service Repair Manual EM-78
[QR]
CYLINDER BLOCK
CAUTION:
Identify installation positions, and store them without mixing them up.
ASSEMBLY
1. Fully air-blow the engine coolant and engine oil passages in the cylinder block,
