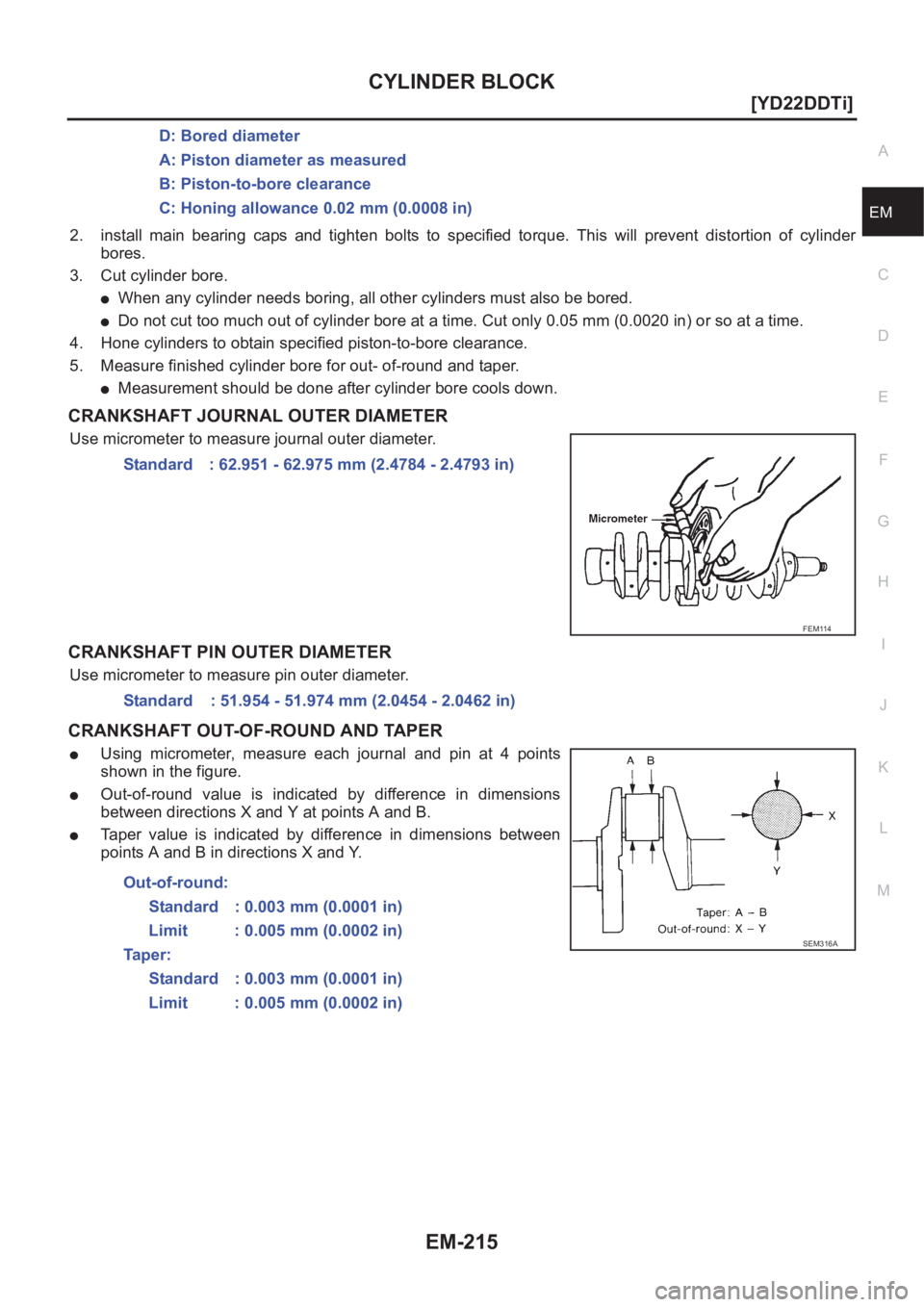

CYLINDER BLOCK
EM-215
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. install main bearing caps and tighten bolts to specified torque. This will prevent distortion of cylinder
bores.
3. Cut cylinder bore.
●When any cylinder needs boring, all other cylinders must also be bored.
●Do not cut too much out of cylinder bore at a time. Cut only 0.05 mm (0.0020 in) or so at a time.
4. Hone cylinders to obtain specified piston-to-bore clearance.
5. Measure finished cylinder bore for out- of-round and taper.
●Measurement should be done after cylinder bore cools down.
CRANKSHAFT JOURNAL OUTER DIAMETER
Use micrometer to measure journal outer diameter.
CRANKSHAFT PIN OUTER DIAMETER
Use micrometer to measure pin outer diameter.
CRANKSHAFT OUT-OF-ROUND AND TAPER
●Using micrometer, measure each journal and pin at 4 points
shown in the figure.
●Out-of-round value is indicated by difference in dimensions
between directions X and Y at points A and B.
●Taper value is indicated by difference in dimensions between
points A and B in directions X and Y.D: Bored diameter
A: Piston diameter as measured
B: Piston-to-bore clearance
C: Honing allowance 0.02 mm (0.0008 in)
Standard : 62.951 - 62.975 mm (2.4784 - 2.4793 in)
FEM114
Standard : 51.954 - 51.974 mm (2.0454 - 2.0462 in)
Out-of-round:
Standard : 0.003 mm (0.0001 in)
Limit : 0.005 mm (0.0002 in)
Ta p e r :
Standard : 0.003 mm (0.0001 in)
Limit : 0.005 mm (0.0002 in)
SEM316A
Page 266 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-216
[YD22DDTi]
CYLINDER BLOCK
CRANKSHAFT RUNOUT
●Place V-block onto surface plate to support journals at both ends
of crankshaft.
●Position dial indicator vertically onto No. 3 journal.
●Rota NISSAN X-TRAIL 2001 Service Repair Manual EM-216
[YD22DDTi]
CYLINDER BLOCK
CRANKSHAFT RUNOUT
●Place V-block onto surface plate to support journals at both ends
of crankshaft.
●Position dial indicator vertically onto No. 3 journal.
●Rota](/manual-img/5/57405/w960_57405-265.png)

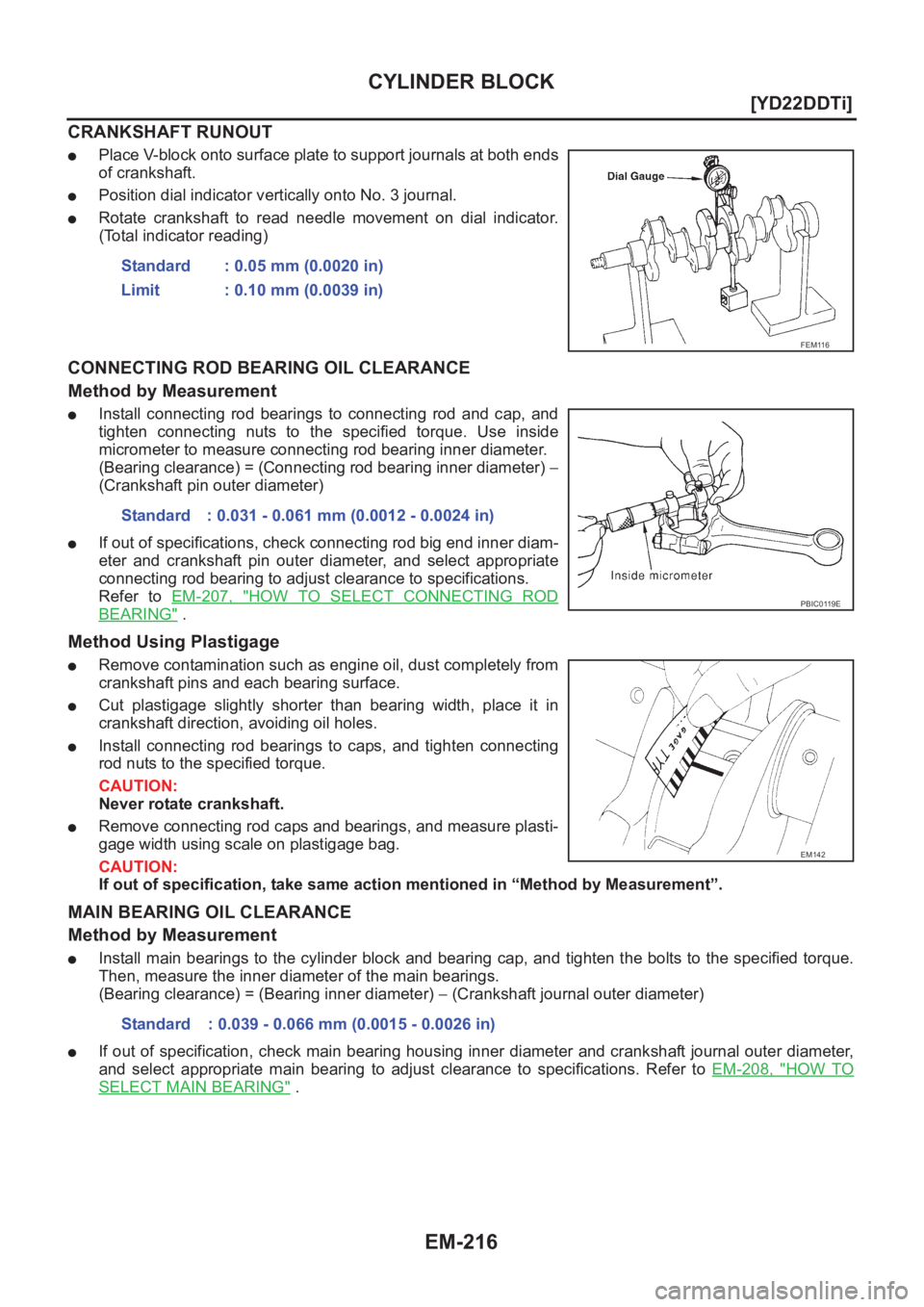

EM-216
[YD22DDTi]
CYLINDER BLOCK
CRANKSHAFT RUNOUT
●Place V-block onto surface plate to support journals at both ends
of crankshaft.
●Position dial indicator vertically onto No. 3 journal.
●Rotate crankshaft to read needle movement on dial indicator.
(Total indicator reading)
CONNECTING ROD BEARING OIL CLEARANCE
Method by Measurement
●Install connecting rod bearings to connecting rod and cap, and
tighten connecting nuts to the specified torque. Use inside
micrometer to measure connecting rod bearing inner diameter.
(Bearing clearance) = (Connecting rod bearing inner diameter) −
(Crankshaft pin outer diameter)
●If out of specifications, check connecting rod big end inner diam-
eter and crankshaft pin outer diameter, and select appropriate
connecting rod bearing to adjust clearance to specifications.
Refer to EM-207, "
HOW TO SELECT CONNECTING ROD
BEARING" .
Method Using Plastigage
●Remove contamination such as engine oil, dust completely from
crankshaft pins and each bearing surface.
●Cut plastigage slightly shorter than bearing width, place it in
crankshaft direction, avoiding oil holes.
●Install connecting rod bearings to caps, and tighten connecting
rod nuts to the specified torque.
CAUTION:
Never rotate crankshaft.
●Remove connecting rod caps and bearings, and measure plasti-
gage width using scale on plastigage bag.
CAUTION:
If out of specification, take same action mentioned in “Method by Measurement”.
MAIN BEARING OIL CLEARANCE
Method by Measurement
●Install main bearings to the cylinder block and bearing cap, and tighten the bolts to the specified torque.
Then, measure the inner diameter of the main bearings.
(Bearing clearance) = (Bearing inner diameter) − (Crankshaft journal outer diameter)
●If out of specification, check main bearing housing inner diameter and crankshaft journal outer diameter,
and select appropriate main bearing to adjust clearance to specifications. Refer to EM-208, "
HOW TO
SELECT MAIN BEARING" . Standard : 0.05 mm (0.0020 in)
Limit : 0.10 mm (0.0039 in)
FEM116
Standard : 0.031 - 0.061 mm (0.0012 - 0.0024 in)
PBIC0119E
EM142
Standard : 0.039 - 0.066 mm (0.0015 - 0.0026 in)
Page 267 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-217
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Method Using Plastigage
●Remove contamination such as engine oil and dust completely
from crankshaft journals and each bearing surf NISSAN X-TRAIL 2001 Service Repair Manual CYLINDER BLOCK
EM-217
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Method Using Plastigage
●Remove contamination such as engine oil and dust completely
from crankshaft journals and each bearing surf](/manual-img/5/57405/w960_57405-266.png)
CYLINDER BLOCK
EM-217
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

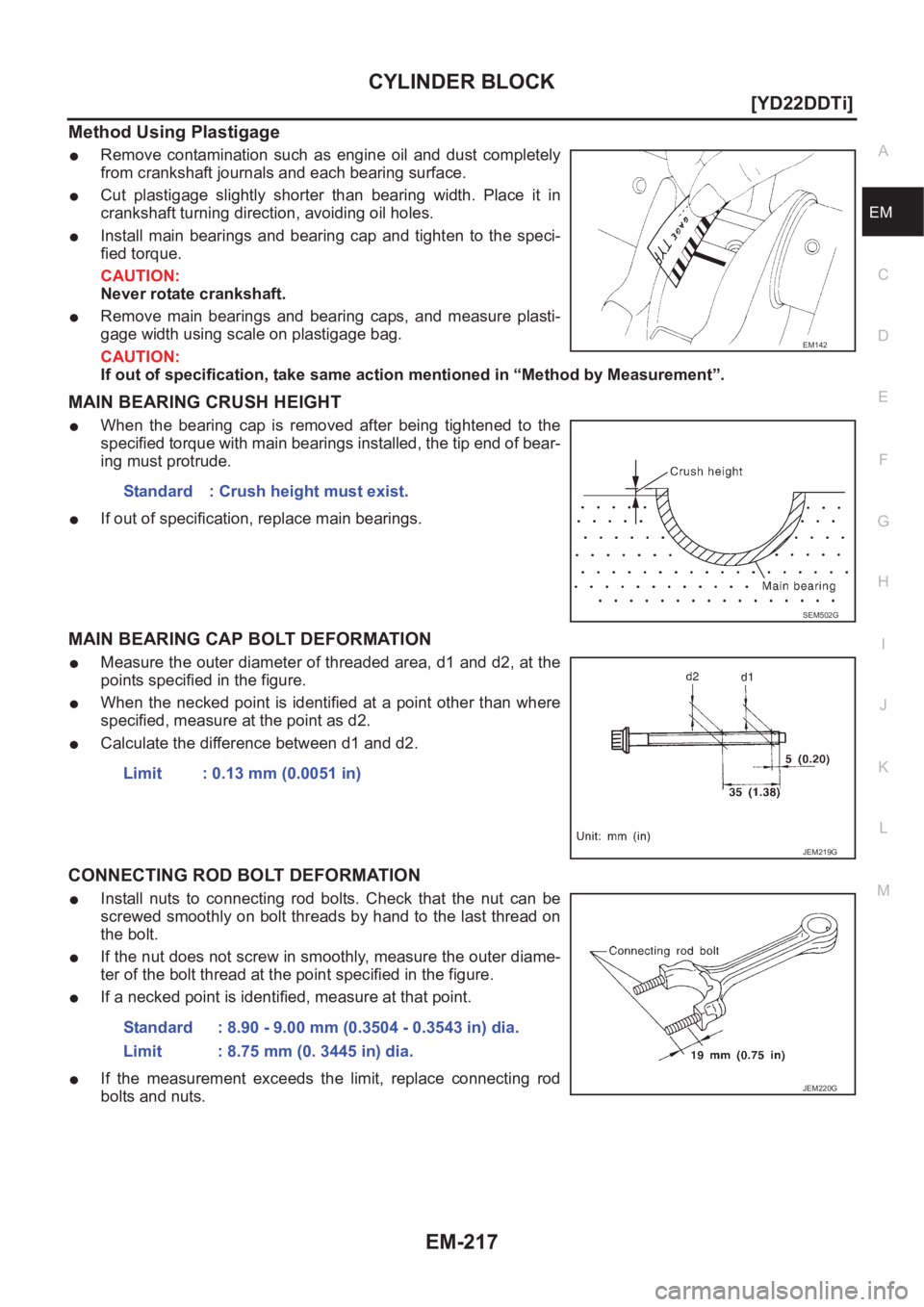

Method Using Plastigage
●Remove contamination such as engine oil and dust completely
from crankshaft journals and each bearing surface.
●Cut plastigage slightly shorter than bearing width. Place it in
crankshaft turning direction, avoiding oil holes.
●Install main bearings and bearing cap and tighten to the speci-
fied torque.
CAUTION:
Never rotate crankshaft.
●Remove main bearings and bearing caps, and measure plasti-
gage width using scale on plastigage bag.
CAUTION:
If out of specification, take same action mentioned in “Method by Measurement”.
MAIN BEARING CRUSH HEIGHT
●When the bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of bear-
ing must protrude.
●If out of specification, replace main bearings.
MAIN BEARING CAP BOLT DEFORMATION
●Measure the outer diameter of threaded area, d1 and d2, at the
points specified in the figure.
●When the necked point is identified at a point other than where
specified, measure at the point as d2.
●Calculate the difference between d1 and d2.
CONNECTING ROD BOLT DEFORMATION
●Install nuts to connecting rod bolts. Check that the nut can be
screwed smoothly on bolt threads by hand to the last thread on
the bolt.
●If the nut does not screw in smoothly, measure the outer diame-
ter of the bolt thread at the point specified in the figure.
●If a necked point is identified, measure at that point.
●If the measurement exceeds the limit, replace connecting rod
bolts and nuts.
EM142
Standard : Crush height must exist.
SEM502G
Limit : 0.13 mm (0.0051 in)
JEM219G
Standard : 8.90 - 9.00 mm (0.3504 - 0.3543 in) dia.
Limit : 8.75 mm (0. 3445 in) dia.
JEM220G
Page 268 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-218
[YD22DDTi]
CYLINDER BLOCK
OIL JET
●Check nozzle for deformation and damage.
●Blow compressed air from nozzle, and check for clogs.
●If it out of the standard, replace oil jet.
OIL JET REL NISSAN X-TRAIL 2001 Service Repair Manual EM-218
[YD22DDTi]
CYLINDER BLOCK
OIL JET
●Check nozzle for deformation and damage.
●Blow compressed air from nozzle, and check for clogs.
●If it out of the standard, replace oil jet.
OIL JET REL](/manual-img/5/57405/w960_57405-267.png)
EM-218
[YD22DDTi]
CYLINDER BLOCK
OIL JET
●Check nozzle for deformation and damage.
●Blow compressed air from nozzle, and check for clogs.
●If it out of the standard, replace oil jet.
OIL JET RELIEF VALVE
●Using a clean plastic stick, press check valve in oil jet relief
valve. Make sure that valve moves smoothly with proper reac-
tion force.
●If it is out of the standard, replace oil jet relief valve.
MOVEMENT AMOUNT OF FLYWHEEL
NOTE:
●Inspection for double mass flywheel only.
●Do not disassembly double mass flywheel.
Flywheel Deflection
●Measure deflection of flywheel contact surface to the clutch with a dial gauge.
●Measure deflection at 210 mm (8.27 in) dia.
●When measured value exceeds the limit, replace flywheel with a
new one.
Movement Amount in Radial (rotation) Direction
Check the movement amount in the following procedure.
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.
●Tighten bolt at a force of 9.8 N·m (1 kg-m, 87 in-lb) to keep it from loosening. Standard : Deformation and damage.
JEM221G
Standard:
Valve moves smoothly with proper reaction force.
JEM222G
Standard : 0.45 mm (0.0177 in) or less
Limit : 1.3 mm (0.051 in)
PBIC0683E
Page 269 of 3833
CYLINDER BLOCK
EM-219
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1 kg-m, 87 in-lb) in each direction, and
mark the movement amount on the mass on the transaxle side.
4. Measure dimensions of movement amounts A and B on circum-
ference of the flywheel on the transaxle side.
●When measured value is outside the standard, replace fly-
wheel.Standard : 26.2 mm (1.031 in) or less
PBIC1258E
Page 270 of 3833
![NISSAN X-TRAIL 2001 Service Repair Manual EM-220
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00ODZ
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm NISSAN X-TRAIL 2001 Service Repair Manual EM-220
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00ODZ
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm](/manual-img/5/57405/w960_57405-269.png)
EM-220
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00ODZ
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm (in)
DRIVE BELTS
Belt Deflection:
Unit: mm (in)
*: When engine is cold.Cylinder arrangementIn-line 4
Displacement
Unit: cm
3 (cu in)2,184 (133.27)
Bore and stroke Unit: mm (in) 86 x 94 (3.39 x 3.70)
Valve arrangementDOHC
Firing order1-3-4-2
Number of piston ringsCompression 2
Oil 1
Number of main bearings5
Compression ratio16.0
Compression pressure
Unit: kPa (bar, kg/cm
2 , psi)/200 rpmStandard 2,893 (28.9, 29.5, 419)
Minimum 2,452 (24.5, 25.0, 356)
Differential limit between cylinders 490 (4.9, 5.0, 71)
Valve timing
Unit: degree
abc de f
224 212 2 30 -2 46
EM120
Item Limit
Surface distortionIntake manifold 0.1 (0.004)
Exhaust manifold 0.3 (0.012)
Applied beltBelt deflection with 98 N (10 kg, 22 lb) force applied*
New Adjusted Limit for re-adjusting
Air conditioner compressor belt4 - 5
(0.16 - 0.20)6 - 7
(0.24 - 0.28)8.5 (0.335)
Alternator & water pump belt9.0 - 10.5
(0.354 - 0.413)11.0 - 12.5
(0.433 - 0.492)16.5 (0.650)
Page 271 of 3833
SERVICE DATA AND SPECIFICATIONS (SDS)
EM-221
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

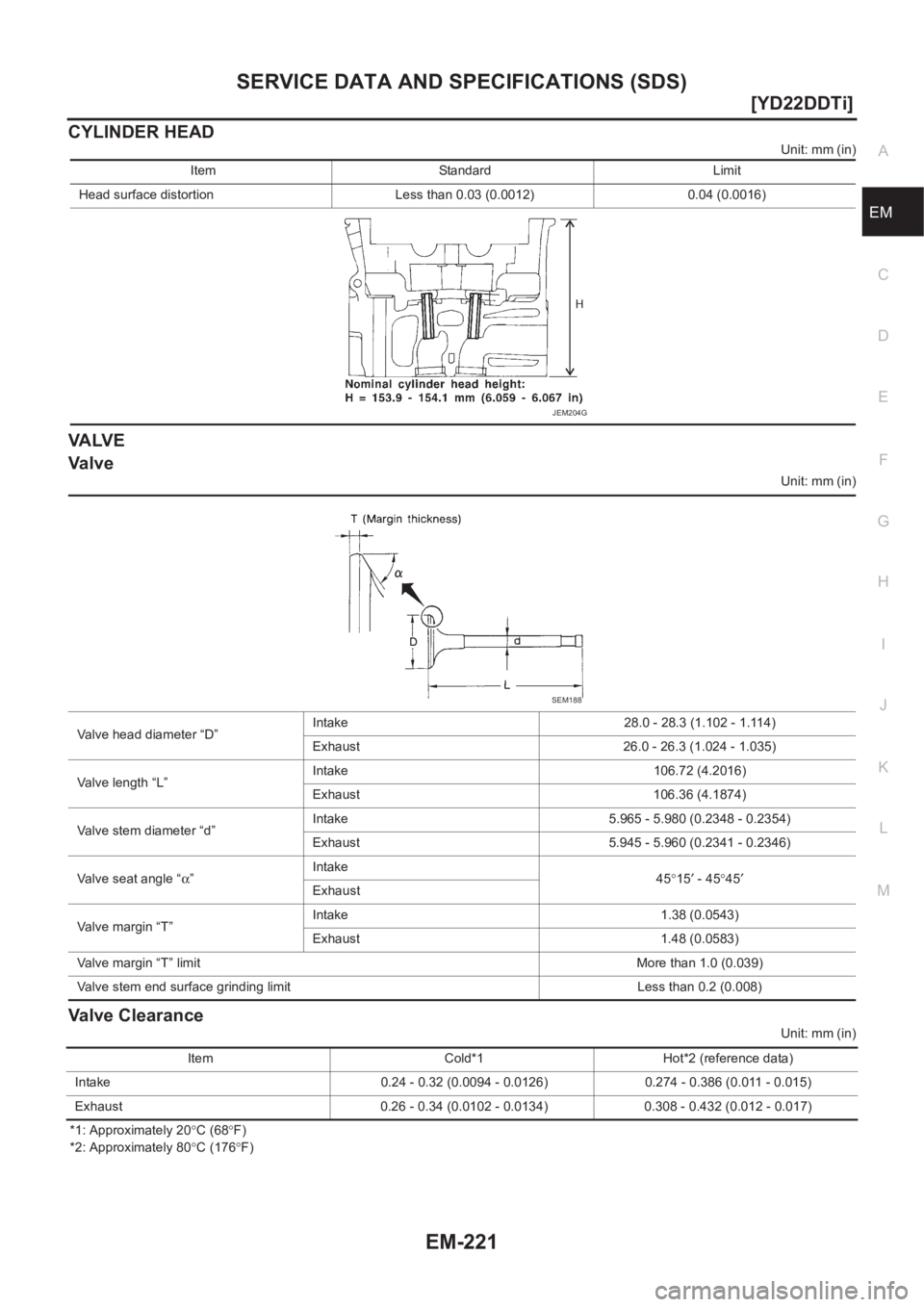

CYLINDER HEAD
Unit: mm (in)
VA LV E
Va l v e
Unit: mm (in)
Valve Clearance
Unit: mm (in)
*1: Approximately 20°C (68°F)
*2: Approximately 80°C (176°F) Item Standard Limit
Head surface distortion Less than 0.03 (0.0012) 0.04 (0.0016)
JEM204G
Valve head diameter “D”Intake 28.0 - 28.3 (1.102 - 1.114)
Exhaust 26.0 - 26.3 (1.024 - 1.035)
Valve length “L”Intake 106.72 (4.2016)
Exhaust 106.36 (4.1874)
Valve stem diameter “d”Intake 5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.945 - 5.960 (0.2341 - 0.2346)
Valve seat angle “α”Intake
45°15′ - 45°45′
Exhaust
Valve margin “T”Intake 1.38 (0.0543)
Exhaust 1.48 (0.0583)
Valve margin “T” limitMore than 1.0 (0.039)
Valve stem end surface grinding limit Less than 0.2 (0.008)
SEM188
Item Cold*1 Hot*2 (reference data)
Intake 0.24 - 0.32 (0.0094 - 0.0126) 0.274 - 0.386 (0.011 - 0.015)
Exhaust 0.26 - 0.34 (0.0102 - 0.0134) 0.308 - 0.432 (0.012 - 0.017)

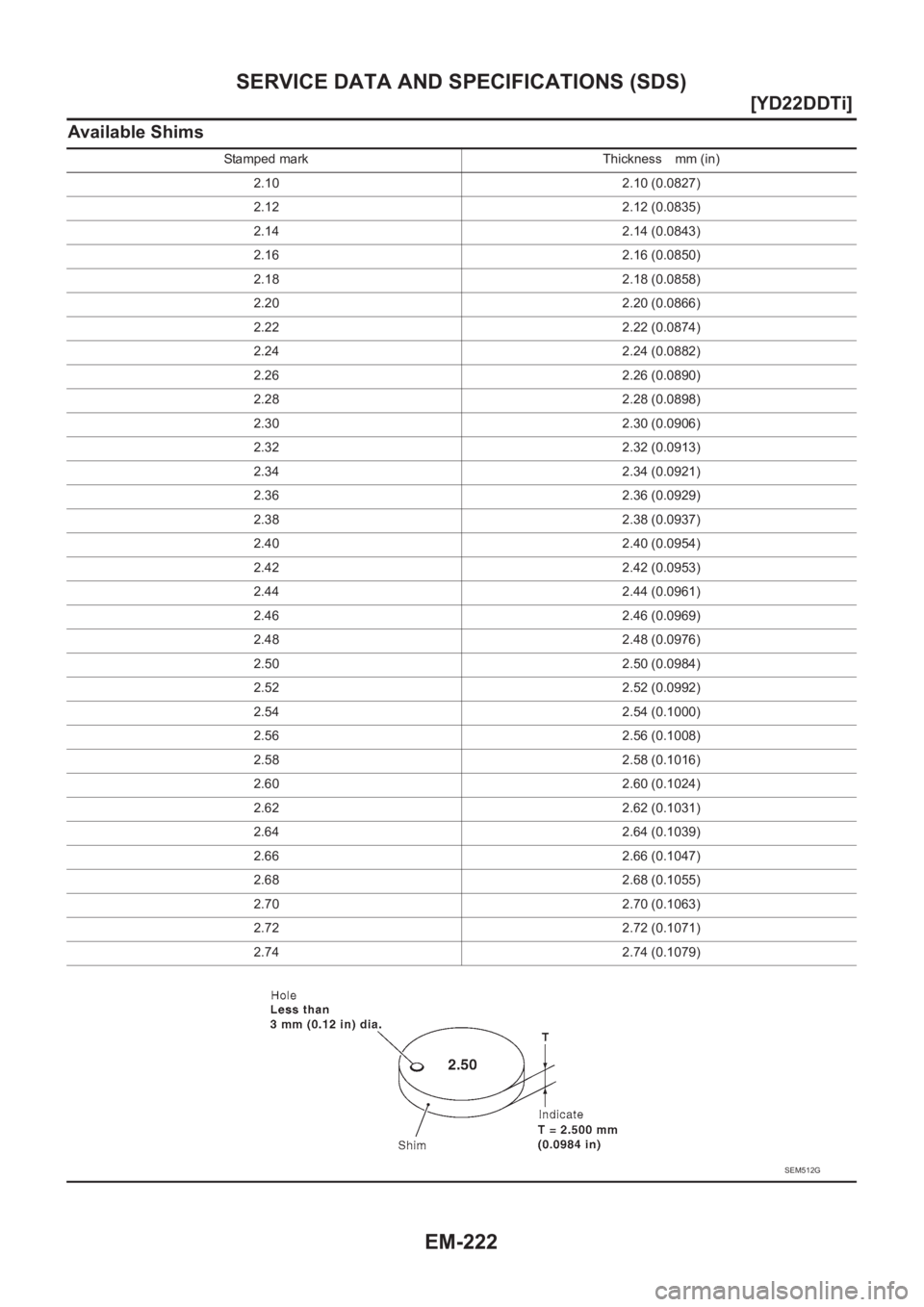

Page 272 of 3833
EM-222
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
Available Shims
Stamped mark Thickness mm (in)
2.10 2.10 (0.0827)
2.12 2.12 (0.0835)
2.14 2.14 (0.0843)
2.16 2.16 (0.0850)
2.18 2.18 (0.0858)
2.20 2.20 (0.0866)
2.22 2.22 (0.0874)
2.24 2.24 (0.0882)
2.26 2.26 (0.0890)
2.28 2.28 (0.0898)
2.30 2.30 (0.0906)
2.32 2.32 (0.0913)
2.34 2.34 (0.0921)
2.36 2.36 (0.0929)
2.38 2.38 (0.0937)
2.40 2.40 (0.0954)
2.42 2.42 (0.0953)
2.44 2.44 (0.0961)
2.46 2.46 (0.0969)
2.48 2.48 (0.0976)
2.50 2.50 (0.0984)
2.52 2.52 (0.0992)
2.54 2.54 (0.1000)
2.56 2.56 (0.1008)
2.58 2.58 (0.1016)
2.60 2.60 (0.1024)
2.62 2.62 (0.1031)
2.64 2.64 (0.1039)
2.66 2.66 (0.1047)
2.68 2.68 (0.1055)
2.70 2.70 (0.1063)
2.72 2.72 (0.1071)
2.74 2.74 (0.1079)
SEM512G
