1.CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND BODY GROUND
Disconnect intake sensor harness connector.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2.CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP. (LCU)
Disconnect auto amp. (LCU) harness connector.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
Engine modelTerminals
Vo l ta g e (+)
(-)
ConnectorTe r m i n a l ( W i r e
color)
With gasoline
engineM68 1 (BR/Y)
Ground Approx. 5V
With diesel engine M69 1 (BR/Y)
RJIA0568E
Engine modelTerminals
Continuity Intake sensor Auto amp.
ConnectorTe r m i n a l ( W i r e
color)ConnectorTerminal (Wire
color)
With gasoline
engineM68 2 (B/Y)
M5324 (B/Y)
Ye s
With diesel engine M69 2 (B/Y) 24 (B/Y)
RJIA0569E
Page 3386 of 3833
ATC-110
TROUBLE DIAGNOSIS
3. CHECK INTAKE SENSOR
Refer to ATC-108, "
Intake Sensor"
OK or NG
OK >> 1. Replace auto amp.
2. Go to self-diagnosis AT C - 4 7 , "
PROCEDURE" and perform self-diagnosis STEP-2. Confirm
that code No. 20 is displayed.
NG >> 1. Replace intake sensor.
2. Go to self-diagnosis AT C - 4 7 , "
PROCEDURE" and perform self-diagnosis STEP-2. Confirm
that code No. 20 is displayed.
4. CHECK INTAKE SENSOR CIRCUIT BETWEEN INTAKE SENSOR AND AUTO AMP. (LCU)
Disconnect auto amp. (LCU) harness connector.
OK or NG
OK >> 1. Replace auto amp.
2. Go to self-diagnosis AT C - 4 7 , "
PROCEDURE" and perform self-diagnosis STEP-2. Confirm
that code No. 20 is displayed.
NG >> Repair harness or connector.
Engine modelTerminals
Continuity Intake sensor Auto amp.
Connector Terminal (Wire
colorConnectorTerminal (Wire
color)
With gasoline
engineM68 1 (BR/Y)
M5325 (BR/Y)
Ye s
With diesel engine M69 1 (BR/Y) 25 (BR/Y)
RJIA0570E
Page 3387 of 3833
CONTROLLER
ATC-111
C
D
E
F
G
H
I
K
L
MA
B
AT C

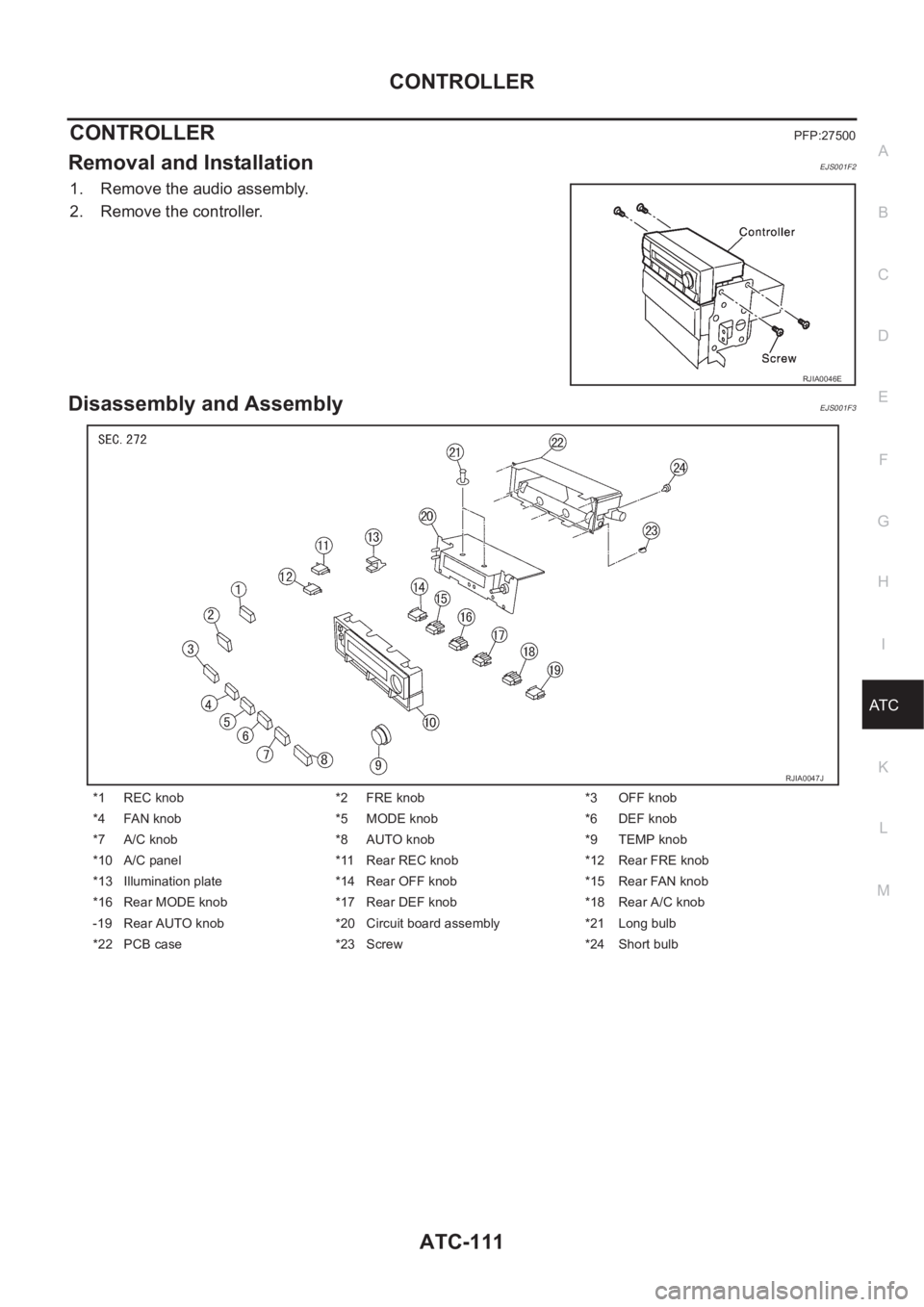

CONTROLLERPFP:27500
Removal and InstallationEJS001F2
1. Remove the audio assembly.
2. Remove the controller.
Disassembly and AssemblyEJS001F3
RJIA0046E
*1 REC knob *2 FRE knob *3 OFF knob
*4 FAN knob *5 MODE knob *6 DEF knob
*7 A/C knob *8 AUTO knob *9 TEMP knob
*10 A/C panel *11 Rear REC knob *12 Rear FRE knob
*13 Illumination plate *14 Rear OFF knob *15 Rear FAN knob
*16 Rear MODE knob *17 Rear DEF knob *18 Rear A/C knob
-19 Rear AUTO knob *20 Circuit board assembly *21 Long bulb
*22 PCB case *23 Screw *24 Short bulb
RJIA0047J
Page 3388 of 3833
ATC-112
AMBIENT SENSOR
AMBIENT SENSOR
PFP:27722
Removal and InstallationEJS000UH
1. Remove the front grille.
2. Remove the ambient sensor.
RJIA0048E
Page 3389 of 3833
IN-VEHICLE SENSOR
ATC-113
C
D
E
F
G
H
I
K
L
MA
B
AT C
IN-VEHICLE SENSORPFP:27720
Removal and InstallationEJS000UI
1. Remove the cluster lid A.
2. Remove the in-vehicle sensor.
RJIA0049E
Page 3390 of 3833
ATC-114
SUNLOAD SENSOR
SUNLOAD SENSOR
PFP:27721
Removal and InstallationEJS000UJ
1. Remove the sunload sensor garnish.
2. Remove the sunload sensor.
RJIA0050E
Page 3391 of 3833
INTAKE SENSOR CIRCUIT
ATC-115
C
D
E
F
G
H
I
K
L
MA
B
AT C
INTAKE SENSOR CIRCUITPFP:27723
Removal and InstallationEJS000UK
1. Remove the evaporator. Refer to ATC-145, "Removal and Instal-
lation for Evaporator"
2. Remove the intake sensor.
RJIA0051E
Page 3392 of 3833
ATC-116
BLOWER UNIT

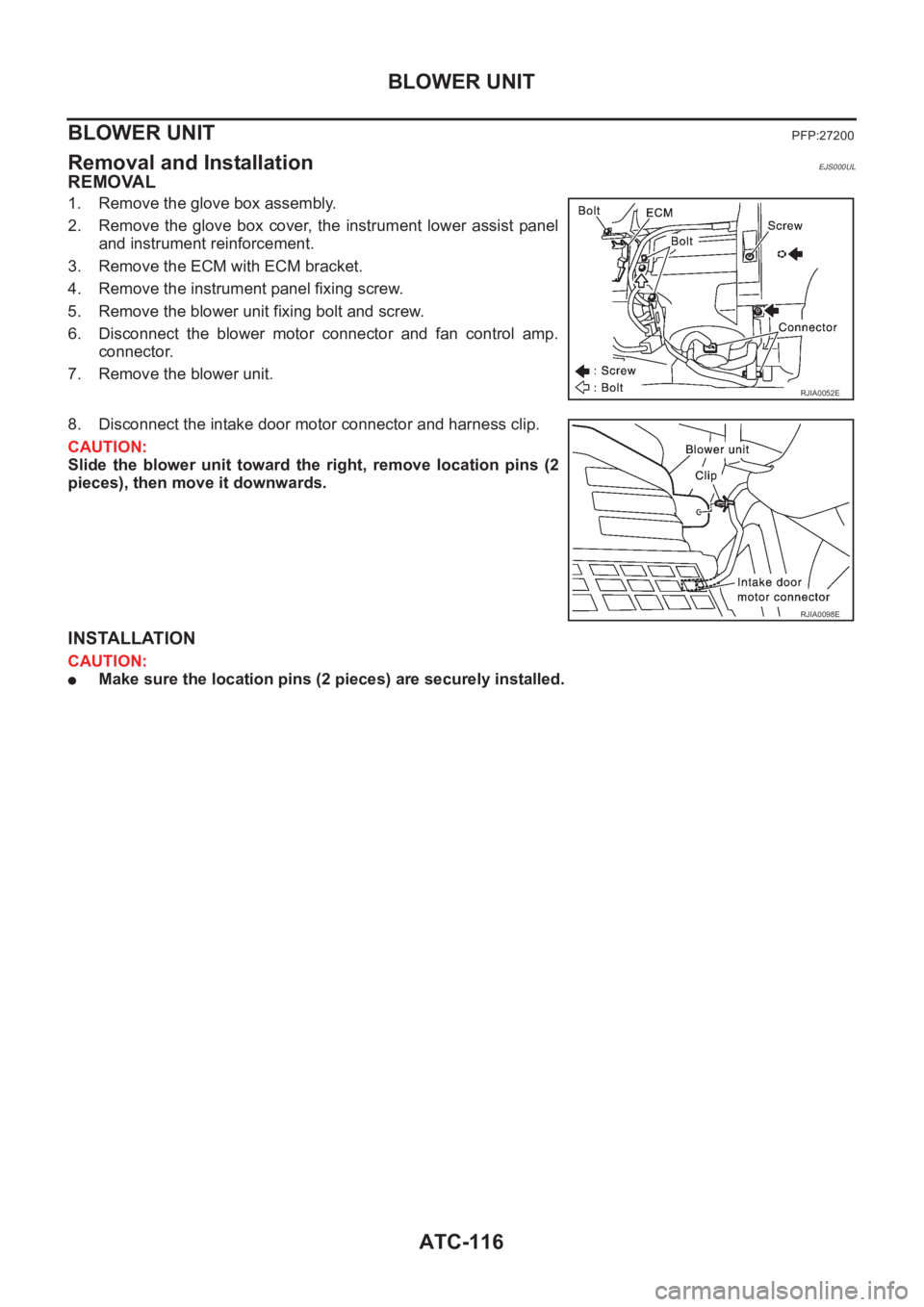

BLOWER UNIT
PFP:27200
Removal and InstallationEJS000UL
REMOVAL
1. Remove the glove box assembly.
2. Remove the glove box cover, the instrument lower assist panel
and instrument reinforcement.
3. Remove the ECM with ECM bracket.
4. Remove the instrument panel fixing screw.
5. Remove the blower unit fixing bolt and screw.
6. Disconnect the blower motor connector and fan control amp.
connector.
7. Remove the blower unit.
8. Disconnect the intake door motor connector and harness clip.
CAUTION:
Slide the blower unit toward the right, remove location pins (2
pieces), then move it downwards.
INSTALLATION
CAUTION:
●Make sure the location pins (2 pieces) are securely installed.
RJIA0052E
RJIA0098E
