NISSAN X-TRAIL 2001  Service Repair Manual FENDER PROTECTOR
EI-13
C
D
E
F
G
H
J
K
L
MA
B
EI
FENDER PROTECTORPFP:63840
Removal and InstallationEIS000N1
1. Front fender 2. Clip 3. Fender protector
SIIA0200E

Page 3234 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EI-14
DOOR OUTSIDE MOLDING

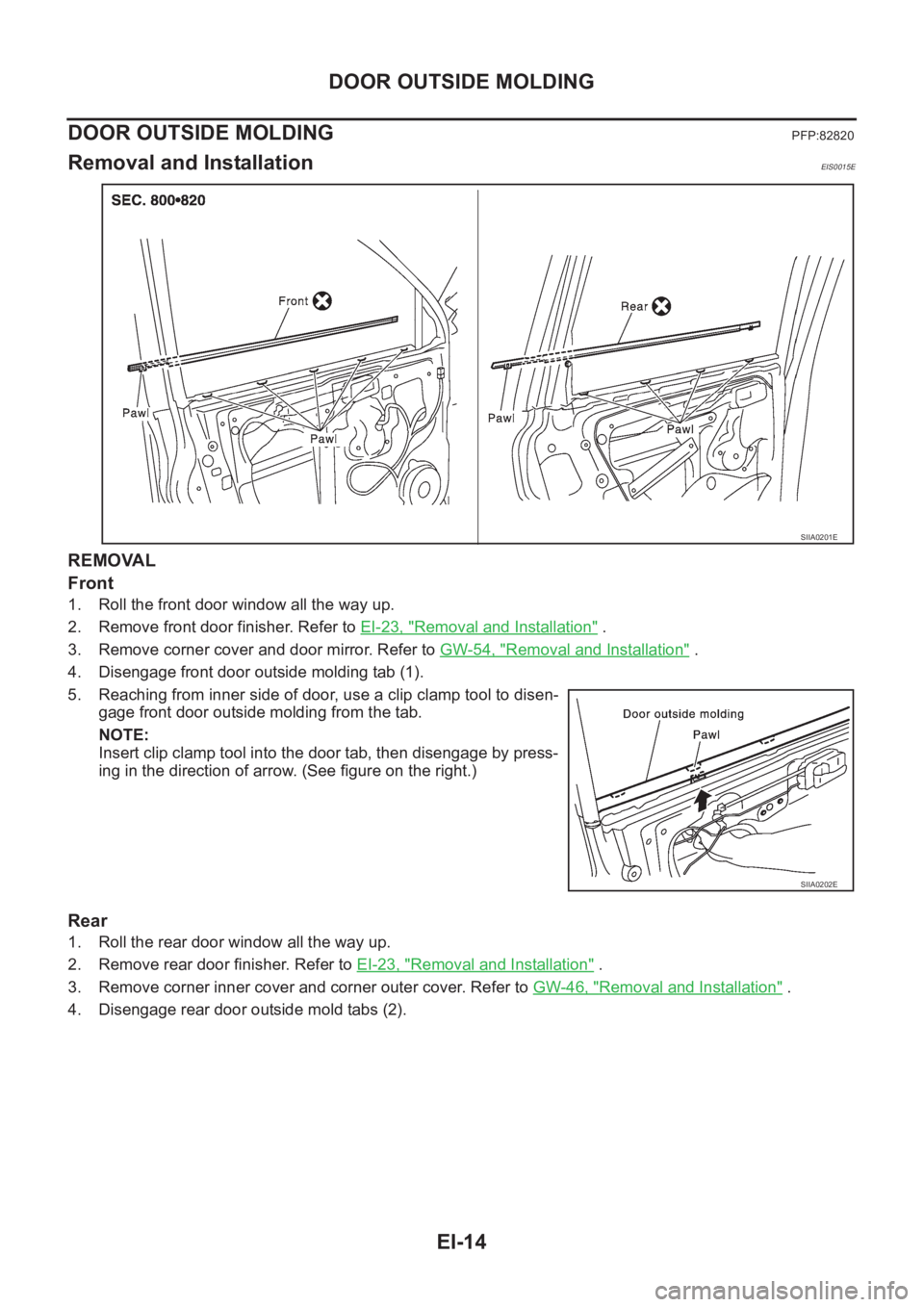

DOOR OUTSIDE MOLDING
PFP:82820
Removal and InstallationEIS0015E
REMOVAL
Front
1. Roll the front door window all the way up.
2. Remove front door finisher. Refer to EI-23, &

Page 3235 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual DOOR OUTSIDE MOLDING
EI-15
C
D
E
F
G
H
J
K
L
MA
B
EI
5.  Reaching from inner side of door, use a clip clamp tool to disen-
gage rear door outside molding from the tab.
NOTE:
Insert clip clamp tool int

Page 3236 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EI-16
SIDE GUARD MOLDING

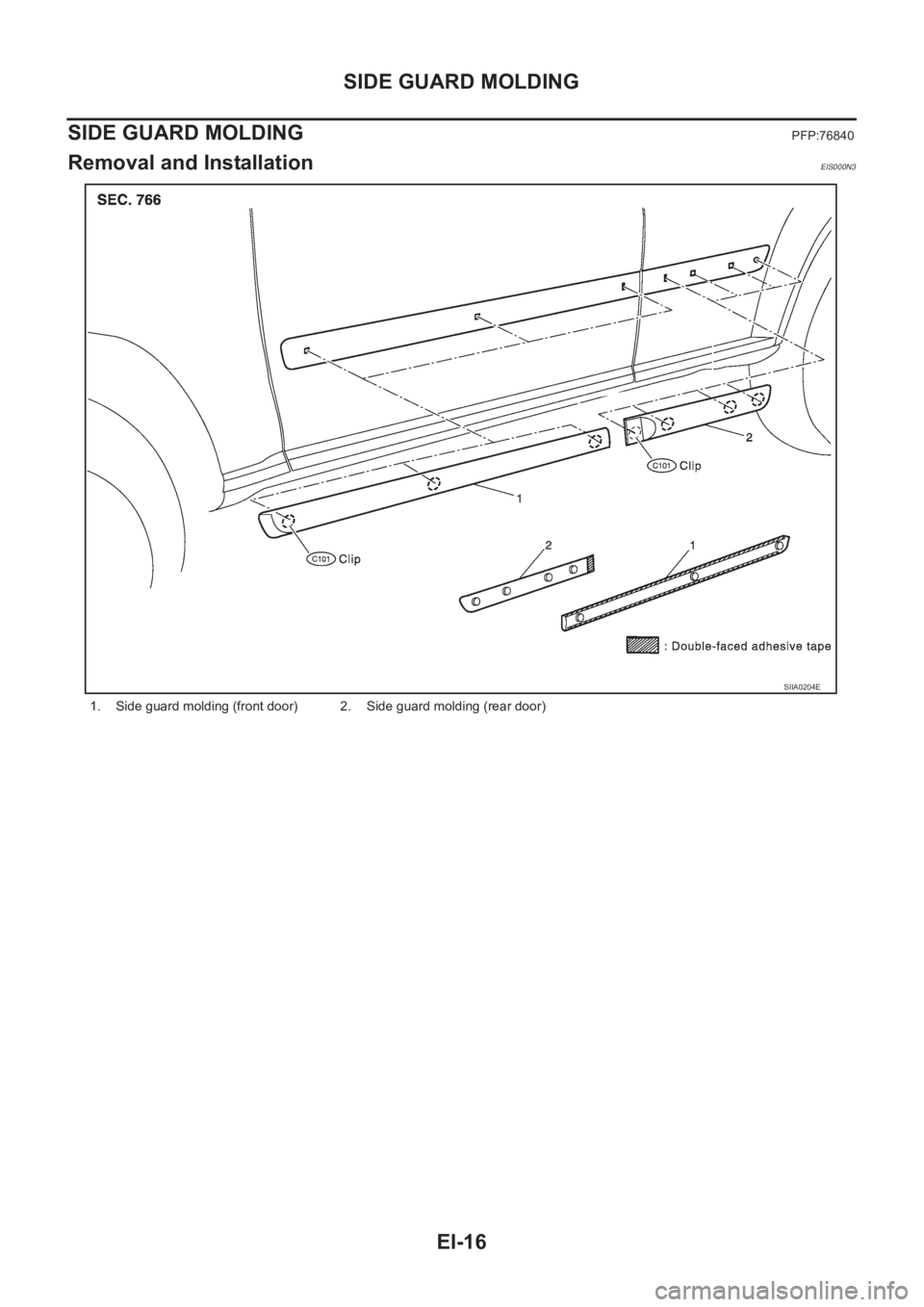

SIDE GUARD MOLDING
PFP:76840
Removal and InstallationEIS000N3
1. Side guard molding (front door) 2. Side guard molding (rear door)
SIIA0204E

Page 3237 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual DOOR OUTSIDE LOWER MOLDING
EI-17
C
D
E
F
G
H
J
K
L
MA
B
EI

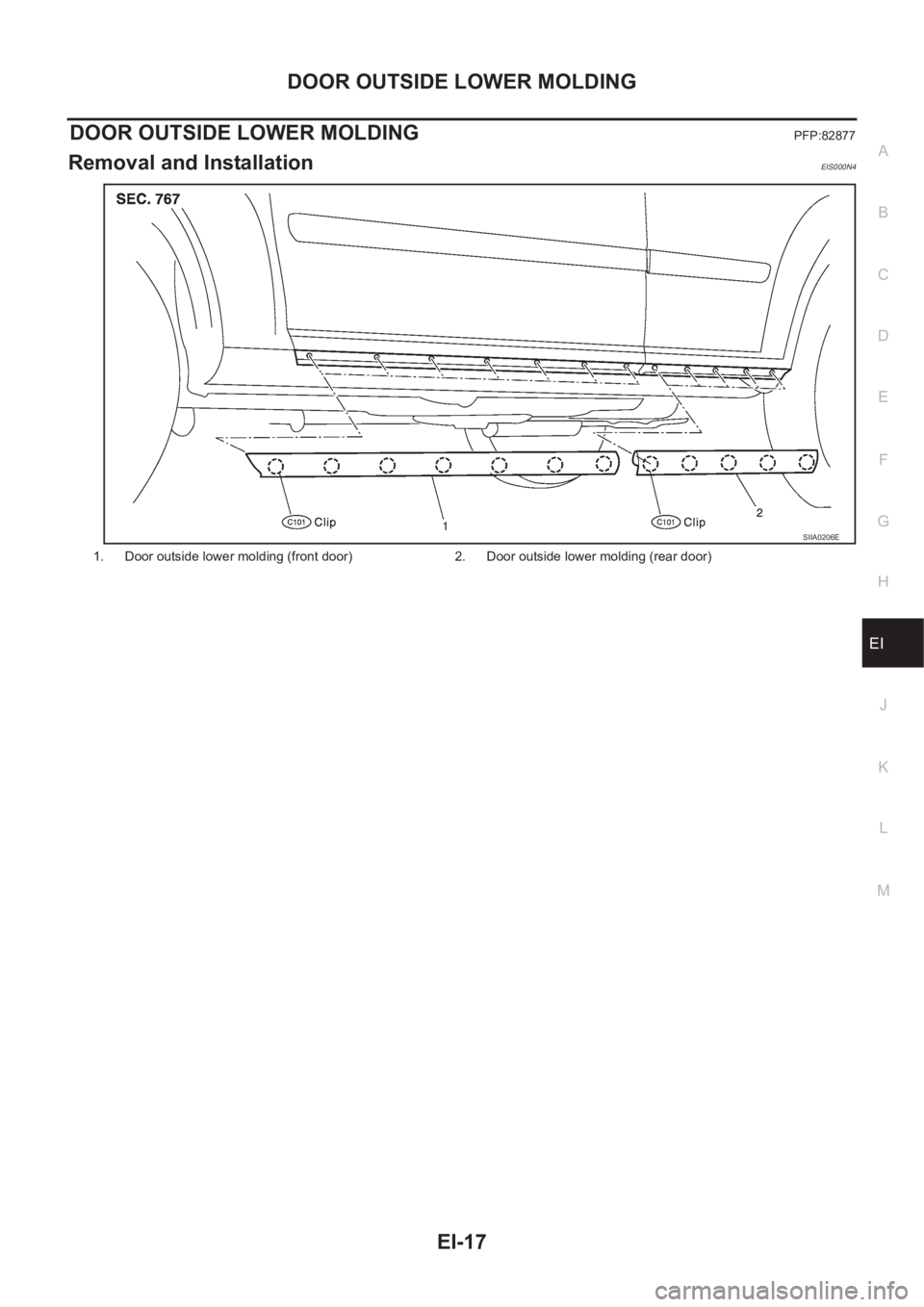

DOOR OUTSIDE LOWER MOLDINGPFP:82877
Removal and InstallationEIS000N4
1. Door outside lower molding (front door) 2. Door outside lower molding

Page 3238 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EI-18
SIDE SILL PROTECTOR
SIDE SILL PROTECTOR
PFP:86856
Removal and InstallationEIS000N5
SIIA0207E

Page 3239 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual ROOF RAIL
EI-19
C
D
E
F
G
H
J
K
L
MA
B
EI

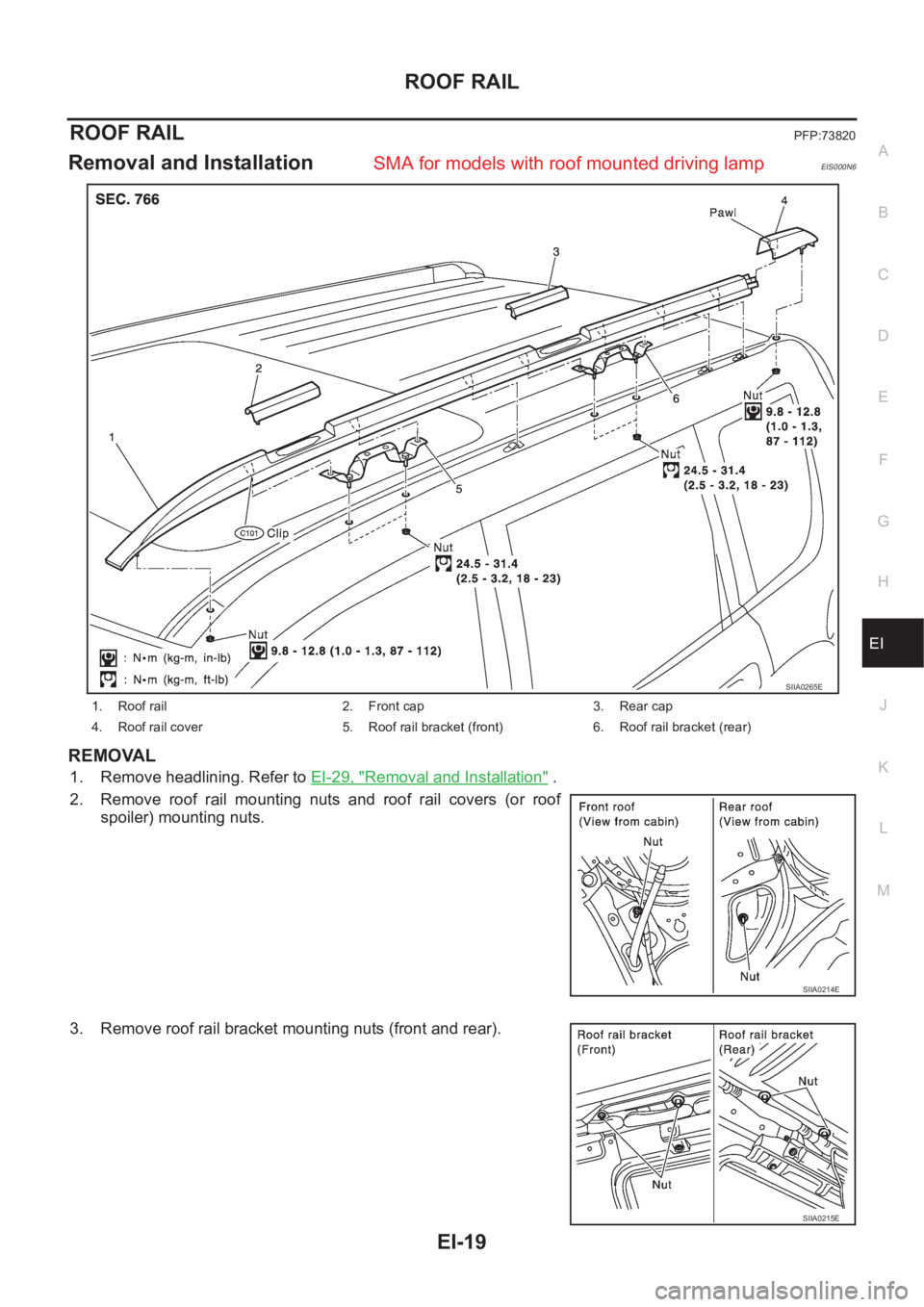

ROOF RAILPFP:73820
Removal and InstallationEIS000N6
REMOVAL
1. Remove headlining. Refer to EI-29, "Removal and Installation" .
2. Remove  roof  rail

Page 3240 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual EI-20
ROOF RAIL
4. Remove roof rail covers (or roof spoiler). For removal of roof spoiler, refer to EI-21, "Removal and Installa-
tion" .
5. Remove roof rail mounting clips, and remove roof ra
