Page 3729 of 3833
GROUND
PG-25
C
D
E
F
G
H
I
J
L
MA
B
PG

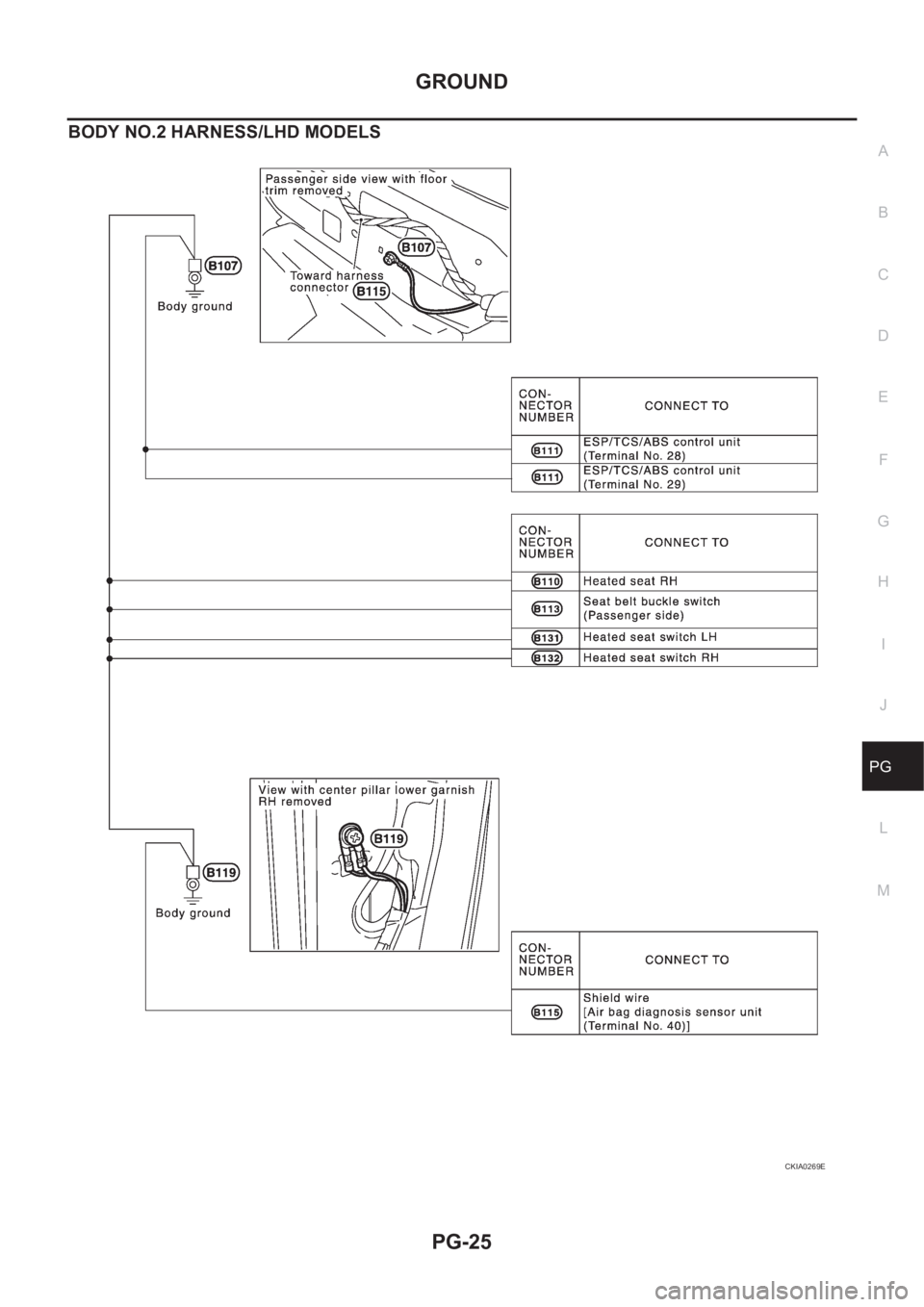

BODY NO.2 HARNESS/LHD MODELS
CKIA0269E
Page 3730 of 3833
PG-26
GROUND

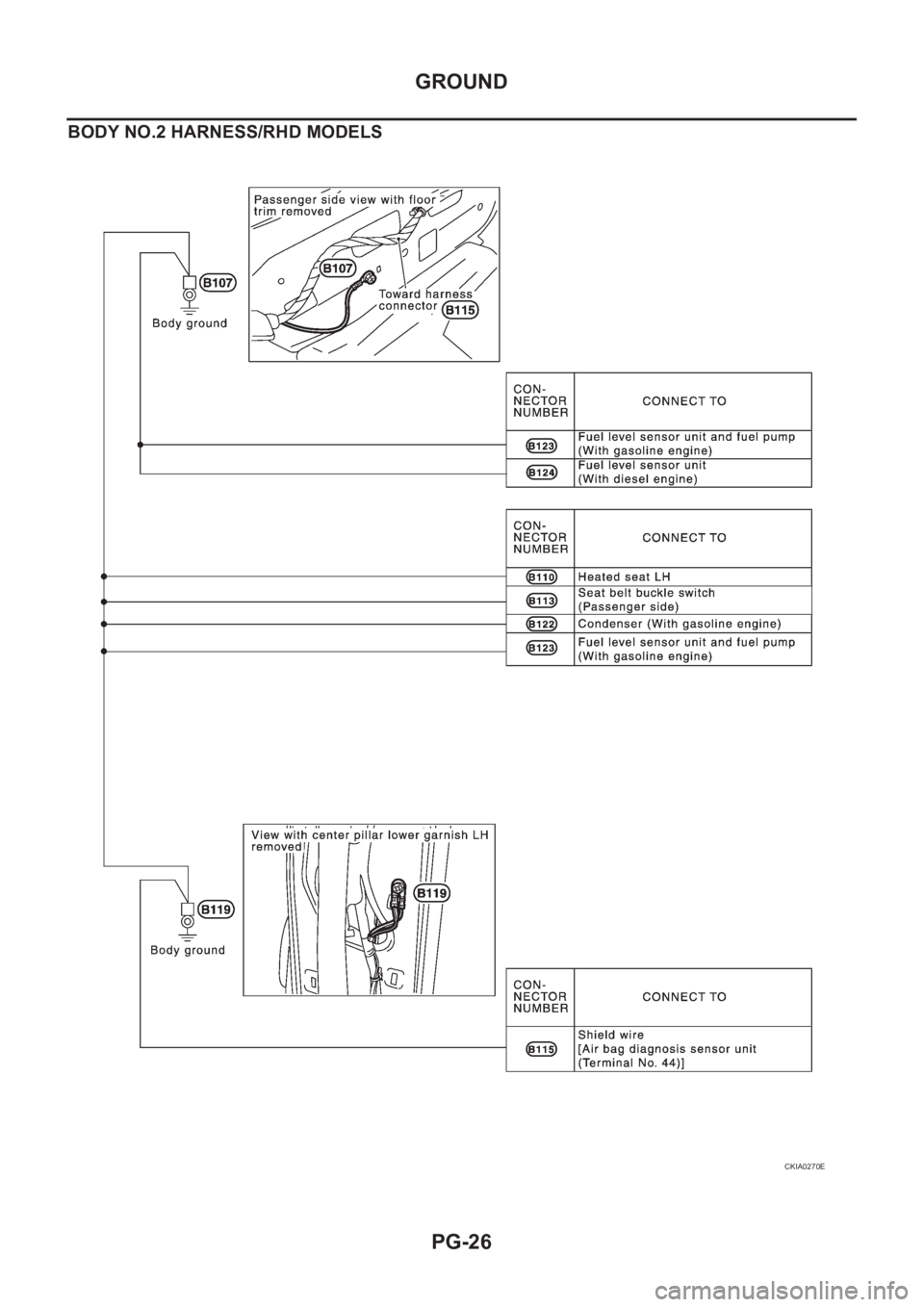

BODY NO.2 HARNESS/RHD MODELS
CKIA0270E
Page 3731 of 3833
GROUND
PG-27
C
D
E
F
G
H
I
J
L
MA
B
PG

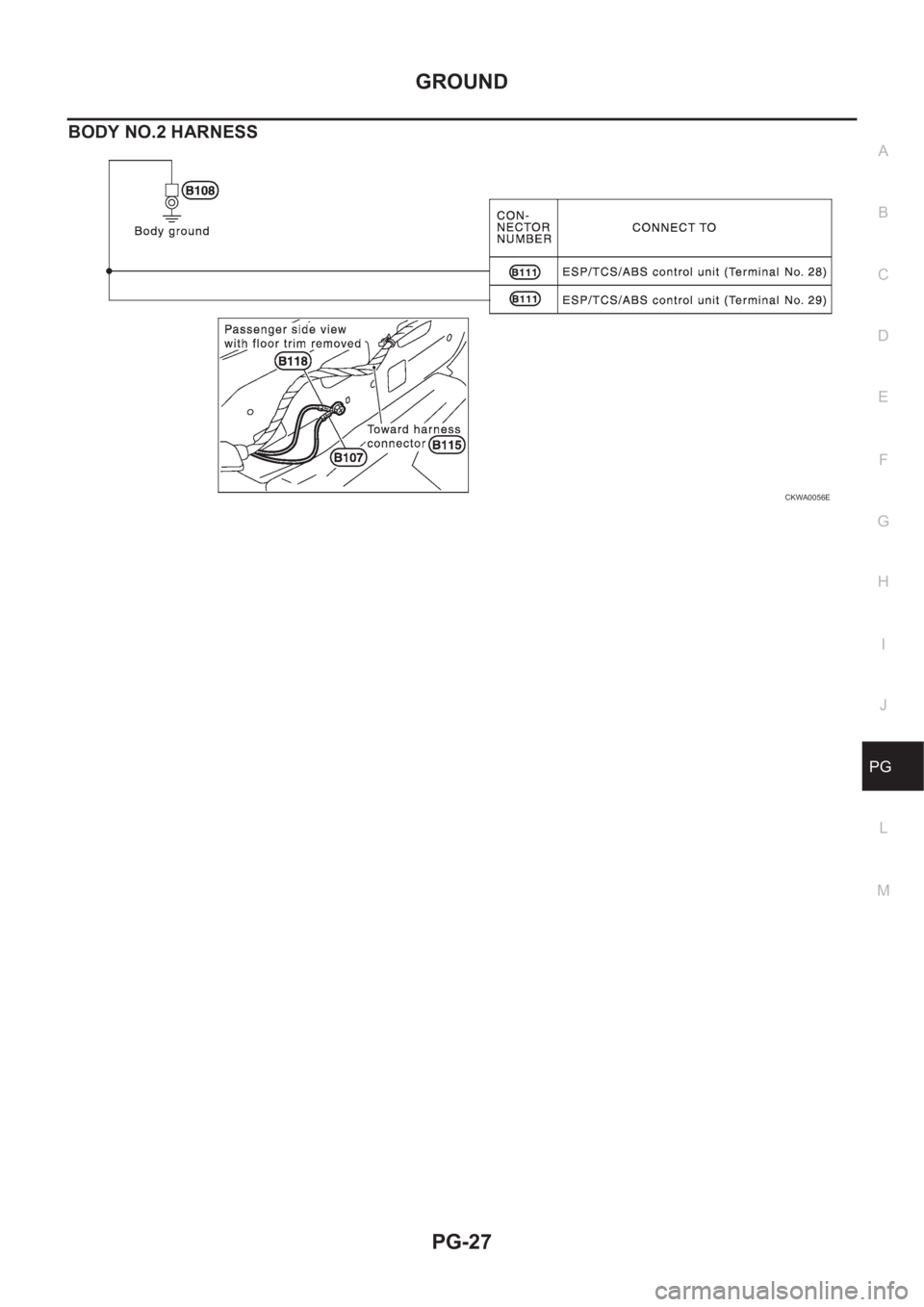

BODY NO.2 HARNESS
CKWA0056E
Page 3732 of 3833
PG-28
GROUND

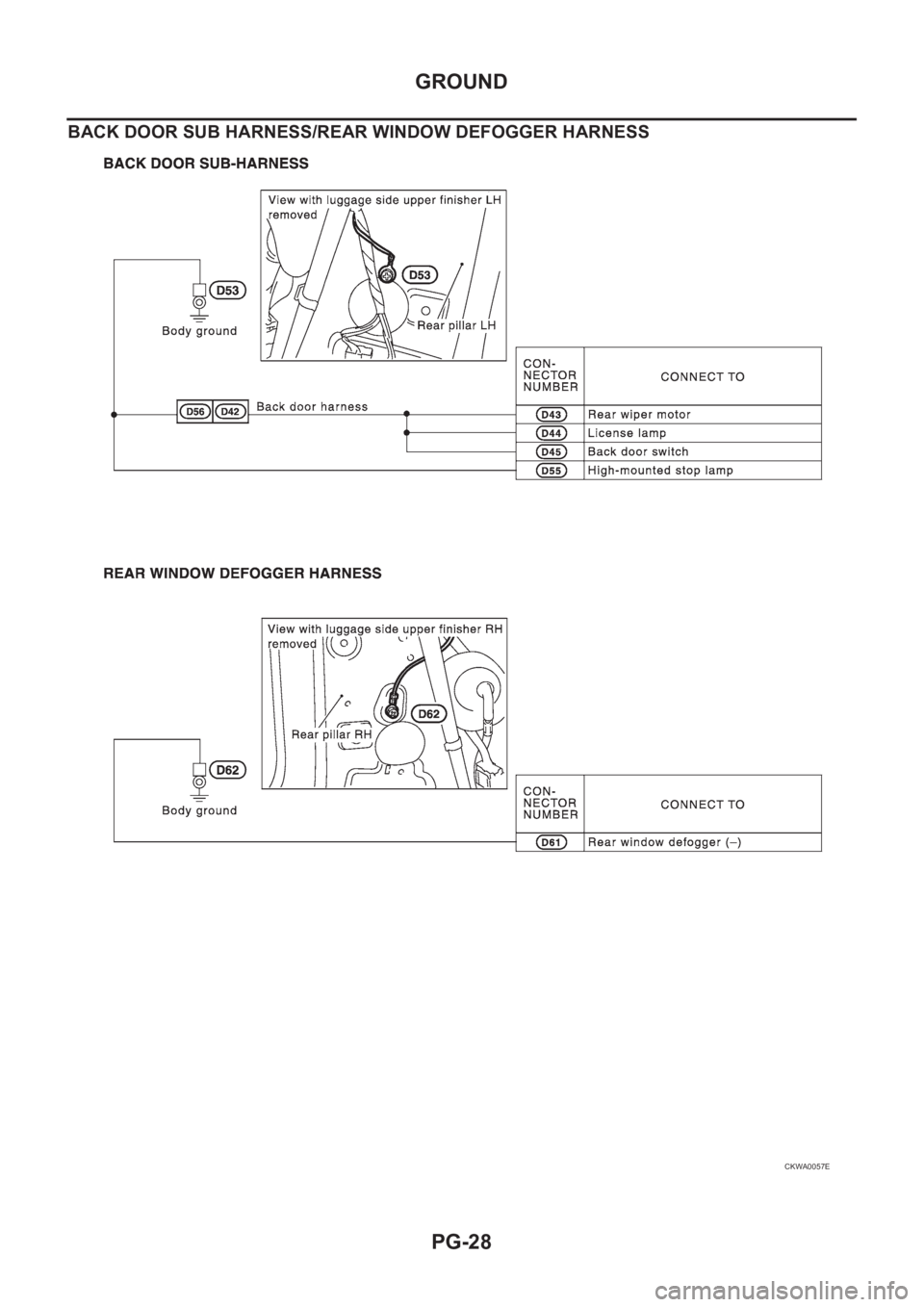

BACK DOOR SUB HARNESS/REAR WINDOW DEFOGGER HARNESS
CKWA0057E
Page 3733 of 3833
HARNESS
PG-29
C
D
E
F
G
H
I
J
L
MA
B
PG
HARNESS PFP:00011
Harness Layout EKS0032I
HOW TO READ HARNESS LAYOUTS
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
●Main Harness
●Engine Room Harness (Engine Compartment)
●Engine Control Harness
●Body Harness
●Body No.2 Harness
●Room Lamp Harness
●Door Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.SEL252V
SKIA0404E
Page 3734 of 3833
PG-30
HARNESS
OUTLINE/LHD MODELS
CKWA0058E
Page 3735 of 3833
HARNESS
PG-31
C
D
E
F
G
H
I
J
L
MA
B
PG

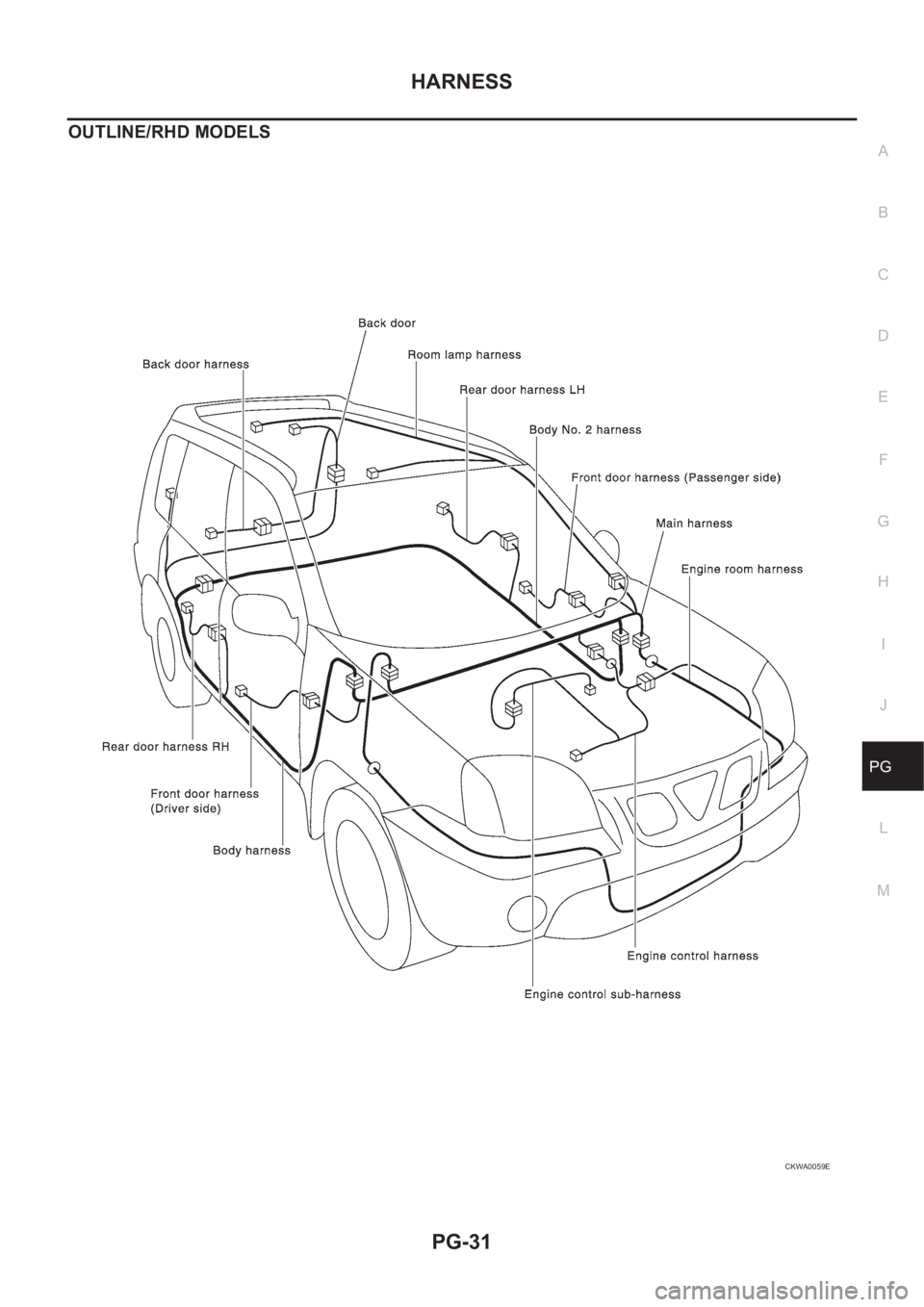

OUTLINE/RHD MODELS
CKWA0059E
Page 3736 of 3833
PG-32
HARNESS

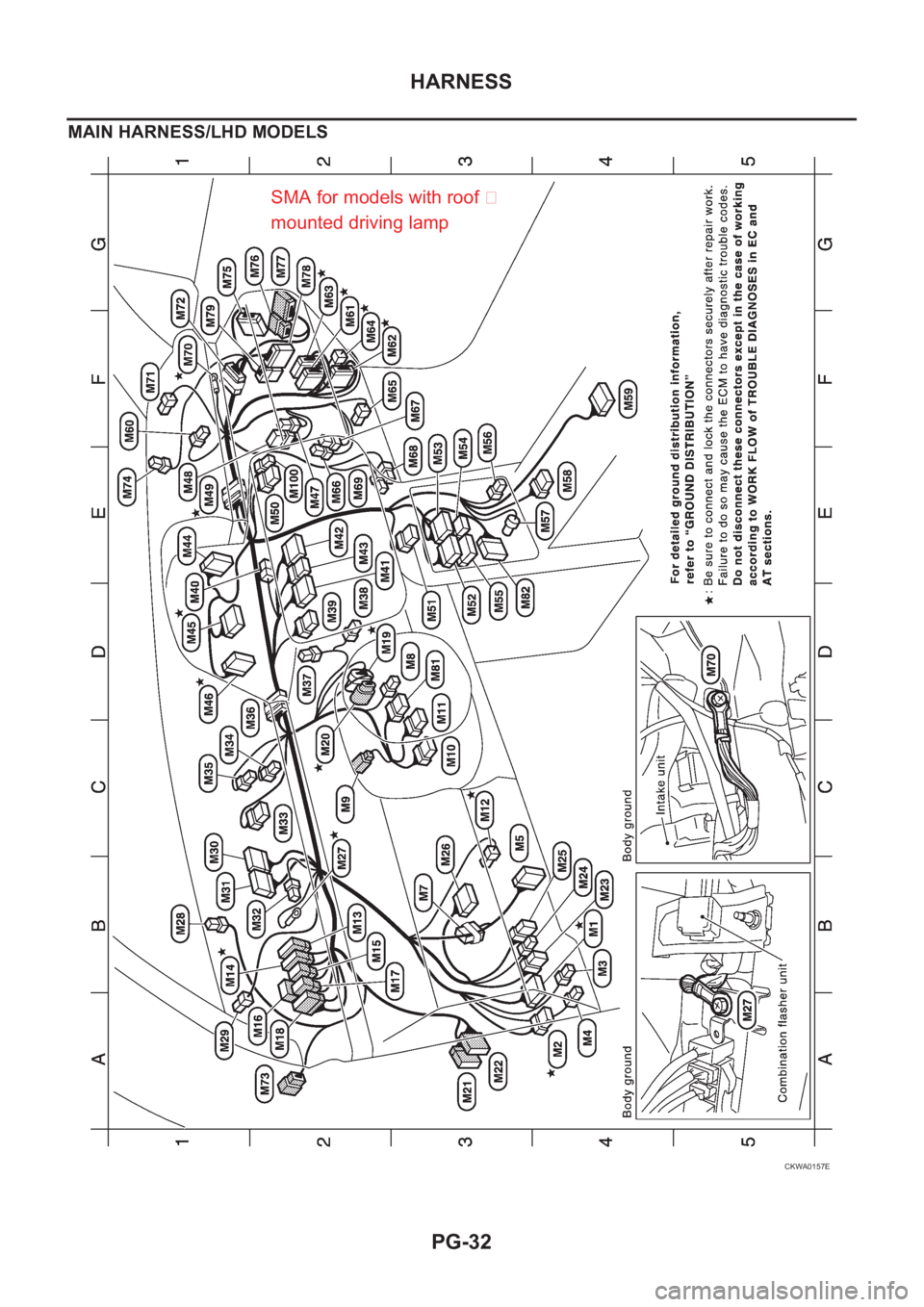

MAIN HARNESS/LHD MODELS
CKWA0157E
SMA for models with roof
mounted driving lamp
