Page 2401 of 4770
S04588
B05938
No.1No.2
± COOLING (1MZ±FE)RADIATOR
CO±19
1627 Author: Date:
11. REMOVE NO.1 ECT SWITCH
12. REMOVE NO.1 COOLING FAN FROM RADIATOR
Remove the 2 bolts and cooling fan.
Torque: 5.0 N´m (50 kgf´cm, 44 in.´lbf)
13. REMOVE NO.2 COOLING FAN FROM RADIATOR
Remove the 3 bolts and cooling fan.
Torque: 5.0 N´m (50 kgf´cm, 44 in.´lbf)
Page 2402 of 4770

CO03P±03
CO1205Overhaul HandleStopper Bolt Dimension ºBº
ClawPart ºAº
SST
S04737Stopper BoltLock Plate
SSTTank
S04738
Ta p
Z18546
A/T CO±20
± COOLING (1MZ±FE)RADIATOR
1628 Author: Date:

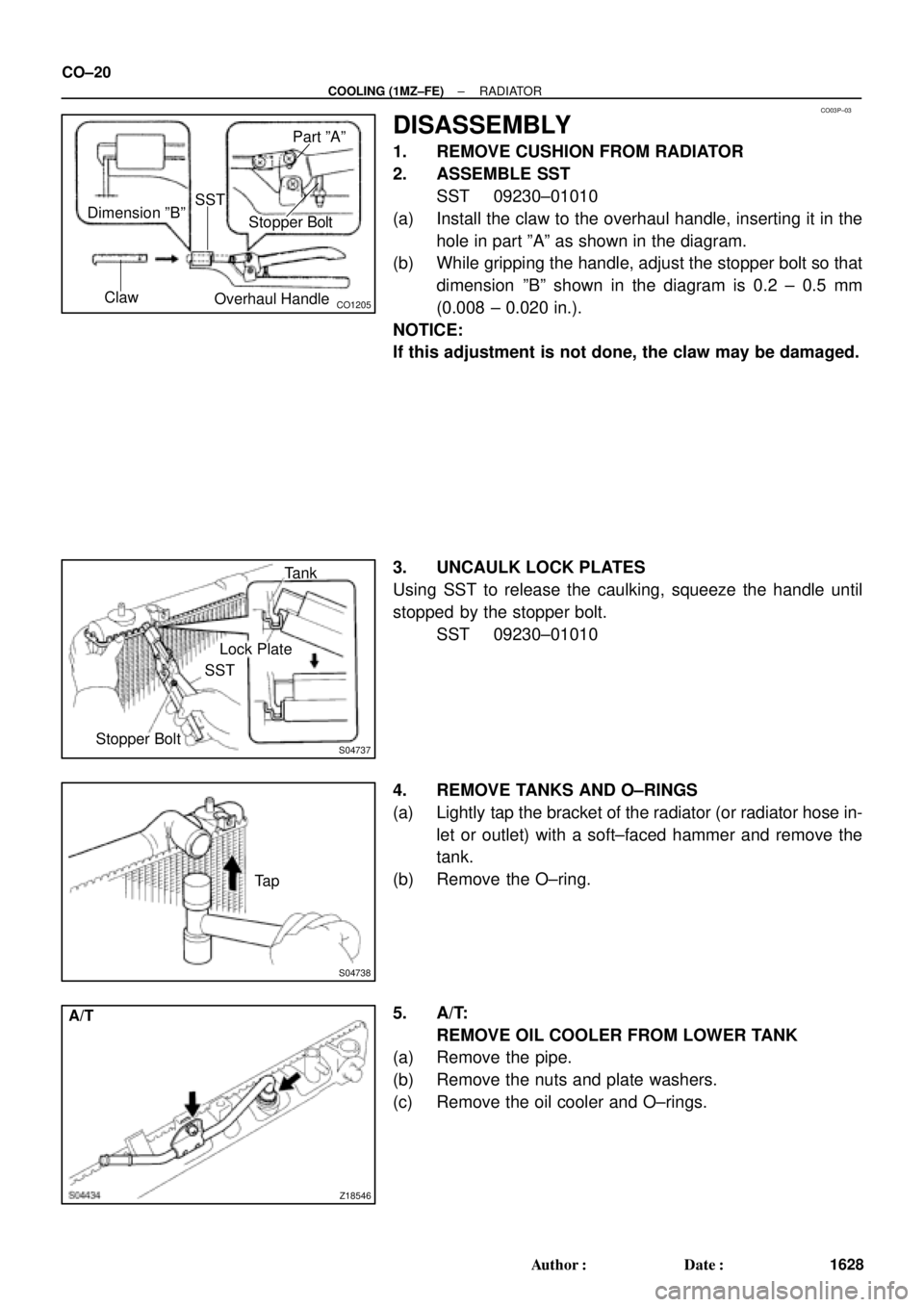

DISASSEMBLY
1. REMOVE CUSHION FROM RADIATOR
2. ASSEMBLE SST
SST 09230±01010
(a) Install the claw to the overhaul handle, inserting it in the
hole in part ºAº as shown in the diagram.
(b) While gripping the handle, adjust the stopper bolt so that
dimension ºBº shown in the diagram is 0.2 ± 0.5 mm
(0.008 ± 0.020 in.).
NOTICE:
If this adjustment is not done, the claw may be damaged.
3. UNCAULK LOCK PLATES
Using SST to release the caulking, squeeze the handle until
stopped by the stopper bolt.
SST 09230±01010
4. REMOVE TANKS AND O±RINGS
(a) Lightly tap the bracket of the radiator (or radiator hose in-
let or outlet) with a soft±faced hammer and remove the
tank.
(b) Remove the O±ring.
5. A/T:
REMOVE OIL COOLER FROM LOWER TANK
(a) Remove the pipe.
(b) Remove the nuts and plate washers.
(c) Remove the oil cooler and O±rings.
Page 2403 of 4770

CO03Q±03
Z18506
A/T
(1)
(2)
(3)(4)(5) (6)
CO1267
Lock Plate
Lock Plate
Core
CO0317
O±Ring Normal
X Twisted
X Twisted
± COOLING (1MZ±FE)RADIATOR
CO±21
1629 Author: Date:

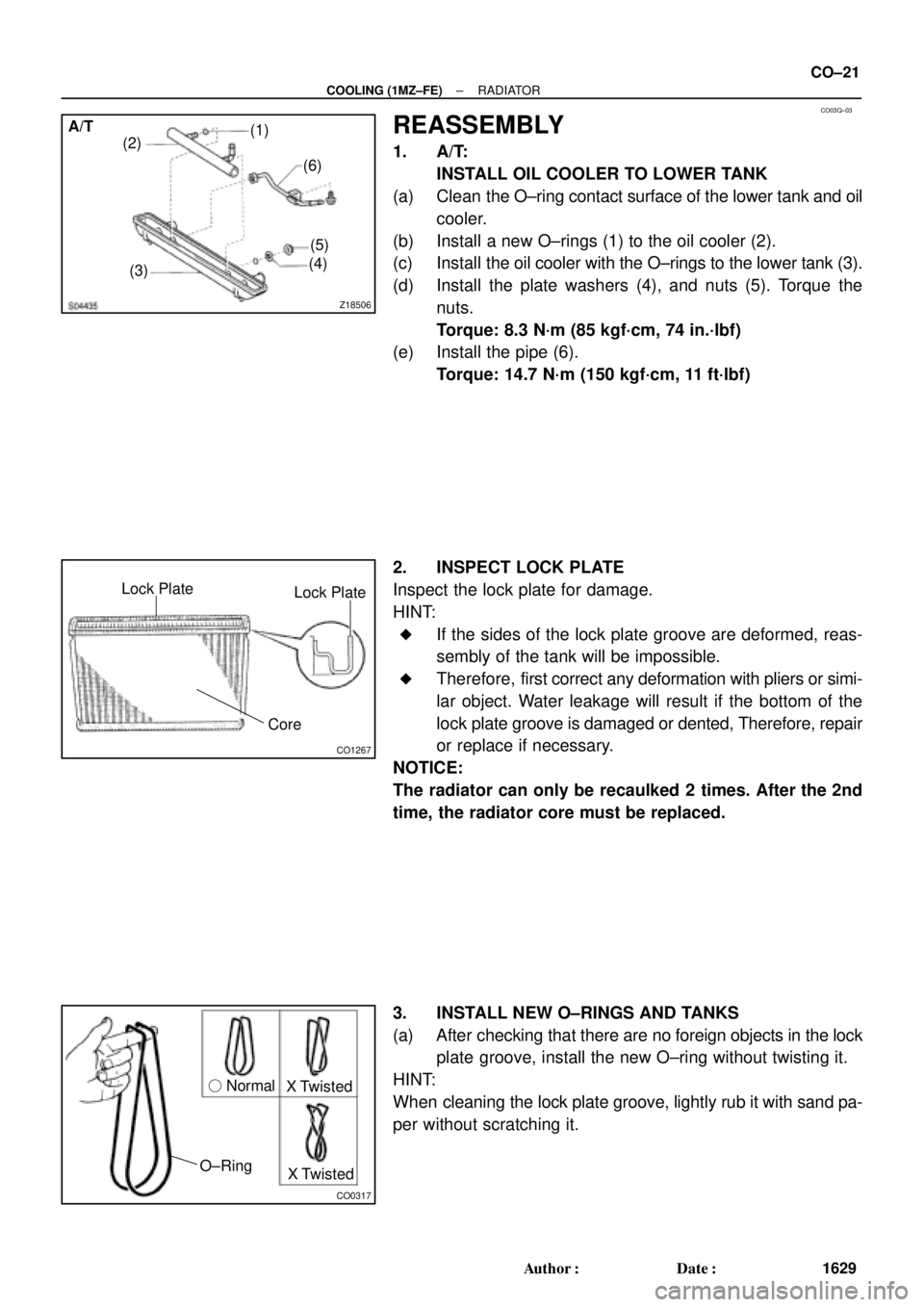

REASSEMBLY
1. A/T:
INSTALL OIL COOLER TO LOWER TANK
(a) Clean the O±ring contact surface of the lower tank and oil
cooler.
(b) Install a new O±rings (1) to the oil cooler (2).
(c) Install the oil cooler with the O±rings to the lower tank (3).
(d) Install the plate washers (4), and nuts (5). Torque the
nuts.
Torque: 8.3 N´m (85 kgf´cm, 74 in.´lbf)
(e) Install the pipe (6).
Torque: 14.7 N´m (150 kgf´cm, 11 ft´lbf)
2. INSPECT LOCK PLATE
Inspect the lock plate for damage.
HINT:
If the sides of the lock plate groove are deformed, reas-
sembly of the tank will be impossible.
Therefore, first correct any deformation with pliers or simi-
lar object. Water leakage will result if the bottom of the
lock plate groove is damaged or dented, Therefore, repair
or replace if necessary.
NOTICE:
The radiator can only be recaulked 2 times. After the 2nd
time, the radiator core must be replaced.
3. INSTALL NEW O±RINGS AND TANKS
(a) After checking that there are no foreign objects in the lock
plate groove, install the new O±ring without twisting it.
HINT:
When cleaning the lock plate groove, lightly rub it with sand pa-
per without scratching it.
Page 2404 of 4770

S04736
Ta pCORRECT
WRONGTank
Lock
Plate
CO1206
Dimension ºBº
Stopper Bolt Part ºAº
Punch Assembly Overhaul HandleSST
S04739
13
2 5
47
68
Stopper
BoltSST
Tank
Lock
Plate
S04734
Rib
Bracket CO±22
± COOLING (1MZ±FE)RADIATOR
1630 Author: Date:

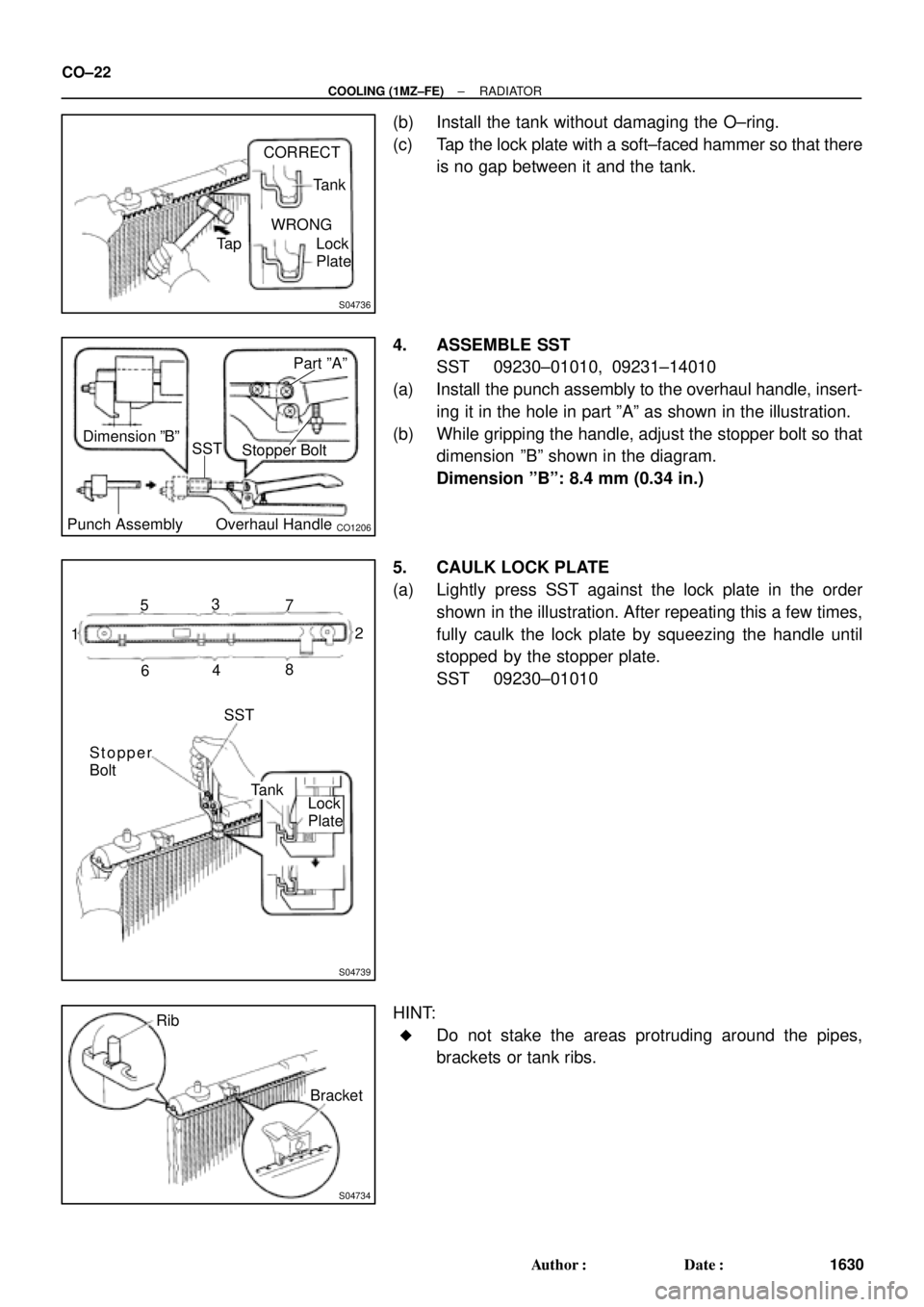

(b) Install the tank without damaging the O±ring.
(c) Tap the lock plate with a soft±faced hammer so that there
is no gap between it and the tank.
4. ASSEMBLE SST
SST 09230±01010, 09231±14010
(a) Install the punch assembly to the overhaul handle, insert-
ing it in the hole in part ºAº as shown in the illustration.
(b) While gripping the handle, adjust the stopper bolt so that
dimension ºBº shown in the diagram.
Dimension ºBº: 8.4 mm (0.34 in.)
5. CAULK LOCK PLATE
(a) Lightly press SST against the lock plate in the order
shown in the illustration. After repeating this a few times,
fully caulk the lock plate by squeezing the handle until
stopped by the stopper plate.
SST 09230±01010
HINT:
Do not stake the areas protruding around the pipes,
brackets or tank ribs.
Page 2405 of 4770
S04726
S04735
H
± COOLING (1MZ±FE)RADIATOR
CO±23
1631 Author: Date:

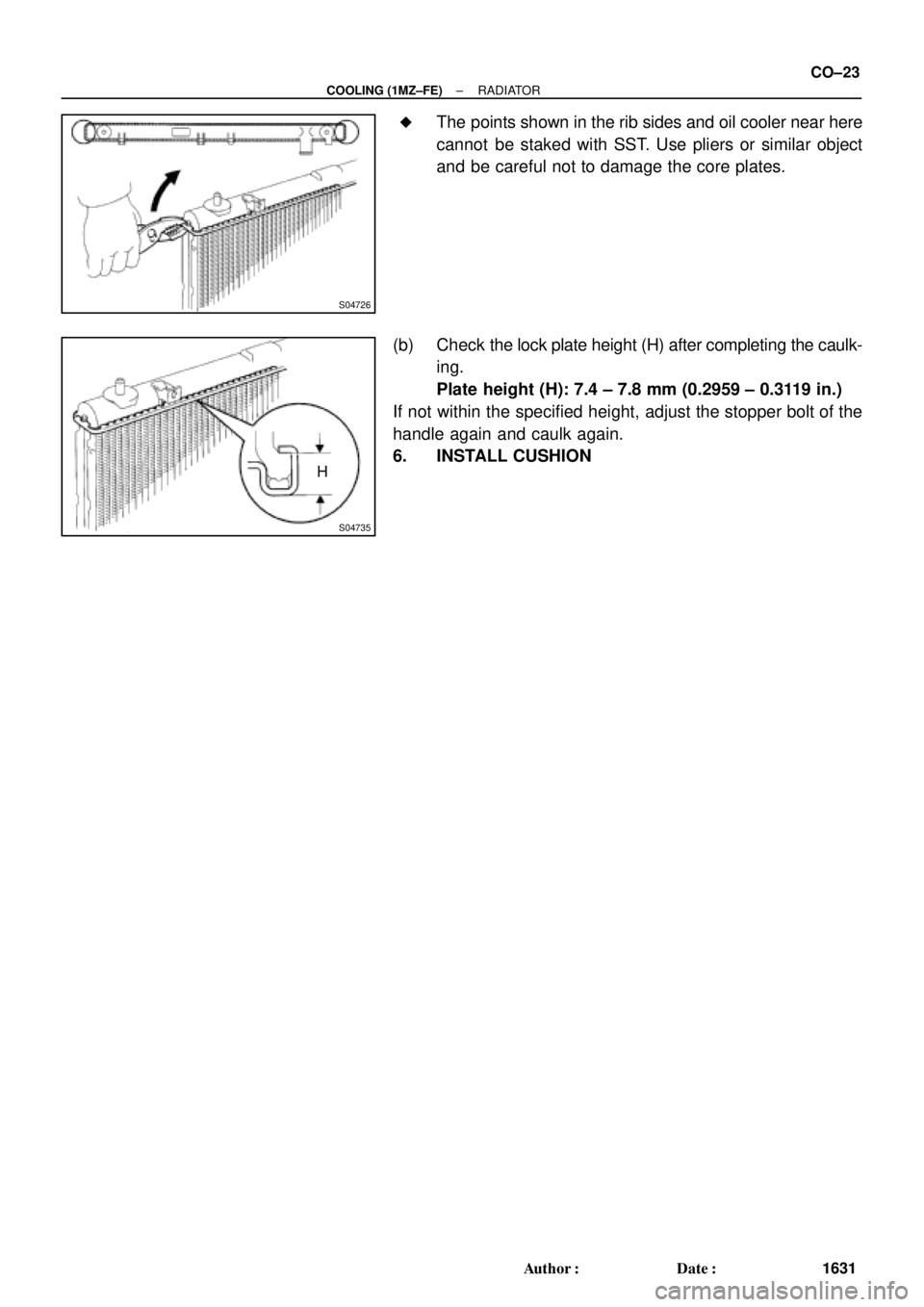

The points shown in the rib sides and oil cooler near here
cannot be staked with SST. Use pliers or similar object
and be careful not to damage the core plates.
(b) Check the lock plate height (H) after completing the caulk-
ing.
Plate height (H): 7.4 ± 7.8 mm (0.2959 ± 0.3119 in.)
If not within the specified height, adjust the stopper bolt of the
handle again and caulk again.
6. INSTALL CUSHION
Page 2406 of 4770
CO03R±01
CO±24
± COOLING (1MZ±FE)RADIATOR
1632 Author: Date:
INSTALLATION
Installation is in the reverse order of removal. (See page CO±18)
Page 2407 of 4770

B05939
CO03S±03
S04727
Disconnect
B05940
B05941
Ammeter
Battery
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
CO±25
1633 Author: Date:
ELECTRIC COOLING FAN
ON±VEHICLE INSPECTION
1. CHECK COOLING FAN OPERATION WITH LOW
TEMPERATURE (Below 88°C (190°F))
(a) Turn the ignition switch ON.
(b) Check that the cooling fan stops.
If not, check the cooling fan relay and ECT switch, and check
for a separated connector or severed wire between the cooling
fan relay and ECT switch.
(c) Disconnect the No.1 ECT switch connector.
(d) Check that the cooling fan rotates.
If not, check the fuses, engine main relay, cooling fan relay,
cooling fan, and check for a short circuit between the cooling
fan relay and ECT switch.
(e) Reconnect the No.1 ECT switch connector.
2. CHECK COOLING FAN OPERATION WITH HIGH
TEMPERATURE (Above 98°C (208°F))
(a) Start the engine, and raise coolant temperature to above
98°C (208°F).
(b) Check that the cooling fan rotates.
If not, replace the No.1 ECT switch.
3. INSPECT NO.1 COOLING FAN
(a) Disconnect the cooling fan connector.
(b) Connect battery and ammeter to the cooling fan connec-
tor.
(c) Check that the cooling fan rotates smoothly, and check
the reading on the ammeter.
Standard amperage: 8.3 ± 11.3 A at 20°C (68°F)
(d) Reconnect the cooling fan connector.
Page 2408 of 4770
B05942
Ammeter
Battery CO±26
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
1634 Author: Date:
4. INSPECT NO.2 COOLING FAN
(a) Disconnect the cooling fan connector.
(b) Connect battery and ammeter to the cooling fan connec-
tor.
(c) Check that the cooling fan rotates smoothly, and check
the reading on the ammeter.
Standard amperage: 8.3 ± 11.3 A at 20°C (68°F)
(d) Reconnect the cooling fan connector.
