± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS
34 Author: Date:
(b) Check the voltage.
In a circuit in which voltage is applied (to the ECU connec-
tor terminal), an open circuit can be checked for by con-
ducting a voltage check.
As shown in Fig. 4, with each connector still con-
nected, measure the voltage between body ground
and terminal 1 of connector ºAº at the ECU 5V out-
put terminal, terminal 1 of connector ºBº, and termi-
nal 1 of connector ºCº, in that order.
If the results are:
5V: Between Terminal 1 of connector ºAº and Body Ground
5V: Between Terminal 1 of connector ºBº and Body Ground
0V: Between Terminal 1 of connector ºCº and Body Ground
Then it is found out that there is an open circuit in the wire har-
ness between terminal 1 of ºBº and terminal 1 of ºCº.
7. CHECK SHORT CIRCUIT
If the wire harness is ground shorted as in Fig. 5, locate the sec-
tion by conducting a ºcontinuity check with groundº.
Check the continuity with ground.
(1) Disconnect connectors ºAº and ºCº and measure
the resistance between terminal 1 and 2 of connec-
tor ºAº and body ground.
In the case of Fig. 6
Between terminal 1 of connector ºAº and body
ground " Continuity (short)
Between terminal 2 of connector ºAº and body
ground " No continuity
Therefore, it is found out that there is a short circuit
between terminal 1 of connector ºAº and terminal 1
of connector ºCº.
Page 3706 of 4770

Z17808
Fig. 7
Sensor
21A B1 C
1
1
221
2 B2
ECU
IN0383
Example
Ground
IN0384
Ground
Ground
ECU Side
W/H Side
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMSIN±35
35 Author: Date:

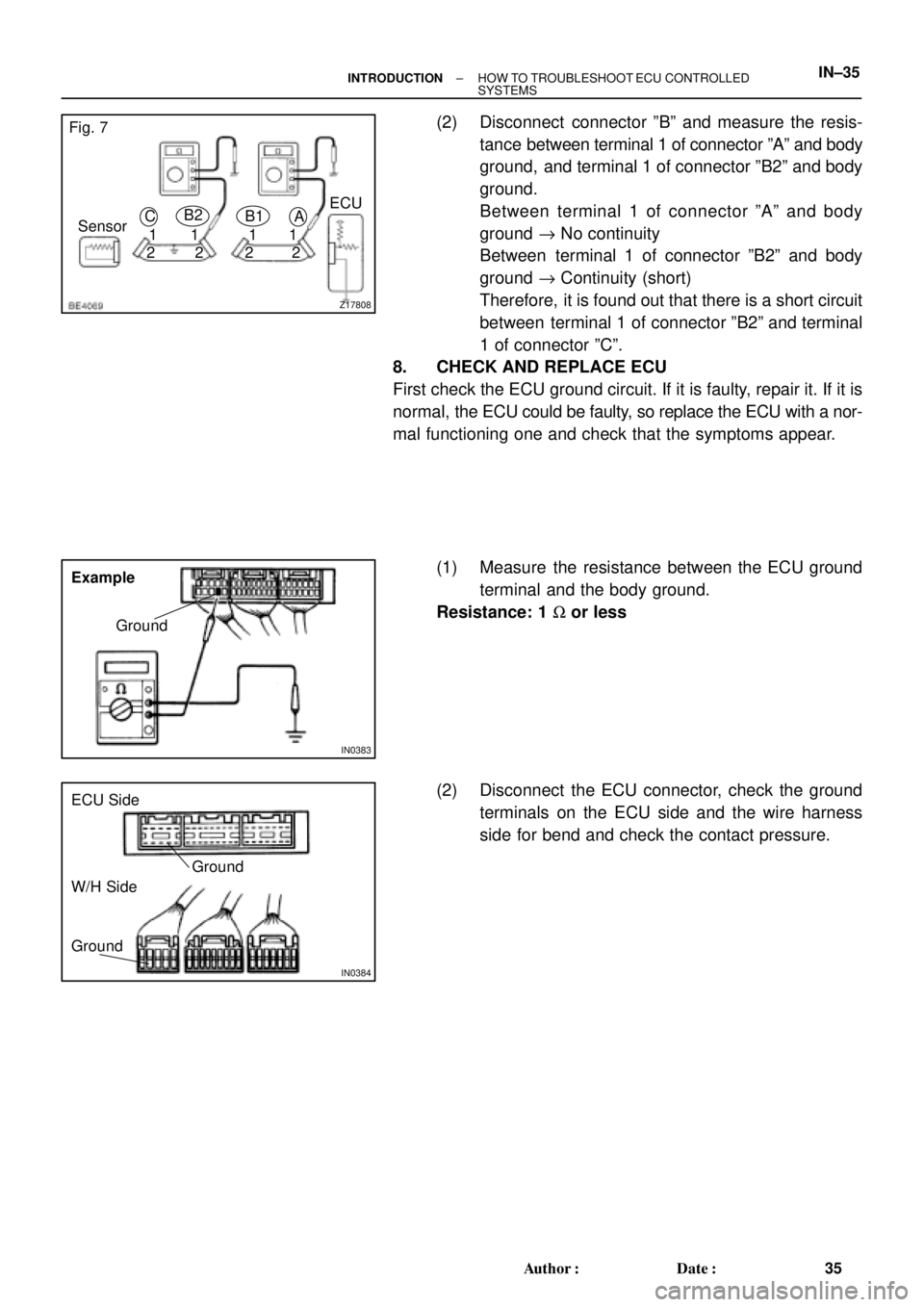

(2) Disconnect connector ºBº and measure the resis-
tance between terminal 1 of connector ºAº and body
ground, and terminal 1 of connector ºB2º and body
ground.
Between terminal 1 of connector ºAº and body
ground " No continuity
Between terminal 1 of connector ºB2º and body
ground " Continuity (short)
Therefore, it is found out that there is a short circuit
between terminal 1 of connector ºB2º and terminal
1 of connector ºCº.
8. CHECK AND REPLACE ECU
First check the ECU ground circuit. If it is faulty, repair it. If it is
normal, the ECU could be faulty, so replace the ECU with a nor-
mal functioning one and check that the symptoms appear.
(1) Measure the resistance between the ECU ground
terminal and the body ground.
Resistance: 1 W or less
(2) Disconnect the ECU connector, check the ground
terminals on the ECU side and the wire harness
side for bend and check the contact pressure.
Page 3707 of 4770

IN04Q±03
IN±36
± INTRODUCTIONTERMS
