Page 3729 of 4770

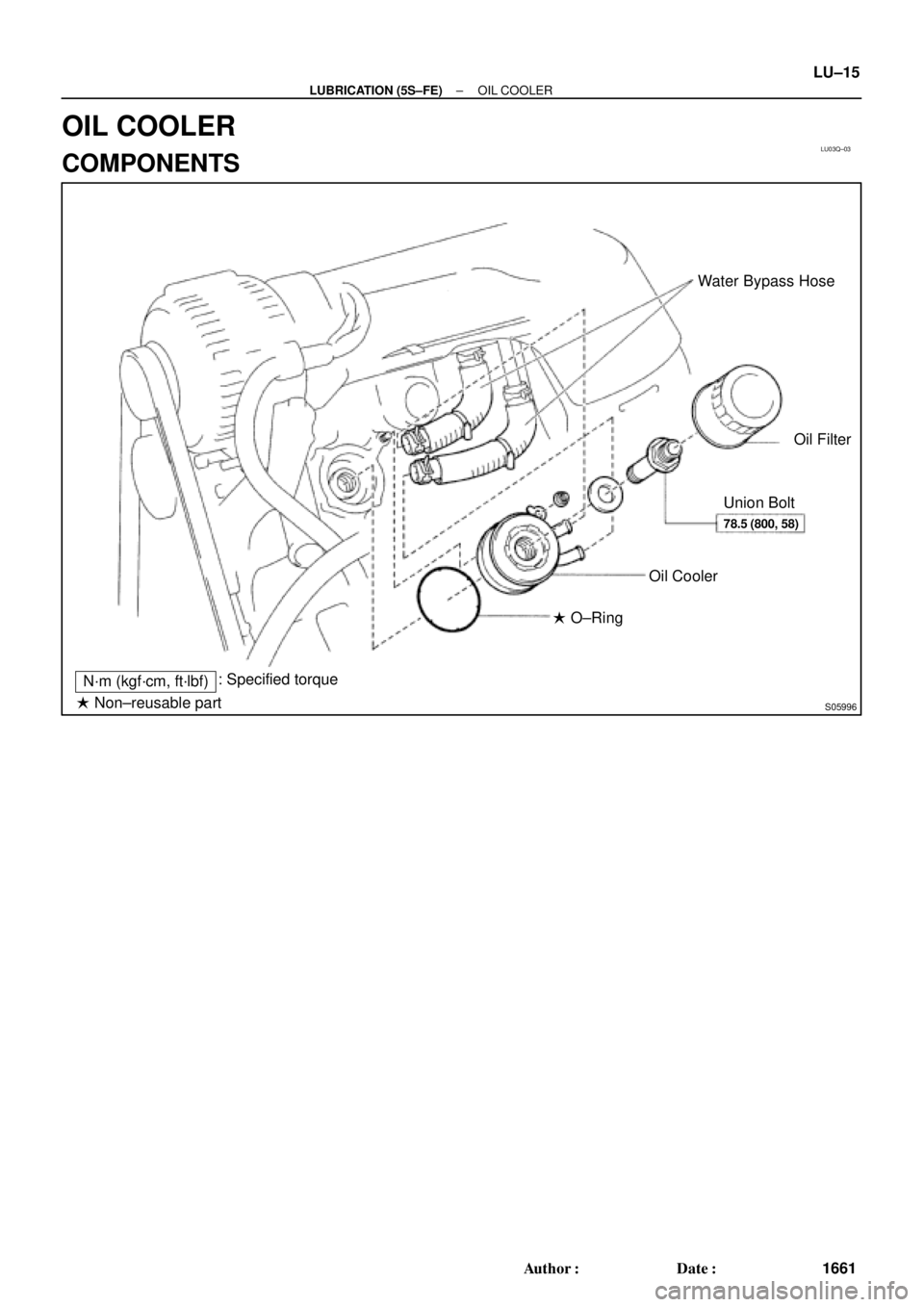

TOYOTA CAMRY 2000 Service Repair Manual LU03Q±03 S05996 Water Bypass Hose Oil Filter Union Bolt Oil Cooler  O±Ring N´m (kgf´cm, ft´lbf): Specified torque  Non±reusable part 78.5 (800, 58) ± LUBRICATION (5S±FE)OIL COOLER LU±15 166

Page 3730 of 4770

TOYOTA CAMRY 2000 Service Repair Manual LU03R±03 S05613 LU±16 ± LUBRICATION (5S±FE)OIL COOLER 1662 Author: Date: REMOVAL 1. DRAIN ENGINE COOLANT 2. REMOVE OIL FILTER (See page LU±2) 3. REMOVE OIL COOLER (a) Disconnect the 2 water by

Page 3731 of 4770

TOYOTA CAMRY 2000 Service Repair Manual LU03S±03 S05929 ± LUBRICATION (5S±FE)OIL COOLER LU±17 1663 Author: Date: INSPECTION INSPECT OIL COOLER Check the oil cooler for damage or clogging. If necessary, replace the oil cooler.

Page 3732 of 4770

TOYOTA CAMRY 2000 Service Repair Manual LU03T±03 S05930 New O±Ring S05613 LU±18 ± LUBRICATION (5S±FE)OIL COOLER 1664 Author: Date: INSTALLATION 1. INSTALL OIL COOLER (a) Clean the oil cooler contact surface on the oil cooler mounting

Page 3733 of 4770

TOYOTA CAMRY 2000 Service Repair Manual B00319 Recommended Viscosity (SAE): TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE10W±30 5W±30 PREFERRED°C °F ±20 ±290 ±1820 ±740 460 1680 27100 38 LU0FR±01 P25173SST P25171 Oil Pressur

Page 3734 of 4770

TOYOTA CAMRY 2000 Service Repair Manual P12478 Adhesive LU±2 ± LUBRICATION (1MZ±FE)OIL AND FILTER 1666 Author: Date: 6. REMOVE OIL PRESSURE GAUGE AND REINSTALL OIL PRESSURE SWITCH (a) Remove the oil pressure gauge. (b) Apply adhesive

Page 3735 of 4770

TOYOTA CAMRY 2000 Service Repair Manual LU026±03 P12486 P12580 SST P12582 SST Additional 3/4 Turn ± LUBRICATION (1MZ±FE)OIL AND FILTER LU±3 1667 Author: Date: REPLACEMENT CAUTION: Prolonged and repeated contact with mineral oil wil

Page 3736 of 4770

TOYOTA CAMRY 2000 Service Repair Manual LU±4 ± LUBRICATION (1MZ±FE)OIL AND FILTER 1668 Author: Date: 3. REFILL WITH ENGINE OIL (a) Clean and install the oil drain plug with a new gasket. Torque: 45 N´m (460 kgf´cm, 33 ft´lbf) (b) F
