Page 2817 of 4770

± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
DI±397
632 Author: Date:
6. MECHANICAL SYSTEM TESTS
(a) Measure the stall speed.
The object of this test is to check the overall performance of the transaxle and engine by measuring
the stall speeds in the D and R positions.
NOTICE:
Do the test at normal operating fluid temperature 50 ± 80 °C (122 ± 176 °F).
Do not continuously run this test for longer than 5 seconds.
To ensure safety, conduct this test in a wide, clear level area which provides good traction.
The stall test should always be carried out in pairs. One technician should observe the condi-
tions of wheels or wheel stoppers outside the vehicle while the other is doing the test.
(1) Chock the 4 wheels.
(2) Connect an OBD II scan tool or TOYOTA hand±held tester to DLC3.
(3) Fully apply the parking brake.
(4) Keep your left foot depressing firmly on the brake pedal.
(5) Start the engine.
(6) Shift into the D position. Press all the way down on the accelerator pedal with your right foot.
Quickly read the stall speed at this time.
Stall speed: 2,450 ± 150 rpm
(7) Do the same test in R position.
Stall speed: 2,450 ± 150 rpm
Evaluation:
ProblemPossible cause
(a) Stall speed low in D and R positions
Engine output may be insufficient
Stator one±way clutch is operating properly
HINT: If more than 600 rpm below the specified value, the torque
converter clutch could be faulty.
(b) Stall speed high in D position
Line pressure too low
Forward clutch slipping
No.2 one±way clutch not operating properly
O/D clutch slipping
(c) Stall speed high in R position
Line pressure too low
Direct clutch slipping
1st & reverse brake slipping
O/D clutch slipping
(d) Stall speed high in D and R positions
Line pressure too low
Improper fluid level
O/D one±way clutch not operating properly
Page 2818 of 4770

DI±398
± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
633 Author: Date:
(b) Measure the time lag.
When the shift lever is shifted while the engine is idling, there will be a certain time lapse or lag before
the shock can be felt. This is used for checking the condition of the O/D direct clutch, forward clutch,
and 1st & reverse brake.
NOTICE:
Do the test at normal operating fluid temperature 50 ± 80 °C (122 ± 176 °F).
Be sure to allow 1 minute interval between tests.
Take 3 measurements and take the average value.
(1) Connect an OBD II scan tool or TOYOTA hand±held tester to DLC3.
(2) Fully apply the parking brake.
(3) Start the engine and check idle speed.
Idle speed : 750 ± 50 rpm (In N position and air conditioner OFF)
(4) Shift the shift lever from N to D position. Using a stop watch, measure the time from when the
lever is shifted until the shock is felt.
Time lag: N " D Less than 1.2 seconds
(5) In the same manner, measure the time lag for N " R.
Time lag: N " R Less than 1.5 seconds
Evaluation (If N " D time or N " R time lag is longer than the specified):
ProblemPossible cause
N " D time lag is longer
Line pressure too low
Forward clutch worn
O/D one±way clutch not operating
N " R time lag is longer
Line pressure too low
Direct clutch worn
1st & reverse brake worn
O/D one±way clutch not operating properly
Page 2819 of 4770

± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
DI±399
634 Author: Date:
7. HYDRAULIC TEST
Measure the line pressure.
NOTICE:
Do the test at normal operation fluid temperature 50 ± 80 °C (122 ± 176 °F).
The line pressure test should always be carried out in pairs. One technician should observe
the conditions of wheels or wheel stoppers outside the vehicle while the other is doing the test.
Be careful to prevent SST's hose from interfering with the exhaust pipe.
(1) Warm up the ATF.
(2) Remove the test plug on the transaxle case front left side and connect SST.
(See page AX±17 for the location to connect SST)
SST 09992±00095 (09992±00231, 09992±00271)
(3) Fully apply the parking brake and chock the 4 wheels.
(4) Connect an OBD II scan tool or TOYOTA hand±held tester to DLC3.
(5) Start the engine and check idling speed.
(6) Keep your left foot pressing firmly on the brake pedal and shift into D position.
(7) Measure the line pressure when the engine is idling.
(8) Depress the accelerator pedal all the way down. Quickly read the highest line pressure when
engine speed reaches stall speed.
(9) In the same manner, do the test in R position.
Specified line pressure:
ConditionD position kPa (kgf/cm2, psi)R position kPa (kgf/cm2, psi)
Idling362 ± 422 (3.7 ± 4.3, 53 ± 61)618 ± 794 (6.3 ± 8.1, 90 ± 115)
Stall735 ± 862 (7.5 ± 8.8, 107 ± 125)1,373 ± 1,608 (14.0 ± 16.4, 199 ± 233)
If the measured pressure is not up to the specified value, recheck the throttle cable adjustment and retest.
Evaluation
ProblemPossible cause
If the measured values at all positions are higher
Throttle cable out of adjustment
Throttle valve defective
Regulator valve defective
If the measured values at all positions are lower
Throttle cable out of adjustment
Throttle valve defective
Regulator valve defective
Oil pump defective
O/D direct clutch defective
If pressure is low in the D position onlyD position circuit fluid leakage
Forward clutch defective
If pressure is low in the R position only
R position circuit fluid leakage
Direct clutch defective
1st & reverse brake defective
Page 2820 of 4770
Q00200
DI±400
± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
635 Author: Date:
8. MANUAL SHIFTING TEST
HINT:
By this test, it can be determined whether the trouble is within
the electrical circuit or is a mechanical problem in the transaxle.
(a) Disconnect the solenoid wire.
(b) Inspect the manual driving operation.
Check that the shift and gear positions correspond to the
table below.
While driving, shift through the L, 2 and D positions.
Check that the gear change corresponds to the shift posi-
tion.
Shift PositionGear Position
DO/D
23rd
L1st
RReverse
PPawl Lock
HINT:
If the L, 2 and D gear positions are difficult to distinguish, do the
above test.
If any abnormality is found in the above test, the problem is in
the transaxle itself.
(c) Connect the solenoid wire.
(d) Clear out the DTC (See page DI±389).
Page 2821 of 4770

DI02X±02
± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
DI±401
636 Author: Date:
DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the circuit listed for that code in the table below and pro-
ceed to the page given.
* : ...MIL light up
DTC No.
(See Page)Detection ItemTrouble AreaMIL *Memory
P0500
(DI±408)Vehicle Speed Sensor Malfunc-
tion
(No.1 Vehicle Speed Sensor)
Open or short in No.1 vehicle speed sensor circuit
No.1 vehicle speed sensor
Combination meter
ECM
Automatic transaxle (clutch, brake or gear etc.)
P0750
(DI±411)Shift Solenoid A Malfunction
(Shift Solenoid Valve No.1)Shift solenoid valve No.1 is stuck open or closed
Valve body is blocked up or stuck
Automatic transaxle (clutch, brake or gear etc.)
P0753
(DI±413)Shift Solenoid A Electrical Mal-
function
(Shift Solenoid Valve No.1)Open or short in shift solenoid valve No.1 circuit
Shift solenoid valve No.1
ECM
P0755
(DI±411)Shift Solenoid B Malfunction
(Shift Solenoid Valve No.2)Shift solenoid valve No.2 is stuck open or closed
Valve body is blocked up or stuck
Automatic transaxle (clutch, brake or gear etc.)
P0758
(DI±413)Shift Solenoid B Electrical Mal-
function
(Shift Solenoid Valve No.2)Open or short in shift solenoid valve No.2 circuit
Shift solenoid valve No.2
ECM
P0770
(DI±417)Shift Solenoid E Malfunction
(Shift Solenoid Valve SL)
Shift solenoid valve SL is stuck open or closed
Valve body is blocked up or stuck
Lock±up clutch
Automatic transaxle (clutch, brake or gear etc.)
P0773
(DI±419)Shift Solenoid E Electrical Mal-
function
(Shift Solenoid Valve SL)Open or short in shift solenoid valve SL circuit
Shift solenoid valve SL
ECM
P1520
(DI±170)Stop Light Switch Signal Mal-
functionOpen or short in stop light switch circuit
Stop light switch
ECM
P1780
(DI±424)Park/Neutral Position Switch
MalfunctionShort in park/neutral position switch circuit
Park/neutral position switch
ECM
Page 2822 of 4770
DI02Y±02
D00938
Shift Solenoid Valve SLVehicle Speed SensorECMO/D Main SwitchO/D OFF Indicator Light
DLC3
Stop Light Switch
Shift Solenoid Valve No.2
Shift Solenoid Valve No.1 Park/Neutral Position Switch
DI±402
± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
637 Author: Date:

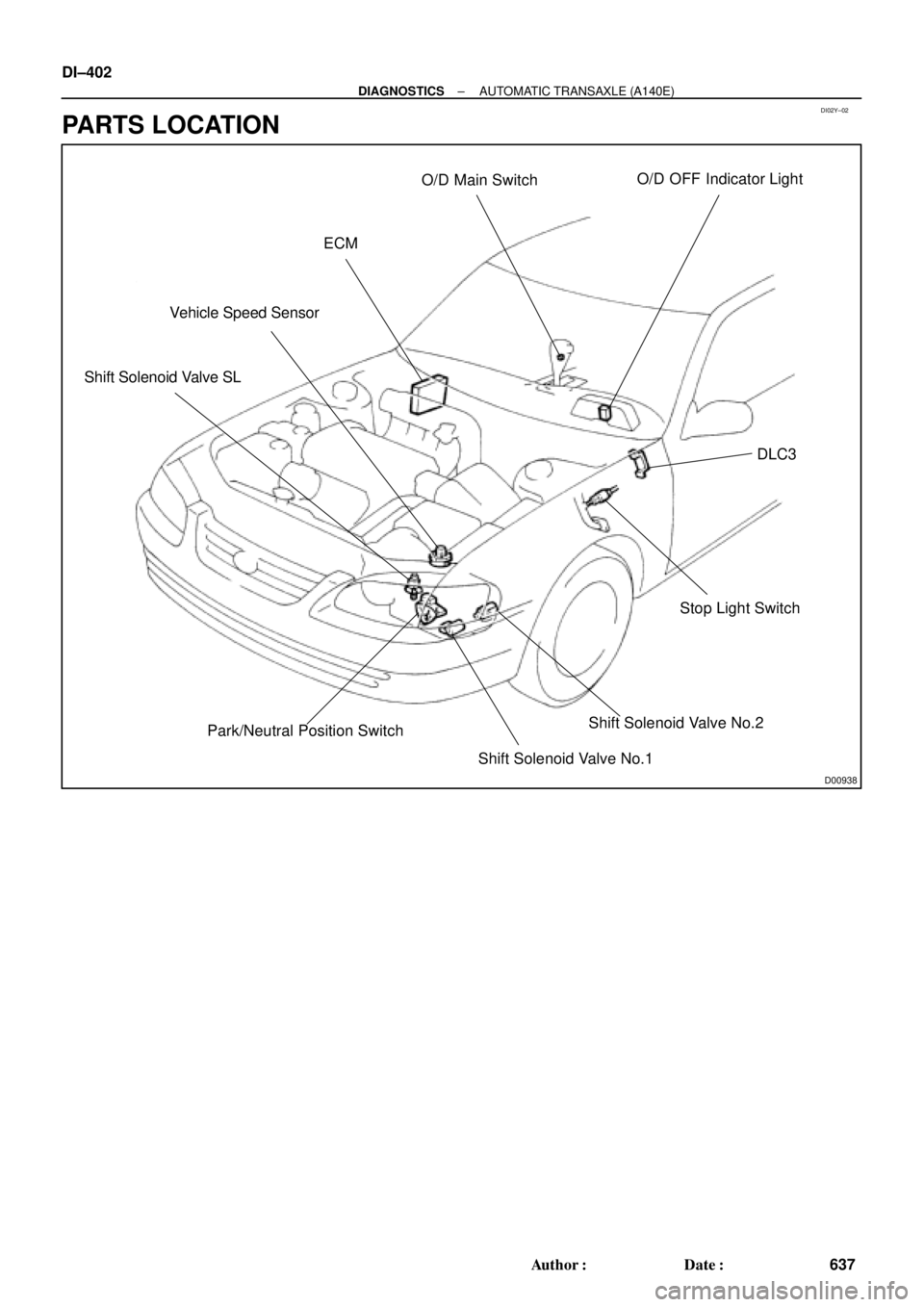

PARTS LOCATION
Page 2823 of 4770

DI1IZ±01
FI6526
1 2 3 4
5 6 7
8 9 10
12 13
14 15 17
18 19
20 21 22 1 2 3 4 5 6
7 8
9
10 11 12 1 2
3
4 5 6 7
8
9 1011
11 12 13
1514
16 16 1 2 3 4
5 6 7 8 9 10
12 13
14
15 17 18 19
20 21 22 11
16 23 24
25 26
ECM TerminalsE9 E8
E7E10
± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
DI±403
638 Author: Date:
TERMINALS OF ECM
w/ Engine Immobiliser System
Symbols (Terminals No.)Wiring ColorConditionSTD Voltage (V)
IG ON9 ~ 14
S1 e E1 (E9±8 e E9±24)V e BR1st or 2nd gear9 ~ 14S1 e E1 (E9 8 e E9 24)V e BR
3rd or O/D gearBelow 1
IG ONBelow 1
S2 e E1 (E9±21 e E9±24)L±B e BR1st or 2nd gear9 ~ 14S2 e E1 (E9 21 e E9 24)LB e BR
3rd or O/D gearBelow 1
SLE1 (E9 20E9 24)PBRIG ONBelow 1SL e E1 (E9±20 e E9±24)P e BRVehicle driving under lock±up position9 ~ 14
OD1 e E1 (E7±18 e E9±24)Y±B e BRIG ON9 ~ 14
OD2E1 (E7 5E9 24)GOBRO/D main switch ON9 ~ 14OD2 e E1 (E7±5 e E9±24)G±O e BRO/D main switch OFFBelow 1
LE1 (E7 15E9 24)YBRIG ON and Shift lever L position9 ~ 14L e E1 (E7±15 e E9±24)Y e BRIG ON and Shift lever other than L positionBelow 1
2E1 (E7 16E9 24)*1L±W e BRIG ON and Shift lever 2 position9 ~ 142 e E1 (E7±16 e E9±24)LW e BR
*2O e BRIG ON and Shift lever other than 2 positionBelow 1
RE1 (E7 17 E9 24)RBBRIG ON and Shift lever R position9 ~ 14R e E1 (E7±17 ± E9±24)R±B e BRIG ON and Shift lever other than R positionBelow 1
NSWE1 (E7 22E9 24)BWBRIG ON and Shift lever P or N position9 ~ 14NSW e E1 (E7±22 e E9±24)B±W e BRIG ON and Shift lever other than P or N positionBelow 1
*1: TMC made
*
2: TMMK made
Page 2824 of 4770

ECM Terminals
E9 E8
E7 DI±404
± DIAGNOSTICSAUTOMATIC TRANSAXLE (A140E)
639 Author: Date:
w/o Engine Immobiliser System
Symbols (Terminals No.)Wiring ColorConditionSTD Voltage (V)
IG ON9 ~ 14
S1 e E1 (E9±7 e E9±14)
V e BR1st or 2nd gear9 ~ 14S1 e E1 (E9 7 e E9 14)
V e BR
3rd or O/D gearBelow 1
IG ONBelow 1
S2 e E1 (E9±6 e E9±14)L±B e BR1st or 2nd gear9 ~ 14S2 e E1 (E9 6 e E9 14)LB e BR
3rd or O/D gearBelow 1
SLE1 (E9 1E9 14)PBRIG ONBelow 1SL e E1 (E9±1 e E9±14)P e BRVehicle driving under lock±up position9 ~ 14
OD1 e E1 (E7±20 e E9±14)Y±B e BRIG ON9 ~ 14
OD2E1 (E7 7E9 14)GOBRO/D main switch ON9 ~ 14OD2 e E1 (E7±7 e E9±14)G±O e BRO/D main switch OFFBelow 1
LE1 (E7 19E9 14)YBRIG ON and Shift lever L position9 ~ 14L e E1 (E7±19 e E9±14)Y e BRIG ON and Shift lever other than L positionBelow 1
2E1 (E7 18E9 14)*1L±W e BRIG ON and Shift lever 2 position9 ~ 142 e E1 (E7±18 e E9±14)LW e BR
*2O e BRIG ON and Shift lever other than 2 positionBelow 1
RE1 (E7 17 E9 14)RBBRIG ON and Shift lever R position9 ~ 14R e E1 (E7±17 ± E9±14)R±B e BRIG ON and Shift lever other than R positionBelow 1
NSWE1 (E7 22E9 14)BWBRIG ON and Shift lever P or N position9 ~ 14NSW e E1 (E7±22 e E9±14)B±W e BRIG ON and Shift lever other than P or N positionBelow 1
*1: TMC made
*
2: TMMK made
