Page 4081 of 4770
SF0E4±04
B01273
Ohmmeter
Continuity
B00798
Ohmmeter
No Continuity
B00799
Air
E
G
B00800
BatteryAir
F
E
± SFI (5S±FE)VSV FOR VAPOR PRESSURE SENSOR
SF±47
1480 Author: Date:
INSPECTION
1. REMOVE VSV
2. INSPECT VSV
(a) Inspect the VSV for open circuit.
Using an ohmmeter, check that there is continuity be-
tween the terminals.
Resistance: 33 ± 39 W at 20°C (68°F)
If there is no continuity, replace the VSV.
(b) Inspect the VSV for ground.
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
(c) Inspect the VSV operation.
(1) Check that air flows from ports E to G.
(2) Apply battery positive voltage across the terminals.
(3) Check that air flows from ports E to F.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV
Page 4082 of 4770
SF0E5±03
B06361

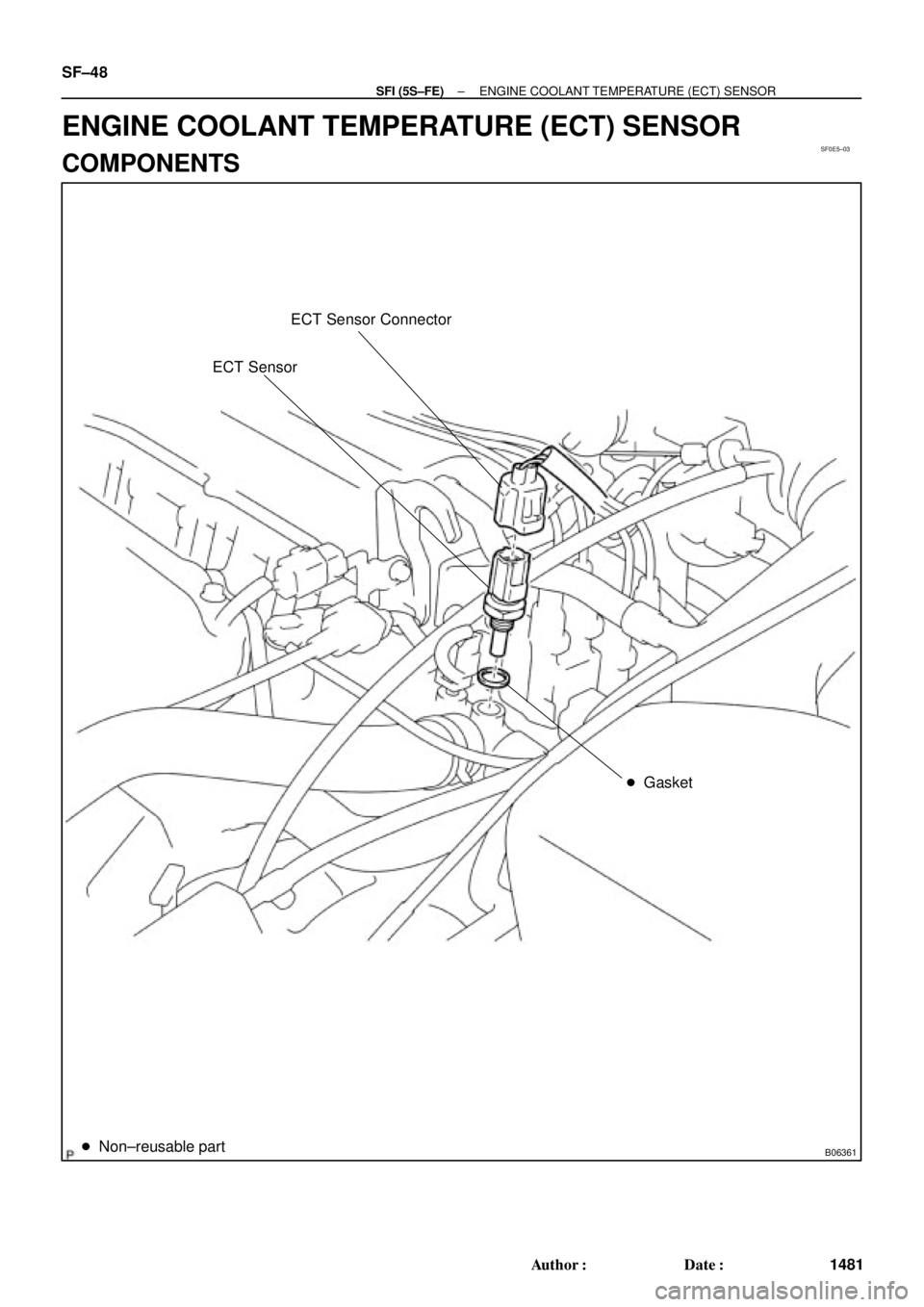

ECT Sensor Connector
ECT Sensor
Gasket
Non±reusable part
SF±48
± SFI (5S±FE)ENGINE COOLANT TEMPERATURE (ECT) SENSOR
1481 Author: Date:
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
COMPONENTS
Page 4083 of 4770
SF0E6±03
S01196S01699Z17274
Ohmmeter
Resistance kW
Temperature °C (°F) Acceptable 30
20
10
5
3
2
1
0.5
0.3
0.2
0.1
40 ±20 0 20 60 80 100
(212) (176) (140) (104) (68) (32) (±4)
± SFI (5S±FE)ENGINE COOLANT TEMPERATURE (ECT) SENSOR
SF±49
1482 Author: Date:
INSPECTION
1. DRAIN ENGINE COOLANT
2. REMOVE ECT SENSOR
3. INSPECT ECT SENSOR
Using an ohmmeter, measure the resistance between the ter-
minals.
Resistance: Refer to the graph
If the resistance is not as specified, replace the ECT sensor.
4. REINSTALL ECT SENSOR
5. REFILL WITH ENGINE COOLANT
Page 4084 of 4770
SF0E7±03
S05277

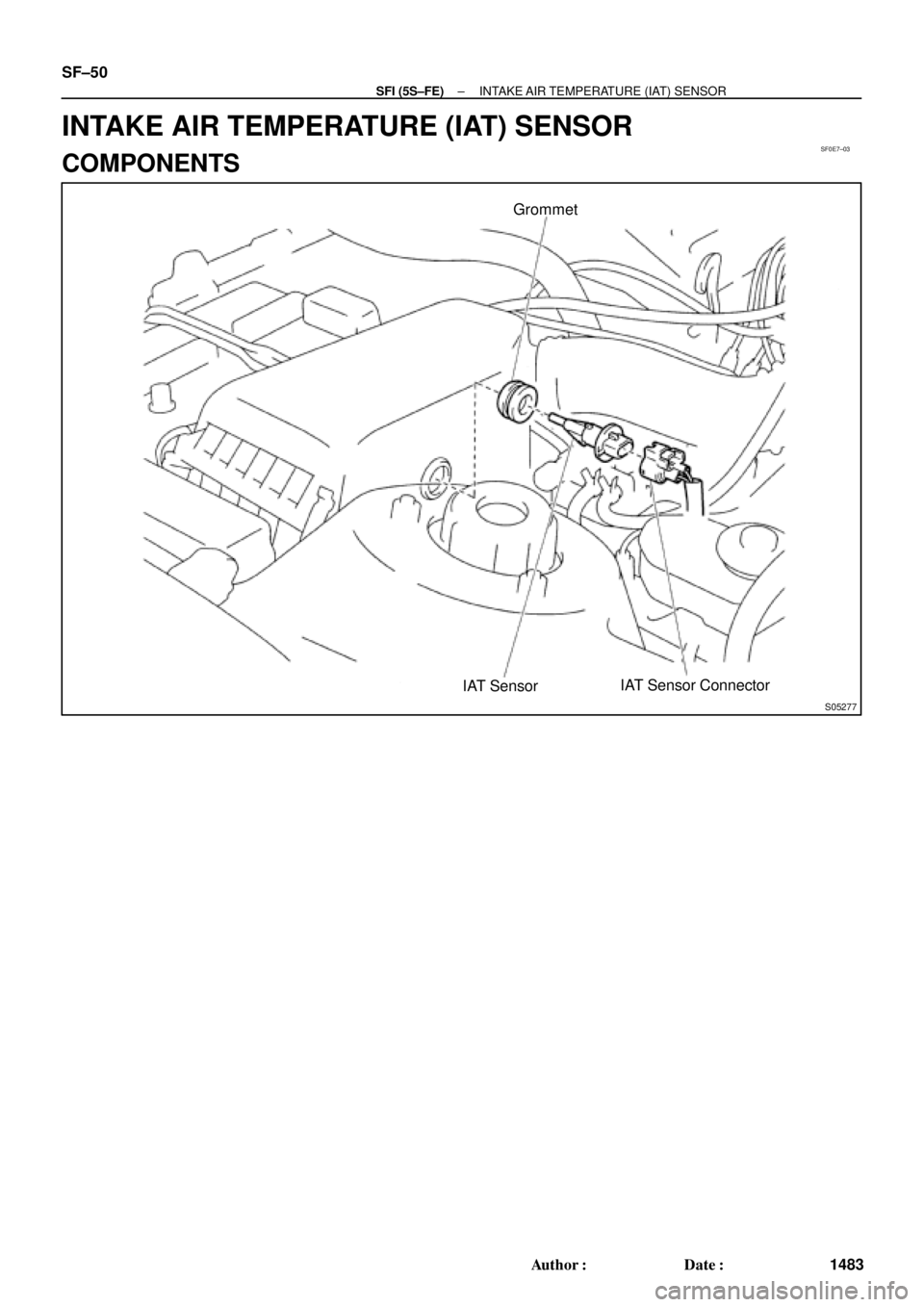

IAT SensorGrommet
IAT Sensor Connector SF±50
± SFI (5S±FE)INTAKE AIR TEMPERATURE (IAT) SENSOR
1483 Author: Date:
INTAKE AIR TEMPERATURE (IAT) SENSOR
COMPONENTS
Page 4085 of 4770
SF0E8±03
Z17273
Ohmmeter
Resistance kW
Temperature °C (°F) Acceptable 30
20
10
5
3
2
1
0.5
0.3
0.2
0.1
±20 20 40 60 800 100
(±4) (32)(68)(104)(140)(176)(212)
± SFI (5S±FE)INTAKE AIR TEMPERATURE (IAT) SENSOR
SF±51
1484 Author: Date:
INSPECTION
1. REMOVE IAT SENSOR
2. INSPECT IAT SENSOR
Using an ohmmeter, measure the resistance between the ter-
minals.
Resistance: Refer to the graph
If the resistance is not as specified, replace the sensor.
3. REINSTALL IAT SENSOR
Page 4086 of 4770
SF0E9±03
B00528

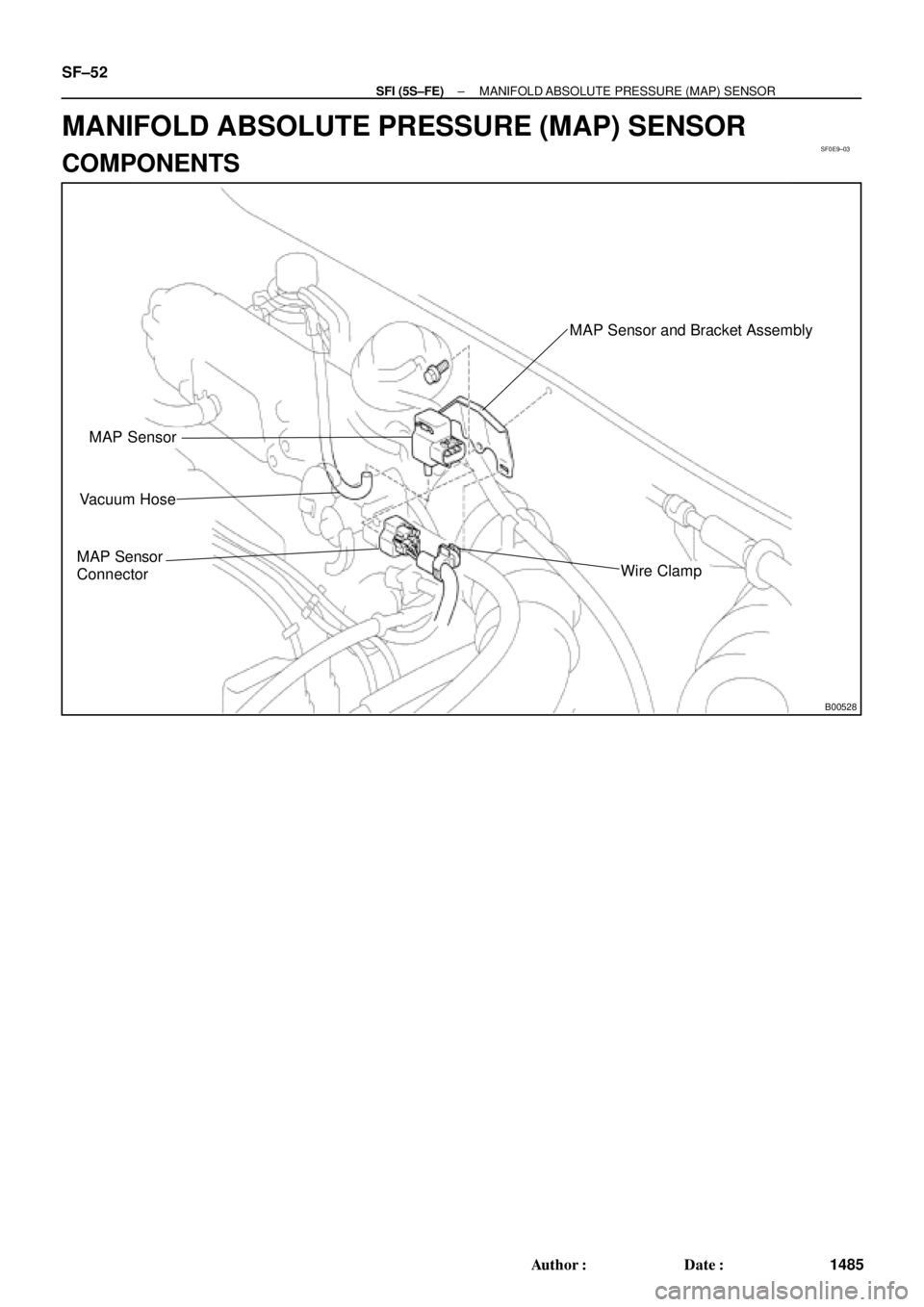

MAP Sensor
Vacuum Hose
MAP Sensor
Connector
MAP Sensor and Bracket Assembly
Wire Clamp
SF±52
± SFI (5S±FE)MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
1485 Author: Date:
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
COMPONENTS
Page 4087 of 4770

SF0EA±03
S05545
DisconnectOhmmeter
E2
VC
A03009B01912
w/o Immobilizer
w/ ImmobiliserDisconnect
Vacuum
PIM
E2 ECM
ECM PIM (+)E2 (±) Voltmeter
Voltage Drop:
Applied
Vacuum
kPa
mmHg
in.Hg
Vo l t a ge
drop V13.3
100
3.94
0.3 ± 0.5
26.7 40.0 53.5 66.7
200
7.87
300
11.81400
15.75500
19.69
0.7 ± 0.9 1.1 ± 1.3 1.5 ± 1.7 1.9 ± 2.1
± SFI (5S±FE)MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
SF±53
1486 Author: Date:
INSPECTION
1. INSPECT POWER SOURCE VOLTAGE OF MAP SEN-
SOR
(a) Disconnect the MAP sensor connector.
(b) Turn the ignition switch ON.
(c) Using a voltmeter, measure the voltage between connec-
tor terminals VC and E2 of the wiring harness side.
Voltage: 4.5 ± 5.5 V
(d) Turn the ignition switch OFF.
(e) Reconnect the MAP sensor connector.
2. INSPECT POWER OUTPUT OF MAP SENSOR
(a) Turn the ignition switch ON.
(b) Disconnect the vacuum hose from the MAP sensor.
(c) Connect a voltmeter to terminals PIM and E2 of the ECM,
and measure the output voltage under ambient atmo-
spheric pressure.
(d) Apply vacuum to the MAP sensor in 13.3 kPa (100 mmHg,
3.94 in.Hg) segments to 66.7 kPa (500 mmHg, 19.69
in.Hg).
(e) Measure the voltage drop from step (c) above for each
segment.
(f) Turn the ignition switch OFF.
(g) Reconnect the vacuum hose to the MAP sensor.
Page 4088 of 4770
SF0EF±04
B06554
Charcoal Canister Vapor Pressure Sensor
(Type A)Vapor Pressure Sensor
(Type B)
Vapor Pressure Sensor
Connector
Vacuum hose
SF±54
± SFI (5S±FE)VAPOR PRESSURE SENSOR
1487 Author: Date:
VAPOR PRESSURE SENSOR
COMPONENTS
