Page 2409 of 4770
CO03T±03
B06400

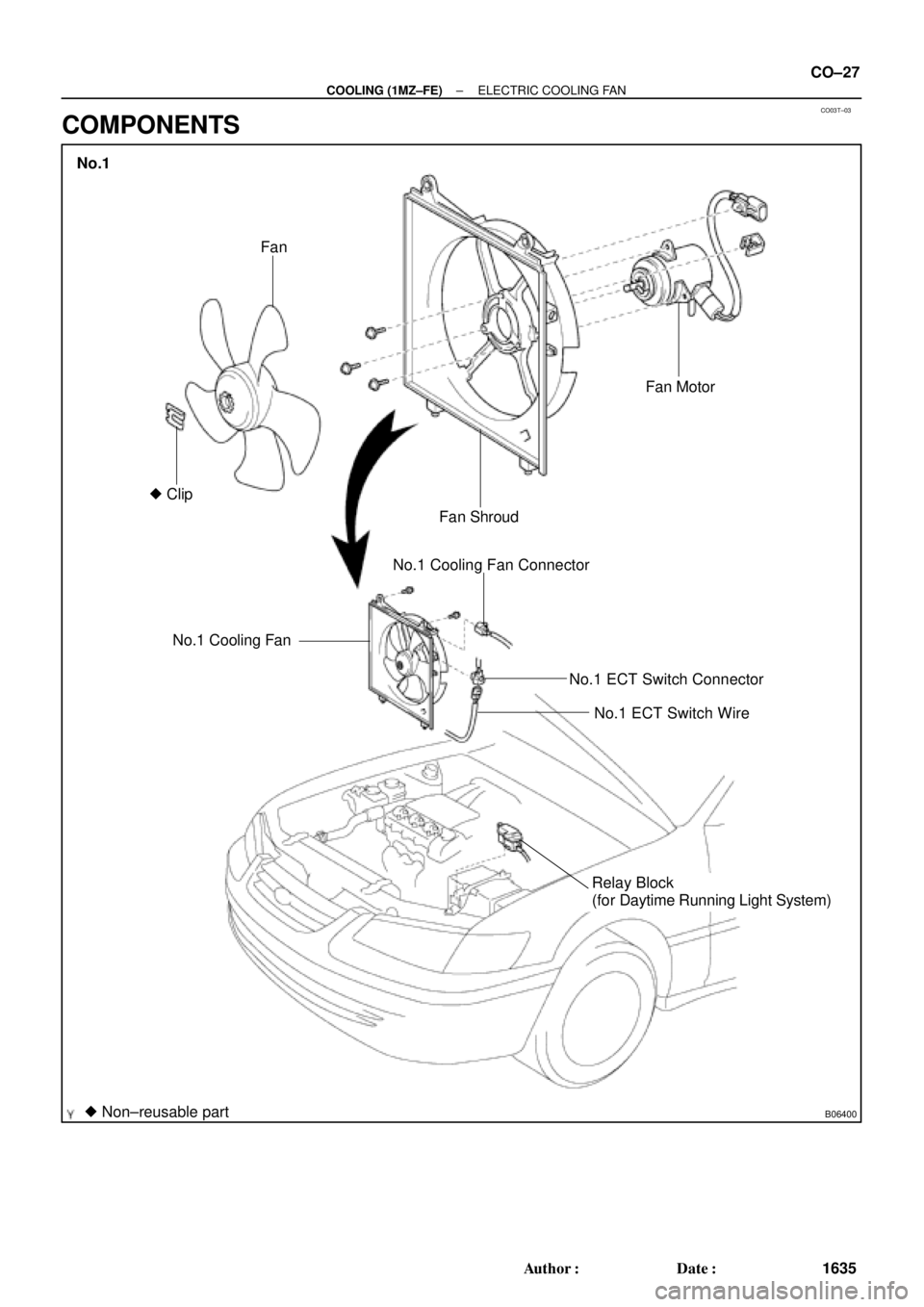

No.1 Cooling FanNo.1 Cooling Fan Connector
No.1 ECT Switch Connector
No.1 ECT Switch Wire
Relay Block
(for Daytime Running Light System)
Non±reusable part ClipFan
Fan ShroudFan Motor
No.1
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
CO±27
1635 Author: Date:
COMPONENTS
Page 2410 of 4770
B06402

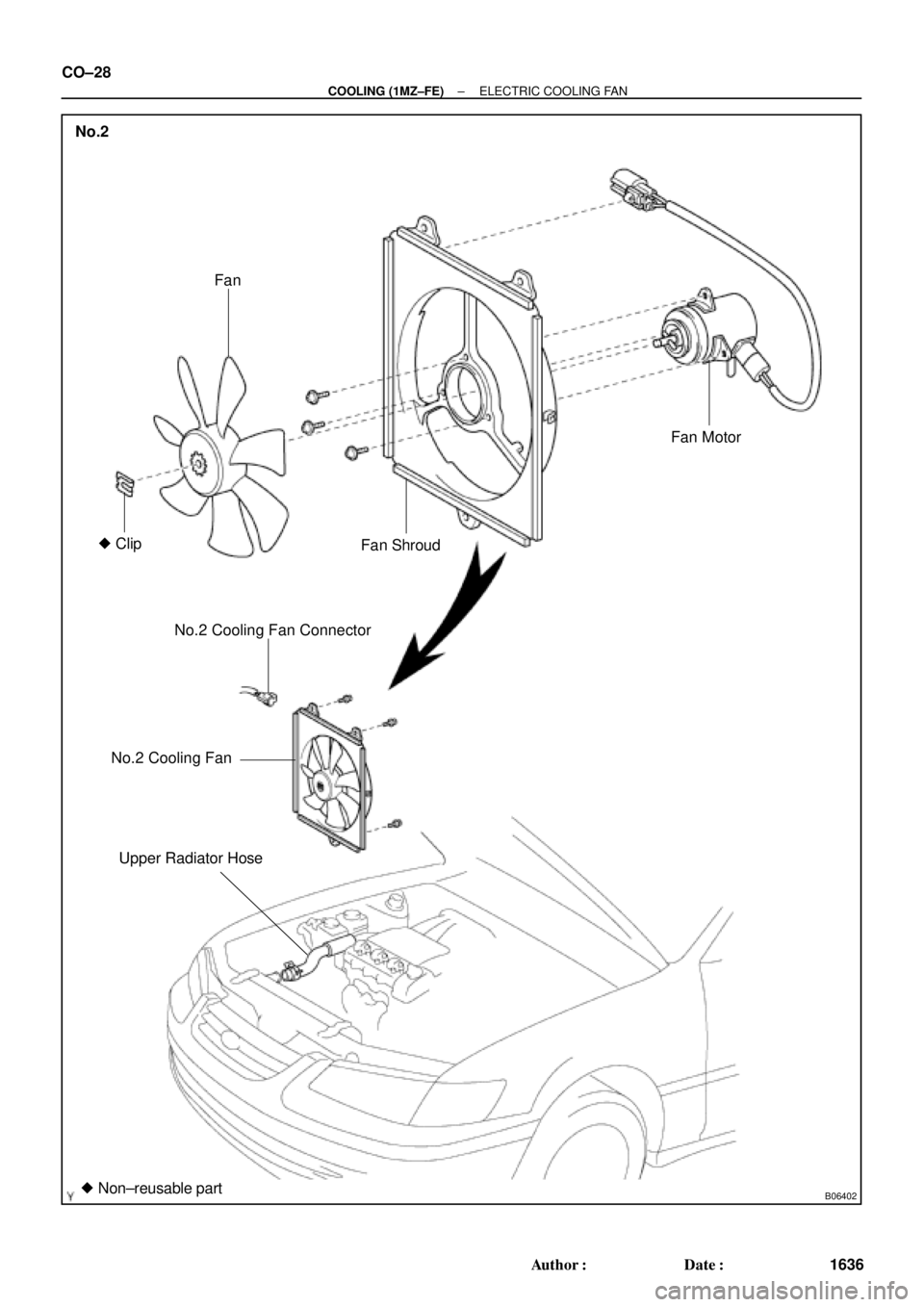

No.2
Fan
Clip
Fan ShroudFan Motor
No.2 Cooling Fan Connector
No.2 Cooling Fan
Upper Radiator Hose
Non±reusable part
CO±28
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
1636 Author: Date:
Page 2411 of 4770
CO03U±03
B05943
B05944
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
CO±29
1637 Author: Date:
REMOVAL
1. REMOVE NO.1 COOLING FAN
(a) Canada:
Disconnect the relay block (for daytime running light sys-
tem) from the battery hold±down clamp.
(b) Disconnect the cooling fan connector.
(c) Disconnect the No.1 ECT switch wire connector.
(d) Disconnect the No.1 ECT switch wire clamps.
(e) Remove the 2 bolts and cooling fan.
Torque: 5.0 N´m (50 kgf´cm, 44 in.´lbf)
2. REMOVE NO.2 COOLING FAN
(a) Drain the engine coolant.
(b) Disconnect the upper radiator hose from the radiator.
(c) Disconnect the cooling fan connector.
(d) Remove the 3 bolts and cooling fan.
Torque: 5.0 N´m (50 kgf´cm, 44 in.´lbf)
Page 2412 of 4770
CO03V±03
B05945
Protrusion
S04584
S04587
B05946
Protrusion
CO±30
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
1638 Author: Date:
DISASSEMBLY
1. REMOVE NO.1 COOLING FAN
(a) Remove the clip and fan.
NOTICE:
When removing the clip and fan, do not apply too much
force to the motor shaft. And do not scratch the motor
shaft.
HINT:
At the time of installation, please refer to the following items.
Install a new clip from the side opposite the protrusion on the
fan.
(b) Disconnect the lead wire from the fan shroud.
(c) Remove the 3 screws and fan motor.
2. REMOVE NO.2 COOLING FAN
(a) Remove the clip and fan.
NOTICE:
When removing the clip and fan, do not apply too much
force to the motor shaft. And do not scratch the motor
shaft.
HINT:
At the time of installation, please refer to the following items.
Install a new clip from the side opposite the protrusion on the
fan.
Page 2413 of 4770
S04585
S04586
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
CO±31
1639 Author: Date:
(b) Disconnect the lead wire from the fan shroud.
(c) Remove the 3 screws and fan motor.
Page 2414 of 4770
CO03W±01
CO±32
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
1640 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly. (See page CO±30)
Page 2415 of 4770
CO03X±01
± COOLING (1MZ±FE)ELECTRIC COOLING FAN
CO±33
1641 Author: Date:
INSTALLATION
Installation is in the reverse order of removal. (See page CO±29)
Page 2416 of 4770

CO03Y±04
S04602No.1 ECT Switch
P01924
Ohmmeter
S04601
No.2 ECT
Switch
P06722
Ohmmeter CO±34
± COOLING (1MZ±FE)ENGINE COOLANT TEMPERATURE (ECT) SWITCH
1642 Author: Date:
ENGINE COOLANT
TEMPERATURE (ECT) SWITCH
INSPECTION
1. DRAIN ENGINE COOLANT
2. INSPECT NO.1 ECT SWITCH
(a) Remove the No.1 ECT switch.
(b) Inspect the No.1 ECT switch.
(1) Using an ohmmeter, check that there is no continu-
ity between the terminals when the coolant temper-
ature is above 98°C (208°F).
If there is continuity, replace the switch.
(2) Check that there is continuity, between the termi-
nals when the coolant temperature is below 88°C
(190°F).
If there is no continuity, replace the switch.
(c) Reinstall the No.1 ECT switch.
3. INSPECT NO.2 ECT SWITCH
(a) Remove the No.2 ECT switch.
(b) Inspect the No.2 ECT switch.
(1) Using an ohmmeter, check that there is continuity
between terminals when the coolant temperature is
above 94°C (201°F).
If there is no continuity, replace the switch.
(2) Check that there is no continuity between the termi-
nals when the coolant temperature is below 83°C
(181°F).
If there is continuity, replace the switch.
(c) Reinstall the No.2 ECT switch.
