Page 137 of 4770
17. M/T:
REMOVE CLUTCH RELEASE CYLINDER WITHOUT
DISCONNECTING TUBE
Remove the 4 bolts, release cylinder and tube from
the transaxle.15. DISCONNECT FUEL INLET HOSE
CAUTION: Catch leaking fuel in a container.
16. M/T:
REMOVE STARTER
19. DISCONNECT VACUUM HOSES
(a) MAP sensor hose from air intake chamber
(b) Brake booster vacuum hose from air intake chamber 18. DISCONNECT TRANSAXLE CONTROL CABLE (S)
FROM TRANSAXLE
± 5S±FE ENGINEENGINE MECHANICALEG1±87

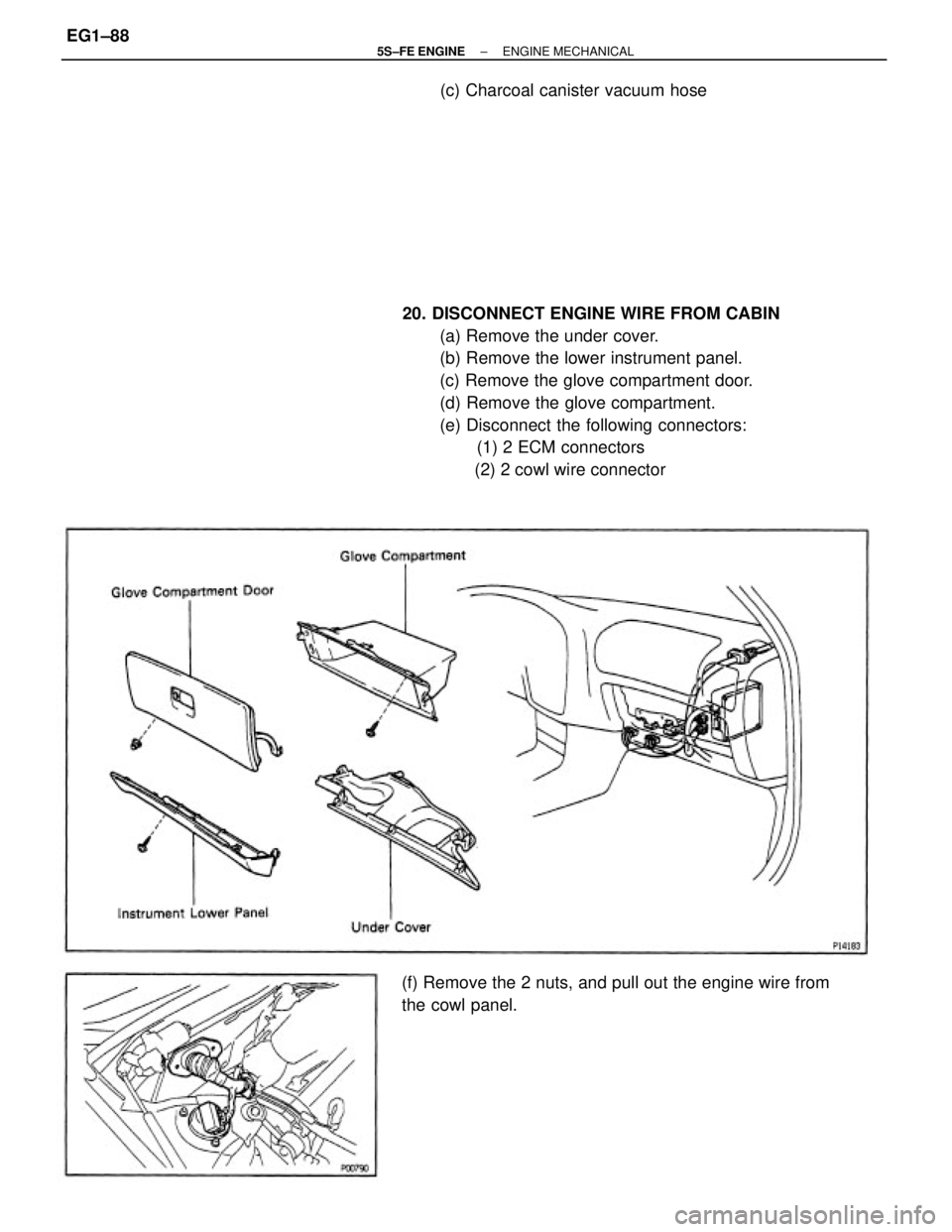

Page 138 of 4770
20. DISCONNECT ENGINE WIRE FROM CABIN
(a) Remove the under cover.
(b) Remove the lower instrument panel.
(c) Remove the glove compartment door.
(d) Remove the glove compartment.
(e) Disconnect the following connectors:
(1) 2 ECM connectors
(2) 2 cowl wire connector
(f) Remove the 2 nuts, and pull out the engine wire from
the cowl panel.(c) Charcoal canister vacuum hose
± 5S±FE ENGINEENGINE MECHANICALEG1±88

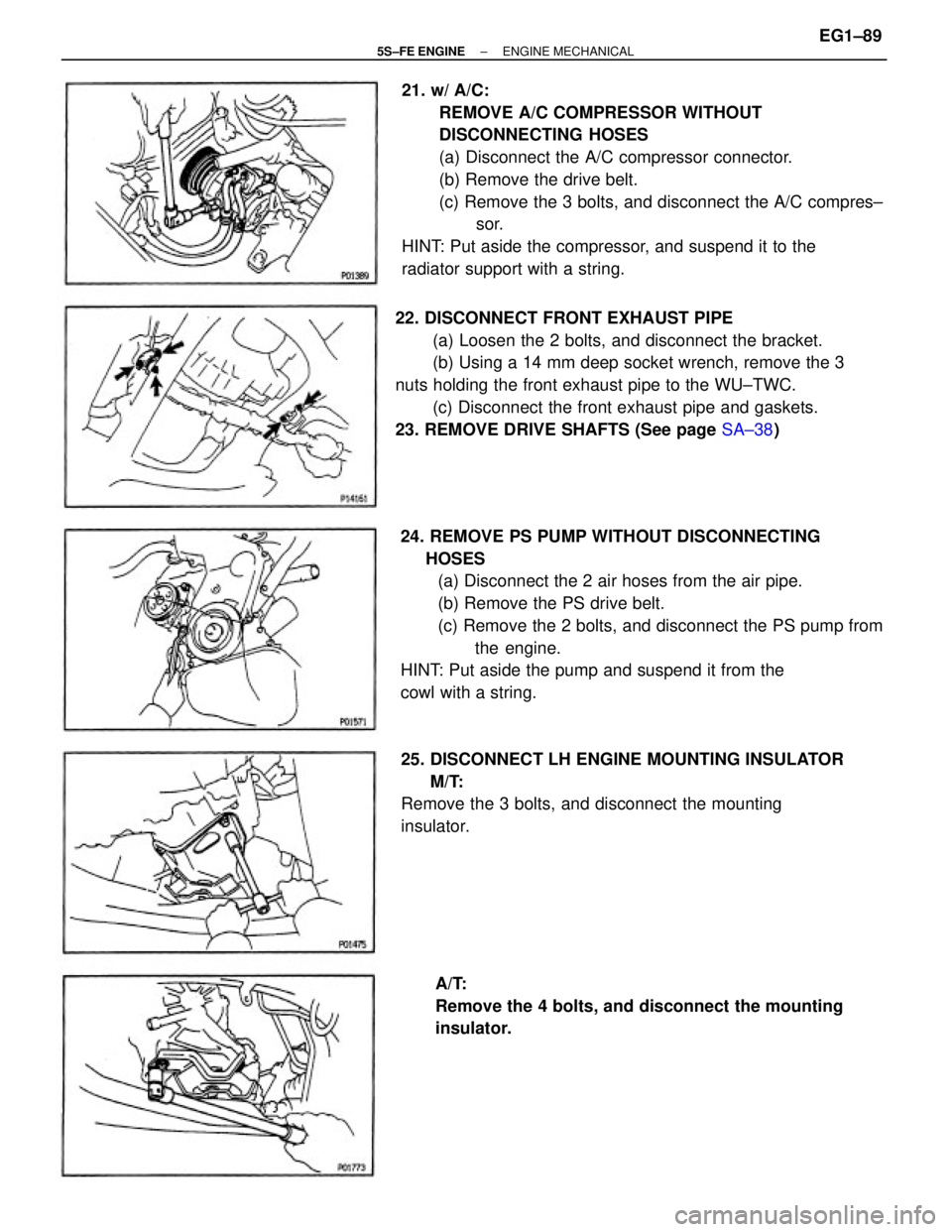

Page 139 of 4770

21. w/ A/C:
REMOVE A/C COMPRESSOR WITHOUT
DISCONNECTING HOSES
(a) Disconnect the A/C compressor connector.
(b) Remove the drive belt.
(c) Remove the 3 bolts, and disconnect the A/C compres±
sor.
HINT: Put aside the compressor, and suspend it to the
radiator support with a string.
24. REMOVE PS PUMP WITHOUT DISCONNECTING
HOSES
(a) Disconnect the 2 air hoses from the air pipe.
(b) Remove the PS drive belt.
(c) Remove the 2 bolts, and disconnect the PS pump from
the engine.
HINT: Put aside the pump and suspend it from the
cowl with a string. 22. DISCONNECT FRONT EXHAUST PIPE
(a) Loosen the 2 bolts, and disconnect the bracket.
(b) Using a 14 mm deep socket wrench, remove the 3
nuts holding the front exhaust pipe to the WU±TWC.
(c) Disconnect the front exhaust pipe and gaskets.
23. REMOVE DRIVE SHAFTS (See page SA±38)
25. DISCONNECT LH ENGINE MOUNTING INSULATOR
M/T:
Remove the 3 bolts, and disconnect the mounting
insulator.
A/T:
Remove the 4 bolts, and disconnect the mounting
insulator.
± 5S±FE ENGINEENGINE MECHANICALEG1±89

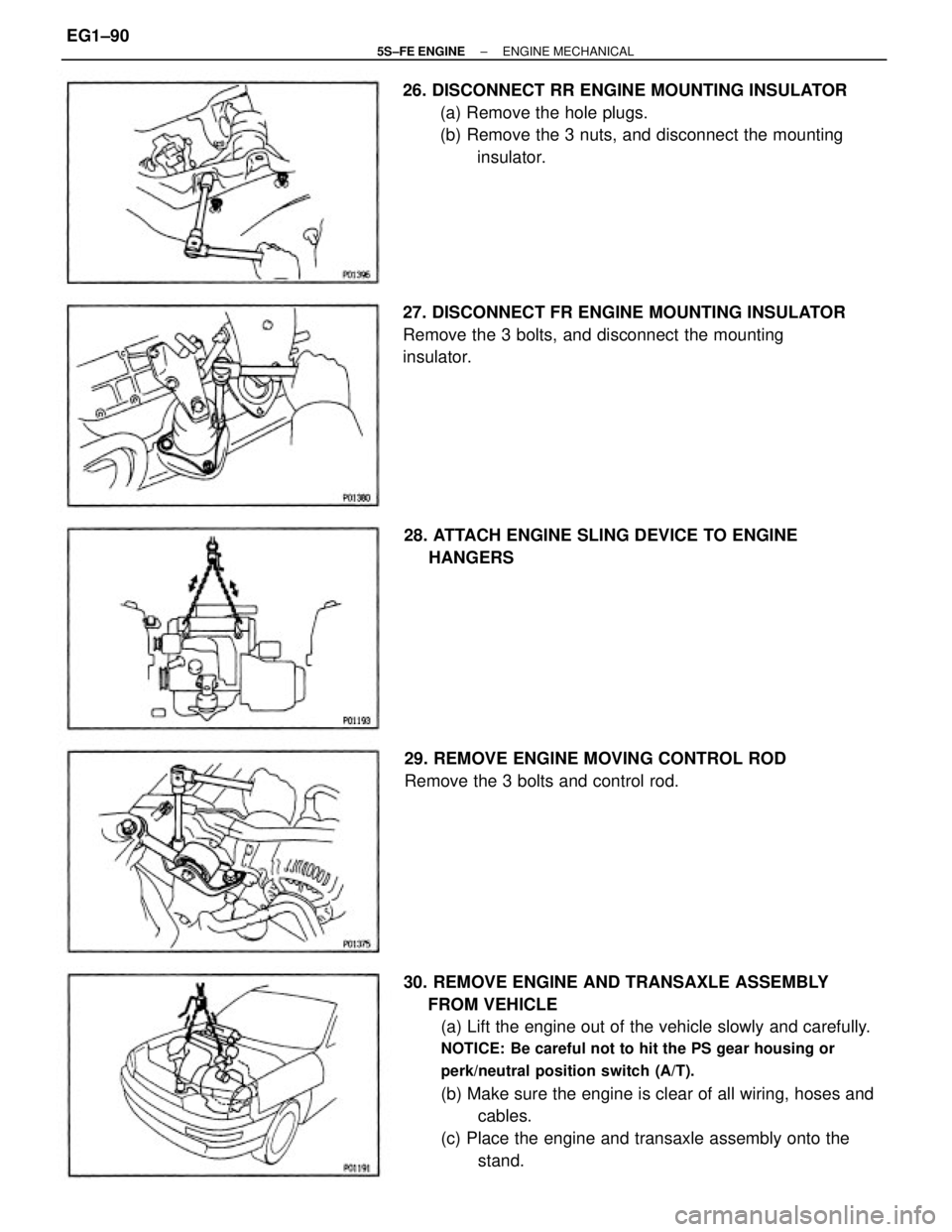

Page 140 of 4770
30. REMOVE ENGINE AND TRANSAXLE ASSEMBLY
FROM VEHICLE
(a) Lift the engine out of the vehicle slowly and carefully.
NOTICE: Be careful not to hit the PS gear housing or
perk/neutral position switch (A/T).
(b) Make sure the engine is clear of all wiring, hoses and
cables.
(c) Place the engine and transaxle assembly onto the
stand. 26. DISCONNECT RR ENGINE MOUNTING INSULATOR
(a) Remove the hole plugs.
(b) Remove the 3 nuts, and disconnect the mounting
insulator.
27. DISCONNECT FR ENGINE MOUNTING INSULATOR
Remove the 3 bolts, and disconnect the mounting
insulator.
28. ATTACH ENGINE SLING DEVICE TO ENGINE
HANGERS
29. REMOVE ENGINE MOVING CONTROL ROD
Remove the 3 bolts and control rod.
± 5S±FE ENGINEENGINE MECHANICALEG1±90

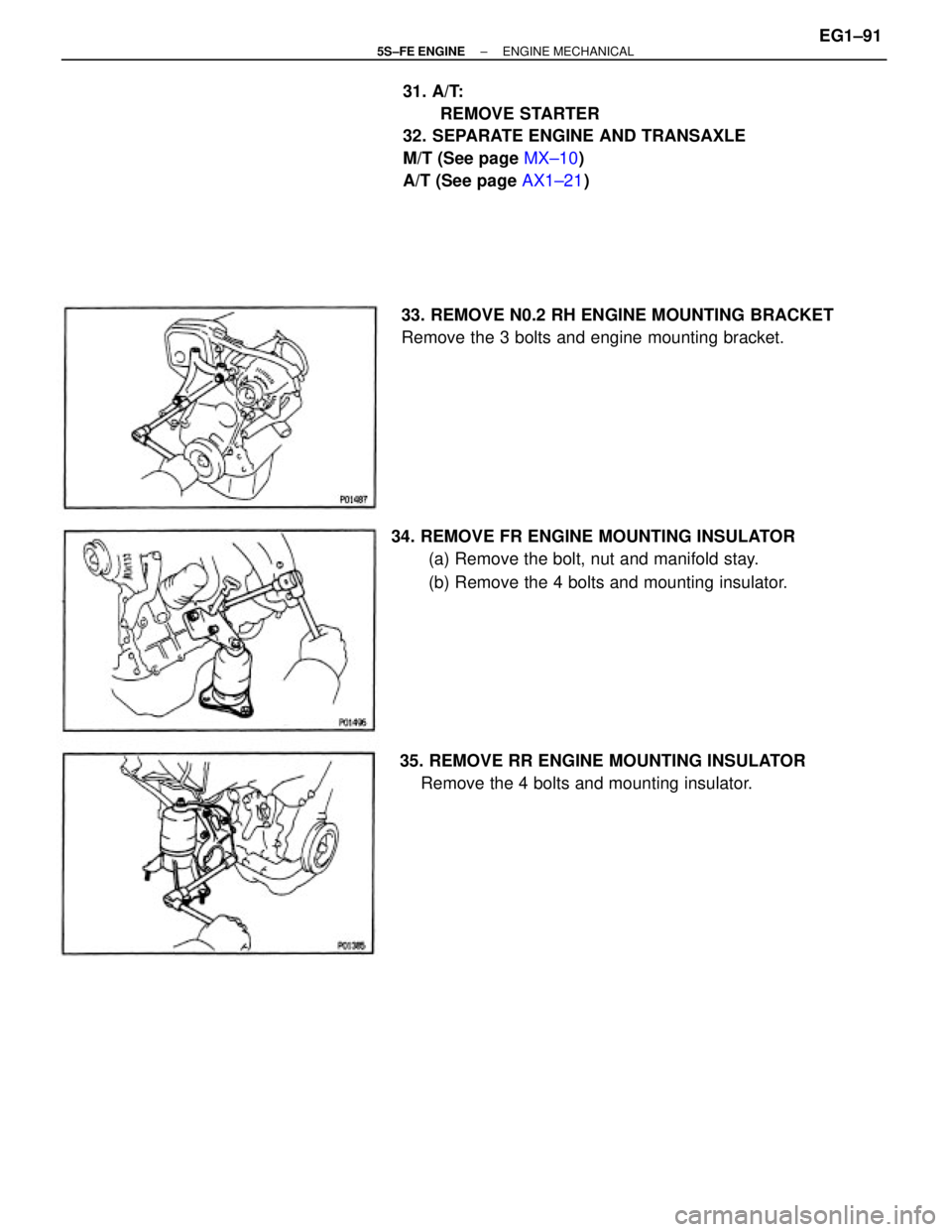

Page 141 of 4770
31. A/T:
REMOVE STARTER
32. SEPARATE ENGINE AND TRANSAXLE
M/T (See page MX±10)
A/T (See page AX1±21)
34. REMOVE FR ENGINE MOUNTING INSULATOR
(a) Remove the bolt, nut and manifold stay.
(b) Remove the 4 bolts and mounting insulator. 33. REMOVE N0.2 RH ENGINE MOUNTING BRACKET
Remove the 3 bolts and engine mounting bracket.
35. REMOVE RR ENGINE MOUNTING INSULATOR
Remove the 4 bolts and mounting insulator.
± 5S±FE ENGINEENGINE MECHANICALEG1±91

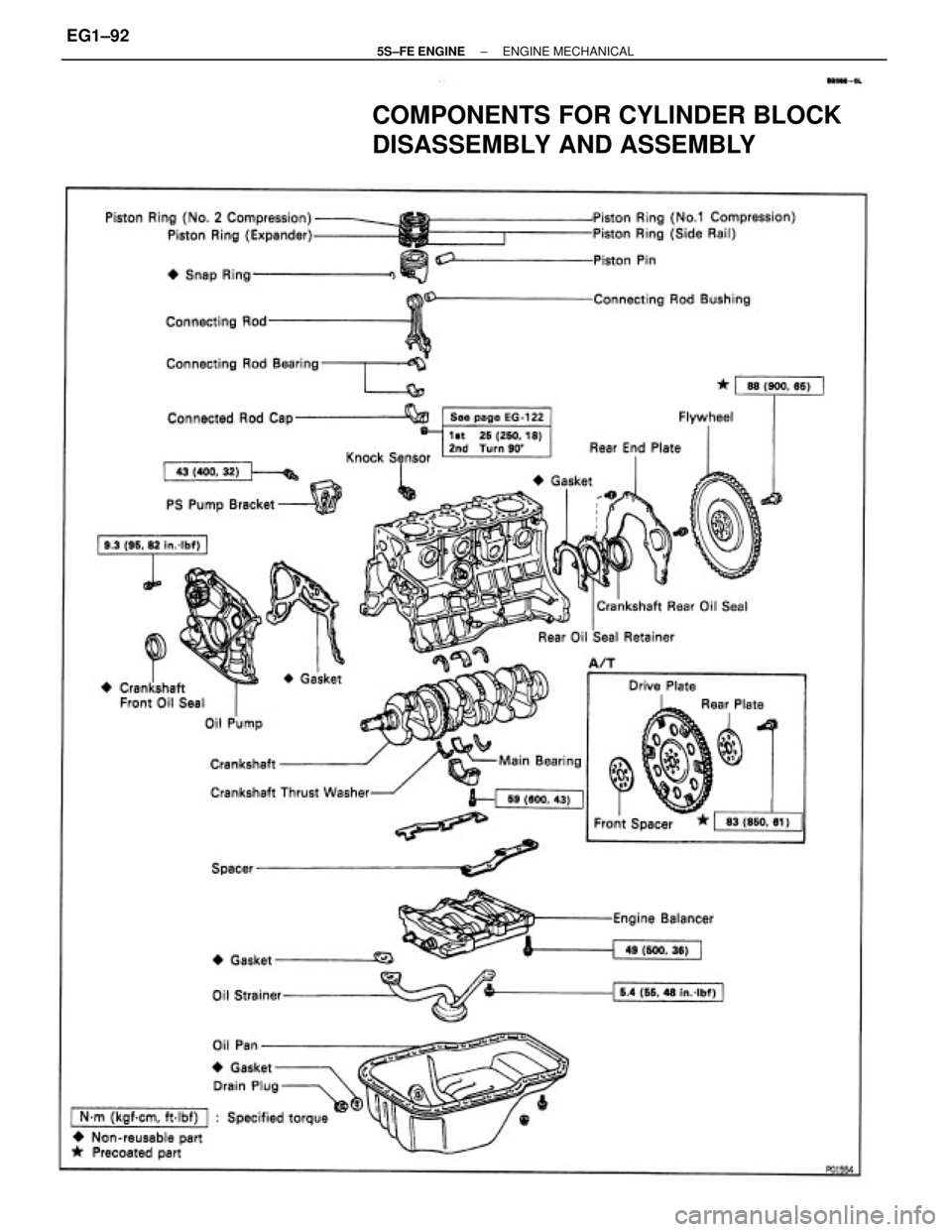

Page 142 of 4770
COMPONENTS FOR CYLINDER BLOCK
DISASSEMBLY AND ASSEMBLY
± 5S±FE ENGINEENGINE MECHANICALEG1±92
Page 143 of 4770
9. REMOVE TIMING BELT AND PULLEYS
10. REMOVE CYLINDER HEAD
11. REMOVE WATER PUMP AND GENERATOR
ADJUSTING BAR
12. REMOVE OIL PAN AND OIL PUMP
13. REMOVE OIL FILTER
14. w/ OIL COOLER:
REMOVE OIL COOLER 4. REMOVE REAR END PLATE
Remove the bolt and end plate.
5. INSTALL ENGINE TO ENGINE STAND FOR
DISASSEMBLY
6. REMOVE GENERATOR
7. REMOVE DISTRIBUTOR1. M/T:
REMOVE CLUTCH COVER AND DISC
2. M/T:
REMOVE FLYWHEEL
3. A/T:
REMOVE DRIVE PLATE
15. REMOVE KNOCK SENSOR
Using SST, remove the knock sensor.
SST 09816 ± 300108. REMOVE PS PUMP BRACKET
Remove the 3 bolts and PS pump bracket.
PREPARATION FOR DISASSEMBLY
± 5S±FE ENGINEENGINE MECHANICALEG1±93

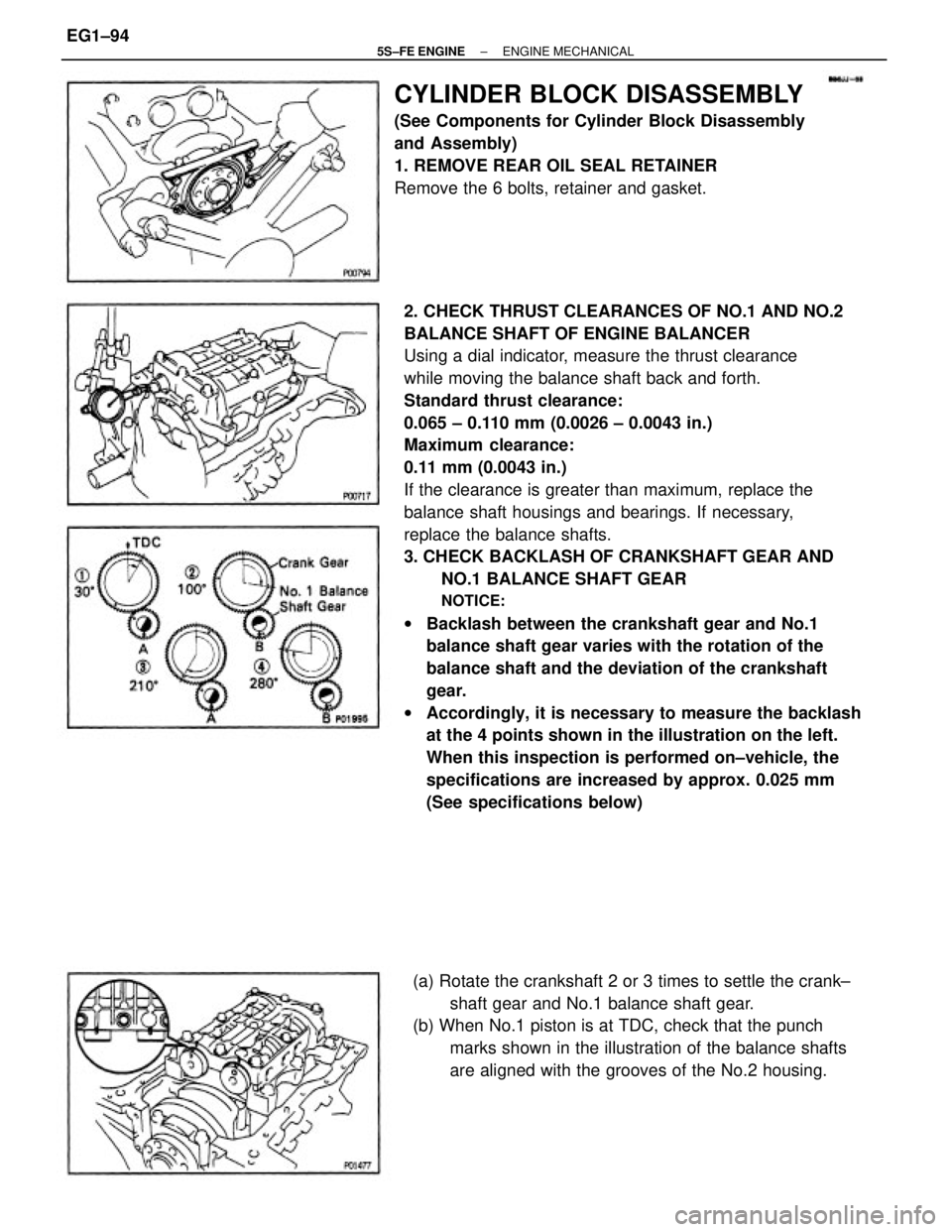

Page 144 of 4770

2. CHECK THRUST CLEARANCES OF NO.1 AND NO.2
BALANCE SHAFT OF ENGINE BALANCER
Using a dial indicator, measure the thrust clearance
while moving the balance shaft back and forth.
Standard thrust clearance:
0.065 ± 0.110 mm (0.0026 ± 0.0043 in.)
Maximum clearance:
0.11 mm (0.0043 in.)
If the clearance is greater than maximum, replace the
balance shaft housings and bearings. If necessary,
replace the balance shafts.
3. CHECK BACKLASH OF CRANKSHAFT GEAR AND
NO.1 BALANCE SHAFT GEAR
NOTICE:
wBacklash between the crankshaft gear and No.1
balance shaft gear varies with the rotation of the
balance shaft and the deviation of the crankshaft
gear.
wAccordingly, it is necessary to measure the backlash
at the 4 points shown in the illustration on the left.
When this inspection is performed on±vehicle, the
specifications are increased by approx. 0.025 mm
(See specifications below)
CYLINDER BLOCK DISASSEMBLY
(See Components for Cylinder Block Disassembly
and Assembly)
1. REMOVE REAR OIL SEAL RETAINER
Remove the 6 bolts, retainer and gasket.
(a) Rotate the crankshaft 2 or 3 times to settle the crank±
shaft gear and No.1 balance shaft gear.
(b) When No.1 piston is at TDC, check that the punch
marks shown in the illustration of the balance shafts
are aligned with the grooves of the No.2 housing.
± 5S±FE ENGINEENGINE MECHANICALEG1±94
