Page 2289 of 4770
BR0BQ±03
W03273
Front Speed Sensor
N´m (kgf´cm, ft´lbf) : Specified torque
5.4 (55, 48 in.´lbf)
7.8 (80, 69 in.´lbf)
29 (300, 21)
± BRAKEFRONT SPEED SENSOR
BR±67
2090 Author: Date:
FRONT SPEED SENSOR
COMPONENTS
Page 2290 of 4770
BR0BR±03
R00327
W04507
BR±68
± BRAKEFRONT SPEED SENSOR
2091 Author: Date:
REMOVAL
1. DISCONNECT SPEED SENSOR CONNECTOR
(a) Remove the fender liner.
(b) Disconnect the speed sensor connector.
2. REMOVE SPEED SENSOR
(a) Remove the bolt, flexible hose and speed sensor harness
clamp from the shock absorber.
Torque: 29 N´m (300 kgf´cm, 21 ft´lbf)
(b) Remove the resin clip and clamp bolt holding the sensor
harness to the body.
Torque: 5.4 N´m (55 kgf´cm, 48 in.´lbf)
(c) Remove the speed sensor from the steering knuckle.
Torque: 7.8 N´m (80 kgf´cm, 69 in.´lbf)
Page 2291 of 4770
BR0BS±02
± BRAKEFRONT SPEED SENSOR
BR±69
2092 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See pageBR±68).
HINT:
After installation, check the speed sensor signal (See page DI±493, DI±539).
Page 2292 of 4770
BR0BT±03
W03274
Rear Speed Sensor
N´m (kgf´cm, ft´lbf): Specified torque
5.4 (55, 48 in.´lbf)
7.8 (80, 69 in.´lbf)
5.4 (55, 48 in.´lbf)
BR±70
± BRAKEREAR SPEED SENSOR
2093 Author: Date:
REAR SPEED SENSOR
COMPONENTS
Page 2293 of 4770
BR0BU±03
R00330
W04508
± BRAKEREAR SPEED SENSOR
BR±71
2094 Author: Date:
REMOVAL
1. DISCONNECT SPEED SENSOR CONNECTOR
(a) Remove the seat cushion and side seatback
(See page BO±114 or BO±119).
(b) Disconnect the speed sensor connector, and pull out the
sensor wire harness with the grommet.
2. REMOVE SPEED SENSOR
(a) Remove the 2 clamp bolts holding the sensor wire har-
ness to the body and shock absorber.
Torque: 5.4 N´m (55 kgf´cm, 48 in.´lbf)
(b) Remove the speed sensor from the axle carrier.
Torque: 7.8 N´m (80 kgf´cm, 69 in.´lbf)
Page 2294 of 4770
BR0BV±02
BR±72
± BRAKEREAR SPEED SENSOR
2095 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BR±71).
HINT:
After installation, check the speed sensor signal (See page DI±493, DI±539).
Page 2295 of 4770

CH02U±01
Z11577
Except Maintenance±Free Battery
Z11556
Maintenance±Free Battery
Voltmeter
± CHARGING (5S±FE)CHARGING SYSTEM
CH±1
1748 Author: Date:
CHARGING SYSTEM
ON±VEHICLE INSPECTION
CAUTION:
Check that the battery cables are connected to the
correct terminals.
Disconnect the battery cables when the battery is giv-
en a quick charge.
Do not perform tests with a high voltage insulation re-
sistance tester.
Never disconnect the battery while the engine is run-
ning.
1. CHECK BATTERY ELECTROLYTE LEVEL
Check the electrolyte quantity of each cell.
Maintenance±Free Battery:
If under the lower level, replace the battery (or add distilled wa-
ter if possible). Check the charging system.
Except Maintenance±Free Battery:
If under the lower level, add distilled water.
2. Except Maintenance±Free Battery:
CHECK BATTERY SPECIFIC GRAVITY
Check the specific gravity of each cell.
Standard specific gravity:
1.25 ± 1.29 at 20°C (68°F)
If the specific gravity is less than specification, charge the bat-
tery.
3. Maintenance±Free Battery:
CHECK BATTERY VOLTAGE
(a) After having driven the vehicle and in the case that 20
minutes have not passed after having stopped the en-
gine, turn the ignition switch ON and turn on the electrical
system (headlight, blower motor, rear defogger etc.) for
60 seconds to remove the surface charge.
(b) Turn the ignition switch OFF and turn off the electrical sys-
tems.
(c) Measure the battery voltage between the negative (±)
and positive (+) terminals of the battery.
Standard voltage: 12.5 ± 12.9 V at 20°C (68°F)
If the voltage is less than specification, charge the battery.
Page 2296 of 4770

Z18811
Maintenance±Free Battery
Type A
Type B
Blue White Red
OK Charging
NecessaryInsufficient
Water
GREEN EYE DARK EYECLEAR EYE or
CHARGED DISCHARGED ADD WATERLIGHT YELLOW
Z00015
Z00038
DENSOBorroughs
CH0086
CORRECTWRONG CH±2
± CHARGING (5S±FE)CHARGING SYSTEM
1749 Author: Date:
HINT:

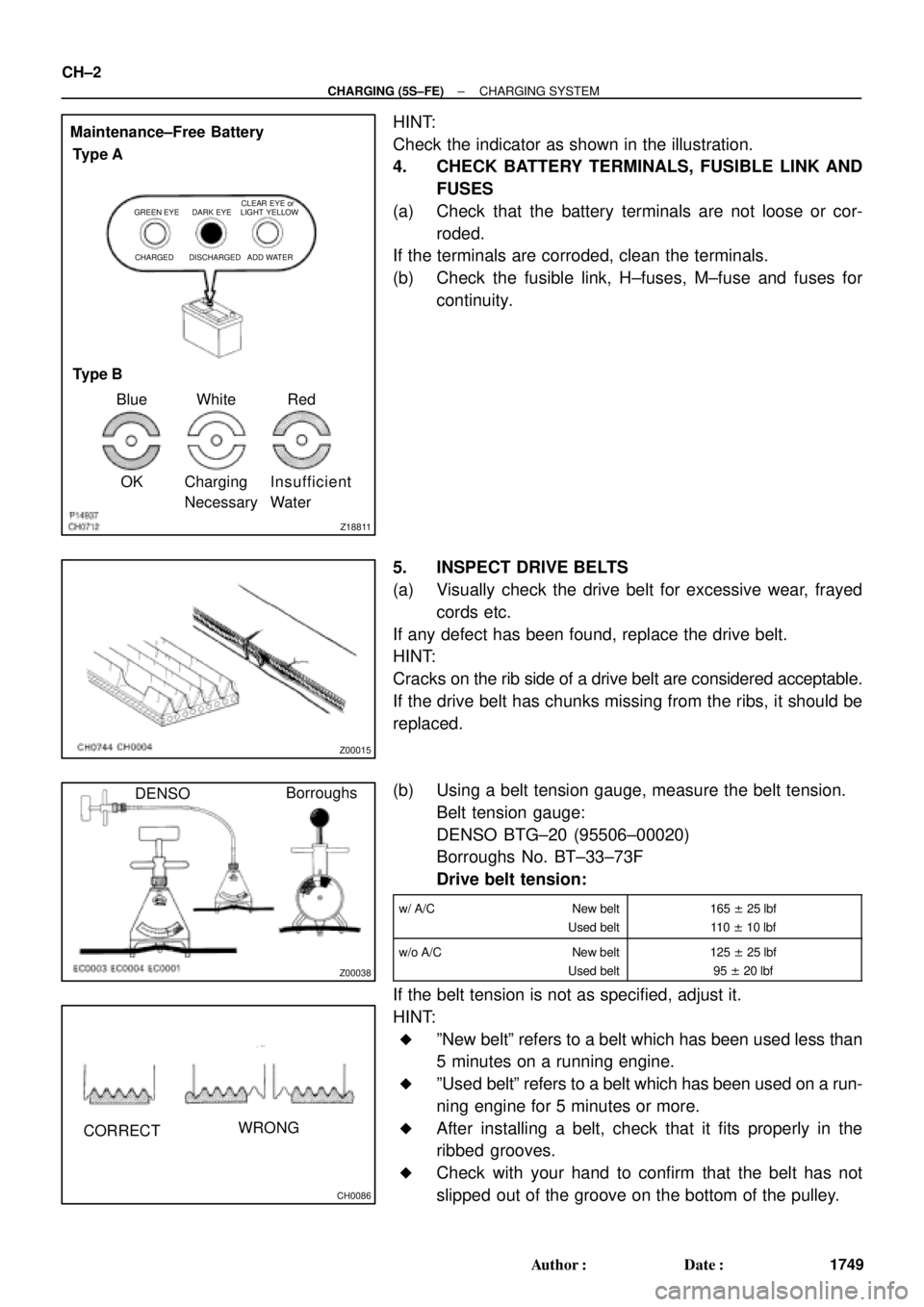

Check the indicator as shown in the illustration.
4. CHECK BATTERY TERMINALS, FUSIBLE LINK AND
FUSES
(a) Check that the battery terminals are not loose or cor-
roded.
If the terminals are corroded, clean the terminals.
(b) Check the fusible link, H±fuses, M±fuse and fuses for
continuity.
5. INSPECT DRIVE BELTS
(a) Visually check the drive belt for excessive wear, frayed
cords etc.
If any defect has been found, replace the drive belt.
HINT:
Cracks on the rib side of a drive belt are considered acceptable.
If the drive belt has chunks missing from the ribs, it should be
replaced.
(b) Using a belt tension gauge, measure the belt tension.
Belt tension gauge:
DENSO BTG±20 (95506±00020)
Borroughs No. BT±33±73F
Drive belt tension:
w/ A/C New belt
Used belt165 ± 25 lbf
110 ± 10 lbf
w/o A/C New belt
Used belt125 ± 25 lbf
95 ± 20 lbf
If the belt tension is not as specified, adjust it.
HINT:
ºNew beltº refers to a belt which has been used less than
5 minutes on a running engine.
ºUsed beltº refers to a belt which has been used on a run-
ning engine for 5 minutes or more.
After installing a belt, check that it fits properly in the
ribbed grooves.
Check with your hand to confirm that the belt has not
slipped out of the groove on the bottom of the pulley.
