Page 2049 of 4770

TOYOTA CAMRY 2000 Service Repair Manual H01978 H01979 H01980 ± BODYFRONT SEAT (Power Seat for TMC Made) BO±89 2437 Author: Date: 8. REMOVE REAR VERTICAL MOTOR Remove the 2 screws and front vertical motor. 9. REMOVE SLIDE MOTOR (a) Remov

Page 2050 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MM±01 H01980 H01979 H01978 BO±90 ± BODYFRONT SEAT (Power Seat for TMC Made) 2438 Author: Date: REASSEMBLY 1. INSTALL RECLINING MOTOR Connect the No.2 drive cable, then install the reclining m

Page 2051 of 4770

TOYOTA CAMRY 2000 Service Repair Manual H01870 ± BODYFRONT SEAT (Power Seat for TMC Made) BO±91 2439 Author: Date: (d) Hang the hook onto the seatback frame. CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides,

Page 2052 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MN±01 BO±92 ± BODYFRONT SEAT (Power Seat for TMC Made) 2440 Author: Date: INSTALLATION Installation is in the reverse order of removal (See page BO±87).

Page 2053 of 4770

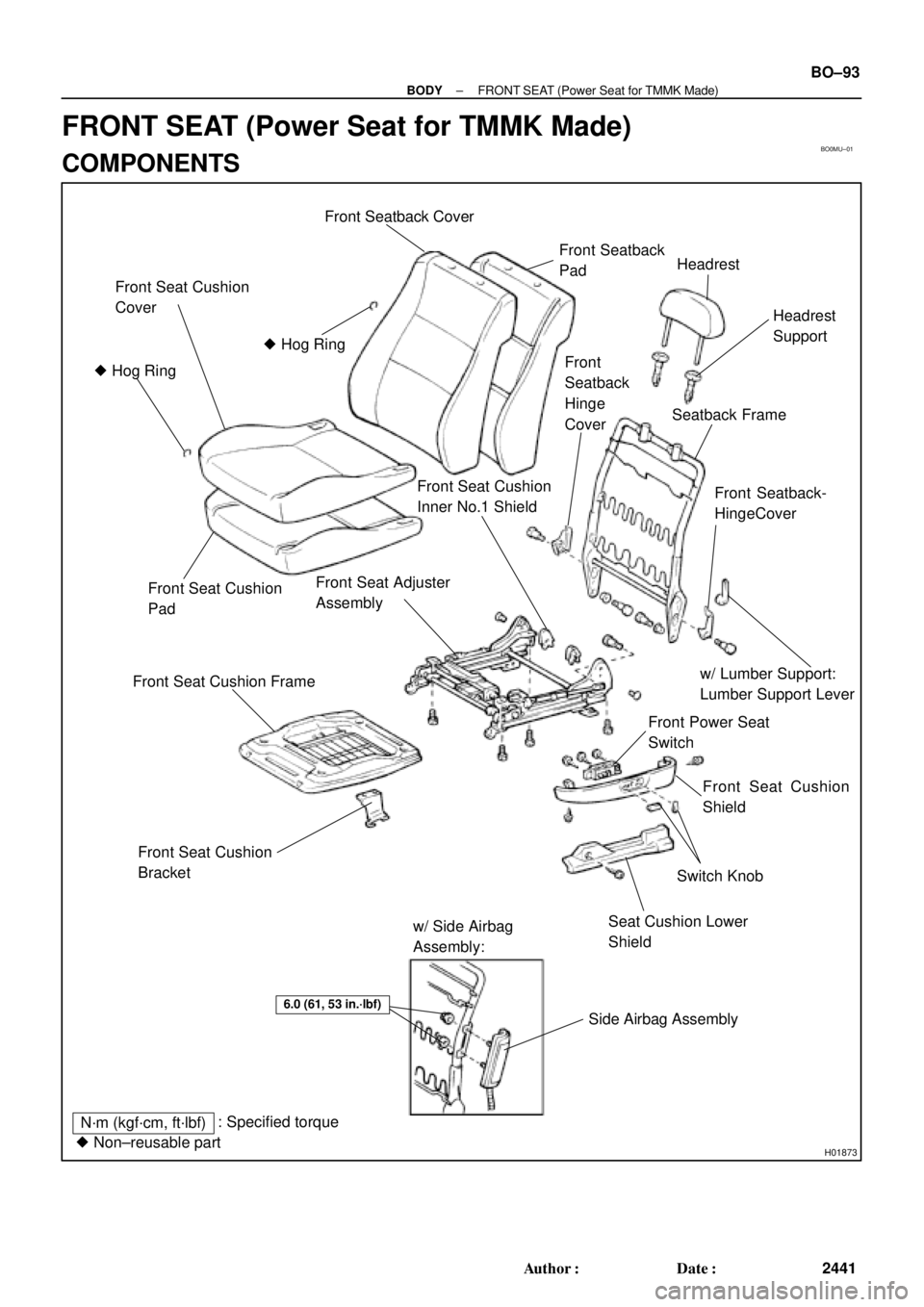

TOYOTA CAMRY 2000 Service Repair Manual BO0MU±01 H01873 Front Seat Cushion Cover  Hog Ring  Hog Ring Front Seat Cushion Pad Front Seat Cushion Frame Front Seat Adjuster Assembly Front Seat Cushion Inner No.1 Shield Front Seatback PadHead

Page 2054 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MV±01 BO±94 ± BODYFRONT SEAT (Power Seat for TMMK Made) 2442 Author: Date: REMOVAL REMOVE FRONT SEAT (a) Using a screwdriver, remove the seat track covers. HINT: Tape the screwdriver tip befor

Page 2055 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MW±01 H01870 ± BODYFRONT SEAT (Power Seat for TMMK Made) BO±95 2443 Author: Date: DISASSEMBLY 1. REMOVE THESE PARTS: (a) Switch knob (b) Front seat cushion shield (c) Front power seat switch (

Page 2056 of 4770

TOYOTA CAMRY 2000 Service Repair Manual BO0MX±01 H01870 BO±96 ± BODYFRONT SEAT (Power Seat for TMMK Made) 2444 Author: Date: REASSEMBLY 1. INSTALL THESE PARTS: (a) Front seat cushion inner shield (b) Front seat cushion bracket (c) Fron
