Page 1961 of 4770
V00012

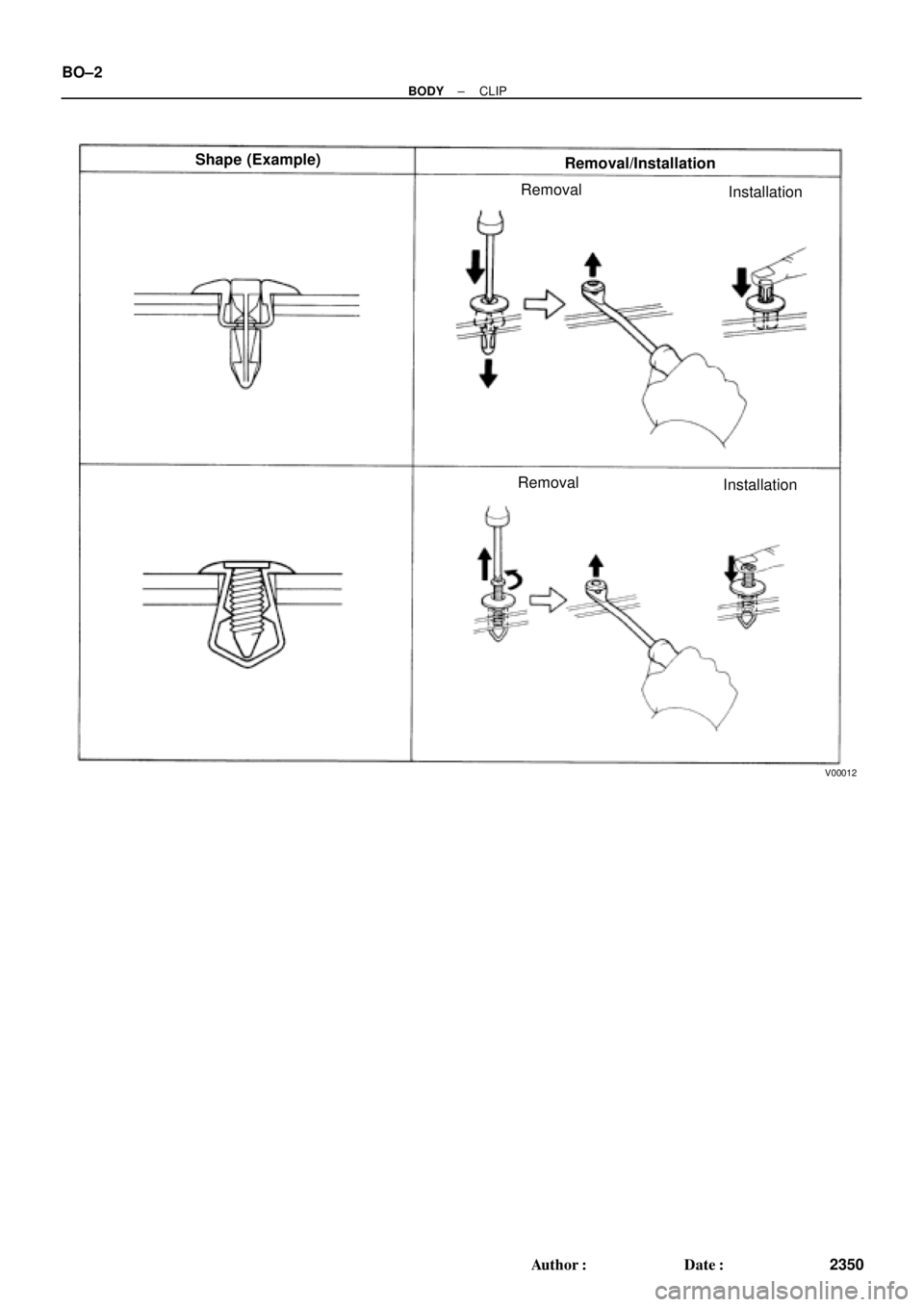

Shape (Example)
Removal/Installation
Removal
Installation
Removal
Installation BO±2
± BODYCLIP
2350 Author: Date:
Page 1962 of 4770
BO0KU±01
± BODYSRS AIRBAG
BO±3
2351 Author: Date:
SRS AIRBAG
PRECAUTION
The CAMRY is equipped with SRS (Supplemental Restraint System) such as the driver airbag, front passen-
ger airbag, side airbag and seat belt pretensioner. Failure to carry out service operation in the correct se-
quence could cause the SRS to unexpectedly deploy during servicing, possibly leading to a serious acci-
dent. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read
the precautionary notices in the RS section.
Page 1963 of 4770
BO0KV±01
H01708
Turn Signal Light Assembly
Upper Reinforcement
Sub±AssemblyTurn Signal Light Assembly
Fender Liner Front Bumper
Reinforcement
Energy Absorber
Mounting Plate
Front Bumper
Energy Absorber
Engine Under Cover Bumper Cover Emblem,
Radiator GrillFender Liner
N´m (kgf´cm, ft´lbf) : Specified torque
5.5 (55, 49 in.´lbf)34 (350, 25)
Clip
34 (350, 25)
No.2
Reinforcement
Clip BO±4
± BODYFRONT BUMPER
2352 Author: Date:

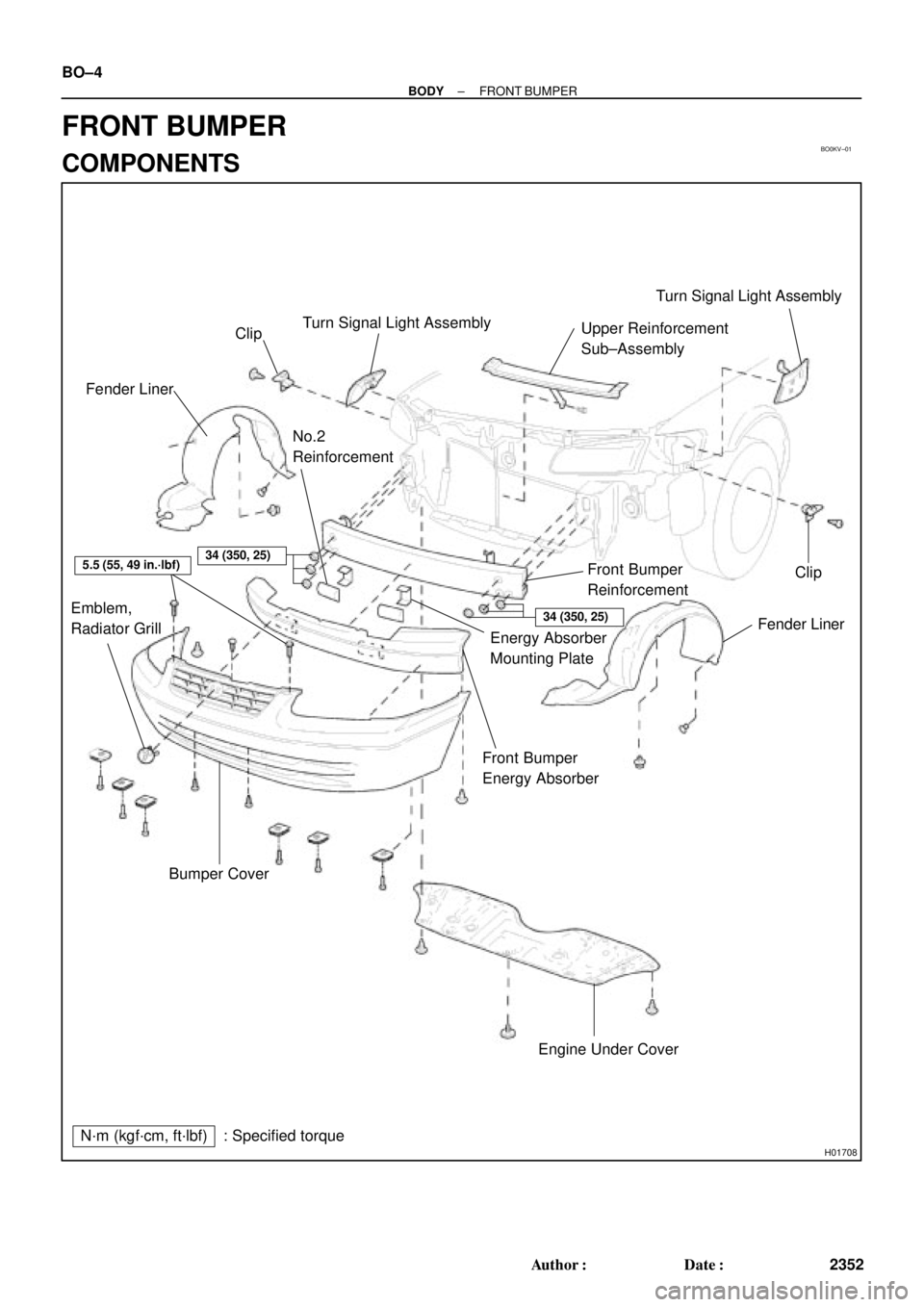

FRONT BUMPER
COMPONENTS
Page 1964 of 4770
BO0KW±01
H01709
H01710
H01711
H01712
± BODYFRONT BUMPER
BO±5
2353 Author: Date:
REMOVAL
1. REMOVE THESE PARTS:
(a) Engine under cover
(b) Fender liner
(c) Turn signal light assembly
HINT:
Remove the light assembly as shown.
2. REMOVE BUMPER COVER
(a) Remove the 2 bolts and 3 clips.
Torque: 5.5 N´m (55 kgf´cm, 49 in.´lbf)
(b) Remove the bolt holding the bumper end to the fender.
(c) Pull the bumper cover forward to remove the bumper cov-
er from the clip under the turn signal light area.
(d) Pull the bumper cover forward to remove it.
HINT:
At the time of installation, please refer to the refer to the follow-
ing item.
Align the holes of the bumper cover with the 2 bumper stays of
the reinforcement.
3. REMOVE THESE PARTS:
(a) Front bumper energy absorber
(b) Front bumper reinforcement
Torque: 34 N´m (350 kgf´cm, 25 ft´lbf)
(c) Front bumper upper reinforcement subassembly
Page 1965 of 4770
BO0KX±01
BO±6
± BODYFRONT BUMPER
2354 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±5).
Page 1966 of 4770
BO0KY±01
H01713
Left Side Luggage Trim
Right Side Luggage Trim
Rear Bumper
Side Retainer Rear Bumper Energy Absorber Rear Bumper Reinforcement
Quarter Air Duct
Rear Bumper
Side Retainer
Rear Bumper Cover
5.0 (50, 43 in.´lbf)
5.0 (50, 43 in.´lbf)
N´m (kgf´cm, ft´lbf) : Specified Torque
34 (350, 25)
± BODYREAR BUMPER
BO±7
2355 Author: Date:
REAR BUMPER
COMPONENTS
Page 1967 of 4770
BO0KZ±01
H01714
H01715
BO±8
± BODYREAR BUMPER
2356 Author: Date:
REMOVAL
1. REMOVE THESE PARTS:
(a) Right side luggage trim
(b) Left side luggage trim
2. REMOVE REAR BUMPER COVER
(a) Remove the 7 clips, 2 bolts and 6 nuts from the bumper
cover.
Torque: 5.0 N´m (50 kgf´cm, 43 in.´lbf)
(b) Pull the bumper cover rearward to remove it.
HINT:
With a plastic hammer, tap the ends of the bumper end bolts.
(c) Using a screwdriver, slide the rear bumper side retainers
from the bumper ends.
(d) Remove the 2 gaskets from the side retainers.
HINT:
Use 2 new gaskets.
3. REMOVE THESE PARTS:
(a) Rear bumper energy absorber
(b) Rear bumper reinforcement
Torque: 34 N´m (350 kgf´cm, 25 ft´lbf)
Page 1968 of 4770
BO0L0±01
± BODYREAR BUMPER
BO±9
2357 Author: Date:
INSTALLATION
Installation is in the reverse order of removal (See page BO±8).
