INJECTOR
ON±VEHICLE INSPECTION

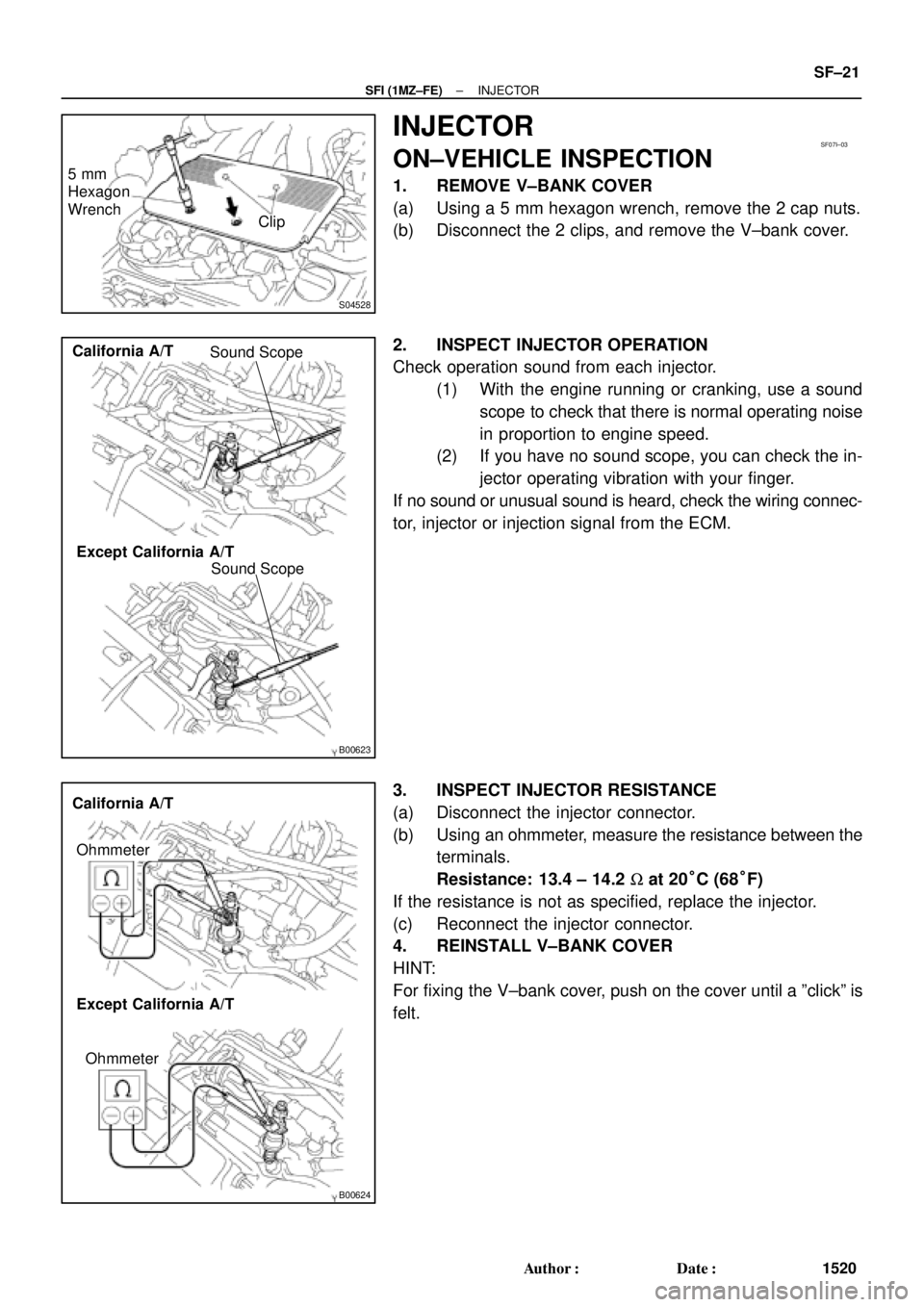

1. REMOVE V±BANK COVER
(a) Using a 5 mm hexagon wrench, remove the 2 cap nuts.
(b) Disconnect the 2 clips, and remove the V±bank cover.
2. INSPECT INJECTOR OPERATION
Check operation sound from each injector.
(1) With the engine running or cranking, use a sound
scope to check that there is normal operating noise
in proportion to engine speed.
(2) If you have no sound scope, you can check the in-
jector operating vibration with your finger.
If no sound or unusual sound is heard, check the wiring connec-
tor, injector or injection signal from the ECM.
3. INSPECT INJECTOR RESISTANCE
(a) Disconnect the injector connector.
(b) Using an ohmmeter, measure the resistance between the
terminals.
Resistance: 13.4 ± 14.2 W at 20°C (68°F)
If the resistance is not as specified, replace the injector.
(c) Reconnect the injector connector.
4. REINSTALL V±BANK COVER
HINT:
For fixing the V±bank cover, push on the cover until a ºclickº is
felt.
Page 4122 of 4770
SF07J±03
B06391
Air Intake Chamber Stay
No.1 Engine Hanger
VSV Connector for
EVAP
Ground Cable
Ground Strap
Air Intake Chamber
AssemblyNo.2 EGR
Pipe
VSV Connector
for EGR
Engine Wire
PCV Hose
VSV Connector for ACIS
Spacer
Injector Injector Connector
High±Tension Cord Set PS Pressure Tube
California A/T
Brake Booster
Vacuum Hose
Throttle Position
Sensor Connector
EGR Valve Position
Sensor Connector
IAC Valve
Connector
V±Bank Cover
Accelerator Cable
Throttle Cable
Air Cleaner Hose
EGR Gas Temperature
Sensor Connector Purge Hose
Vacuum
Hose
Water Bypass Hose
Air Assist Hose and Pipe Gasket
O±Ring
O±Ring Grommet
Injector Insulator
Retainer
Gasket
Gasket
19.5 (200, 14)
39 (400, 29)
12 (120, 9)
43 (440, 32)
10 (100, 7)19.5 (200, 14)
N´m (kgf´cm, ft´lbf) : Specified torque
Non±reusable part
DLC1
SF±22
± SFI (1MZ±FE)INJECTOR
1521 Author: Date:

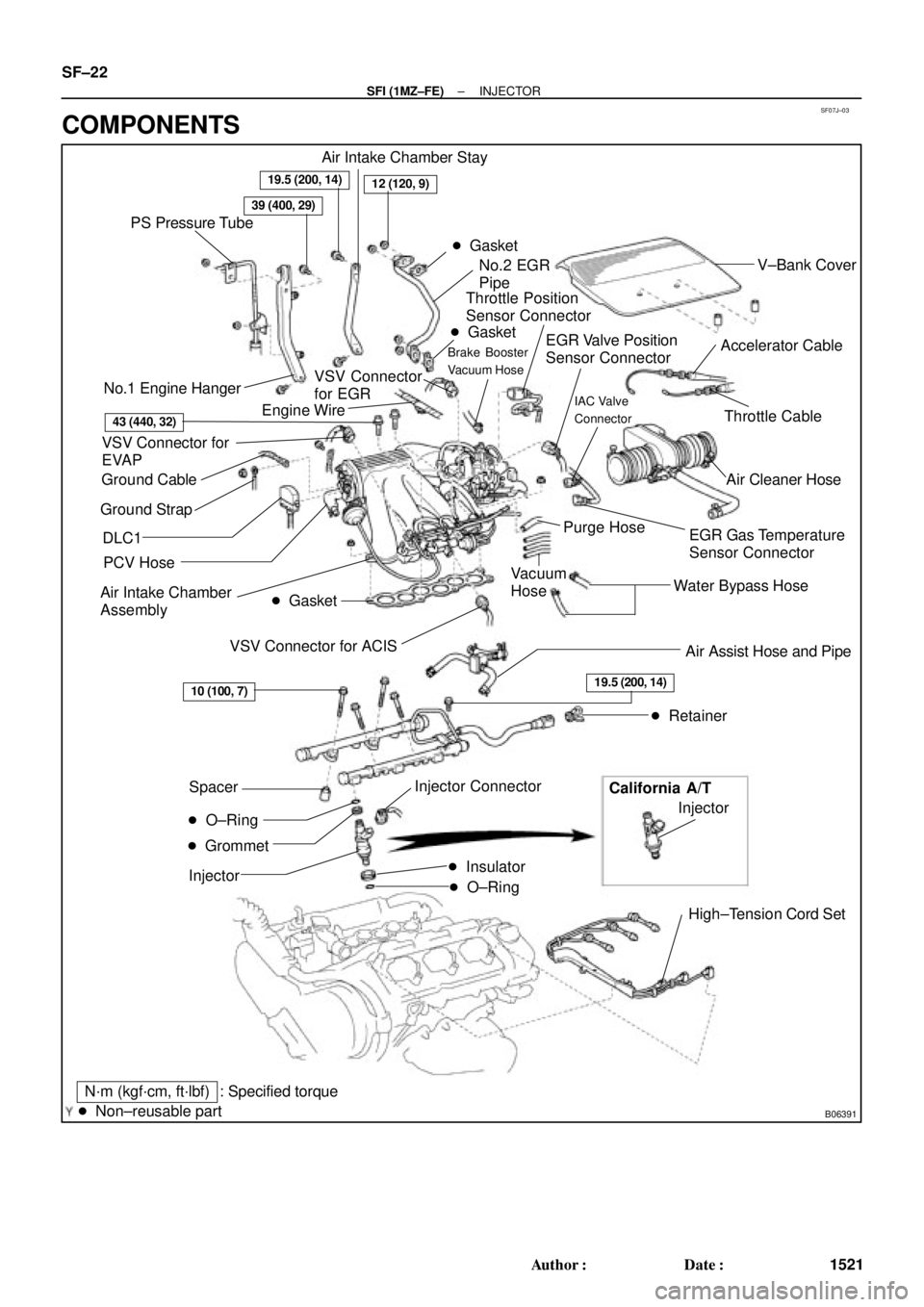

COMPONENTS
Page 4123 of 4770
SF07K±04
S04505
S04498
S06086
Fuel Hose
Clamp
S05352
± SFI (1MZ±FE)INJECTOR
SF±23
1522 Author: Date:

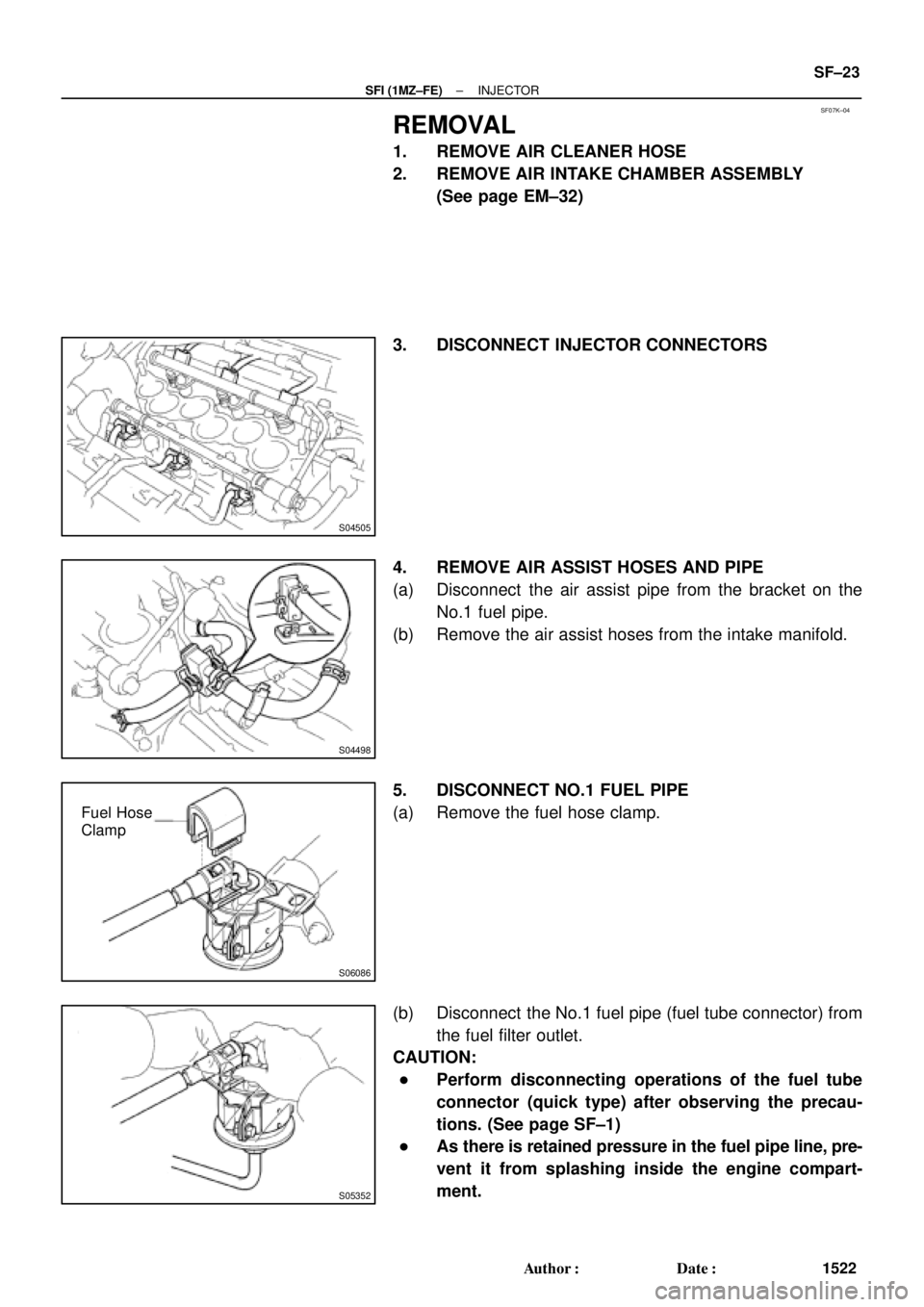

REMOVAL
1. REMOVE AIR CLEANER HOSE
2. REMOVE AIR INTAKE CHAMBER ASSEMBLY
(See page EM±32)
3. DISCONNECT INJECTOR CONNECTORS
4. REMOVE AIR ASSIST HOSES AND PIPE
(a) Disconnect the air assist pipe from the bracket on the
No.1 fuel pipe.
(b) Remove the air assist hoses from the intake manifold.
5. DISCONNECT NO.1 FUEL PIPE
(a) Remove the fuel hose clamp.
(b) Disconnect the No.1 fuel pipe (fuel tube connector) from
the fuel filter outlet.
CAUTION:
Perform disconnecting operations of the fuel tube
connector (quick type) after observing the precau-
tions. (See page SF±1)
As there is retained pressure in the fuel pipe line, pre-
vent it from splashing inside the engine compart-
ment.
Page 4124 of 4770
B01020
SF±24
± SFI (1MZ±FE)INJECTOR
1523 Author: Date:
6. REMOVE DELIVERY PIPES AND INJECTORS
NOTICE:
Be careful not to drop the injectors when removing
the delivery pipes.
Pay attention to put any hung load on the injector to
and from the side direction.
(a) Remove the 5 bolts and delivery pipes together with the
6 injectors and No.1 fuel pipe.
(b) Remove the 4 spacers from the intake manifold.
(c) Pull out the 6 injectors from the delivery pipes.
(d) Remove the 2 O±rings and 2 grommets from each injec-
tor.
Page 4125 of 4770
SF07L±04
B01919
Fuel Tube Connector
SST
(Hose)
SST
(Union)
SST
(Clamp)
InjectorFuel Filter
(On Vehicle) California A/T
Except California A/T
Fuel Tube Connector
SST
(Hose)
SST
(Union)
SST
(Clamp)
InjectorFuel Filter
(On Vehicle)
S05359
Fuel Tube Connector
S05357
SST
(Hose) Fuel Tube Connector
Fuel Filter
± SFI (1MZ±FE)INJECTOR
SF±25
1524 Author: Date:
INSPECTION
1. INSPECT INJECTOR INJECTION
CAUTION:
Keep injector clear of sparks during the test.

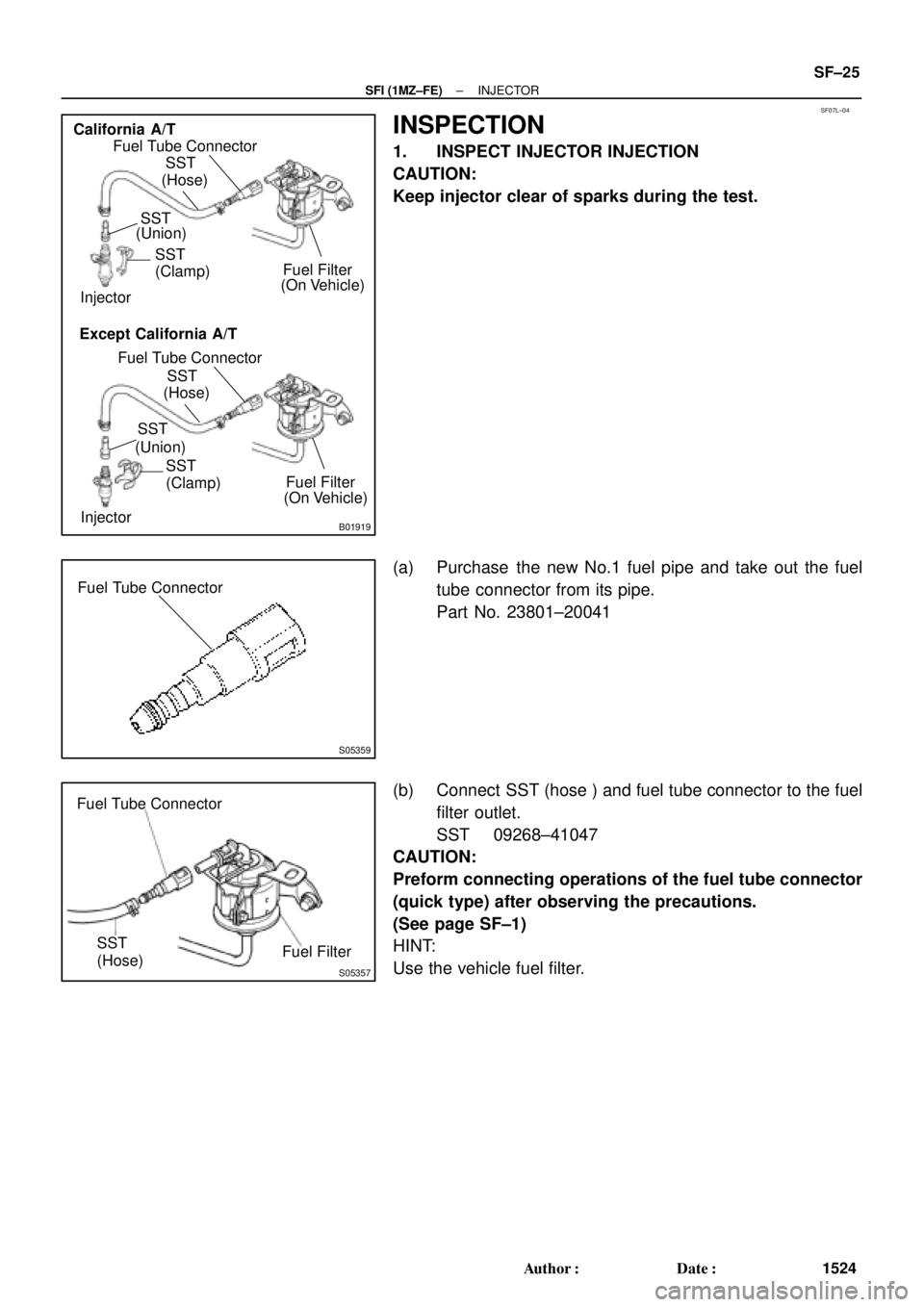

(a) Purchase the new No.1 fuel pipe and take out the fuel
tube connector from its pipe.
Part No. 23801±20041
(b) Connect SST (hose ) and fuel tube connector to the fuel
filter outlet.
SST 09268±41047
CAUTION:
Preform connecting operations of the fuel tube connector
(quick type) after observing the precautions.
(See page SF±1)
HINT:
Use the vehicle fuel filter.
Page 4126 of 4770

B01914
SST (Union)SST (Hose)
O±Ring
SST
(Clamp)
Vinyl Tube
Vinyl Tube
O±Ring
SST (Union)
SST (Hose)
SST
(Clamp)
California A/T
Except California A/T
S05358
TOYOTA
Hand±Held Tester SF±26
± SFI (1MZ±FE)INJECTOR
1525 Author: Date:

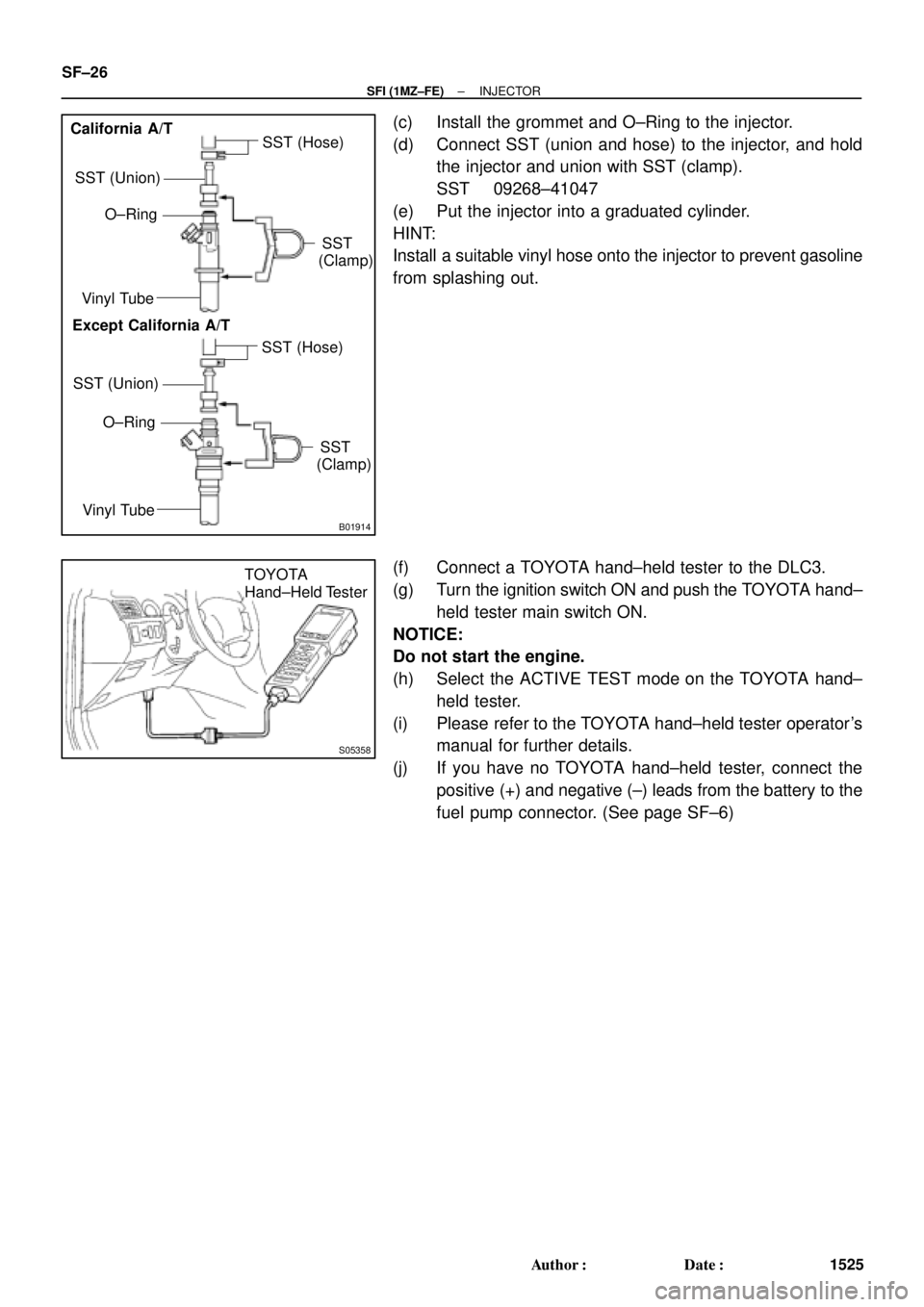

(c) Install the grommet and O±Ring to the injector.
(d) Connect SST (union and hose) to the injector, and hold
the injector and union with SST (clamp).
SST 09268±41047
(e) Put the injector into a graduated cylinder.
HINT:
Install a suitable vinyl hose onto the injector to prevent gasoline
from splashing out.
(f) Connect a TOYOTA hand±held tester to the DLC3.
(g) Turn the ignition switch ON and push the TOYOTA hand±
held tester main switch ON.
NOTICE:
Do not start the engine.
(h) Select the ACTIVE TEST mode on the TOYOTA hand±
held tester.
(i) Please refer to the TOYOTA hand±held tester operator's
manual for further details.
(j) If you have no TOYOTA hand±held tester, connect the
positive (+) and negative (±) leads from the battery to the
fuel pump connector. (See page SF±6)
Page 4127 of 4770

B01913
California A/T
Except California A/TBatterySST
(Wire)
BatterySST
(Wire)
B00628
California A/TExcept
California A/T
± SFI (1MZ±FE)INJECTOR
SF±27
1526 Author: Date:
(k) Connect SST (wire) to the injector and battery for 15 se-
conds, and measure the injection volume with a gra-
duated cylinder. Test each injector 2 or 3 times.
SST 09842±30070
Volume:
60 ± 73 cm
3 (3.4 ± 4.5 cu in.) per 15 sec.
Difference between each injector:
13 cm
3 (0.8 cu in.) or less
If the injection volume is not as specified, replace the injector.
2. INSPECT LEAKAGE
(a) In the condition above, disconnect the test probes of SST
(wire) from the battery and check the fuel leakage from
the injector.
SST 09842±30070
Fuel drop: 1 drop or less per 12 minutes
(b) Turn the ignition switch OFF.
(c) Disconnect the negative (±) terminal cable from the bat-
tery.
(d) Remove the SST and fuel tube connector.
SST 09268±41047, 09842±30070
CAUTION:
Perform disconnecting operations of the fuel tube
connector (quick type) after observing the precau-
tions. (See page SF±1)
As there is retained pressure in the fuel pipe line, pre-
vent it from splashing inside the engine compart-
ment.
(e) Disconnect the TOYOTA hand±held tester from the
DLC3.
Page 4128 of 4770
SF07M±04
B00629
California A/T
Except California A/TNew Insulator
New Grommet New
O±RingNew
O±Ring
New Grommet
New Insulator
New
O±RingNew
O±Ring
B00625
Turn
Connector
Push
Turn
Connector
Push
California A/T
Except California A/T
S04510
Spacer
Spacer SF±28
± SFI (1MZ±FE)INJECTOR
1527 Author: Date:
INSTALLATION
1. INSTALL INJECTORS AND DELIVERY PIPES

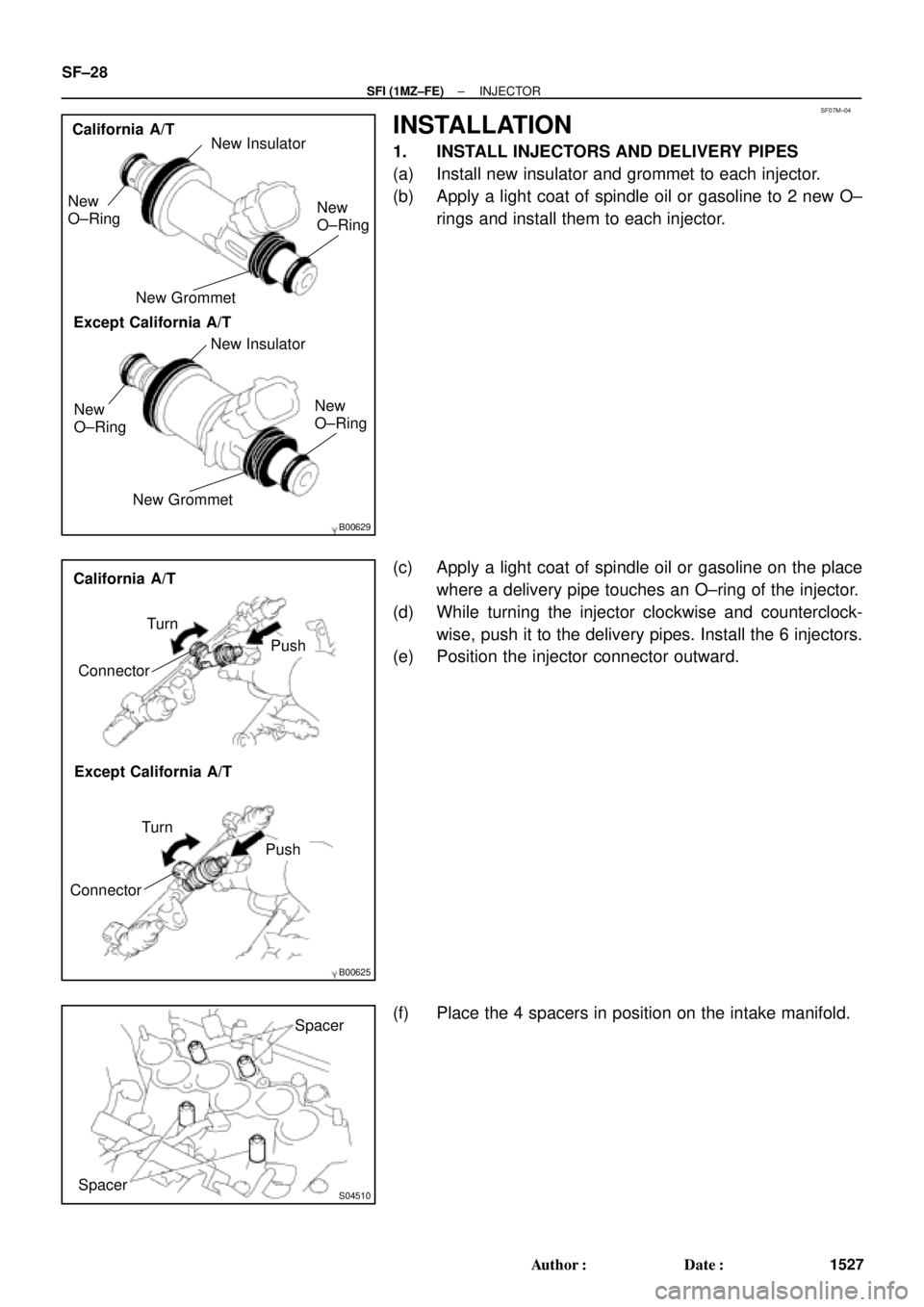

(a) Install new insulator and grommet to each injector.
