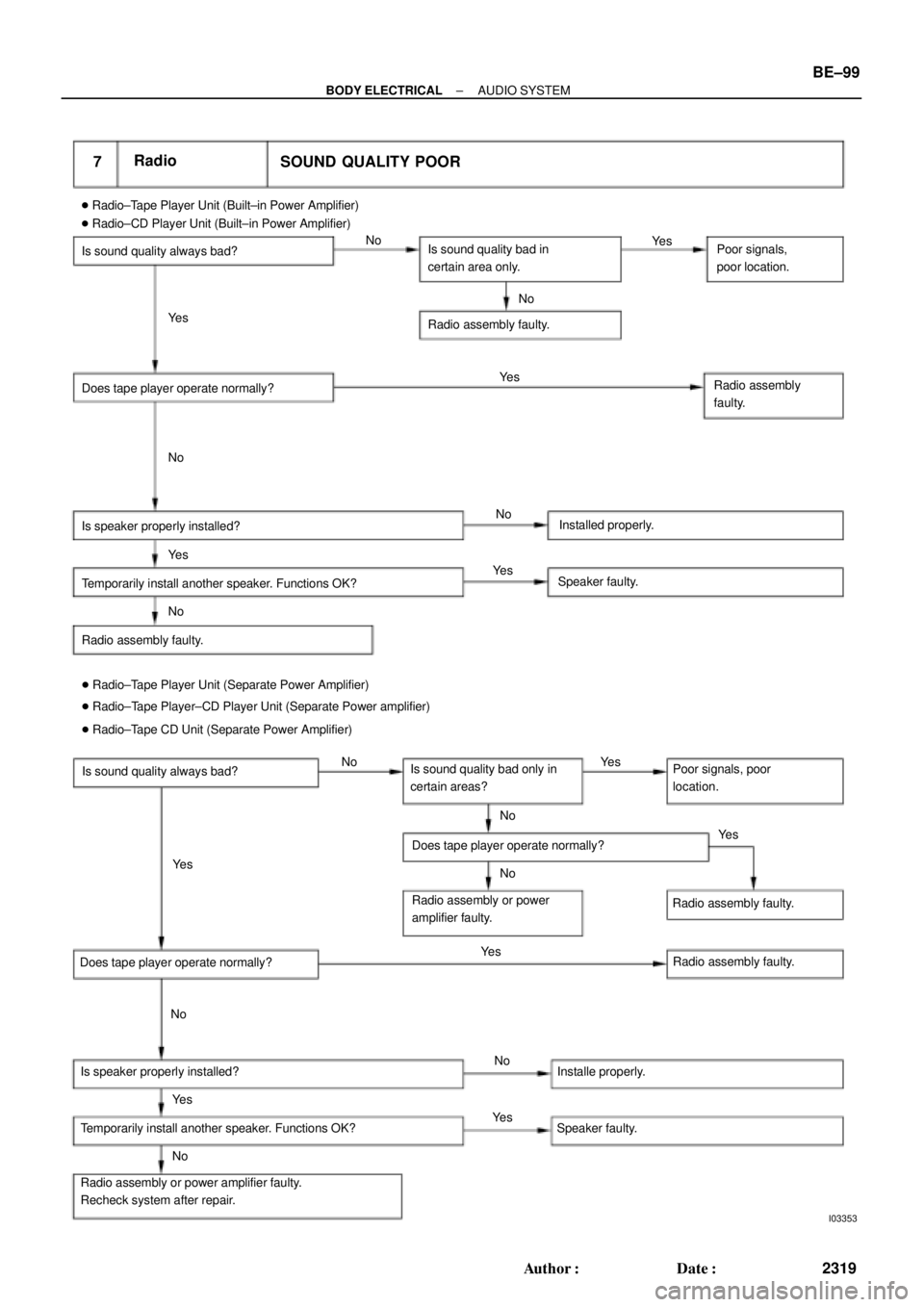

Page 2193 of 4770

TOYOTA CAMRY 2000 Service Repair Manual I03353 7Radio SOUND QUALITY POOR  Radio±Tape Player Unit (Built±in Power Amplifier) Is sound quality always bad?Is sound quality bad in certain area only.Poor signals, poor location. Radio assembly

Page 2194 of 4770

TOYOTA CAMRY 2000 Service Repair Manual I03354 8 RadioPRESET MEMORY DISAPPEARS Can cassette tape be inserted in tape player? Radio assembly faulty. Replace fuse. +B wire harness faulty. GND faulty. Check that GND (wire harness side) to radi

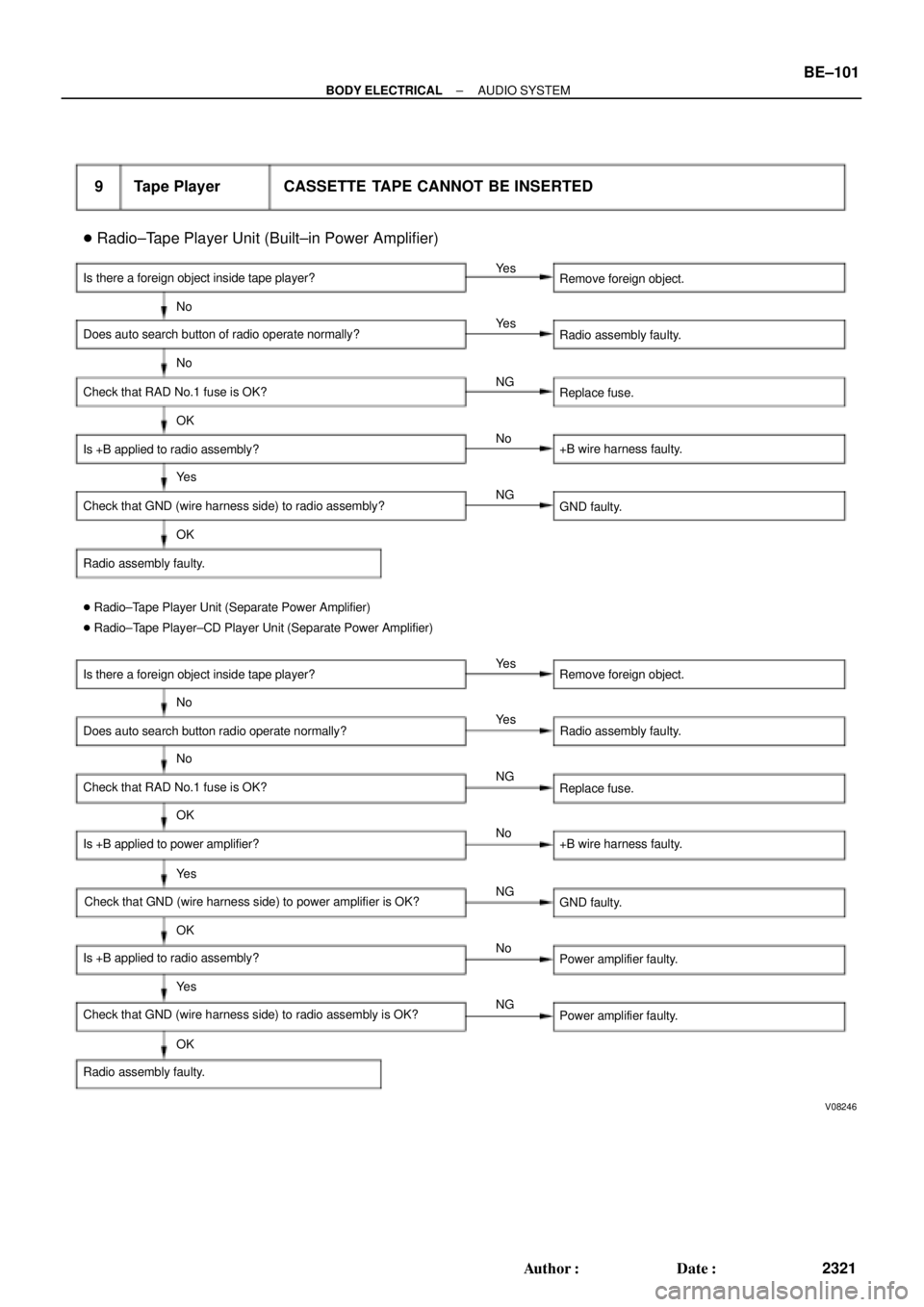

Page 2195 of 4770

TOYOTA CAMRY 2000 Service Repair Manual V08246 9 Tape Player CASSETTE TAPE CANNOT BE INSERTED  Radio±Tape Player Unit (Built±in Power Amplifier) Is there a foreign object inside tape player? Remove foreign object. Radio assembly faulty.

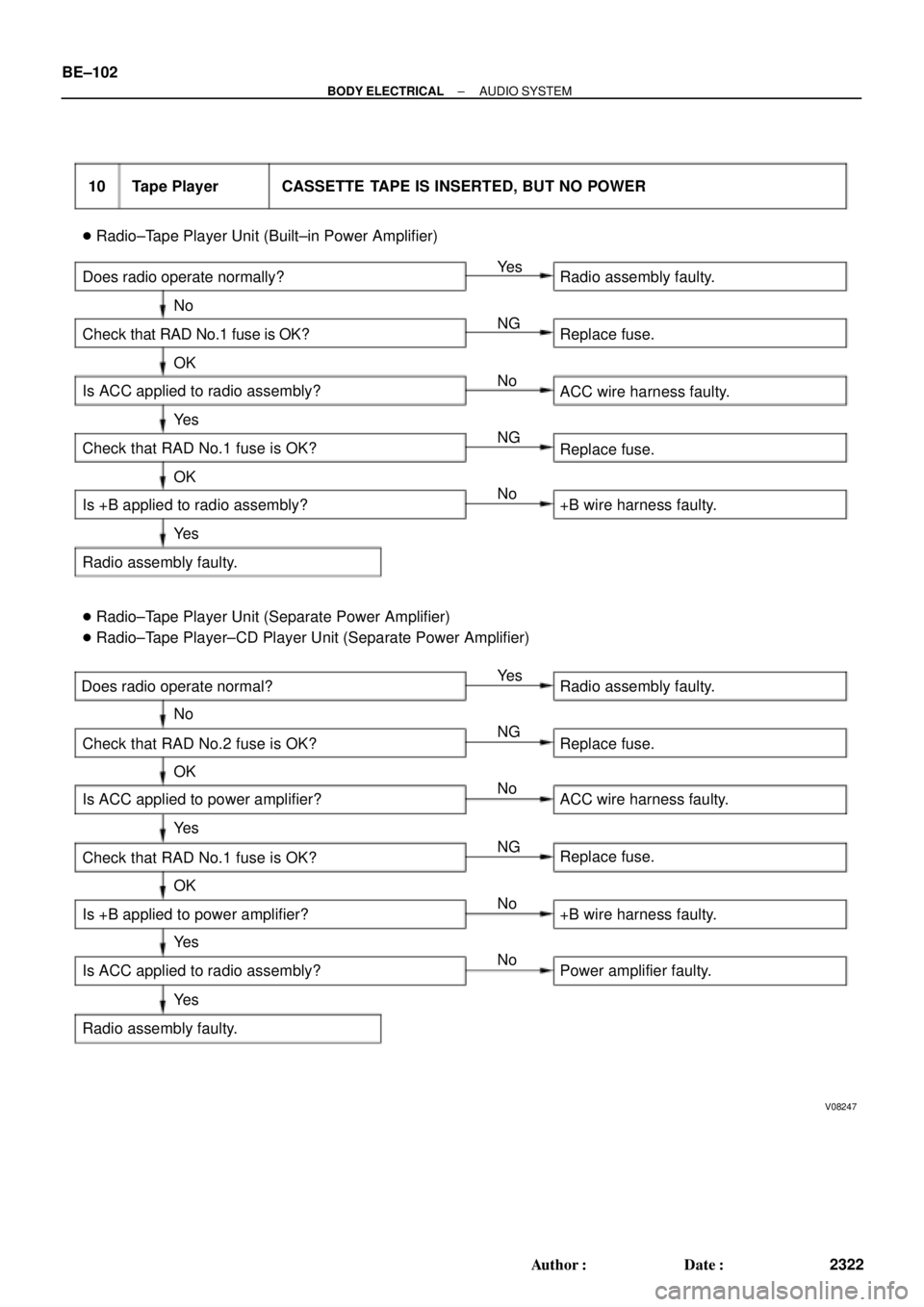

Page 2196 of 4770

TOYOTA CAMRY 2000 Service Repair Manual V08247 10 Tape Player CASSETTE TAPE IS INSERTED, BUT NO POWER  Radio±Tape Player Unit (Built±in Power Amplifier) Does radio operate normally? Check that RAD No.1 fuse is OK? Is ACC applied to radio

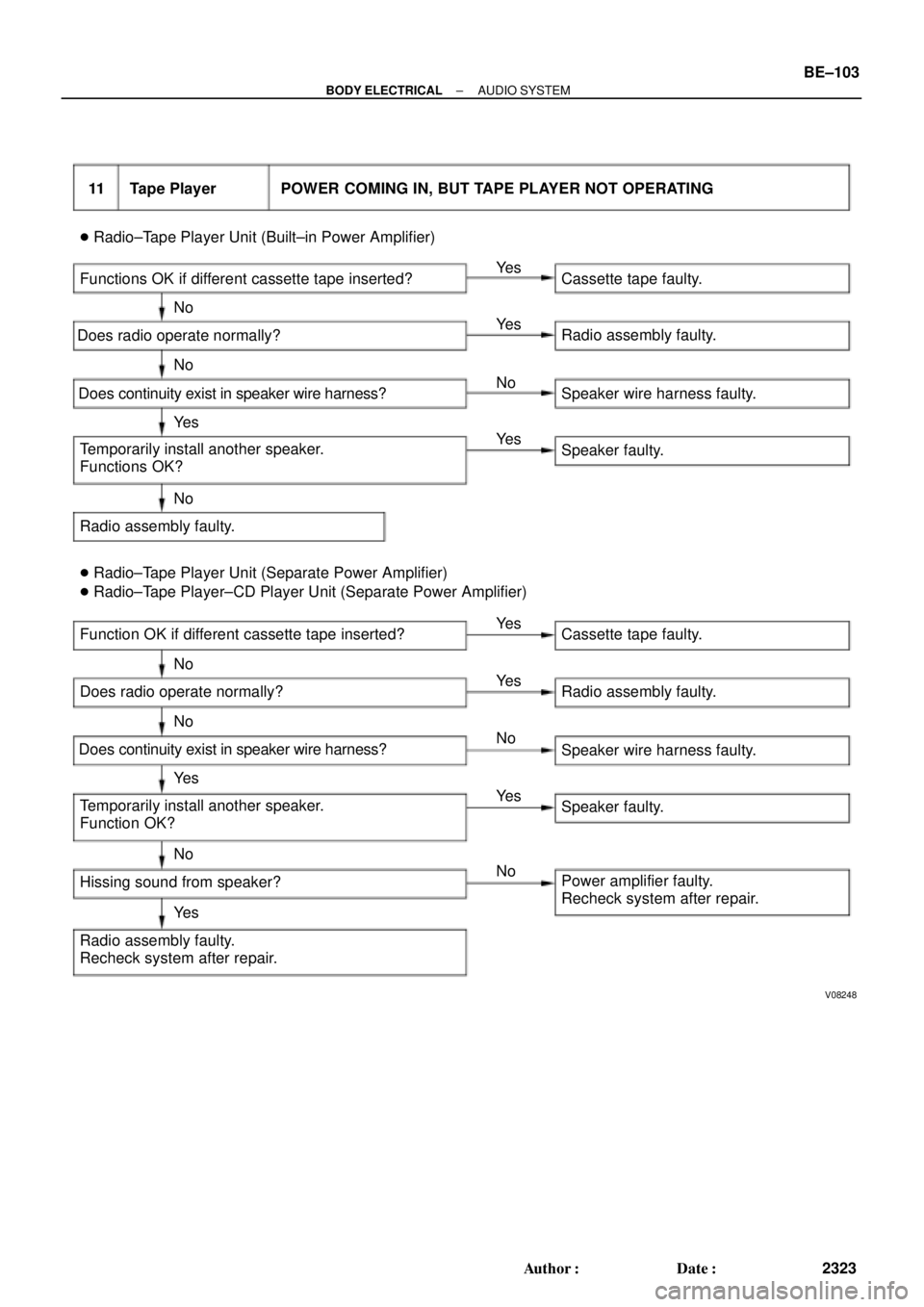

Page 2197 of 4770

TOYOTA CAMRY 2000 Service Repair Manual V08248 11 Tape Player POWER COMING IN, BUT TAPE PLAYER NOT OPERATING  Radio±Tape Player Unit (Built±in Power Amplifier) Functions OK if different cassette tape inserted? Does continuity exist in sp

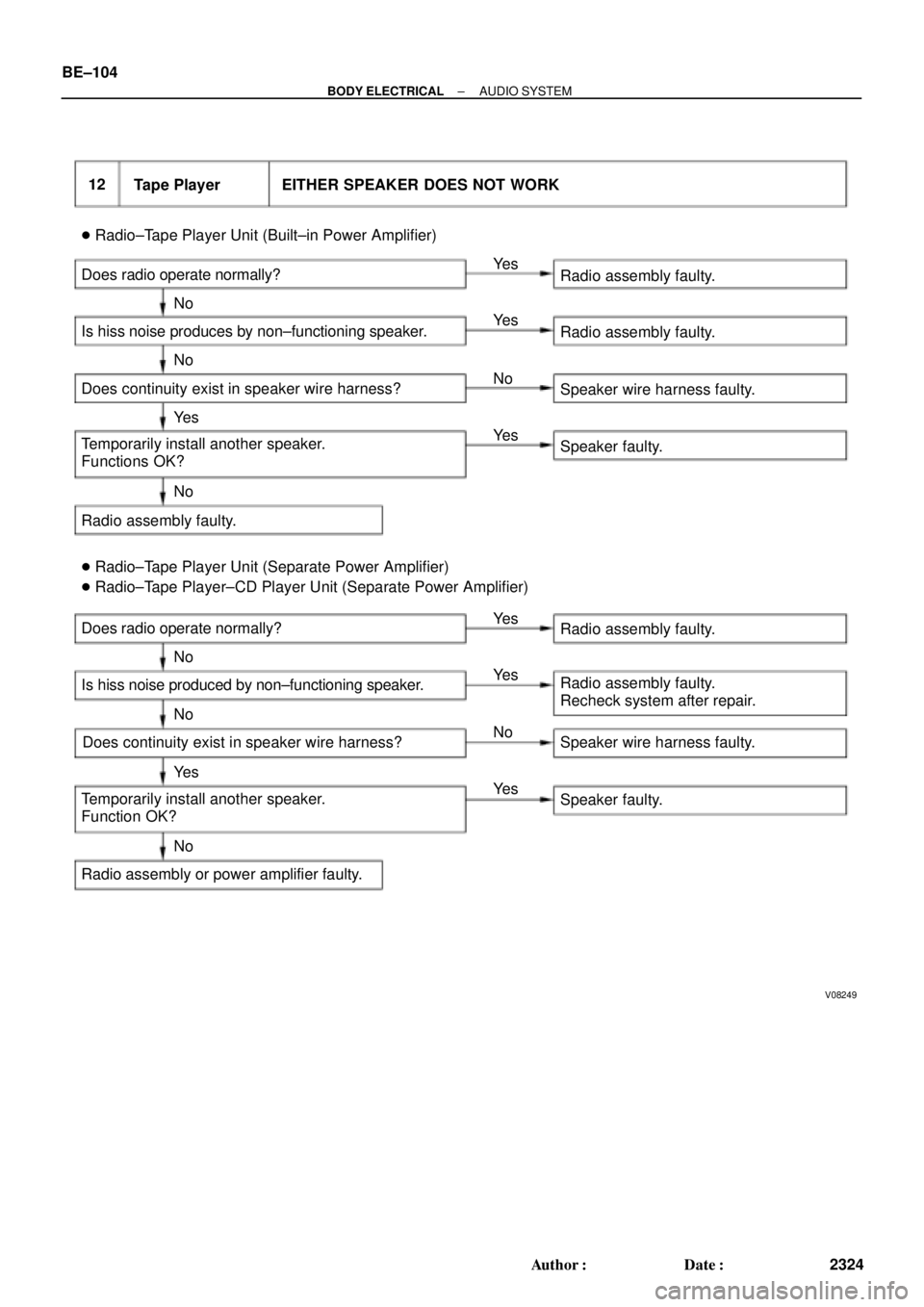

Page 2198 of 4770

TOYOTA CAMRY 2000 Service Repair Manual V08249 12 Tape Player EITHER SPEAKER DOES NOT WORK  Radio±Tape Player Unit (Built±in Power Amplifier) Does radio operate normally? Is hiss noise produces by non±functioning speaker. Does continuit

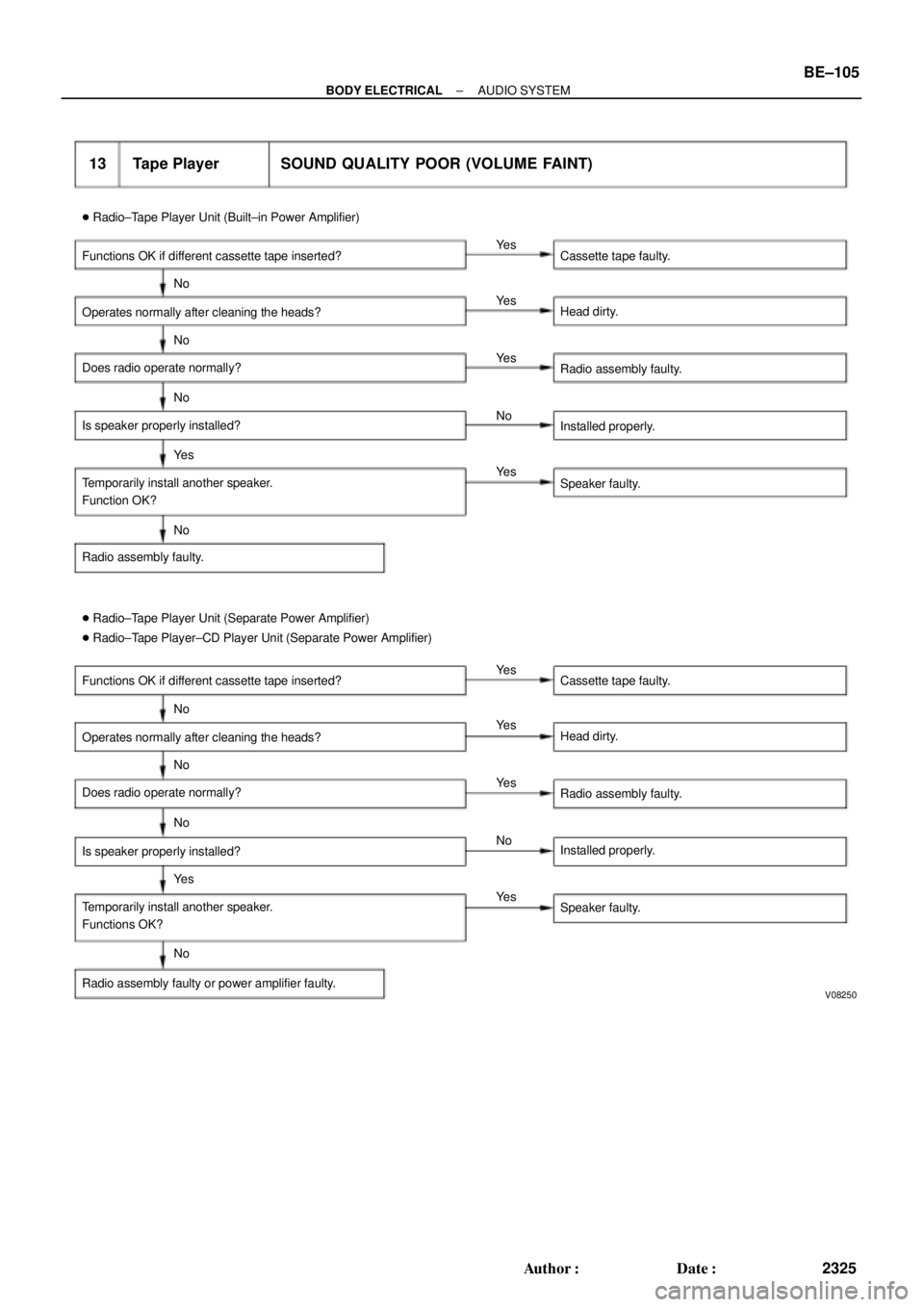

Page 2199 of 4770

TOYOTA CAMRY 2000 Service Repair Manual V08250 13 Tape Player SOUND QUALITY POOR (VOLUME FAINT)  Radio±Tape Player Unit (Built±in Power Amplifier) Functions OK if different cassette tape inserted? Operates normally after cleaning the hea

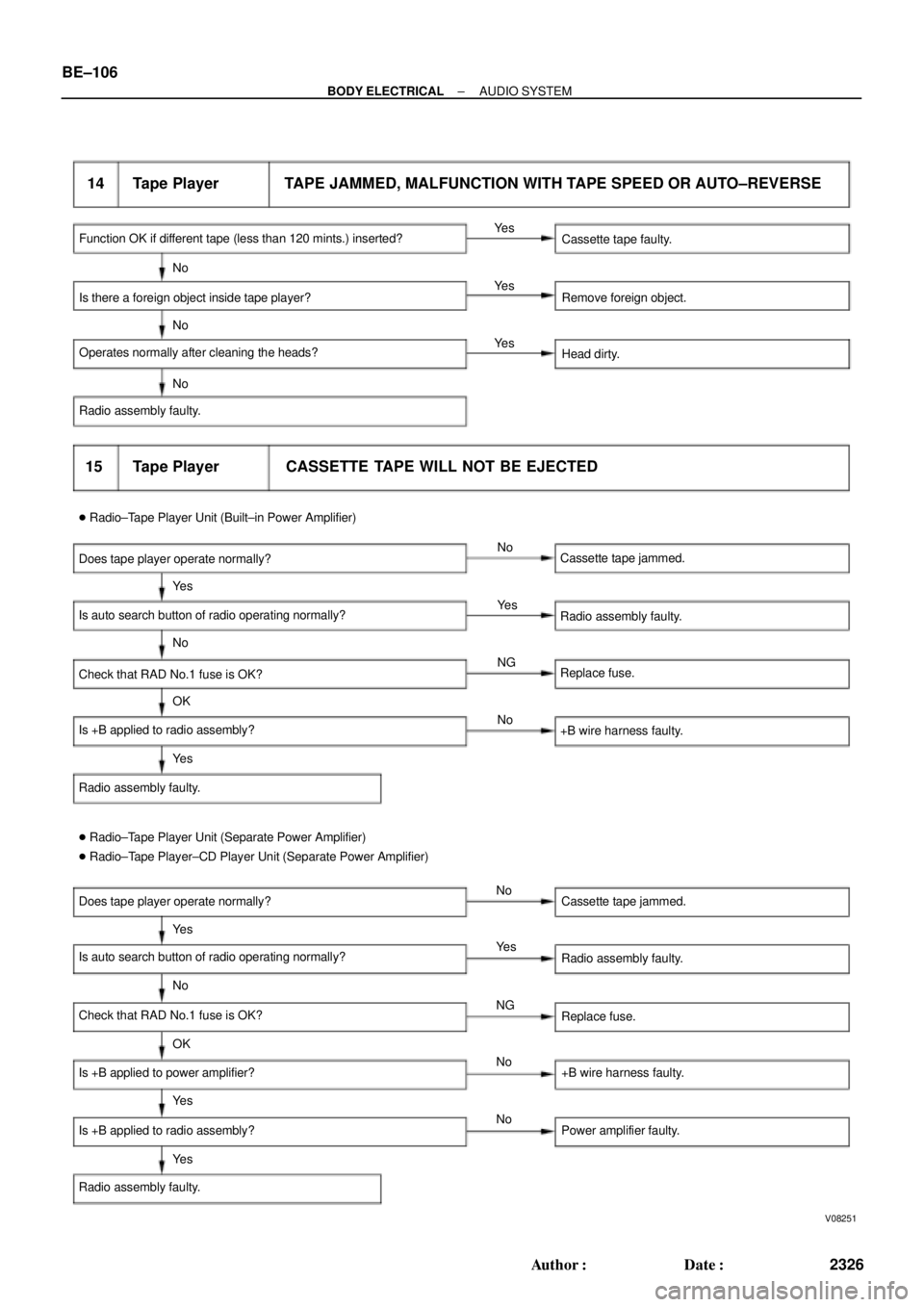

Page 2200 of 4770

TOYOTA CAMRY 2000 Service Repair Manual V08251 14 Tape Player TAPE JAMMED, MALFUNCTION WITH TAPE SPEED OR AUTO±REVERSE Function OK if different tape (less than 120 mints.) inserted? Is there a foreign object inside tape player? Operates no
