DISASSEMBLY
1. DISCONNECT FUEL PUMP CONNECTOR
2. TYPE B:
DISCONNECT GROUND PLATE
3. TYPE B:
DISCONNECT FUEL SENDER GAUGE CONNECTOR
4. Type A:
REMOVE FUEL PUMP FROM FUEL PUMP BRACKET
(a) Pull off the lower side of the fuel pump from the pump
bracket.
(b) Disconnect the fuel hose from the fuel pump, and remove
the fuel pump.
(c) Remove the rubber cushion from the fuel pump.
5. Type B:
REMOVE FUEL SENDER GAUGE
Push down the portion of A with a finger, and push up the send-
er gauge.
NOTICE:
Be careful that the arm of the sender gauge should not
bent.
6. Type B:
REMOVE FUEL FILTER
(a) Remove the screw, and pull out the fuel filter.
(b) Remove the O±ring from the fuel filter.
HINT:
At the time of installation, please refer to the following items.
Install the pump filter with a new clip.
7. TYPE B:
REMOVE FUEL PUMP FLANGE
Using a screwdriver, remove the snap fit portion in the order of
1, 2 and 3 as shown in the illustration.
HINT:
At the time of installation, please refer to the following items. Ap-
ply a light coat of gasoline to a new O±ring, and install it to the
fuel filter.
Page 4114 of 4770
S06027
Type B
S06029
(1)(3)
(2)
Type B
FI6376
SF±14
± SFI (1MZ±FE)FUEL PUMP
1513 Author: Date:
8. Type B:
REMOVE FUEL PUMP LEAD WIRE
9. Type B:
REMOVE ºCº BRACKET, RUBBER CUSHION AND
FUEL PUMP
Using a screwdriver, remove the snap fit portion in the order of
1, 2 and 3 as shown in the illustration.
10. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a) Using a small screwdriver, remove the clip.
(b) Pull out the pump filter.
HINT:
At the time of installation, please refer to the following items.
Install the pump filter with a new clip.
Page 4115 of 4770
SF07D±01
± SFI (1MZ±FE)FUEL PUMP
SF±15
1514 Author: Date:
REASSEMBLY
Reassembly is in the reverse order of disassembly. (See page SF±13)
Page 4116 of 4770
SF07E±01
SF±16
± SFI (1MZ±FE)FUEL PUMP
1515 Author: Date:
INSTALLATION
Installation is in the reverse order of removal. (See page SF±12)
Page 4117 of 4770
SF07F±03
B06392
Type A
Rear Seat Cushion
Floor Service Hole Cover
Fuel Pump and Sender
Gauge Connector
No.1 Fuel Tank Protector
Fuel Tank Vent Tube Set Plate
Fuel Pressure
Regulator
Fuel Filter Fuel Pump Assembly
Gasket
N´m (kgf´cm, ft´lbf) O±Ring O±Ring
Non±reusable part: Specified torque
4 (40,35 in.´lbf)
x 8
± SFI (1MZ±FE)FUEL PRESSURE REGULATOR
SF±17
1516 Author: Date:
FUEL PRESSURE REGULATOR

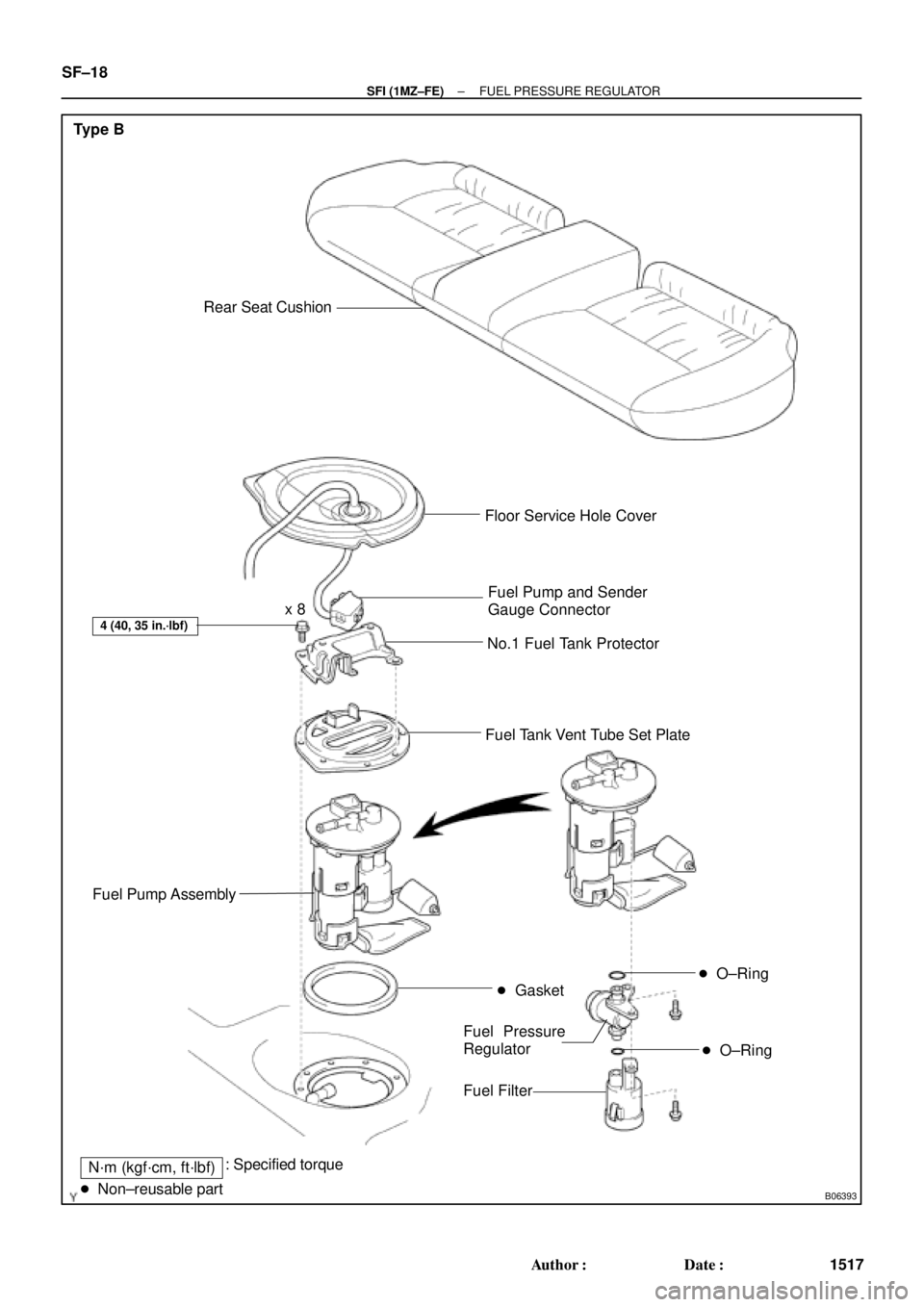

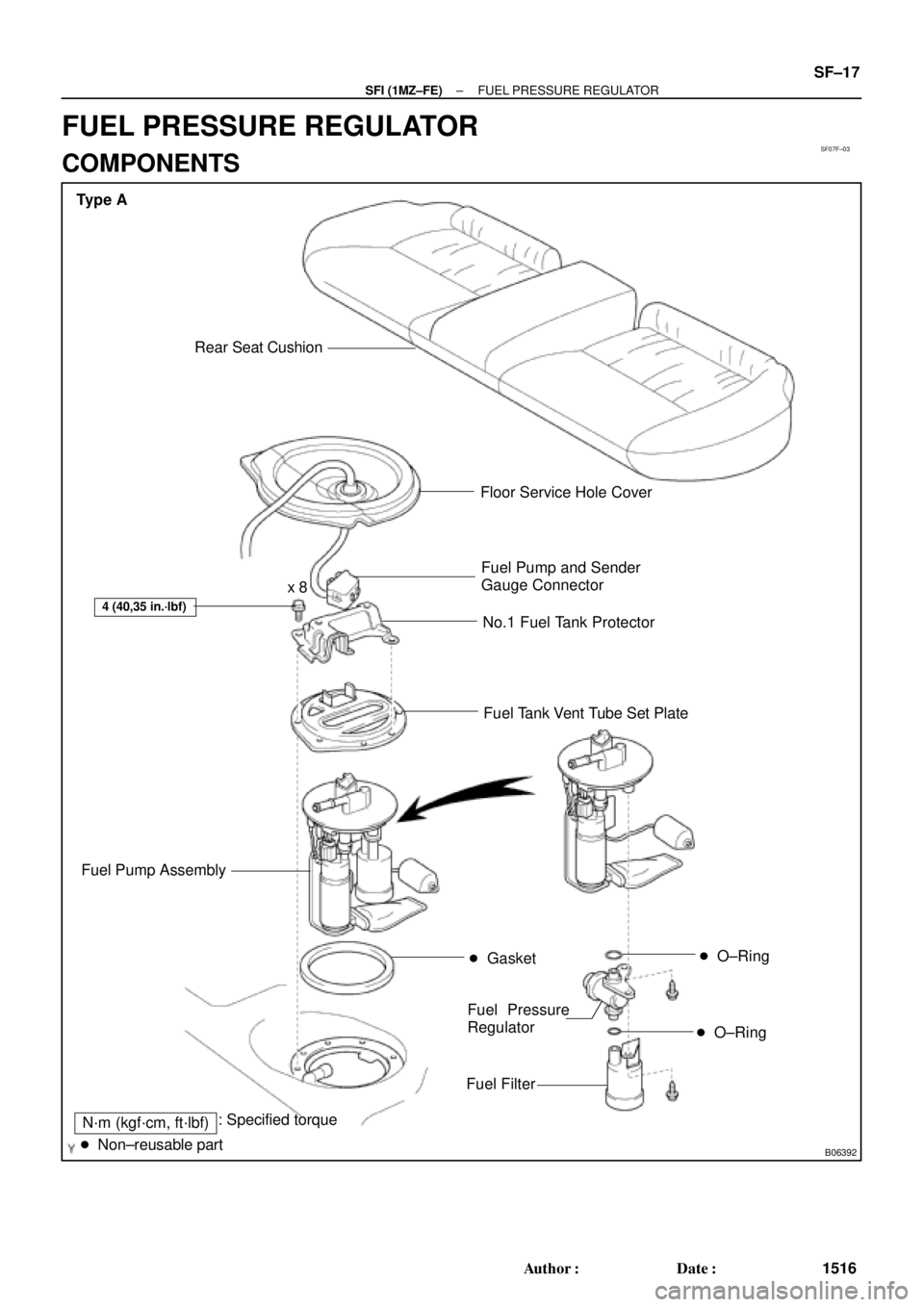

COMPONENTS
