Page 3617 of 4770
EM0YU±01

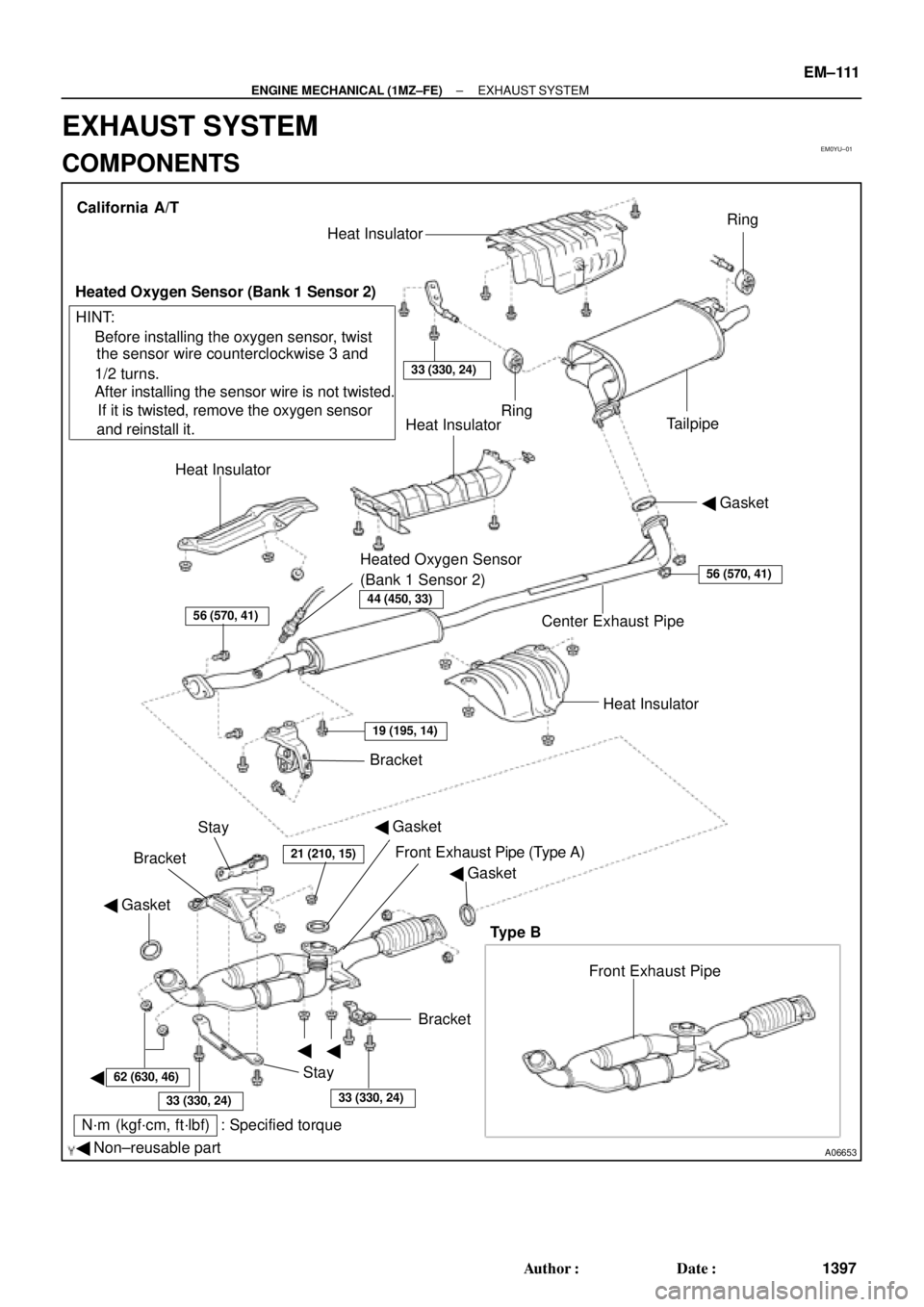

A06653
Gasket
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque Gasket
BracketFront Exhaust Pipe Bracket
StayHeat Insulator Center Exhaust Pipe Gasket Heat InsulatorHeat Insulator
Heated Oxygen Sensor
(Bank 1 Sensor 2)TailpipeRing
Ring
33 (330, 24)
Heat Insulator
Heated Oxygen Sensor (Bank 1 Sensor 2)
Before installing the oxygen sensor, twist
the sensor wire counterclockwise 3 and
1/2 turns.
If it is twisted, remove the oxygen sensor
and reinstall it. After installing the sensor wire is not twisted. California A/T
Bracket
HINT:
56 (570, 41)
19 (195, 14)
21 (210, 15)
62 (630, 46)
33 (330, 24)33 (330, 24)
56 (570, 41)
Stay
Front Exhaust Pipe (Type A)
Type B
44 (450, 33)
Gasket
± ENGINE MECHANICAL (1MZ±FE)EXHAUST SYSTEM
EM±111
1397 Author: Date:
EXHAUST SYSTEM
COMPONENTS
Page 3618 of 4770

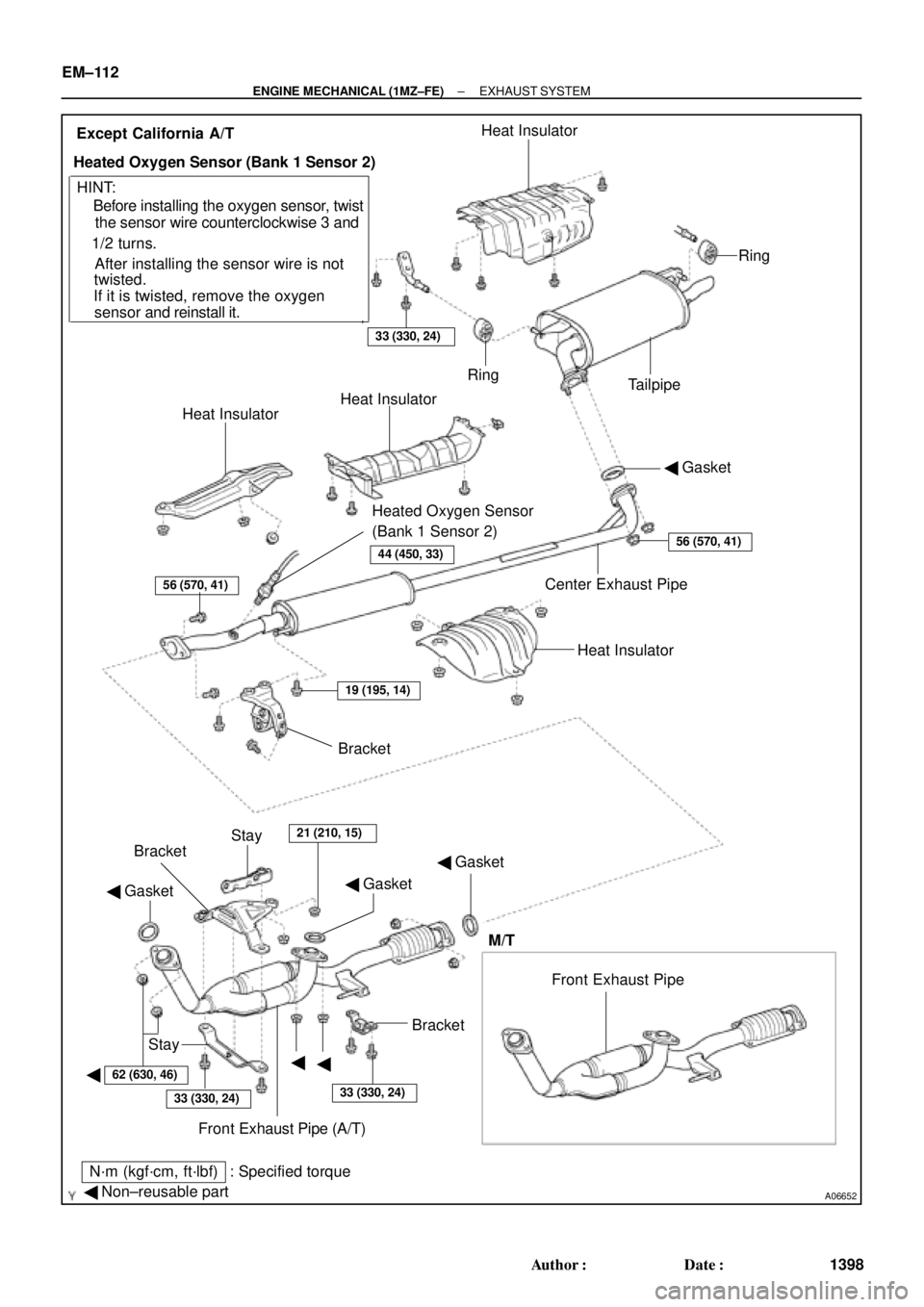

A06652
Gasket
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque Gasket
Gasket
Bracket
Stay
Front Exhaust Pipe (A/T) BracketBracket
Stay
21 (210, 15)
Heat Insulator Center Exhaust Pipe Gasket Heat InsulatorHeat Insulator
Heated Oxygen Sensor
(Bank 1 Sensor 2)TailpipeRing
Ring
33 (330, 24)
Heat Insulator
Heated Oxygen Sensor (Bank 1 Sensor 2)
Before installing the oxygen sensor, twist
the sensor wire counterclockwise 3 and
1/2 turns.
If it is twisted, remove the oxygen
sensor and reinstall it. After installing the sensor wire is notExcept California A/T
HINT:
56 (570, 41)
19 (195, 14)
62 (630, 46)
33 (330, 24)33 (330, 24)
56 (570, 41)
twisted.
Front Exhaust Pipe
M/T
44 (450, 33)
EM±112
± ENGINE MECHANICAL (1MZ±FE)EXHAUST SYSTEM
1398 Author: Date:
Page 3619 of 4770

RS02P±03
H03287
W03509
RS±28
± SUPPLEMENTAL RESTRAINT SYSTEMFRONT PASSENGER AIRBAG ASSEMBLY
2163 Author: Date:
2001 CAMRY (RM819U)
REMOVAL
NOTICE:
If the wiring connector of the SRS is disconnected
and the ignition switch is in ON or ACC position, DTCs
will be recorded.
Never use the airbag parts from another vehicle.
When replacing parts, replace them with new parts.
HINT:
For step 2 to 4, refer to page BO±75.
1. DISCONNECT AIRBAG CONNECTOR
(a) Remove the glove compartment door finish plate inside
the glove compartment box.
NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness.
(b) Pull up the connector.
(c) Disconnect the front passenger airbag connector.
2. REMOVE FRONT DOOR SCUFF PLATE
3. REMOVE COWL SIDE TRIM
4. REMOVE GLOVE COMPARTMENT BOX
5. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
Remove the 2 bolts, 4 nuts and front passenger airbag assem-
bly.
CAUTION:
Do not store the front passenger airbag assembly
with the airbag deployment side facing downward.
Never disassemble the front passenger airbag as-
sembly.
Page 3620 of 4770
BO0LJ±01
V00005
Shape (Example)
Removal/Installation
Clip RemoverPliers
Screwdriver
Scraper
± BODYCLIP
BO±1
2359 Author: Date:
2001 CAMRY (RM819U)
CLIP
REPLACEMENT
The removal and installation methods of typical clips used in body parts are shown in the table below.
HINT:
If the clip is damaged during the operation, always replace it with a new clip.
Page 3621 of 4770
V00012
Shape (Example)
Removal/Installation
Removal
Installation
Removal
Installation BO±2
± BODYCLIP
2360 Author: Date:
2001 CAMRY (RM819U)
Page 3622 of 4770
BO0L2±01
H01975
Door Lock
Cylinder
Outside Handle Front Door Belt Moulding
Door Glass
Door FrameFront Door Upper Moulding
Outside
Rear View
Mirror
Door Glass
Run
5.5 (55, 49 in.´lbf)
5.5 (55, 49 in.´lbf)
5.0 (50, 43 in.´lbf)
Door Lock
23 (230, 17)
Window Regulator
8.0 (80, 69 in.´lbf)
Door Hinge
X6
7.5 (75, 66 in.´lbf)
Regulator
Motor
X3
31 (310, 22)
26 (260, 19)
8.0 (80, 71 in.´lbf)
30 (300, 22)
31 (310, 22)
Door
Check
Door Hinge
26 (260, 19)
Speaker
Power Window Switch Rear Lower
FrameFront Lower
FrameFront Window Upper
Garnish
Inside Handle Bezel
3.5 (35, 31 in.´lbf)
Driver's Side:
Regulator
Motor
Ptdt
N´m (kgf´cm, ft´lbf) : Specified torqueInside Handle
Door Trim
Precoated part Door Lock StrikerService Hole Cover BO±12
± BODYFRONT DOOR
2370 Author: Date:
2001 CAMRY (RM819U)
FRONT DOOR
COMPONENTS
Page 3623 of 4770

BO0L3±01
H01738
N20968
N210034 Clips
N20969
(c)
(b)(a)
± BODYFRONT DOOR
BO±13
2371 Author: Date:
2001 CAMRY (RM819U)
DISASSEMBLY
1. w/o Power Window:
REMOVE REGULATOR HANDLE
Pull off the snap ring with a shop rag and remove the regulator
handle and plate.
HINT:
At the time of assembly, please refer to the following item.
With the door window fully closed, install the plate and the regu-
lator handle with the snap ring.
2. REMOVE INSIDE HANDLE BEZEL
(a) Using a screwdriver, pry open the screw cover and re-
move the screw.
HINT:
Tape the screwdriver tip before use.
(b) Using a screwdriver, pry out the bezel.
HINT:
Tape the screwdriver tip before use.
3. REMOVE FRONT WINDOW UPPER GARNISH
4. REMOVE DOOR TRIM
(a) Using a screwdriver, remove the screw caps.
HINT:
Tape the screwdriver tip before use.
(b) Remove the 2 clips, 2 screws and 2 bolts.
(c) Insert a screwdriver between the door and door trim to pry
out.
(d) Pull the trim upward to remove it, then remove the power
window switch and disconnect the harness connector.
5. REMOVE THESE PARTS:
(a) Outside rear view mirror
Torque: 5.5 N´m (55 kgf´cm, 49 in.´lbf)
(b) Speaker
6. REMOVE DOOR INSIDE HANDLE
(a) Remove the screw and pull the handle forward.
Torque: 3.5 N´m (35 kgf´cm, 31 in.´lbf)
(b) Remove the link from the clamp.
(c) Remove the inside handle from the ends of the 2 links.
7. REMOVE SERVICE HOLE COVER
Remove the grommet, then remove the service hole cover.
Page 3624 of 4770
N20970
(a)
(b)(b)
N21004
Clip
H01729
: 7 rivets
: clip
: clip
: clip BO±14
± BODYFRONT DOOR
2372 Author: Date:
2001 CAMRY (RM819U)
8. REMOVE DOOR GLASS
(a) Open the door glass until the bolt appears in the service
hole.
(b) Remove the 2 bolts and the door glass.
HINT:
Pull the glass upward.
Torque: 8.0 N´m (80 kgf´cm, 71 in.´lbf)
9. REMOVE GLASS RUN
HINT:
Pull the glass run upward.
10. REMOVE FRONT AND REAR SIDE FRAMES
Remove the 2 bolts, 2 nuts and the side frames.
HINT:
Remove the side frames through the service hole.
11. REMOVE FRONT DOOR BELT MOULDING
Pry the rearward end of the front door belt moulding from the
door and remove the moulding.
12. REMOVE FRONT DOOR UPPER MOULDING
(a) Using a drill, cut the flange portion of the 7 rivets.
HINT:
At the time of assembly, please refer to the following item.
Use 7 new rivets.
(b) Pry out the 2 clips and remove the moulding.
