Page 193 of 4770

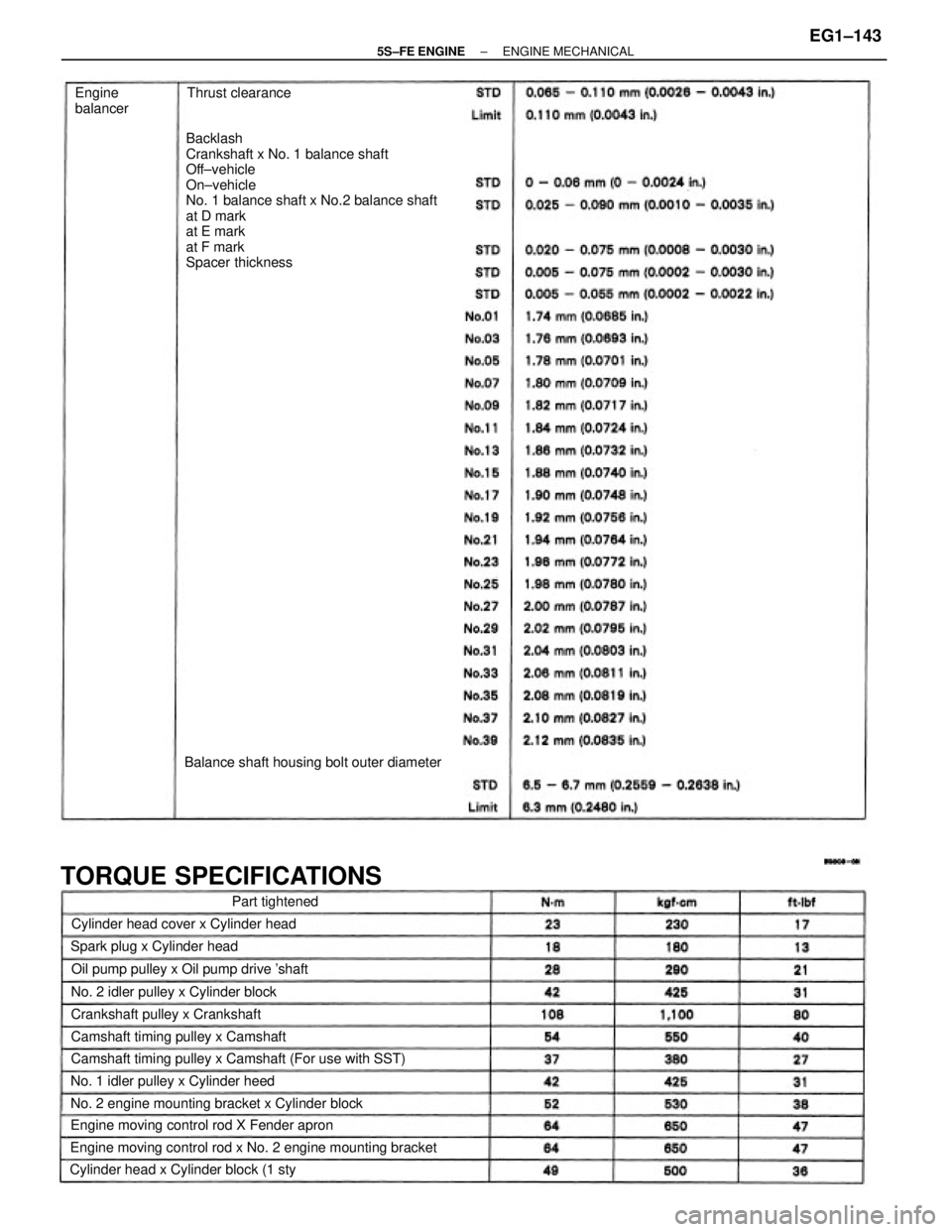

TOYOTA CAMRY 2000 Service Repair Manual Backlash Crankshaft x No. 1 balance shaft Off±vehicle On±vehicle No. 1 balance shaft x No.2 balance shaft at D mark at E mark at F mark Spacer thickness Engine moving control rod x No. 2 engine moun

Page 194 of 4770

TOYOTA CAMRY 2000 Service Repair Manual No. 1 balance shaft housing x No. 2 balance shaft housing (1st) No. 1 balance shaft housing x No. 2 balance shaft housing (2nd) FR engine mounting insulator x Front suspension member RR engine mountin

Page 195 of 4770

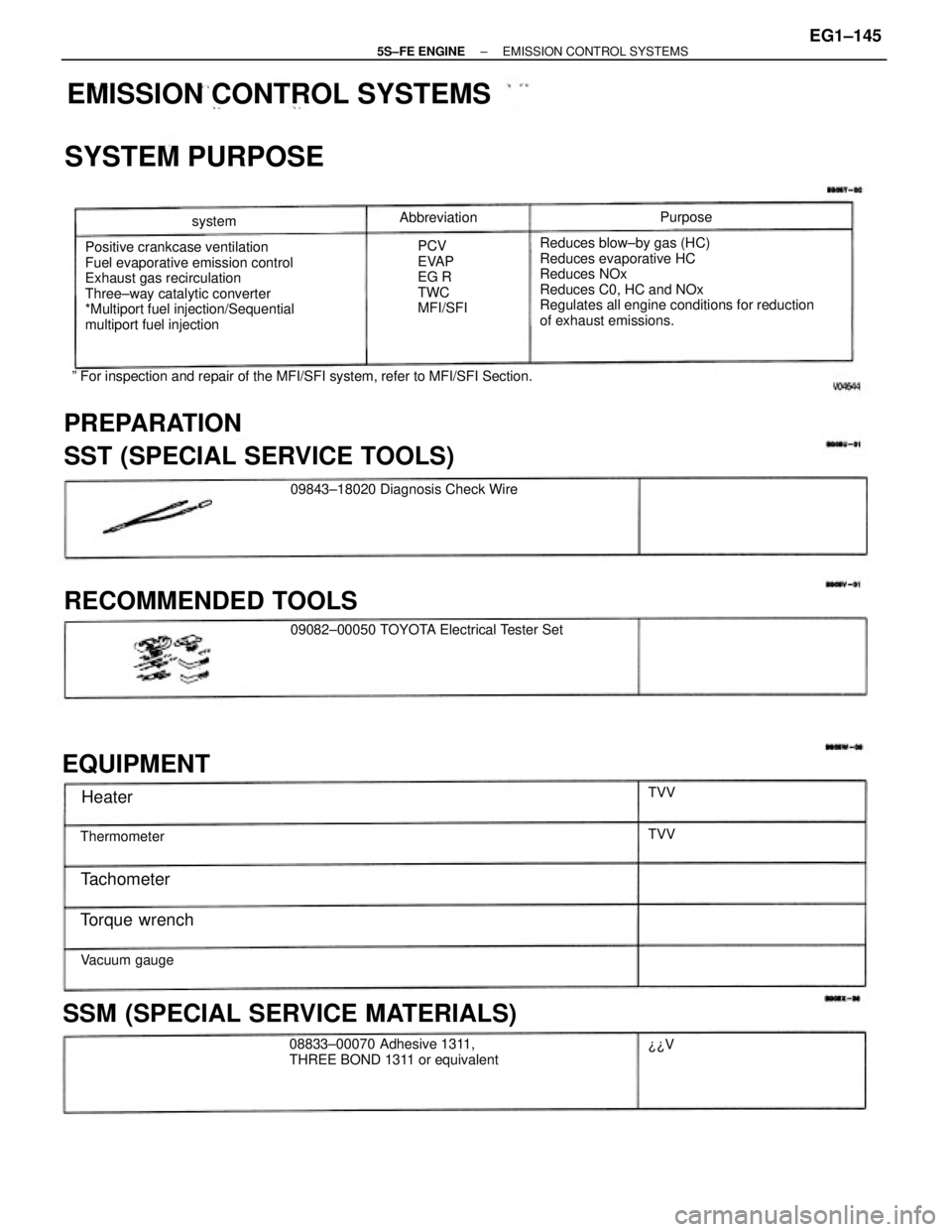

TOYOTA CAMRY 2000 Service Repair Manual Reduces blow±by gas (HC) Reduces evaporative HC Reduces NOx Reduces C0, HC and NOx Regulates all engine conditions for reduction of exhaust emissions. Positive crankcase ventilation Fuel evaporative

Page 196 of 4770

TOYOTA CAMRY 2000 Service Repair Manual LAYOUT AND SCHEMATIC DRAWING ± 5S±FE ENGINEEMISSION CONTROL SYSTEMSEG1±146

Page 197 of 4770

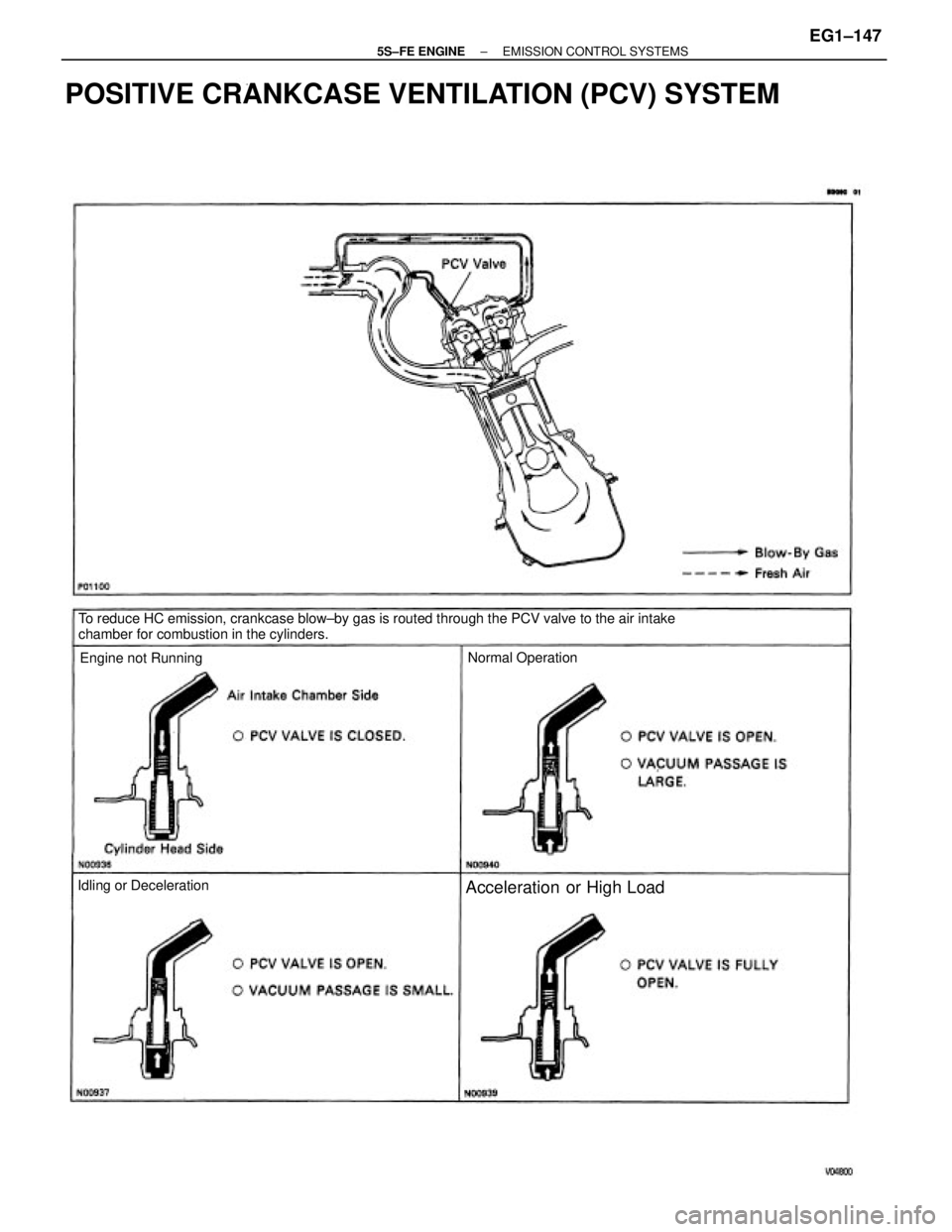

TOYOTA CAMRY 2000 Service Repair Manual To reduce HC emission, crankcase blow±by gas is routed through the PCV valve to the air intake chamber for combustion in the cylinders. POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM Acceleration or Hi

Page 198 of 4770

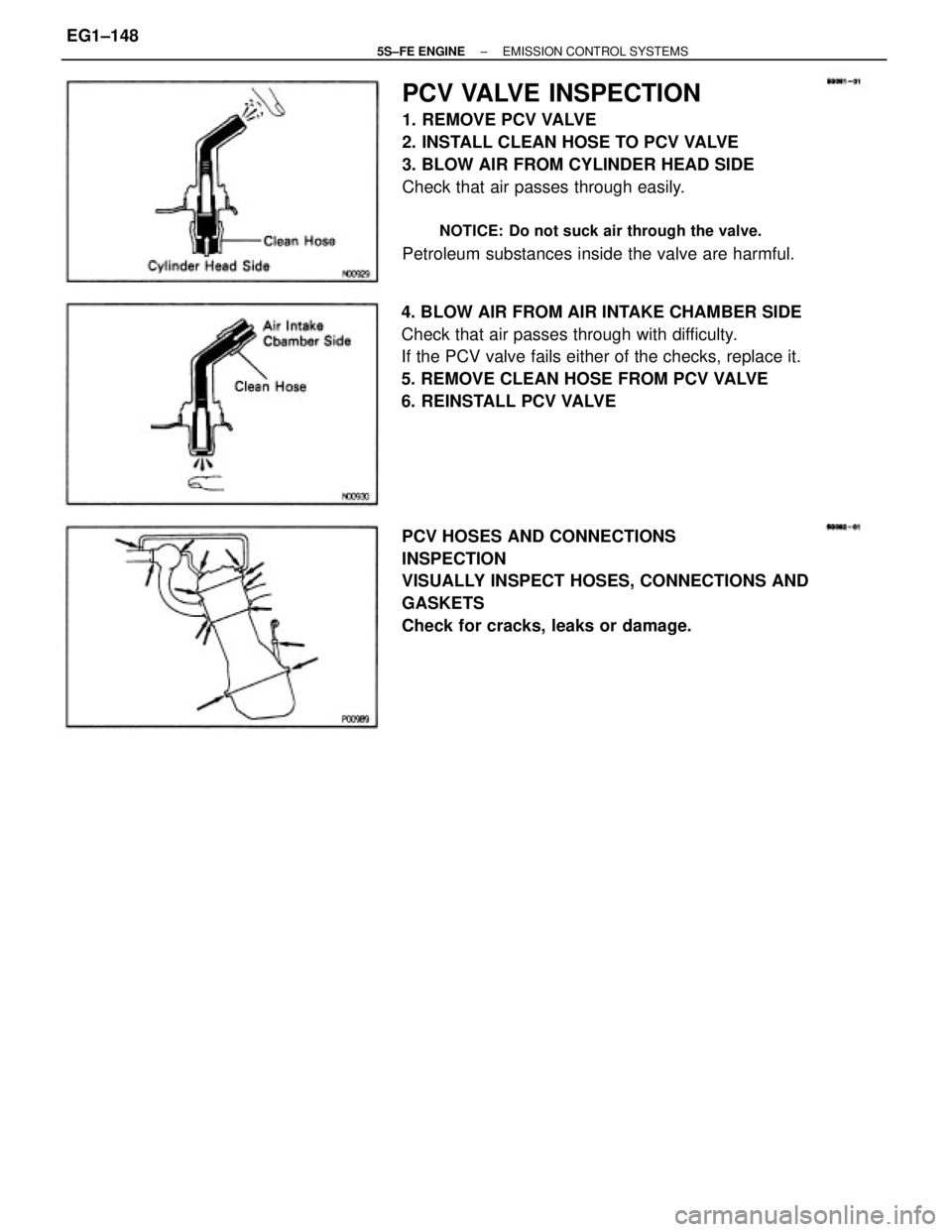

TOYOTA CAMRY 2000 Service Repair Manual PCV VALVE INSPECTION 1. REMOVE PCV VALVE 2. INSTALL CLEAN HOSE TO PCV VALVE 3. BLOW AIR FROM CYLINDER HEAD SIDE Check that air passes through easily. NOTICE: Do not suck air through the valve. Petrole

Page 199 of 4770

TOYOTA CAMRY 2000 Service Repair Manual To reduce NC emissions, evaporated fuel from the fuel tank is routed through the charcoal canister to the intake manifold for combustion in the cylinders. EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM NC

Page 200 of 4770

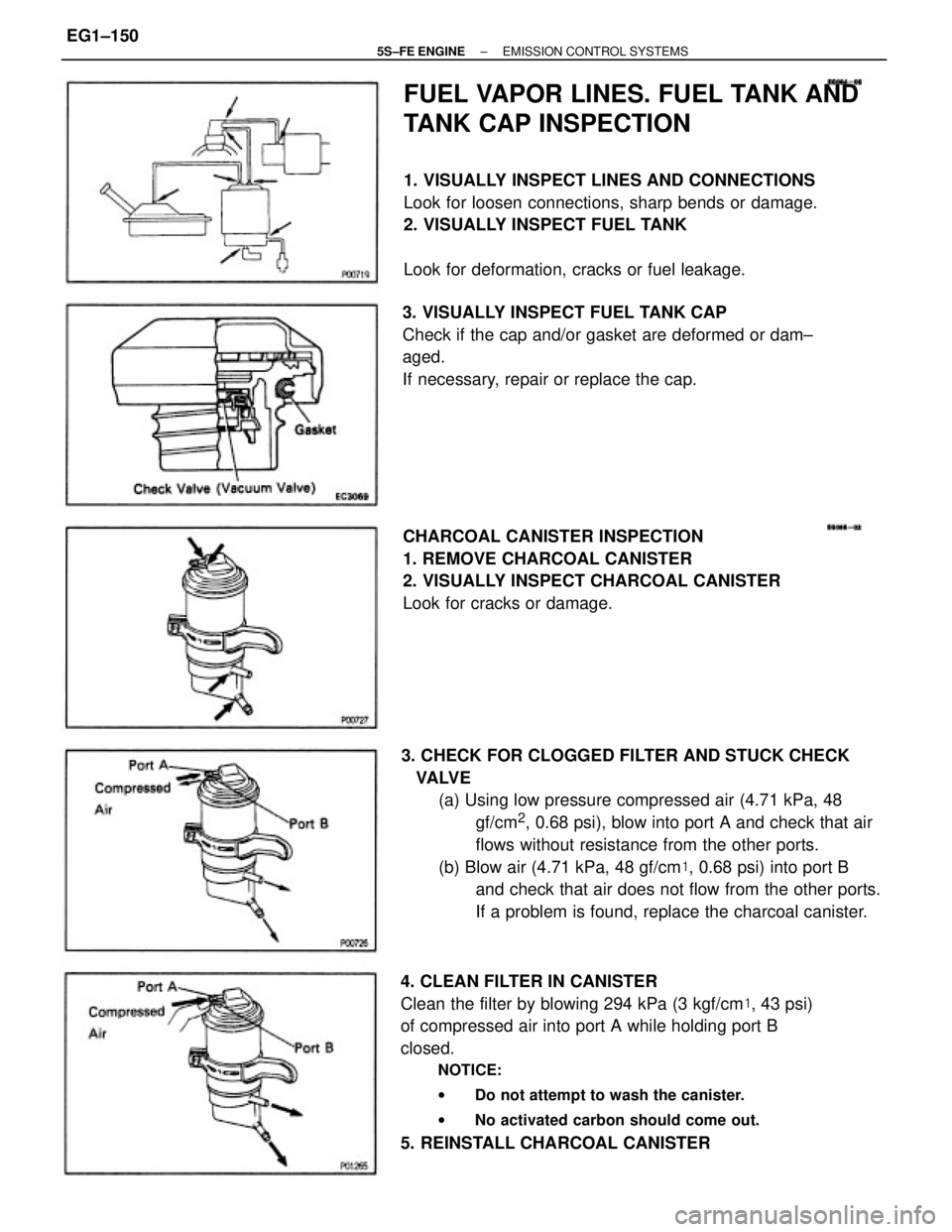

TOYOTA CAMRY 2000 Service Repair Manual 3. CHECK FOR CLOGGED FILTER AND STUCK CHECK VALVE (a) Using low pressure compressed air (4.71 kPa, 48 gf/cm 2, 0.68 psi), blow into port A and check that air flows without resistance from the other
